Hammond PMB5057KIT2 50-57mm Stainless Pole Mount Kit, 15 in Max
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 15" pole mount kit (50-57mm, large clamp) for poles 1.5in - 15in
- For 1554/55E, EE, F, G, J, JL, K; 1555FF, 1555JF; 1556C, 1556CA
- 2 brackets, 2 clamps and hardware in stainless steel
- M4-0.7 x 20mm or #8 x 1/2" screws depending on enclosure
- Also mounts to square or rectangular shapes
- Clamps tighten with a 5/16in (8mm) nut drive
- RoHS and REACH compliant; 0.84 lbs (0.38 kg)
The PMB5057KIT2 is the 15" pole mount kit in the 50-57mm size, supplied with large stainless steel clamps. It mounts compatible Hammond enclosures to poles from 1.5in up to 15in (3.8cm to 38.1cm) in diameter, for installers working with larger poles, masts and columns; it can also be mounted to square or rectangular shapes.
Compatible enclosures in the ordering table are the 1554/55E, 1554/55EE, 1554/55F, 1554/55G, 1554/55J, 1554/55JL and 1554/55K, the flanged 1555FF and 1555JF, and the 1556C and 1556CA. The 1554/55 and 1555F models use M4-0.7 x 20mm screws, while the 1556C and 1556CA use #8 x 1/2" screws; the 1556 series is not designed for outdoor use.

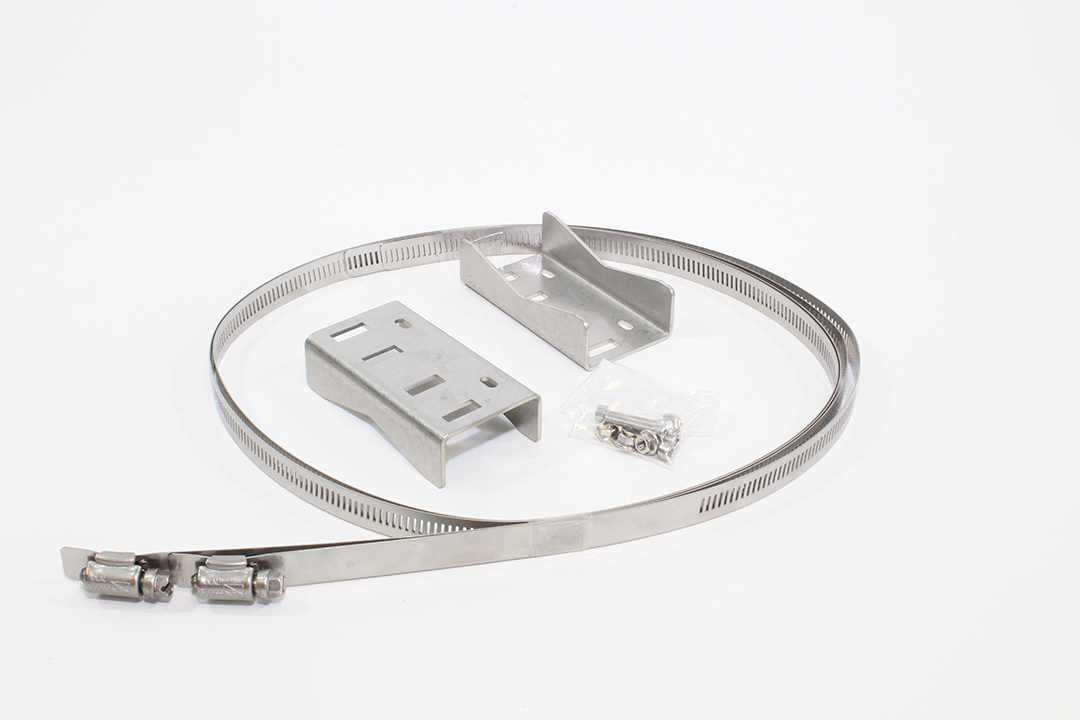

Each kit has 2 brackets, 2 clamps and hardware, and all parts are stainless steel. The part page lists 11 in x 5.5 in x 1 in (279 mm x 140 mm x 25 mm) with a shipping weight of 0.84 lbs (0.38 kg). The bracket drawing shows 88.00 mm [3.46 in] length and 43.38 mm [1.71 in] height.
Torque the hardware to 11.5-13.5 lbf-in (130-150 cN-m) and tighten the clamps with a 5/16in (8mm) nut drive. The PMB5057KIT2 ships in a bag and is RoHS and REACH compliant. Replacement large clamps are HCLAMP2.
Ideal For
- Pole mounting 1554/1555 enclosures on large poles
- Mounting enclosures on poles up to 15 in diameter
- Mounting to square or rectangular structures
Overview
| Type | Pole Mounting Kit |
| Series | PMB Series (Pole Mount Kit) |
| Description | 15" pole mount kit for series 1554, 1555, 1555F, 1590Z, and 1590ZGRP |
| Part Number | PMB5057KIT2 |
| Kit Contents | 2 stainless steel pole mounting brackets, 2 stainless steel strap clamps, stainless steel mounting hardware |
| Kit Designation | 50-57mm Pole Mount Kit Large Clamp |
| Short Description | 15" POLE MOUNT KIT |
| Compatible Enclosures | 1554/1555 non-flanged: 1554/55E, 1554/55EE, 1554/55F, 1554/55G, 1554/55J, 1554/55JL, 1554/55K; 1555F flanged: 1555FF, 1555JF; 1556: 1556C, 1556CA |
Dimensions
| Size L X W X H | 11 in x 5.5 in x 1 in (279 mm x 140 mm x 25 mm) |
| Hole Spacing (Drawing) | 50.00 mm [1.97 in]; 58.00 mm [2.28 in]; 69.85 mm [2.75 in] |
| Bracket Width (Drawing) | 46.99 mm [1.85 in] |
| Mounting Hole (Drawing) | 4.20 mm [.17 in] |
| Bracket Height (Drawing) | 43.38 mm [1.71 in] |
| Bracket Length (Drawing) | 88.00 mm [3.46 in] |
| Other Drawing Dimensions | 26.67 mm [1.05 in]; 23.39 mm [.92 in]; 15.62 mm [.62 in]; 11.43 mm [.45 in]; 8.64 mm [.34 in]; 7.92 mm [.31 in]; 6.35 mm [.25 in]; 1.80 mm [.07 in]; R3.18 mm [R.13 in] |
Identifiers
| UPC | 623980580463 |
| UNSPSC | 39121301 |
Rack Mounting
| Clamp Tightening | 5/16in (8mm) nut drive |
| Installation Tools | 3mm hex key and 7mm nut drive for M4 hardware; #2 Phillips head for #8 hardware (1556C, 1556CA) |
| Replacement Clamps | HCLAMP1 small stainless steel clamp [2pkg]; HCLAMP2 large stainless steel clamp [2pkg] |
| Pole Diameter Range | 1.5in - 15in (3.8cm to 38.1cm), large clamp |
| Enclosure Screw Type | M4-0.7 x 20mm (1554/55 and 1555F enclosures); #8 x 1/2" (1556C, 1556CA) |
| Maximum Pole Diameter | 15" (381 mm) |
| Minimum Pole Diameter | 1.5" (38 mm) |
| Replacement Screw Pack | SCPMB1-20 (M4-0.7 x 20mm SHCS [20pkg], M4-0.7 serrated flange lock nut [20pkg]) for M4 enclosures; SCPMB4-20 (#8 x 1/2" screws) for 1556C/CA |
| Other Mounting Surfaces | Can also be mounted to square or rectangular shapes |
| Recommended Hardware Torque | 11.5-13.5 lbf-in (130-150 cN-m) |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.84 lbs (0.38 kg) |
Construction & Finish
| Material | Stainless steel (all parts) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is PMB5057KIT2 different from PMB5057KIT1?▾
KIT2 is the 15" kit with large clamps for poles 1.5in - 15in; KIT1 is the 7" kit with small clamps.
Which enclosures are compatible?▾
1554/55E, 1554/55EE, 1554/55F, 1554/55G, 1554/55J, 1554/55JL, 1554/55K, 1555FF, 1555JF, 1556C and 1556CA.
What are the kit contents?▾
2 stainless steel brackets, 2 stainless steel strap clamps and stainless steel mounting hardware.
What torque is recommended?▾
11.5-13.5 lbf-in (130-150 cN-m).
What does it weigh?▾
The shipping weight is 0.84 lbs (0.38 kg).
