Hammond 1556BABK 80x80x60mm Black Desktop/Wall-Mount IoT Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 80 x 80 x 60 mm (3.15 x 3.15 x 2.36 in) black FRABS housing
- UL94 V-0 flame rating; designed to meet IP54
- Holds PC boards up to 71 x 71 mm; 55 mm inside height
- Desktop on 4 included rubber feet or two wall-mount options
- Lid, 4 Plastite cover screws and rubber feet included
- Optional 1556BPL aluminum inner panel and 1556FOOTBK-4 feet
- Pole mount kits PMB5057WKIT1 / PMB5057WKIT2 available

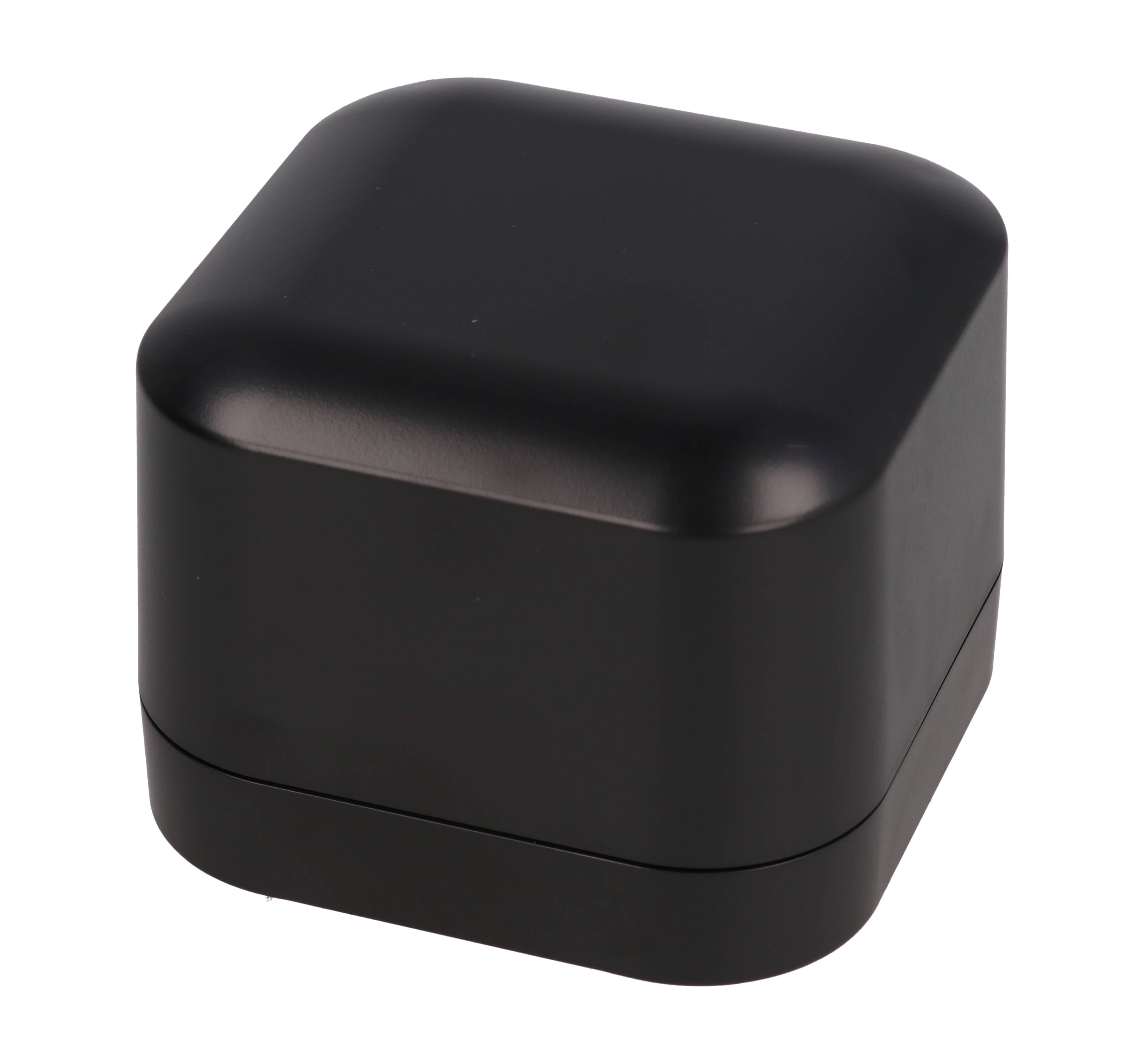

The 1556BABK is a compact black enclosure from the 1556 Modern General Purpose series, sized 3.15 in x 3.15 in x 2.36 in (80 mm x 80 mm x 60 mm). It is designed for printed circuit boards, IoT equipment and other small electronics, and suits designers who want a clean, rounded housing that can sit on a desk or mount to a wall.
It is molded from flame retardant ABS (FRABS) rated UL94 V-0, with a light satin texture, rounded corners and face. Lap joint construction protects against dust and splashing water, and the enclosure is designed to meet IP54. It is intended for indoor use only.
Inside dimensions from the drawing are 74.40 mm [2.93 in] long, 74.18 mm [2.92 in] wide and 55.00 mm [2.17 in] high, accepting PC boards up to 71 mm x 71 mm. Multiple mounting locations in the lid and base take #6 self-tapping screws, or the 1556BPL aluminum inner panel can be added (sold separately).

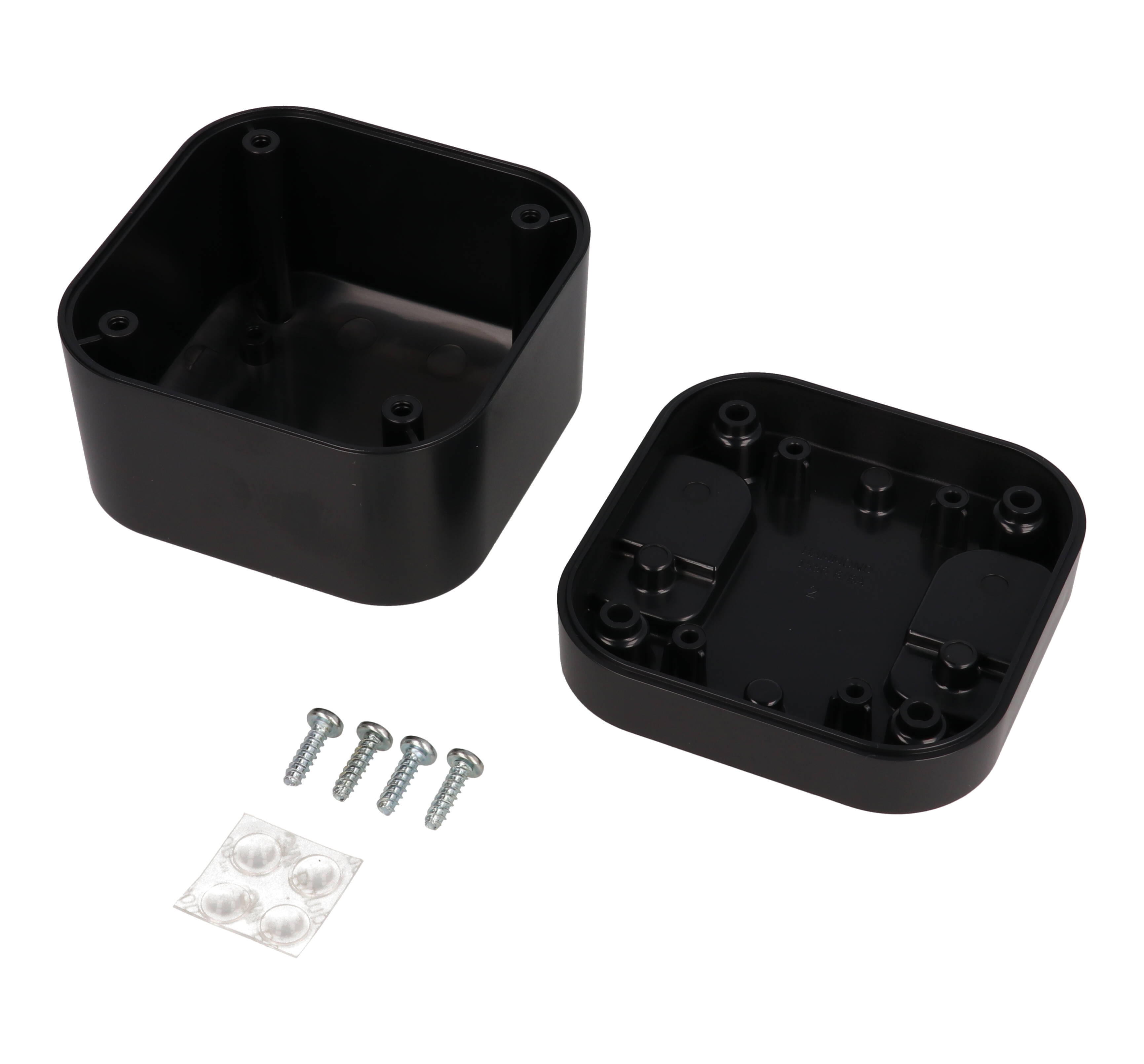

The purchased assembly includes the box, lid, four #6 x 1/2" high strength self-tapping Plastite cover screws and four rubber feet for tabletop use. For heavy duty flange or flush keyhole wall mounting, add the 1556FOOTBK-4 black wall mount foot kit; pole mounting uses PMB5057WKIT1 (7" max.) or PMB5057WKIT2 (15" max.). Recommended cover screw torque is 71-85 ozf-in (50-60 cN-m).
Ideal For
- IoT devices and gateways
- Small PCB projects
- Desktop electronics
- Indoor wall-mounted sensors
Mounting
| Rubber Feet | 4 included; replacement clear rubber feet 1421T6CL (Pkg 24) |

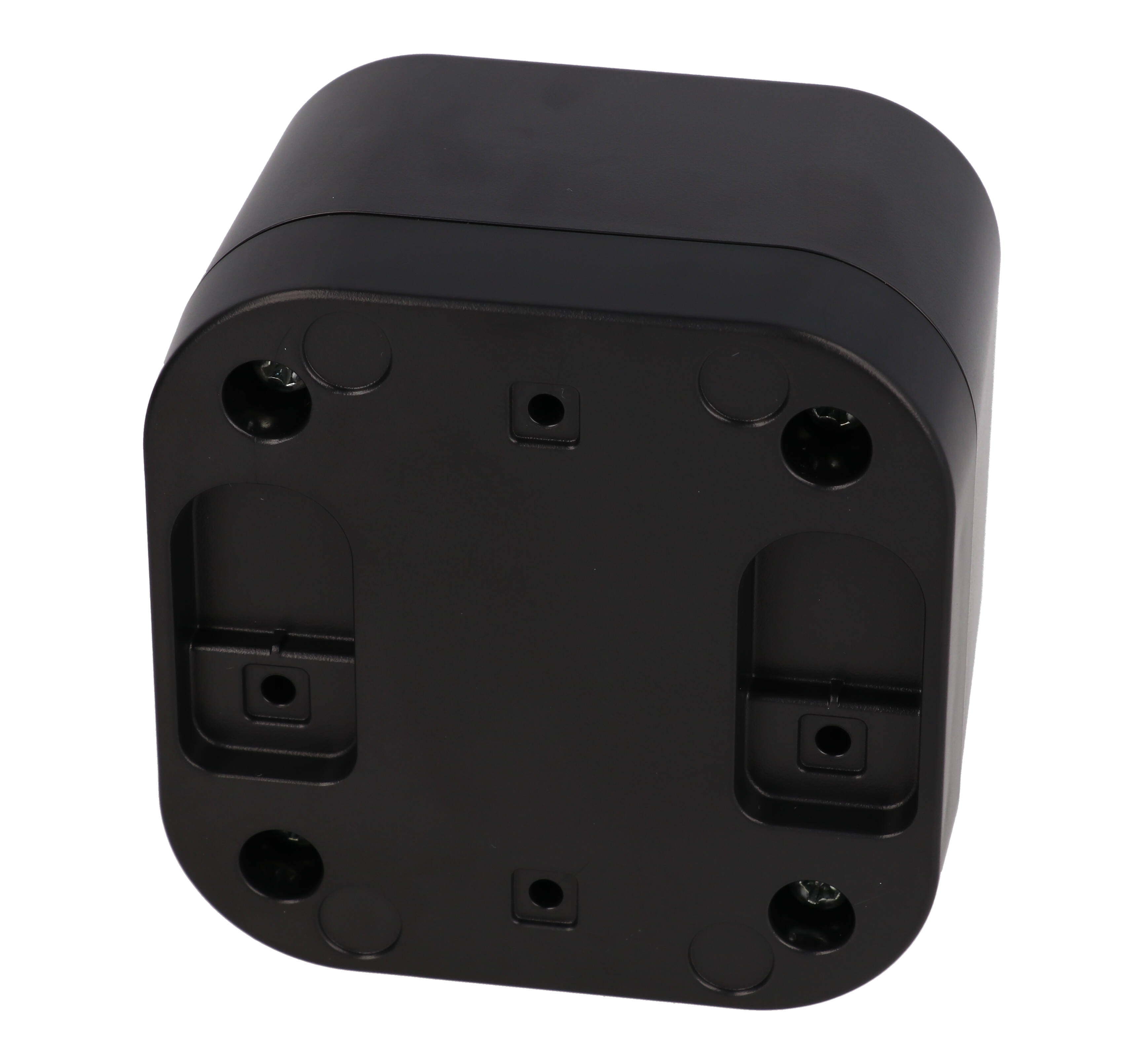

| Mounting Options | Desktop/tabletop on included rubber feet; heavy duty wall flange mount or flush wall mount (keyhole slots) using wall mount foot kit, sold separately |
| Pole Mount Kit (7" Max.) | PMB5057WKIT1 |
| Pole Mount Kit (15" Max.) | PMB5057WKIT2 |
| Replacement Wall Mount Foot Screws | SC556-50 (Stainless Steel, #8 X 3/8" Self Tapping, Pkg 50) |
| Pole Mount Screw Type / Replacement Pack | #8 x 1/2" / SCPMB4-20 |
| Wall Mount Foot Kit (Pkg 4, Sold Separately) | 1556FOOTBK-4 (Black), 1556FOOTGY-4 (Light Gray), 1556FOOTWH-4 (White); #8 X 3/8" self tapping screws included |
Overview
| Color | Black |
| Series | 1556 Series Modern General Purpose Enclosures (Dual Wall-Mount or Desktop) |
| CAD Models | Solid models available in .stp or .x_t |
| Description | FRABS DESKTOP/WALL MOUNT/IOT INDOOR ENCLOSURE |
| Short Description | FRABS WALL MOUNT/ IOT ENCL |
| Enclosure Size Code | 1556BA |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Colour Variants In This Size | 1556BABK (Black), 1556BAGY (Light Gray), 1556BAWH (White) |
Dimensions
| Width | 3.15 in (80 mm) |
| Length | 3.15 in (80 mm) |
| Inside Width | 74.18 mm [2.92 in] |
| Total Height | 2.36 in (60 mm) |
| Inside Height | 55.00 mm [2.17 in] |
| Inside Length | 74.40 mm [2.93 in] |
| Wall Thickness | 2.50 mm [.10 in] |
| Size L X W X H (Part Page) | 3.15 in x 3.15 in x 2.36 in (80 mm x 80 mm x 60 mm) |
Identifiers
| UPC | 623980666990 |
| UNSPSC | 39121301 |
| Part Number | 1556BABK |
Internal Mounting
| PC Board Mounting | Multiple mounting locations inside the lid and base; accept #6 self-tapping screws |
| Max. P.C. Board Width | 71 mm |
| Max. P.C. Board Length | 71 mm |
| Replacement PC Board Screws | SC526-50 (Steel P.C. Board Screw, #6 X 1/4" Self Tapping, Pkg 50) |
| Recommended PCB Screw Torque | 42-56 ozf-in (30-40 cN-m) |
| Aluminum Inner Panel (Sold Separately) | 1556BPL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and 4 rubber feet |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Finish | Light satin texture; rounded corners and face |
| Material | Flame retardant ABS (FRABS) plastic |
| Lid Screws | 4 included #6 x 1/2" high strength self-tapping Plastite screws |
| Construction | Lap joint construction for protection against dust and splashing water |
| Replacement Cover Screws | SC527-50 (Steel Cover Screws, #6 X 1/2" Self Tapping, Pkg 50) |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP54 (designed to meet) |
| Flame Rating | UL94 V-0 |
| Intended Use | Indoor use; not designed for outdoor use |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size PC board fits the 1556BABK?▾
The maximum PC board size is 71 mm long by 71 mm wide.
Can the 1556BABK be wall mounted?▾
Yes. It can be used as a heavy duty wall flange mount or flush wall mount (keyhole slots) with the wall mount foot kit sold separately; the black kit is 1556FOOTBK-4.
Is the 1556BABK suitable for outdoor use?▾
No. The 1556 series is for indoor use and is not designed for outdoor use. It is designed to meet IP54.
What comes with the enclosure?▾
The box, lid, 4 cover screws and 4 rubber feet.
How does it differ from the 1556BBK?▾
Both are 80 x 80 mm black enclosures; the 1556BABK is 60 mm tall with a 55 mm inside height, while the 1556BBK is 45 mm tall with a 40 mm inside height.
