Hammond 1556HBK 200x200x45mm Black Low-Profile ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black flame retardant ABS, low-profile 200 x 200 x 45 mm (7.87 x 7.87 x 1.77 in)
- Inside 193.21 x 193.21 x 39.00 mm; P.C. boards up to 180 x 180 mm
- Designed to meet IP54; UL94 V-0 rated material; indoor use
- Desktop on included rubber feet or wall mount with 1556FOOTBK-4
- Pole mount kits PMB110127KIT3 (7") and PMB110127KIT4 (15") listed
- Includes box, lid, 4 cover screws and 4 rubber feet
- Compatible 1556HPL aluminum inner panel, sold separately

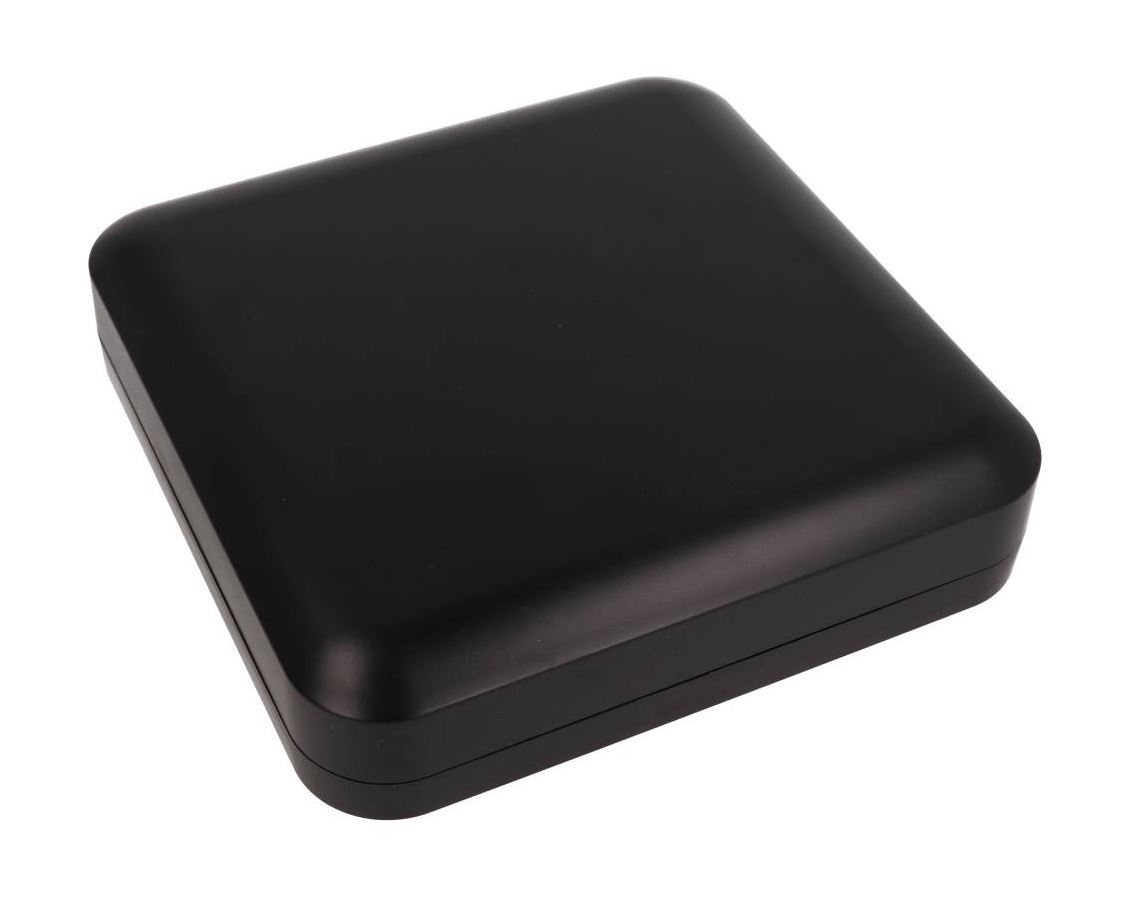

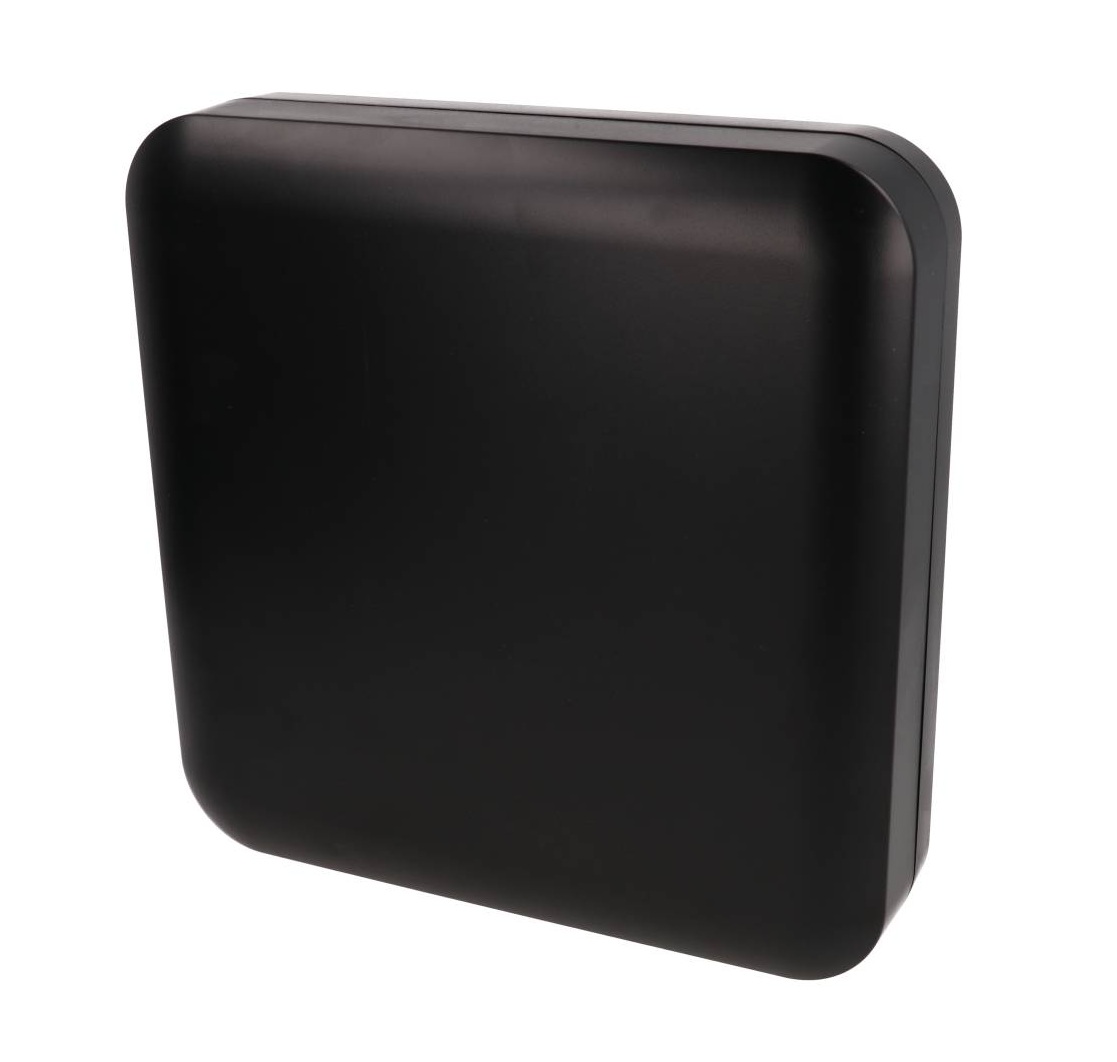

The 1556HBK is the low-profile, 45 mm version of the 200 x 200 mm 1556 enclosure, molded in black flame retardant ABS. It is designed for printed circuit boards, IoT equipment and other small electronics that need a large, flat footprint for indoor installation.
Outside dimensions are 7.87 x 7.87 x 1.77 in (200 x 200 x 45 mm). The drawing shows inside length and width of 193.21 mm [7.61 in] and an inside height of 39.00 mm [1.54 in]. Boards up to 180 x 180 mm are supported and can fasten to bosses in the lid or base with #6 self-tapping screws, or to the optional 1556HPL aluminum inner panel.
Lap joint construction protects against dust and splashing water and the enclosure is designed to meet IP54. The ABS carries a UL94 V-0 flammability rating, has a light satin texture, and is RoHS and REACH compliant. The series is for indoor use and is not designed for outdoor installation.

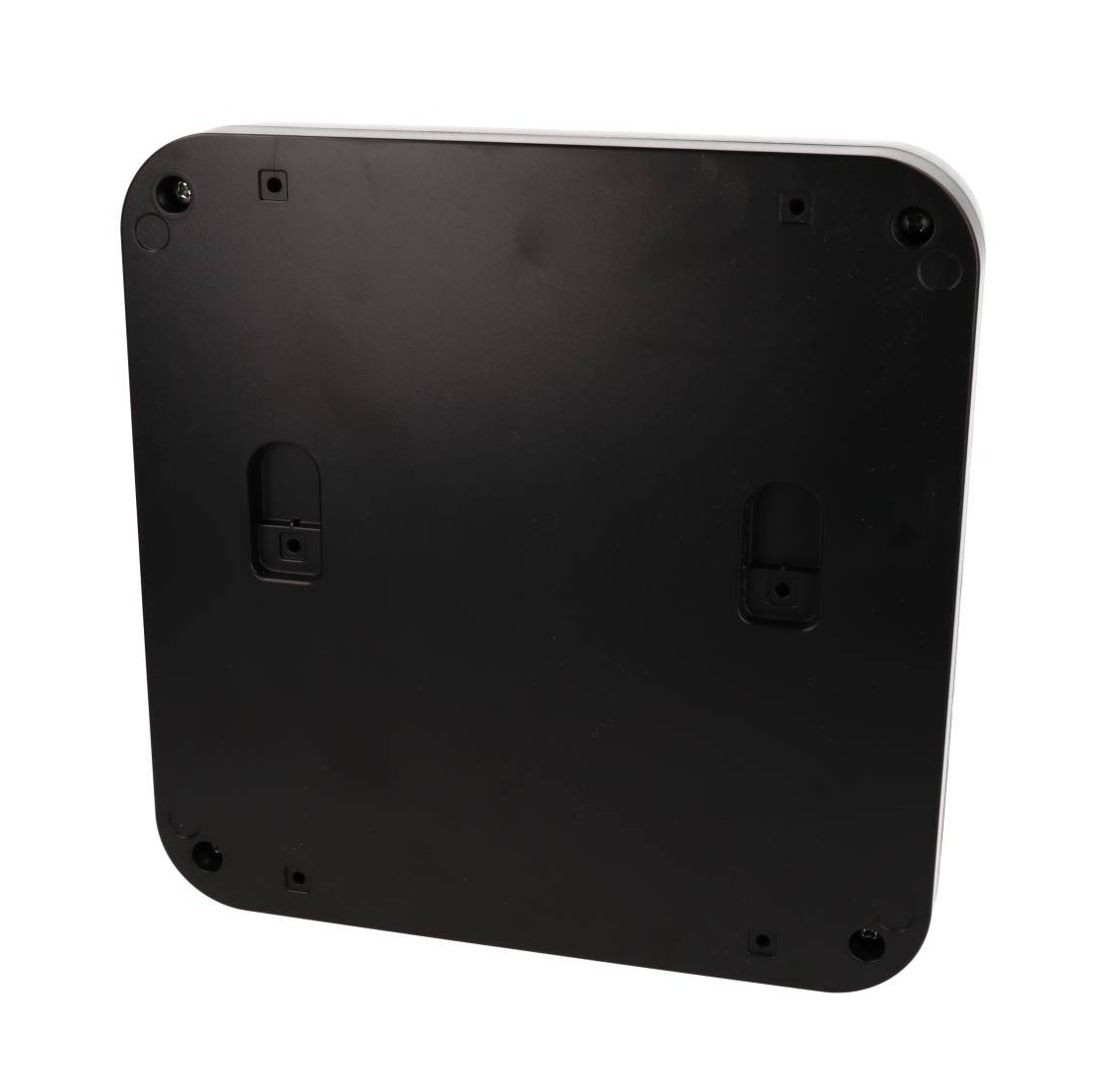

The 1556HBK ships shrink wrapped with the box, lid, 4 cover screws and 4 rubber feet for desktop use. For wall installation, add the black 1556FOOTBK-4 foot kit to create a heavy duty flange mount or a flush keyhole mount; for poles, PMB110127KIT3 (7" max.) and PMB110127KIT4 (15" max.) are listed for the 1556H profile.
Ideal For
- Low-profile PCB housings
- IoT equipment enclosures
- Wall-mounted indoor electronics
- Desktop electronic devices
Mounting
| Mounting Options | Desktop/tabletop (rubber feet included); heavy duty wall flange mount; flush wall mount (mounting feet as keyhole slots) |
| Pole Mount Screw Type | #8 x 3/8" |
| Pole Mount Kit (7" Max.) | PMB110127KIT3 |
| Pole Mount Kit (15" Max.) | PMB110127KIT4 |
| Pole Mount Replacement Screw Pack | SCPMB5-20 |
| Wall Mount Foot Kits (Pack Of 4, Sold Separately) | 1556FOOTBK-4 (Black), 1556FOOTGY-4 (Light Gray), 1556FOOTWH-4 (White); include #8 x 3/8" self-tapping screws (Pkg 4) |
Overview
| Color | Black |
| Series | 1556 Series Modern General Purpose Enclosures (Dual Wall-Mount or Desktop) |
| Description | FRABS Desktop/Wall Mount/IoT Indoor Enclosure |
| Part Number | 1556HBK |
| Short Description | FRABS Wall Mount/ IoT Encl |
| Enclosure Size Code | 1556H |
Dimensions
| Width | 7.87 in (200 mm) |
| Length | 7.87 in (200 mm) |
| Inside Width | 193.21 mm [7.61 in] |
| Total Height | 1.77 in (45 mm) |
| Inside Height | 39.00 mm [1.54 in] |
| Inside Length | 193.21 mm [7.61 in] |
| Size (L X W X H) | 7.87 in x 7.87 in x 1.77 in (200 mm x 200 mm x 45 mm) |
| Max. P.C. Board Width | 180 mm |
| Max. P.C. Board Length | 180 mm |
Accessories
| Replacement Rubber Feet | 1421T6CL (clear, Pkg 24) |
| Replacement Cover Screws | SC527-50 steel, #6 x 1/2" self tapping (Pkg 50) |
| Color Variants (Same Size) | 1556HBK (Black), 1556HGY (Light Gray), 1556HWH (White) |
| Replacement P.C. Board Screws | SC526-50 steel, #6 x 1/4" self tapping (Pkg 50) |
| Replacement Wall Mount Foot Screws | SC556-50 stainless steel, #8 x 3/8" self tapping (Pkg 50) |
| Aluminum Inner Panel (Sold Separately) | 1556HPL |
Identifiers
| UPC | 623980667324 |
| UNSPSC | 39121301 |
| Drawing Revision | REV: 20.01.2023 |
Customization
| Solid Models | .stp or .x_t |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
Included Items

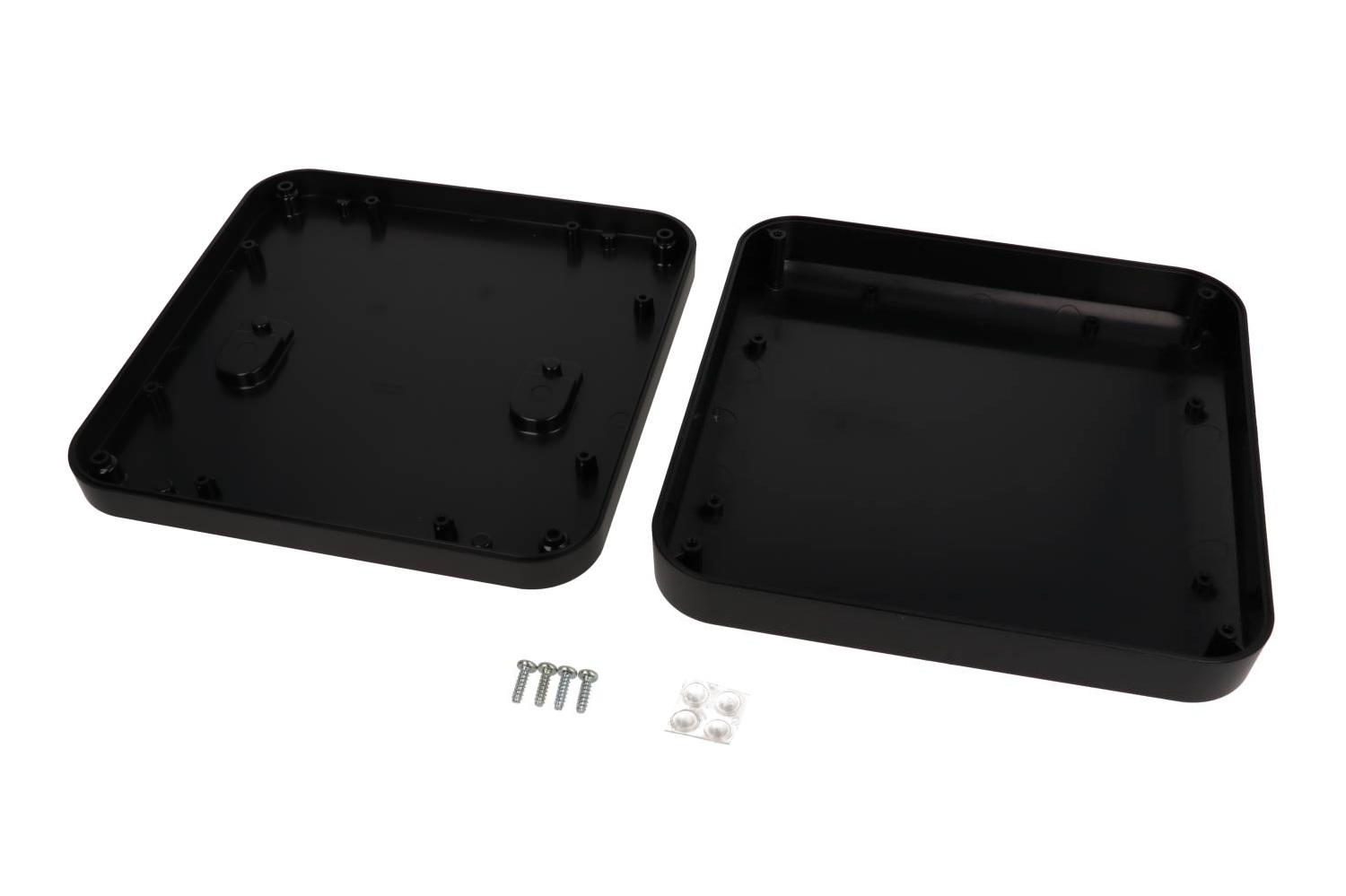

| Included | Box, lid, 4 cover screws and 4 rubber feet |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.67 lbs (0.30 kg) |
Construction & Finish
| Styling | Rounded corners and face |
| Texture | Light satin texture |
| Material | ABS Plastic (flame retardant ABS, FRABS) |
| Lid Fastening | #6 x 1/2" self-tapping Plastite screws (high strength) |
| PC Board Mounting | Multiple mounting locations inside the lid and base; bosses accept #6 self-tapping screws |
| Joint Construction | Lap joint construction (protection against access of dust and splashing water) |
| Outer Wall Mount Option | Accepts #8 self-tapping screw |
| Recommended PCB Screw Torque | 42-56 ozf-in (30-40 cN-m) |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP54 (designed to meet) |
| Environment | Indoor use; the 1556 series is not designed for outdoor use |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How tall is the 1556HBK?▾
It has a total height of 1.77 in (45 mm) and an inside height of 39.00 mm [1.54 in] per the drawing. A 70 mm tall version is available as the 1556HABK.
What board size fits?▾
The maximum P.C. board size is 180 x 180 mm.
What hardware is included?▾
The box, lid, 4 cover screws and 4 rubber feet. The lid is secured with #6 x 1/2" self-tapping Plastite screws.
How do I wall mount the 1556HBK?▾
Use the 1556FOOTBK-4 wall mount foot kit, sold separately, for either a heavy duty wall flange mount or a flush wall mount using the feet as keyhole slots.
Are there chemicals I should keep away from this enclosure?▾
Yes. The manufacturer's chemical resistance statement advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils. Use only cleaners listed as plastic safe.
