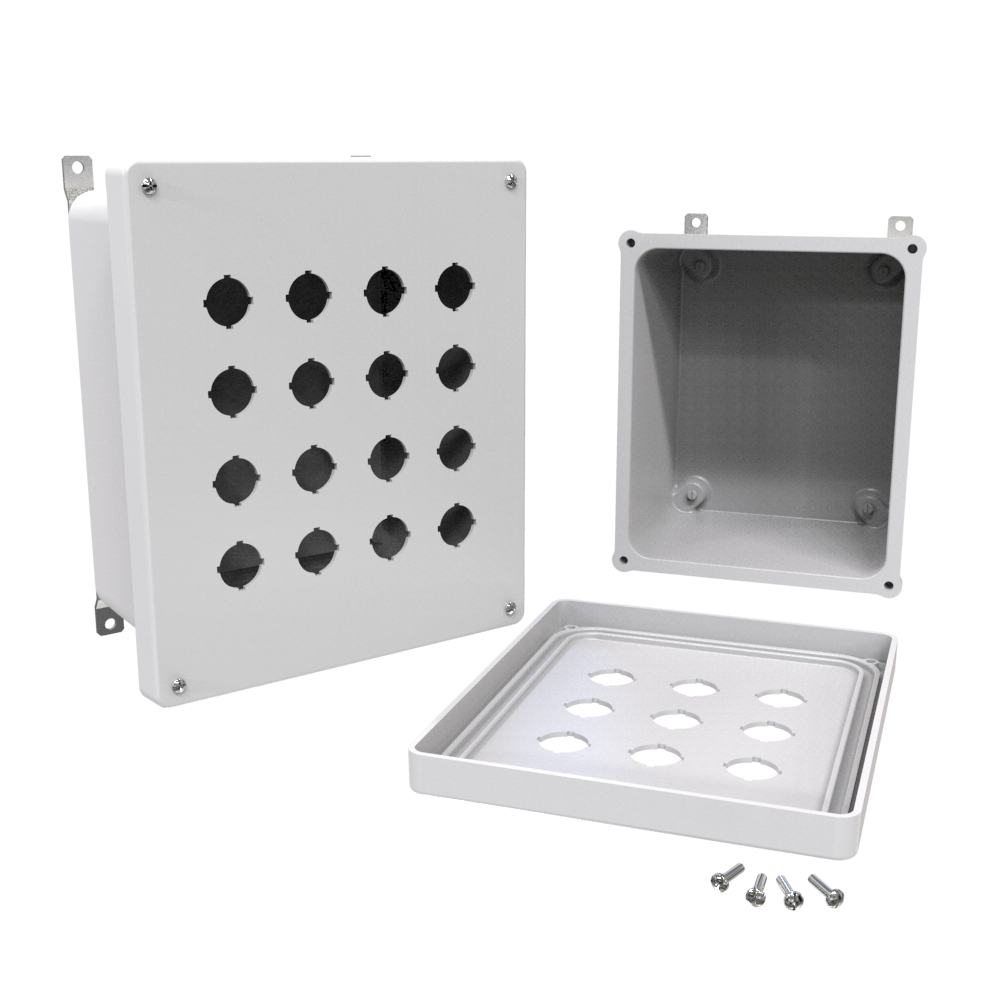

Type 4, 4X Polyester Pushbutton Enclosure · PJPBLC Series

Brand: Hammond Manufacturing · 27 part numbers

■Designed for use as pushbutton enclosures for 30.5mm devices.
■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
■Ideal in applications with high temperatures or highly corrosive environments.
■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
■CSA Type 1, 2, 3, 4, 4X, 12 and 13
■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66

from $5.35

27 of 27 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your PJPBLC Series part number

Filter 20 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

20 of 20 part numbers · 20 priced online

PJ1084HP9

Non Met Pushbutton Screwcover

$137.41Backorder

Buy now

PJ1084P9

Non Met Pushbutton

$114.84Backorder

Buy now

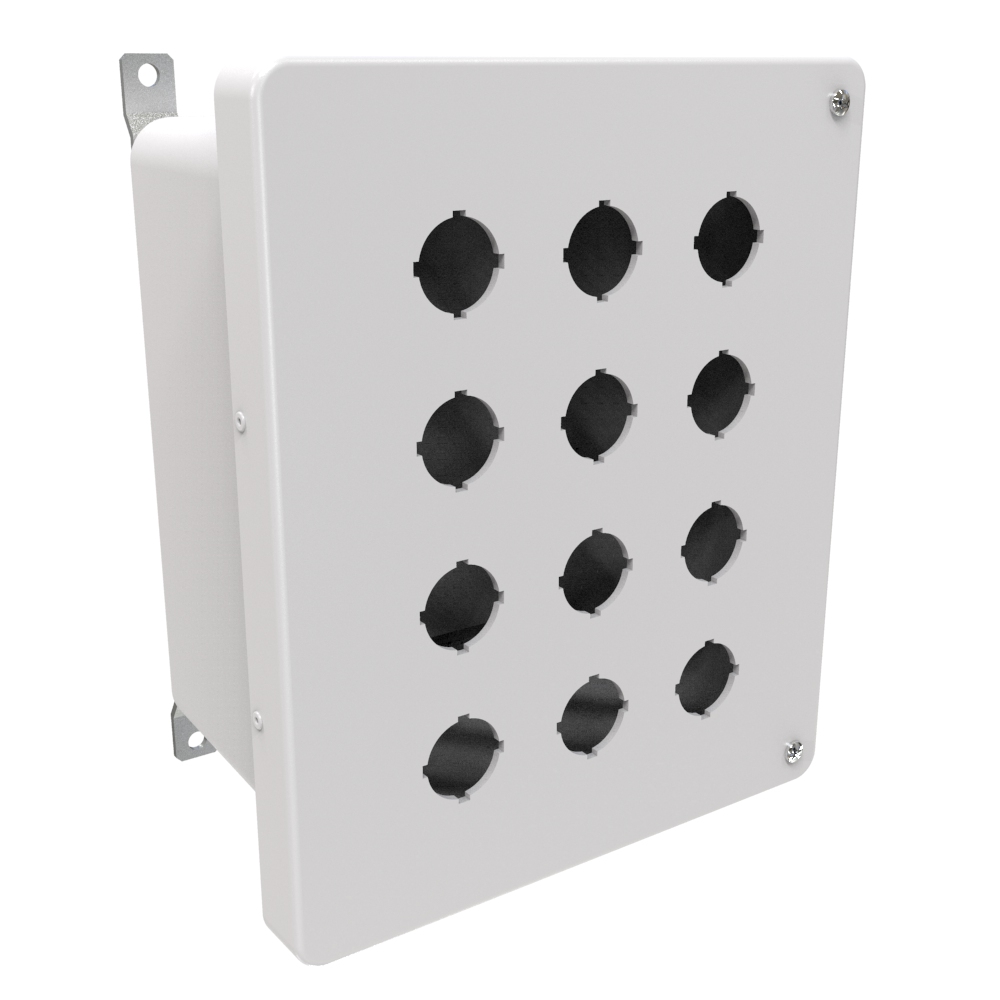

PJ1086HP12

Non Met Hinged Screwcover

$149.37Backorder

Buy now

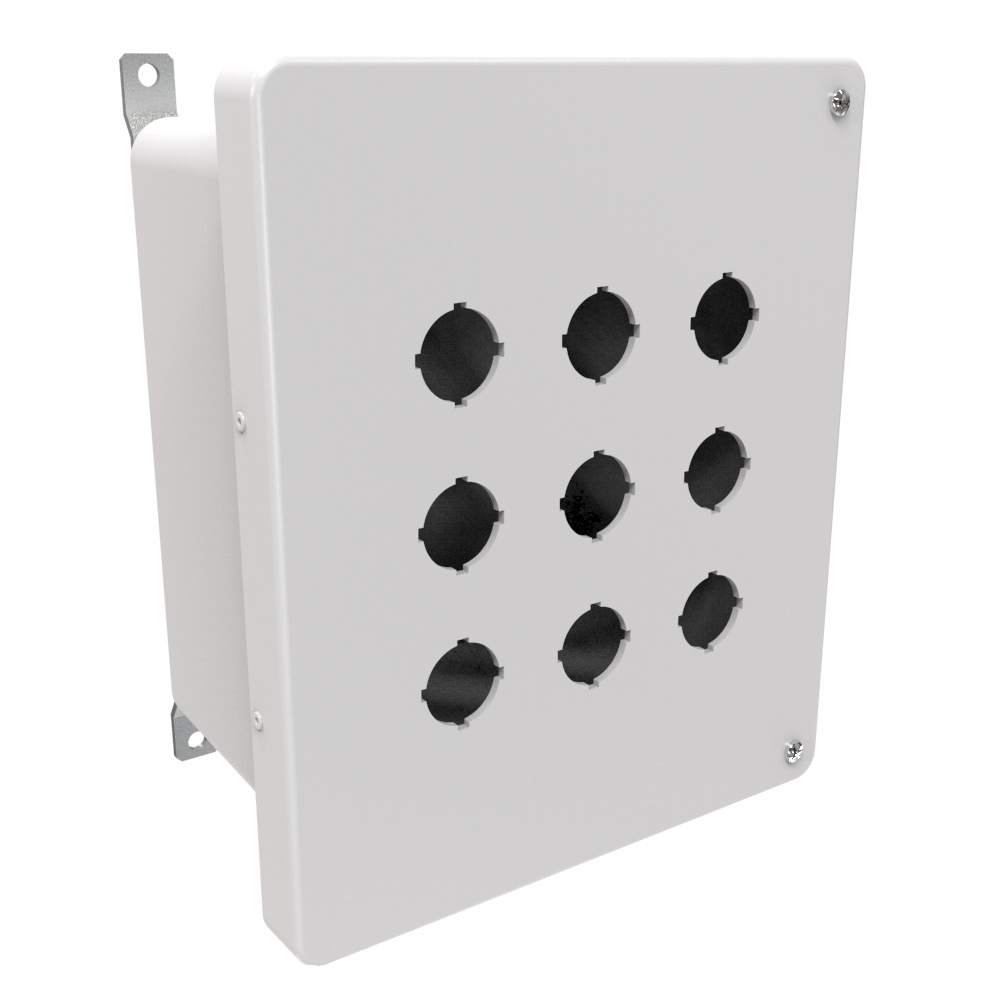

PJ1086HP9

Non Met Hinged Screwcover

$142.52Backorder

Buy now

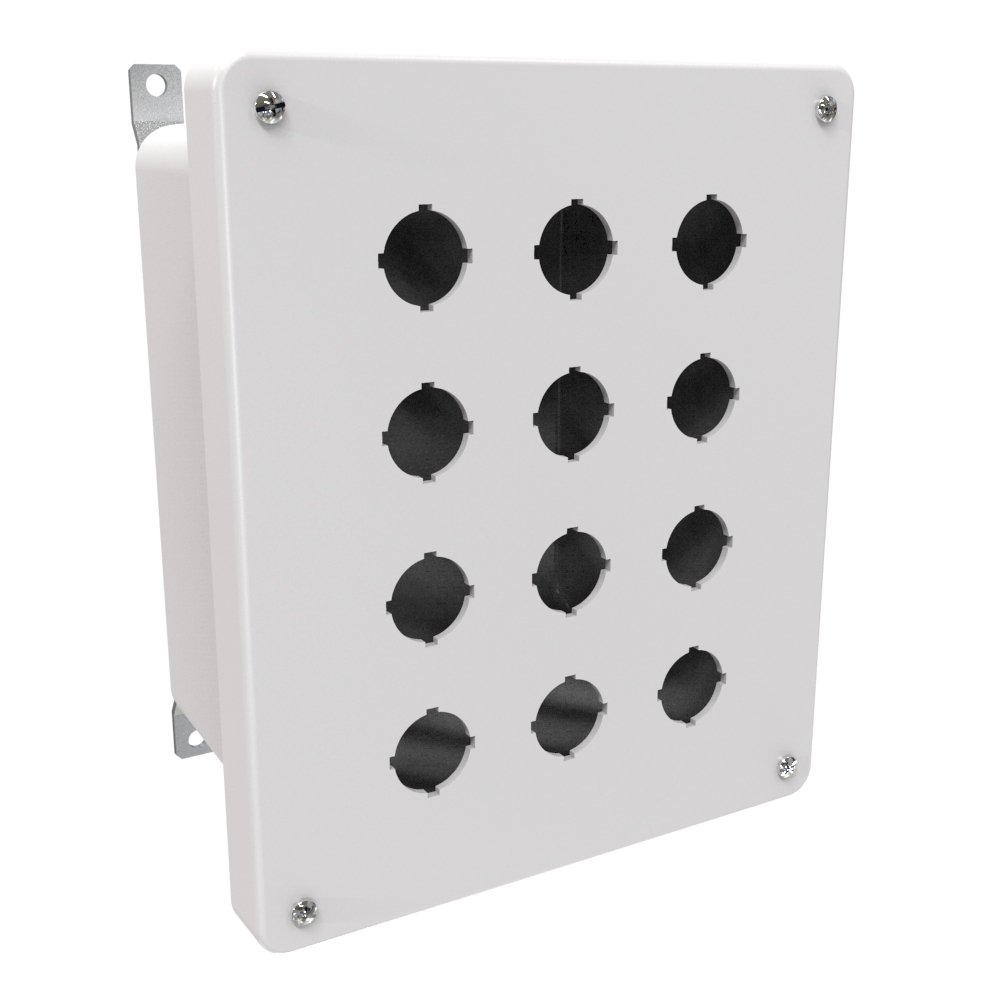

PJ1086P12

Non Met Pushbutton Screwcover

$131.81Backorder

Buy now

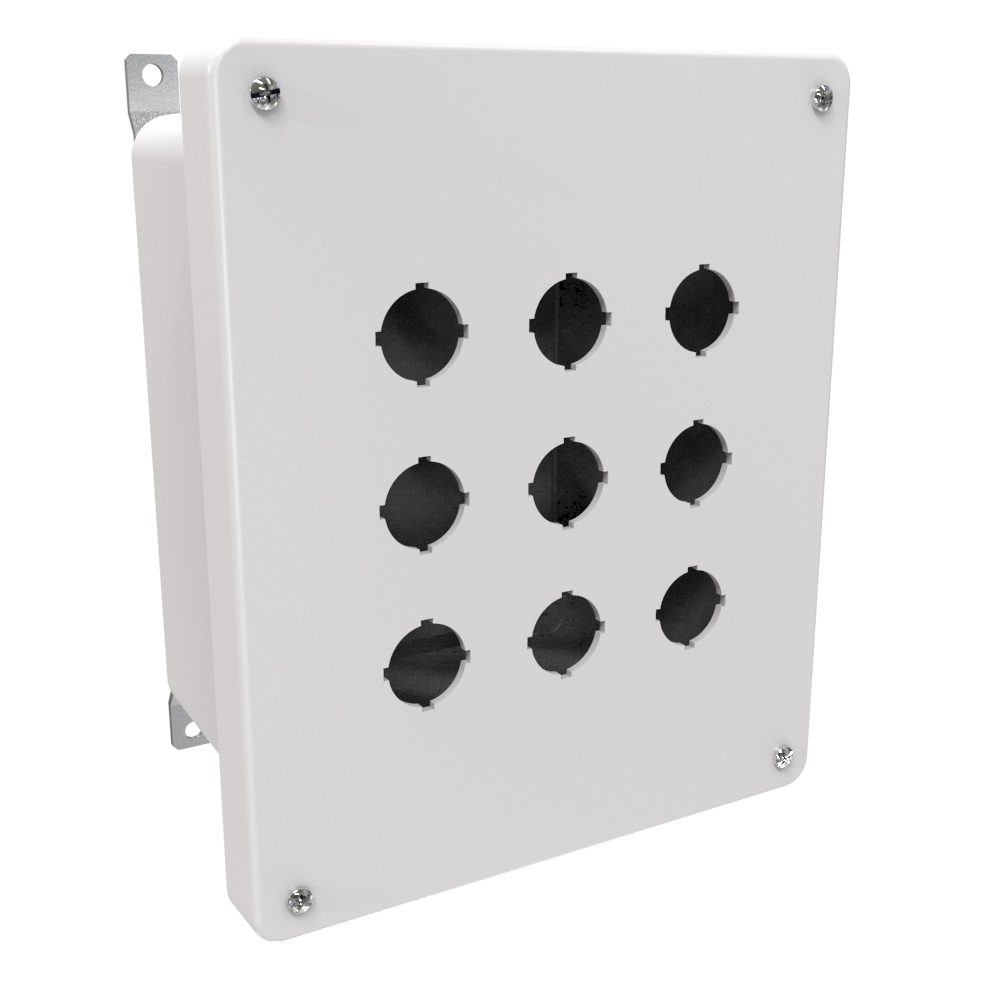

PJ1086P9

Non Met Pushbutton Screwcover

$119.86Backorder

Buy now

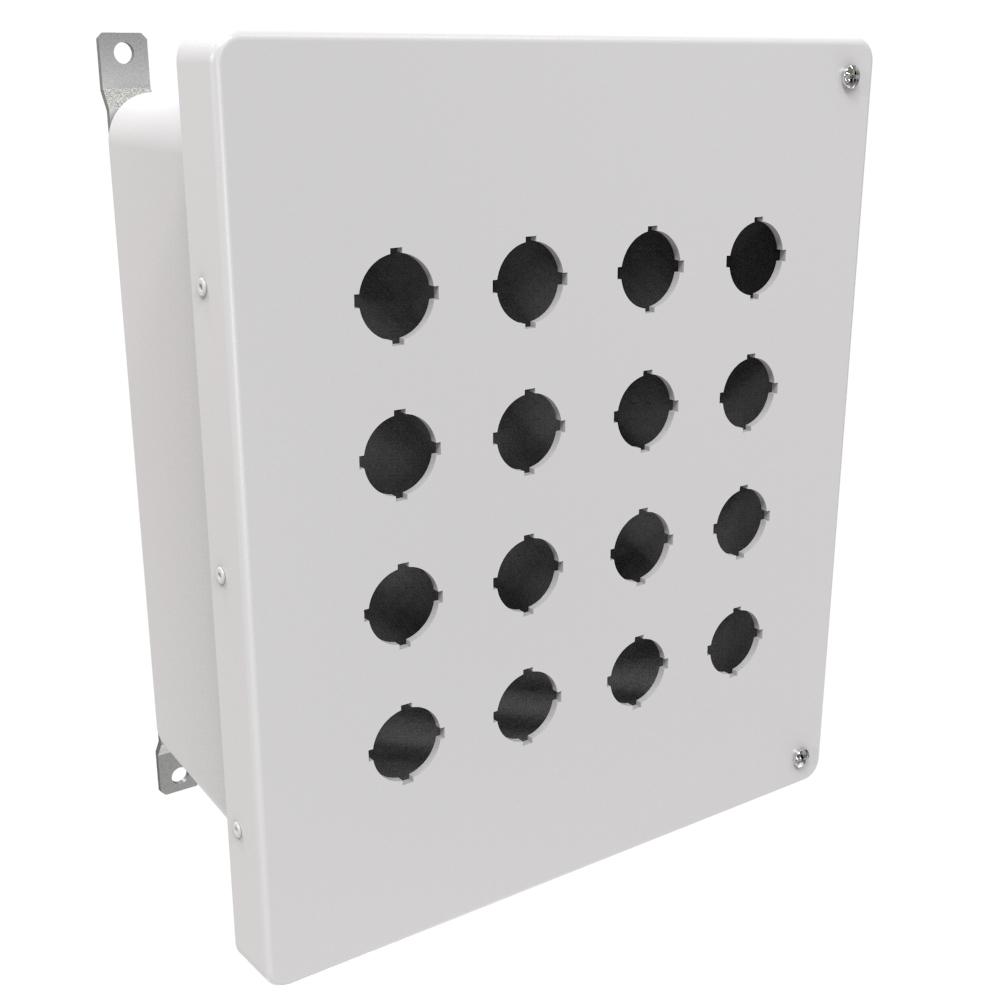

PJ12106HP16

Non Met Hinged Screwcover

$161.78Backorder

Buy now

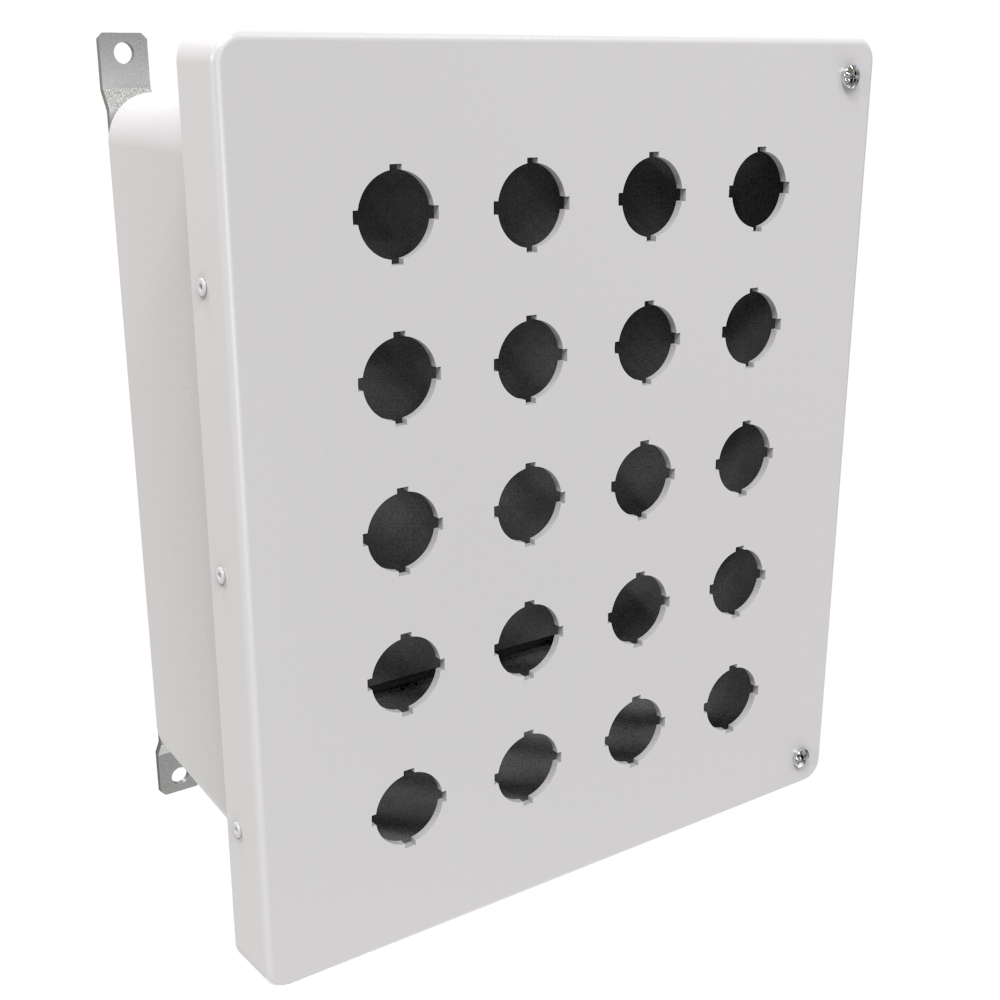

PJ12106HP20

Non Met Hinged Screwcover

$168.59Backorder

Buy now

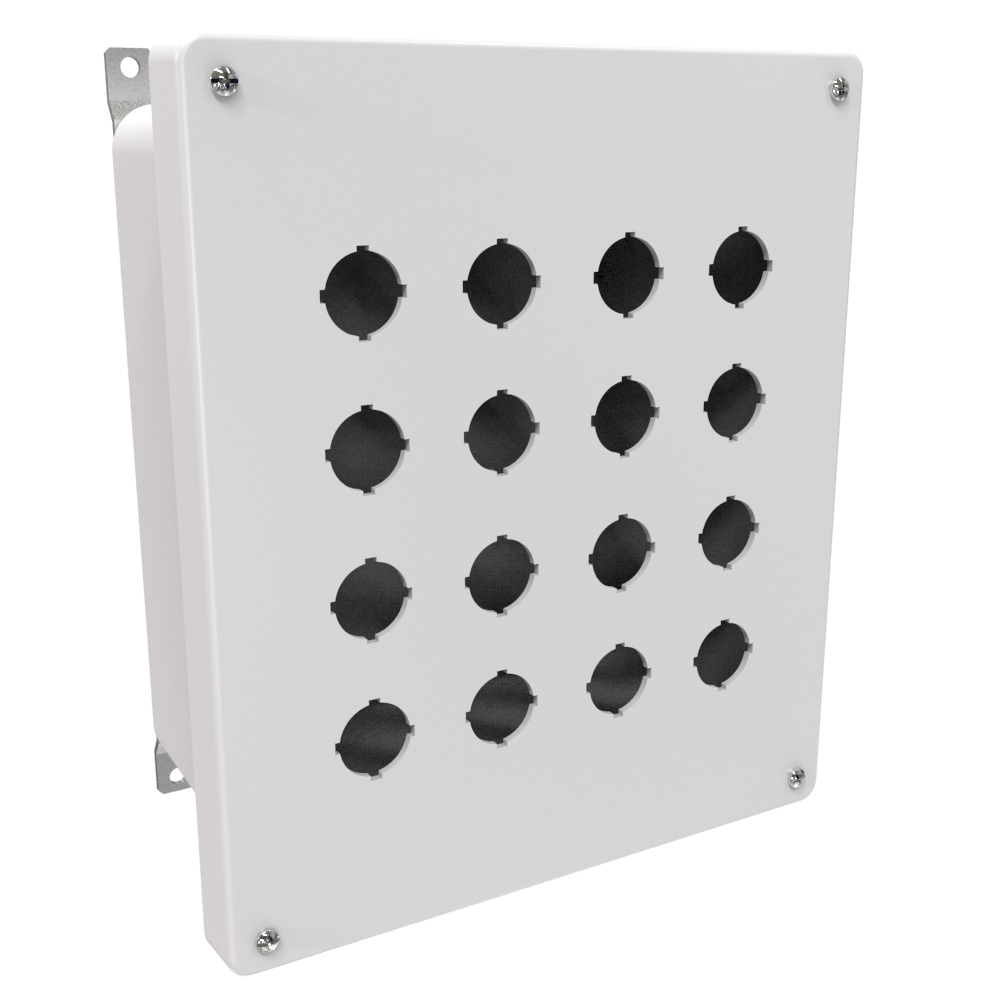

PJ12106P16

Non Met Pushbutton Screwcover

$153.85Backorder

Buy now

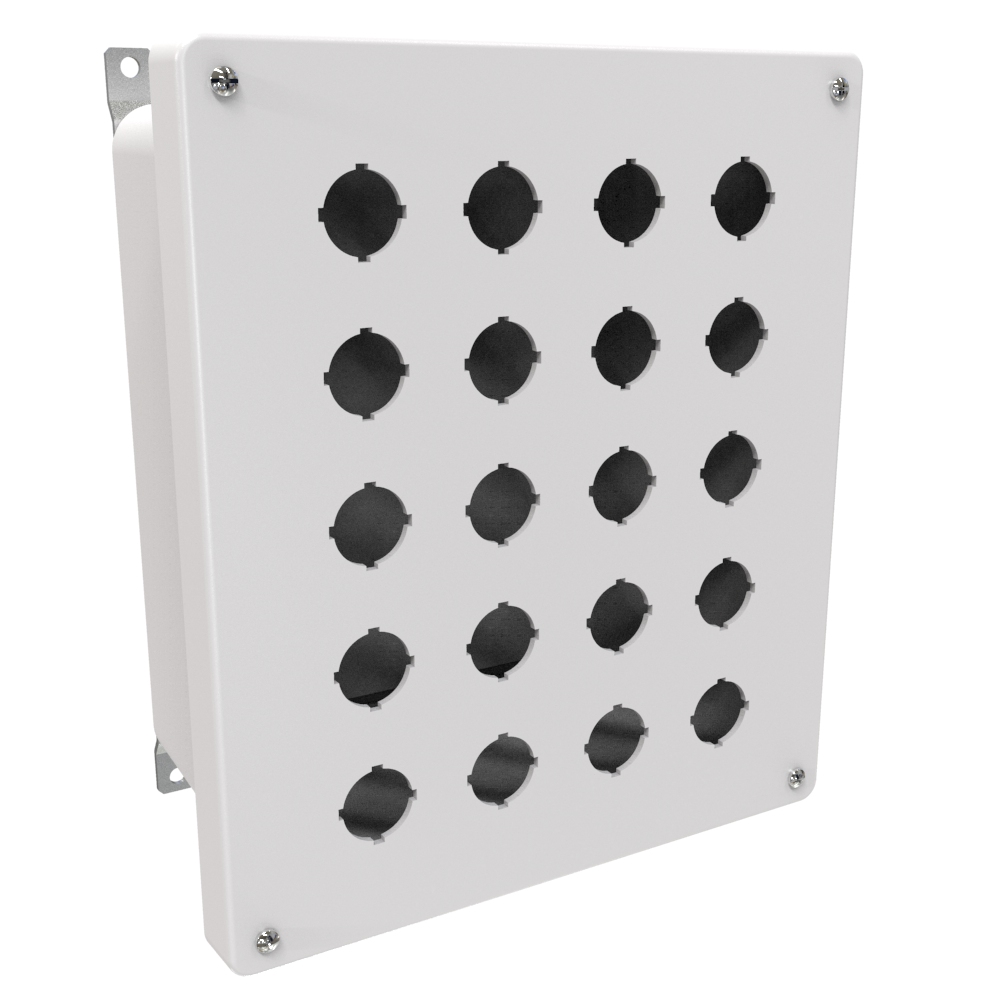

PJ12106P20

Non Met Pushbuttoscrewcover

$161.78Backorder

Buy now

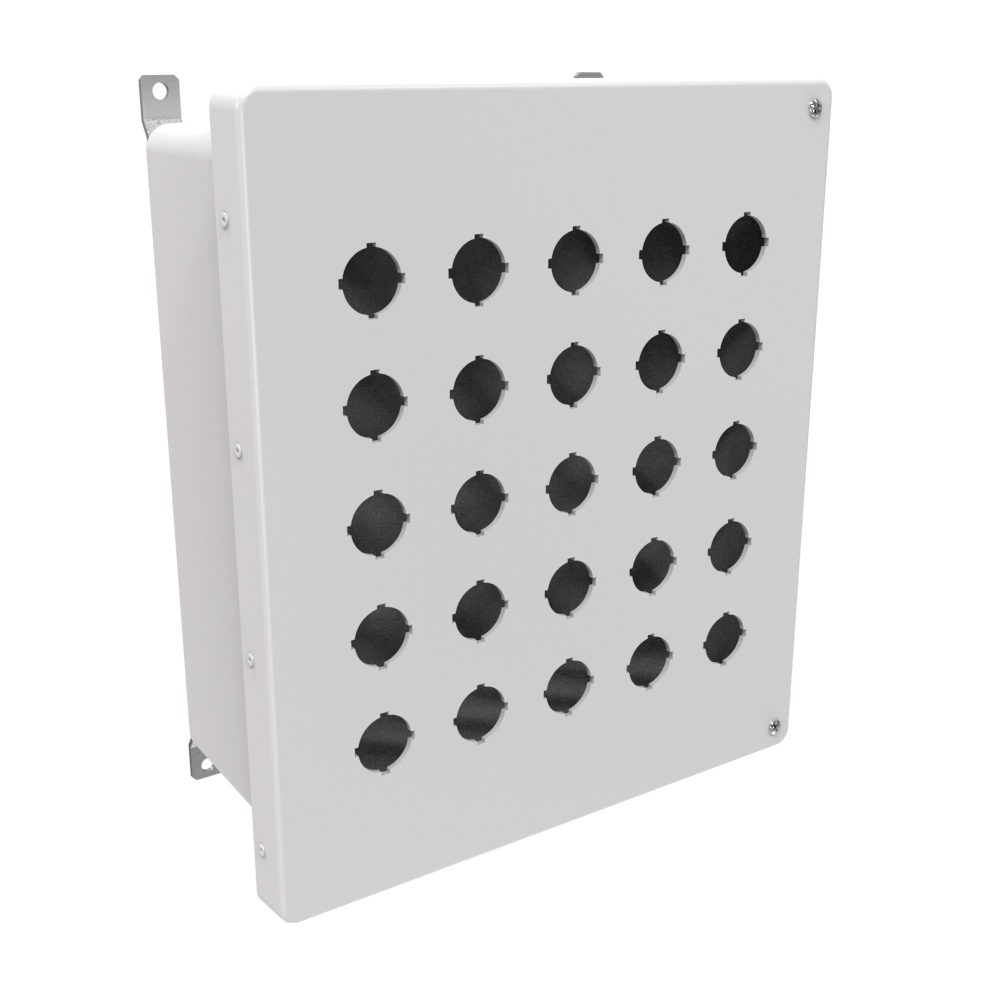

PJ14126HP25

Non Met Hinged Screwcover

$188.39Backorder

Buy now

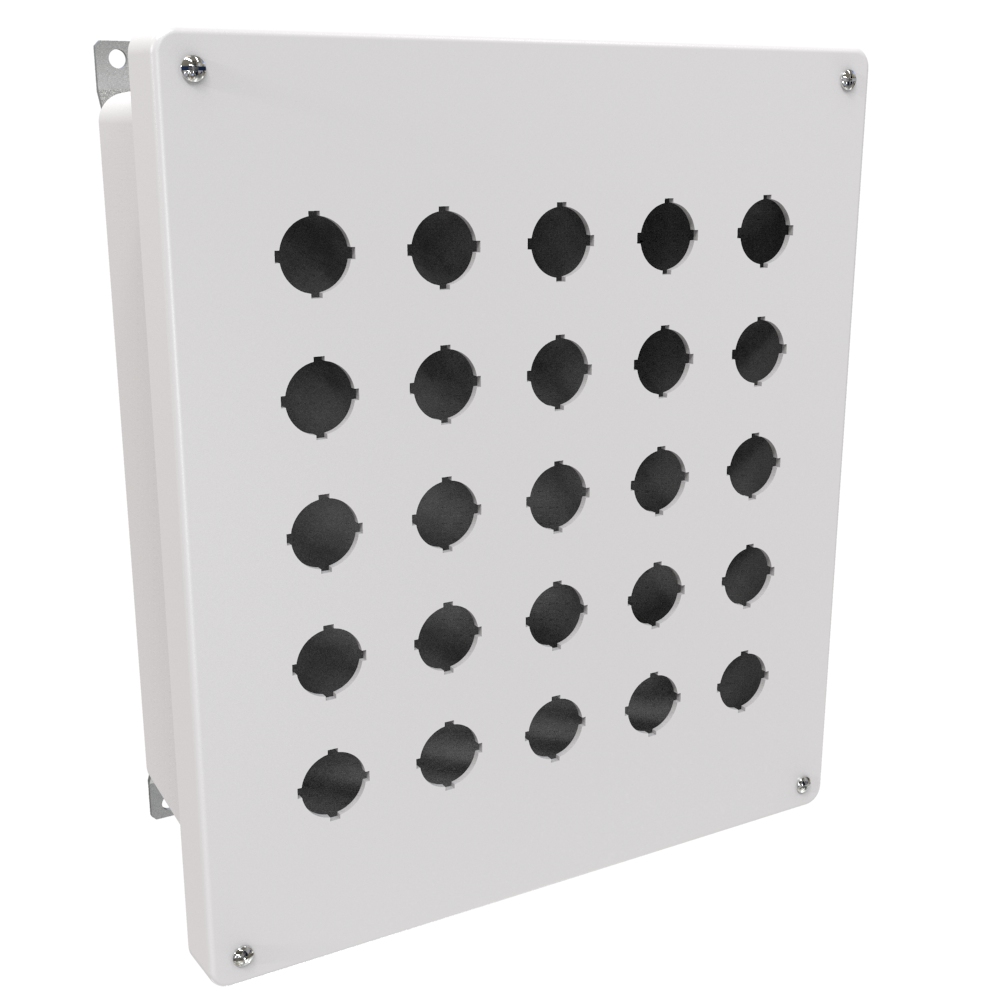

PJ14126P25

Non Met Pushbutton Screwcover

$180.99Backorder

Buy now

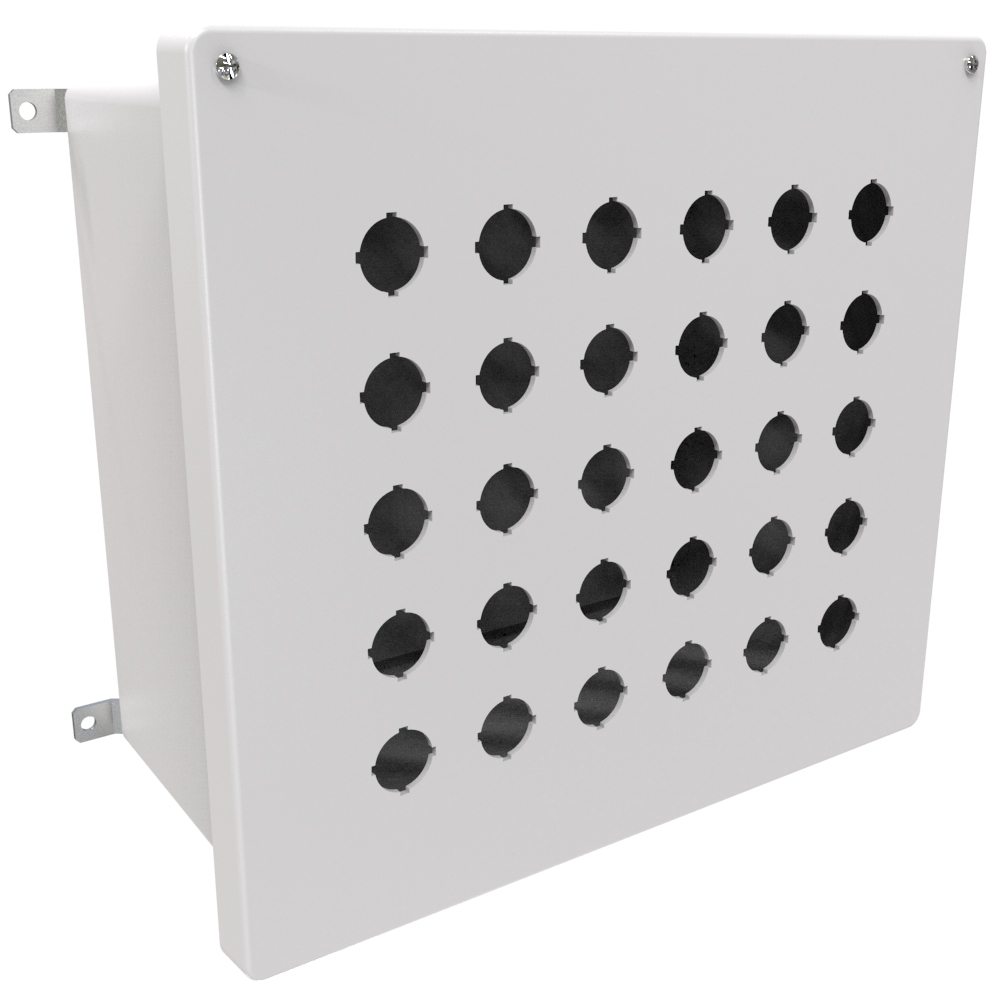

PJ16148HP30

Non Met Hinged Screwcover

$210.42Backorder

Buy now

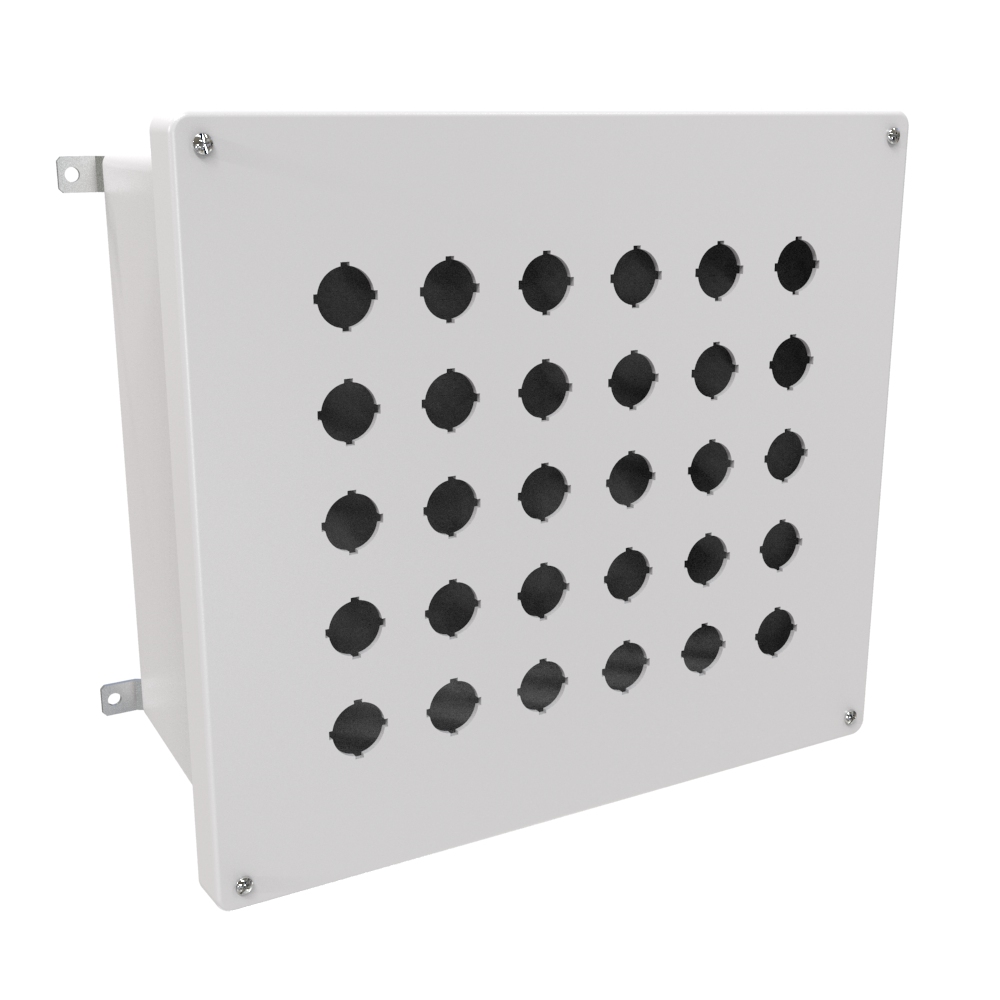

PJ16148P30

Non Met Pushbutton Screwcoverr

$204.78In stock

Buy now

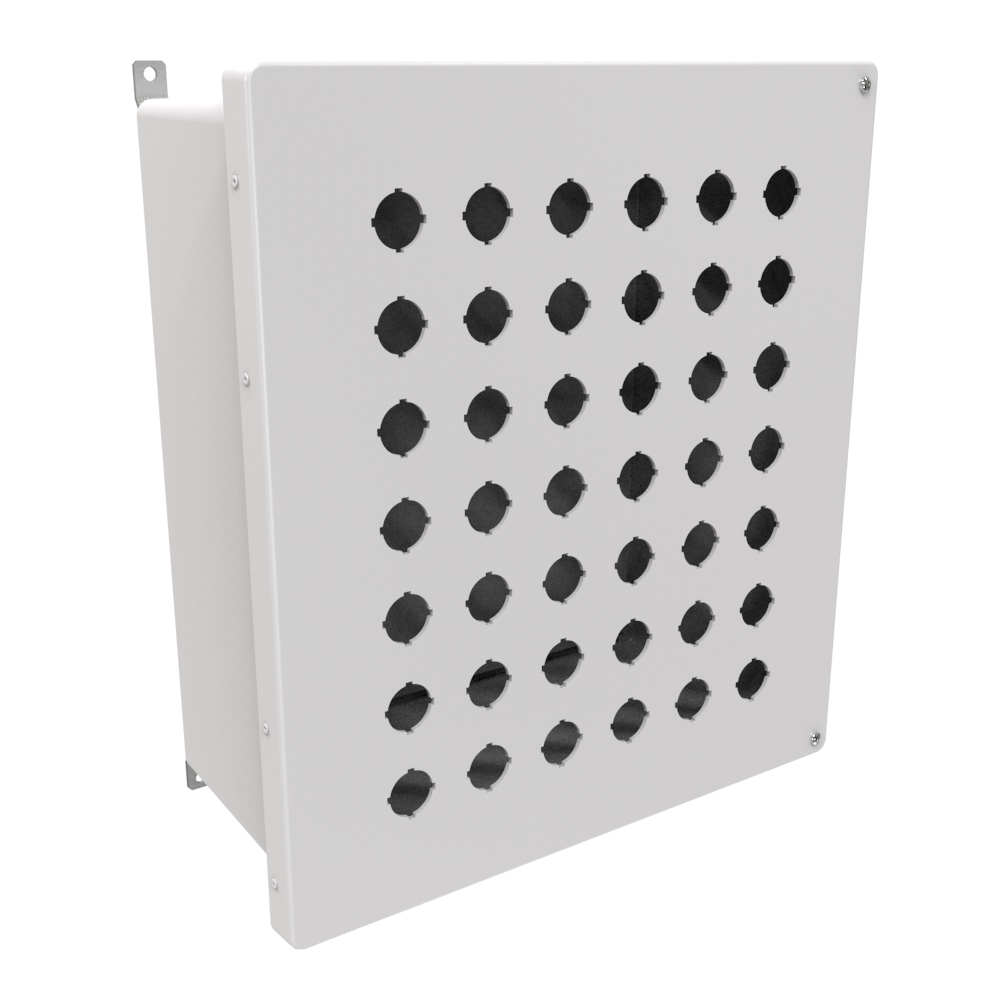

PJ18168HP42

Non Met Hinged Screwcover

$291.35Backorder

Buy now

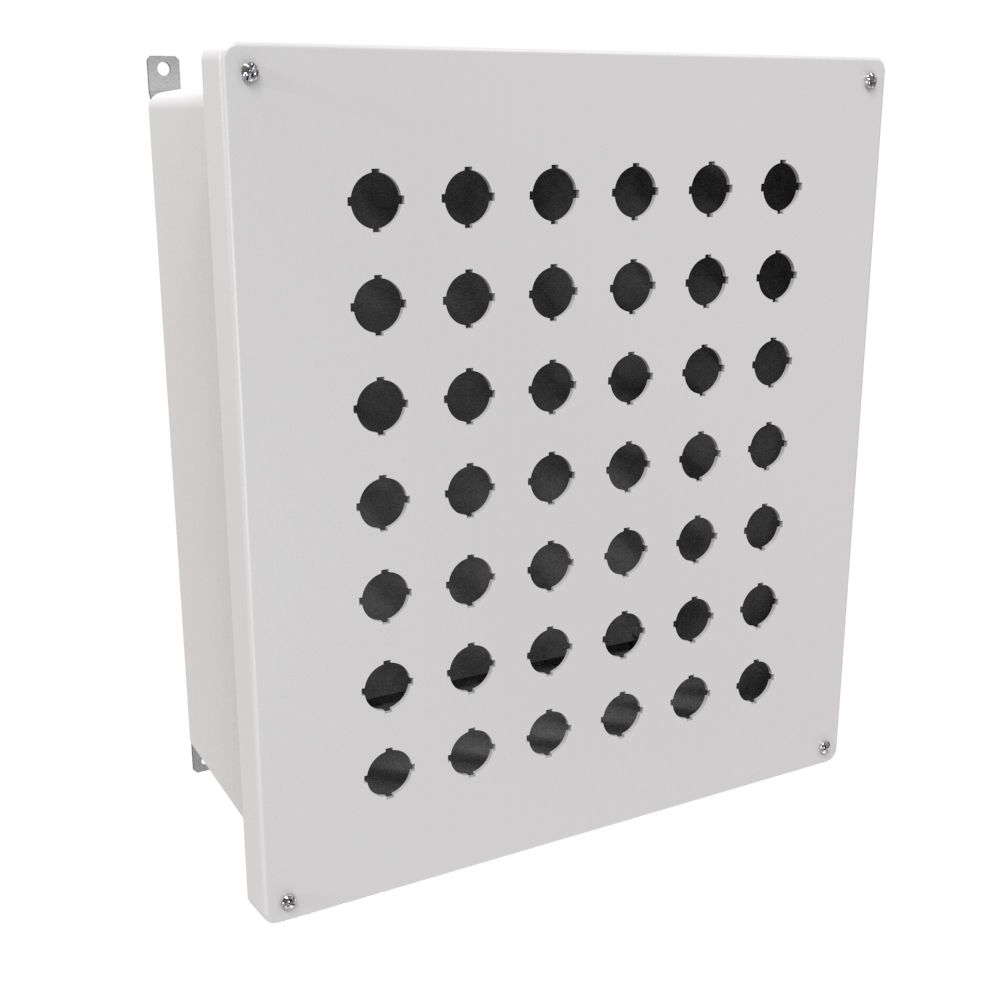

PJ18168P42

Non Met Pushbutton Screwcover

$289.11Backorder

Buy now

PJ664HP4

Non Met Hinged Screw Cover

$91.10Backorder

Buy now

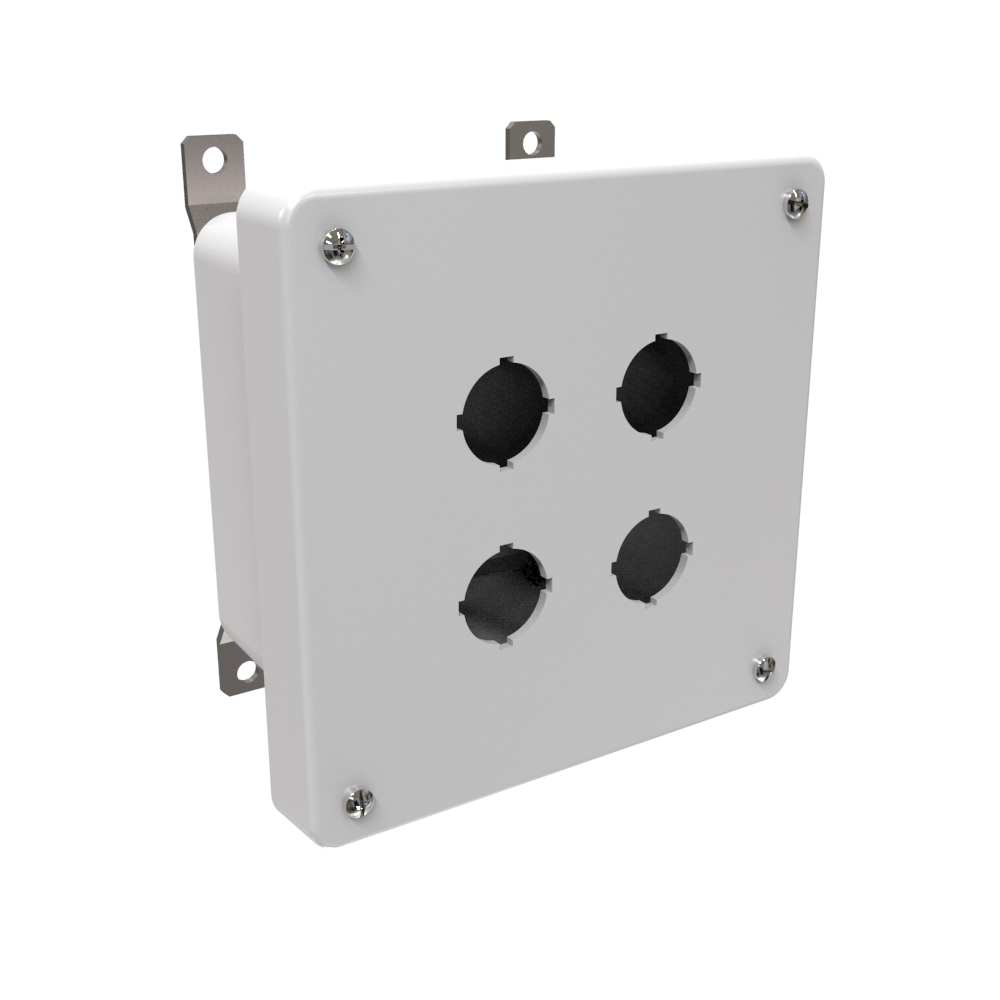

PJ664P4

Non Met Pushbutton Screwcover

$85.42In stock

Buy now

PJ864HP6

Non Met Hinged Screwcover

$99.56Backorder

Buy now

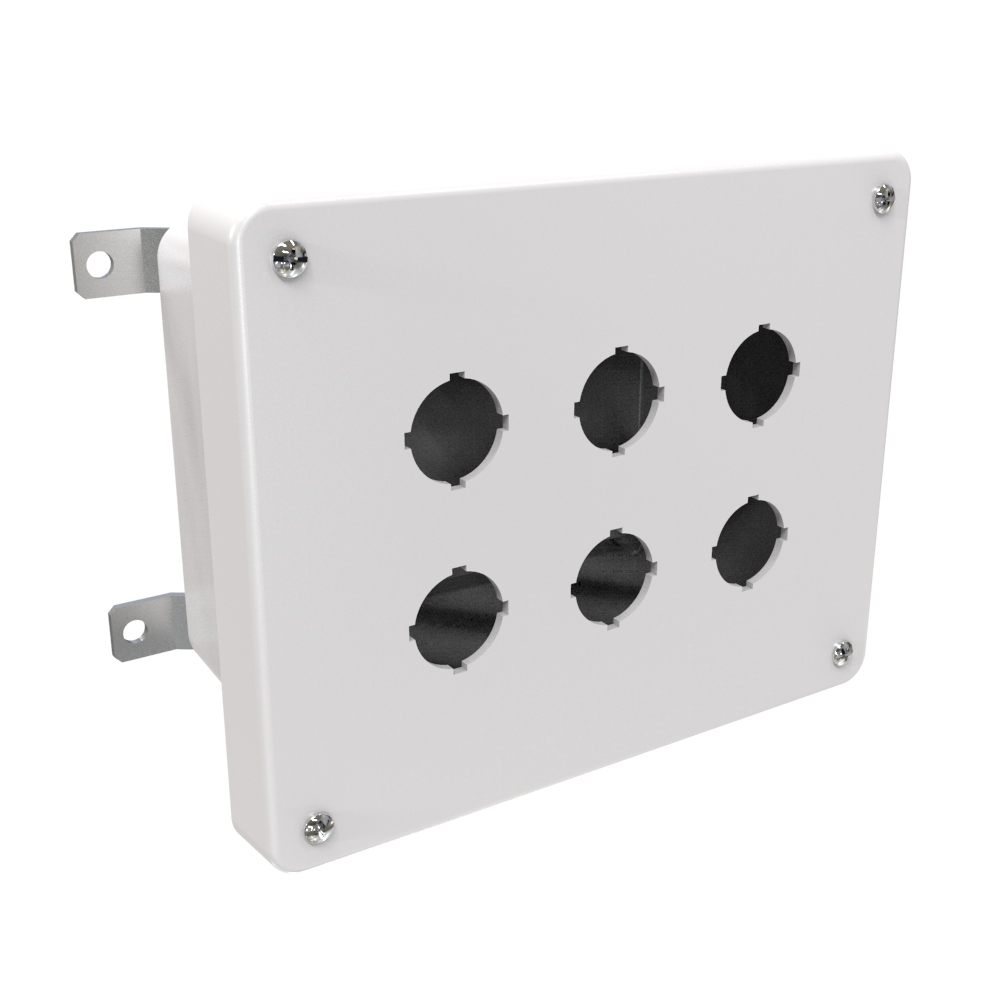

PJ864P6

Non Met Pushbuttoscrew Cover

$93.39Backorder

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Lift Off Cover · 30.5mm PB Part No.	Hinged Cover · 30.5mm PB Part No.	No. · Holes	Enclosure · H	Enclosure · W	Enclosure · D	Optional Inner Panel · Part No.	Optional Inner Panel · H	Optional Inner Panel · W	Price	Order
PJ664P4	PJ664HP4	4	6.10	6.10	4.18	14R0505	4.88	4.88	$85.42In stockPJ664P4	Buy now
PJ864P6	PJ864HP6	6	8.00	6.12	4.13	14R0705	6.75	4.88	$93.39BackorderPJ864P6	Buy now
PJ1084P9	PJ1084HP9	9	10.13	8.26	4.13	14R0907	8.75	6.88	$114.84BackorderPJ1084P9	Buy now
PJ1086P9	PJ1086HP9	9	10.13	8.26	6.13	14R0907	8.75	6.88	$119.86BackorderPJ1086P9	Buy now
PJ1086P12	PJ1086HP12	12	10.13	8.26	6.13	14R0907	8.75	6.88	$131.81BackorderPJ1086P12	Buy now
PJ12106P16	PJ12106HP16	16	12.13	10.26	6.13	14R1109	10.75	8.88	$153.85BackorderPJ12106P16	Buy now
PJ12106P20	PJ12106HP20	20	12.13	10.26	6.13	14R1109	10.75	8.88	$161.78BackorderPJ12106P20	Buy now
PJ14126P25	PJ14126HP25	25	14.13	12.26	6.13	14R1311	12.75	10.88	$180.99BackorderPJ14126P25	Buy now
PJ16148P30	PJ16148HP30	30	16.27	14.40	8.13	14R1513	14.75	12.88	$204.78In stockPJ16148P30	Buy now
PJ18168P42	PJ18168HP42	42	18.40	16.40	8.13	P1868	16.88	14.88	$289.11BackorderPJ18168P42	Buy now

Application

■Designed for use as pushbutton enclosures for 30.5mm devices.
■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
■Ideal in applications with high temperatures or highly corrosive environments.

Standards

■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
■CSA Type 1, 2, 3, 4, 4X, 12 and 13
■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66
■NEMA Type 1, 2, 3, 4, 4X, 12 and 13
■IEC 60529, IP66

Construction

■Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
■Standard JIC sizes under 18" x 16".
■Threaded brass inserts are provided for optional inner panel or terminal kit mounting.
■Cover is fastened with captive stainless steel screws in threaded brass inserts.
■Captive oil resistant gasket provides a positive seal.
■Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
■Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure.
■Enhanced UV inhibitors protect against outdoor weathering.
■Operating temperatures between 130°C and -40°C (266°F to -40°F).
■Impact index of 6.78J (5 ft/lb).
■For corrosion resistance information, please refer to table in Technical Information .

Finish

■Fiberglass polyester material has a gray finish.
■Optional inner panels are available in white powder coated finished steel or unfinished aluminum.

Documents

Specification Sheet

Additional information

Part Details

Lift Off Cover · 30.5mm PB Part No.	Hinged Cover · 30.5mm PB Part No.	No. · Holes	Enclosure · H	Enclosure · W	Enclosure · D	Optional Inner Panel · Part No.	Optional Inner Panel · H	Optional Inner Panel · W
PJ664P4	PJ664HP4	4	6.10	6.10	4.18	14R0505	4.88	4.88
PJ864P6	PJ864HP6	6	8.00	6.12	4.13	14R0705	6.75	4.88
PJ1084P9	PJ1084HP9	9	10.13	8.26	4.13	14R0907	8.75	6.88
PJ1086P9	PJ1086HP9	9	10.13	8.26	6.13	14R0907	8.75	6.88
PJ1086P12	PJ1086HP12	12	10.13	8.26	6.13	14R0907	8.75	6.88
PJ12106P16	PJ12106HP16	16	12.13	10.26	6.13	14R1109	10.75	8.88
PJ12106P20	PJ12106HP20	20	12.13	10.26	6.13	14R1109	10.75	8.88
PJ14126P25	PJ14126HP25	25	14.13	12.26	6.13	14R1311	12.75	10.88
PJ16148P30	PJ16148HP30	30	16.27	14.40	8.13	14R1513	14.75	12.88
PJ18168P42	PJ18168HP42	42	18.40	16.40	8.13	P1868	16.88	14.88
