Hole Plug PC
- Description 1” Conduit (1.375)
$11.09In stock
Buy now

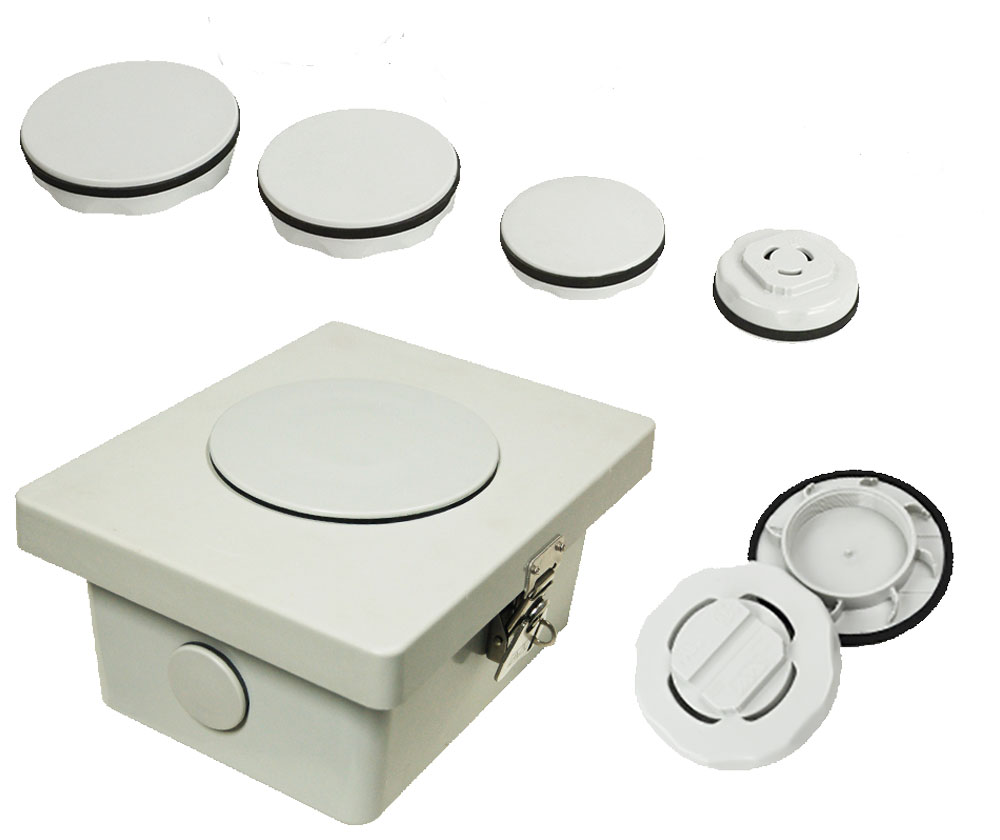

Hole Plugs · HPN4PC Series
Brand: Hammond Manufacturing · 22 part numbers
Type 4X Non-metallic - UR/cUR
- ■Designed to seal unused pushbutton holes, conduit openings and knockout holes against dust, oil and water.
- ■Standard Pushbutton size is 30.5mm
- ■Available in 11 sizes.
- ■Available in 2 color options - ANSI 61 Gray (GY) & RAL7035 Light Gray (LG)
- ■Compatible with enclosure wall thickness from 16 gauge to 1/4”

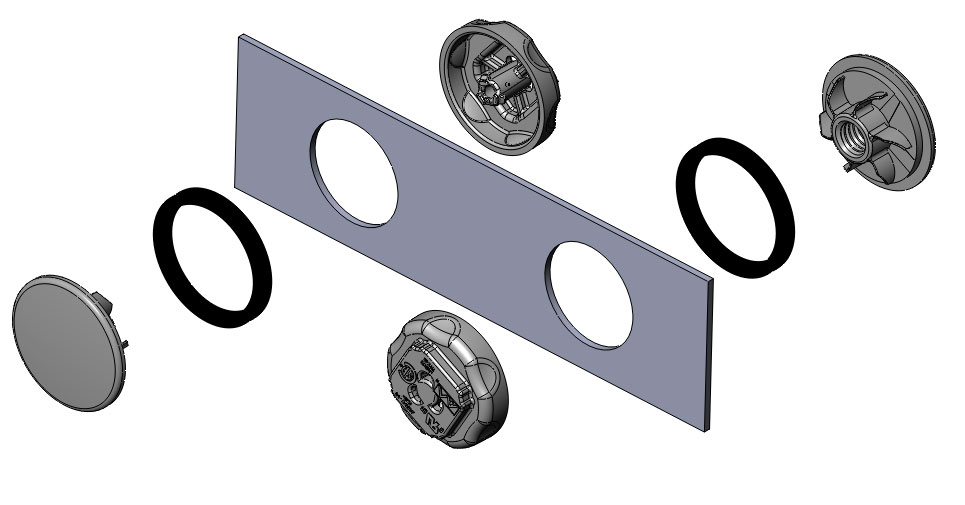

- ■Self centering, anti-rotational design for fast and easy one person installation, no tools required
from $7.03
21 of 22 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HPN4PC Series part number
Filter 22 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
22 of 22 part numbers · 21 priced online
Hole Plug PC
- Description 1” Conduit (1.375)
$11.09In stock
Buy nowHole Plug PC
- Description 1.25” Conduit (1.734)
$13.54In stock
Buy nowHole Plug PC
- Description 1.25” Conduit (1.734)
$13.54In stock
Buy nowHole Plug PC
- Description Pilot Light (.50)
$7.03In stock
Buy nowHole Plug PC
- Description Pilot Light (.50)
$7.03In stock
Buy nowHole Plug PC
- Description 1.5” Conduit (1.984)
$15.69In stock
Buy nowHole Plug PC
- Description 1.5” Conduit (1.984)
$15.69In stock
Buy nowHole Plug PC
- Description 2” Conduit (2.469)
$18.51In stock
Buy nowHole Plug PC
- Description 2” Conduit (2.469)
$18.51In stock
Buy nowHole Plug PC
- Description 2.5” Conduit (2.969)
$24.99In stock
Buy nowHole Plug PC
- Description 2.5” Conduit (2.969)
$24.99In stock
Buy nowHole Plug PC
- Description 3” Conduit (3.594)
$30.00In stock
Buy nowHole Plug PC
- Description 3” Conduit (3.594)
$30.00In stock
Buy nowHole Plug PC
- Description 3.5” Conduit (4.125)
$34.24In stock
Buy nowHole Plug PC
- Description 3.5” Conduit (4.125)
$34.24In stock
Buy nowHole Plug PC
- Description 4” Conduit (4.641)
$40.00Backorder
Buy nowHole Plug PC
- Description 4” Conduit (4.641)
$40.00In stock
Buy nowHole Plug PC
- Description .5” Conduit (.875) 22mm PB (.886)
QuoteRequest a quote
Hole Plug PC
- Description .5” Conduit (.875) 22mm PB (.886)
$7.51In stock
Buy nowHole Plug PC
- Description .75” Conduit (1.109) 30mm PB (1.21)
$8.54In stock
Buy nowHole Plug PC
- Description .75” Conduit (1.109) 30mm PB (1.21)
$8.54In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| RAL7035 · Part No. | ANSI 61 · Part No. | Description | Plugged Hole · Diameter Range | Plugged Hole · Diameter Range (2) | Plugged Hole · Diameter Range (3) | Wall Thickness · Range | Wall Thickness · Range (2) | Wall Thickness · Range (3) | External · Dia. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HP12PCLG | HP12PCGY | Pilot Light (.50) | 0.50 | - | 0.81 | 0.06 | - | 0.25 | 1.12 | $7.03In stockHP12PCLG | Buy now |
| HP50PCLG | HP50PCGY | .5” Conduit (.875) 22mm PB (.886) | 0.81 | - | 0.94 | 0.06 | - | 0.25 | 1.25 | $7.51In stockHP50PCLG | Buy now |
| HP75PCLG | HP75PCGY | .75” Conduit (1.109) 30mm PB (1.21) | 1.00 | - | 1.31 | 0.06 | - | 0.25 | 1.62 | $8.54In stockHP75PCLG | Buy now |
| HP100PCLG | HP100PCGY | 1” Conduit (1.375) | 1.38 | - | 1.62 | 0.06 | - | 0.25 | 1.92 | $11.09In stockHP100PCLG | Buy now |
| HP125PCLG | HP125PCGY | 1.25” Conduit (1.734) | 1.69 | - | 1.88 | 0.06 | - | 0.25 | 2.18 | $13.54In stockHP125PCLG | Buy now |
| HP150PCLG | HP150PCGY | 1.5” Conduit (1.984) | 2.00 | - | 2.19 | 0.06 | - | 0.25 | 2.50 | $15.69In stockHP150PCLG | Buy now |
| HP200PCLG | HP200PCGY | 2” Conduit (2.469) | 2.50 | - | 2.75 | 0.06 | - | 0.25 | 3.12 | $18.51In stockHP200PCLG | Buy now |
| HP250PCLG | HP250PCGY | 2.5” Conduit (2.969) | 2.88 | - | 3.12 | 0.06 | - | 0.25 | 3.50 | $24.99In stockHP250PCLG | Buy now |
| HP300PCLG | HP300PCGY | 3” Conduit (3.594) | 3.50 | - | 3.75 | 0.06 | - | 0.25 | 4.12 | $30.00In stockHP300PCLG | Buy now |
| HP350PCLG | HP350PCGY | 3.5” Conduit (4.125) | 4.00 | - | 4.25 | 0.06 | - | 0.25 | 4.62 | $34.24In stockHP350PCLG | Buy now |
| HP400PCLG | HP400PCGY | 4” Conduit (4.641) | 4.50 | - | 4.75 | 0.06 | - | 0.25 | 5.12 | $40.00In stockHP400PCLG | Buy now |
Features
- ■Designed to seal unused pushbutton holes, conduit openings and knockout holes against dust, oil and water.
- ■Standard Pushbutton size is 30.5mm
- ■Available in 11 sizes.
- ■Available in 2 color options - ANSI 61 Gray (GY) & RAL7035 Light Gray (LG)
- ■Compatible with enclosure wall thickness from 16 gauge to 1/4”
- ■Self centering, anti-rotational design for fast and easy one person installation, no tools required
- ■Recognized component for use with UL & CSA listed enclosures Type 1, 3, 3R, 4, 4X
- ■Type 1, 3, 3R, 4, 4X
- ■Molded in polycarbonate with neoprene/EPDM gasket material
Documents
