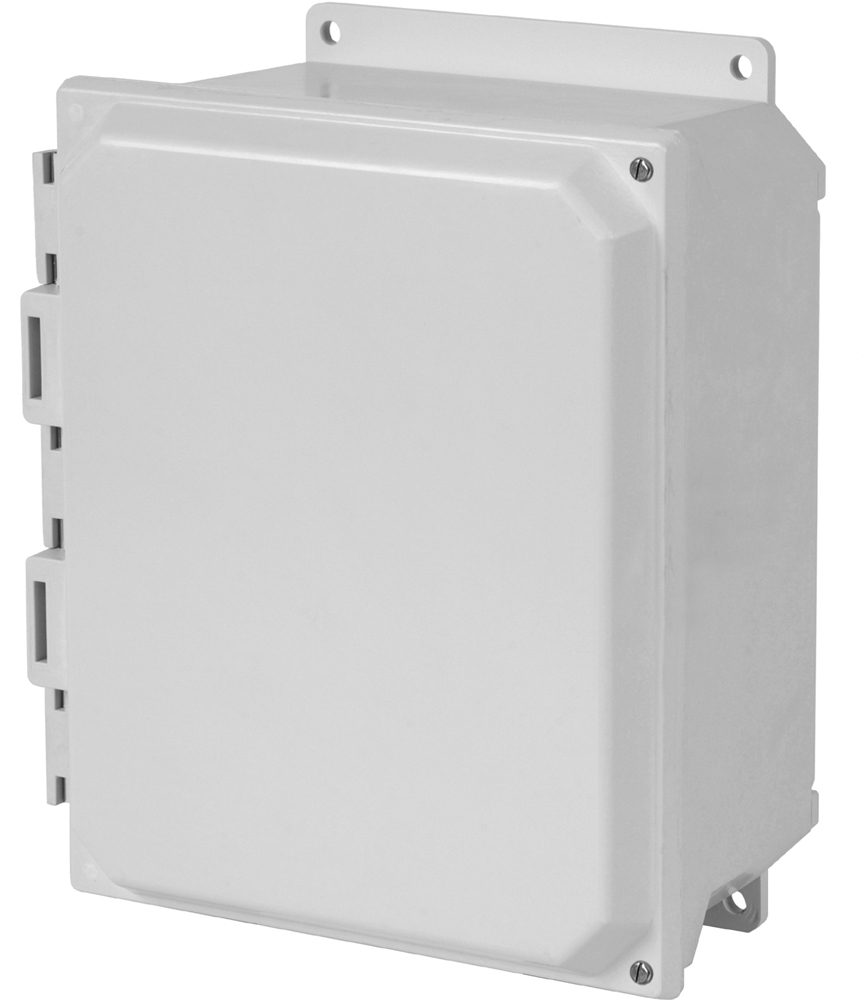

Type 4X Polyester Junction Box (Solid and Clear Cover) PJU Series

Type 4X Polyester Junction Box (Solid and Clear Cover) · PJU Series

Brand: Hammond Manufacturing · 42 part numbers

Continuous Hinge Door with Screws

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.
  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66

from $5.35

39 of 42 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your PJU Series part number

Filter 34 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

34 of 34 part numbers · 31 priced online

PJU14126H

Nonmet Liftoff Hng Sc Cvr Feet

$153.58In stock
Buy now
PJU664H

Non Met Hng Sc Cvr Feet

$93.93In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Solid Cover · w/Flange · Part No.Solid Cover · w/Feet · Part No.Clear Cover · w/Flange · Part No.Clear Cover · w/Feet · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.PriceOrder
PJU664HFPJU664HPJU664CCHFPJU664CCH6.056.274.134.884.8814R0505$96.57In stockPJU664HFBuy now
PJU864HFPJU864HPJU864CCHFPJU864CCH8.056.274.136.754.8814R0705$100.19In stockPJU864HFBuy now
PJU1084HFPJU1084HPJU1084CCHFPJU1084CCH10.058.274.138.756.8814R0907$107.59In stockPJU1084HFBuy now
PJU1086HFPJU1086HPJU1086CCHFPJU1086CCH10.058.276.138.756.8814R0907$108.88BackorderPJU1086HBuy now
PJU12106HFPJU12106HPJU12106CCHFPJU12106CCH12.0510.276.1310.758.8814R1109$138.00In stockPJU12106HFBuy now
PJU14126HFPJU14126HPJU14126CCHFPJU14126CCH14.0512.276.1312.7510.8814R1311$157.70In stockPJU14126HFBuy now
PJU16148HFPJU16148HPJU16148CCHFPJU16148CCH16.0514.278.1314.7512.8814R1513$183.72In stockPJU16148HFBuy now
PJU181610HFPJU181610H18.3016.5210.1316.8814.88P1868$269.54In stockPJU181610HFBuy now
PJU201610HFPJU201610HPJU201610CCHFPJU201610CCH20.5016.2710.1318.4414.44P2068$418.33In stockPJU201610HFBuy now

Application

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.

Standards

  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66
  • ■NEMA Type 1, 2, 3, 4, 4X, 12 and 13
  • ■IEC 60529, IP66

Construction

  • ■Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
  • ■Enhanced UV inhibitors protect against outdoor weathering.
  • ■Standard JIC sizes under 18" x 16".
  • ■Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
  • ■Cover fastened with captive stainless steel screws in threaded brass inserts.

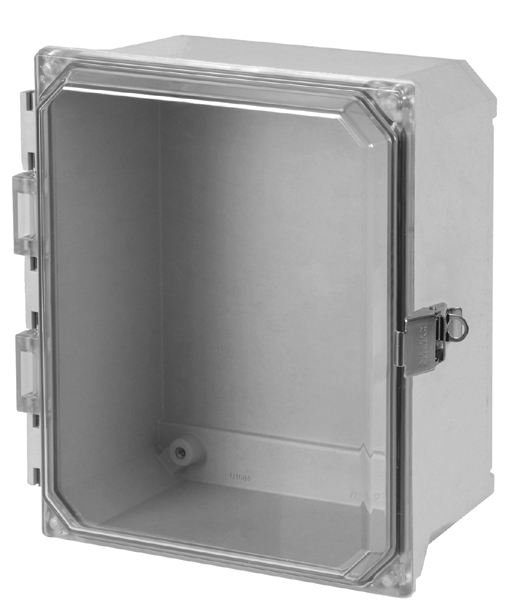

  • ■Enclosure available with clear Polycarbonate cover to 16" x 20".
  • ■Molded hinge with stainless steel pin.
  • ■Captive oil resistant gasket provides a positive seal.
  • ■Available with Polycarbonate flange or foot mount brackets for multi-directional mounting.
  • ■Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • ■Impact index of 6.78J (5 ft/lb).
  • ■For corrosion resistance information, please refer to table in the Technical Information section.

Finish

  • ■Fiberglass polyester material has a gray finish.
  • ■Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.

Documents

Specification Sheet

Additional information

Part Details

Solid Cover · w/Flange · Part No.Solid Cover · w/Feet · Part No.Clear Cover · w/Flange · Part No.Clear Cover · w/Feet · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.
PJU664HFPJU664HPJU664CCHFPJU664CCH6.056.274.134.884.8814R0505
PJU864HFPJU864HPJU864CCHFPJU864CCH8.056.274.136.754.8814R0705
PJU1084HFPJU1084HPJU1084CCHFPJU1084CCH10.058.274.138.756.8814R0907
PJU1086HFPJU1086HPJU1086CCHFPJU1086CCH10.058.276.138.756.8814R0907
PJU12106HFPJU12106HPJU12106CCHFPJU12106CCH12.0510.276.1310.758.8814R1109
PJU14126HFPJU14126HPJU14126CCHFPJU14126CCH14.0512.276.1312.7510.8814R1311
PJU16148HFPJU16148HPJU16148CCHFPJU16148CCH16.0514.278.1314.7512.8814R1513
PJU181610HFPJU181610H18.3016.5210.1316.8814.88P1868
PJU201610HFPJU201610HPJU201610CCHFPJU201610CCH20.5016.2710.1318.4414.44P2068
