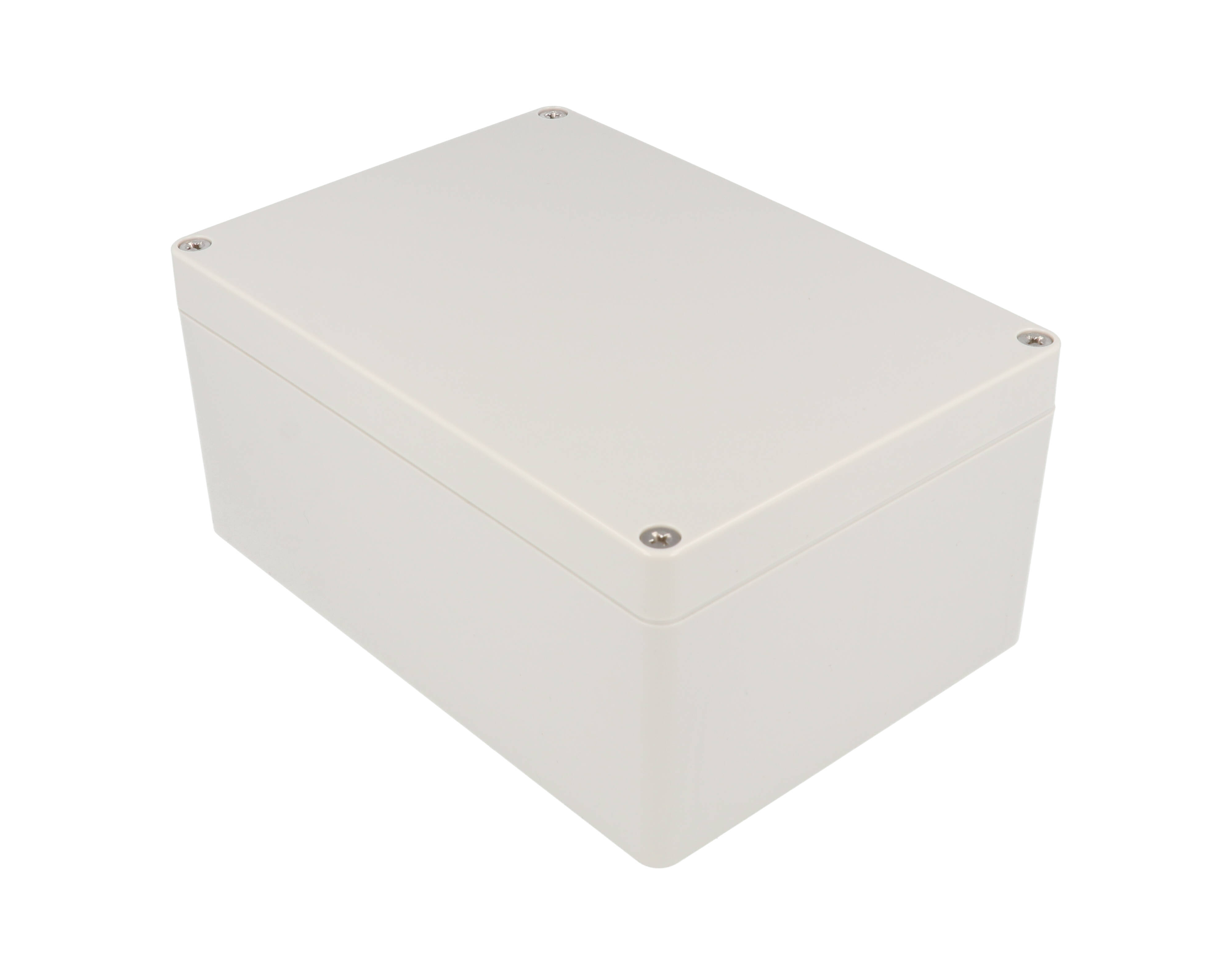

Polycarb Watertight
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$7.14In stock
Buy now
Water-Tight ABS & Polycarbonate Enclosures · RZ Series
Brand: Hammond Manufacturing · 50 part numbers

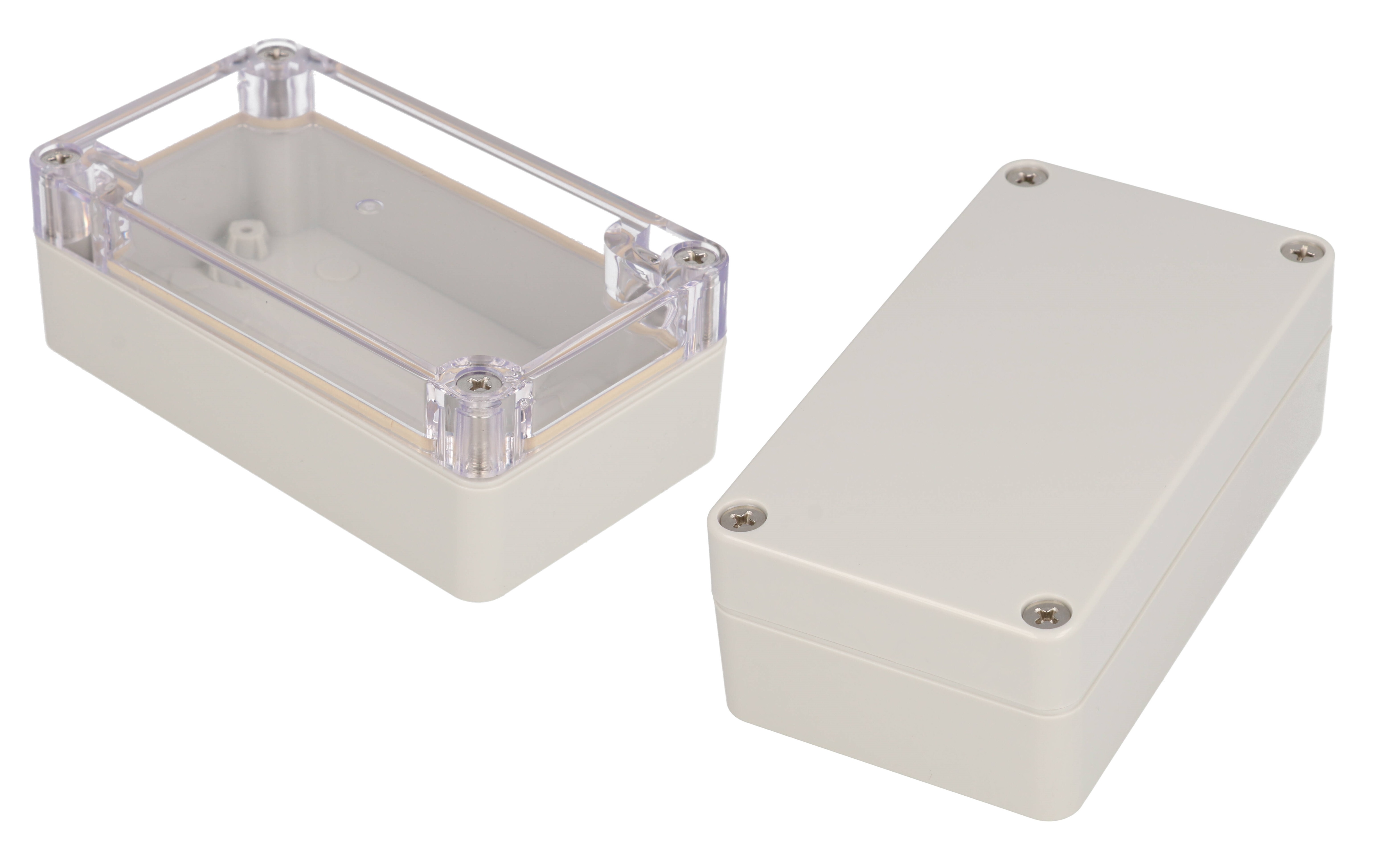

Opaque or Clear Lid, Smooth Surface
- ■Designed to meet IP65.
- ■Ideally suited for mounting printed circuit boards or DIN rail mounted components

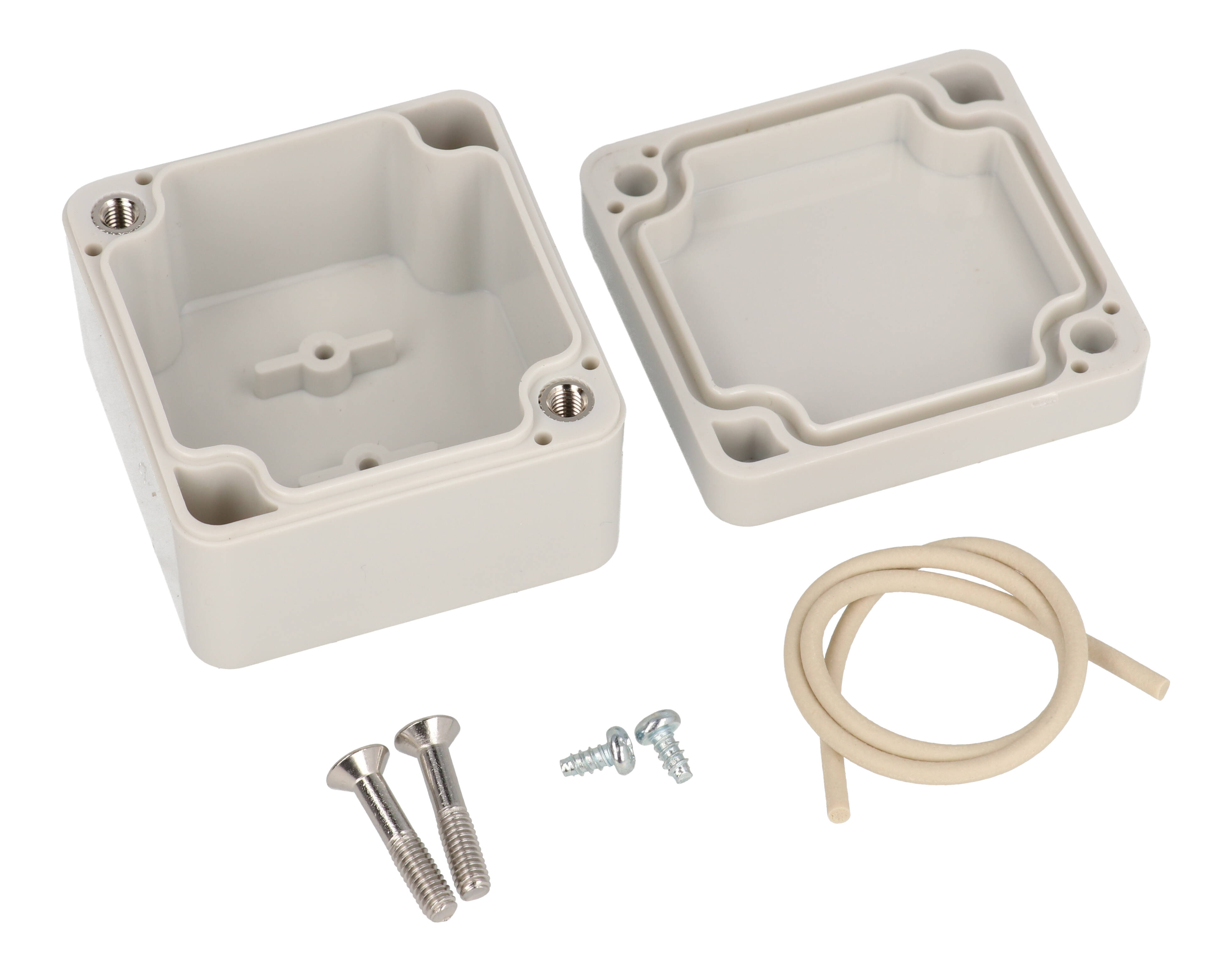

- ■Gasketed lid with two-piece tongue & groove construction provides protection against access of oil, dust, and water
- ■Lid screws are self-captivating (lid holes are threaded with first installation of screws).

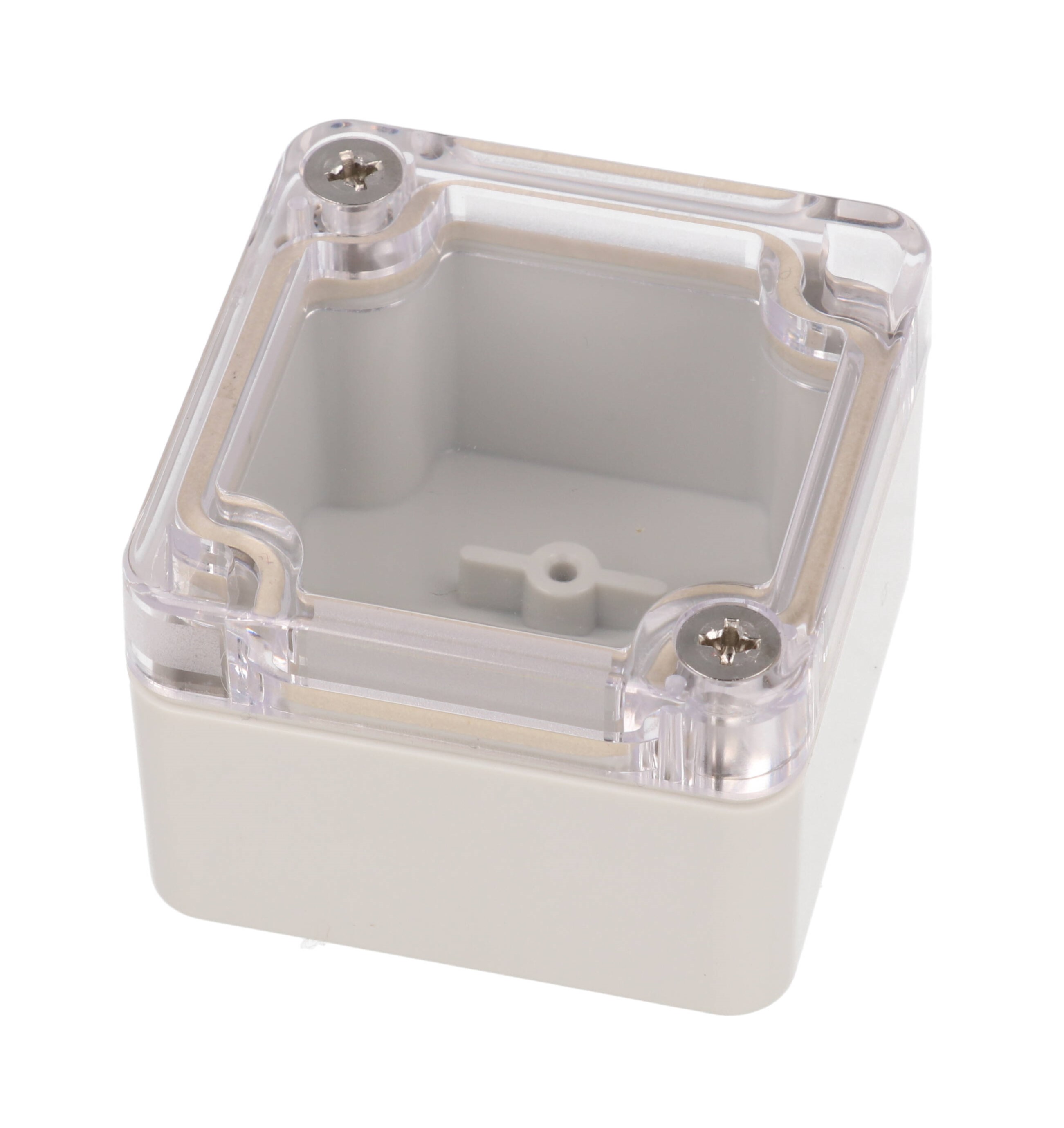

- ■All sizes are available with clear polycarbonate lid (part numbers ending in "C")
- ■Easy to wall-mount using "through box-blind hole construction" whereby the wall-mounting holes are outside the gasket perimeter.
from $1.82
49 of 50 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your RZ Series part number
Filter 50 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
50 of 50 part numbers · 49 priced online
PC Watertight Clear Lid
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$7.22In stock
Buy now
Polycarb Watertight
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$7.60In stock
Buy now
PC Watertight Clear Lid
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$7.80In stock
Buy now
Polycarb Watertight
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$8.79In stock
Buy now
PC Watertight Clear Lid
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$9.09In stock
Buy now
Polycarb Watertight
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$12.33In stock
Buy now
PC Watertight Clear Lid
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$12.66In stock
Buy now
Polycarb Watertight
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$16.23In stock
Buy now
PC Watertight Clear Lid
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$16.61In stock
Buy now
Polycarb Watertight
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$13.96In stock
Buy now
PC Watertight Clear Lid
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$13.96In stock
Buy now
Polycarb Watertight
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$18.77In stock
Buy now
PC Watertight Clear Lid
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$18.77In stock
Buy now
Polycarb Watertight
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$3.85In stock
Buy now
PC Watertight Clear Lid
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$3.97In stock
Buy now
Polycarb Watertight
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$7.39In stock
Buy now
PC Watertight Clear Lid
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$7.54In stock
Buy now
Polycarb Watertight
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$15.26In stock
Buy now
PC Watertight Clear Lid
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 V-2
$15.59In stock
Buy now

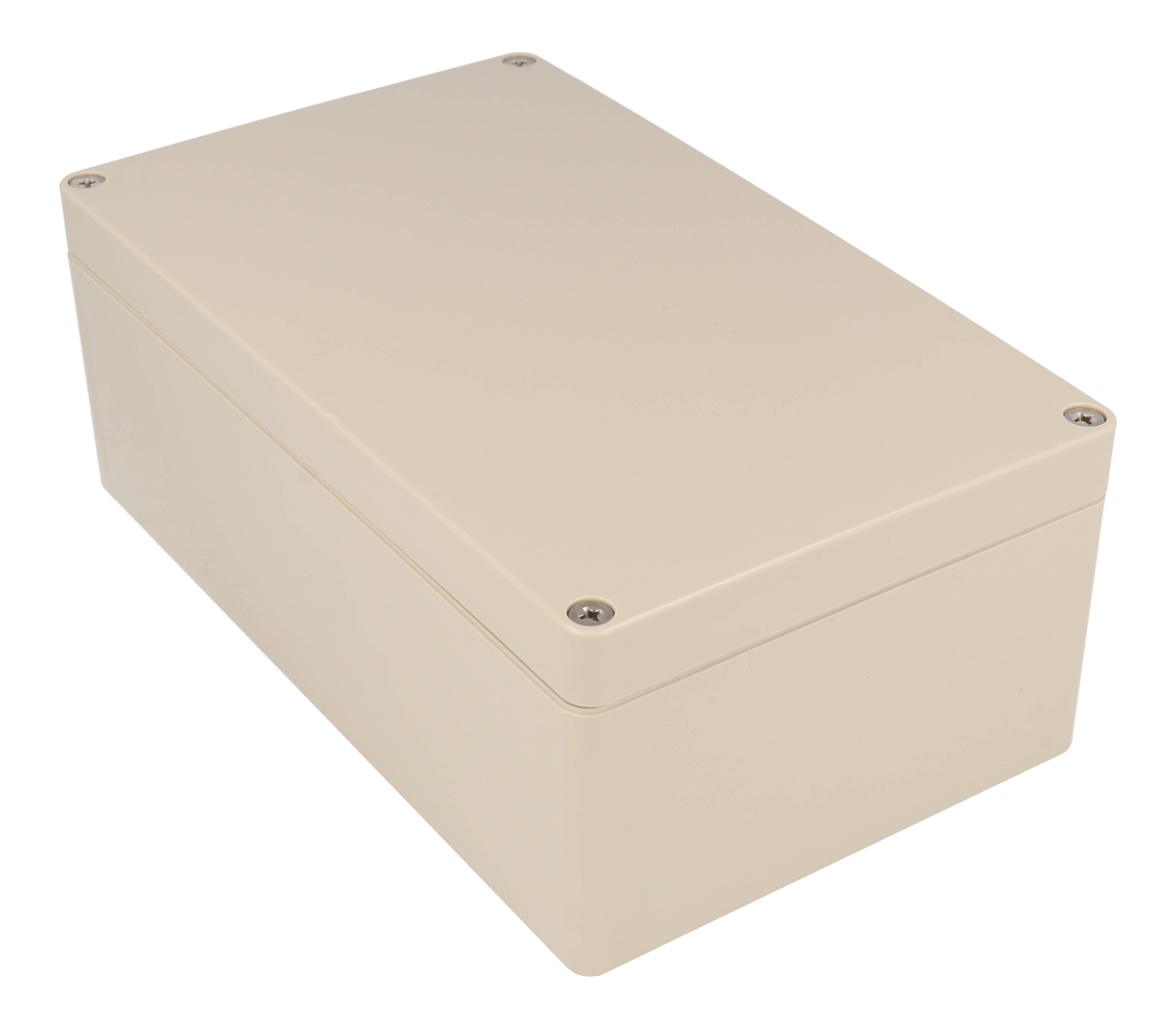

ABS Watertight
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$5.56In stock
Buy now
ABS Watertight Clear Lid
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$5.83In stock
Buy now
RZ0304 / RZ0203 Gasket- 2PK
$2.10In stock
Buy now
ABS Watertight
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$8.10In stock
Buy now
ABS Watertight Clear Lid
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$9.22In stock
Buy nowRZ0308 / RZ0205 Gasket- 2PK
$2.10In stock
Buy now
ABS Watertight
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$9.43In stock
Buy now
ABS Watertight Clear Lid
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$10.67In stock
Buy nowRZ0311 / RZ0212 Gasket- 2PK
$2.22In stock
Buy now
ABS Watertight
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$14.04In stock
Buy now
ABS Watertight Clear Lid
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$11.31In stock
Buy nowRZ0313 / RZ0214 Gasket- 2PK
$2.57In stock
Buy now
ABS Watertight
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$14.65In stock
Buy now
ABS Watertight Clear Lid
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$15.40In stock
Buy nowRZ0317 / RZ0218 Gasket- 2PK
$3.09In stock
Buy now
ABS Watertight
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$10.67In stock
Buy now
ABS Watertight Clear Lid
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$11.24In stock
Buy nowRZ0340 / RZ0223 Gasket- 2PK
$2.57In stock
Buy now
ABS Watertight
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$13.13In stock
Buy now
ABS Watertight Clear Lid
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$13.82In stock
Buy nowRZ0353 / RZ0232 Gasket- 2PK
$3.09In stock
Buy now
ABS Watertight
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$3.77In stock
Buy now
ABS Watertight Clear Lid
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$3.98In stock
Buy nowRZ0362 / RZ0250 Gasket- 2PK
$1.82In stock
Buy now
ABS Watertight
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$5.92In stock
Buy now
ABS Watertight Clear Lid
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$6.23In stock
Buy nowRZ0366 / RZ0256 Gasket- 2PK
QuoteRequest a quote
ABS Watertight
- Material ABS Plastic
- Color Beige
- Flame Rating UL94 HB
$12.55In stock
Buy nowDimension tables (inches / mm)
| Gray · Polycarbonate (Part No.) | Gray Polycarbonate · w/ Clear Lid (Part No.) | Beige ABS (Part No.) | Beige ABS · w/ Clear Lid (Part No.) | Length (mm) | Width (mm) | Depth (mm) | Max PCB · Length (mm) | Max PCB · Width (mm) | Replacement · Gasket (2-pk) (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|

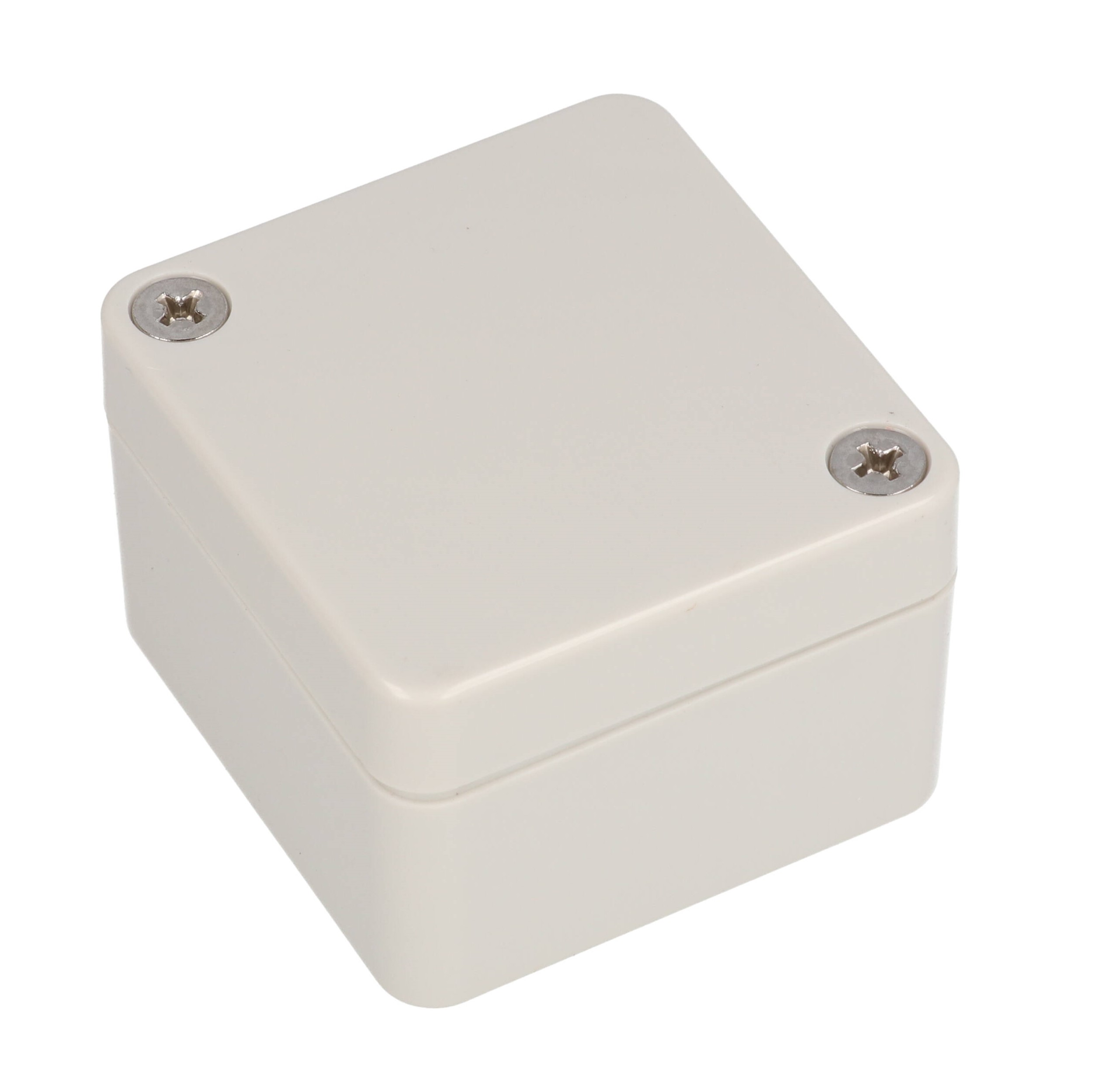

| RZ0250 | RZ0250C | RZ0362 | RZ0362C | 52 | 50 | 35 | 44.77 | 42.77 | RZ0362GASKET | $3.85In stockRZ0250 | Buy now |
| RZ0256 | RZ0256C | RZ0366 | RZ0366C | 82 | 80 | 55 | 73.88 | 71.88 | RZ0366GASKET | $7.39In stockRZ0256 | Buy now |
| RZ0203 | RZ0203C | RZ0304 | RZ0304C | 115 | 65 | 40 | 106.87 | 56.87 | RZ0304GASKET | $7.14In stockRZ0203 | Buy now |

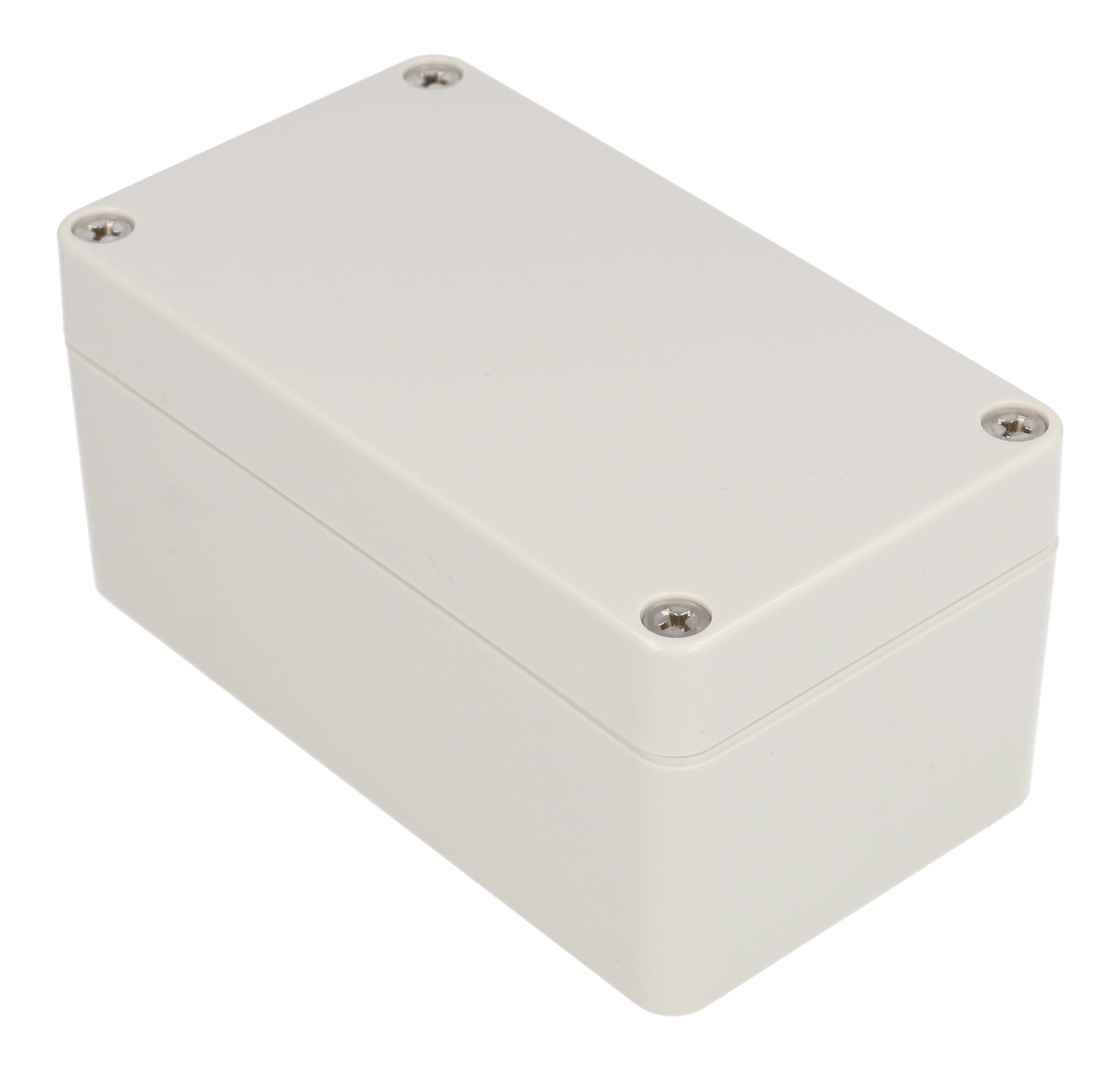

| RZ0205 | RZ0205C | RZ0308 | RZ0308C | 115 | 65 | 55 | 106.87 | 56.87 | RZ0308GASKET | $7.60In stockRZ0205 | Buy now |

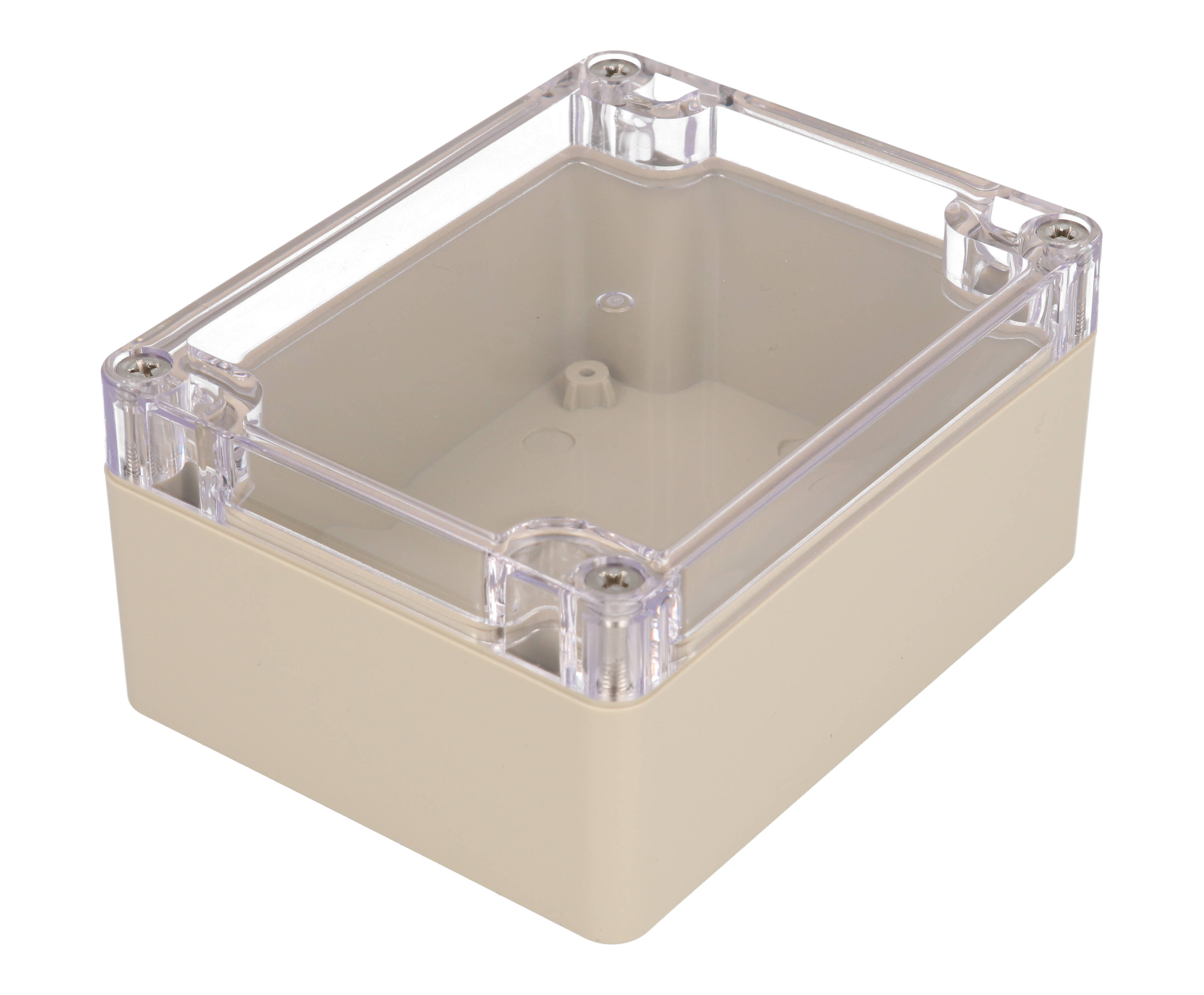

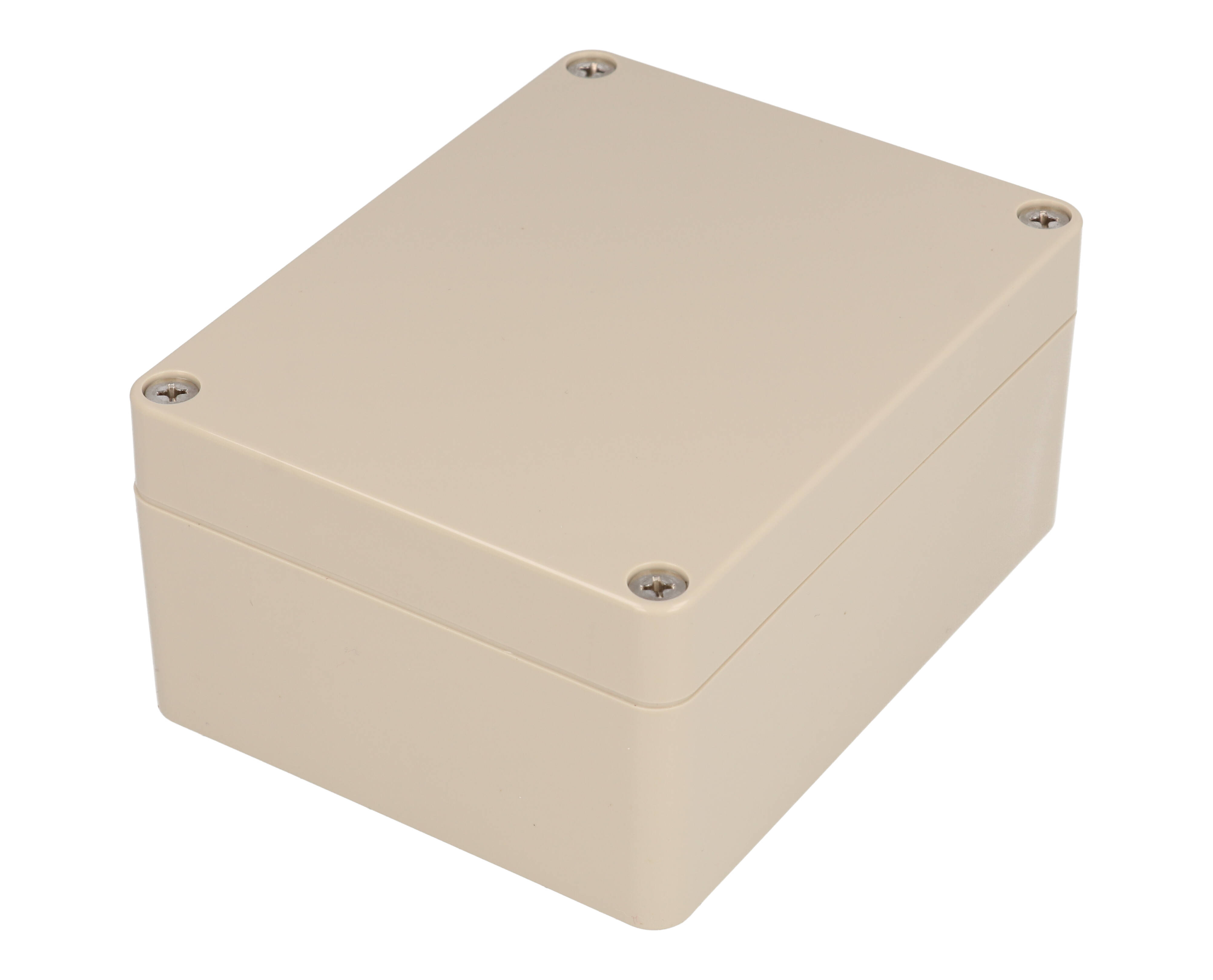

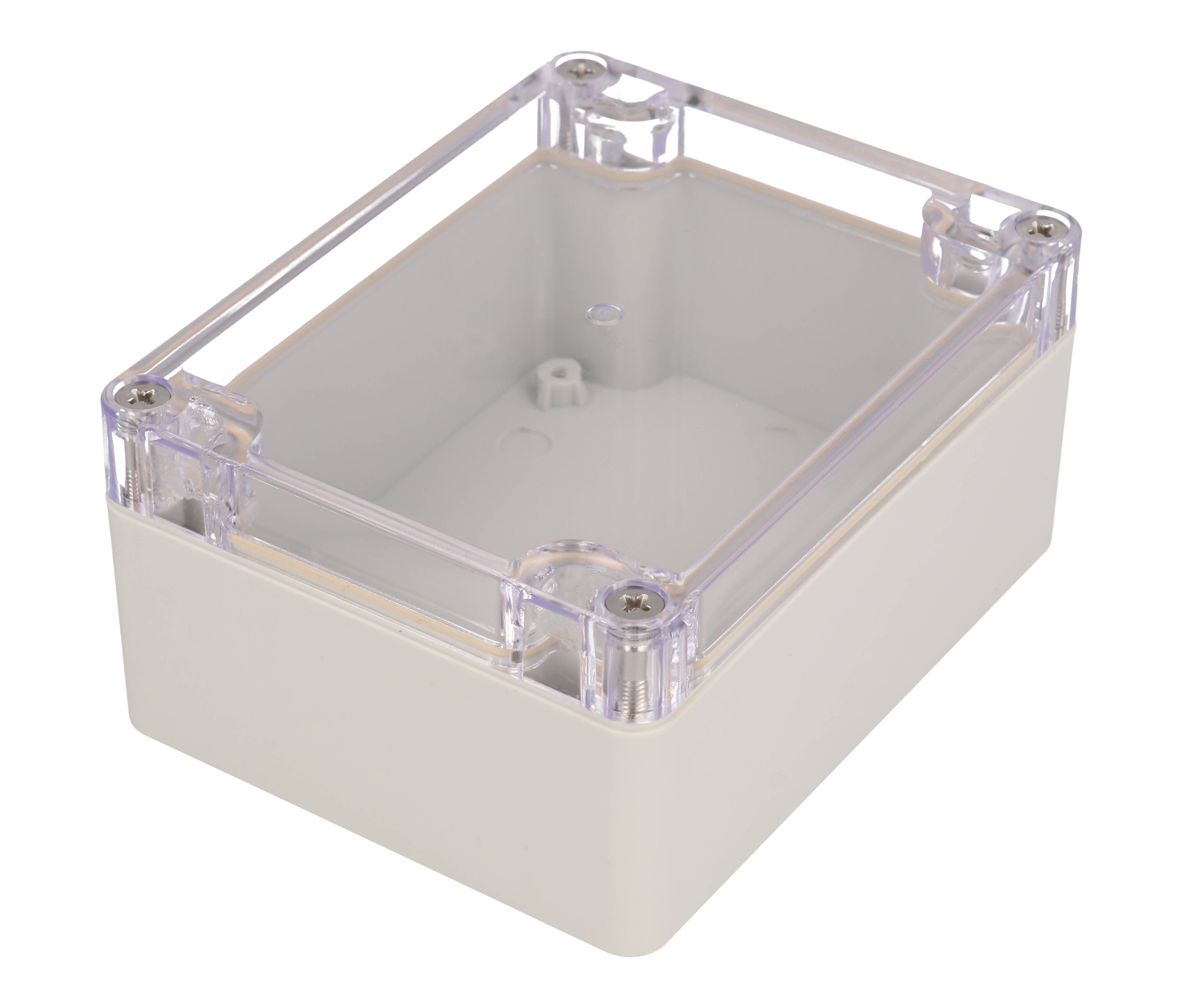

| RZ0212 | RZ0212C | RZ0311 | RZ0311C | 115 | 90 | 55 | 107.43 | 82.43 | RZ0311GASKET | $8.79In stockRZ0212 | Buy now |

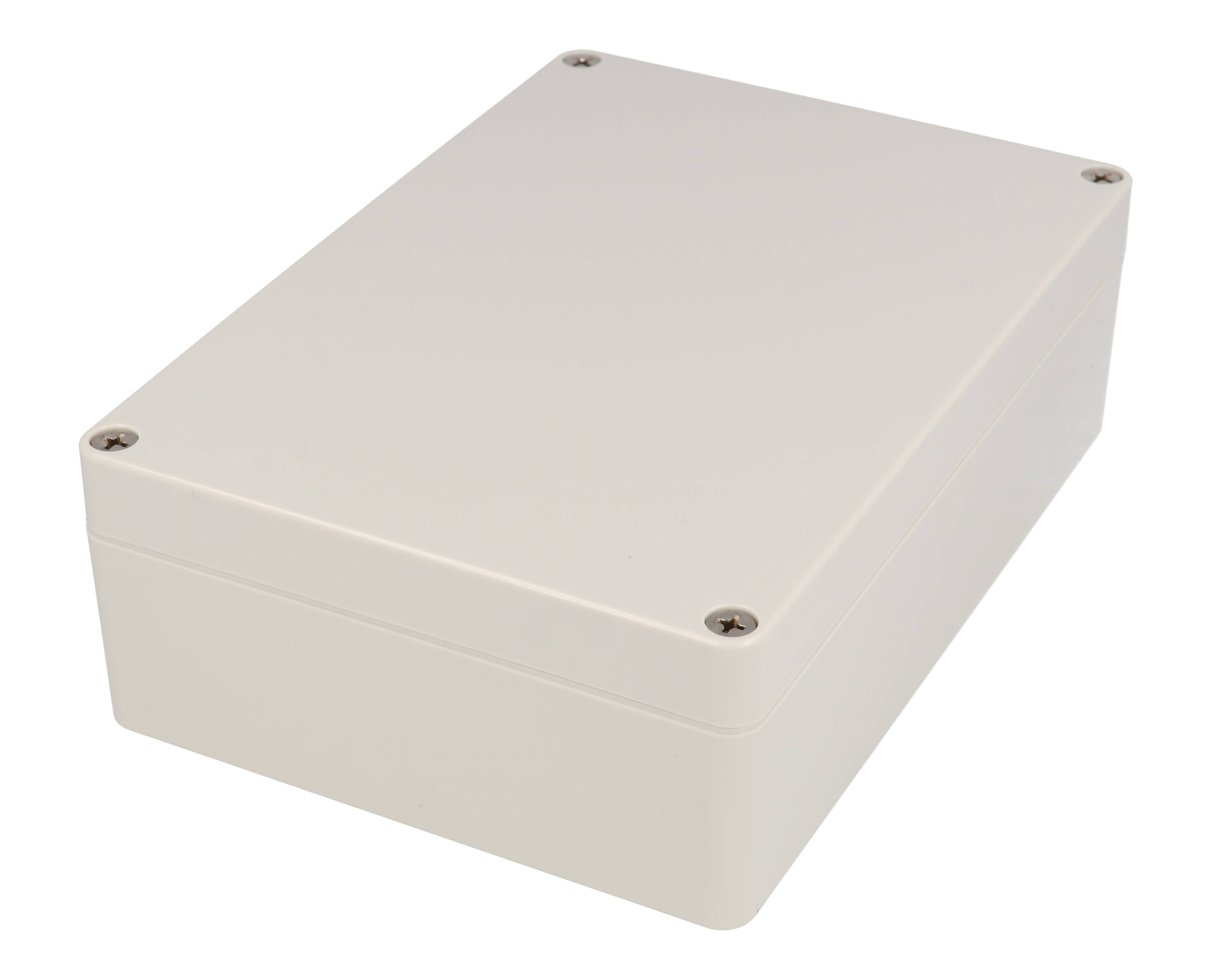

| RZ0214 | RZ0214C | RZ0313 | RZ0313C | 171 | 121 | 55 | 162.87 | 112.87 | RZ0313GASKET | $12.33In stockRZ0214 | Buy now |
| RZ0223 | RZ0223C | RZ0340 | RZ0340C | 171 | 121 | 80 | 161.99 | 111.99 | RZ0340GASKET | $13.96In stockRZ0223 | Buy now |
| RZ0269 | RZ0269C | RZ0373 | RZ0373C | 200 | 120 | 75 | 191.09 | 111.09 | RZ0373GASKET | $15.26In stockRZ0269 | Buy now |
| RZ0218 | RZ0218C | RZ0317 | RZ0317C | 222 | 146 | 55 | 213.87 | 137.87 | RZ0317GASKET | $16.23In stockRZ0218 | Buy now |

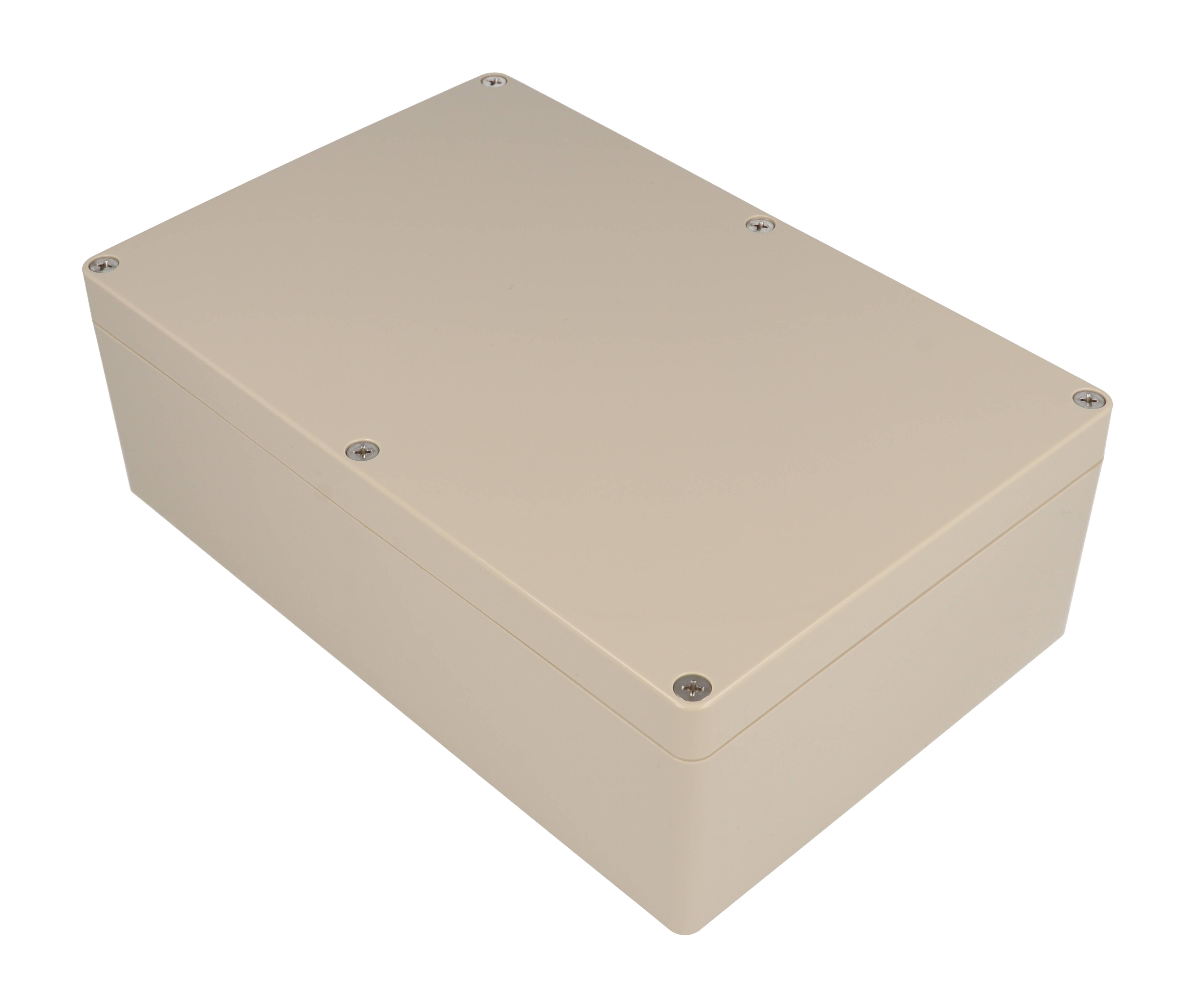

| RZ0232 | RZ0232C | RZ0353 | RZ0353C | 222 | 146 | 75 | 210.37 | 137.19 | RZ0353GASKET | $18.77In stockRZ0232 | Buy now |
Key Features:
- ■Designed to meet IP65.
- ■Ideally suited for mounting printed circuit boards or DIN rail mounted components
- ■Gasketed lid with two-piece tongue & groove construction provides protection against access of oil, dust, and water
- ■Lid screws are self-captivating (lid holes are threaded with first installation of screws).
- ■All sizes are available with clear polycarbonate lid (part numbers ending in "C")
- ■Easy to wall-mount using "through box-blind hole construction" whereby the wall-mounting holes are outside the gasket perimeter.
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
ABS Plastic Specifications:
- ■Suggested for indoor use
- ■UL Flammability rating of UL94-HB
- ■Color: RAL1013
- ■Temperature: -30 degrees C to +80 degrees C.
Polycarbonate Specifications
- ■Suggested for outdoor use
- ■UL Flammability rating of UL94-V2
- ■Color: RAL7035
- ■Temperature: -40 degrees C to +130 degrees C.
