Hammond RZ0218C 222x146x55 mm Clear Lid Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid over a large 222 x 146 mm footprint
- Light gray polycarbonate body, 55 mm deep
- PCBs up to 213.87 x 137.87 mm
- Designed to meet IP65; six self-captivating lid screws
- UL94 V-2, -40 °C to +130 °C
- Wall-mounting holes outside the gasket perimeter

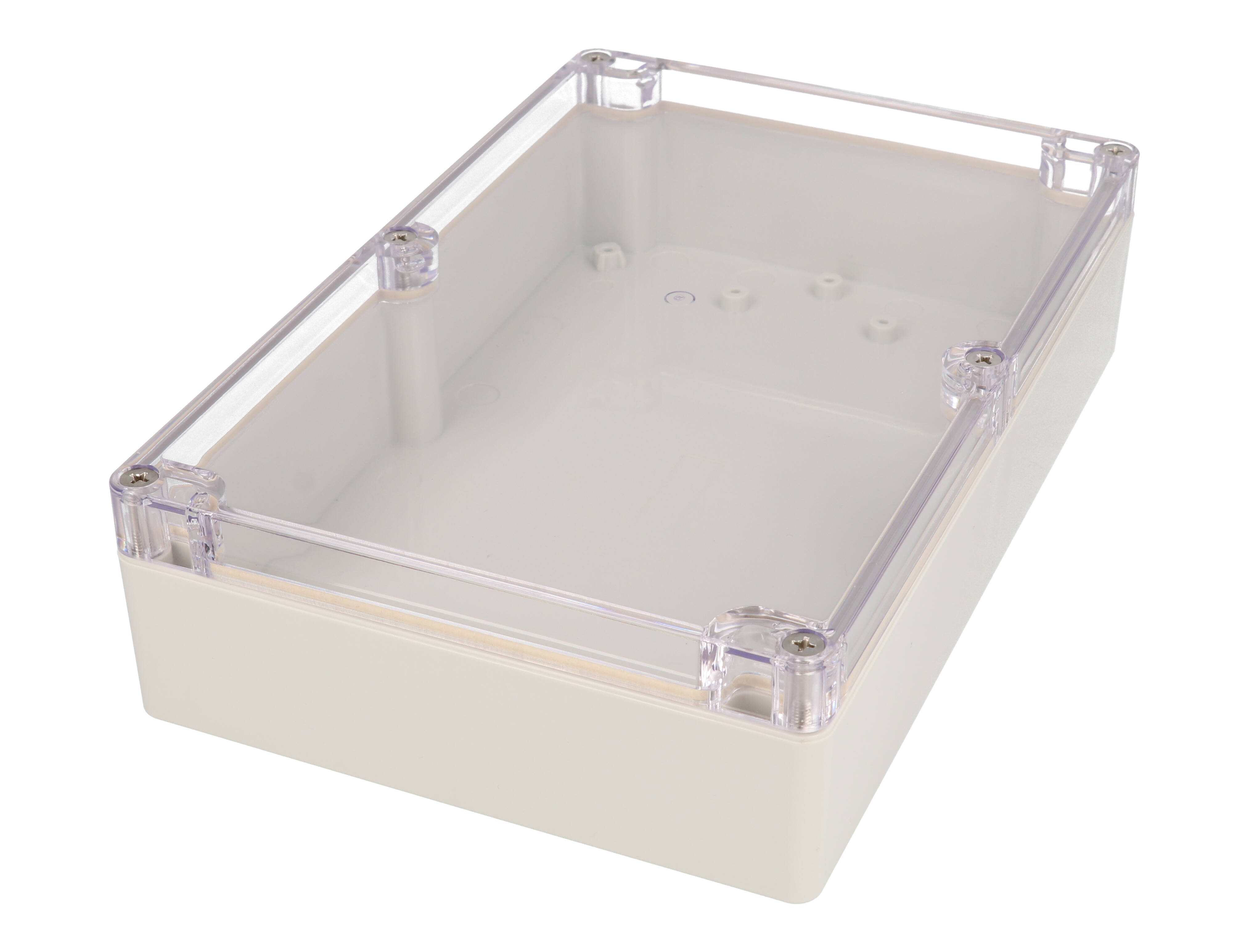

RZ0218C is the large 222 mm x 146 mm x 55 mm (8.74 in x 5.75 in x 2.17 in) RZ Series enclosure with a clear polycarbonate lid. The wide transparent cover exposes a large board area, useful for control panels with multiple indicators, display boards or equipment that needs visual inspection without opening.
The light gray RAL7035 polycarbonate body has a smooth surface, a UL94 V-2 flammability rating and a -40 °C to +130 °C range, and polycarbonate is suggested for outdoor use. A two-piece tongue & groove gasket seals the lid against oil, dust and water; the enclosure is designed to meet IP65. Six self-captivating lid screws secure the cover, and the hardware is corrosion resistant.
Inside dimensions from the drawing are 49.00 mm [1.93 in] high and 138.72 mm [5.46 in] wide. P.C. boards up to 213.87 mm x 137.87 mm mount on internal points that accept M3 self-tapping screws, and the mounting design also covers DIN rail mounted components. Wall-mounting holes are located outside the gasket perimeter.

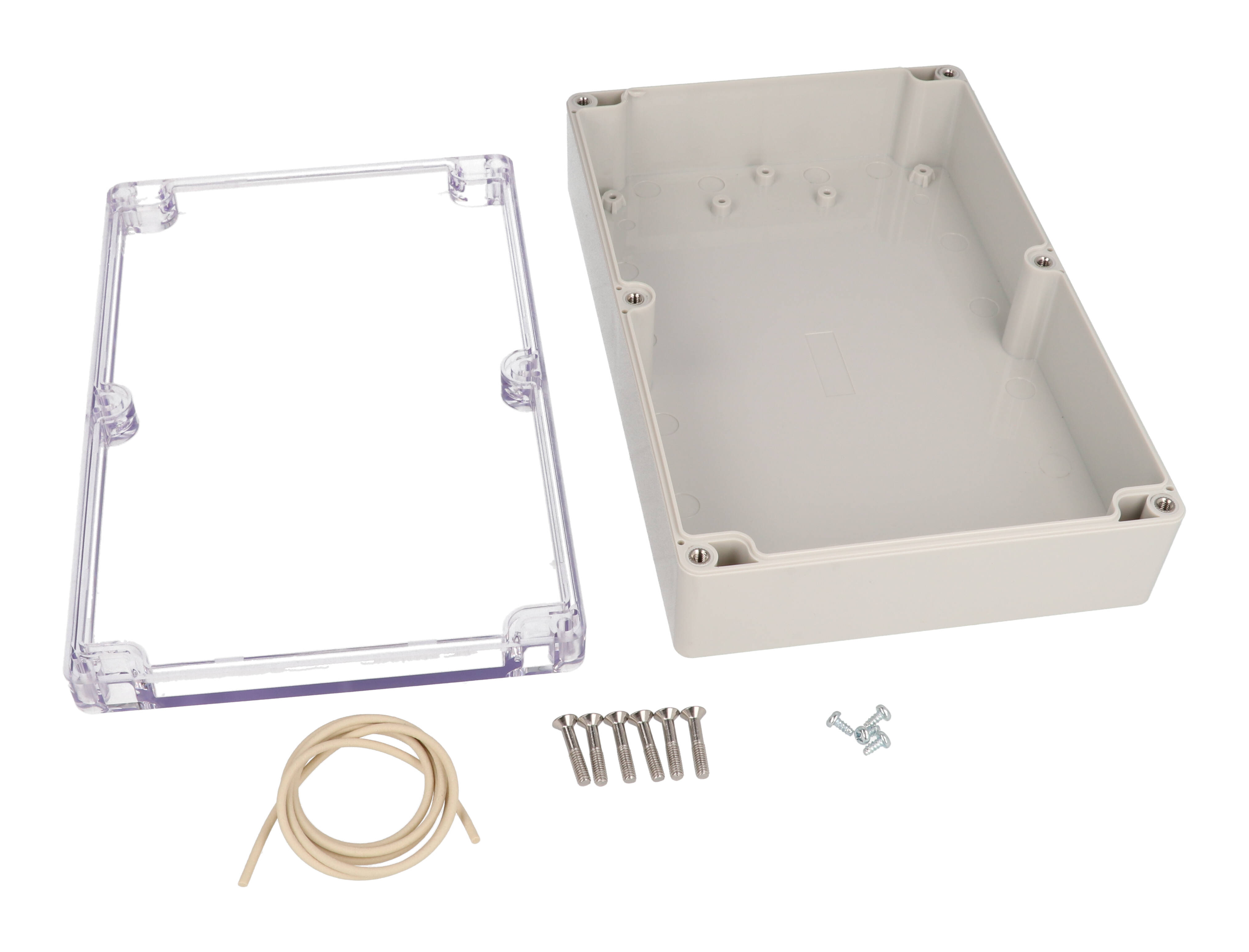

The RZ0218C ships in a bag at 1.08 lbs (0.49 kg) with the box, clear lid, string gasket, 4 PCB screws and 6 lid screws. Recommended torque: (43-50) ozf.in / (30-35) cN.m. Replacement gasket: RZ0317GASKET. REACH and RoHS compliant; UPC 623980745671. RZ0218 is the version without the clear lid.
Ideal For
- Control panels with multiple indicators
- Large display board housings
- Outdoor-suggested enclosures needing visual inspection
Included
| Purchased Assembly Includes | Box, lid, string gasket, 4 PCB screws and 6 lid screws |
Overview
| Type | Water-tight |
| Style | Gray polycarbonate with clear polycarbonate lid |
| Application | Mounting printed circuit boards or DIN rail mounted components |
| Part Number | RZ0218C |
| Long Description | Enclosure - plastic |
| Short Description | PC Watertight Clear Lid |
Dimensions
| Depth | 55 mm |
| Width | 146 mm |
| Length | 222 mm |
| Inside Width | 138.72 mm [5.46 in] |
| Inside Height | 49.00 mm [1.93 in] |
| Size (L X W X H) | 8.74 in x 5.75 in x 2.17 in (222 mm x 146 mm x 55 mm) |
| Max. P.C. Board Width | 137.87 mm |
| Max. P.C. Board Length | 213.87 mm |
Accessories
| PCB Screws | SC622-50 (M3 x 6mm self-tapping, 50 pkg) |
| Cover Screws | SC618-50 (M4-0.7 x 20mm, 50 pkg) |
| Replacement Gasket | RZ0317GASKET (string gasket, EPDM grey, 2-pk) |
Identifiers
| UPC | 623980745671 |
| UNSPSC | 39121301 |
Installation
| CAD Models | Solid models available in .stp or .x_t |
| Wall Mounting | Through box-blind hole construction; wall-mounting holes are outside the gasket perimeter |
| Internal Mounting | Mounting points designed for printed circuit boards or DIN rail; accepts M3 self-tapping screw |
| Recommended Torque | (43-50) ozf.in / (30-35) cN.m |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
Related Parts
| Beige ABS Version | RZ0317 |
| Gray Polycarbonate Version | RZ0218 |
| Beige ABS With Clear Lid Version | RZ0317C |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 1.08 lbs (0.49 kg) |
Construction & Finish
| Lid | Clear polycarbonate |
| Color | Light Gray (RAL7035) |
| Surface | Smooth |
| Hardware | Assembled with corrosion resistant hardware |
| Lid Seal | Gasketed lid with two-piece tongue & groove construction |
| Material | Polycarbonate |
| Lid Screws | Self-captivating (lid holes are threaded with first installation of screws) |
Environmental & Protection
| IP Rating | IP65 (designed to meet) |
| Protection | Against access of oil, dust and water |
| Flame Rating | UL94 V-2 |
| Suggested Use | Outdoor use |
| Temperature Range | -40 °C to +130 °C |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents/cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is RZ0218C different from RZ0218?▾
It adds a clear polycarbonate lid; the body size is the same 222 x 146 x 55 mm.
What board size fits?▾
Up to 213.87 mm x 137.87 mm.
How many lid screws are included?▾
Six lid screws plus 4 PCB screws.
What are the inside dimensions?▾
49.00 mm inside height and 138.72 mm inside width.
Is it REACH and RoHS compliant?▾
Yes.
