Hammond RZ0205 115x65x55 mm IP65 Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 115 x 65 x 55 mm light gray polycarbonate water-tight enclosure
- 49.50 mm inside height for taller components
- Designed to meet IP65; tongue & groove gasketed lid
- PCBs up to 106.87 x 56.87 mm or DIN rail components
- UL94 V-2, -40 °C to +130 °C, suggested for outdoor use
- Wall-mounting holes outside the gasket perimeter

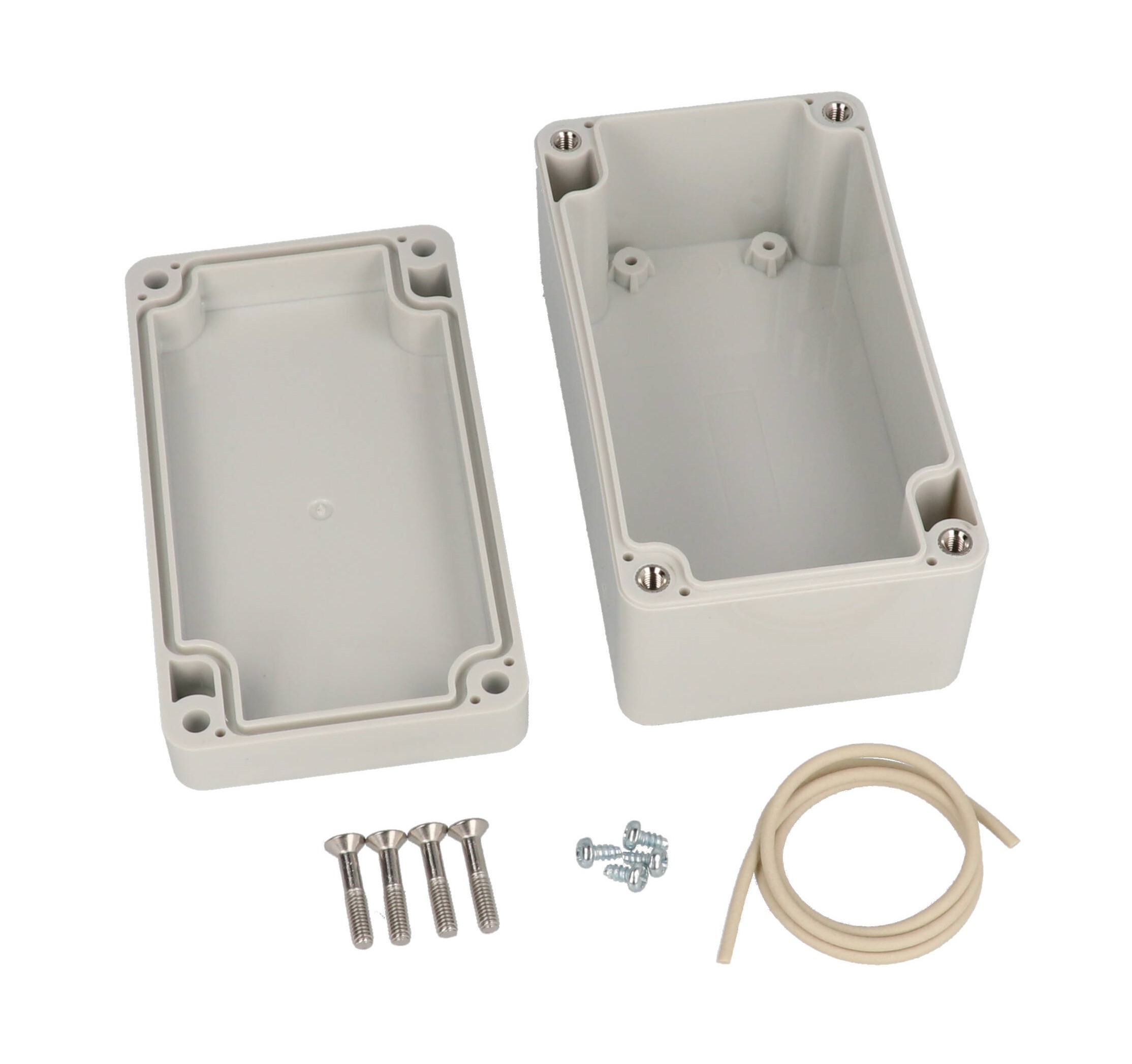

The RZ0205 takes the 115 mm x 65 mm RZ Series footprint to a 55 mm depth, measuring 4.53 in x 2.56 in x 2.17 in overall. The extra height over the 40 mm RZ0203 leaves room for connectors, terminal blocks or taller components on a narrow board, while keeping the assembly sealed for demanding locations.
The enclosure is light gray RAL7035 polycarbonate with a smooth surface, UL94 V-2 rated and specified for -40 °C to +130 °C; polycarbonate is suggested for outdoor use. A two-piece tongue & groove gasketed lid protects against oil, dust and water, and the enclosure is designed to meet IP65. Self-captivating lid screws and corrosion resistant hardware complete the assembly.
The drawing lists 49.50 mm [1.95 in] of inside height and 57.72 mm [2.27 in] inside width. The maximum P.C. board size is 106.87 mm x 56.87 mm, and internal mounting points accept M3 self-tapping screws and are designed for boards or DIN rail components. For wall installation, through box-blind hole construction keeps the mounting holes outside the gasket perimeter.
Supplied bagged at 0.33 lbs (0.15 kg), the RZ0205 includes the box, lid, string gasket, 4 PCB screws and 4 lid screws. Recommended torque is (43-50) ozf.in / (30-35) cN.m. Replacement gasket RZ0308GASKET. REACH and RoHS compliant; UPC 623980404844. Clear-lid version: RZ0205C.
Ideal For
- Narrow boards with connectors or terminal blocks
- Outdoor-suggested sealed electronics
- DIN rail component housings
Included
| Purchased Assembly Includes | Box, lid, string gasket, 4 PCB screws and 4 lid screws |
Overview
| Type | Water-tight |
| Style | Gray polycarbonate |
| Application | Mounting printed circuit boards or DIN rail mounted components |
| Part Number | RZ0205 |
| Short Description | Polycarbonate Watertight |
Dimensions
| Depth | 55 mm |
| Width | 65 mm |
| Length | 115 mm |
| Inside Width | 57.72 mm [2.27 in] |
| Inside Height | 49.50 mm [1.95 in] |
| Size (L X W X H) | 4.53 in x 2.56 in x 2.17 in (115 mm x 65 mm x 55 mm) |
| Max. P.C. Board Width | 56.87 mm |
| Max. P.C. Board Length | 106.87 mm |
Accessories
| PCB Screws | SC622-50 (M3 x 6mm self-tapping, 50 pkg) |
| Cover Screws | SC618-50 (M4-0.7 x 20mm, 50 pkg) |
| Replacement Gasket | RZ0308GASKET (string gasket, EPDM grey, 2-pk) |
Identifiers
| UPC | 623980404844 |
| UNSPSC | 39121301 |
Installation
| CAD Models | Solid models available in .stp or .x_t |
| Wall Mounting | Through box-blind hole construction; wall-mounting holes are outside the gasket perimeter |
| Internal Mounting | Mounting points designed for printed circuit boards or DIN rail; accepts M3 self-tapping screw |
| Recommended Torque | (43-50) ozf.in / (30-35) cN.m |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
Related Parts
| Beige ABS Version | RZ0308 |
| Clear Lid Version | RZ0205C |
| Beige ABS With Clear Lid Version | RZ0308C |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.33 lbs (0.15 kg) |
Construction & Finish
| Color | Light Gray (RAL7035) |
| Surface | Smooth |
| Hardware | Assembled with corrosion resistant hardware |
| Lid Seal | Gasketed lid with two-piece tongue & groove construction |
| Material | Polycarbonate |
| Lid Screws | Self-captivating (lid holes are threaded with first installation of screws) |
Environmental & Protection
| IP Rating | IP65 (designed to meet) |
| Protection | Against access of oil, dust and water |
| Flame Rating | UL94 V-2 |
| Suggested Use | Outdoor use |
| Temperature Range | -40 °C to +130 °C |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents/cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the RZ0205?▾
4.53 in x 2.56 in x 2.17 in (115 mm x 65 mm x 55 mm); inside height 49.50 mm, inside width 57.72 mm.
What PCB size fits?▾
Up to 106.87 mm x 56.87 mm.
How is it different from the RZ0203?▾
Same 115 x 65 mm footprint, but 55 mm deep instead of 40 mm.
What is included?▾
Box, lid, string gasket, 4 PCB screws and 4 lid screws.
Which gasket replaces the original?▾
RZ0308GASKET.
