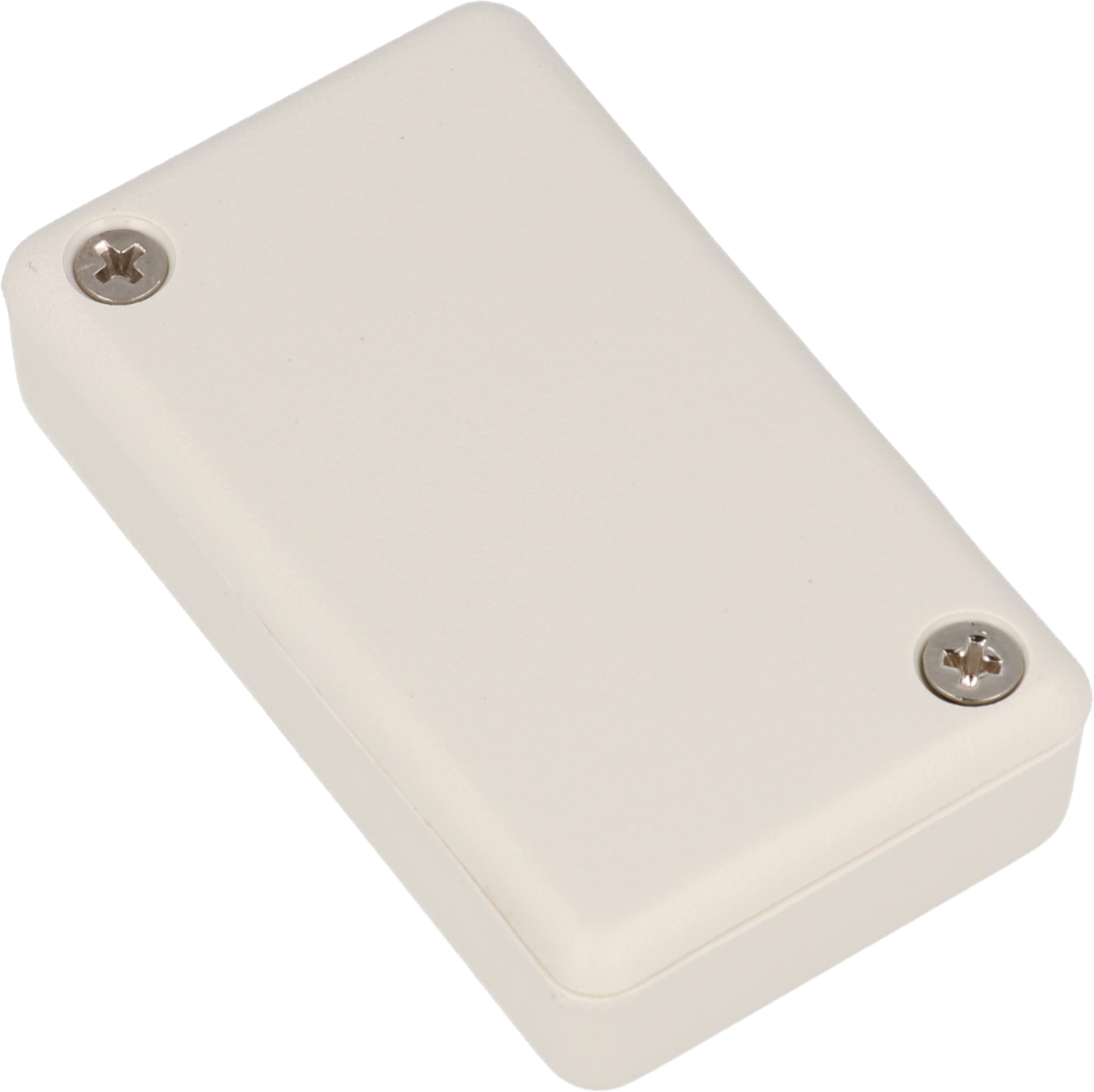

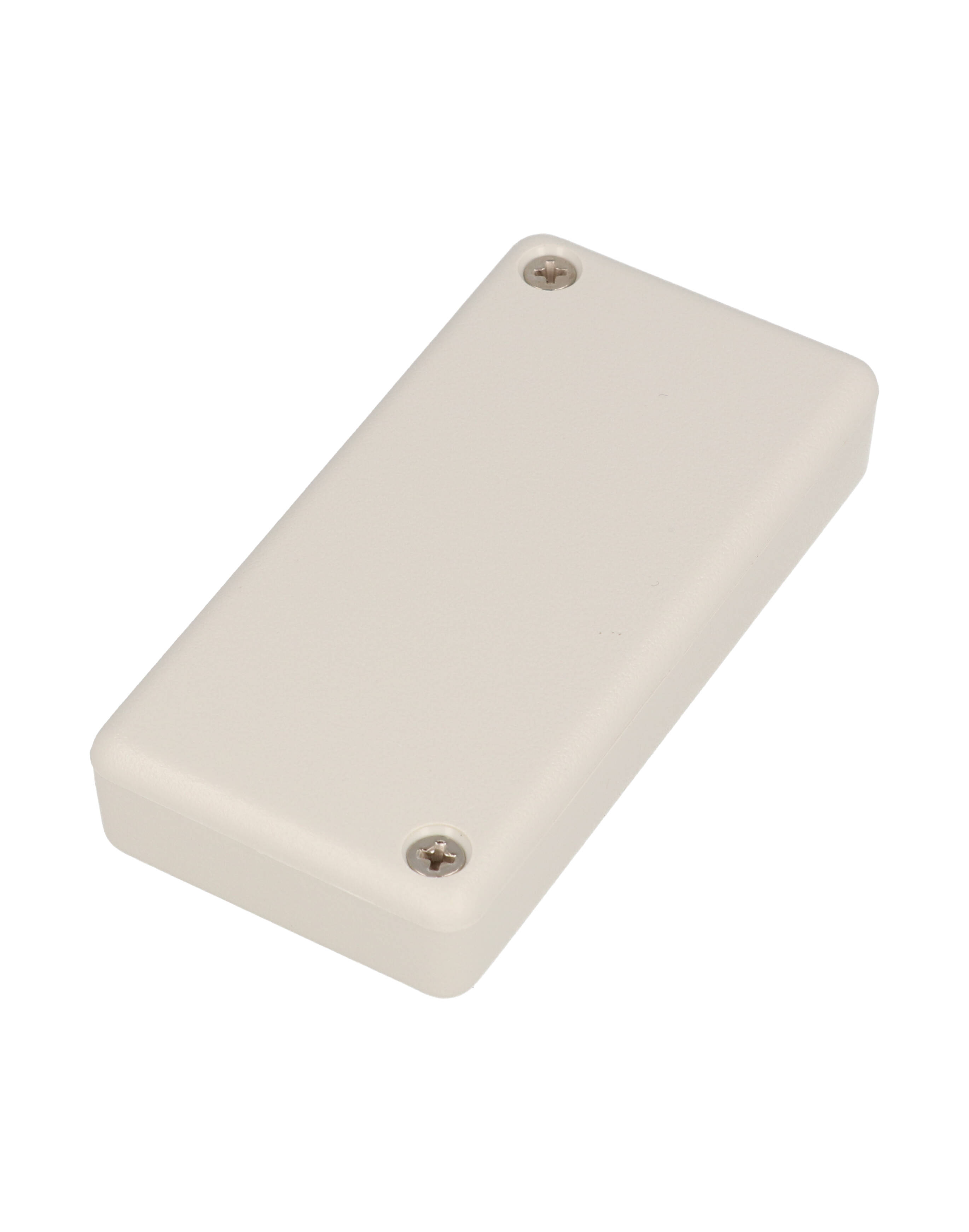

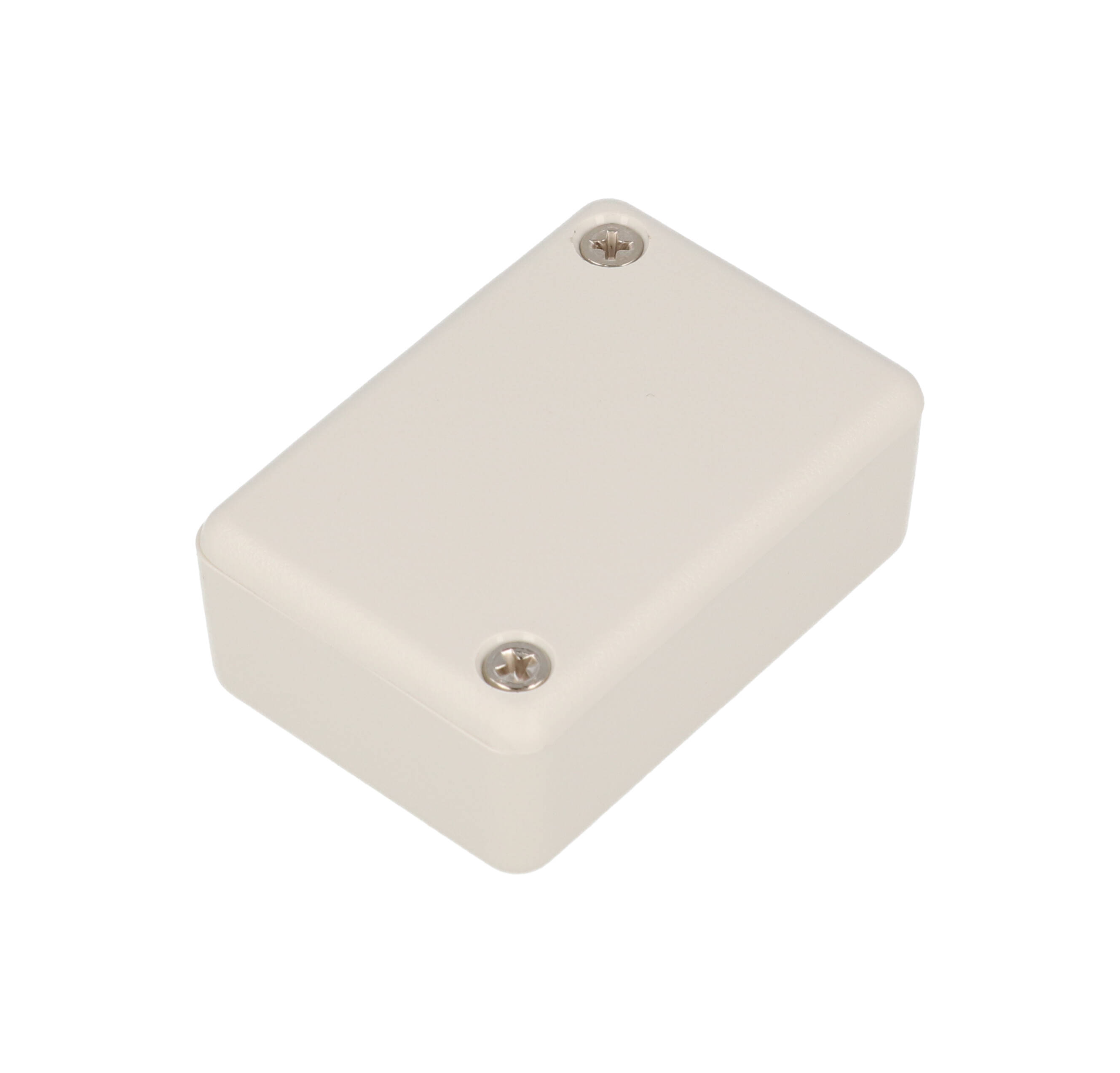

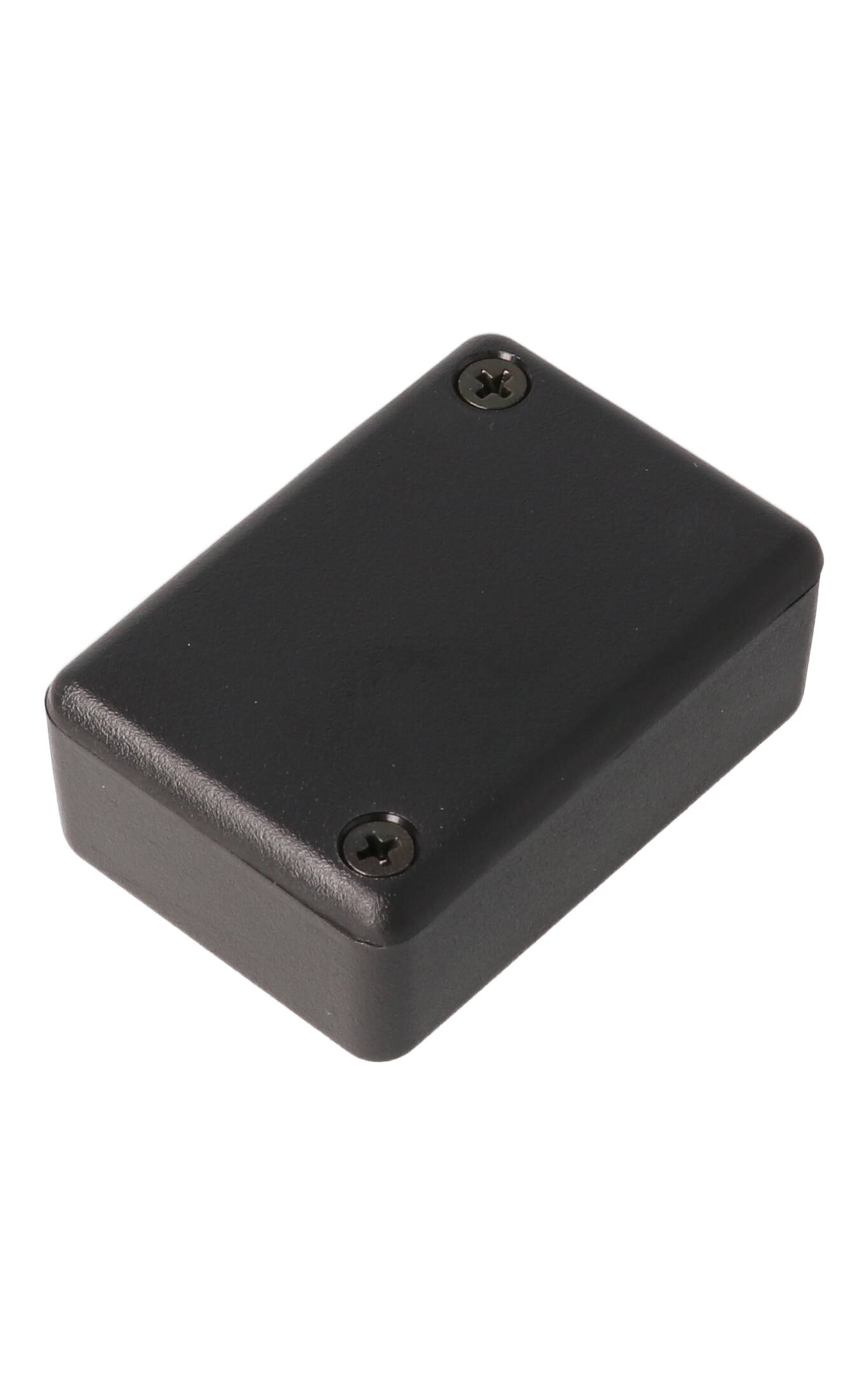

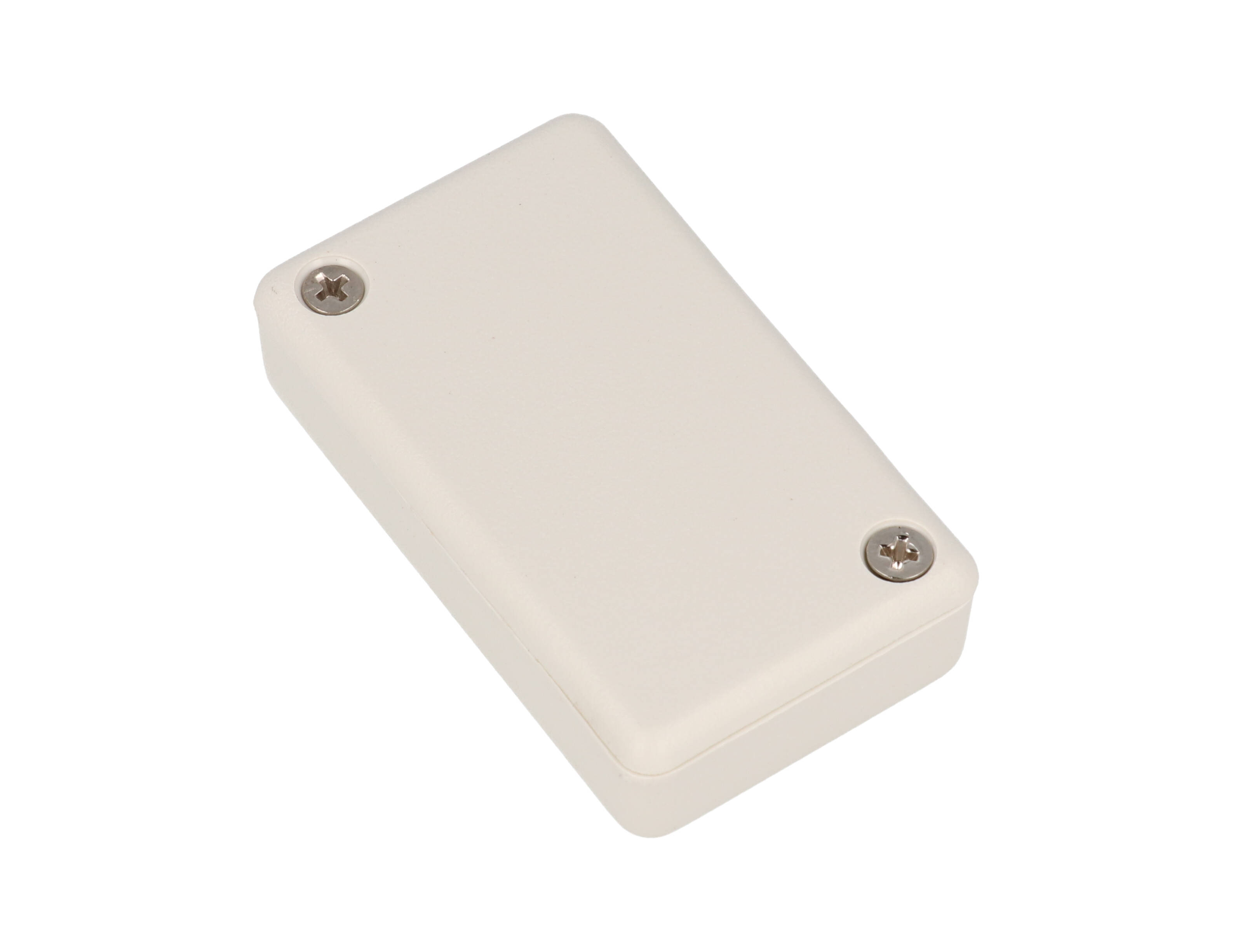

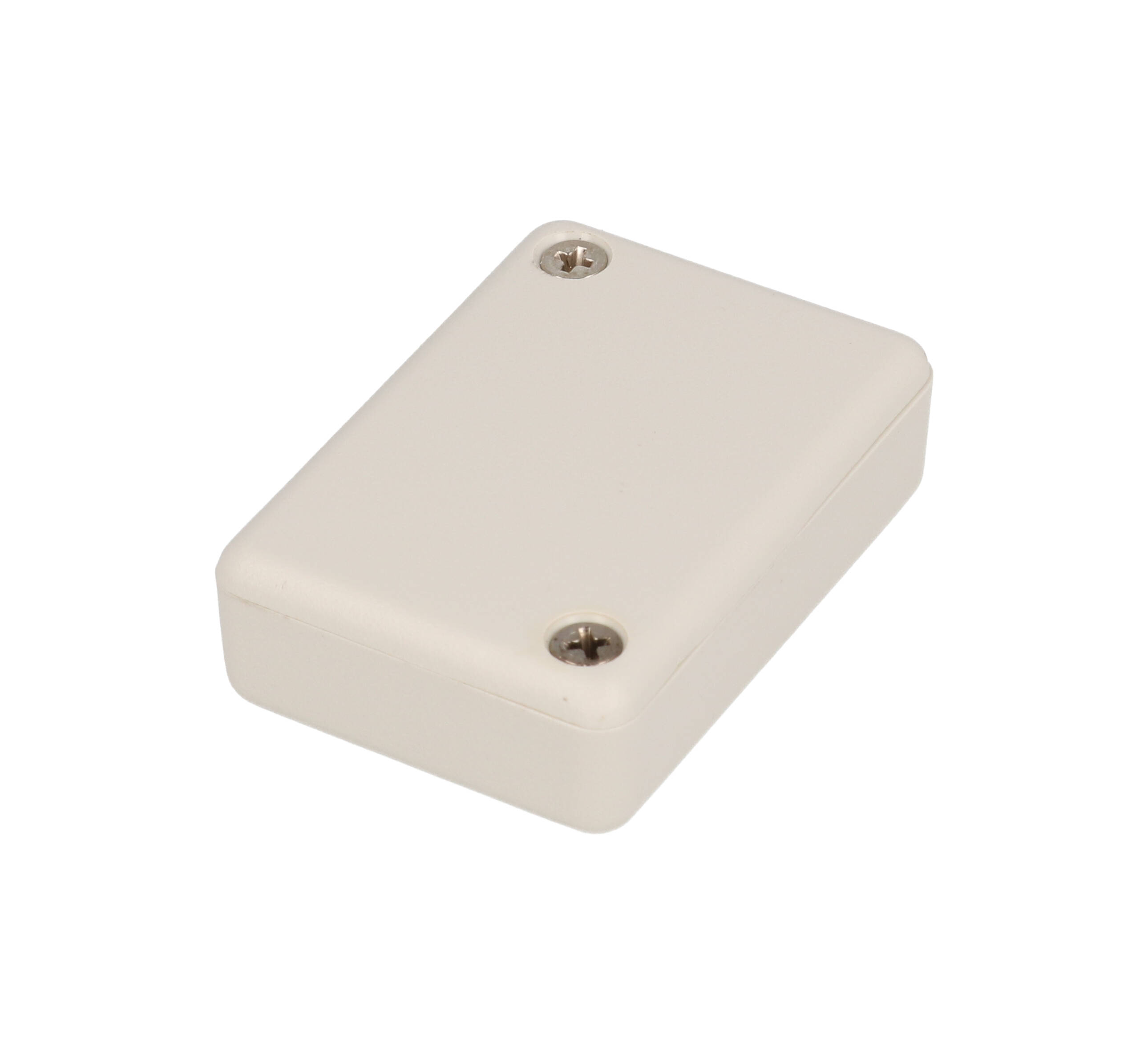

ABS Plastic Miniature Hand Held Enclosures · 1551 Series

Key Features:

• ■Ideally suited for mounting small printed circuit boards or for use as potting boxes.

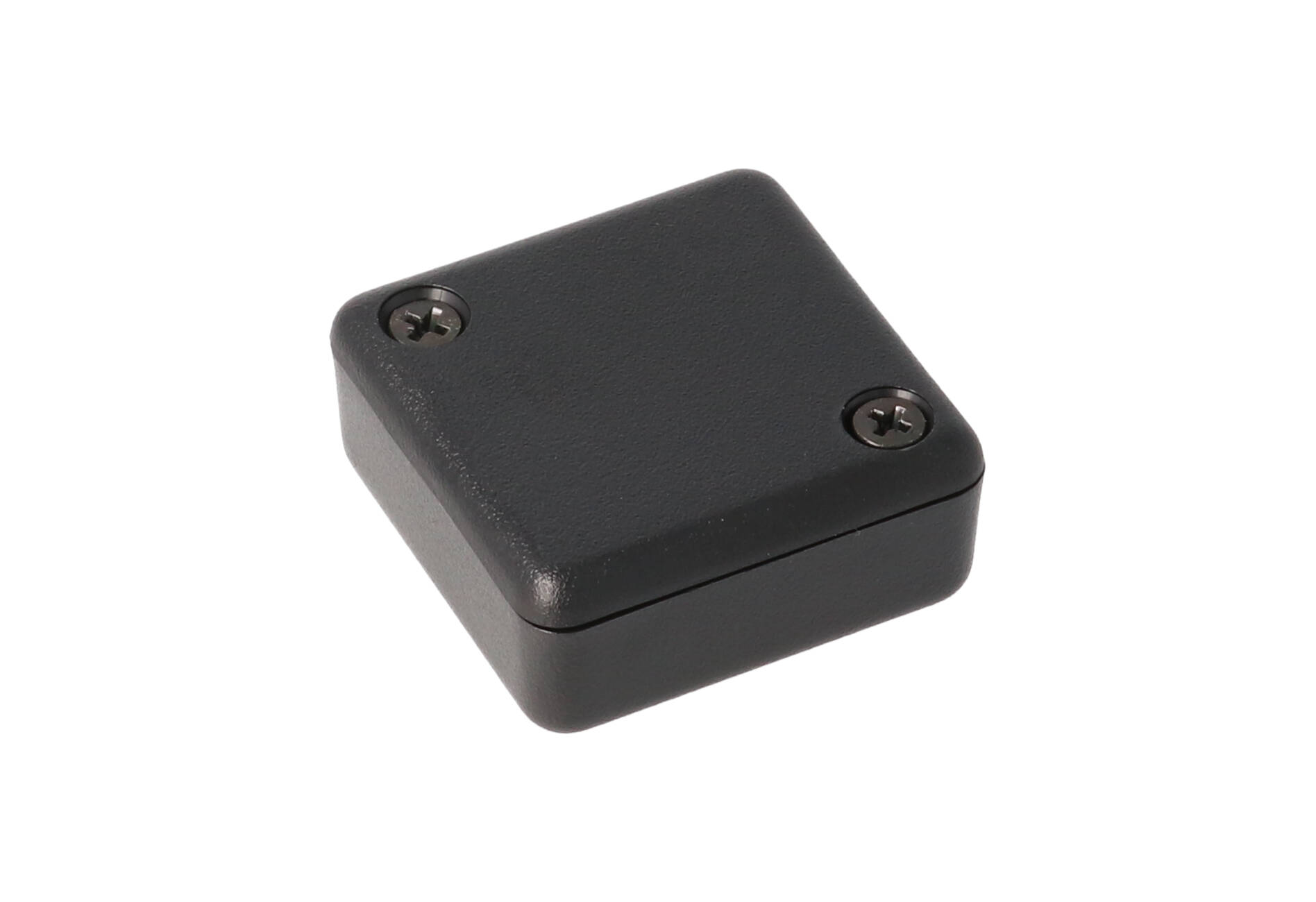

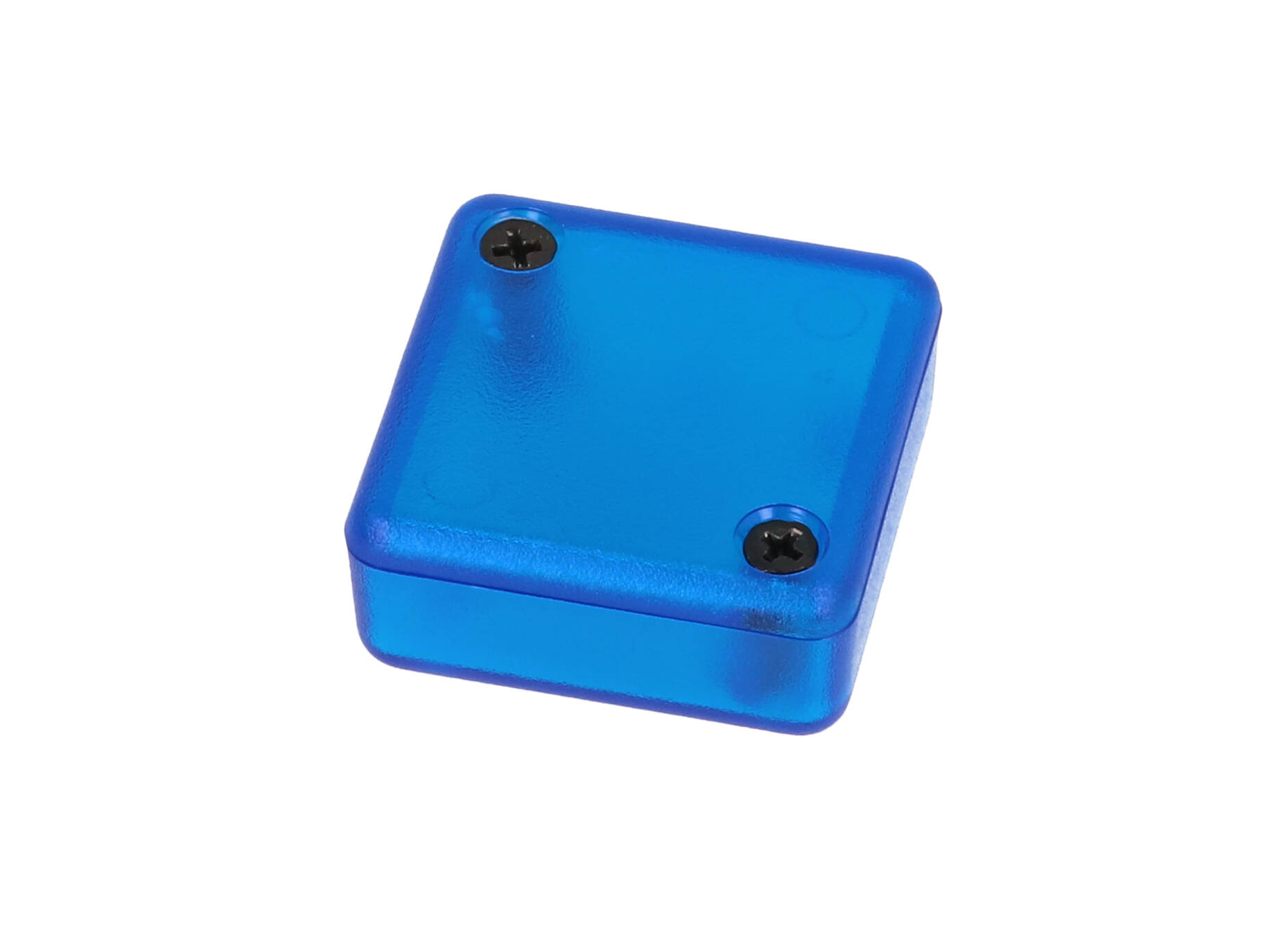

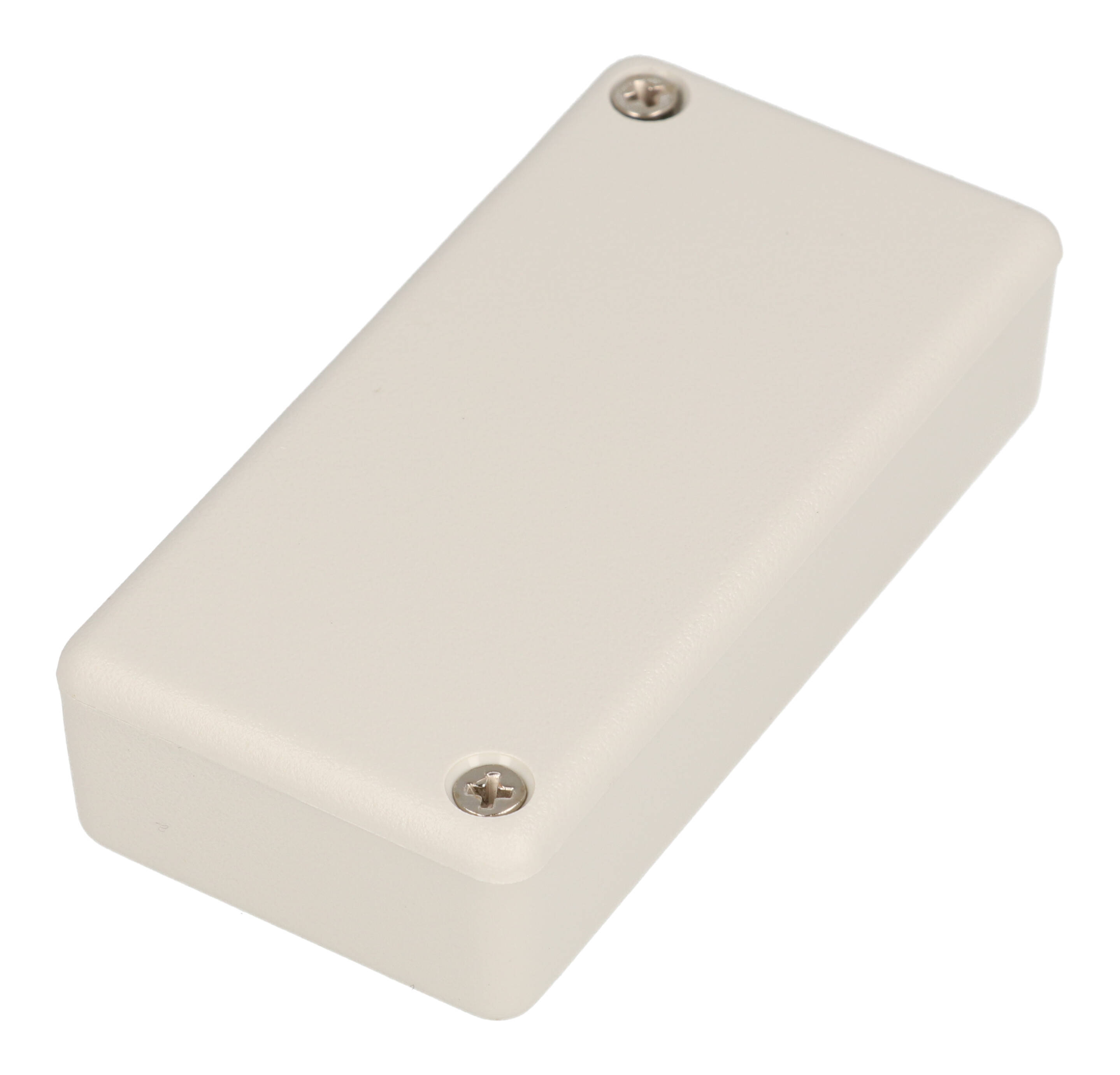

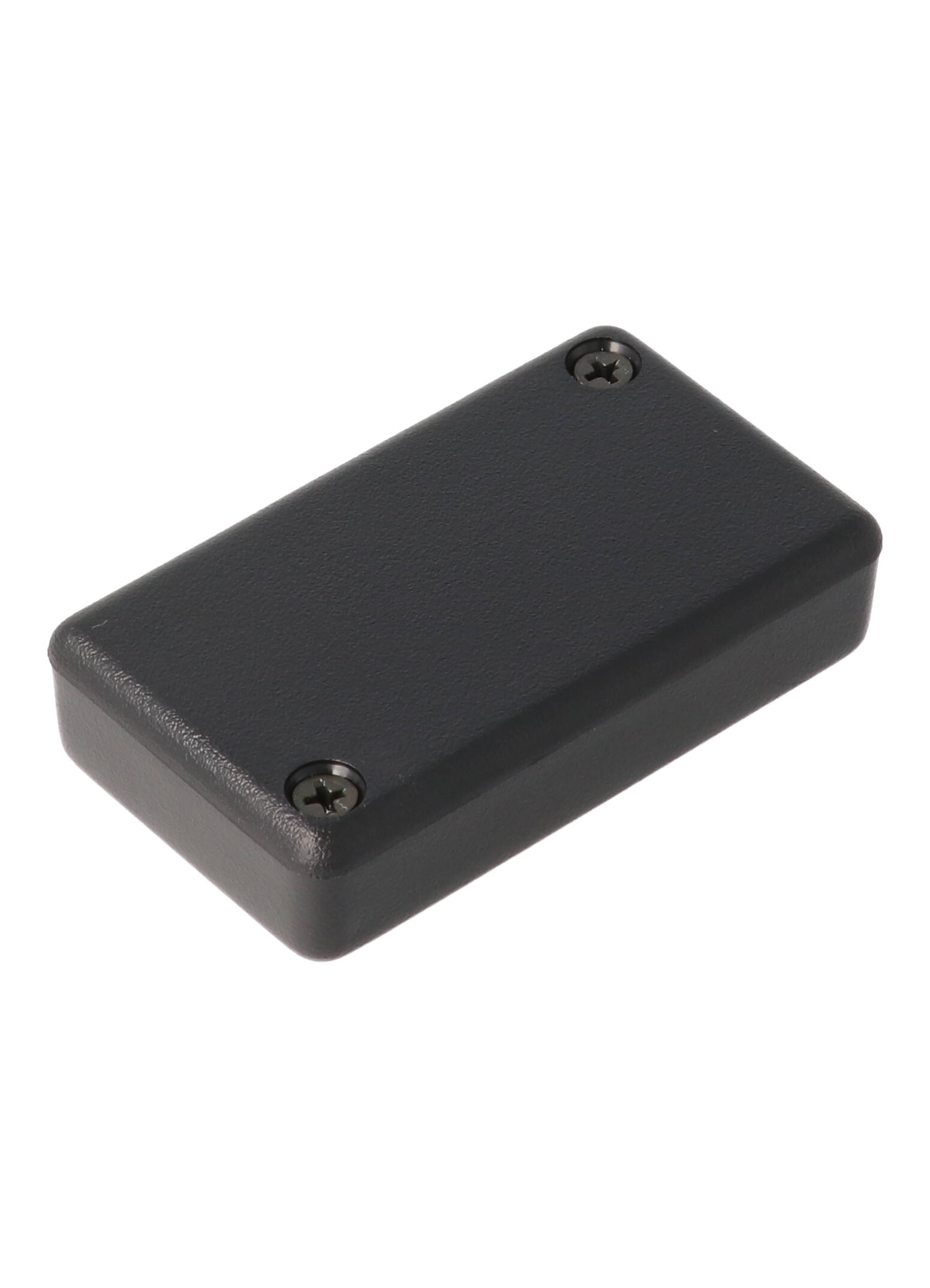

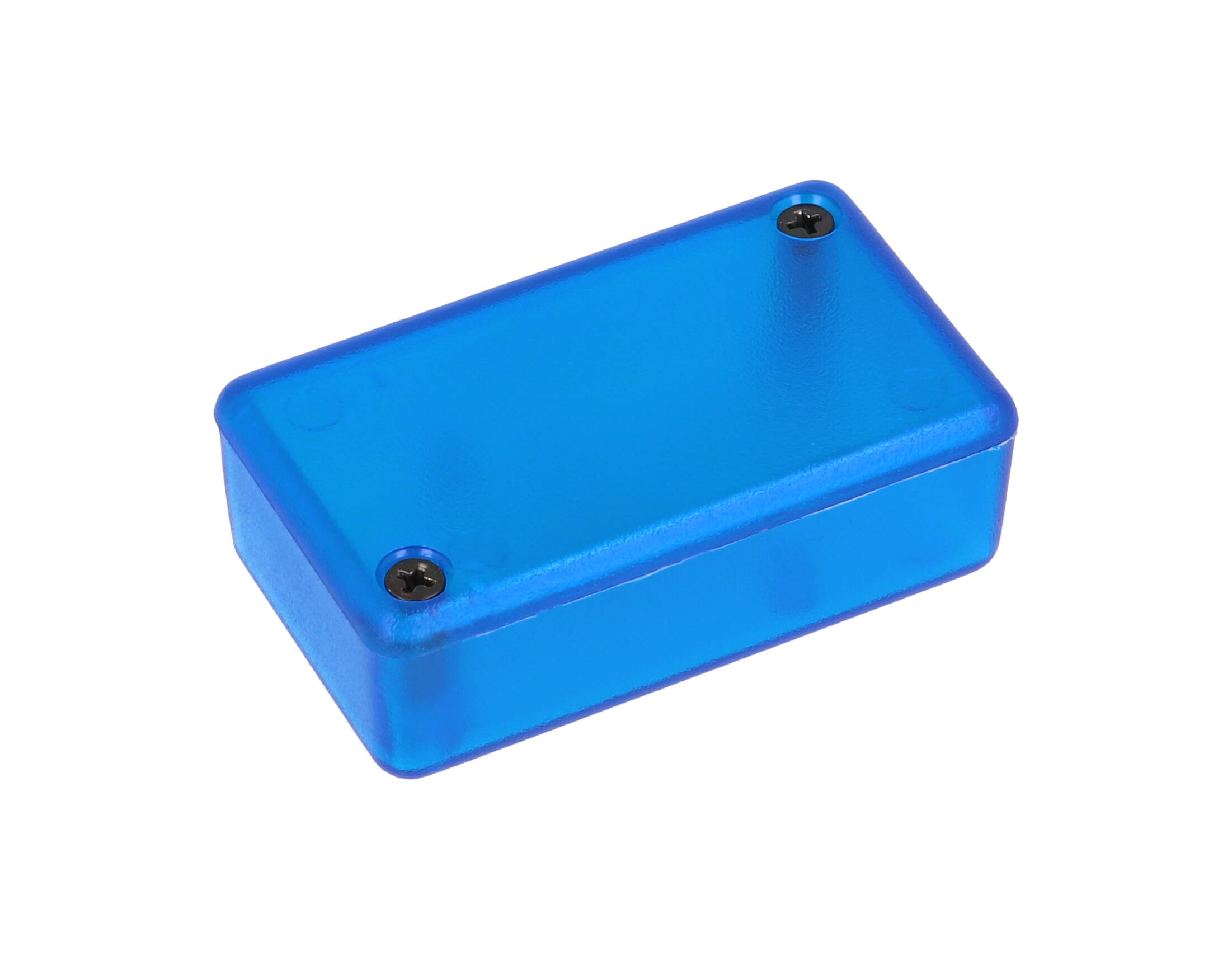

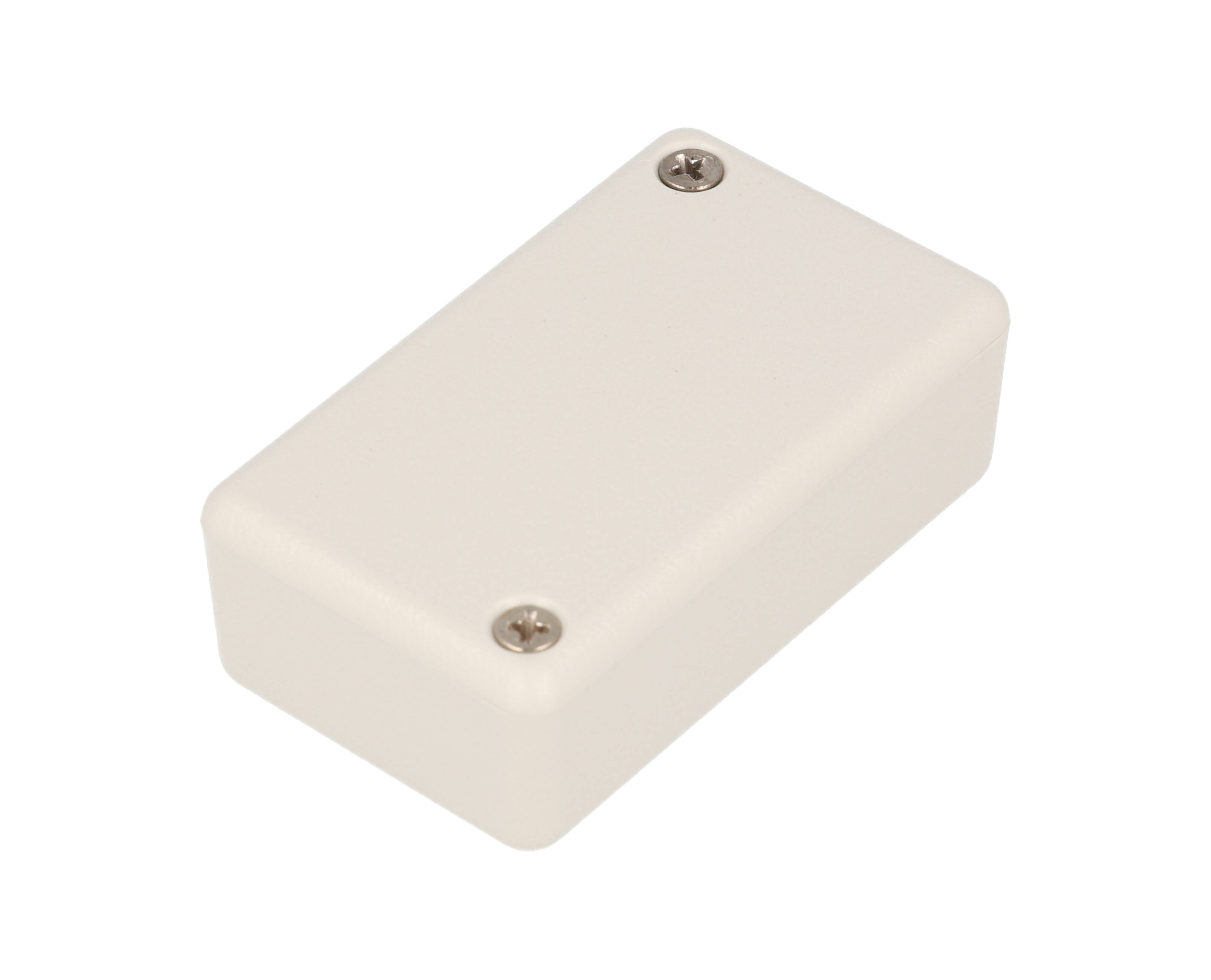

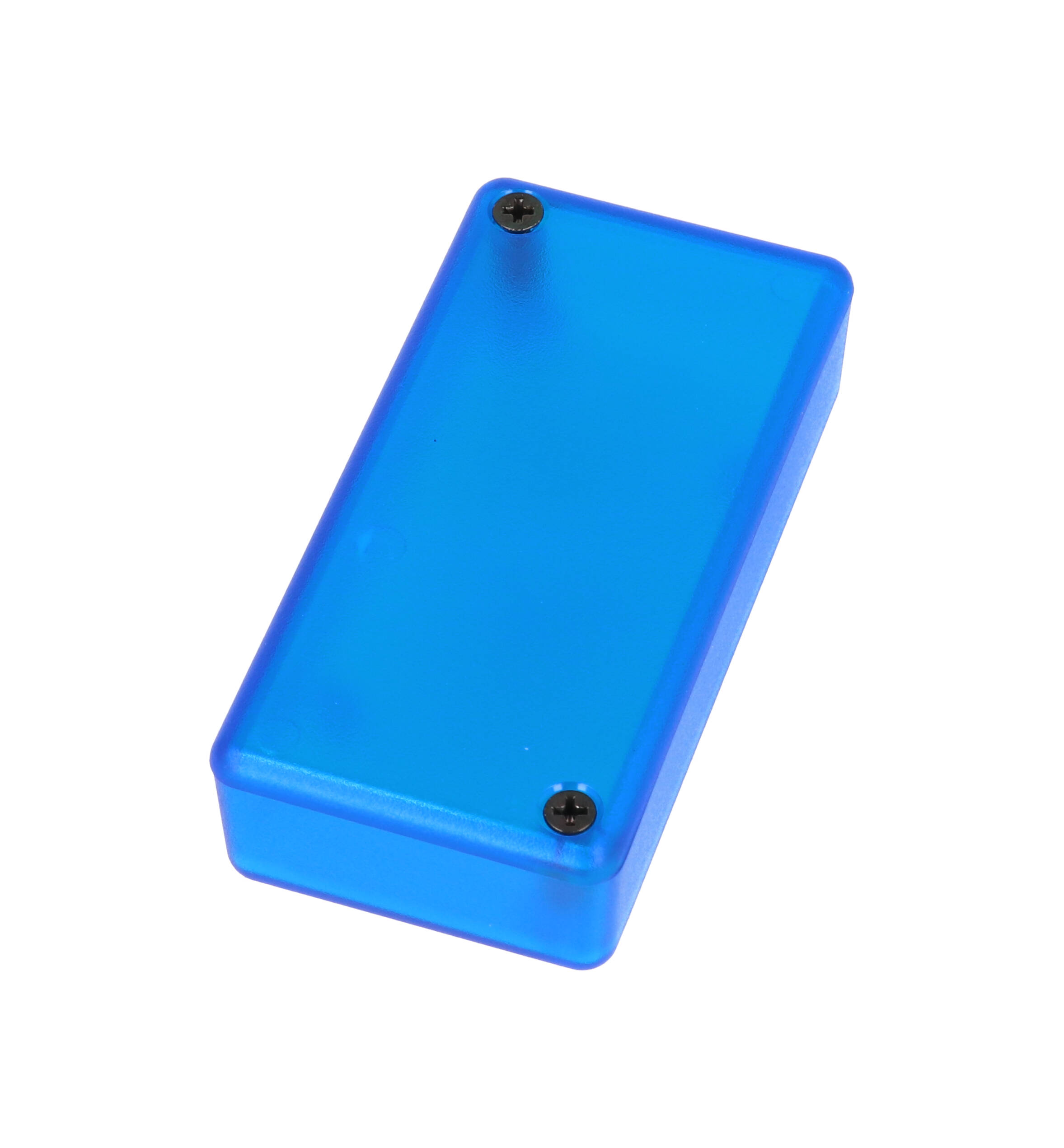

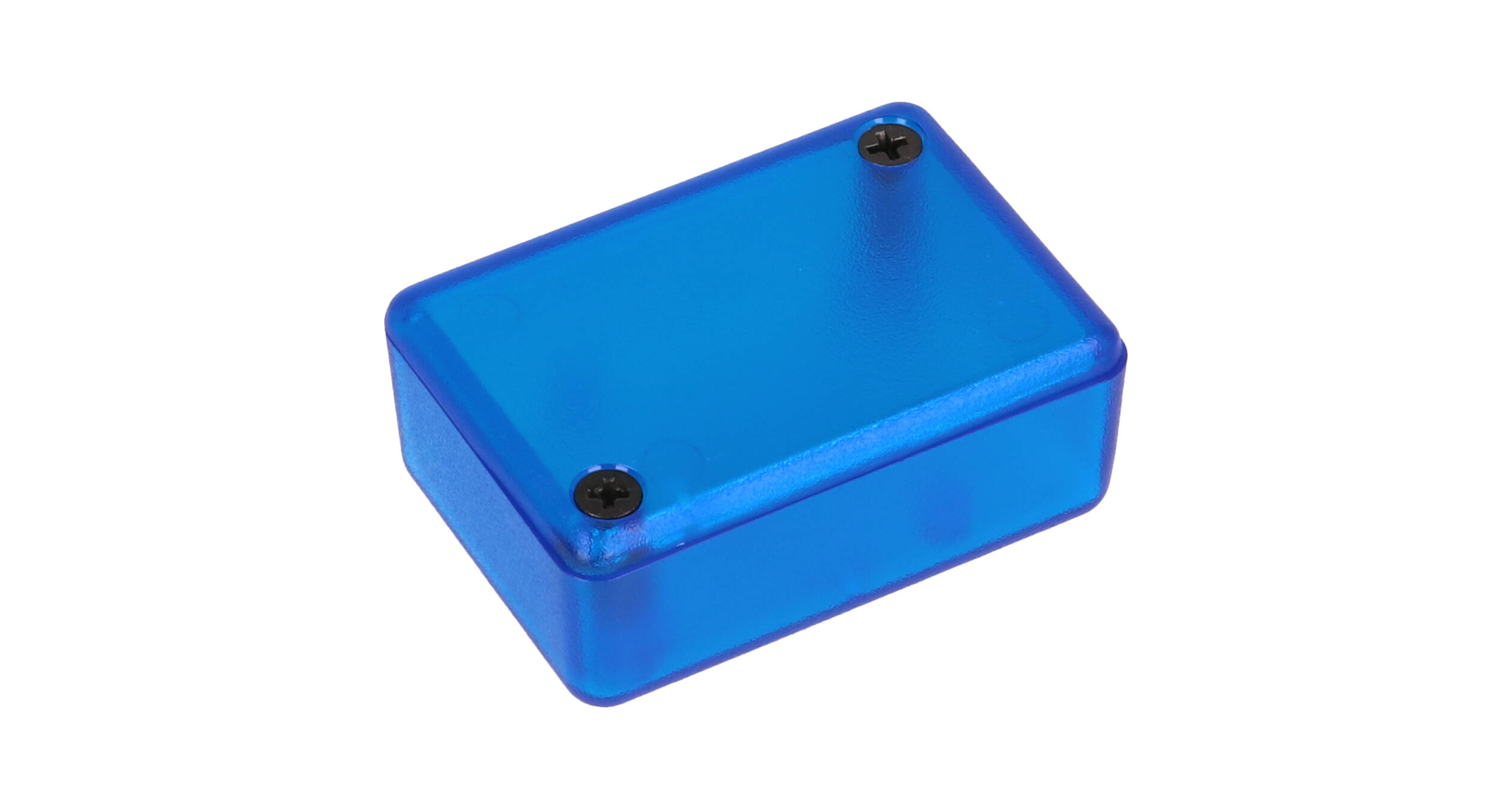

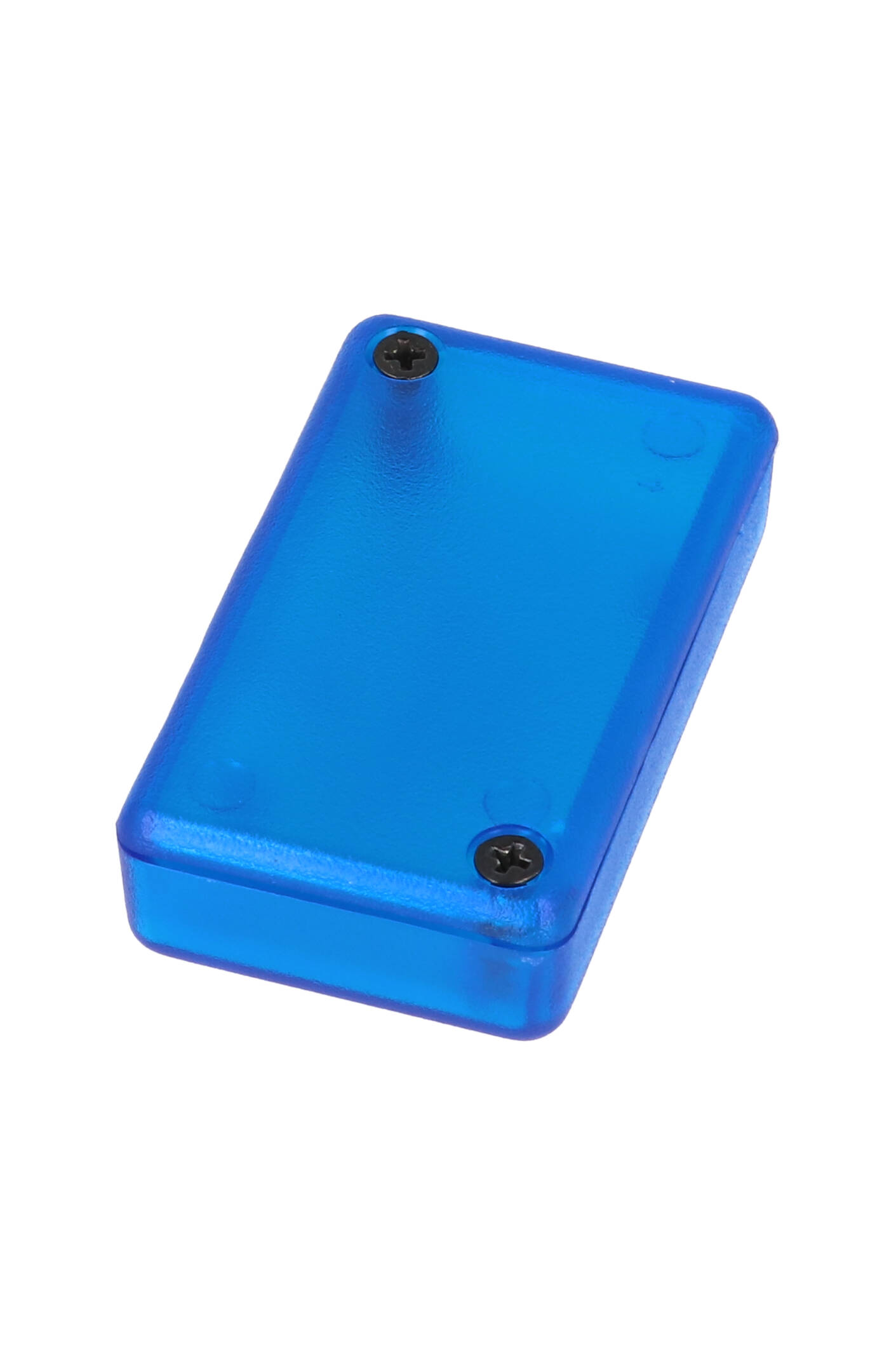

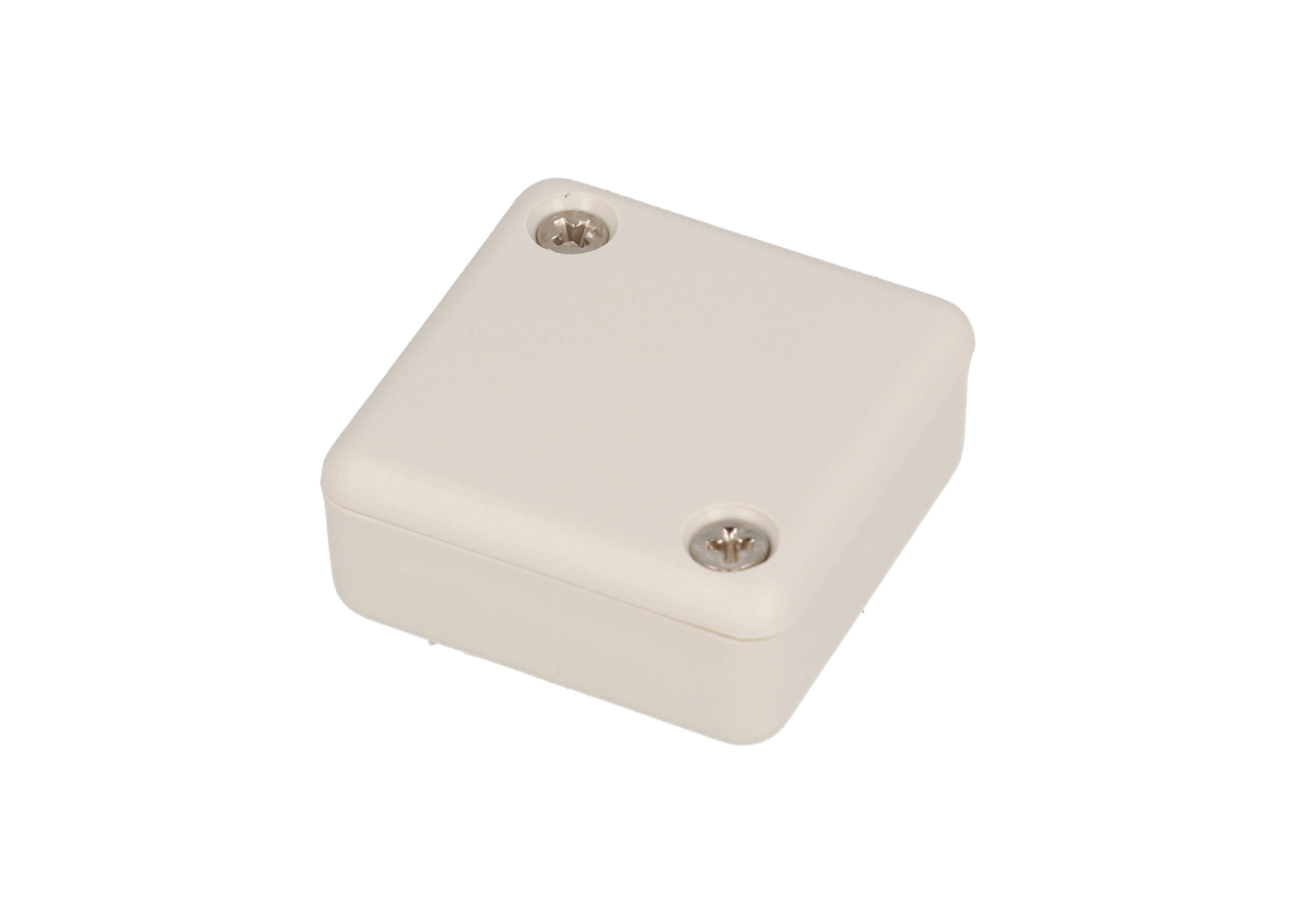

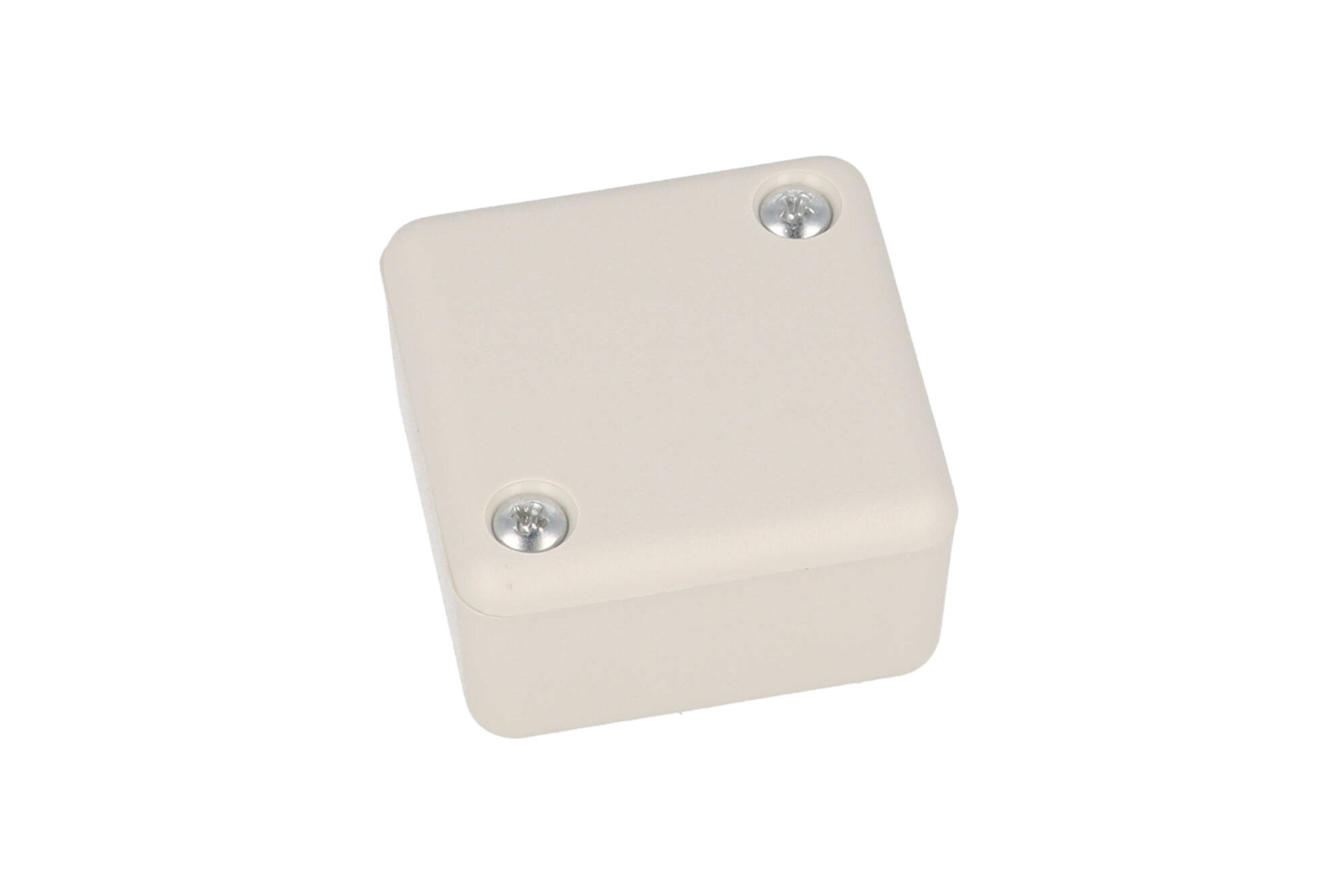

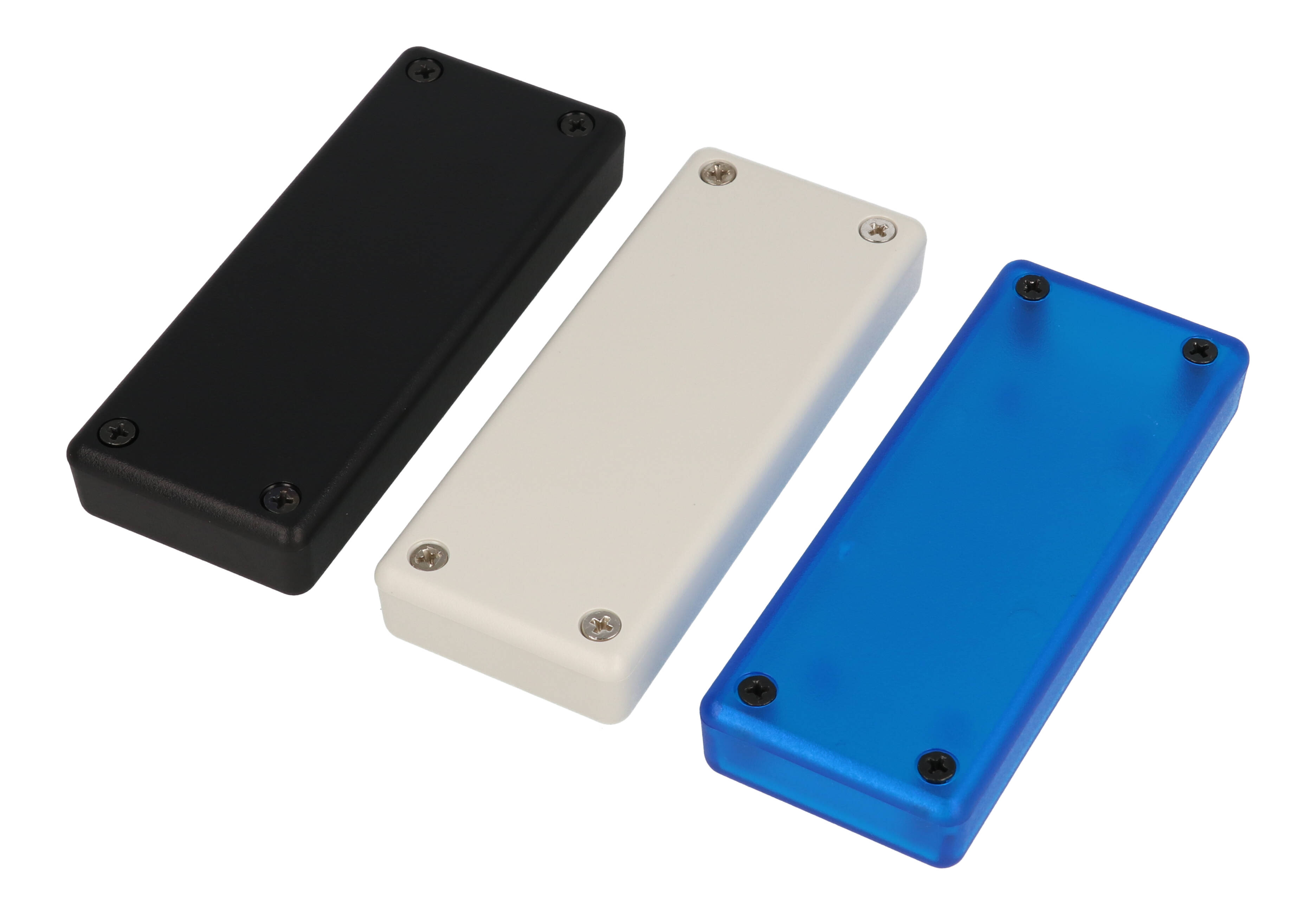

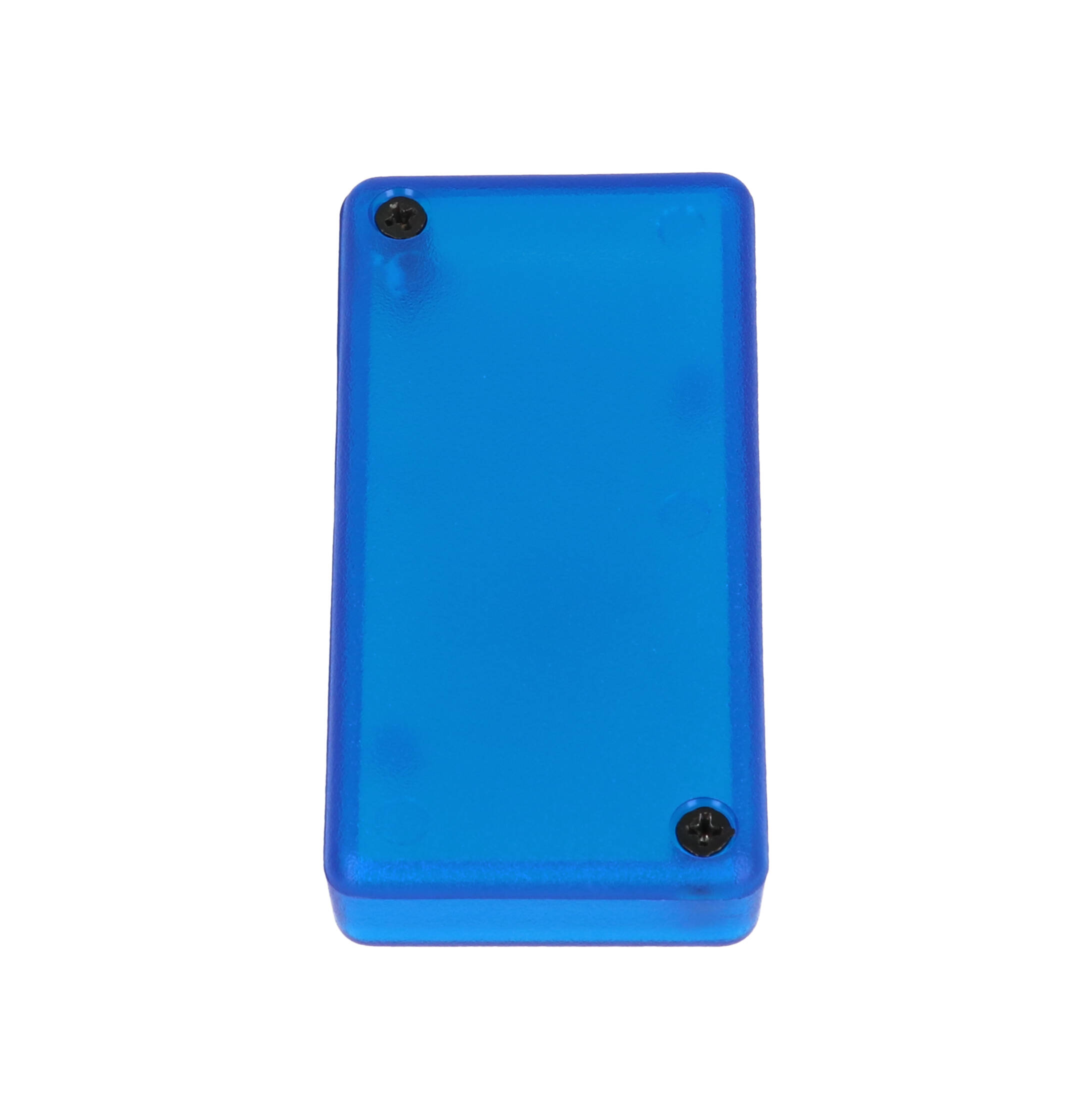

• ■Molded in choice of black, grey, or translucent blue general purpose ABS plastic.

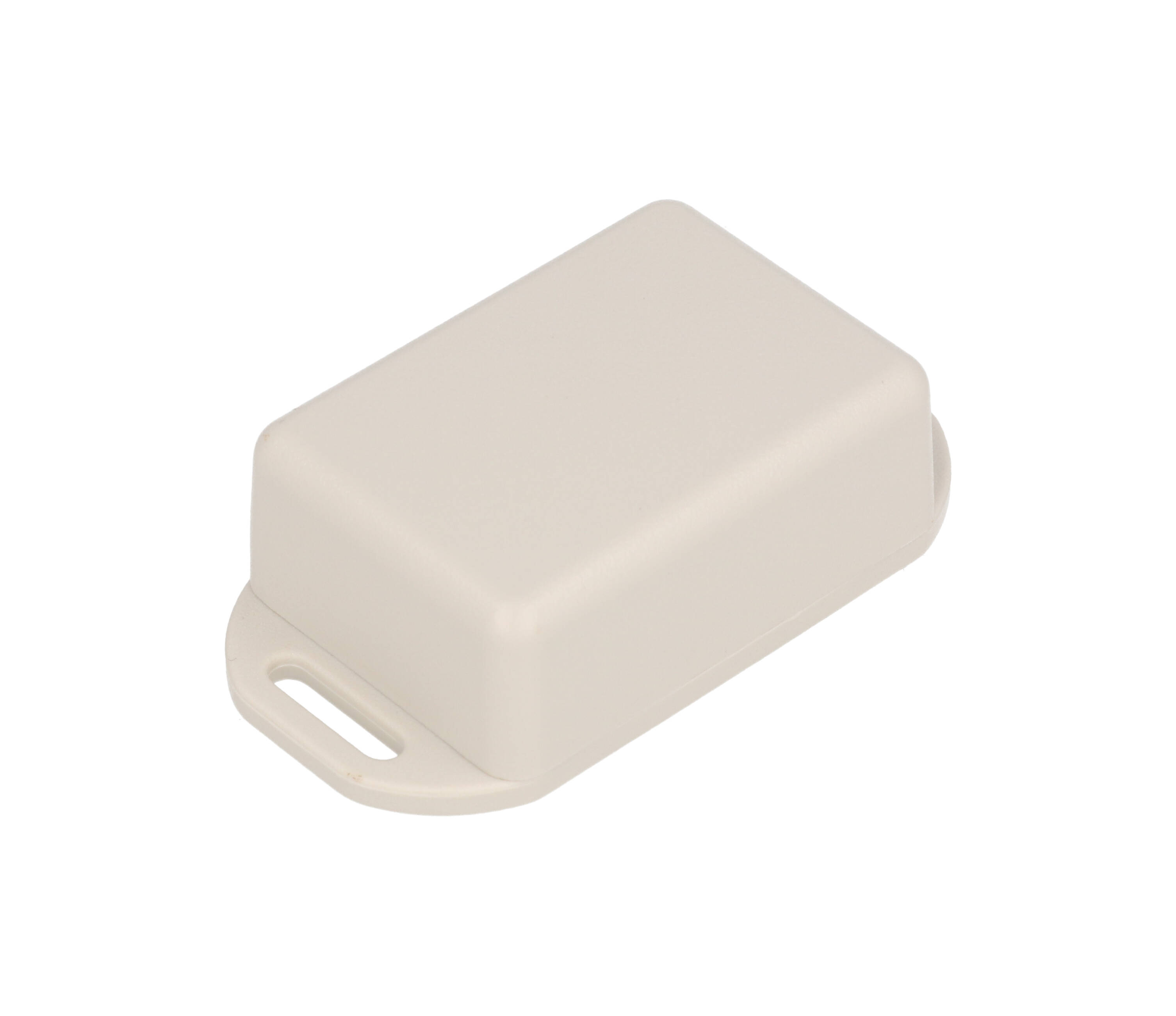

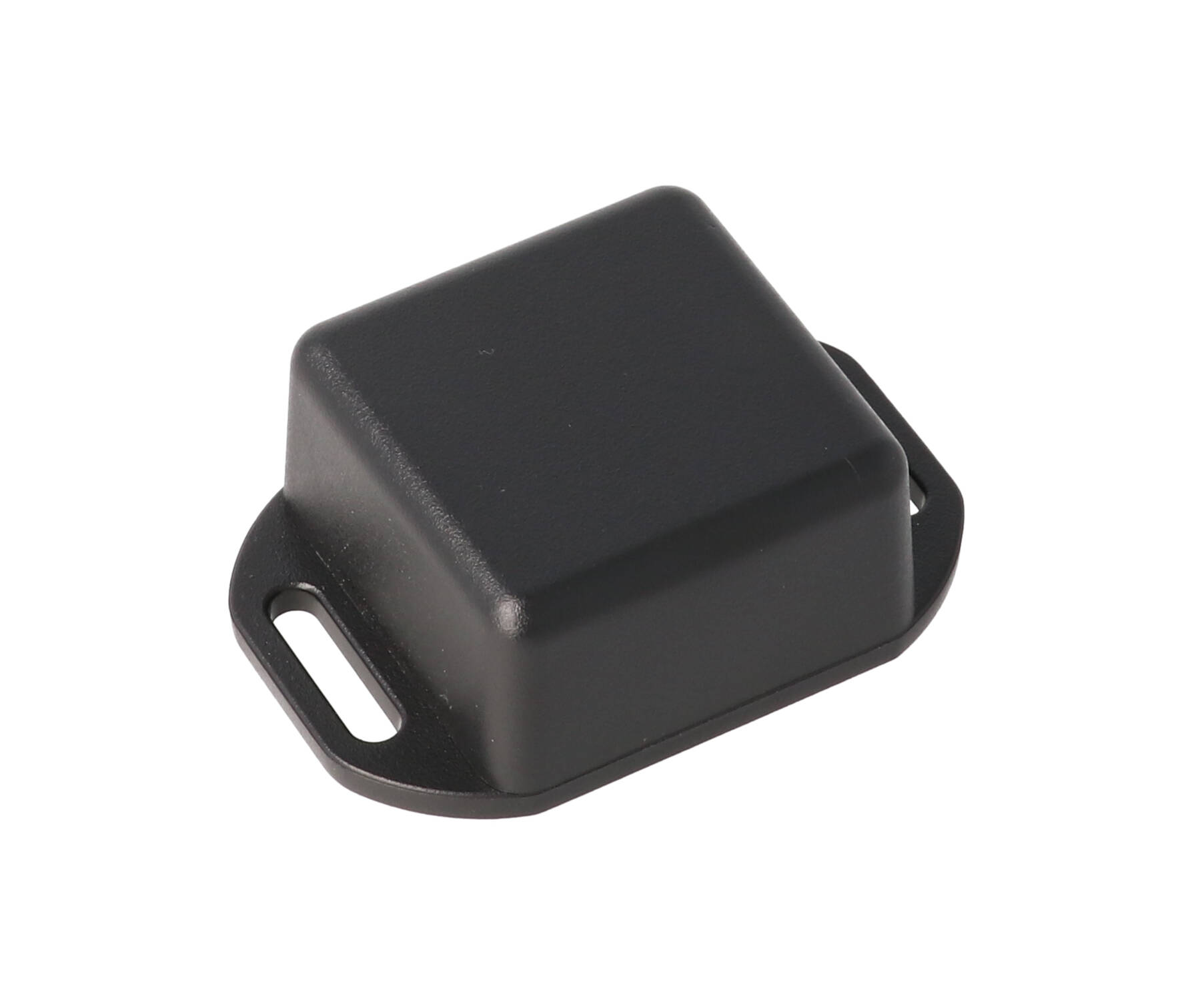

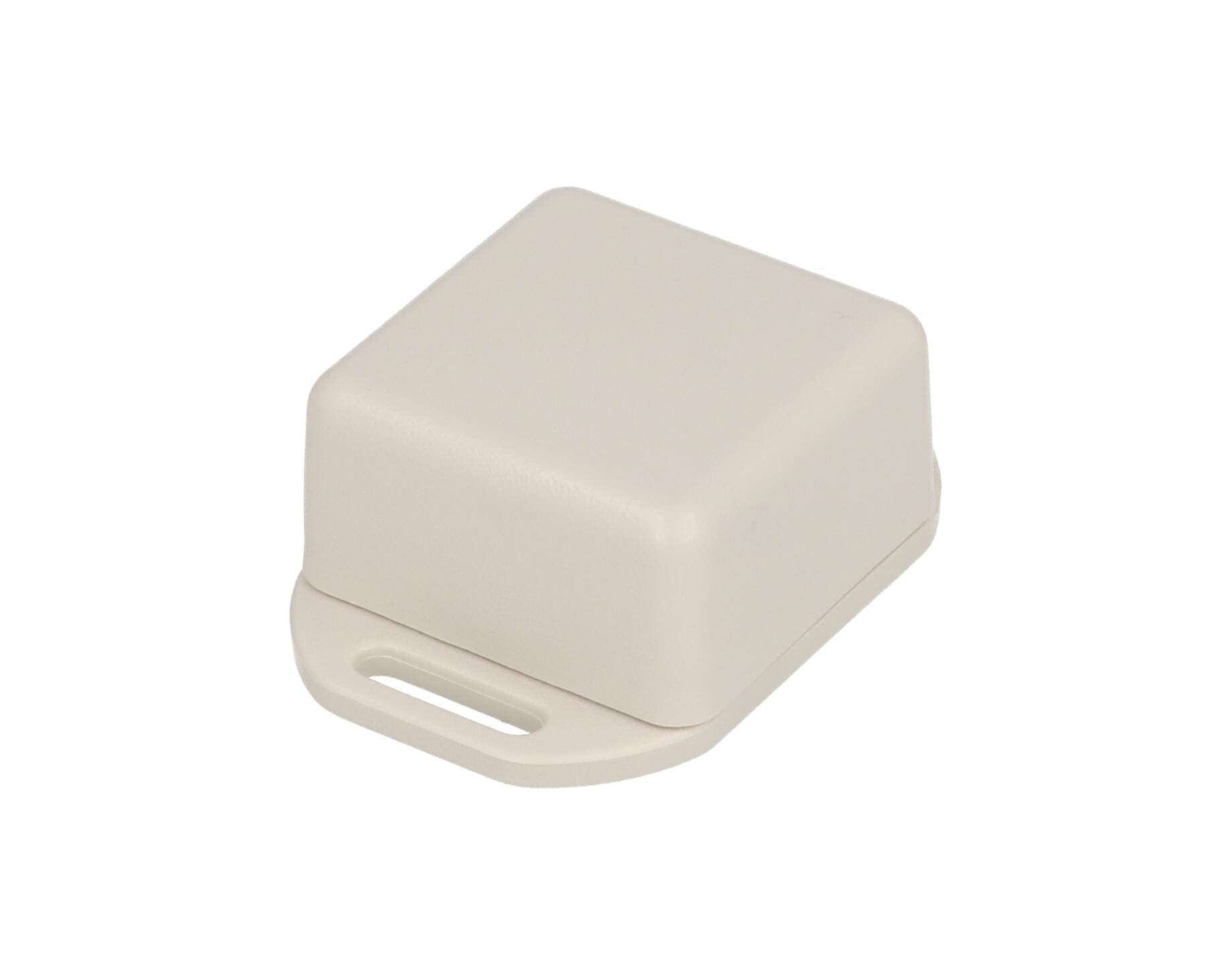

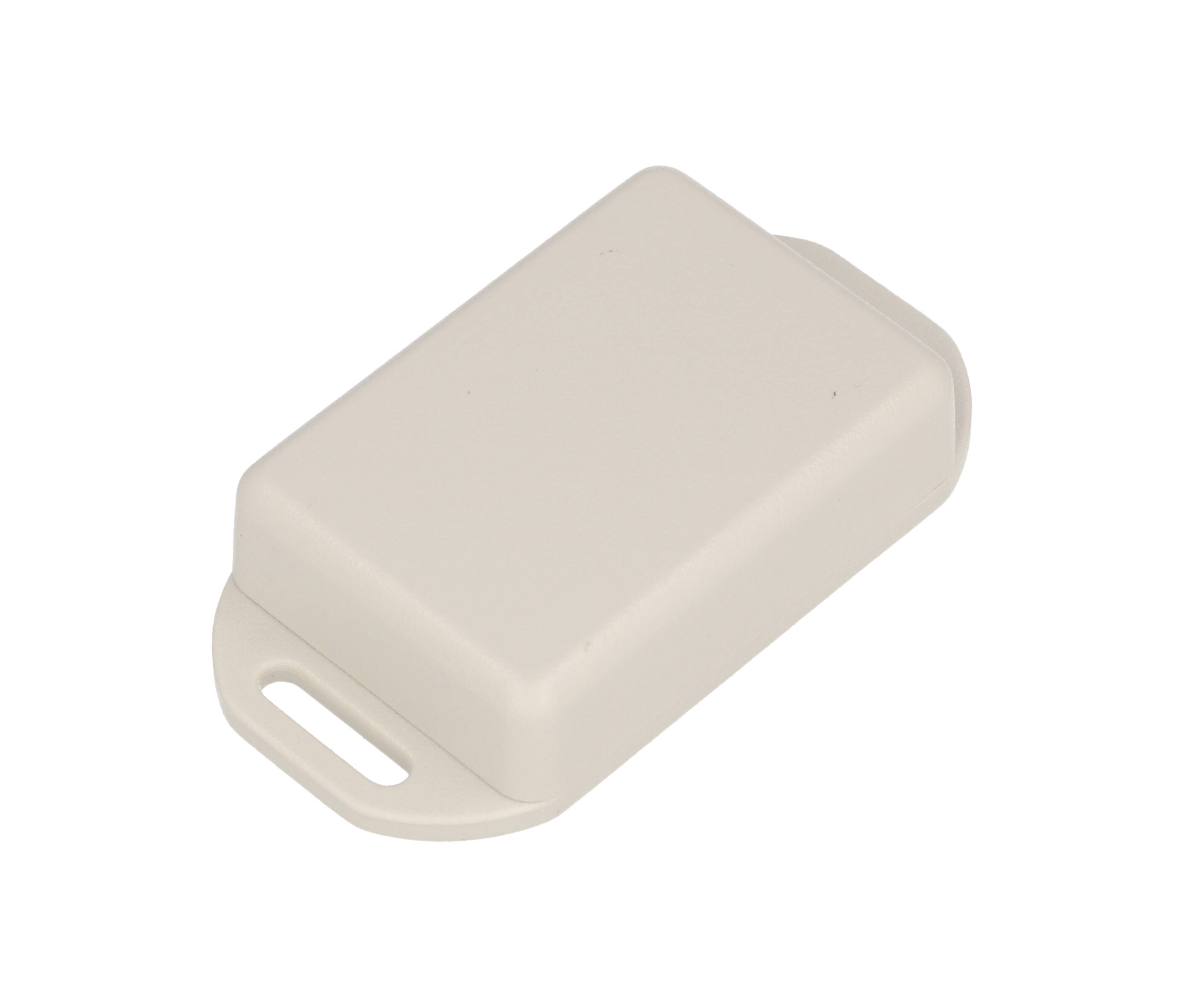

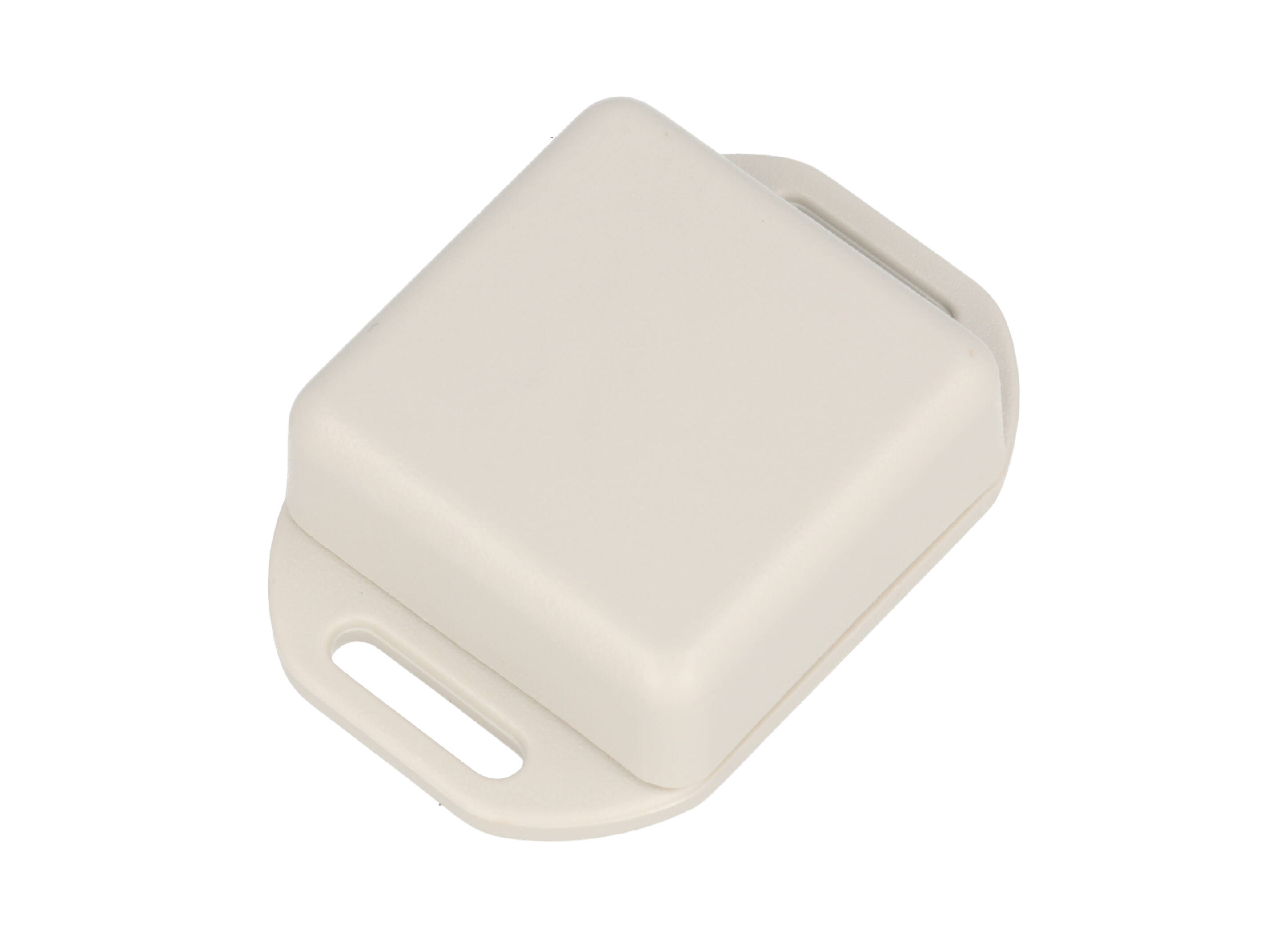

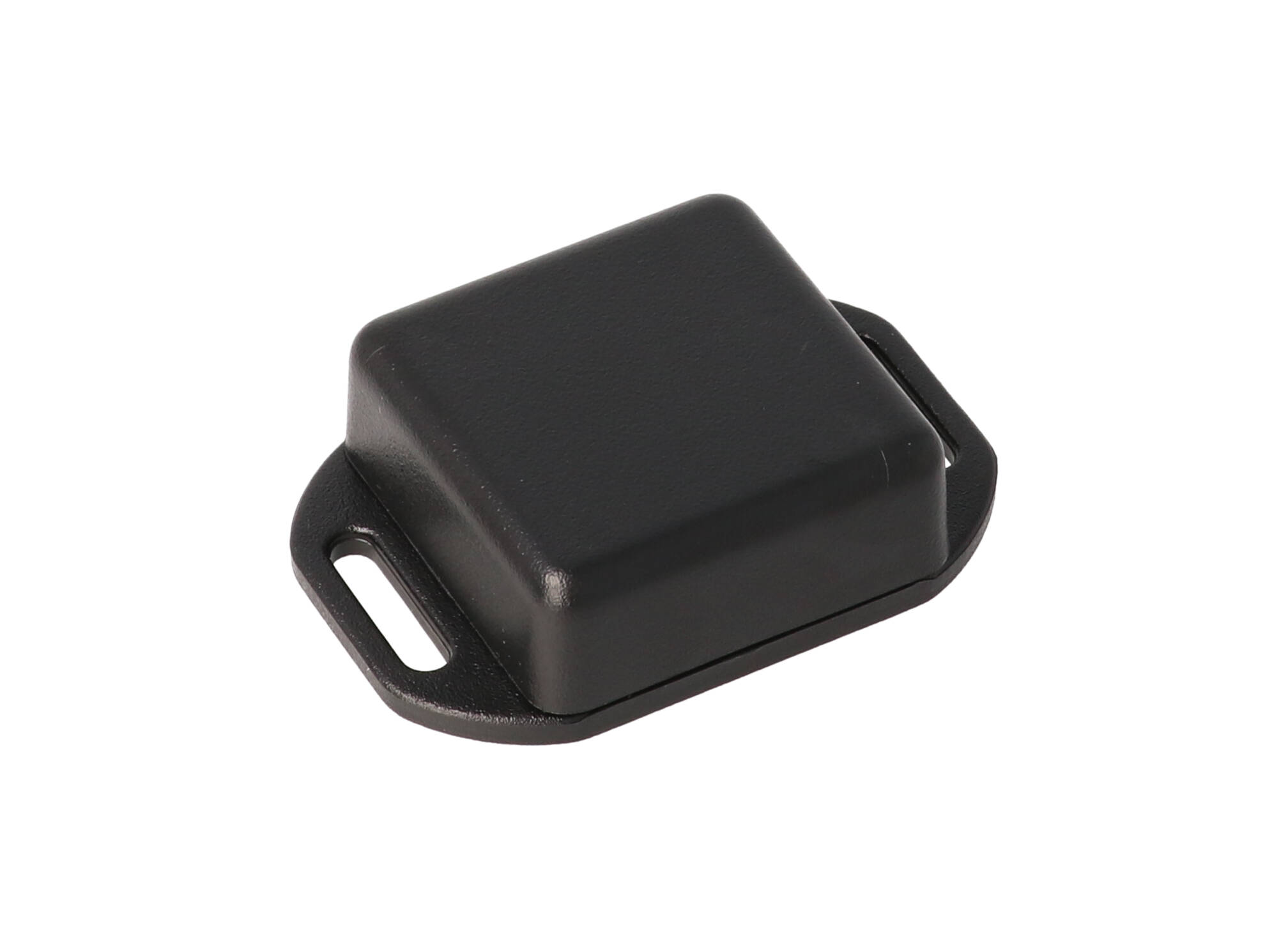

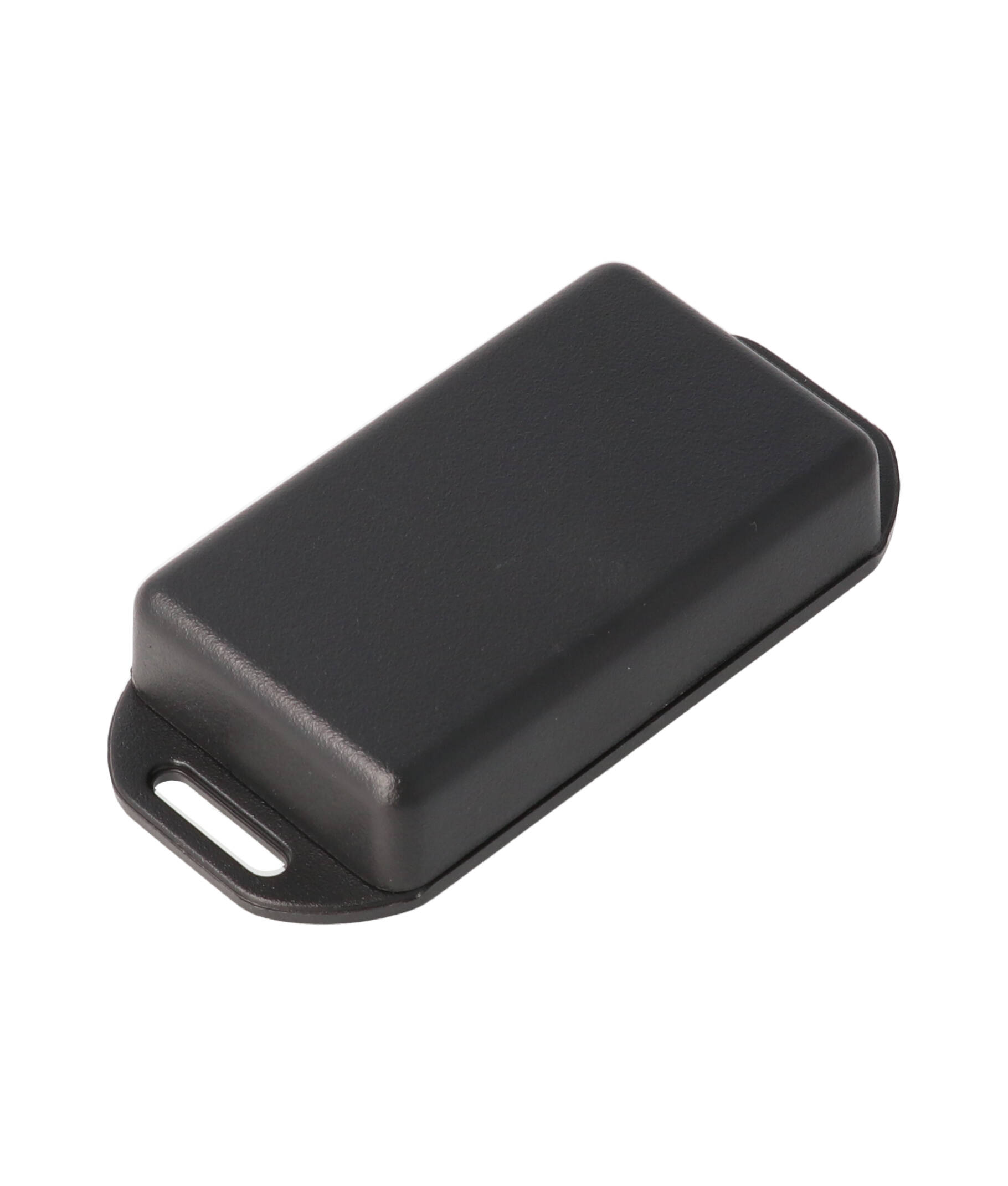

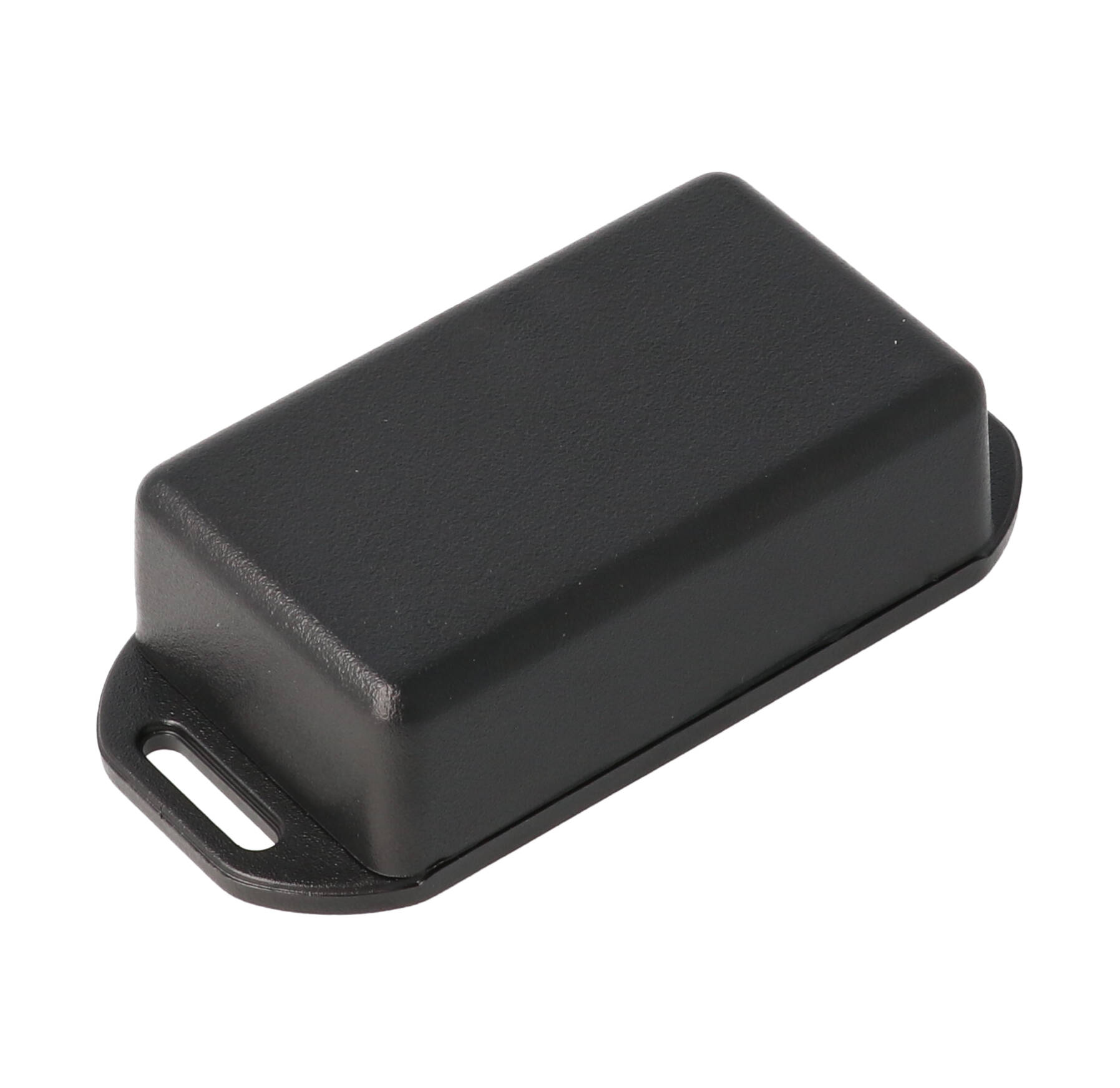

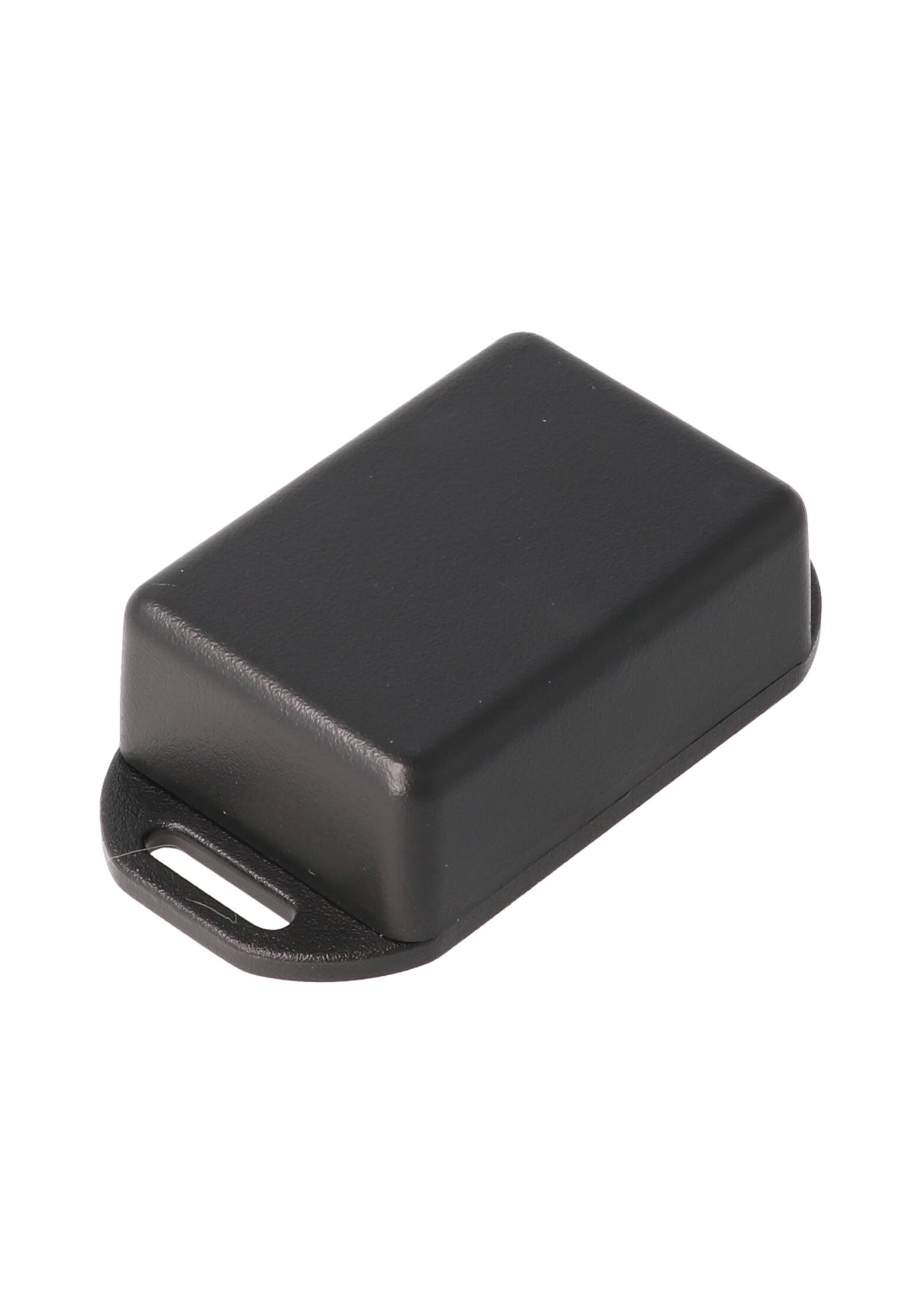

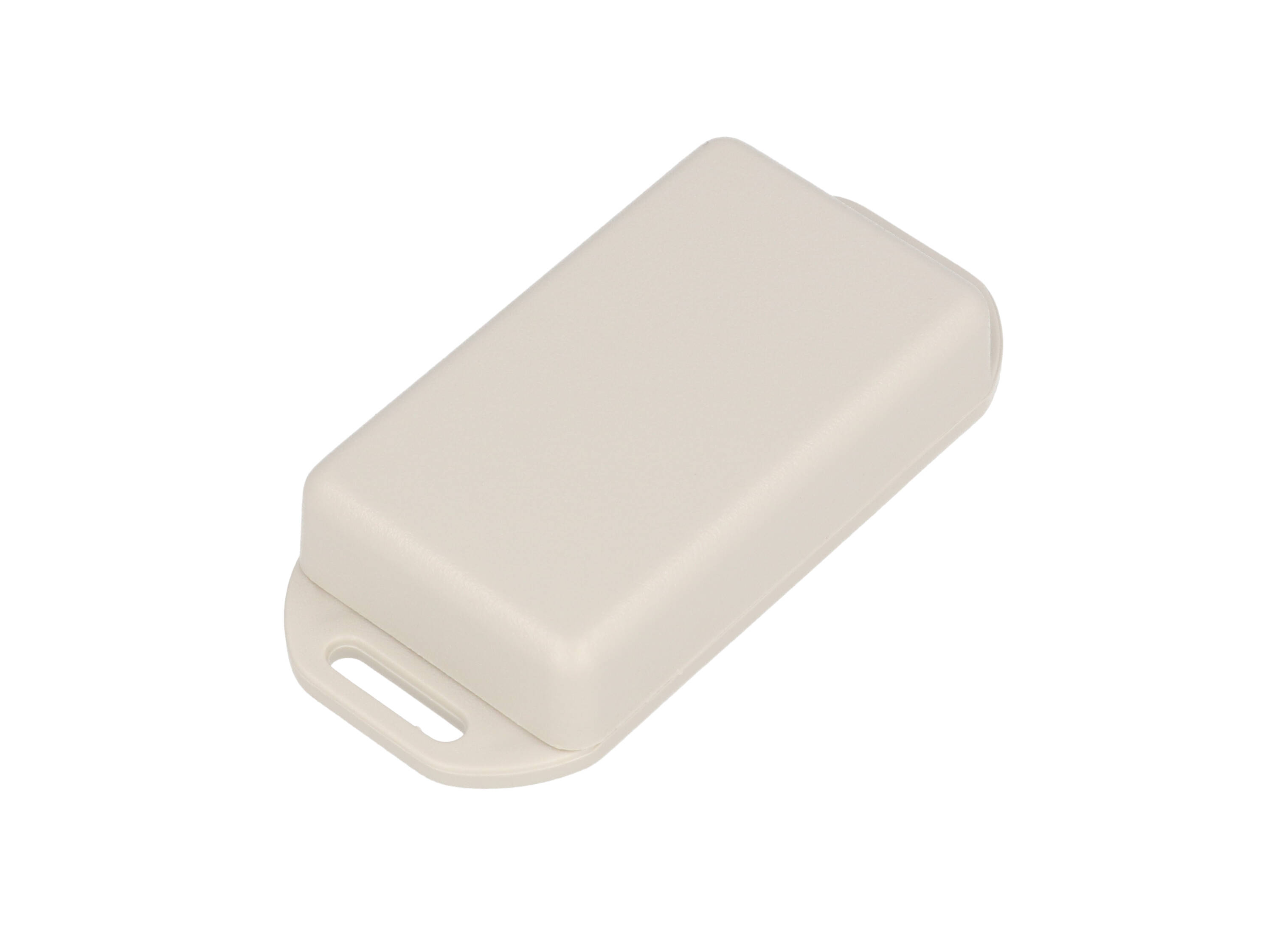

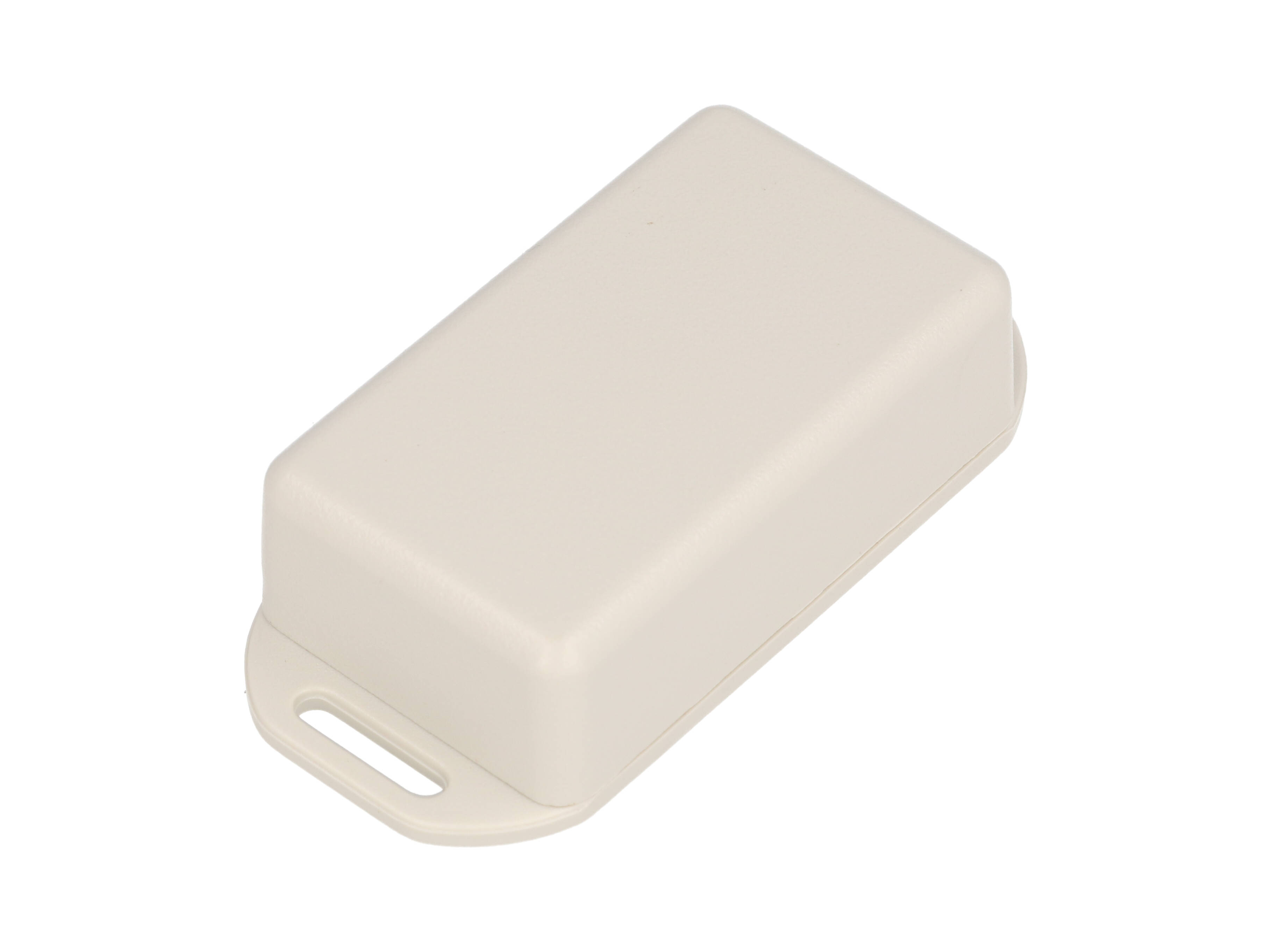

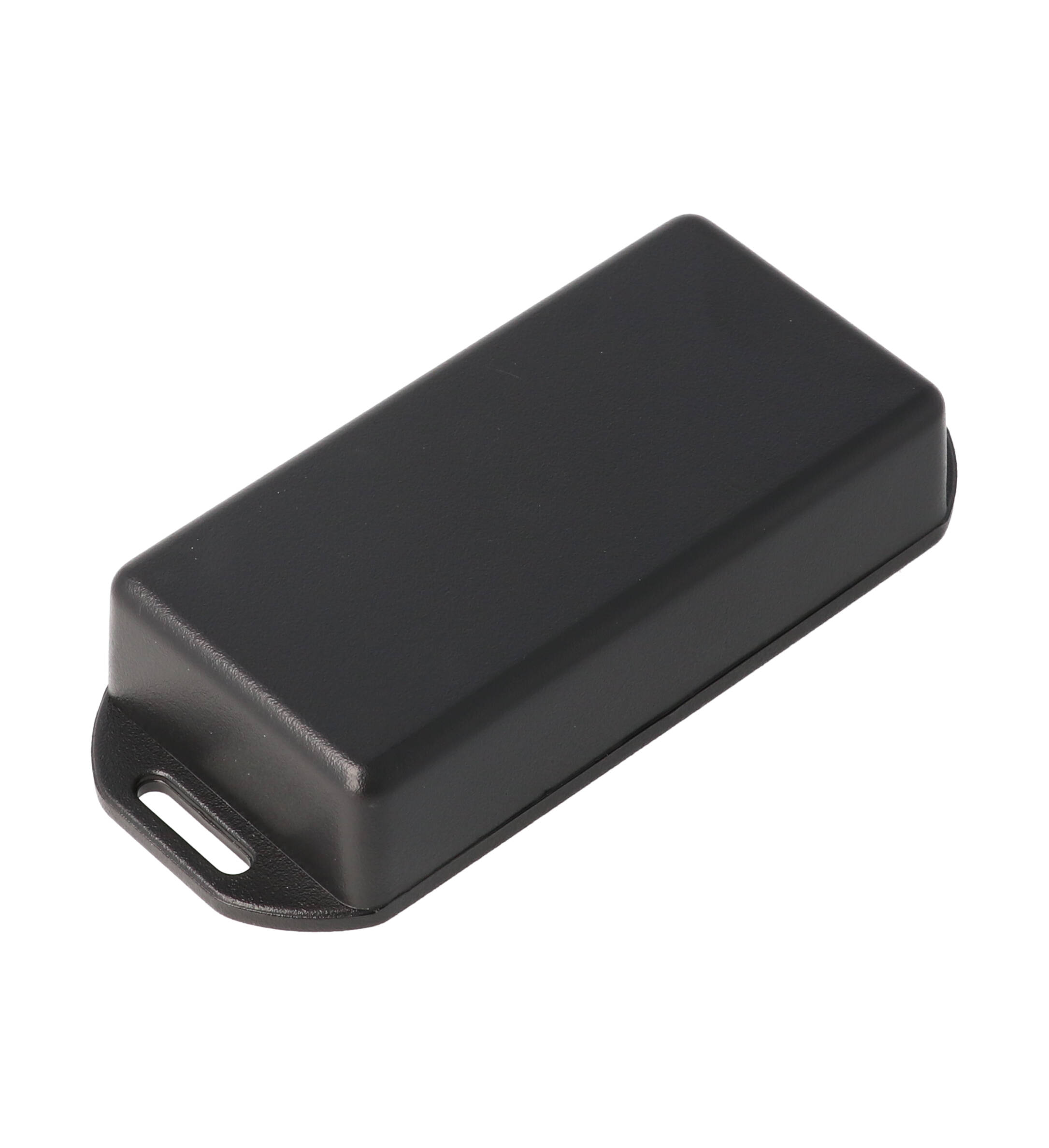

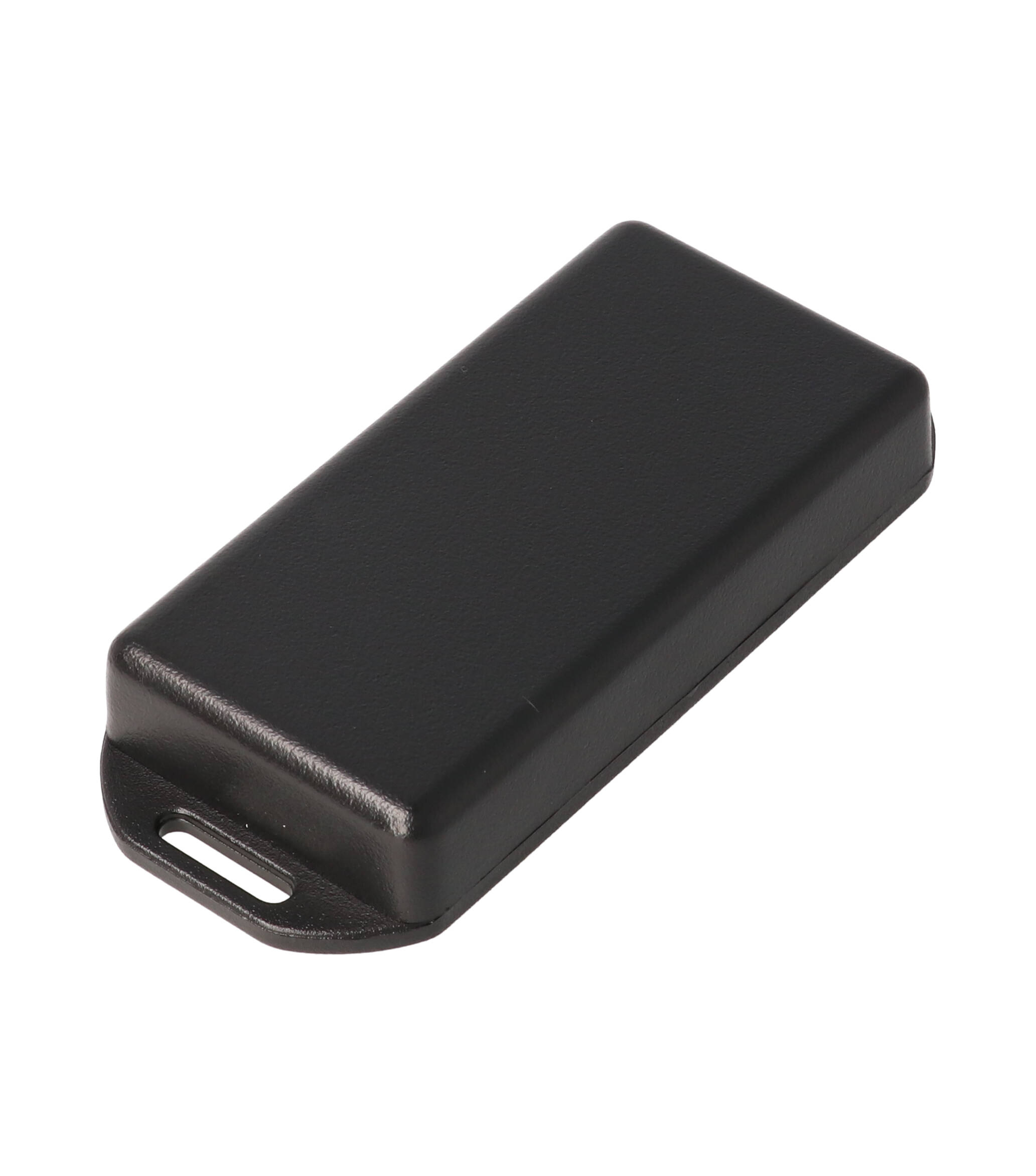

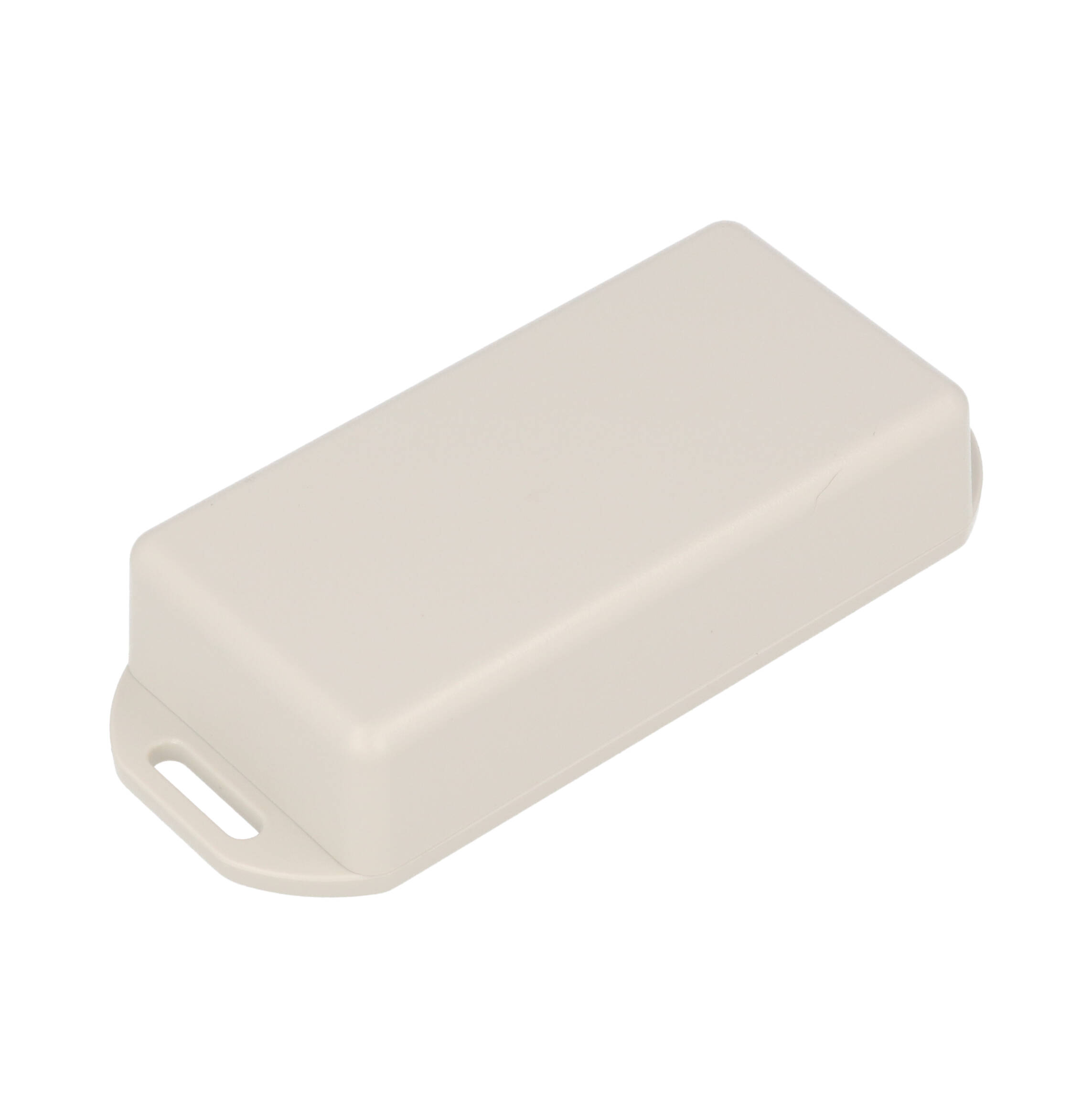

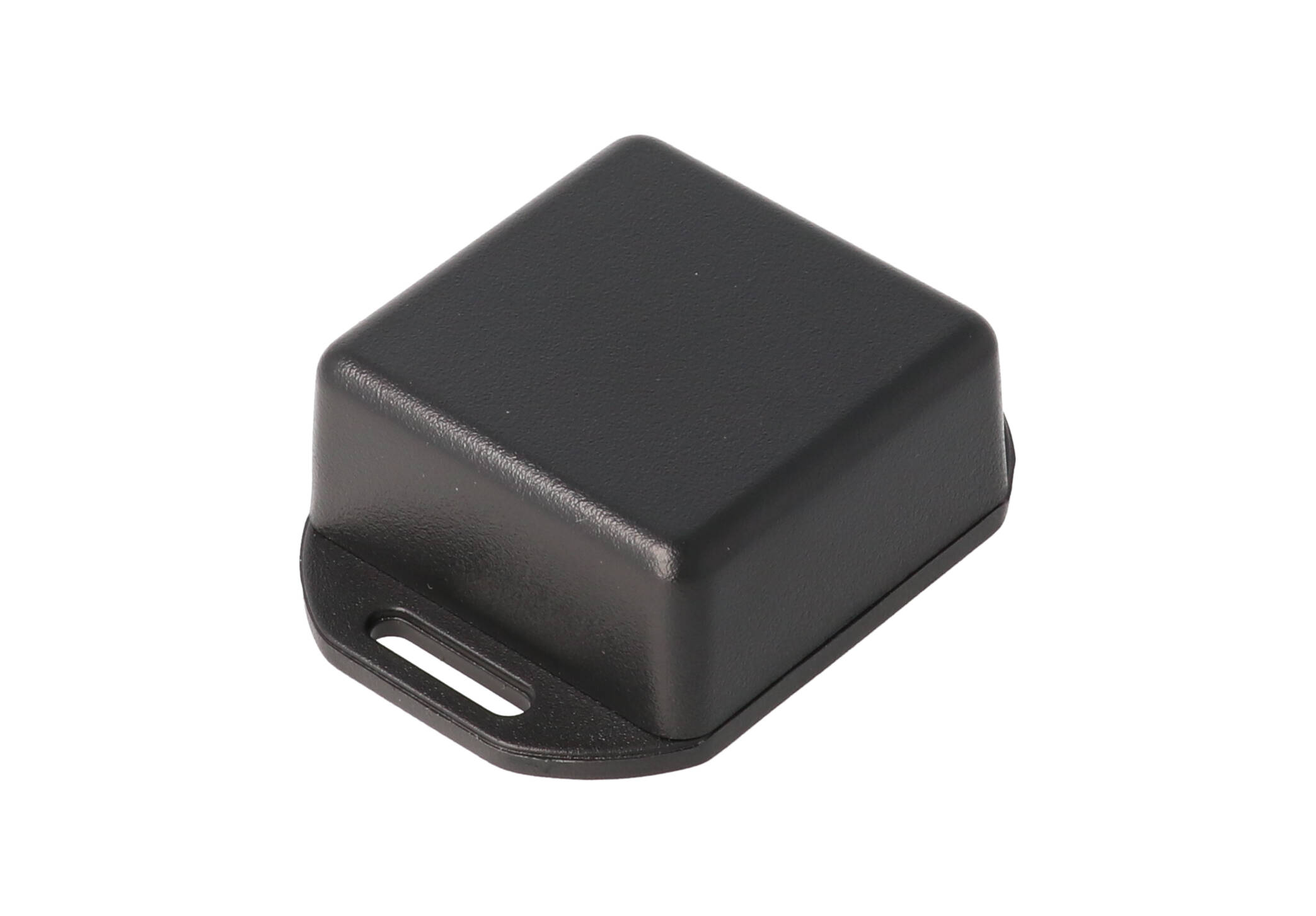

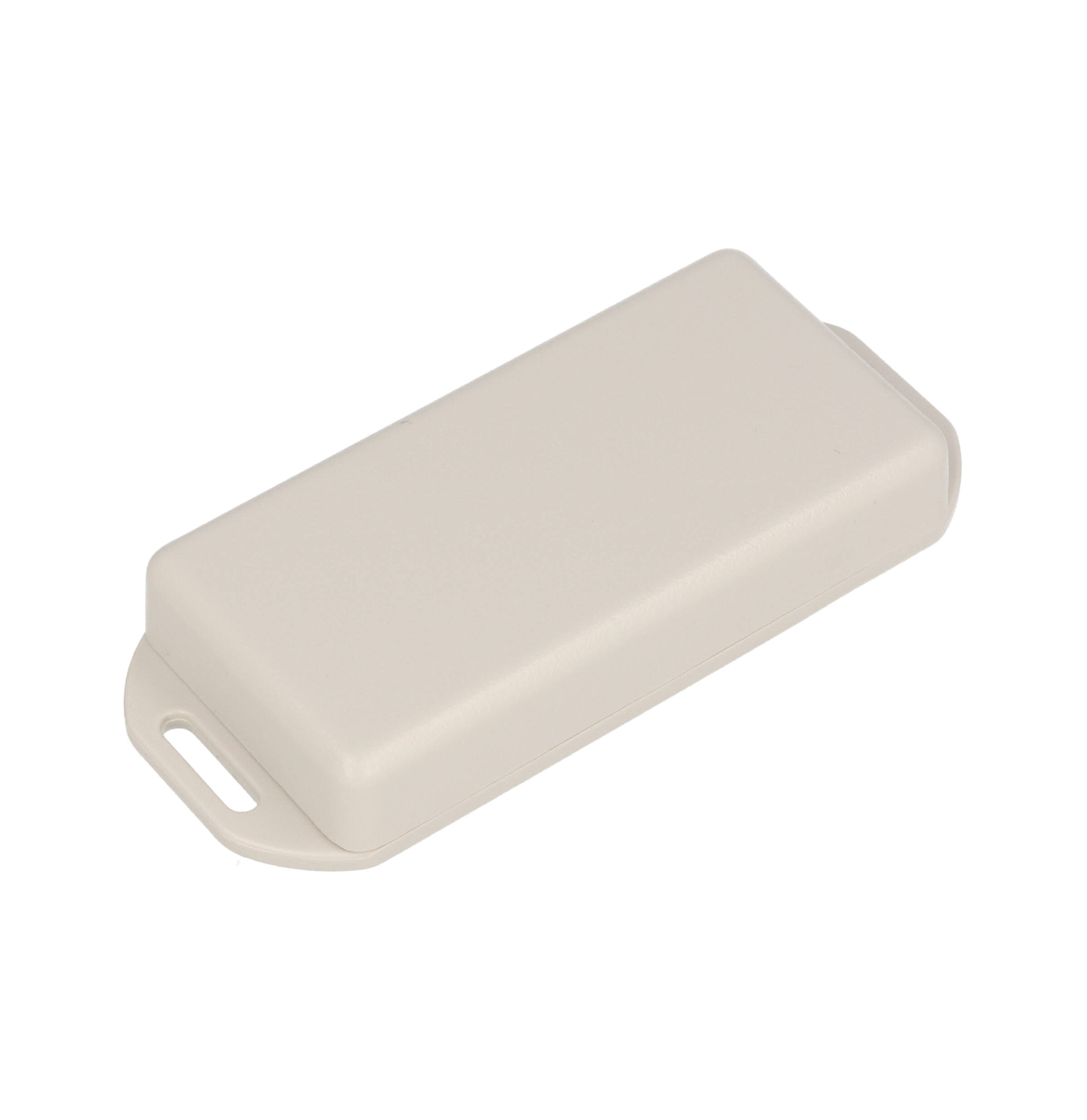

• ■All sizes also available with an integrated flange. Flanged sizes available in black or grey only.
• ■Two or four self-tapping screws included, depending on size.
• ■Screws are color matched to enclosure (nickel plated screws with grey enclosures and black plated with black and blue enclosures).

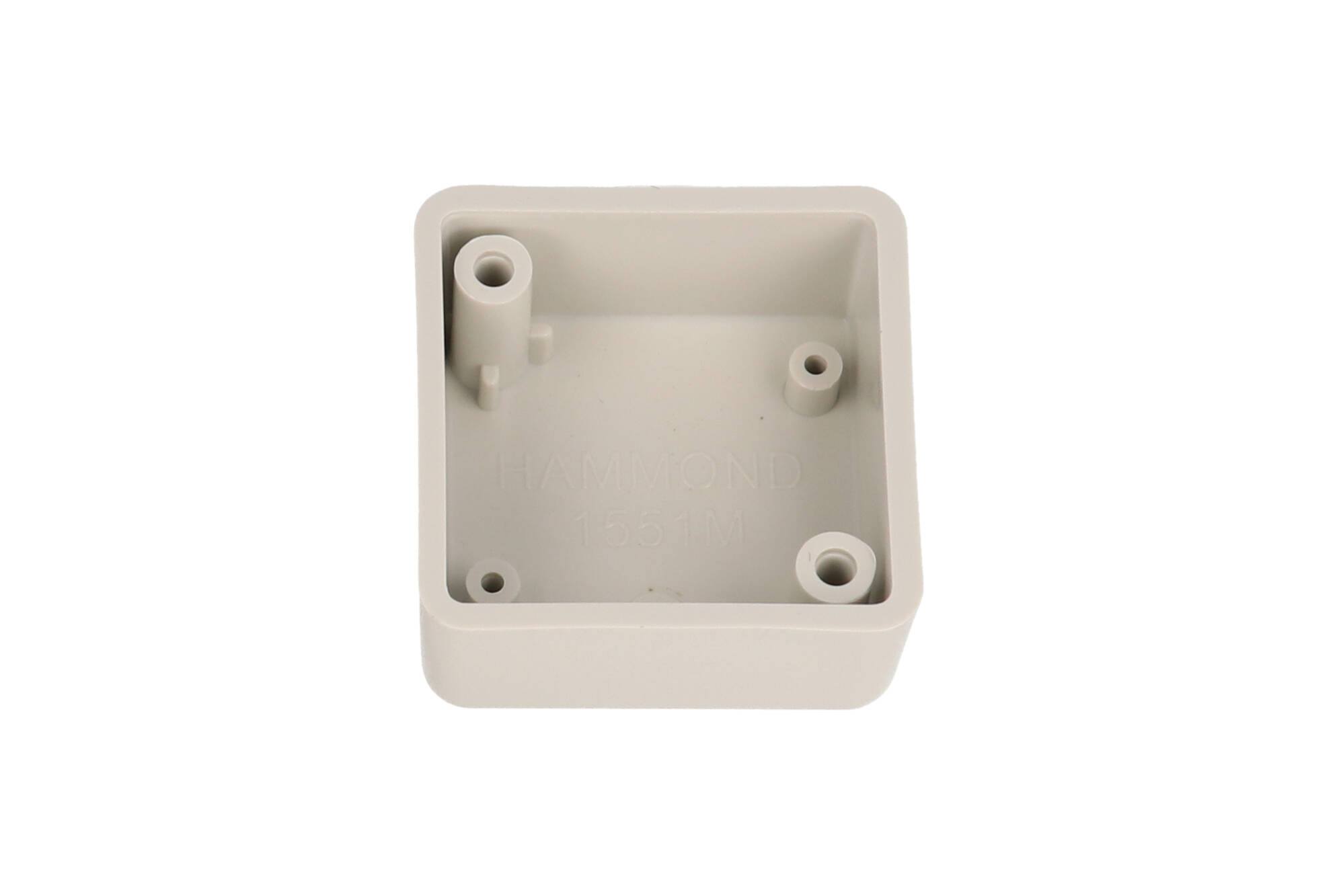

• ■Two or four PC board standoffs molded into interior, depending on size.
• ■Lap joint construction provides protection against access of dust and splashing water.
• ■Designed to meet IP54.

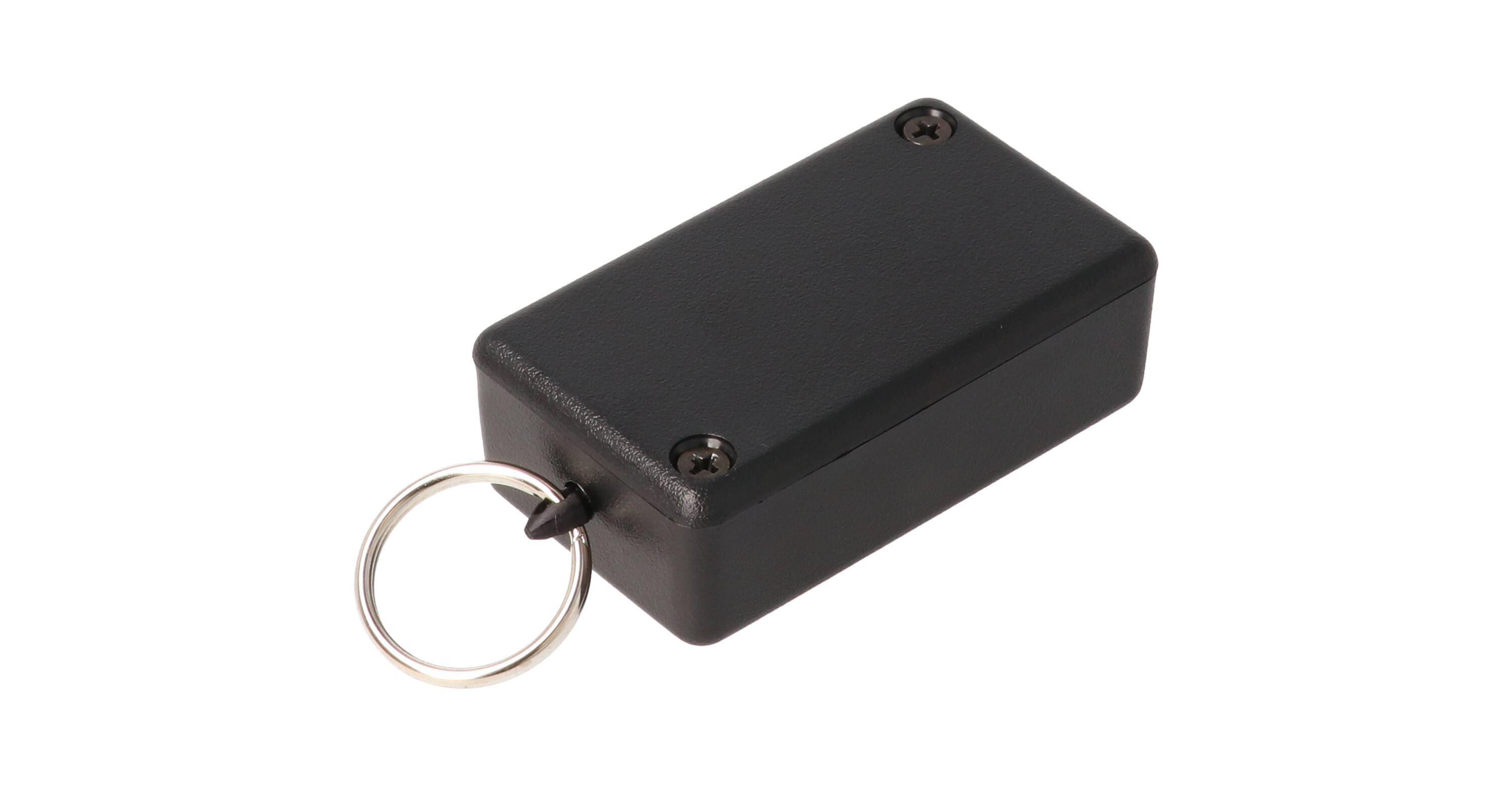

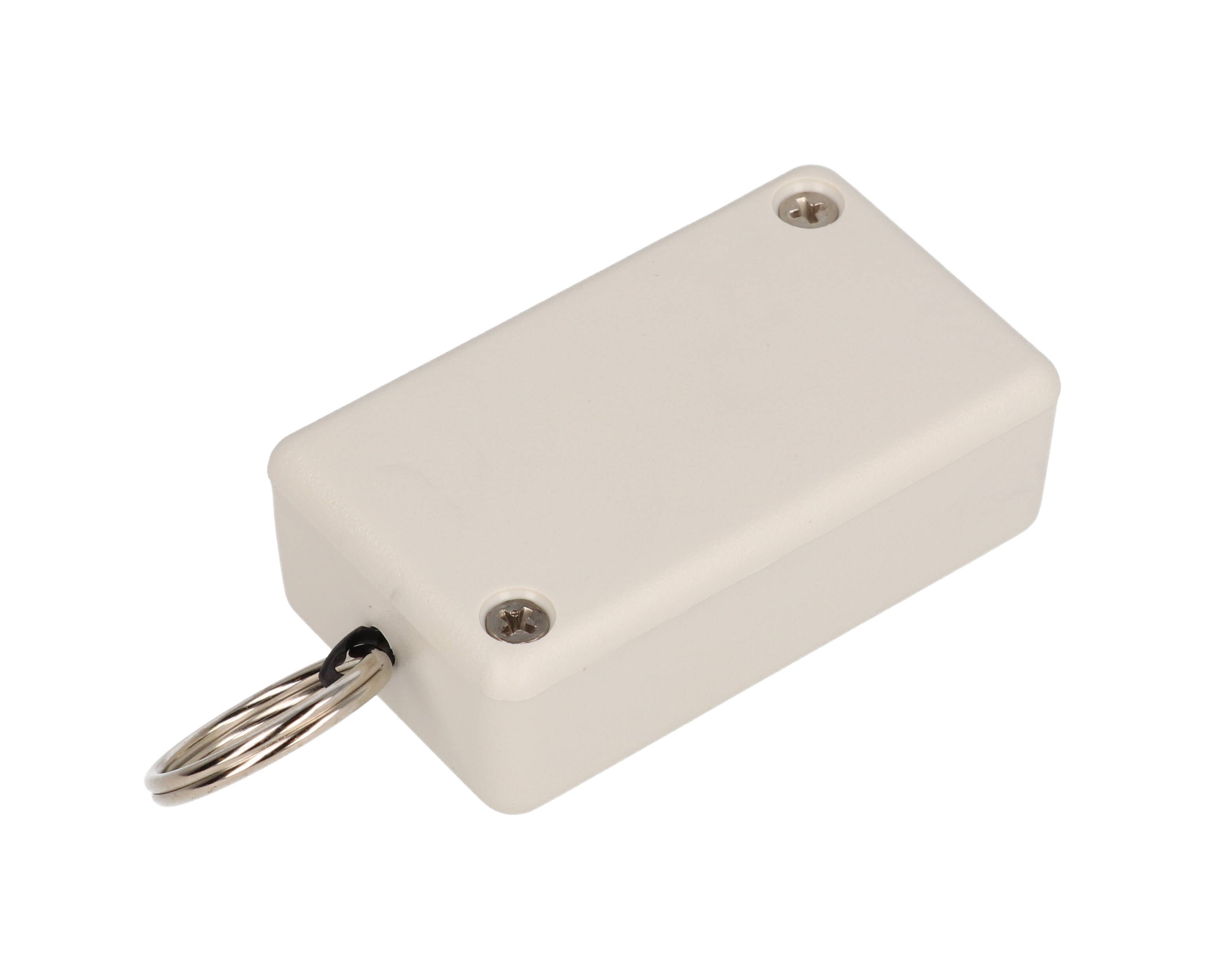

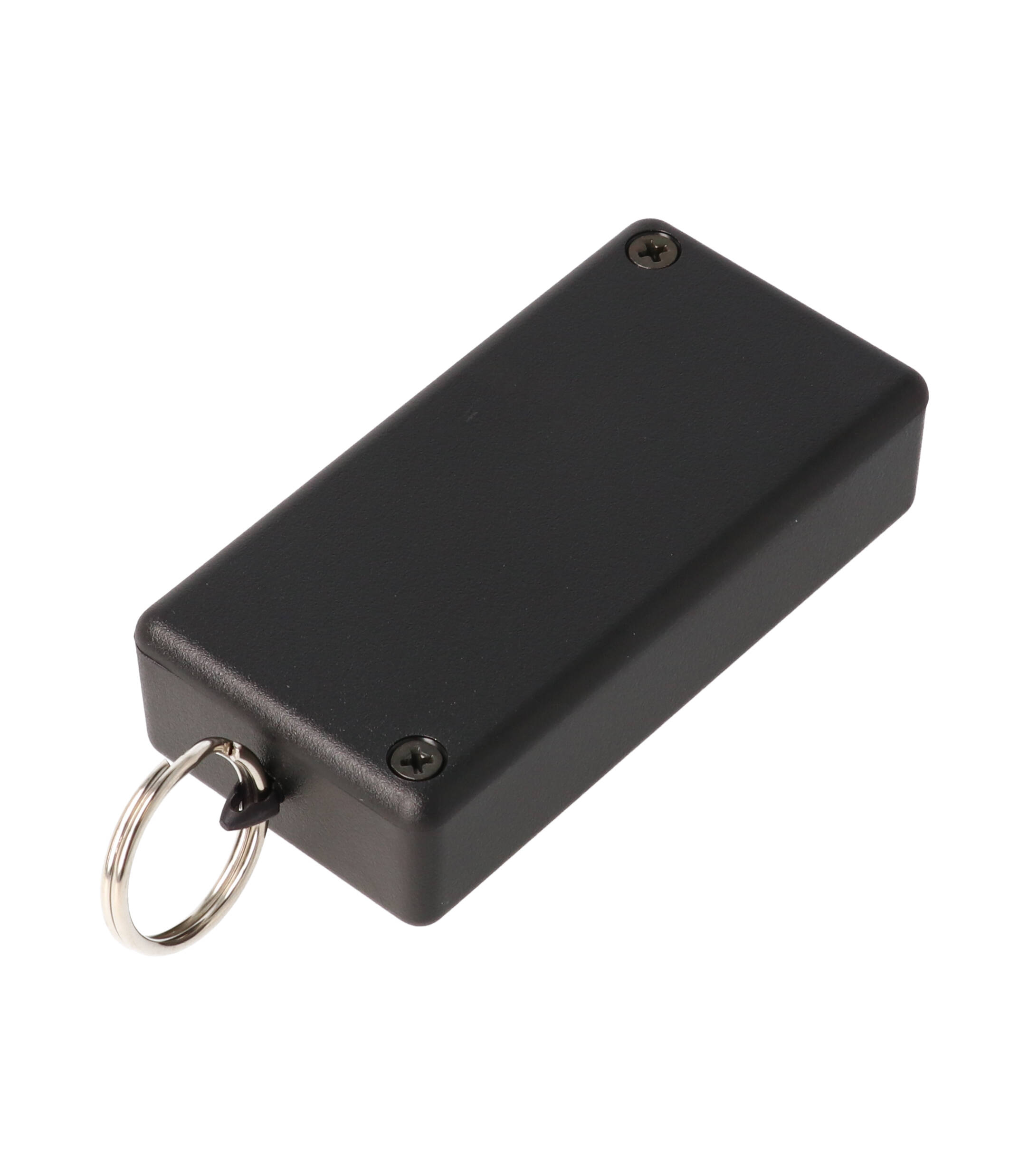

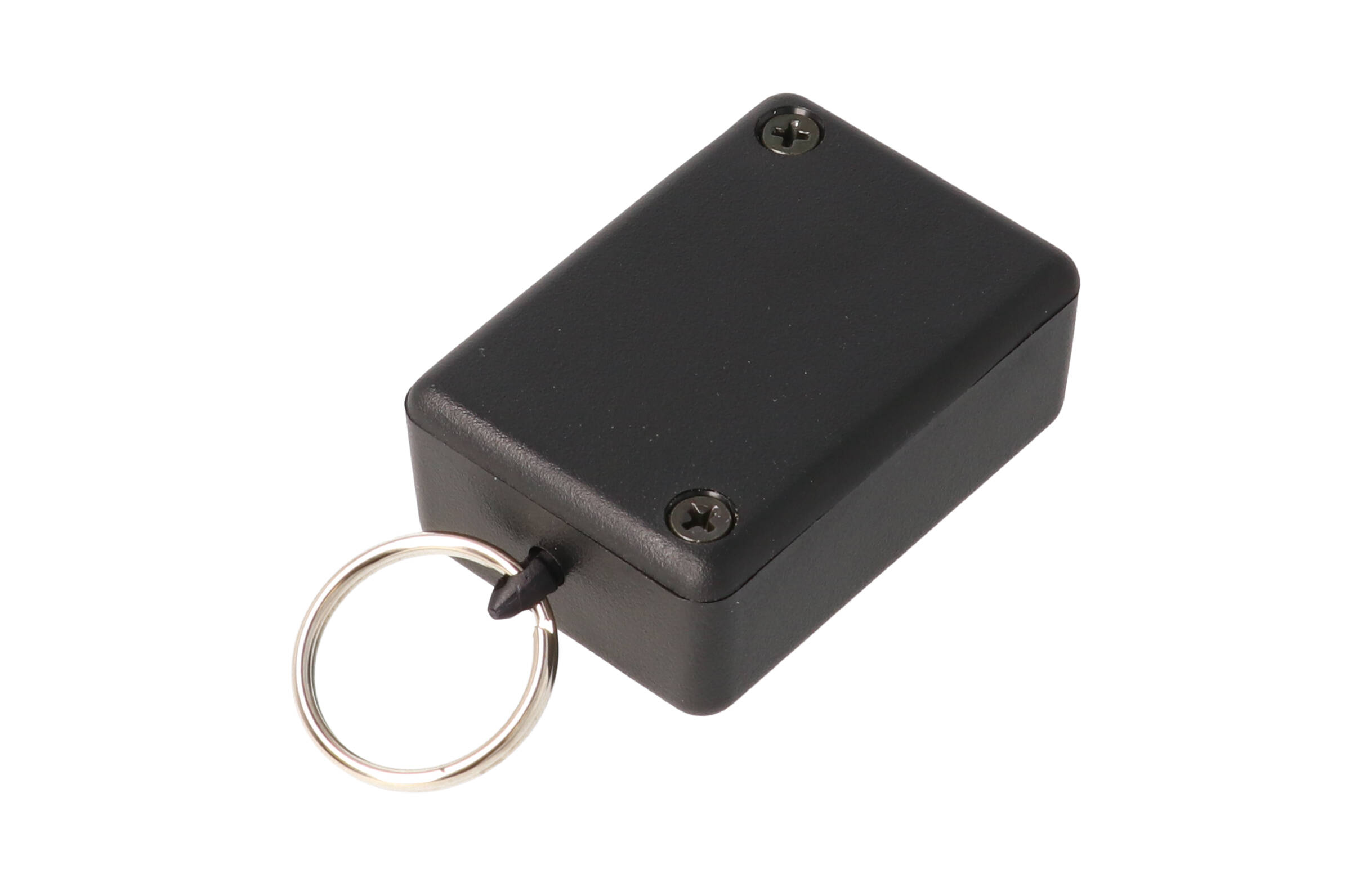

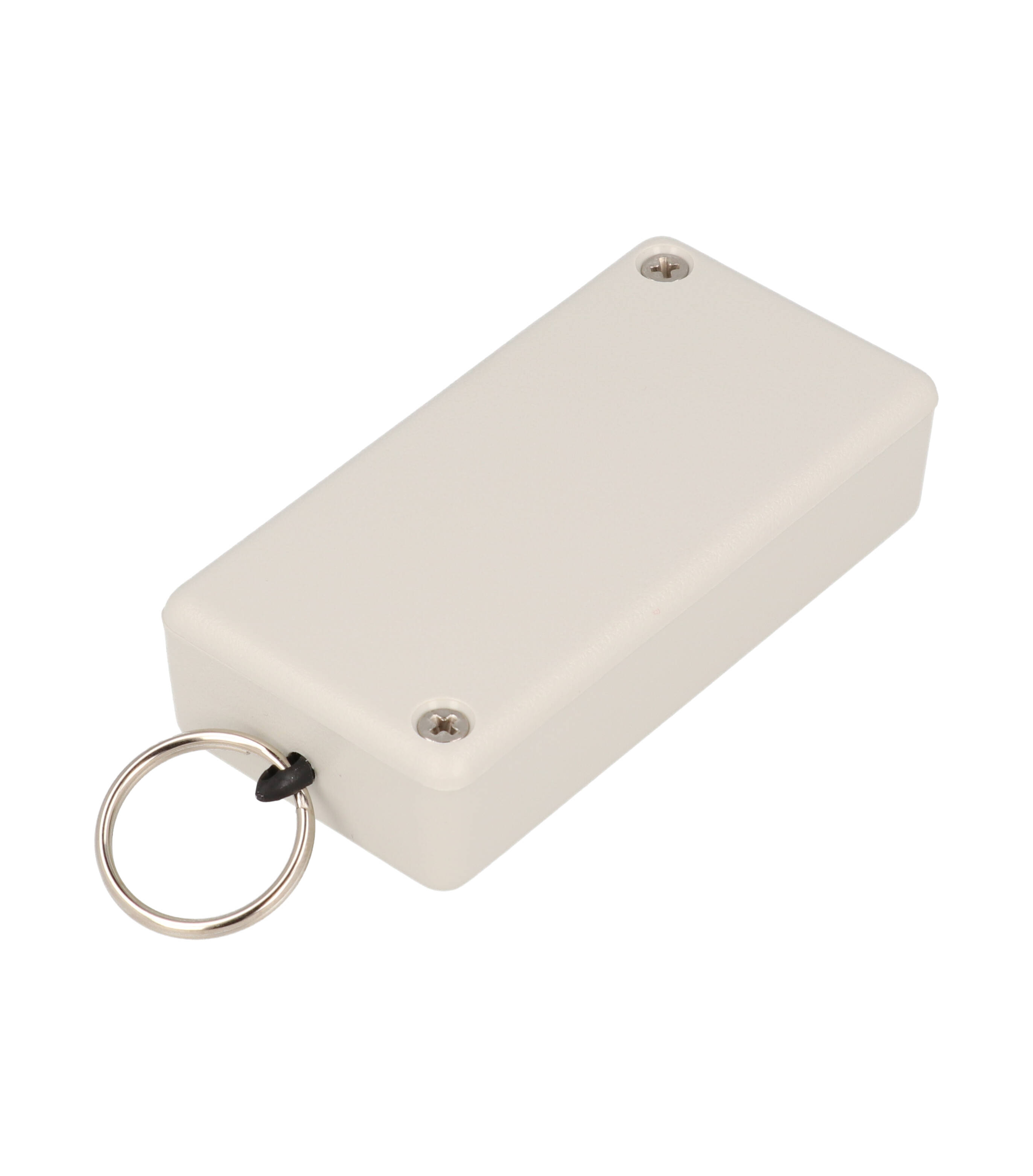

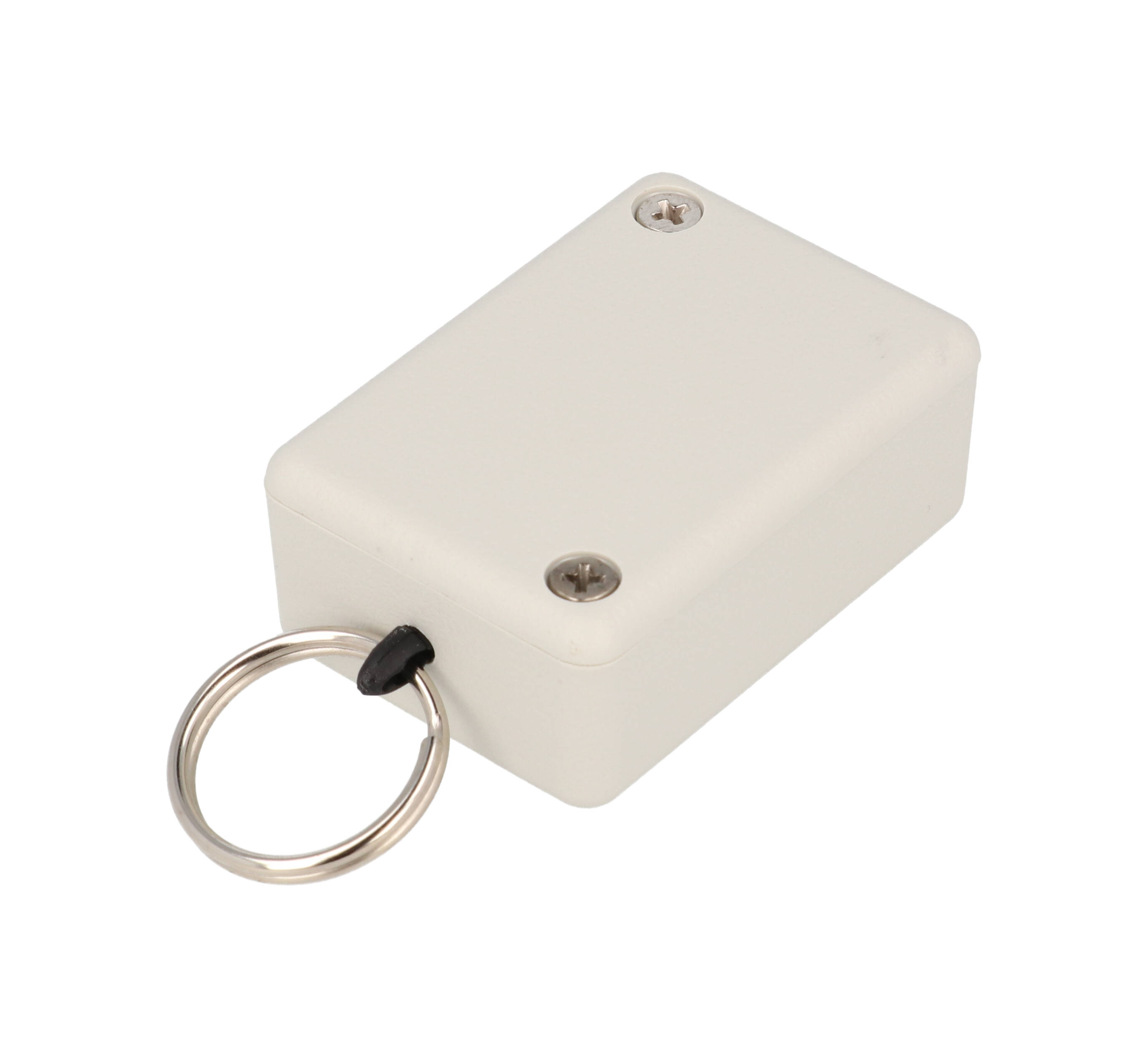

• ■Some sizes are available with a keyring kit.
• ■Models with key ring kit are predrilled in the narrow side.
• ■For even smaller enclosures, try our 1551MINI series.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

Notes:

• ■Walls are 2mm (0.08") thick.
• ■Self-tapping lid screws are #4 x 1/2". For replacements, see part number 1591TS100 (nickel plated, pack of 100) or 1591TS100BK (black, pack of 100).
• ■To secure PC boards, use self-tapping #2 x 3/16" screws. Not included with enclosures. See part number 1551ATS100 (nickel plated, pack of 100).

Photo Features:

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
