Hammond 1551MGY 35x35x20mm Light Gray ABS Square Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Compact 35 x 35 x 20 mm light gray (RAL 7035) ABS box
- P.C. board up to 29 x 29 mm; inside height 16.00 mm
- Designed to meet IP54 thanks to lap joint construction
- Nickel plated #4 x 1/2 in lid screws (2) included
- UL94 HB flame rated, 2 mm walls
- RoHS and REACH compliant

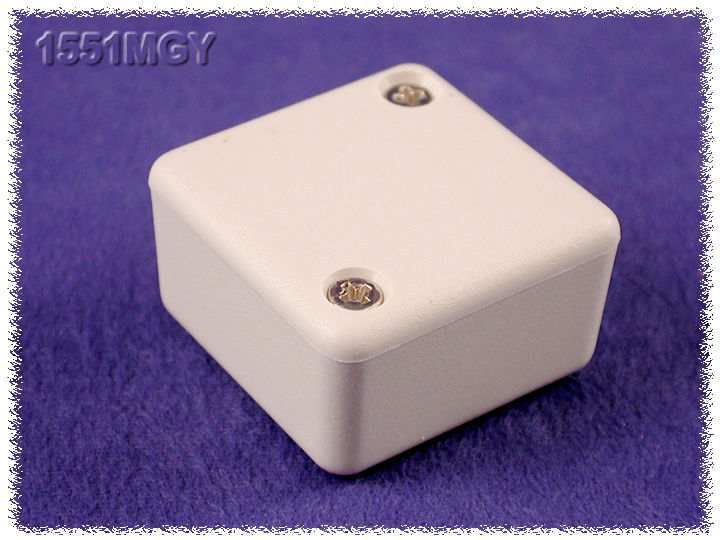

Measuring 35 x 35 x 20 mm, the 1551MGY is a compact, square light gray ABS enclosure in the 1551 miniature hand held family. Designers use it to mount very small printed circuit boards or as a potting box where space is tight.
The box and lid are general purpose ABS plastic in light gray (RAL 7035), UL94 HB flame rated, with walls 2 mm (0.08 in) thick. Lap joint construction keeps out dust and splashing water, and the enclosure is designed to meet IP54.
- Outside: 1.38 x 1.38 x 0.79 in (35 x 35 x 20 mm), including lid
- Inside: 29.73 x 29.73 mm, 16.00 mm high
- Maximum P.C. board: 29 x 29 mm
- Shipping weight: 0.03 lbs (0.01 kg), packed in a bag

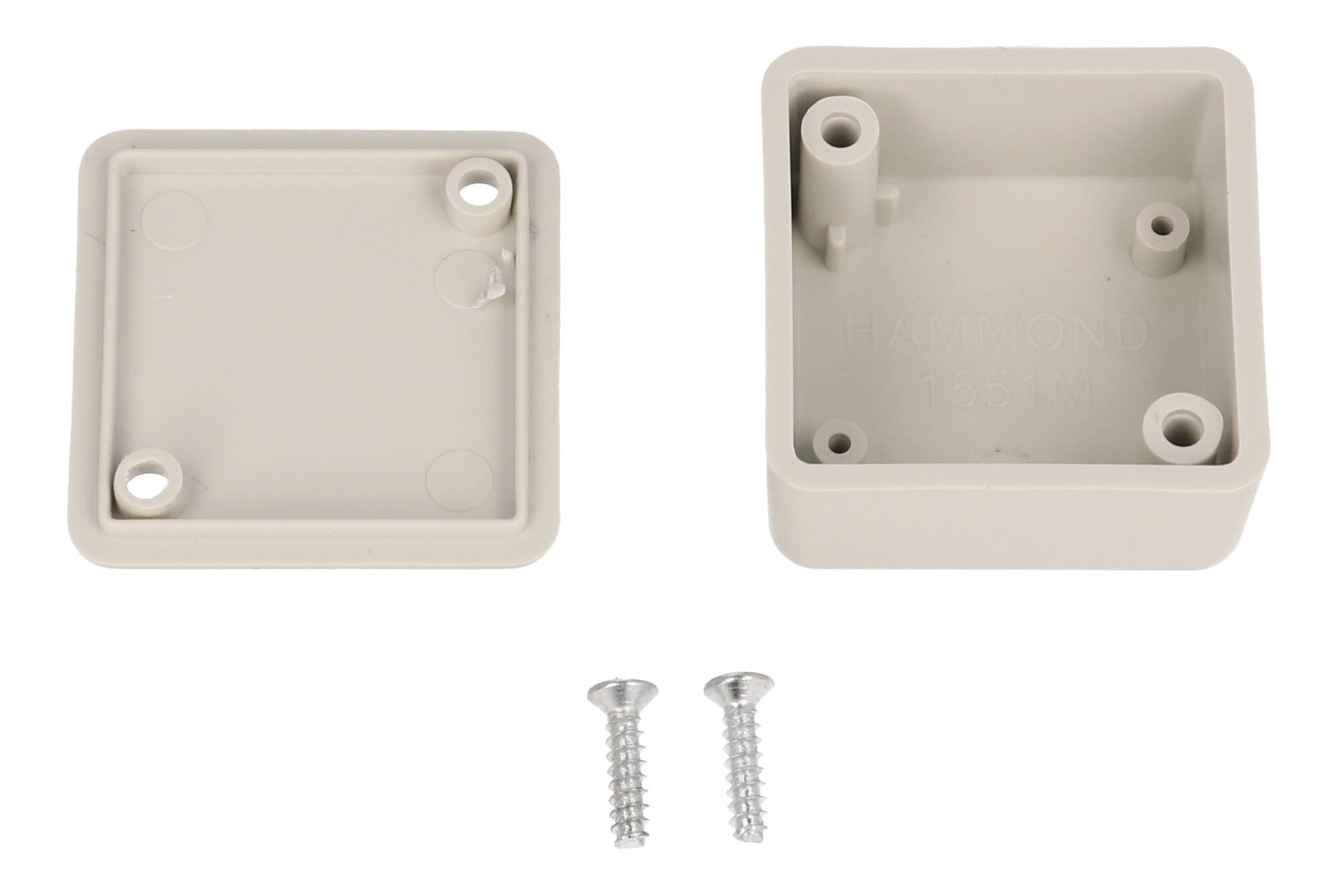

Boards fix to molded-in standoffs with #2 x 3/16 in self-tapping screws (not included; see 1551ATS100). The lid is held by the 2 supplied #4 x 1/2 in self-tapping screws, nickel plated to match the grey plastic; the drawing recommends 35-43 ozf.in (25-30 cN.m) of torque.
The 1551MGY is RoHS and REACH compliant. Enclosures can also be factory modified, for example by milling, drilling or printing, on quote.
Ideal For
- Small sensor housings
- Miniature PCB enclosures
- Potting boxes
- Compact hand held devices
Overview
| Colour | Light Gray |
| Series | 1551 Series ABS Plastic Miniature Hand Held Enclosures |
| Description | grey plastic enclosure |
| Product Type | Miniature, general purpose |
| Ordering Table | Standard Enclosures |
| Manufacturer Short Description | 35 X 35 X 20MM ABS GREY |
Dimensions
| Width | 1.38 in (35 mm) |
| Length | 1.38 in (35 mm) |
| Inside Width | 29.73 mm [1.17 in] |
| Inside Height | 16.00 mm [0.63 in] |
| Inside Length | 29.73 mm [1.17 in] |
| Wall Thickness | 2 mm (0.08 in) |
| Size (L X W X H) | 1.38 in x 1.38 in x 0.79 in (35 mm x 35 mm x 20 mm) |
| Depth (Including Lid) | 0.79 in (20 mm) |
Accessories
| PC Board Screws | 1551ATS100 (pack of 100) |
| Other Colours, Same Size | 1551MBK, 1551MTBU |
| Replacement Lid Screws (Black) | 1591TS100BK (pack of 100) |
| Replacement Lid Screws (Nickel Plated) | 1591TS100 (pack of 100) |
Identifiers
| UPC | 623980582955 |
| UNSPSC | 39121301 |
| Part Number | 1551MGY |
PC Board Mounting
| PC Board Screws | #2 x 3/16 in (4.8 mm) self-tapping, not included |
| PC Board Standoffs | Molded into interior; accept #2 self-tapping screws |
| Max. P.C. Board Width (Mm) | 29 |
| Max. P.C. Board Length (Mm) | 29 |
| Maximum P.C. Board Size (Drawing) | 29.00 mm x 29.00 mm [1.14 in x 1.14 in] |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.03 lbs (0.01 kg) |
Construction & Finish
| Material | ABS Plastic (general purpose ABS) |
| Lid Screws | #4 x 1/2 in self-tapping |
| Solid Models | .stp or .x_t |
| Colour Reference | RAL 7035 |
| Lid Screw Finish | Nickel plated (colour matched) |
| Assembly Includes | Box, lid, 2 cover screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Recommended Screw Torque | 35-43 ozf.in / 25-30 cN.m |
Environmental & Protection
| IP Rating | IP54 (designed to meet) |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste and strong solvents; check greases and oils for compatibility |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1551MGY?▾
29.73 x 29.73 mm with an inside height of 16.00 mm (0.63 in).
What colour screws does it use?▾
Nickel plated screws, which the manufacturer uses with grey enclosures.
Are PC board screws supplied?▾
No. Use #2 x 3/16 in self-tapping screws such as 1551ATS100 (pack of 100).
What material is it?▾
General purpose ABS plastic with a UL94 HB flame rating.
Can it be customised?▾
The drawing notes enclosures can be factory modified (milling, drilling, printing etc.) and solid models are available in .stp or .x_t.
