Hammond 1551MFLBK 35x35x20mm Black ABS Enclosure with Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Lid with molded flanges for wall mounting or tie wrap suspension
- 35 x 35 x 20 mm black ABS body; 51.30 mm overall over flanges
- P.C. board up to 29 x 29 mm; inside height 16.00 mm
- Designed to meet IP54 with lap joint construction
- Includes 2 black plated #4 x 1/2 in self-tapping lid screws
- UL94 HB flame rating; RoHS and REACH compliant
The 1551MFLBK takes the small square 1551M enclosure and adds mounting flanges molded into the lid. Those flanges let you screw the box to a wall or panel, or suspend it with a tie wrap, making it a tidy housing for small sensors and circuit boards that need to be fixed in place.
The body measures 35 x 35 x 20 mm (1.38 x 1.38 x 0.79 in), with the length given not including the flange; across the flanges the drawing shows 51.30 mm (2.02 in) overall. Inside there is 29.73 x 29.73 mm of space and 16.00 mm of height, enough for a P.C. board up to 29 x 29 mm on the molded standoffs.
It is molded in black (RAL 9011) general purpose ABS with a UL94 HB flame rating and 2 mm (0.08 in) walls. A lap joint between box and lid protects against dust and splashing water, and the enclosure is designed to meet IP54.

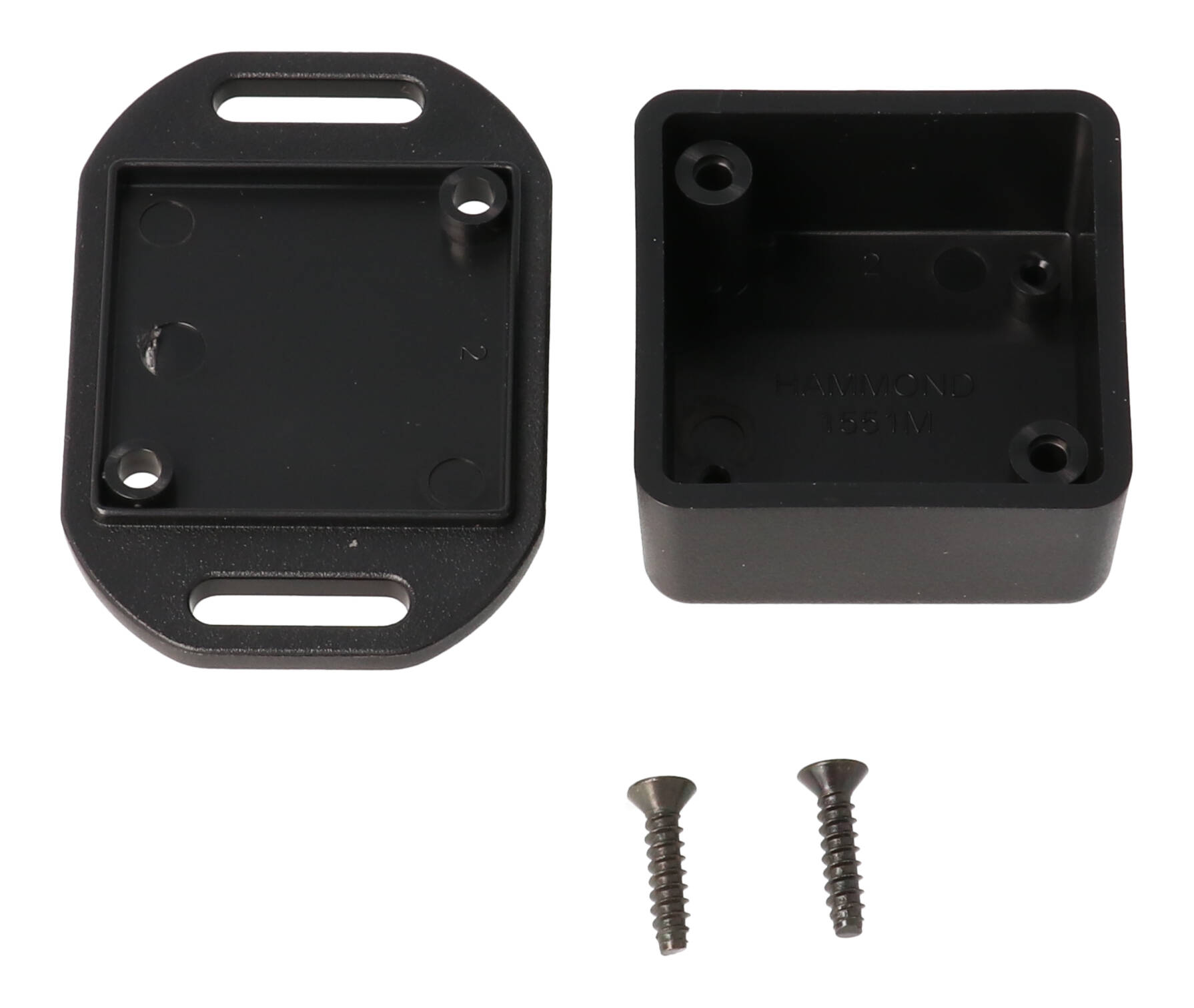

Each 1551MFLBK includes box, flanged lid and 2 black plated #4 x 1/2 in self-tapping cover screws, with 35-43 ozf.in (25-30 cN.m) recommended torque. Board screws (#2 x 3/16 in, 1551ATS100) are extra. It is RoHS and REACH compliant and ships bagged at 0.04 lbs (0.02 kg).
Ideal For
- Wall mounted miniature sensors
- Tie wrap mounted electronics
- Surface mounted PCB housings
- Potting boxes with mounting points
Overview
| Colour | Black |
| Series | 1551 Series ABS Plastic Miniature Hand Held Enclosures |
| Description | black plastic enclosure with flanged lid |
| Product Type | Miniature, flanged |
| Ordering Table | Enclosures with Mounting Flanges |
| Manufacturer Short Description | 35 X 35 X 20MM BK FLANGED LID |
Dimensions
| Width | 1.38 in (35 mm) |
| Inside Width | 29.73 mm [1.17 in] |
| Inside Height | 16.00 mm [0.63 in] |
| Inside Length | 29.73 mm [1.17 in] |
| Wall Thickness | 2 mm (0.08 in) |
| Size (L X W X H) | 1.38 in x 1.38 in x 0.79 in (35 mm x 35 mm x 20 mm) |
| Depth (Including Lid) | 0.79 in (20 mm) |
| Length (Not Including Flange) | 1.38 in (35 mm) |
| Overall Length (Including Flanges) | 51.30 mm [2.02 in] |
Accessories
| PC Board Screws | 1551ATS100 (pack of 100) |
| Other Colours, Same Size | 1551MFLGY |
| Replacement Lid Screws (Black) | 1591TS100BK (pack of 100) |
| Replacement Lid Screws (Nickel Plated) | 1591TS100 (pack of 100) |
Identifiers
| UPC | 623980582979 |
| UNSPSC | 39121301 |
| Part Number | 1551MFLBK |
PC Board Mounting
| PC Board Screws | #2 x 3/16 in (4.8 mm) self-tapping, not included |
| PC Board Standoffs | Molded into interior; accept #2 self-tapping screws |
| Max. P.C. Board Width (Mm) | 29 |
| Max. P.C. Board Length (Mm) | 29 |
| Maximum P.C. Board Size (Drawing) | 29.00 mm x 29.00 mm [1.14 in x 1.14 in] |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Material | ABS Plastic (general purpose ABS) |
| Lid Screws | #4 x 1/2 in self-tapping |
| Solid Models | .stp or .x_t |
| Mounting Flange | Integrated flange molded into the lid (wall mounting or tie wrap suspension) |
| Colour Reference | RAL 9011 |
| Lid Screw Finish | Black plated (colour matched) |
| Assembly Includes | Box, lid, 2 cover screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Recommended Screw Torque | 35-43 ozf.in / 25-30 cN.m |
Environmental & Protection
| IP Rating | IP54 (designed to meet) |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste and strong solvents; check greases and oils for compatibility |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the overall length of the 1551MFLBK?▾
51.30 mm (2.02 in) including the flanges; the box itself is 35 mm long not including the flange.
How do I mount it?▾
Use the flanges molded into the lid to wall mount it, or suspend it with a tie wrap.
What fits inside?▾
A P.C. board up to 29 x 29 mm; the inside measures 29.73 x 29.73 x 16.00 mm.
What colour options are there for the flanged version?▾
Black (1551MFLBK) or grey (1551MFLGY); flanged sizes are not offered in translucent blue.
What is the shipping weight?▾
0.04 lbs (0.02 kg), packed in a bag.
