Hammond 1551KTBU 80x40x20mm Translucent Blue ABS Miniature Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Translucent blue general purpose ABS, 80 x 40 x 20 mm
- Designed to meet IP54; lap joint seals against dust and splashing water
- Inside 74.73 x 34.73 x 16.00 mm; PC board up to 74.00 x 34.00 mm
- Molded PC board standoffs accept #2 self-tapping screws
- Box, lid and 2 black plated #4 x 1/2 in cover screws included
- UL94 HB; RoHS and REACH compliant; 0.05 lbs shipping weight
The 1551KTBU is a translucent blue general purpose ABS miniature enclosure from the 1551 series, sized 80 x 40 x 20 mm. It is intended for mounting small printed circuit boards or for use as a potting box, and the translucent blue plastic suits projects where you want internal indicator light to show through the case.
Construction is a two-piece box and lid in general purpose ABS with a UL94 HB flame rating. The two halves meet in a lap joint that protects against dust and splashing water, and the enclosure is designed to meet IP54. Walls are 2 mm (0.08 in) thick.

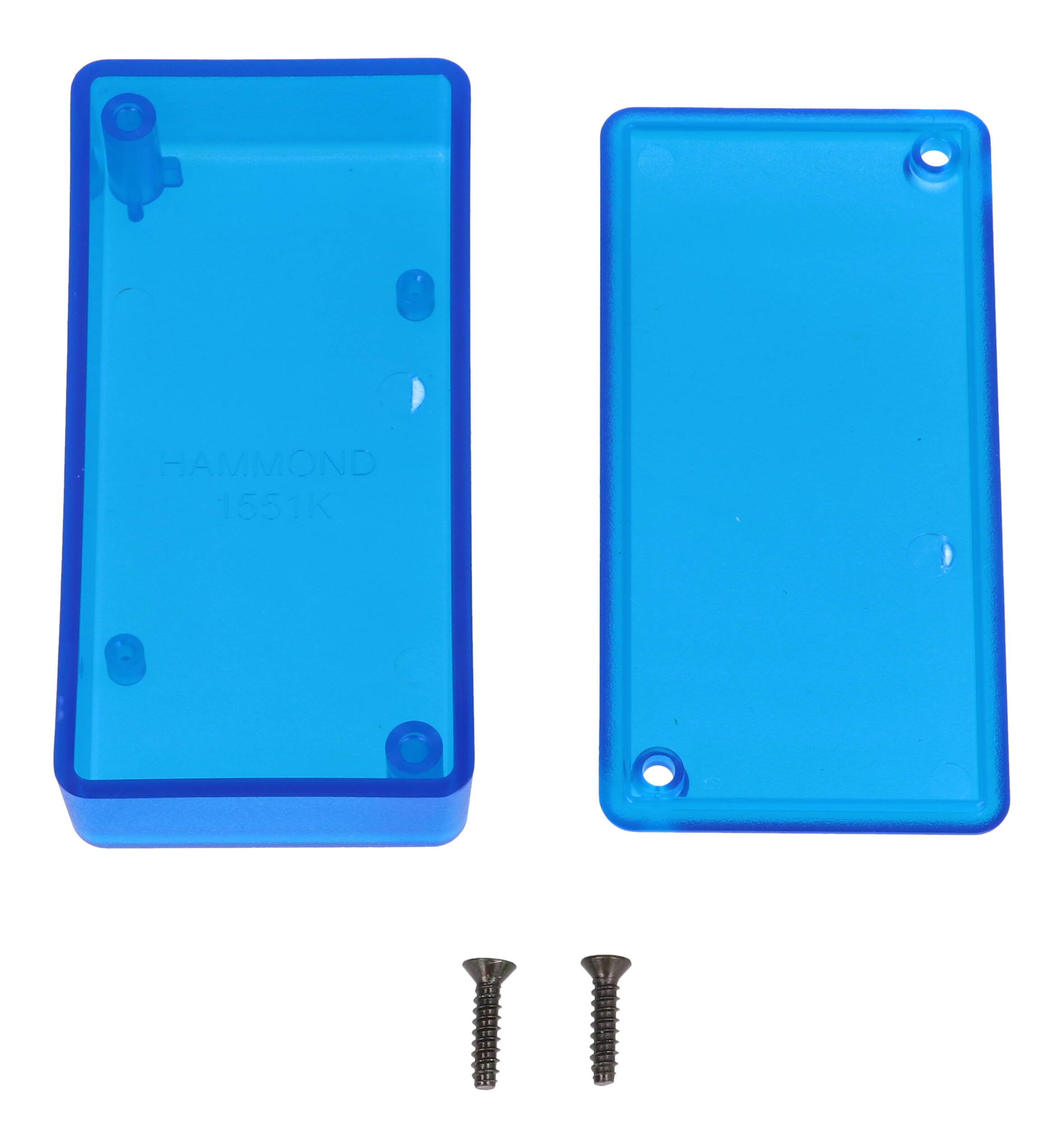

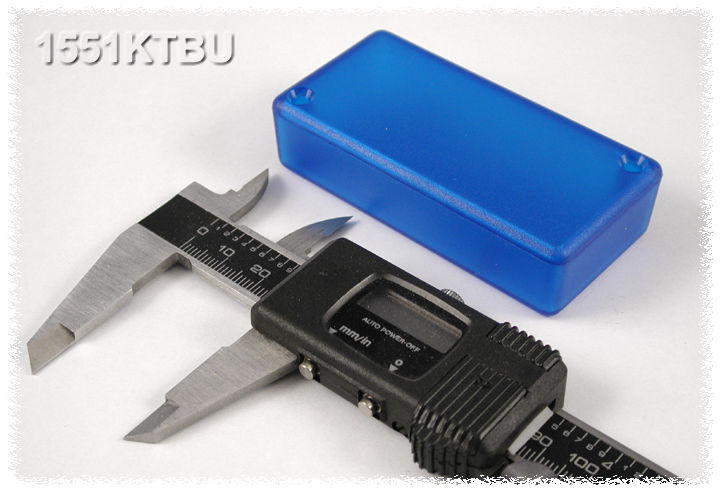

With the lid fitted it measures 80 mm long, 40 mm wide and 20 mm deep (3.15 x 1.57 x 0.79 in). The inside offers 74.73 x 34.73 mm and 16.00 mm of height, and the manufacturer drawing shows a maximum P.C. board size of 74.00 x 34.00 mm. PC board standoffs are molded inside and accept #2 self-tapping screws, which are sold separately as 1551ATS100.

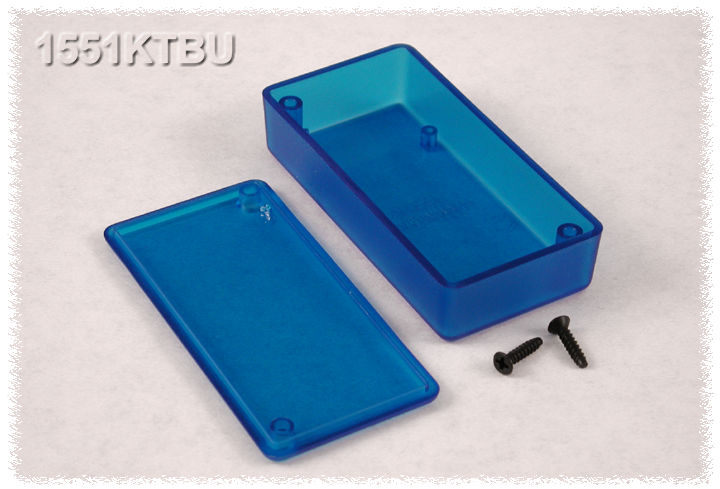

Each 1551KTBU assembly includes the box, lid and 2 black plated #4 x 1/2 in self-tapping cover screws (black plated screws are used with blue enclosures). Tighten to 35-43 ozf.in (25-30 cN.m). It is RoHS and REACH compliant and ships in a bag at 0.05 lbs (0.02 kg). Same-size opaque versions are 1551KBK (black) and 1551KGY (grey).
Ideal For
- Small PCB housings with visible indicator LEDs
- Potting boxes
- Hand held electronic devices
- Sensor and prototype enclosures
Overview
| Colour | Trans. Blue |
| Series | 1551 Series ABS Plastic Miniature Hand Held Enclosures |
| Description | translucent blue plastic enclosure |
| Product Type | Miniature, general purpose |
| Ordering Table | Standard Enclosures |
| Manufacturer Short Description | 81 X 40 X 20 MM ABS TRANS BLUE |
Dimensions
| Width | 1.57 in (40 mm) |
| Length | 3.15 in (80 mm) |
| Inside Width | 34.73 mm [1.37 in] |
| Inside Height | 16.00 mm [0.63 in] |
| Inside Length | 74.73 mm [2.94 in] |
| Wall Thickness | 2 mm (0.08 in) |
| Size (L X W X H) | 3.15 in x 1.58 in x 0.79 in (80 mm x 40 mm x 20 mm) |
| Depth (Including Lid) | 0.79 in (20 mm) |
Accessories
| PC Board Screws | 1551ATS100 (pack of 100) |
| Other Colours, Same Size | 1551KBK, 1551KGY |
| Replacement Lid Screws (Black) | 1591TS100BK (pack of 100) |
| Replacement Lid Screws (Nickel Plated) | 1591TS100 (pack of 100) |
Identifiers
| UPC | 623980035185 |
| UNSPSC | 39121301 |
| Part Number | 1551KTBU |
PC Board Mounting
| PC Board Screws | #2 x 3/16 in (4.8 mm) self-tapping, not included |
| PC Board Standoffs | Molded into interior; accept #2 self-tapping screws |
| Max. P.C. Board Width (Mm) | 74 |
| Max. P.C. Board Length (Mm) | 34 |
| Maximum P.C. Board Size (Drawing) | 74.00 mm x 34.00 mm [2.91 in x 1.34 in] |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.05 lbs (0.02 kg) |
Construction & Finish
| Material | ABS Plastic (general purpose ABS) |
| Lid Screws | #4 x 1/2 in self-tapping |
| Solid Models | .stp or .x_t |
| Lid Screw Finish | Black plated (colour matched) |
| Assembly Includes | Box, lid, 2 cover screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Recommended Screw Torque | 35-43 ozf.in / 25-30 cN.m |
Environmental & Protection
| IP Rating | IP54 (designed to meet) |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste and strong solvents; check greases and oils for compatibility |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the outside dimensions of the 1551KTBU?▾
80 mm long x 40 mm wide x 20 mm deep including the lid, or 3.15 x 1.57 x 0.79 in.
Is the 1551KTBU see-through?▾
It is molded in translucent blue general purpose ABS plastic.
What colour are the included screws?▾
Black plated. The manufacturer uses black plated screws with black and blue enclosures and nickel plated screws with grey ones.
What board size fits inside?▾
The maximum P.C. board size shown on the drawing is 74.00 x 34.00 mm (2.91 x 1.34 in).
What IP rating does it have?▾
The enclosure is designed to meet IP54.
