Hammond 1551NFLBK 35x35x15mm Black Flanged-Lid Miniature Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanges molded into the lid for wall or tie wrap mounting
- Shallow 35 x 35 x 15 mm black ABS body (RAL 9011)
- 51.30 mm overall length over flanges
- Inside 30.17 x 30.17 x 11.00 mm; board up to 29 x 29 mm
- Designed to meet IP54; UL94 HB flame rating
- 2 black plated #4 x 1/2 in lid screws included; RoHS and REACH

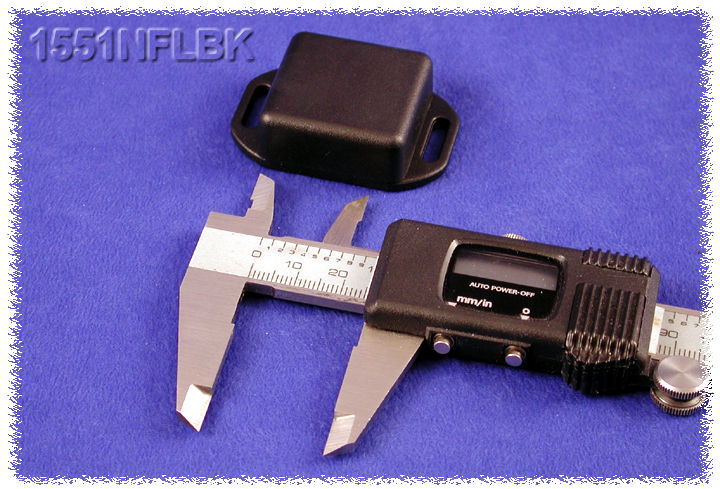

The 1551NFLBK is a shallow black ABS enclosure with mounting flanges molded into the lid, so it can be fixed to a wall or suspended with a tie wrap. It suits small, thin circuit boards and potting applications where the housing has to be attached to something.
The body measures 35 x 35 x 15 mm (1.38 x 1.38 x 0.59 in), length not including the flange, and the drawing gives 51.30 mm (2.02 in) overall over the flanges. Inside you have 30.17 x 30.17 mm of floor and 11.00 mm of height, with a maximum P.C. board size of 29 x 29 mm.

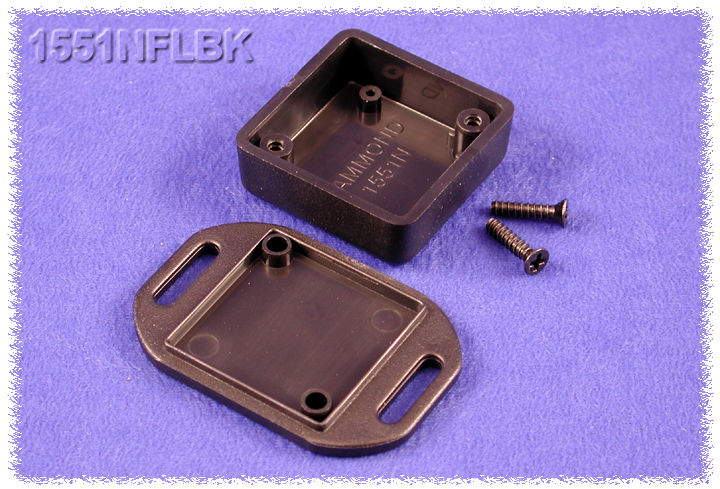

Construction is general purpose ABS in black (RAL 9011), UL94 HB flame rated, with 2 mm (0.08 in) walls. The lap joint between box and lid protects against dust and splashing water, and the enclosure is designed to meet IP54. Board standoffs are molded in and accept #2 x 3/16 in self-tapping screws (1551ATS100, not included).

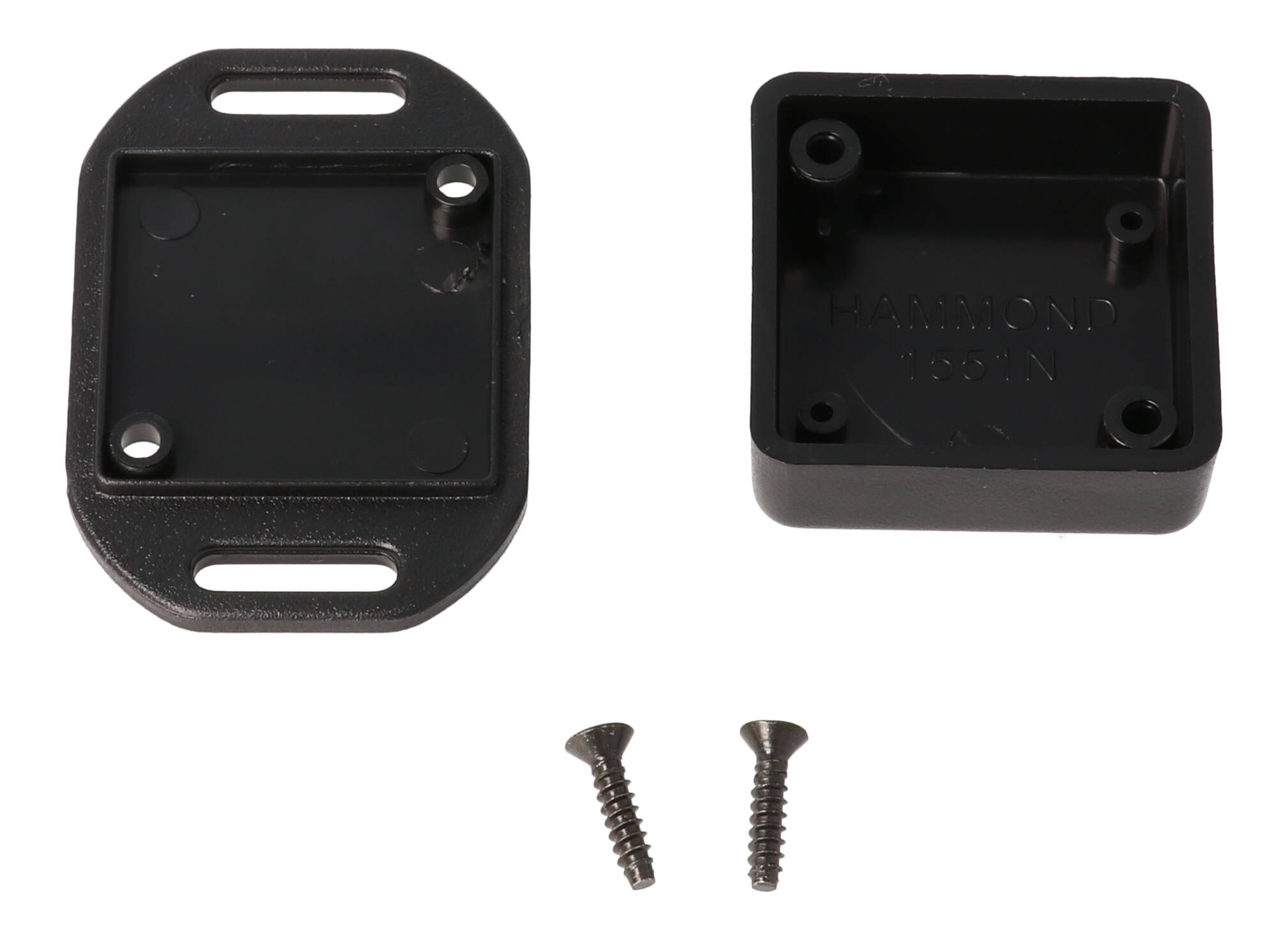

The 1551NFLBK includes box, flanged lid and 2 black plated #4 x 1/2 in self-tapping cover screws, with 35-43 ozf.in (25-30 cN.m) recommended torque. It is RoHS and REACH compliant and ships bagged at 0.04 lbs (0.02 kg). The grey equivalent is 1551NFLGY.
Ideal For
- Wall mounted thin electronics
- Tie wrap suspended sensors
- Surface mounted miniature PCB housings
- Potting boxes with fixing flanges
Overview
| Colour | Black |
| Series | 1551 Series ABS Plastic Miniature Hand Held Enclosures |
| Description | black plastic enclosure with flanged lid |
| Product Type | Miniature, flanged |
| Ordering Table | Enclosures with Mounting Flanges |
| Manufacturer Short Description | 35 X 35 X 15MM BK FLANGED LID |
Dimensions
| Width | 1.38 in (35 mm) |
| Inside Width | 30.17 mm [1.19 in] |
| Inside Height | 11.00 mm [0.43 in] |
| Inside Length | 30.17 mm [1.19 in] |
| Wall Thickness | 2 mm (0.08 in) |
| Size (L X W X H) | 1.38 in x 1.38 in x 0.59 in (35 mm x 35 mm x 15 mm) |
| Depth (Including Lid) | 0.59 in (15 mm) |
| Length (Not Including Flange) | 1.38 in (35 mm) |
| Overall Length (Including Flanges) | 51.30 mm [2.02 in] |
Accessories
| PC Board Screws | 1551ATS100 (pack of 100) |
| Other Colours, Same Size | 1551NFLGY |
| Replacement Lid Screws (Black) | 1591TS100BK (pack of 100) |
| Replacement Lid Screws (Nickel Plated) | 1591TS100 (pack of 100) |
Identifiers
| UPC | 623980583174 |
| UNSPSC | 39121301 |
| Part Number | 1551NFLBK |
PC Board Mounting
| PC Board Screws | #2 x 3/16 in (4.8 mm) self-tapping, not included |
| PC Board Standoffs | Molded into interior; accept #2 self-tapping screws |
| Max. P.C. Board Width (Mm) | 29 |
| Max. P.C. Board Length (Mm) | 29 |
| Maximum P.C. Board Size (Drawing) | 29.00 mm x 29.00 mm [1.14 in x 1.14 in] |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Material | ABS Plastic (general purpose ABS) |
| Lid Screws | #4 x 1/2 in self-tapping |
| Solid Models | .stp or .x_t |
| Mounting Flange | Integrated flange molded into the lid (wall mounting or tie wrap suspension) |
| Colour Reference | RAL 9011 |
| Lid Screw Finish | Black plated (colour matched) |
| Assembly Includes | Box, lid, 2 cover screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Recommended Screw Torque | 35-43 ozf.in / 25-30 cN.m |
Environmental & Protection
| IP Rating | IP54 (designed to meet) |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste and strong solvents; check greases and oils for compatibility |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the length of the 1551NFLBK over the flanges?▾
51.30 mm (2.02 in). The box is 35 mm long not including the flange.
How deep is it?▾
15 mm (0.59 in) including the lid, with 11.00 mm inside height.
How can it be mounted?▾
The lid flanges allow wall mounting or suspending with a tie wrap.
What is included?▾
Box, lid and 2 black plated #4 x 1/2 in self-tapping cover screws.
What is the maximum board size?▾
29 x 29 mm.
