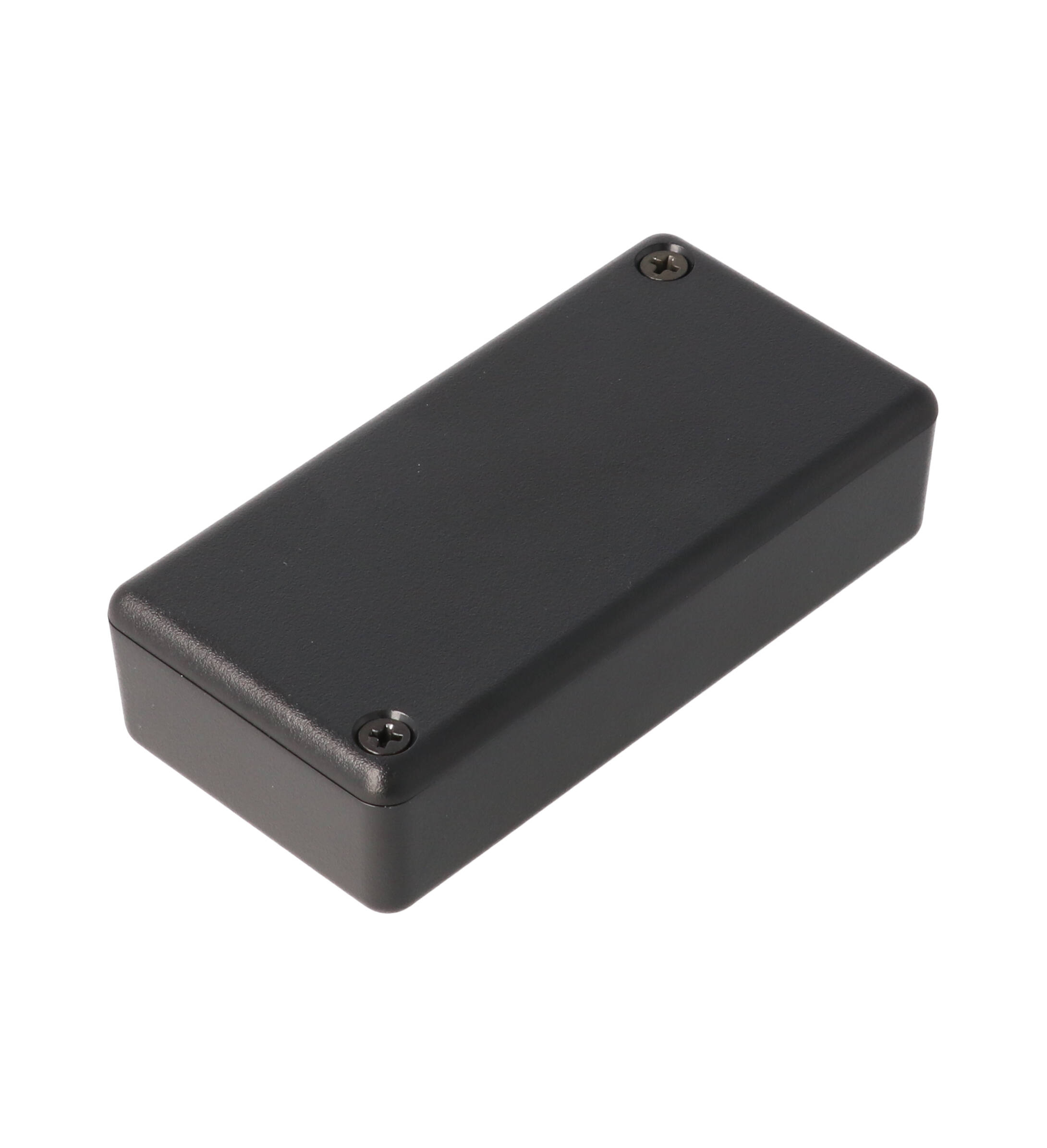

Hammond 1551KBK 80x40x20mm Black ABS Miniature Enclosure

The 1551KBK is a black ABS plastic miniature hand held enclosure from the 1551 series, with a nominal size of 80 x 40 x 20 mm (3.15 in x 1.58 in x 0.79 in). It is intended for OEM engineers, electronics designers and installers who need a small general purpose box for mounting a compact printed circuit board or for use as a potting box.

The enclosure is molded from general purpose ABS plastic with 2 mm (0.08") walls and carries a UL94 HB flame rating. Colour is black (RAL 9011), and the self-tapping lid screws are colour matched: black plated screws are supplied with this black version. Lap joint construction between box and lid protects against access of dust and splashing water, and the enclosure is designed to meet IP54.

The 80 x 40 mm footprint gives the largest interior of these sizes, 74.73 mm by 34.73 mm inside with 16.00 mm of height, for boards up to 74 mm by 34 mm. Inside dimensions are 74.73 mm [2.94 in] long, 34.73 mm [1.37 in] wide and 16.00 mm [0.63 in] high. PC board mounting bosses are molded into the interior and accept #2 x 3/16" self-tapping screws (not included; part number 1551ATS100, nickel plated, pack of 100).

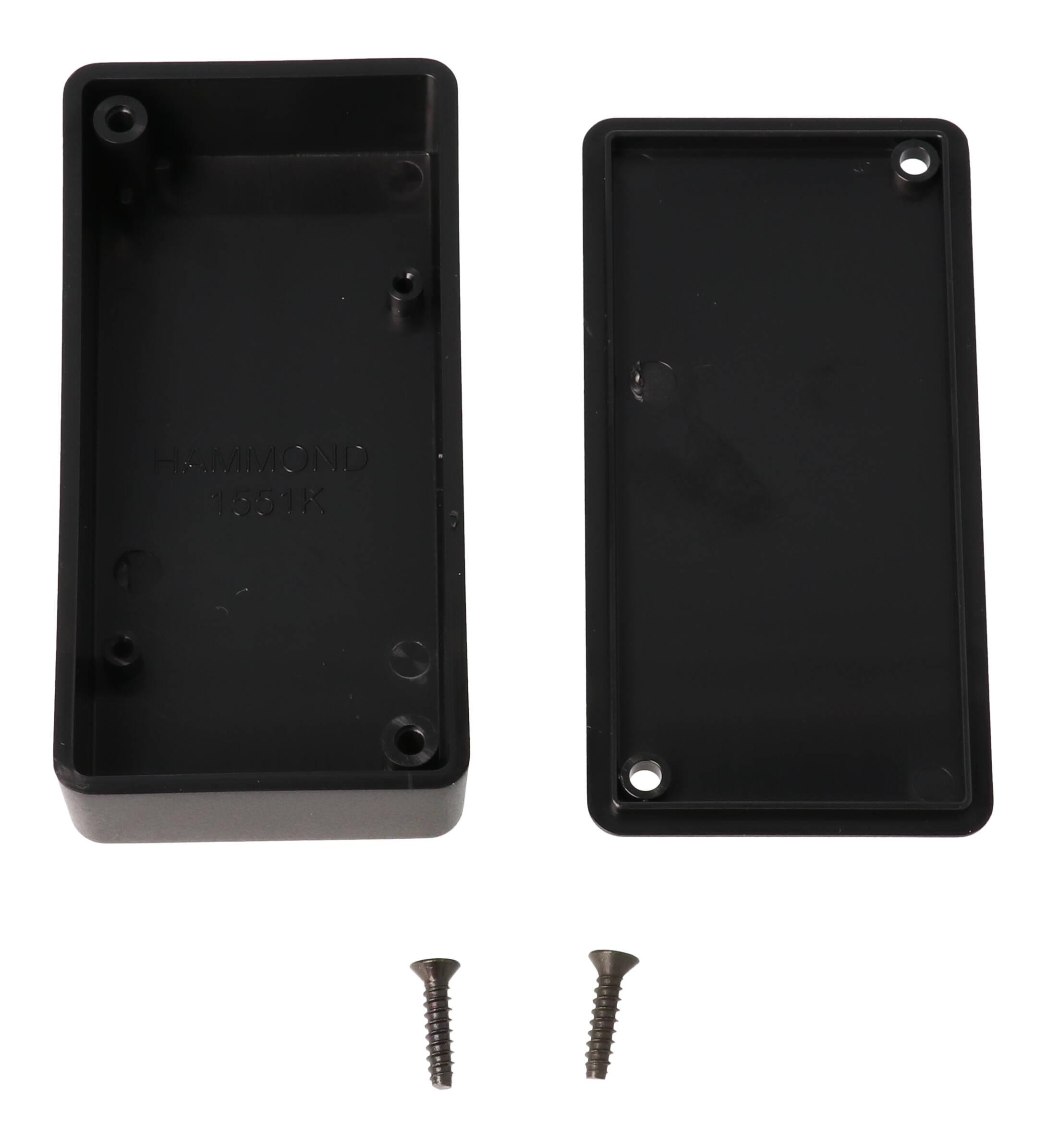

The 1551KBK is supplied as box, lid and 2 cover screws (#4 x 1/2" self-tapping), with a recommended lid screw torque of 35-43 ozf.in (25-30 cN.m). It is RoHS and REACH compliant, packed in a bag, with a shipping weight of 0.05 lbs (0.02 kg). Some chemicals, including acetone, ketones, thread locking compounds and cutting fluids, can damage ABS, so check compatibility before use.
