Hammond 1551PFLBK 40x40x20mm Black ABS Flanged Enclosure, IP54
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanges molded into the lid for wall or tie wrap mounting
- 40 x 40 x 20 mm black ABS body; 56.30 mm overall over flanges
- P.C. board up to 34 x 34 mm; inside 34.72 x 34.72 x 16.00 mm
- Designed to meet IP54 with lap joint construction
- 2 black plated #4 x 1/2 in self-tapping lid screws included
- UL94 HB, RoHS and REACH compliant

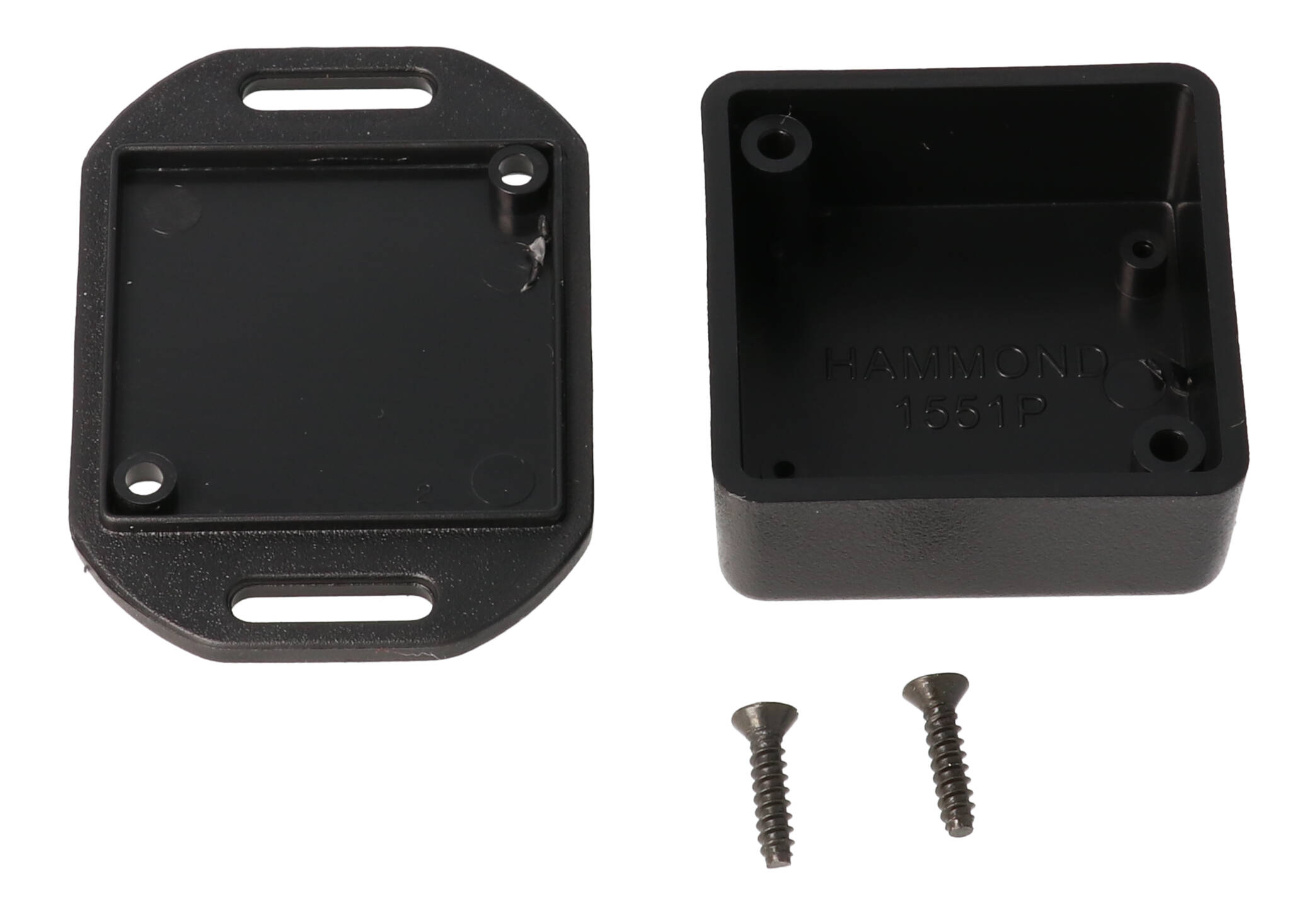

The 1551PFLBK is a square black ABS enclosure with integrated mounting flanges molded into the lid. It gives installers and OEM engineers a small box that can be wall mounted or suspended with a tie wrap, for housing a compact circuit board or potted assembly.
The box measures 40 x 40 x 20 mm (1.57 x 1.57 x 0.79 in), length not including the flange; overall over the flanges the drawing shows 56.30 mm (2.22 in). Inside there is 34.72 x 34.72 mm and 16.00 mm of height, taking a P.C. board up to 34 x 34 mm on the molded standoffs.
It is made from general purpose ABS plastic in black (RAL 9011), with UL94 HB flame rating and 2 mm (0.08 in) walls. The lap joint between box and lid protects against dust and splashing water, and the enclosure is designed to meet IP54.
The 1551PFLBK includes box, flanged lid and 2 black plated #4 x 1/2 in self-tapping cover screws; recommended torque is 35-43 ozf.in (25-30 cN.m). PC board screws (#2 x 3/16 in, 1551ATS100) are sold separately. It is RoHS and REACH compliant and ships bagged at 0.05 lbs (0.02 kg). The grey version is 1551PFLGY.
Ideal For
- Wall mounted small electronics
- Tie wrap mounted sensors
- Surface mounted PCB housings
- Potting boxes with mounting flanges
Overview
| Colour | Black |
| Series | 1551 Series ABS Plastic Miniature Hand Held Enclosures |
| Description | black plastic enclosure with flanged lid |
| Product Type | Miniature, flanged |
| Ordering Table | Enclosures with Mounting Flanges |
| Manufacturer Short Description | 40 X 40 X 20MM BK FLANGED LID |
Dimensions
| Width | 1.57 in (40 mm) |
| Inside Width | 34.72 mm [1.37 in] |
| Inside Height | 16.00 mm [0.63 in] |
| Inside Length | 34.72 mm [1.37 in] |
| Wall Thickness | 2 mm (0.08 in) |
| Size (L X W X H) | 1.58 in x 1.58 in x 0.79 in (40 mm x 40 mm x 20 mm) |
| Depth (Including Lid) | 0.79 in (20 mm) |
| Length (Not Including Flange) | 1.57 in (40 mm) |
| Overall Length (Including Flanges) | 56.30 mm [2.22 in] |
Accessories
| PC Board Screws | 1551ATS100 (pack of 100) |
| Other Colours, Same Size | 1551PFLGY |
| Replacement Lid Screws (Black) | 1591TS100BK (pack of 100) |
| Replacement Lid Screws (Nickel Plated) | 1591TS100 (pack of 100) |
Identifiers
| UPC | 623980583013 |
| UNSPSC | 39121301 |
| Part Number | 1551PFLBK |
PC Board Mounting
| PC Board Screws | #2 x 3/16 in (4.8 mm) self-tapping, not included |
| PC Board Standoffs | Molded into interior; accept #2 self-tapping screws |
| Max. P.C. Board Width (Mm) | 34 |
| Max. P.C. Board Length (Mm) | 34 |
| Maximum P.C. Board Size (Drawing) | 34.00 mm x 34.00 mm [1.34 in x 1.34 in] |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.05 lbs (0.02 kg) |
Construction & Finish
| Material | ABS Plastic (general purpose ABS) |
| Lid Screws | #4 x 1/2 in self-tapping |
| Solid Models | .stp or .x_t |
| Mounting Flange | Integrated flange molded into the lid (wall mounting or tie wrap suspension) |
| Colour Reference | RAL 9011 |
| Lid Screw Finish | Black plated (colour matched) |
| Assembly Includes | Box, lid, 2 cover screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Recommended Screw Torque | 35-43 ozf.in / 25-30 cN.m |
Environmental & Protection
| IP Rating | IP54 (designed to meet) |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste and strong solvents; check greases and oils for compatibility |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the overall length of the 1551PFLBK?▾
56.30 mm (2.22 in) including the flanges; the box is 40 mm long not including the flange.
How is it mounted?▾
Through the flanges molded into the lid, for wall mounting or suspending with a tie wrap.
What is the maximum board size?▾
34 x 34 mm.
What colour options exist?▾
The flanged 40 x 40 x 20 mm size comes in black (1551PFLBK) and grey (1551PFLGY).
What does it weigh?▾
Shipping weight is 0.05 lbs (0.02 kg).
