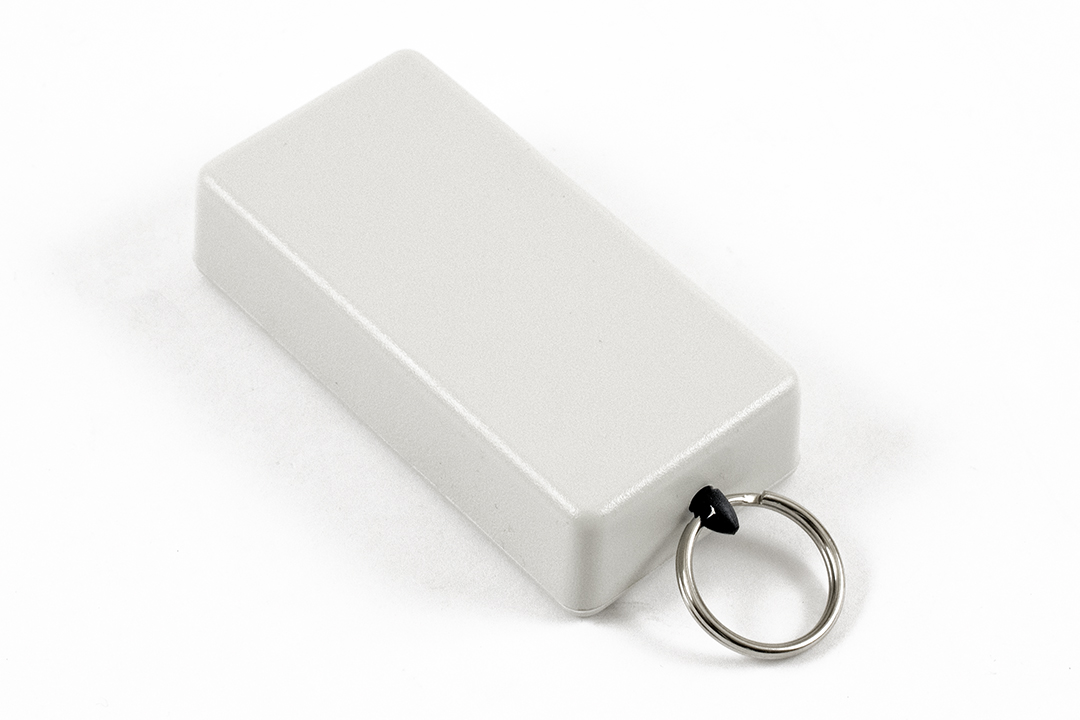

Hammond 1551KRGY 80x40x20mm Light Gray ABS Key Ring Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Key ring kit included; narrow side comes predrilled
- 80 x 40 x 20 mm light gray (RAL 7035) ABS body
- Lap joint construction, designed to meet IP54
- Holds a P.C. board up to 74.00 x 34.00 mm on molded standoffs

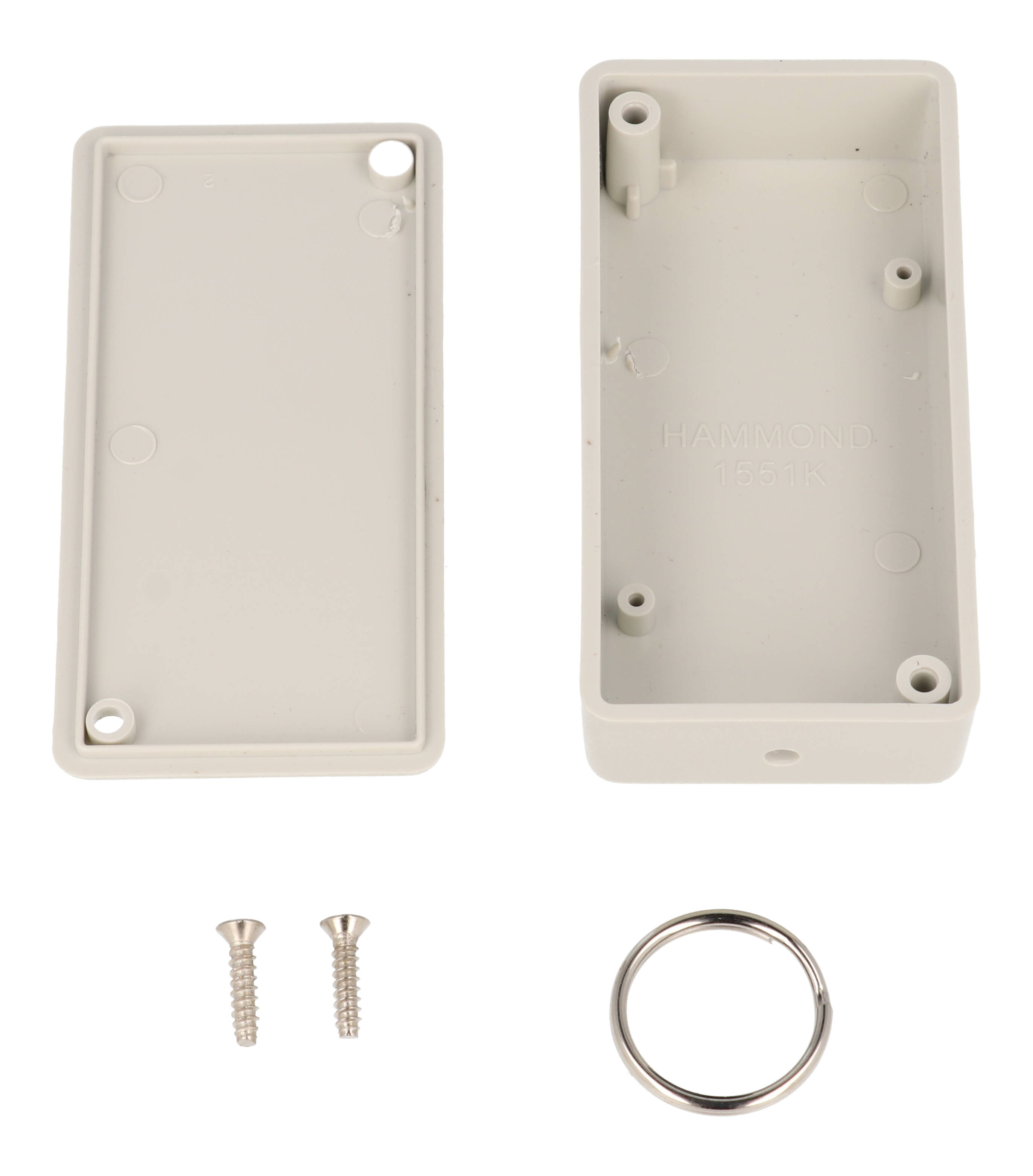

- Supplied with box, lid and 2 nickel plated #4 x 1/2 in lid screws
- UL94 HB flame rated, RoHS and REACH compliant
Part 1551KRGY is the light gray (RAL 7035) version of the 1551K miniature hand held enclosure supplied with a key ring kit; the manufacturer describes it as "1551KGY with key ring". It is aimed at designers who need a small, carry-anywhere case for a compact circuit board, or a neat potting box that hangs on a key ring.
- Outside size: 80 x 40 x 20 mm (3.15 x 1.57 x 0.79 in), depth including lid
- Inside: 74.73 mm long, 34.73 mm wide, 16.00 mm high
- Maximum P.C. board: 74.00 x 34.00 mm (2.91 x 1.34 in)
- Wall thickness: 2 mm (0.08 in)
The enclosure is molded in general purpose ABS plastic rated UL94 HB. Lap joint construction between box and lid helps keep out dust and splashing water, and the design is intended to meet IP54. For the key ring, the enclosure comes predrilled in the narrow side.
Inside, molded PC board standoffs take #2 x 3/16 in self-tapping screws (sold separately as 1551ATS50 or 1551ATS100). The lid closes with the 2 included #4 x 1/2 in self-tapping screws, which are nickel plated to match grey enclosures; recommended torque is 35-43 ozf.in (25-30 cN.m).
The 1551KRGY is RoHS and REACH compliant, ships bagged at 0.06 lbs (0.03 kg), and has a black twin, 1551KRBK.
Ideal For
- Key ring mounted electronic devices
- Hand held PCB housings
- Small potting boxes
- Prototype and OEM gadget enclosures
Overview
| Colour | Light Gray |
| Series | 1551 Series ABS Plastic Miniature Hand Held Enclosures |
| Description | grey plastic enclosure with key ring |
| Product Type | Miniature, key ring |
| Ordering Table | Enclosures With Key Rings |
| Manufacturer Short Description | 1551KGY WITH KEY RING |
Dimensions
| Width | 1.57 in (40 mm) |
| Length | 3.15 in (80 mm) |
| Inside Width | 34.73 mm [1.37 in] |
| Inside Height | 16.00 mm [0.63 in] |
| Inside Length | 74.73 mm [2.94 in] |
| Wall Thickness | 2 mm (0.08 in) |
| Size (L X W X H) | 3.15 in x 1.58 in x 0.79 in (80 mm x 40 mm x 20 mm) |
| Depth (Including Lid) | 0.79 in (20 mm) |
Accessories
| PC Board Screws | 1551ATS50 (pack of 50) or 1551ATS100 (pack of 100) |
| Other Colours, Same Size | 1551KRBK |
| Key Ring (Sold Separately) | 1427KR |
| Replacement Lid Screws (Black) | 1591TS100BK (pack of 100) |
| Replacement Lid Screws (Nickel Plated) | 1591TS100 (pack of 100) |
Identifiers
| UPC | 623980793771 |
| UNSPSC | 39121301 |
| Part Number | 1551KRGY |
PC Board Mounting
| PC Board Screws | #2 x 3/16 in (4.8 mm) self-tapping, not included |
| PC Board Standoffs | Molded into interior; accept #2 self-tapping screws |
| Max. P.C. Board Width (Mm) | 74 |
| Max. P.C. Board Length (Mm) | 34 |
| Maximum P.C. Board Size (Drawing) | 74.00 mm x 34.00 mm [2.91 in x 1.34 in] |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.06 lbs (0.03 kg) |
Construction & Finish
| Key Ring | Key ring kit; enclosure predrilled in the narrow side |
| Material | ABS Plastic (general purpose ABS) |
| Lid Screws | #4 x 1/2 in self-tapping |
| Solid Models | STEP or IGES |
| Colour Reference | RAL 7035 |
| Lid Screw Finish | Nickel plated (colour matched) |
| Assembly Includes | Box, lid, 2 cover screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Recommended Screw Torque | 35-43 ozf.in / 25-30 cN.m |
Environmental & Protection
| IP Rating | IP54 (designed to meet) |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste and strong solvents; check greases and oils for compatibility |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1551KRGY?▾
Inside length is 74.73 mm (2.94 in), inside width 34.73 mm (1.37 in) and inside height 16.00 mm (0.63 in).
What colour is it exactly?▾
It is light gray; the drawing identifies the gray enclosure colour as RAL 7035.
Which screws hold the lid on?▾
Two #4 x 1/2 in self-tapping cover screws, nickel plated to match grey enclosures, are included. Replacements are 1591TS100 (nickel plated, pack of 100).
Are PC board screws included?▾
No. Boards mount with #2 x 3/16 in (4.8 mm) self-tapping screws, available as 1551ATS50 (pack of 50) or 1551ATS100 (pack of 100).
Can the factory modify this enclosure?▾
The drawing notes that enclosures can be factory modified (milling, drilling, printing etc.) on quote, and solid models are available in STEP or IGES.
