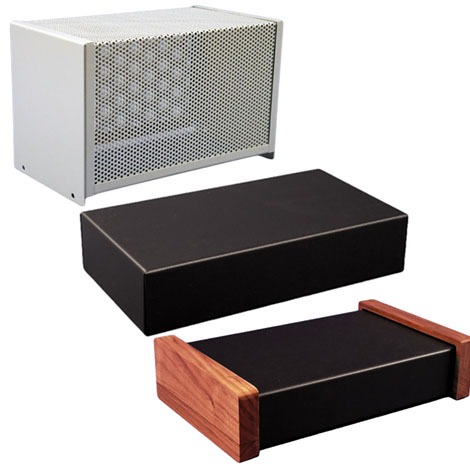

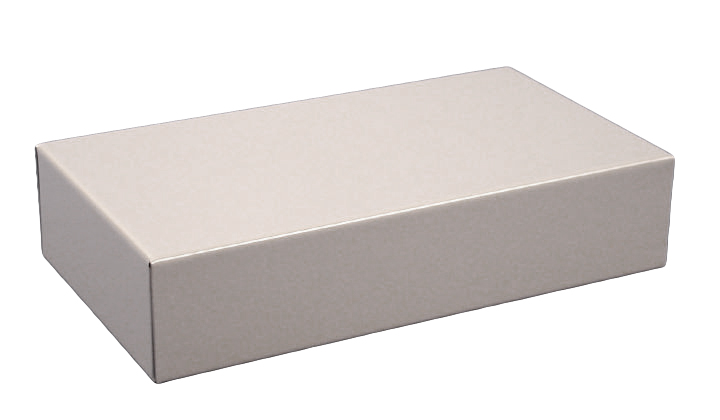

Steel Chassis · 1441 Series

Brand: Hammond Manufacturing · 96 part numbers

Powder Coated, Real Walnut Side Option

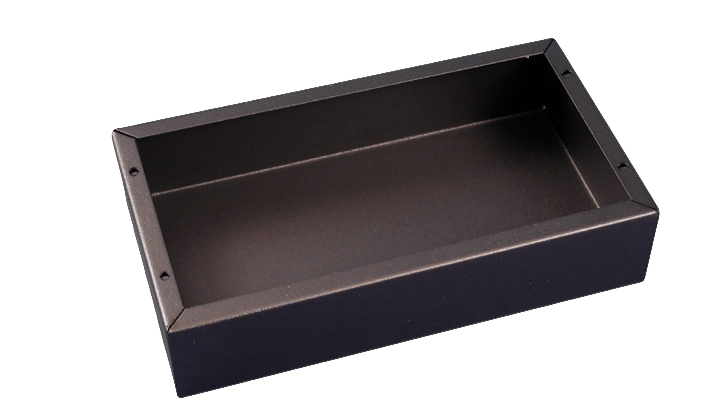

■Spot welded steel - heavy duty construction chassis.
■Finished in ASA 61 smooth grey or satin black powder paint.
■Optional bottom plates are punched with 4 holes – 3/16” diameter (Chassis now includes 1/8” holes to allow installation of optional bottom plates).
■Hardware not provided, please order separately - Part number 1421J6 (Pkg. of 6x #6-32 Philips head screws).
■Rubber feet sold separately.
■Some models accept chassis covers (1451 series).

from $3.41

94 of 96 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your 1441 Series part number

Filter 95 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

95 of 95 part numbers · 93 priced online

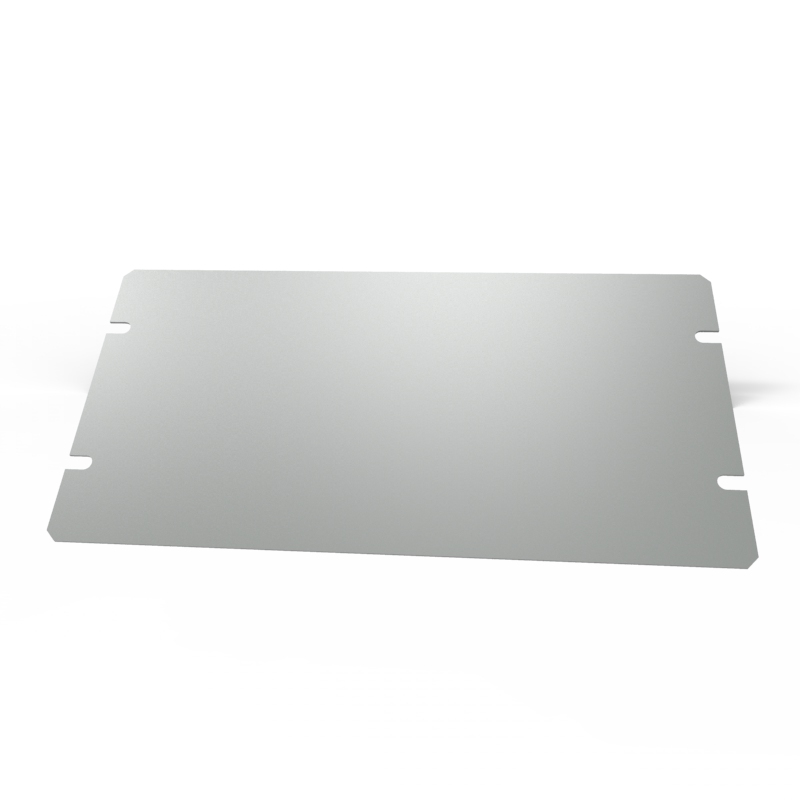

1431-10

Steel Chassis Cover 8 X 4

Type Bottom Plate
Material Steel
Color Gray

$4.24In stock

Buy now

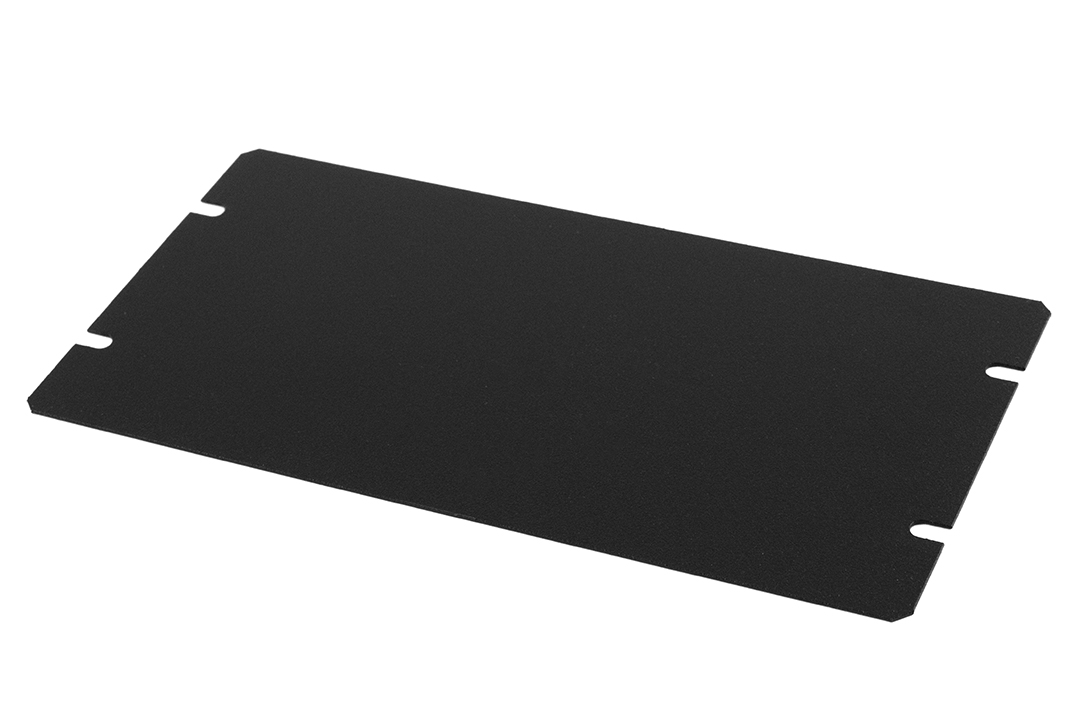

1431-10BK3

Steel Chassis Cover 8 X 4

Type Bottom Plate
Material Steel
Color Black

$4.24In stock

Buy now

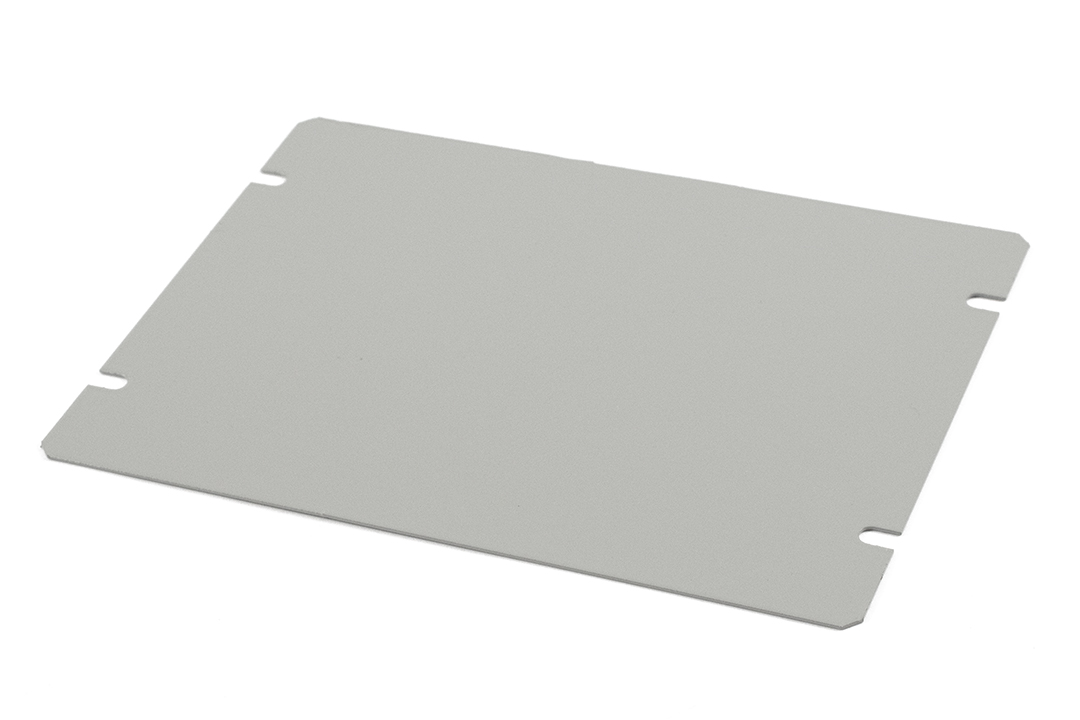

1431-12

Steel Chassis Cover 7 X 5

Type Bottom Plate
Material Steel
Color Gray

$4.24In stock

Buy now

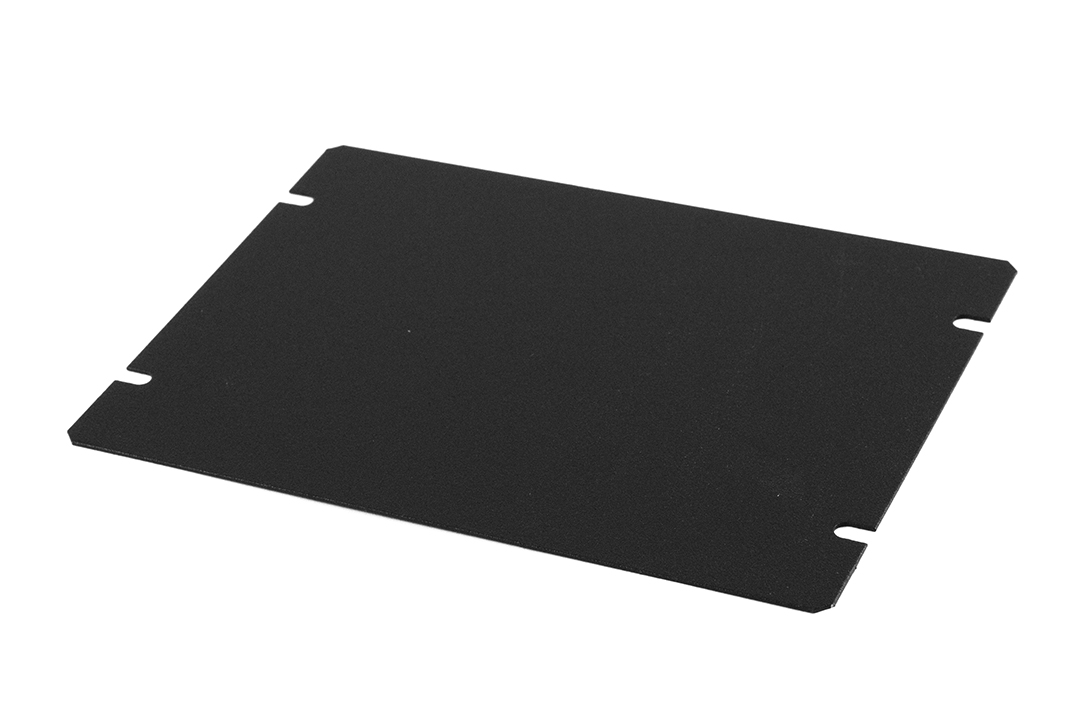

1431-12BK3

Steel Chassis Cover 7 X 5

Type Bottom Plate
Material Steel
Color Black

$4.24Backorder

Buy now

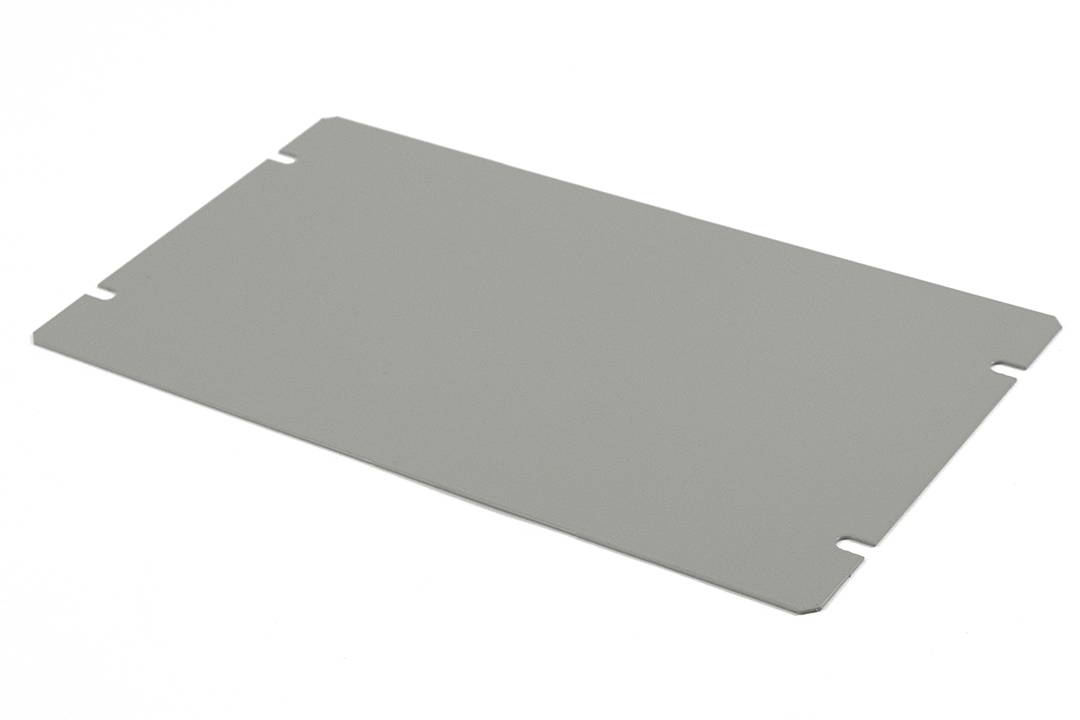

1431-14

Steel Chassis Cover 9 X 5

Type Bottom Plate
Material Steel
Color Gray

$5.09In stock

Buy now

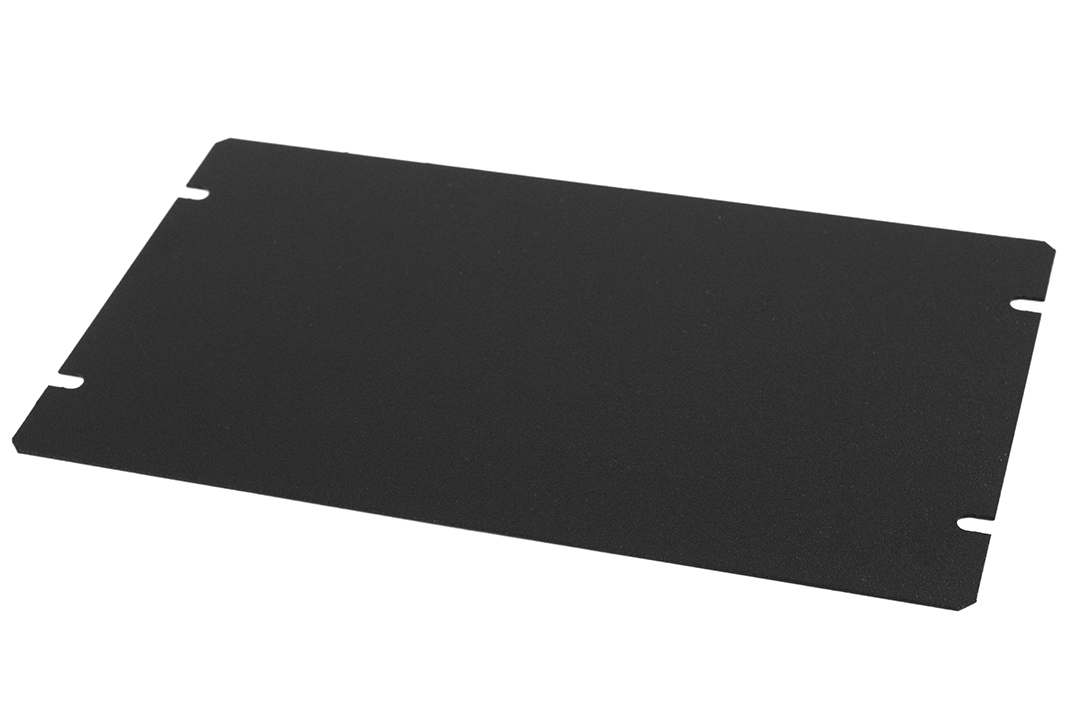

1431-14BK3

Steel Chassis Cover 9 X 5

Type Bottom Plate
Material Steel
Color Black

$5.09In stock

Buy now

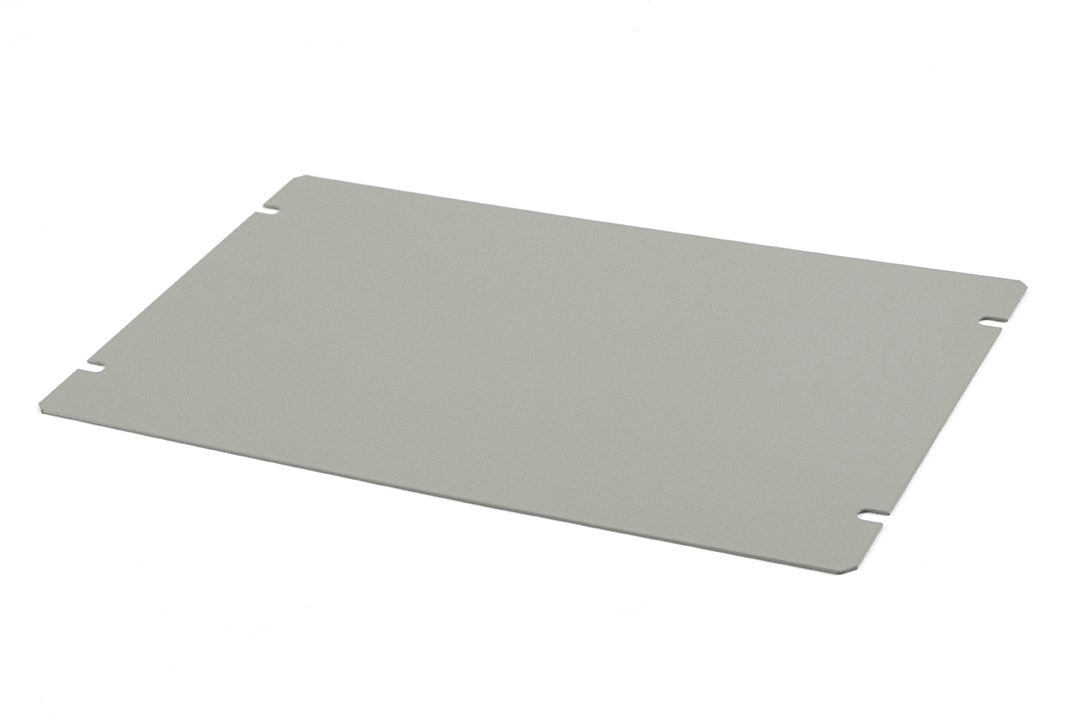

1431-16

Steel Chassis Cover 10 X 6

Type Bottom Plate
Material Steel
Color Gray

$6.80In stock

Buy now

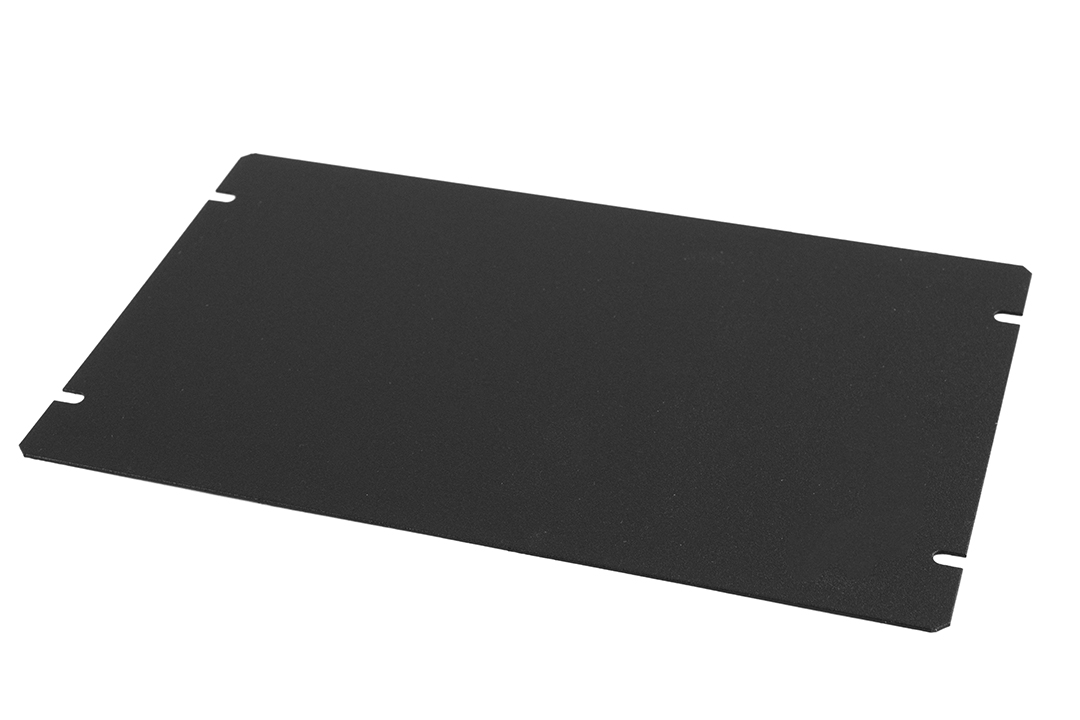

1431-16BK3

Steel Chassis Cover 10 X 6

Type Bottom Plate
Material Steel
Color Black

$6.80In stock

Buy now

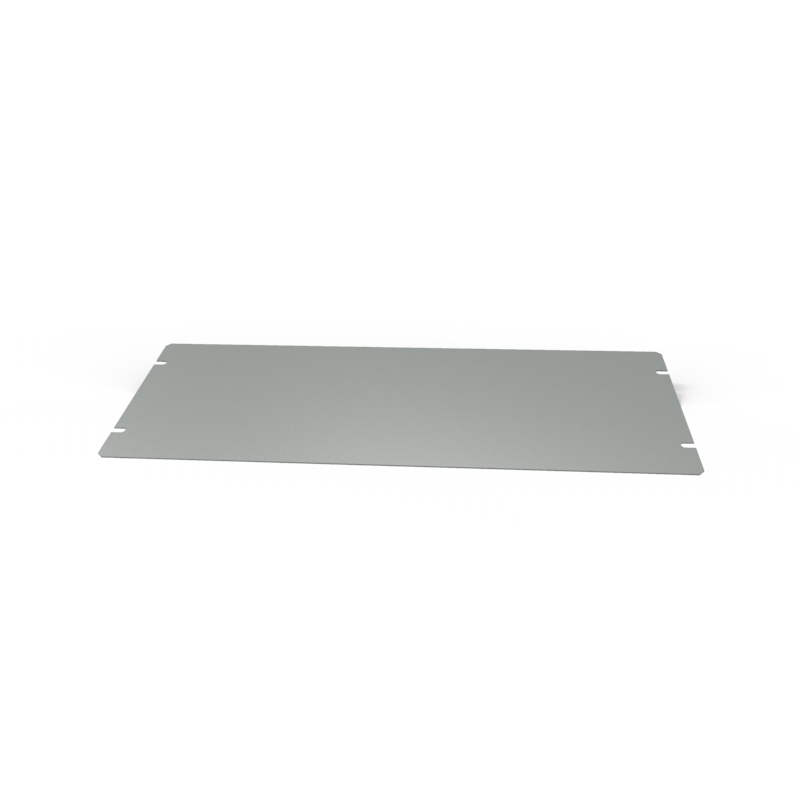

1431-18

Steel Chassis Cover 13.5 X 5

Type Bottom Plate
Material Steel
Color Gray

$7.66In stock

Buy now

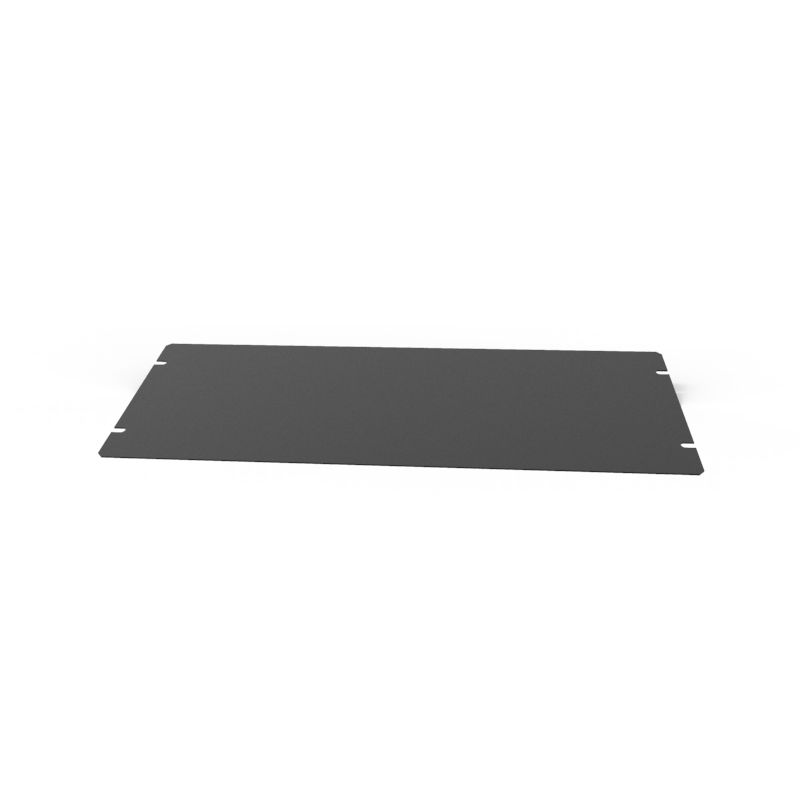

1431-18BK3

Steel Chassis Cover 13.5 X 5

Type Bottom Plate
Material Steel
Color Black

$7.66In stock

Buy now

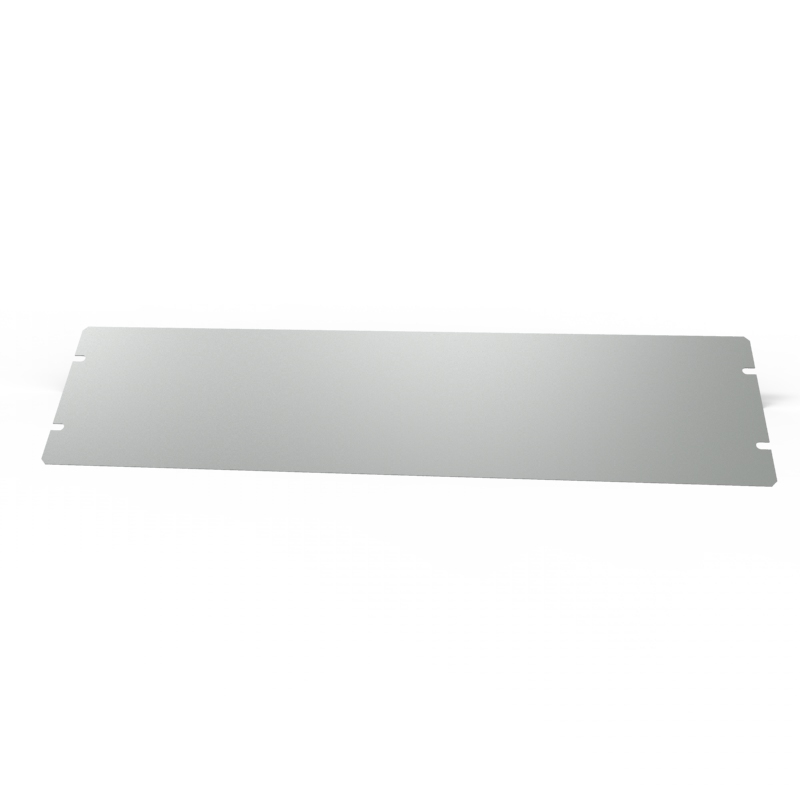

1431-20

Steel Chassis Cover 17 X 4

Type Bottom Plate
Material Steel
Color Gray

$6.80In stock

Buy now

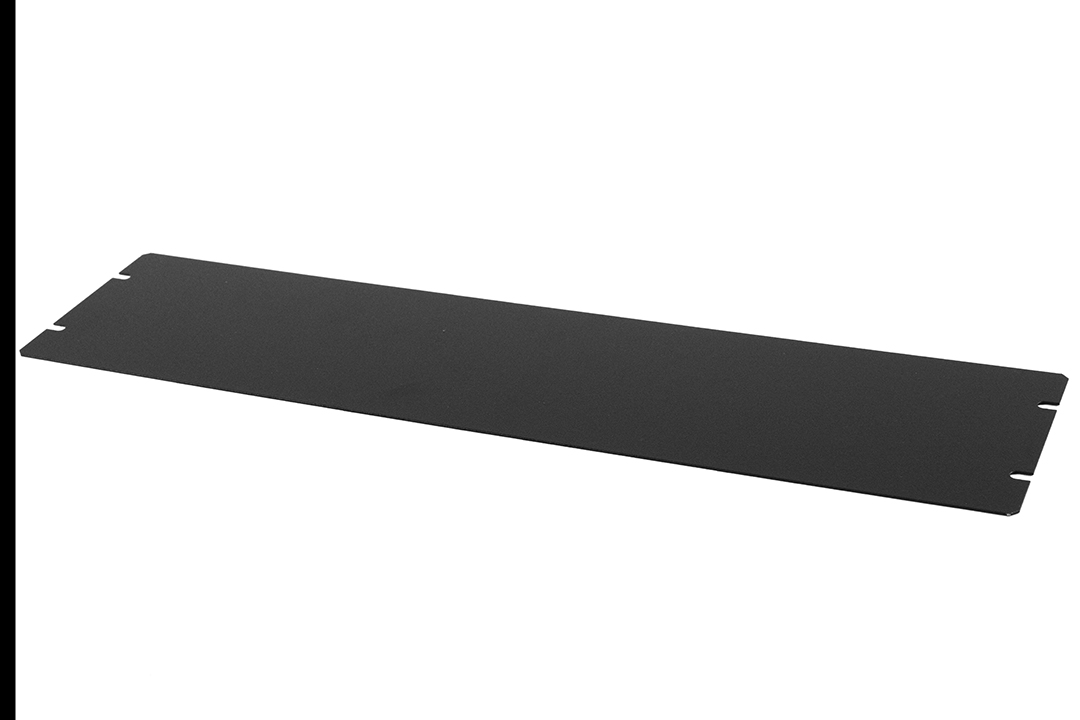

1431-20BK3

Steel Chassis Cover 17 X 4

Type Bottom Plate
Material Steel
Color Black

$6.80In stock

Buy now

1431-22

Steel Chassis Cover 12 X 8

Type Bottom Plate
Material Steel
Color Gray

$9.34In stock

Buy now

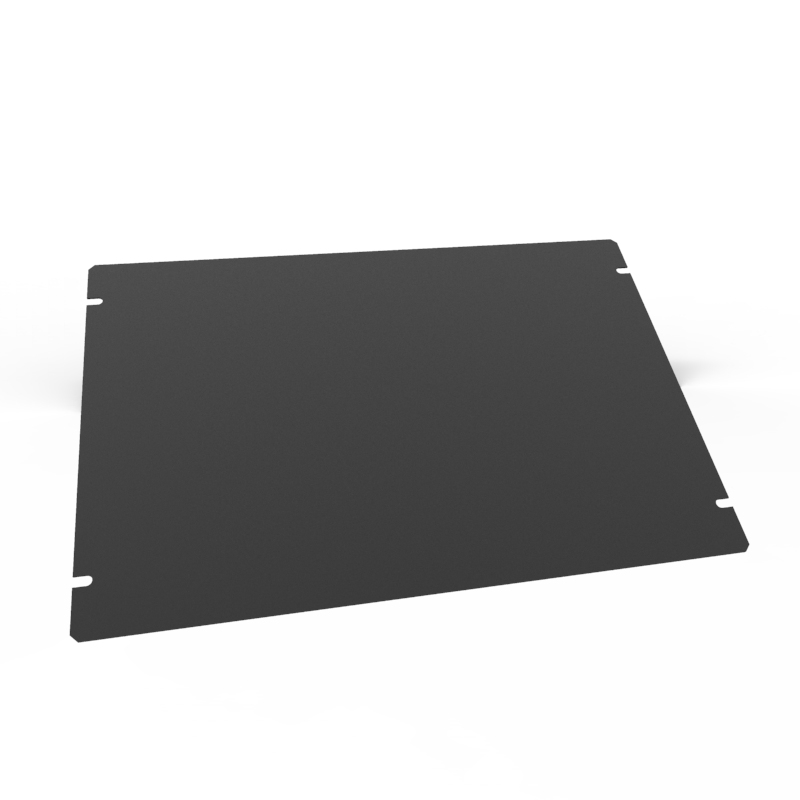

1431-22BK3

Steel Chassis Cover 12 X 8

Type Bottom Plate
Material Steel
Color Black

$9.34In stock

Buy now

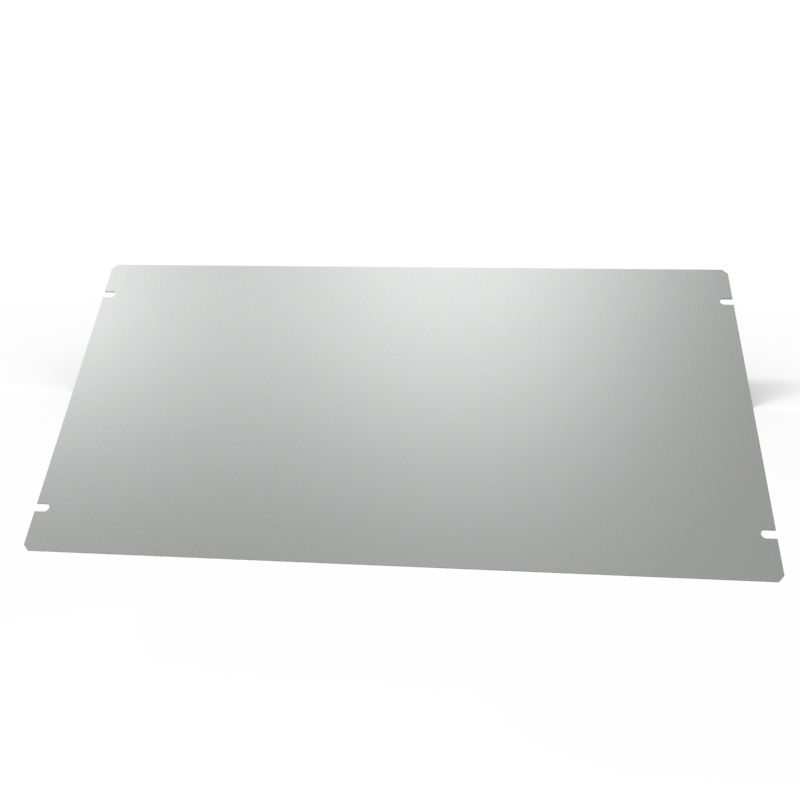

1431-26

Steel Chassis Cover 16 X 8

Type Bottom Plate
Material Steel
Color Gray

$11.06Backorder

Buy now

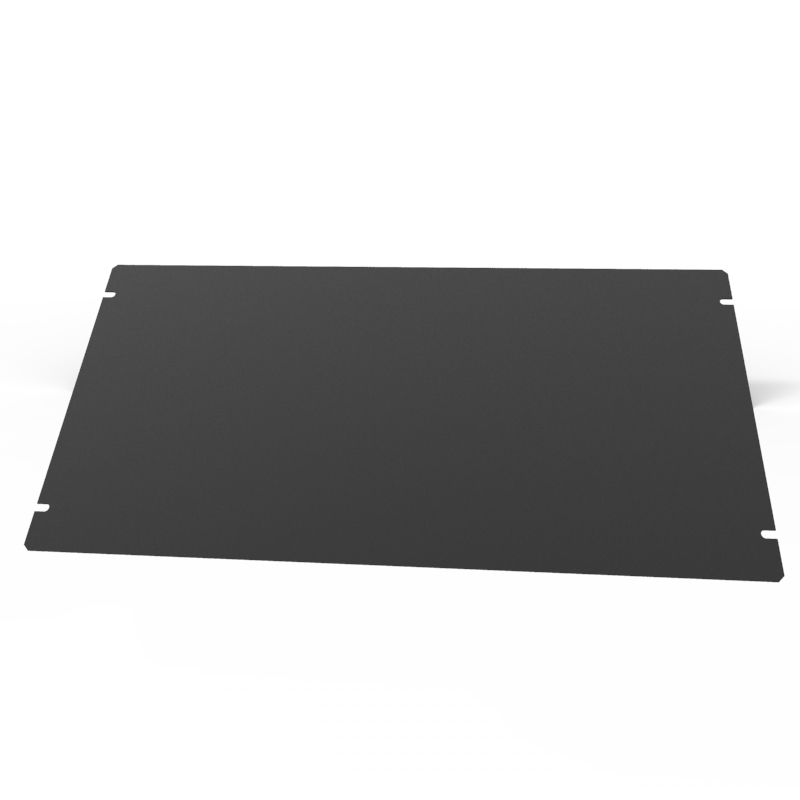

1431-26BK3

Steel Chassis Cover 16 X 8

Type Bottom Plate
Material Steel
Color Black

$11.06In stock

Buy now

1431-29

Steel Chassis Cover 12 X 10

Type Bottom Plate
Material Steel
Color Gray

$11.90In stock

Buy now

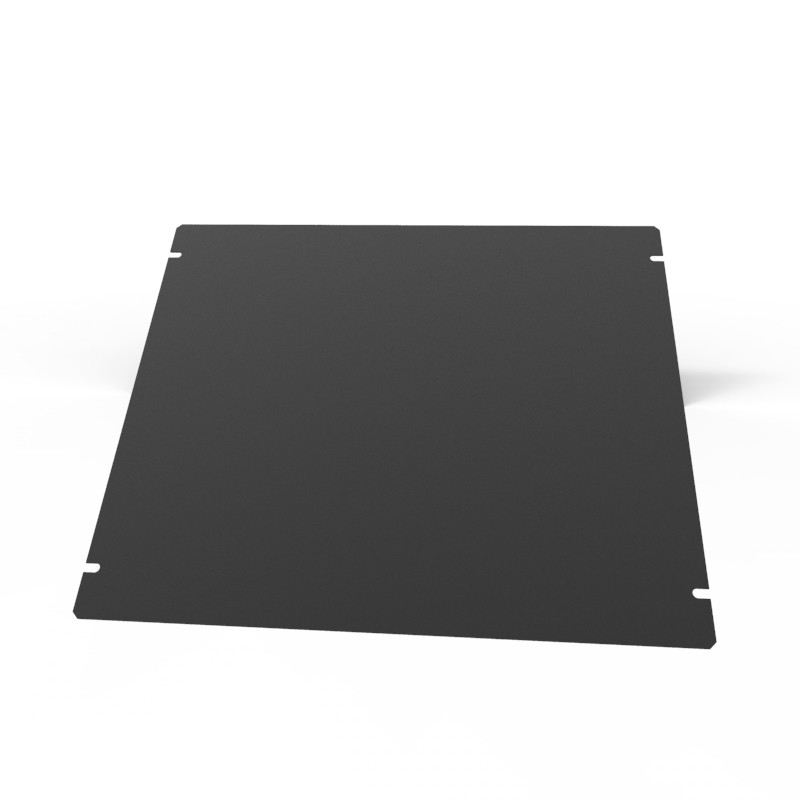

1431-29BK3

Steel Chassis Cover 12 X 10

Type Bottom Plate
Material Steel
Color Black

$11.90In stock

Buy now

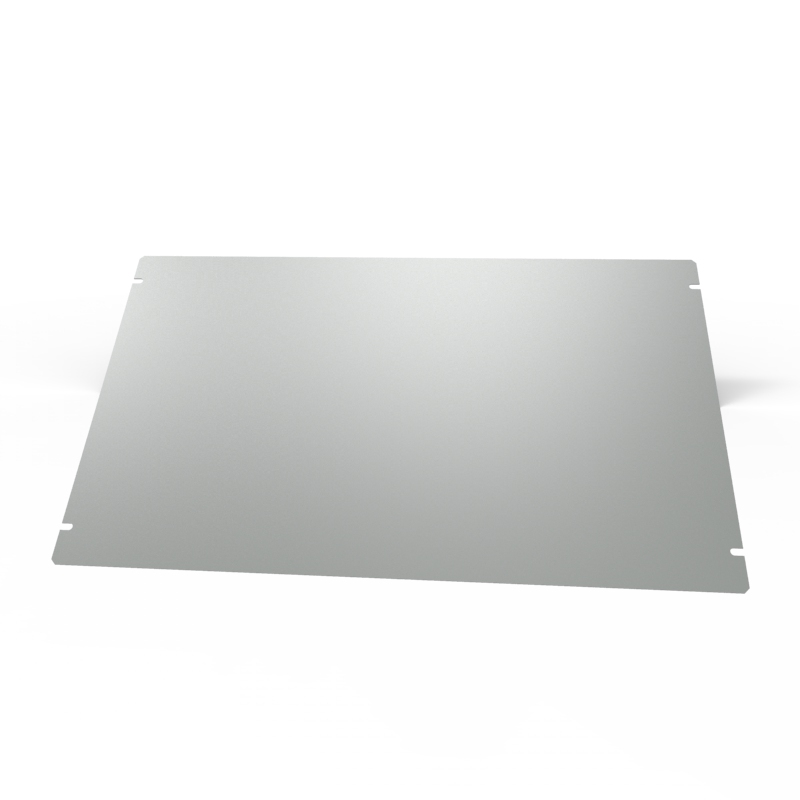

1431-30

Steel Chassis Cover 17 X 10

Type Bottom Plate
Material Steel
Color Gray

$13.59In stock

Buy now

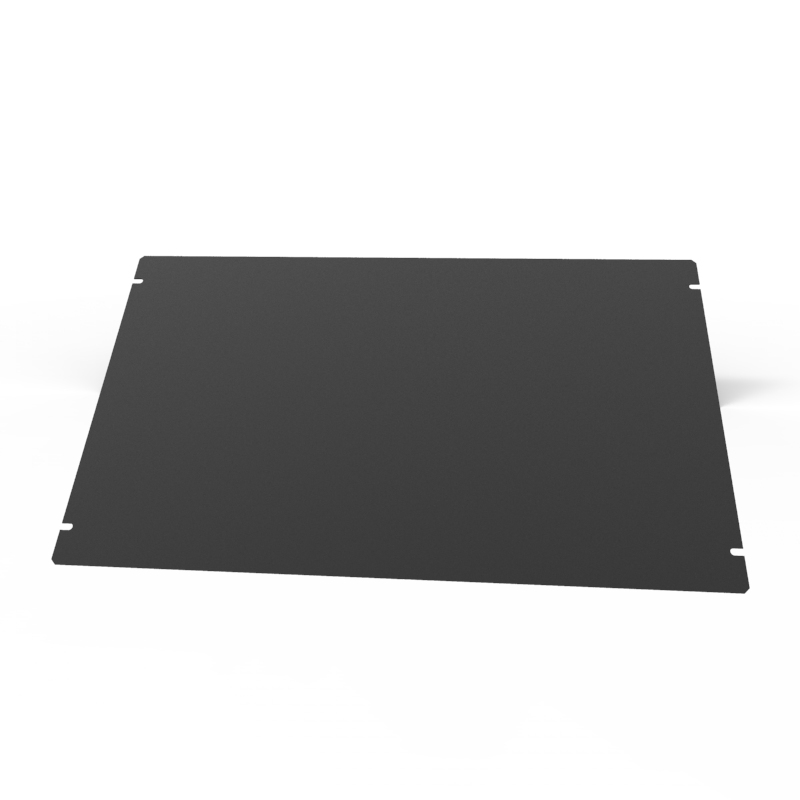

1431-30BK3

Steel Chassis Cover 17 X 10

Type Bottom Plate
Material Steel
Color Black

$13.59In stock

Buy now

1431-34

Steel Chassis Cover 17 X 12

Type Bottom Plate
Material Steel
Color Gray

$14.43In stock

Buy now

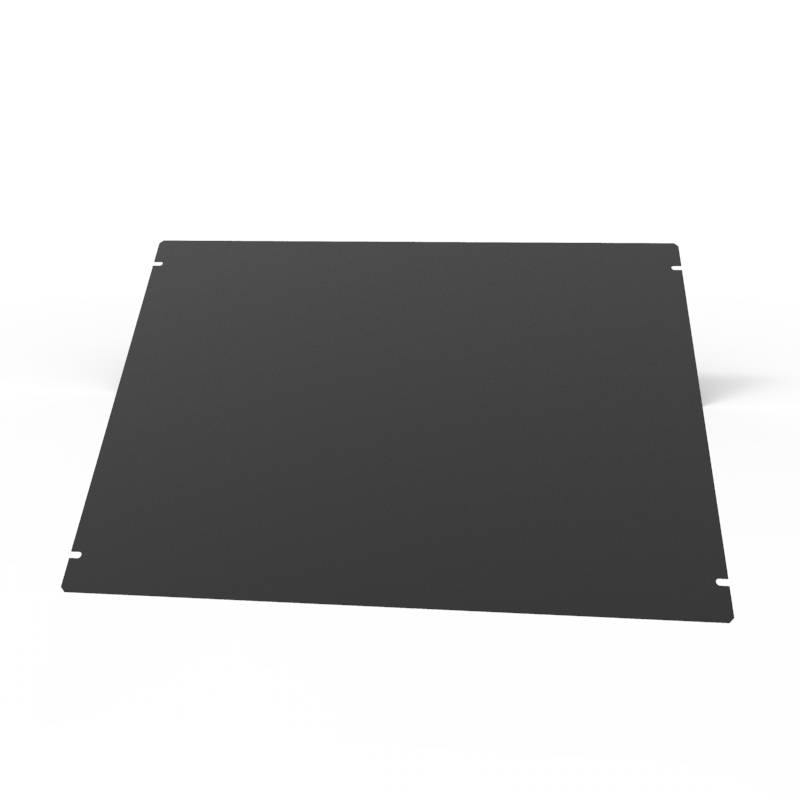

1431-34BK3

Steel Chassis Cover 17 X 12

Type Bottom Plate
Material Steel
Color Black

$14.43In stock

Buy now

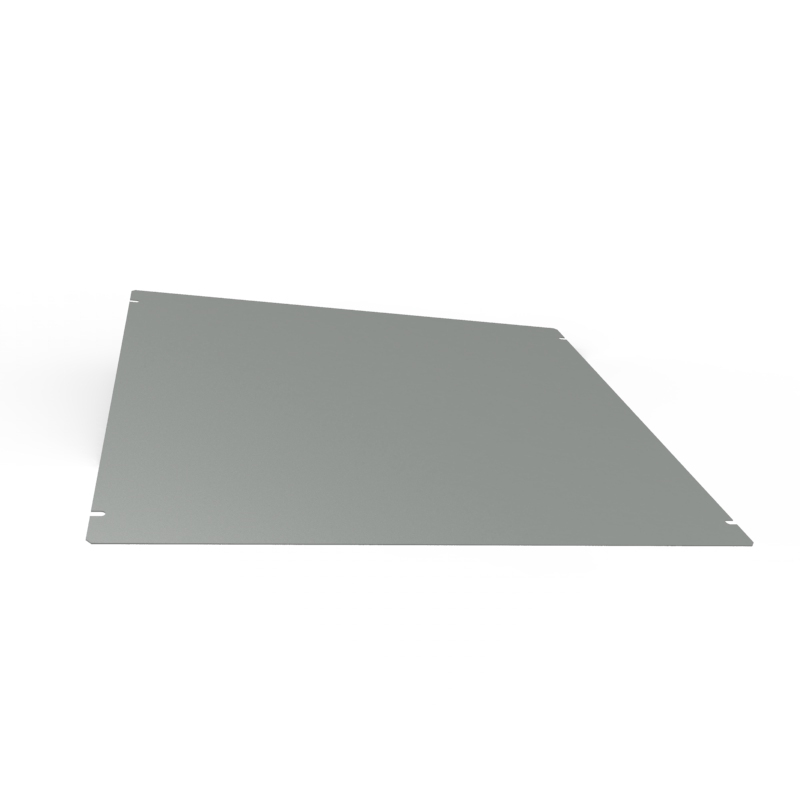

1431-38

Steel Chassis Cover 17 X 14

Type Bottom Plate
Material Steel
Color Gray

$17.01In stock

Buy now

1431-38BK3

Steel Chassis Cover 17 X 14

Type Bottom Plate
Material Steel
Color Black

$17.01In stock

Buy now

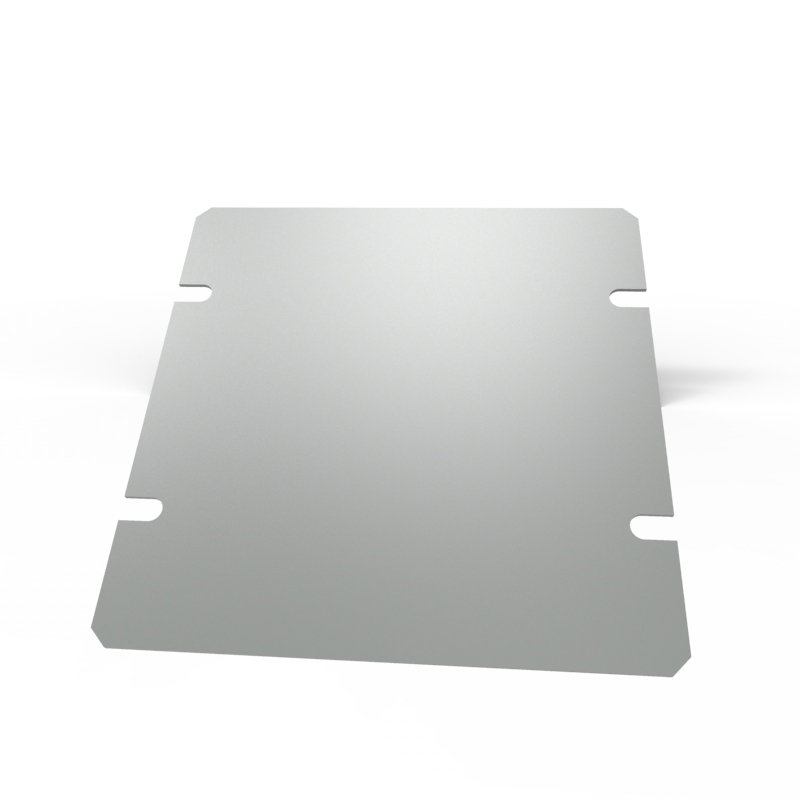

1431-6

Steel Chassis Cover 4 X 4

Type Bottom Plate
Material Steel
Color Gray

$3.41In stock

Buy now

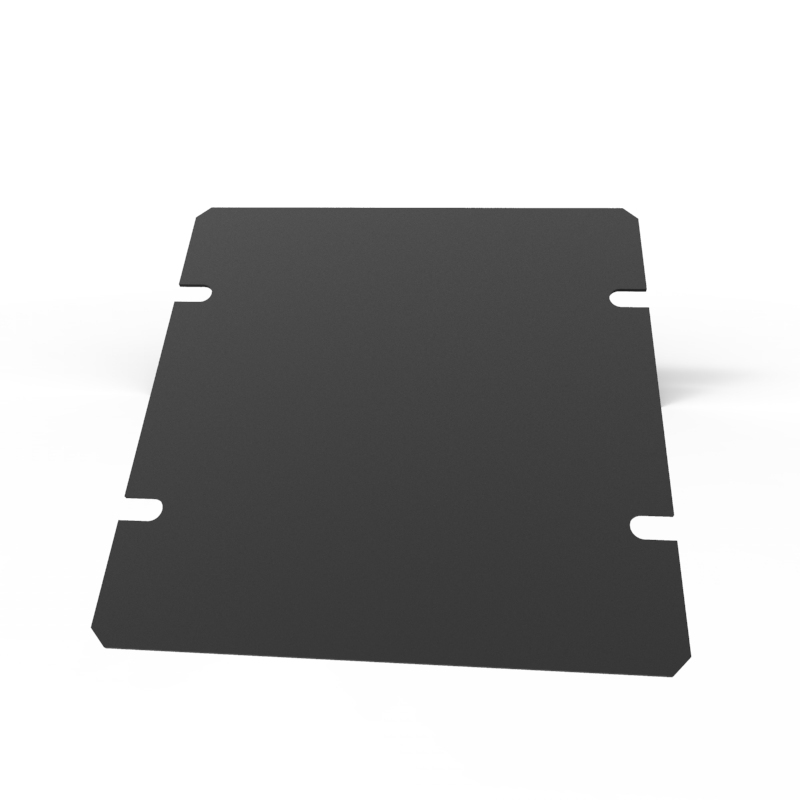

1431-6BK3

Steel Chassis Cover 4 X 4

Type Bottom Plate
Material Steel
Color Black

$3.41In stock

Buy now

1431-8

Steel Chassis Cover 6 X 4

Type Bottom Plate
Material Steel
Color Gray

$3.83In stock

Buy now

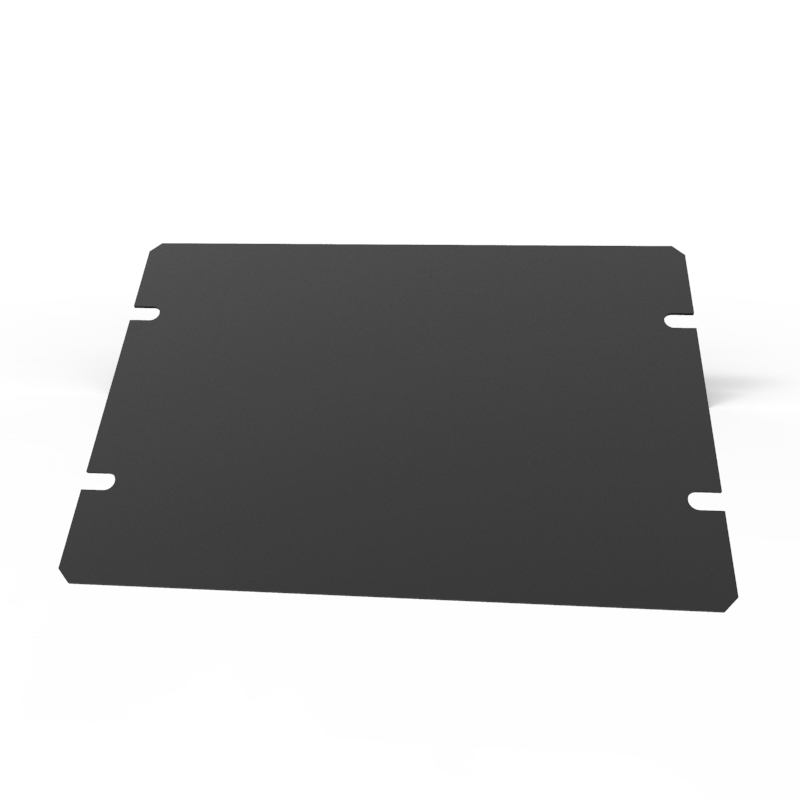

1431-8BK3

Steel Chassis Cover 6 X 4

Type Bottom Plate
Material Steel
Color Black

$3.83In stock

Buy now

1441-10

Steel Chassis 8X4X2

Type Chassis (Steel)
Material Steel
Color Gray

$11.90In stock

Buy now

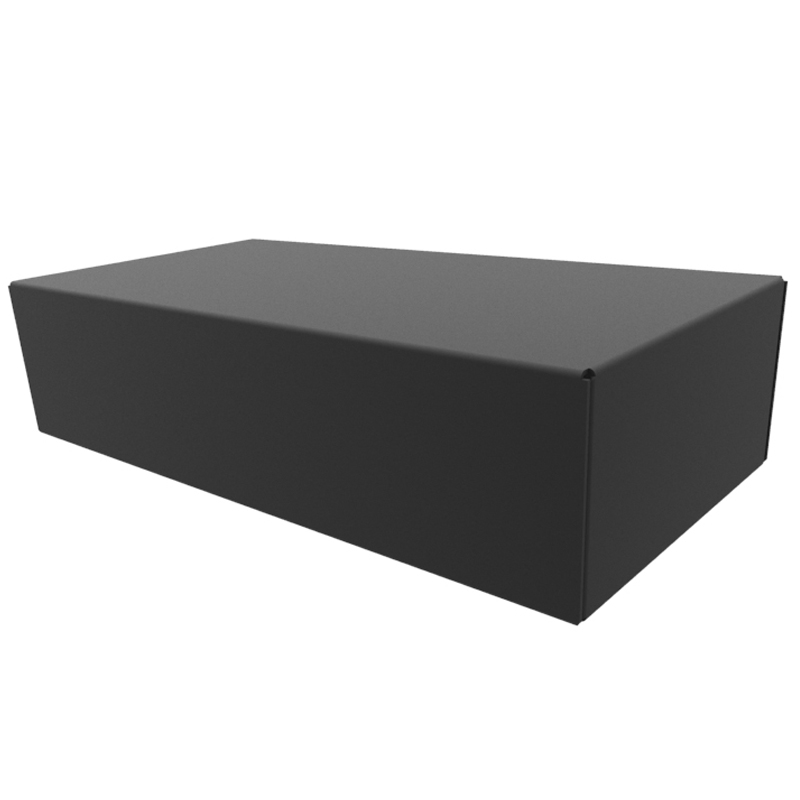

1441-10BK3

Steel Chassis 8X4X2

Type Chassis (Steel)
Material Steel
Color Black

$11.90In stock

Buy now

1441-12

Steel Chassis 7X5X2

Type Chassis (Steel)
Material Steel
Color Gray

$11.90In stock

Buy now

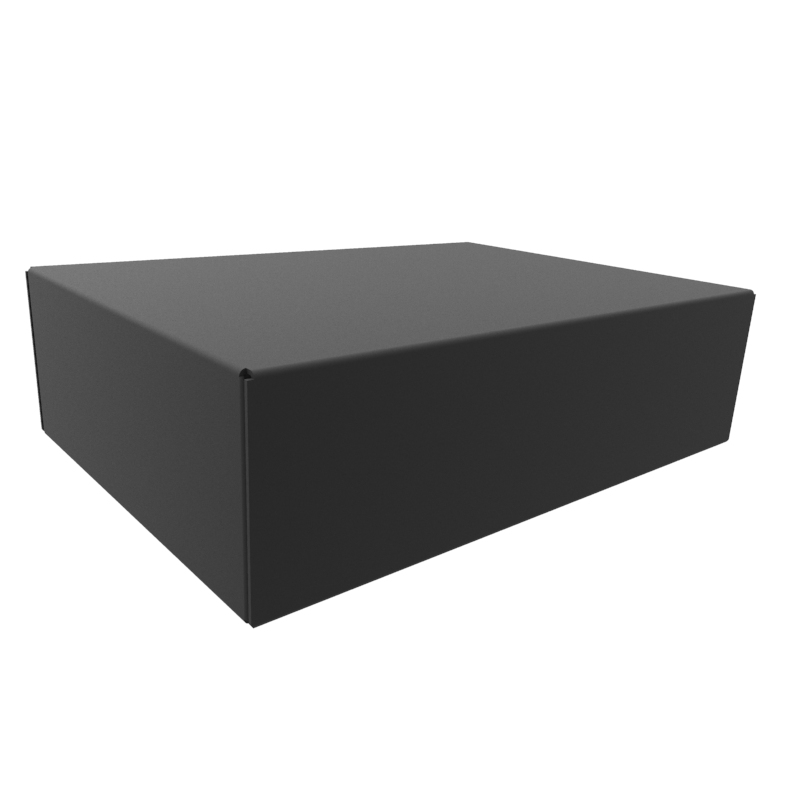

1441-12BK3

Steel Chassis 7X5X2

Type Chassis (Steel)
Material Steel
Color Black

$11.90In stock

Buy now

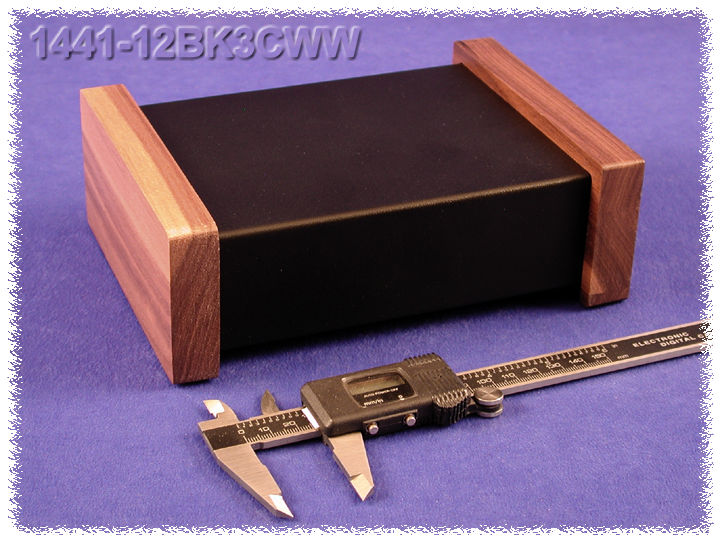

1441-12BK3CWW

Steel Chassis

Type Chassis (Steel/ Walnut)
Material Steel w/ Walnut Sides
Color Black

$75.83In stock

Buy now

1441-14

Steel Chassis 9X5X2

Type Chassis (Steel)
Material Steel
Color Gray

$14.43In stock

Buy now

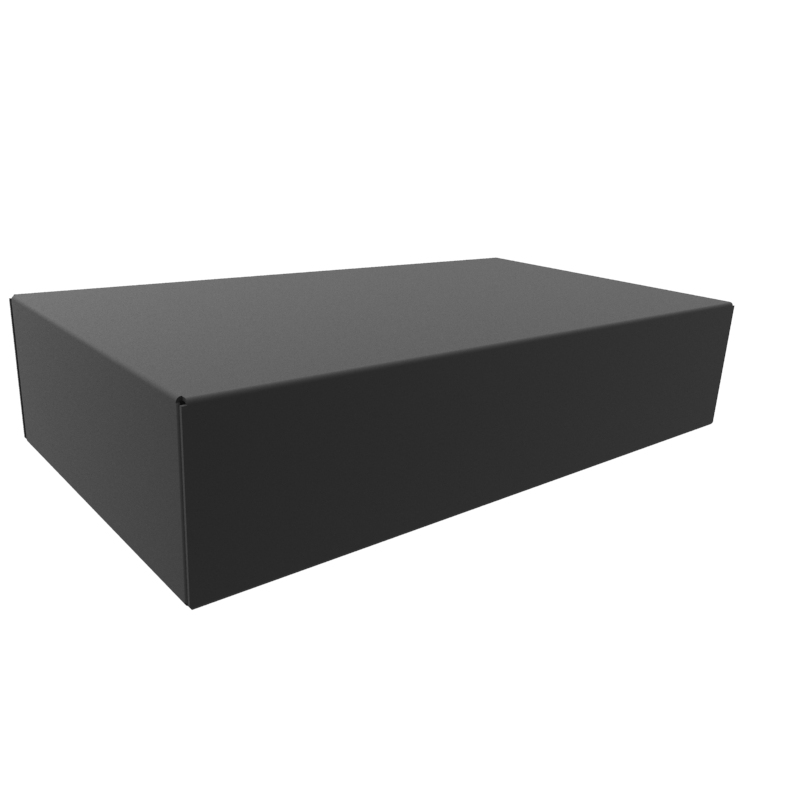

1441-14BK3

Steel Chassis 9X5X2

Type Chassis (Steel)
Material Steel
Color Black

$14.43In stock

Buy now

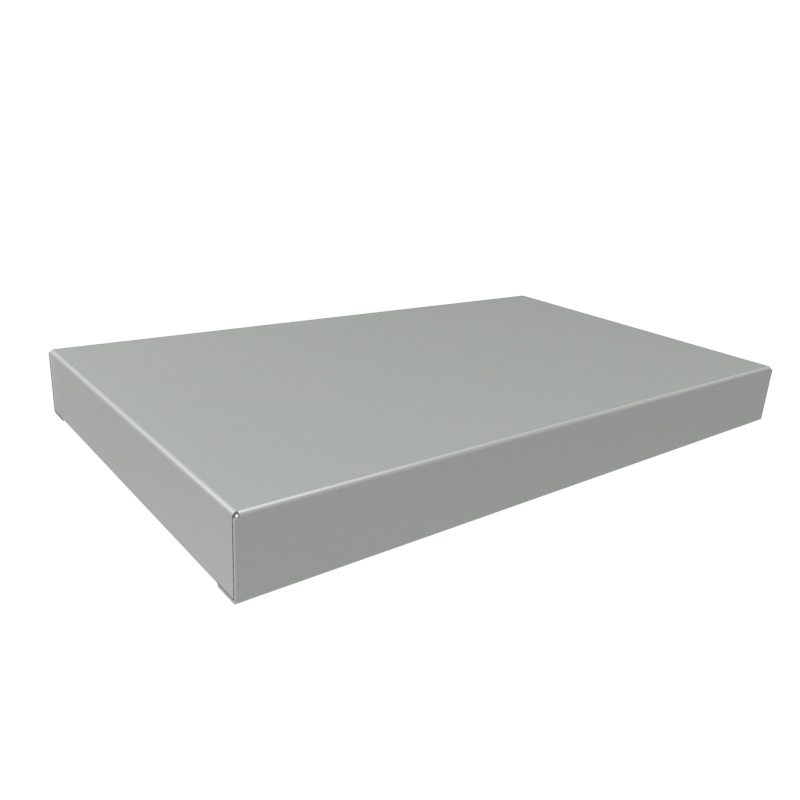

1441-15

Steel Chassis 10X6X1

Type Chassis (Steel)
Material Steel
Color Gray

$12.75In stock

Buy now

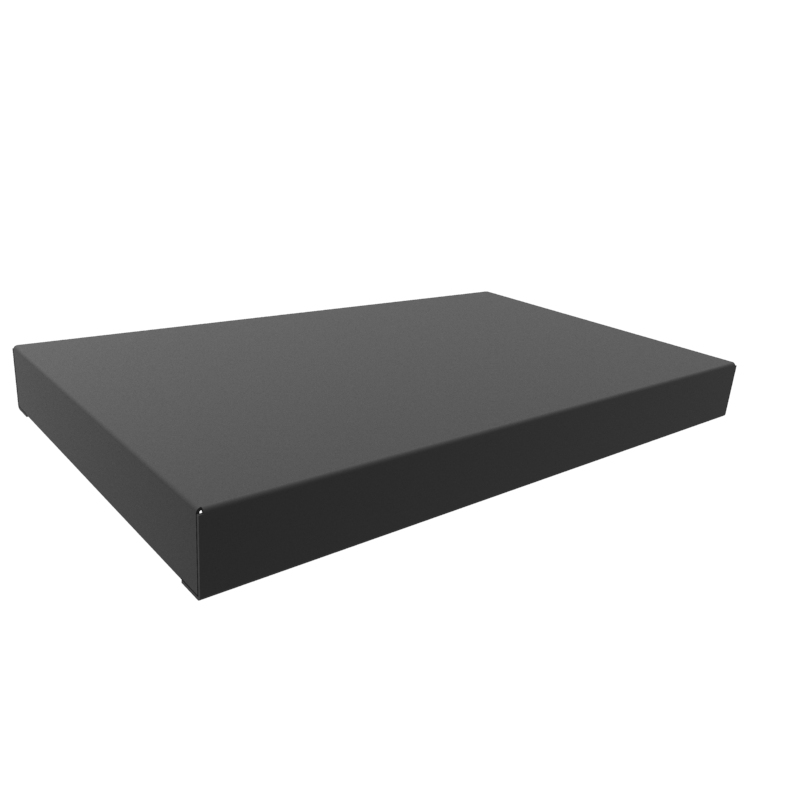

1441-15BK3

Steel Chassis 10X6X1

Type Chassis (Steel)
Material Steel
Color Black

$12.75In stock

Buy now

1441-16

Steel Chassis 10X6X2

Type Chassis (Steel)
Material Steel
Color Gray

$16.16In stock

Buy now

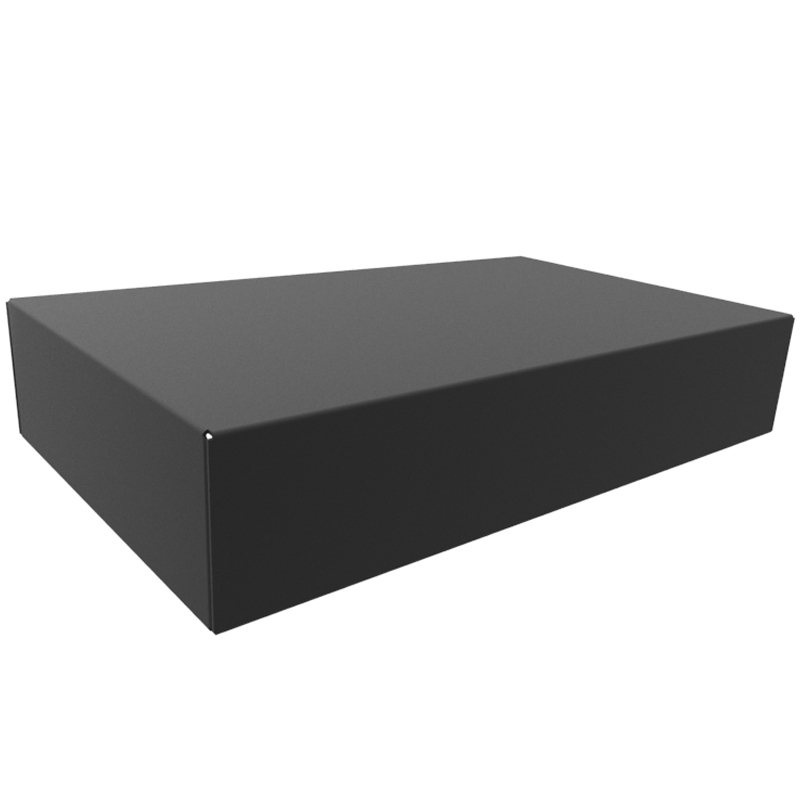

1441-16BK3

Steel Chassis 10X6X2

Type Chassis (Steel)
Material Steel
Color Black

$16.16In stock

Buy now

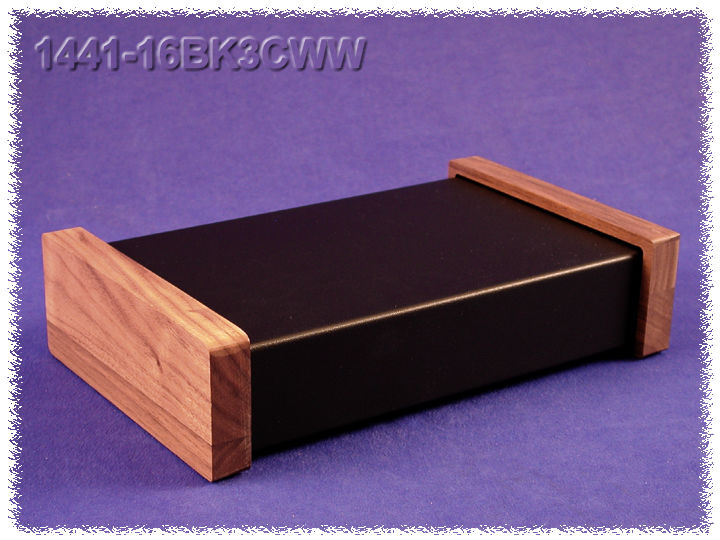

1441-16BK3CWW

Steel Chassis

Type Chassis (Steel/ Walnut)
Material Steel w/ Walnut Sides
Color Black

$78.87In stock

Buy now

1441-18

Steel Chassis 13.5X5X2

Type Chassis (Steel)
Material Steel
Color Gray

$17.01In stock

Buy now

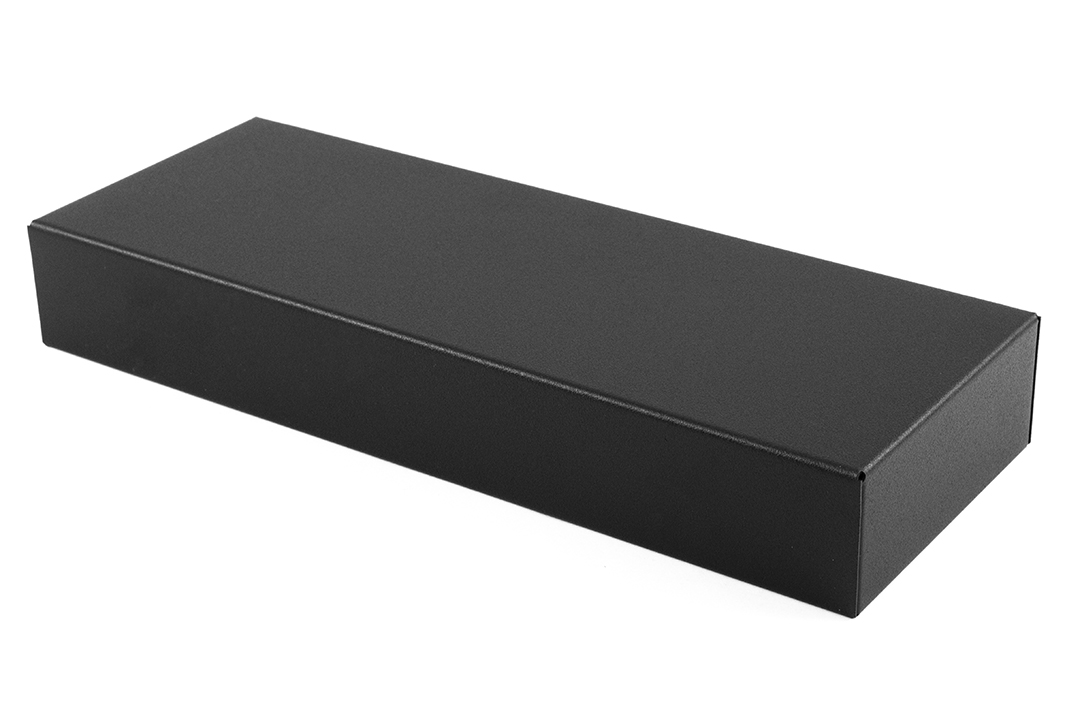

1441-18BK3

Steel Chassis 13.5X5X2

Type Chassis (Steel)
Material Steel
Color Black

$17.01In stock

Buy now

1441-20

Steel Chassis 17X4X3

Type Chassis (Steel)
Material Steel
Color Gray

$28.06In stock

Buy now

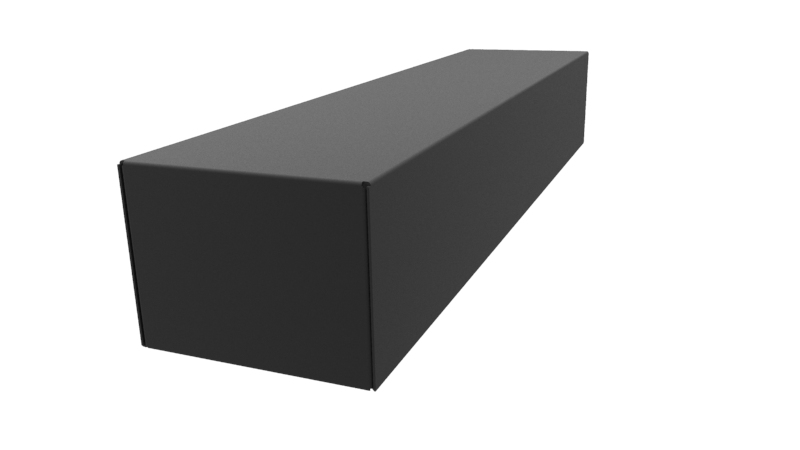

1441-20BK3

Steel Chassis 17X4X3

Type Chassis (Steel)
Material Steel
Color Black

$28.06In stock

Buy now

1441-22

Steel Chassis 12X8X2

Type Chassis (Steel)
Material Steel
Color Gray

$27.21In stock

Buy now

1441-22BK3

Steel Chassis 12X8X2

Type Chassis (Steel)
Material Steel
Color Black

$27.21In stock

Buy now

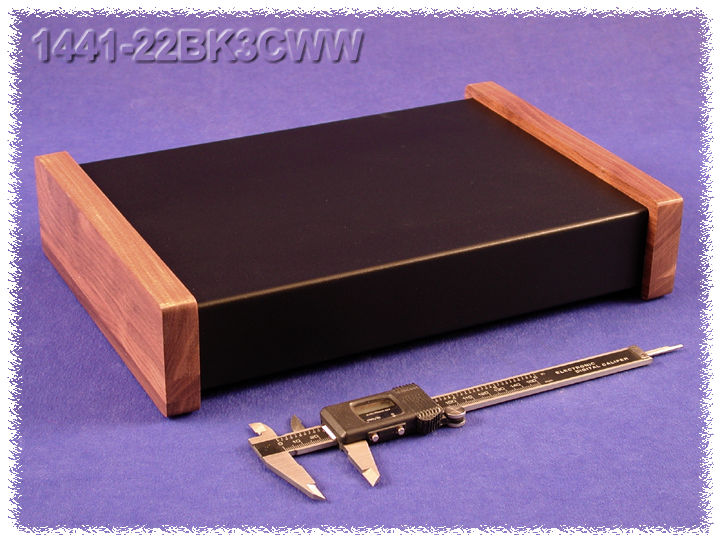

1441-22BK3CWW

Steel Chassis

Type Chassis (Steel/ Walnut)
Material Steel w/ Walnut Sides
Color Black

$89.73In stock

Buy now

1441-24

Steel Chassis 12X8X3

Type Chassis (Steel)
Material Steel
Color Gray

$27.21In stock

Buy now

Dimension tables (inches / mm)

Chassis

Units shown: inch . Switch units to: mm

Gray Chassis (Part No.)	Satin Black Chassis (Part No.)	Satin Black Chassis · w/ Walnut Sides (Part No.)	Steel Gauge	Width	Depth	Height	Gray · Bottom Panel (Part No.)	Satin Black · Bottom Panel (Part No.)	Gray Perforated · Chassis Cover (Part No.)	Satin Black · Perforated Chassis Cover (Part No.)	Price	Order
1441-6	1441-6BK3		20	4.00	4.00	2.00	1431-6	1431-6BK3			$11.06In stock1441-6	Buy now
1441-8	1441-8BK3		20	6.00	4.00	2.00	1431-8	1431-8BK3			$11.06In stock1441-8	Buy now
1441-12	1441-12BK3	1441-12BK3CWW	20	7.00	5.00	2.00	1431-12	1431-12BK3			$11.90In stock1441-12	Buy now
1441-9	1441-9BK3		20	8.00	4.00	1.00	1431-10	1431-10BK3	1451-10	1451-10BK3	$11.90In stock1441-9	Buy now
1441-10	1441-10BK3		20	8.00	4.00	2.00	1431-10	1431-10BK3	1451-10	1451-10BK3	$11.90In stock1441-10	Buy now
1441-14	1441-14BK3		20	9.00	5.00	2.00	1431-14	1431-14BK3	1451-14	1451-14BK3	$14.43In stock1441-14	Buy now
1441-15	1441-15BK3		20	10.00	6.00	1.00	1431-16	1431-16BK3	1451-16	1451-16BK3	$12.75In stock1441-15	Buy now
1441-16	1441-16BK3	1441-16BK3CWW	20	10.00	6.00	2.00	1431-16	1431-16BK3	1451-16	1451-16BK3	$16.16In stock1441-16	Buy now
1441-22	1441-22BK3	1441-22BK3CWW	20	12.00	8.00	2.00	1431-22	1431-22BK3	1451-22	1451-22BK3	$27.21In stock1441-22	Buy now
1441-24	1441-24BK3	1441-24BK3CWW	20	12.00	8.00	3.00	1431-22	1431-22BK3	1451-22	1451-22BK3	$27.21In stock1441-24	Buy now
1441-29	1441-29BK3		20	12.00	10.00	2.00	1431-29	1431-29BK3	1451-29	1451-29BK3	$27.21In stock1441-29	Buy now
1441-18	1441-18BK3		20	13.50	5.00	2.00	1431-18	1431-18BK3			$17.01In stock1441-18	Buy now
1441-26	1441-26BK3		20	16.00	8.00	2.00	1431-26	1431-26BK3	1451-26	1451-26BK3	$28.06In stock1441-26	Buy now
1441-28	1441-28BK3		20	16.00	8.00	3.00	1431-26	1431-26BK3	1451-26	1451-26BK3	$33.15In stock1441-28	Buy now
1441-20	1441-20BK3		20	17.00	4.00	3.00	1431-20	1431-20BK3			$28.06In stock1441-20	Buy now
1441-30	1441-30BK3		20	17.00	10.00	2.00	1431-30	1431-30BK3	1451-30	1451-30BK3	$31.90In stock1441-30	Buy now
1441-32	1441-32BK3	1441-32BK3CWW	20	17.00	10.00	3.00	1431-30	1431-30BK3	1451-30	1451-30BK3	$37.41In stock1441-32	Buy now
1441-33	1441-33BK3	1441-33BK3CWW	20	17.00	10.00	4.00	1431-30	1431-30BK3	1451-30	1451-30BK3	$52.73In stock1441-33	Buy now
1441-34	1441-34BK3		18	17.00	12.00	2.00	1431-34	1431-34BK3			$37.41In stock1441-34	Buy now
1441-36	1441-36BK3		18	17.00	12.00	3.00	1431-34	1431-34BK3			$49.34In stock1441-36	Buy now
1441-38	1441-38BK3		18	17.00	14.00	3.00	1431-38	1431-38BK3			$54.43In stock1441-38	Buy now
1441-40	1441-40BK3		18	17.00	14.00	4.00	1431-38	1431-38BK3			$59.52In stock1441-40	Buy now
1441-42	1441-42BK3		18	17.00	14.00	5.00	1431-38	1431-38BK3			$63.77In stock1441-42	Buy now

Hardware

Gray Chassis (Part No.)	Qty	Description	Note	Price	Order
1421J6	6	6-32 x 1/4" pan head, type C. screws	Use for attaching bottom plate to chassis	$3.89In stock	Buy now

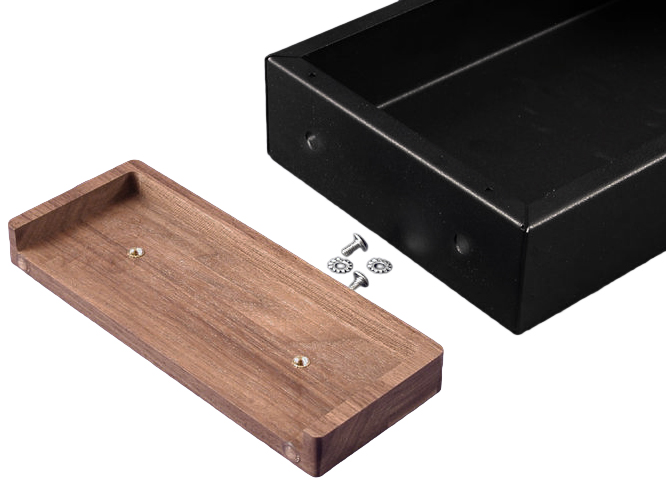

SC1440KT	25	#8 x 5/16" truss head screws and #8 serrated zinc plated lock washer	Use for attaching 1441 walnut sides (where applicable)	Quote	Quote

Key Features:

■Spot welded steel - heavy duty construction chassis.
■Finished in ASA 61 smooth grey or satin black powder paint.
■Optional bottom plates are punched with 4 holes – 3/16” diameter (Chassis now includes 1/8” holes to allow installation of optional bottom plates).
■Hardware not provided, please order separately - Part number 1421J6 (Pkg. of 6x #6-32 Philips head screws).
■Rubber feet sold separately.
■Some models accept chassis covers (1451 series).

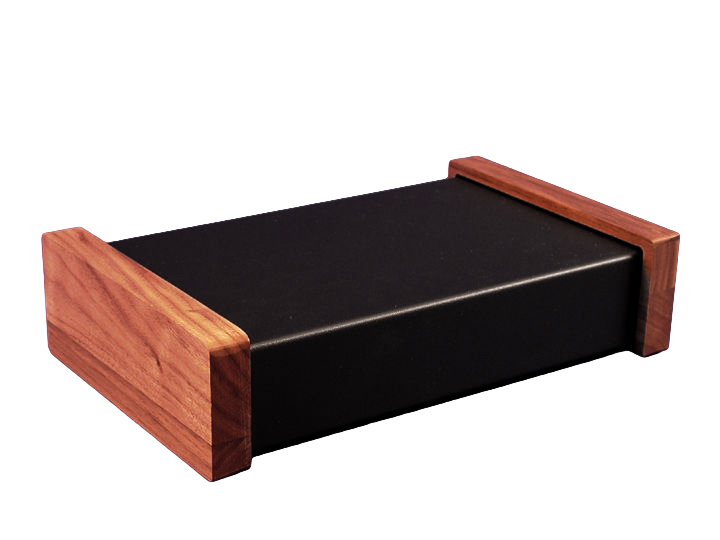

■UPGRADE to our Satin Black Chassis with Walnut Sides (available for some sizes, refer to table below).
