Hammond 1451-22 12x8 in Gray Perforated Steel Chassis Cover
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Perforated cover for 12 x 8 in 1441 chassis (1441-22 and 1441-24)
- Size 12 x 8 x 5.2 in (305 x 203 x 132 mm)
- 20 gauge welded steel, 0.91 mm [0.036 in] material thickness
- ASA 61 grey finish
- Four #6-32 x 1/4 in self tap screws supplied
- Also listed for 1441-22BK3CWW and 1441-24BK3CWW walnut-side chassis
- RoHS and REACH compliant; 2.68 lbs (1.22 kg) shipping weight
The 1451-22 is a perforated steel chassis cover in ASA 61 grey for the 12 x 8 in footprint of the 1441 Series. The ordering table lists it for the 2 in tall 1441-22 and the 3 in tall 1441-24, in grey and satin black BK3 versions, and for the walnut-side 1441-22BK3CWW and 1441-24BK3CWW.
The part record gives the cover's size as 12 in x 8 in x 5.2 in (305 x 203 x 132 mm). Drawing dimensions show a 307.01 mm [12.087 in] top length, a 305.18 mm [12.015 in] bottom length, a 203.20 mm [8.000 in] width and a 132.59 mm [5.220 in] height. It is formed from 20 gauge welded steel with a perforated steel cover, 0.91 mm [0.036 in] typical thickness.
The cover attaches with the four #6-32 x 1/4 in self tap screws supplied, using four 4.76 mm [0.188 in] diameter holes shown on the drawing. For the base of the same chassis, the ordering table lists the 1431-22 gray and 1431-22BK3 satin black bottom panels.
Factory modification (milling, drilling, printing) is available, and STEP or IGES solid models can be supplied for design work. The 1451-22 is RoHS and REACH compliant, ships in a box and has a shipping weight of 2.68 lbs (1.22 kg). Choose 1451-22BK3 for satin black.
Ideal For
- Ventilated top cover for 1441-22 and 1441-24 chassis
- Enclosing tube and vintage-style chassis builds
- Completing a 12 x 8 in chassis with a 1431-22 bottom panel
Overview
| Description | perforated steel chassis cover; ASA 61 grey |
| Product Type | Vented Cover |
| Short Description | VENT CHASSIS COVER 12X8X5.2 |
| Compatible Chassis | 1441-22, 1441-22BK3, 1441-22BK3CWW, 1441-24, 1441-24BK3, 1441-24BK3CWW |
Dimensions
| Mounting Holes | 4 x 4.76 mm [0.188 in] diameter |
| Width (Drawing) | 203.20 mm [8.000 in] |
| Height (Drawing) | 132.59 mm [5.220 in] |
| Size (L X W X H) | 12 in x 8 in x 5.2 in (305 mm x 203 mm x 132 mm) |
| Bottom Length (Drawing) | 305.18 mm [12.015 in] |
| Overall Top Length (Drawing) | 307.01 mm [12.087 in] |
Accessories
| Related Finish | 1451-22BK3 satin black |
| Matching Bottom Panels | 1431-22 gray, 1431-22BK3 satin black |
Identifiers
| UPC | 623980503004 |
| UNSPSC | 39121301 |
| Part Number | 1451-22 |
Mounting & Hardware
| Screws Supplied | 4 (#6-32 x 1/4 in self tap) |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 2.68 lbs (1.22 kg) |
Construction & Finish
| Color | Gray |
| Cover | Perforated steel |
| Finish | ASA 61 grey |
| Material | Steel; 20 ga. welded steel |
| CAD Models | Solid models available in STEP or IGES format |
| Material Thickness | 0.91 mm [0.036 in] |
| Custom Modification | Can be factory modified (milling, drilling, printing) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which chassis does the 1451-22 fit?▾
The 12 x 8 in 1441 chassis: 1441-22 and 1441-24 in grey or BK3 satin black, plus the 1441-22BK3CWW and 1441-24BK3CWW walnut-side versions.
Are mounting screws supplied?▾
Yes, four #6-32 x 1/4 in self tap screws.
What are the dimensions?▾
12 x 8 x 5.2 in (305 x 203 x 132 mm); the drawing lists 307.01 mm [12.087 in] top length and 132.59 mm [5.220 in] height.
What bottom panel goes with it?▾
The ordering table lists the 1431-22 gray or 1431-22BK3 satin black bottom panel for the same chassis.
Related Products
Save 52%1451-16BK3 — perforated steel chassis cover: satin black
Hammond Manufacturing · 1451-16BK3
Save 52%1451-22BK3 — perforated steel chassis cover: satin black
Hammond Manufacturing · 1451-22BK3

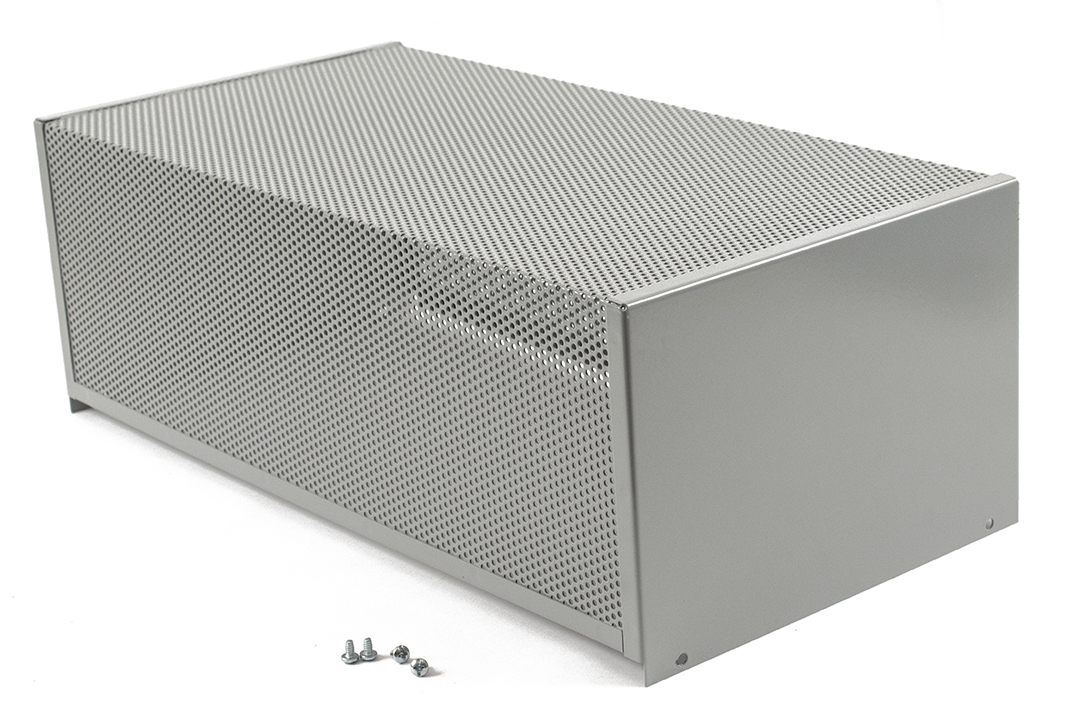

Save 52%1451-16 — perforated steel chassis cover; ASA 61 grey
