Hwchas Panel
- Type Cover Panel
- Color Natural Aluminum
$9.68Backorder
Buy now

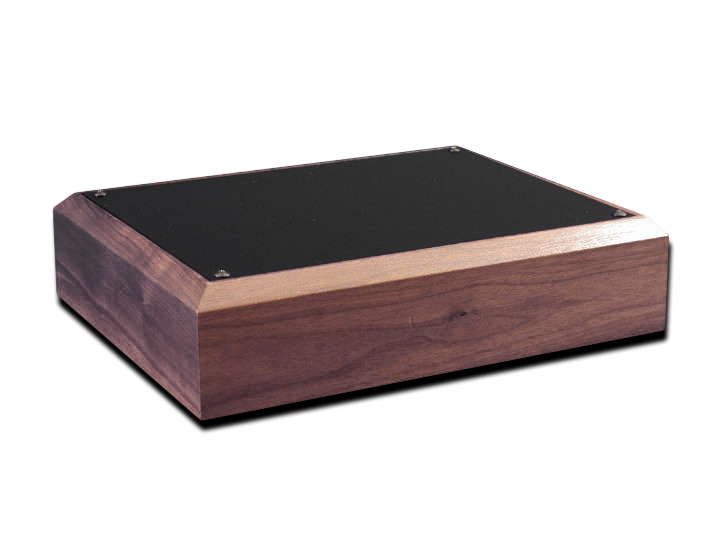

Real Walnut Chassis w/ Aluminum Top · HWCHAS Series
Brand: Hammond Manufacturing · 10 part numbers
- ■Heavy duty construction walnut chassis (see corner detail photo below).
- ■Top panel available in a choice of natural aluminum or satin black powder paint finish.

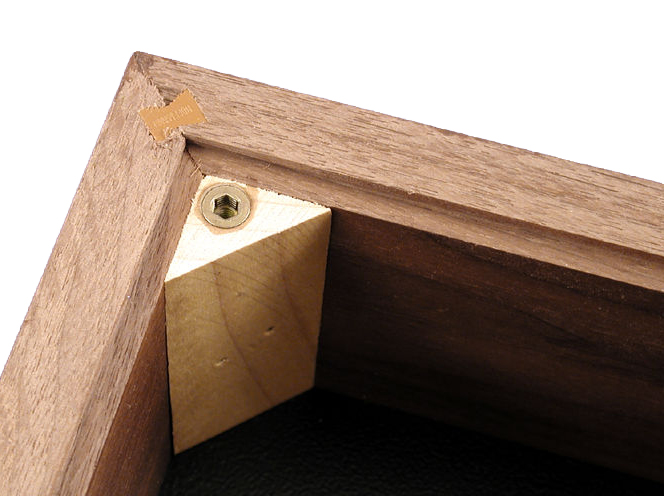

- ■Walnut chassis is 0.778 inches thick (19.8 mm) - corners are produced with wood bracing & dovetail construction methods (see close-up photos below). Designed to handle heavy components.

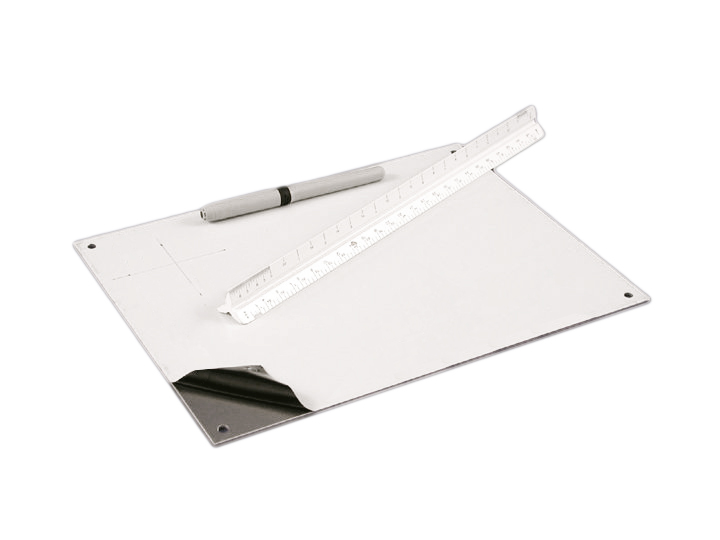

- ■Top panel is aluminum for easy modification and thick enough to support heavy transformers without bowing - 0.08” (2 mm) thick. Fully “framed” support from walnut chassis.

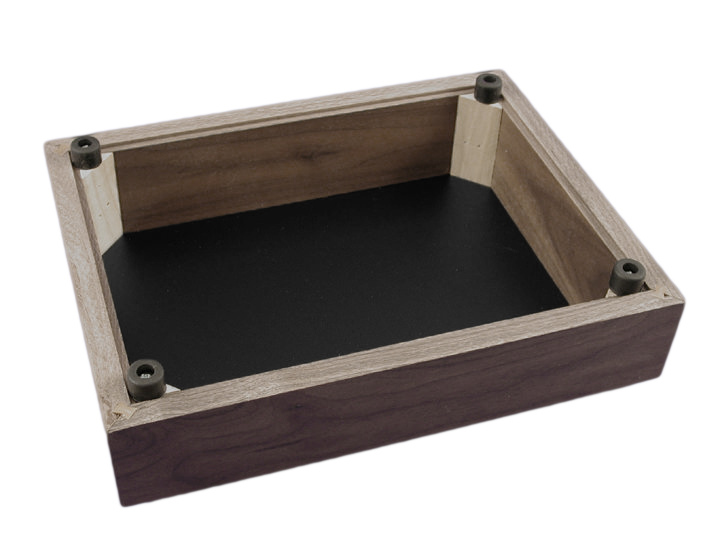

- ■Includes four large round rubber feet (0.75” dia. x 0.56” high) with mounting hardware into inserts to avoid wood damage. Hardware is of proper length to allow use of optional bottom plate.
- ■25-packs of replacement screws are available. Part number SC1441-25 (silver) and SC1441BK-25 (black)
from $8.13
7 of 10 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HWCHAS Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 6 priced online
Hwchas Panel
- Type Cover Panel
- Color Black
$15.74Backorder
Buy now
Hwchas Panel
- Type Cover Panel
- Color Natural Aluminum
$12.44In stock
Buy now
Hwchas Panel
- Type Cover Panel
- Color Black
$18.76In stock
Buy now
Hw Chassis 13 X 10 AL Top
- Type Chassis (Walnut)
- Color Natural Aluminum
QuoteRequest a quote
Hw Chassis 13 X 10 BK Top
- Type Chassis (Walnut)
- Color Black
$205.70In stock
Buy now
Hw Chassis 17 X 10 AL Top
- Type Chassis (Walnut)
- Color Natural Aluminum
$217.80In stock
Buy now
Hw Chassis 17 X 10 BK Top
- Type Chassis (Walnut)
- Color Black
QuoteRequest a quote
Dimension tables (inches / mm)
Chassis
Units shown: inch . Switch units to: mm

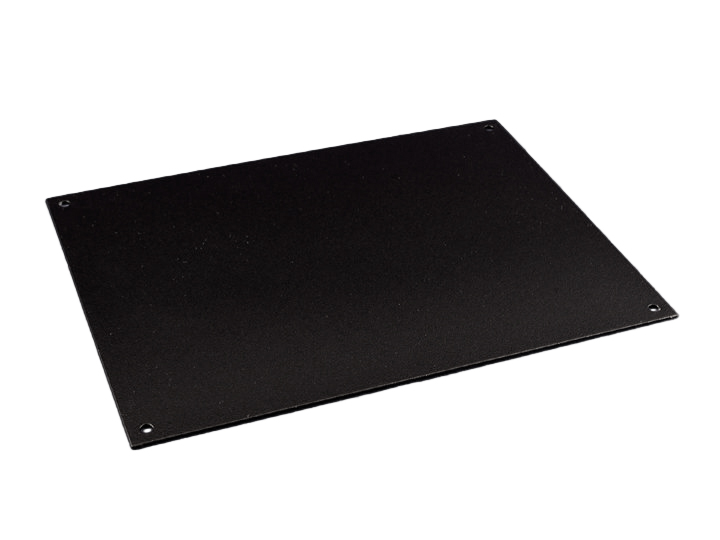

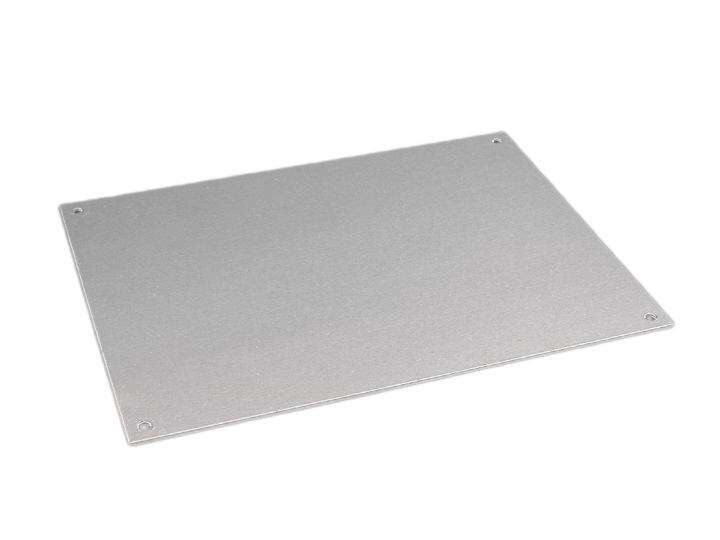

| Chassis w/ Black Top Panel (Part No.) | Chassis w/ Aluminum Top Panel (Part No.) | Width | Depth | Height | Black Bottom Panel (Part No.) | Aluminum Bottom Panel (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|

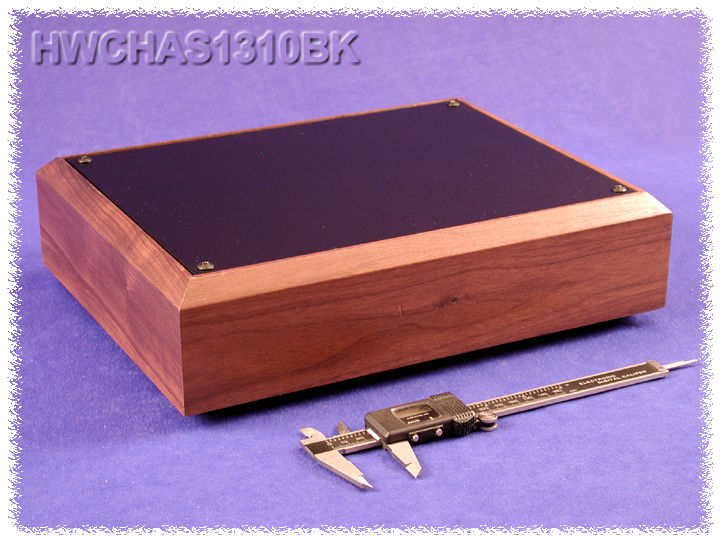

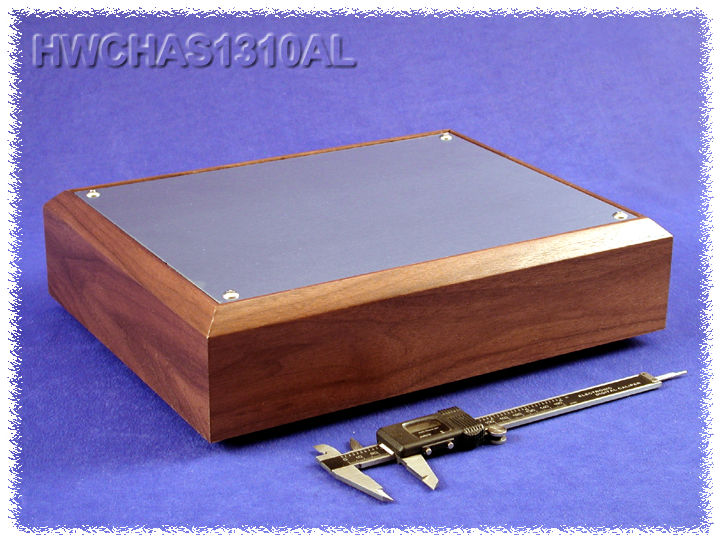

| HWCHAS1310BK | HWCHAS1310AL | 13.00 | 10.00 | 3.00 | HW1310BKPL | HW1310ALPL | $205.70In stockHWCHAS1310BK | Buy now |

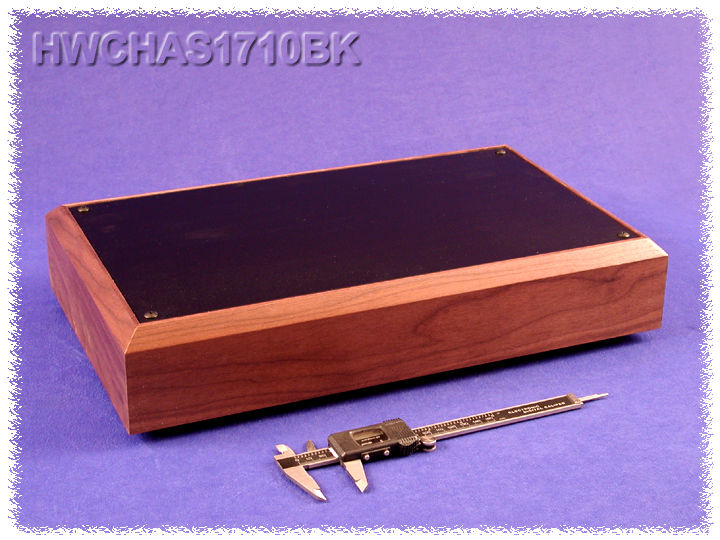

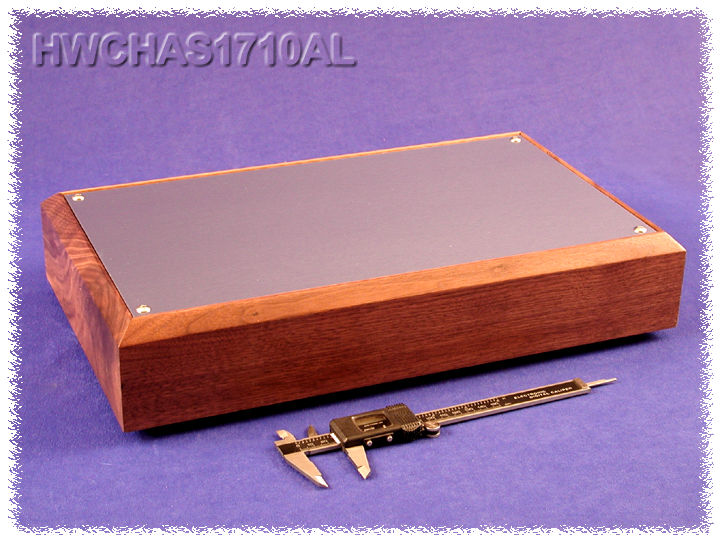

| HWCHAS1710BK | HWCHAS1710AL | 17.00 | 10.00 | 3.00 | HW1710BKPL | HW1710ALPL | $217.80In stockHWCHAS1710AL | Buy now |
25-Pack of Replacement Screws (silver)
| col1 | col2 | Price | Order |
|---|---|---|---|
| Part No. | SC1441-25 | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
25-Pack of Replacement Screws (black)
| col1 | col2 | Price | Order |
|---|---|---|---|
| Part No. | SC1441BK-25 | $8.13In stock | Buy now |
Key Features:
- ■Heavy duty construction walnut chassis (see corner detail photo below).
- ■Top panel available in a choice of natural aluminum or satin black powder paint finish.
- ■Walnut chassis is 0.778 inches thick (19.8 mm) - corners are produced with wood bracing & dovetail construction methods (see close-up photos below). Designed to handle heavy components.
- ■Top panel is aluminum for easy modification and thick enough to support heavy transformers without bowing - 0.08” (2 mm) thick. Fully “framed” support from walnut chassis.
- ■Includes four large round rubber feet (0.75” dia. x 0.56” high) with mounting hardware into inserts to avoid wood damage. Hardware is of proper length to allow use of optional bottom plate.
- ■25-packs of replacement screws are available. Part number SC1441-25 (silver) and SC1441BK-25 (black)
Photo Features:
