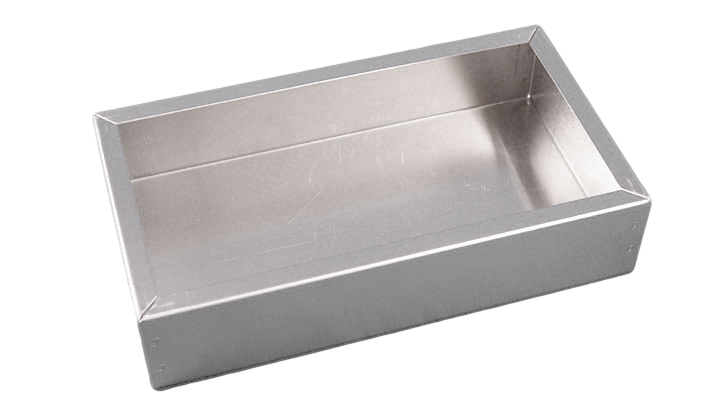

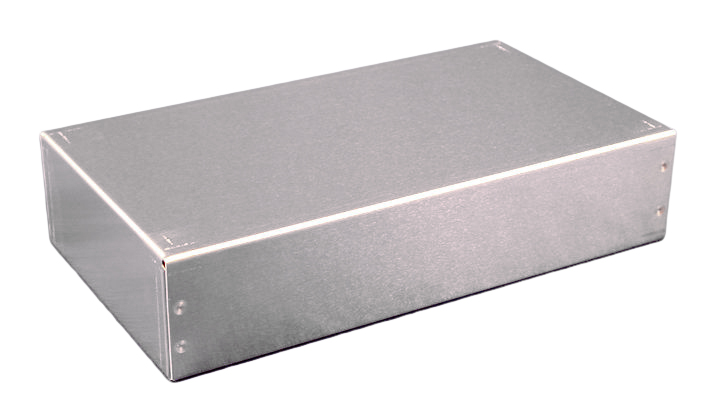

Aluminum Chassis 1444 Series

Aluminum Chassis · 1444 Series

Brand: Hammond Manufacturing · 99 part numbers

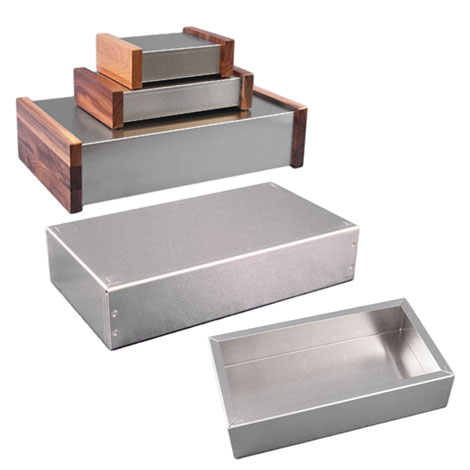

Aluminum Body, Walnut Side Option

  • ■Spot welded - heavy duty construction chassis.
  • ■Natural aluminum finish (as shown above) - also available in painted steel with walnut side panels).
  • ■Side panels are made from solid walnut and routed out to fit over ends of chassis (pre-punched for easy mounting).
  • ■Walnut side panels attach with four machine screws & lockwashers (included) into metal inserts to avoid wood damage. Screws should not be torqued past 4.43 lbf.in ( 50 cN.m).
  • ■Usable surface of chassis front, back and top are reduced by roughly 7/8” (22 mm) due to inset in walnut sides.
  • ■Optional bottom plates are punched with 4 holes – 3/16” diameter.

from $3.83

99 of 99 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your 1444 Series part number

Filter 99 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

99 of 99 part numbers · 99 priced online

1434-10

Aluminum Chassis Cover 8X4

  • Type Bottom Plate
  • Material Aluminum
$4.83In stock
Buy now

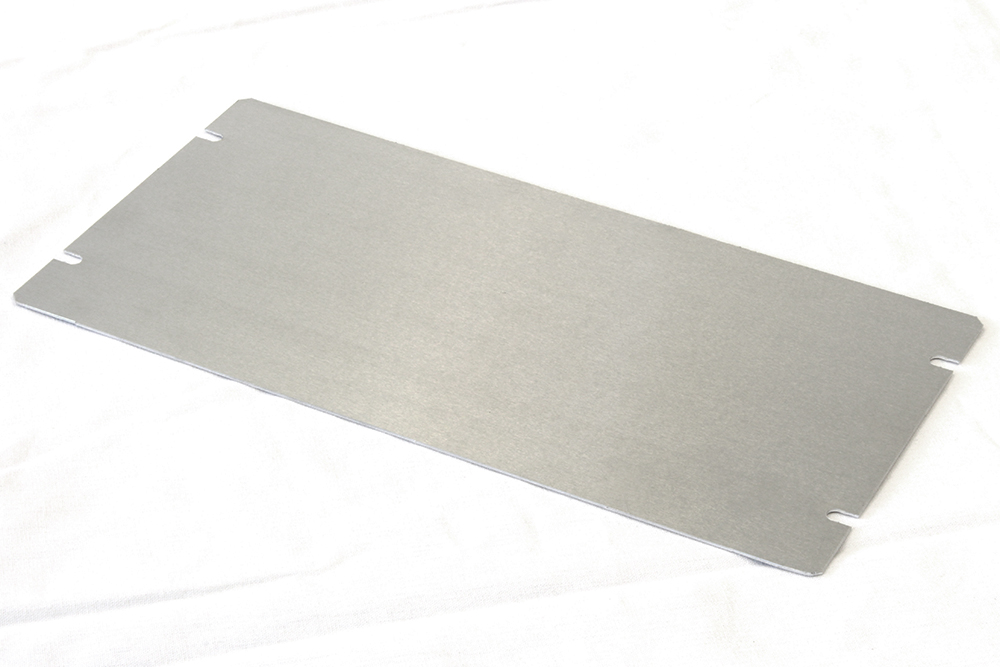

1434-105

Aluminum Chassis Cover 10x5

  • Type Bottom Plate
  • Material Aluminum
$4.24In stock
Buy now

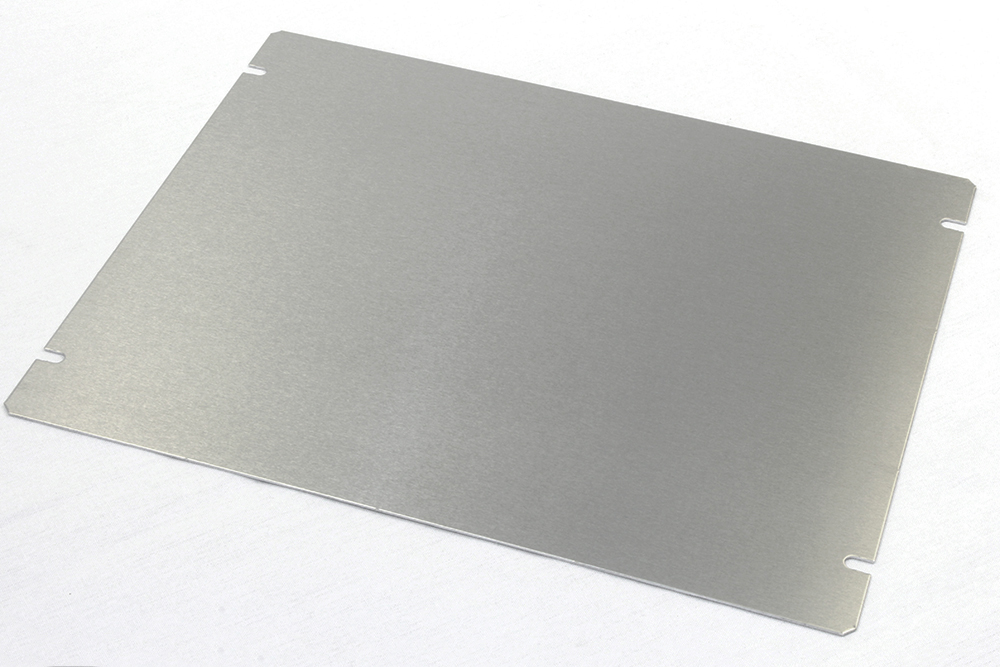

1434-108

Aluminum Chassis Cover 10x8

  • Type Bottom Plate
  • Material Aluminum
$7.66In stock
Buy now

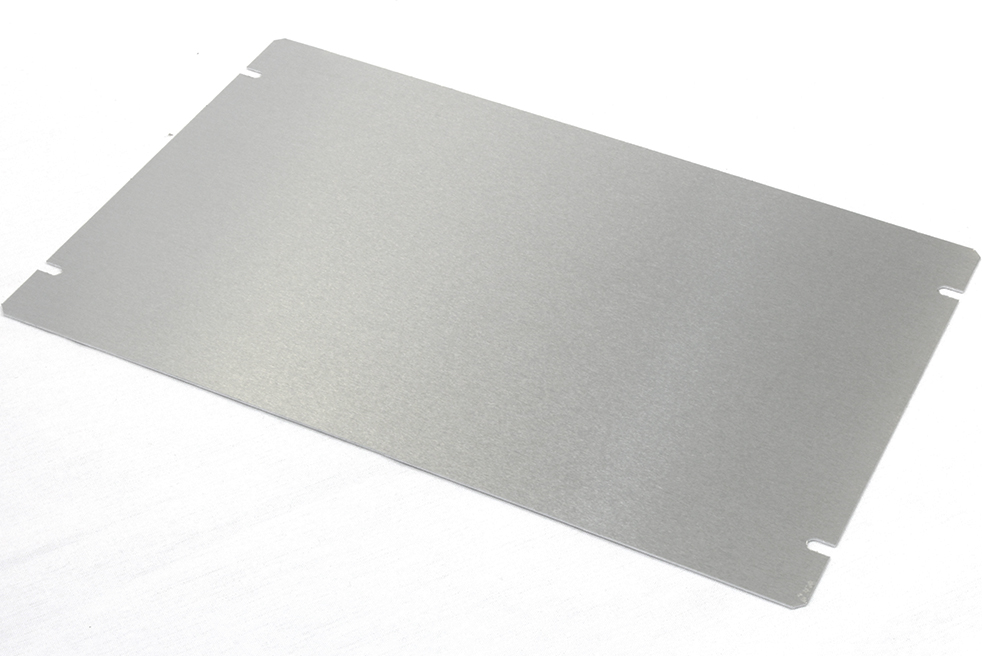

1434-117

Aluminum Chassis Cover 11x7

  • Type Bottom Plate
  • Material Aluminum
$5.95In stock
Buy now

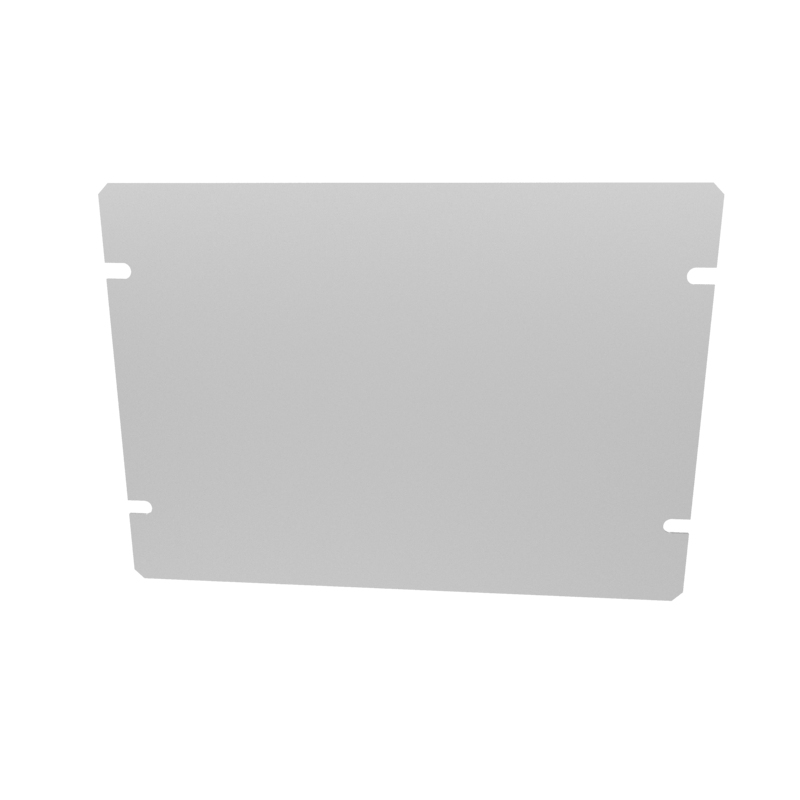

1434-12

Aluminum Chassis Cover 7 X 5

  • Type Bottom Plate
  • Material Aluminum
$4.24In stock
Buy now

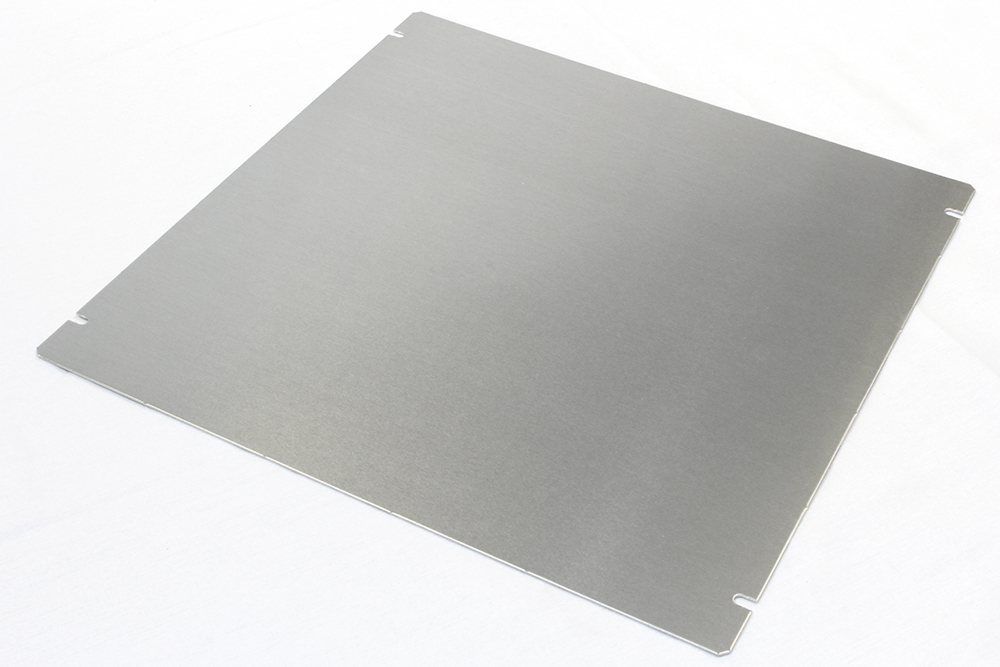

1434-1212

Aluminum Chassis Cover 12x12

  • Type Bottom Plate
  • Material Aluminum
$10.20In stock
Buy now

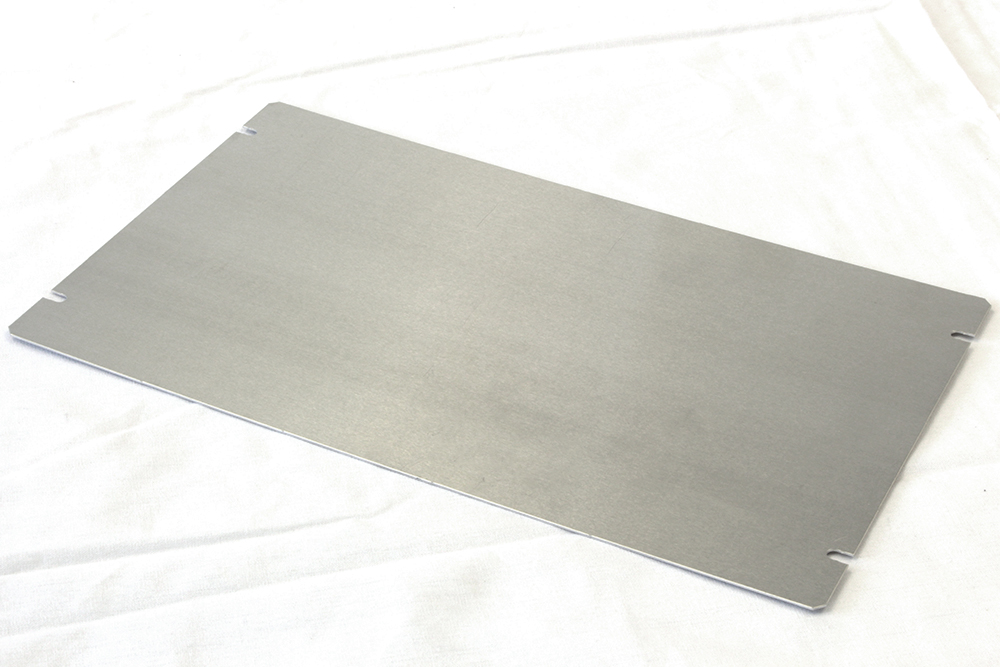

1434-127

Aluminum Chassis Cover 12x7

  • Type Bottom Plate
  • Material Aluminum
$6.38In stock
Buy now

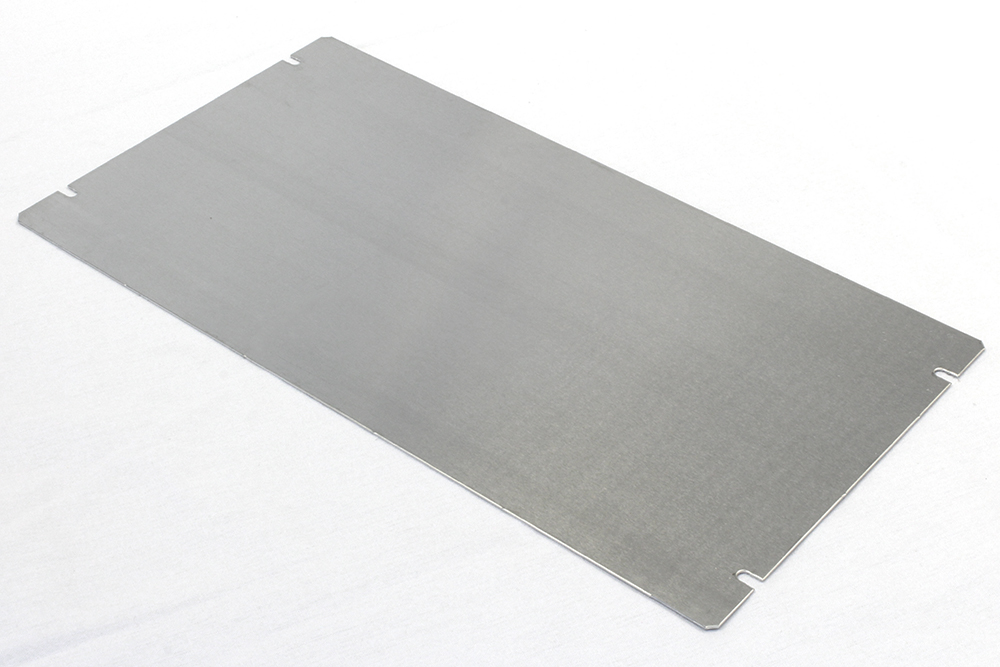

1434-137

Aluminum Chassis Cover 13x7

  • Type Bottom Plate
  • Material Aluminum
$7.66In stock
Buy now

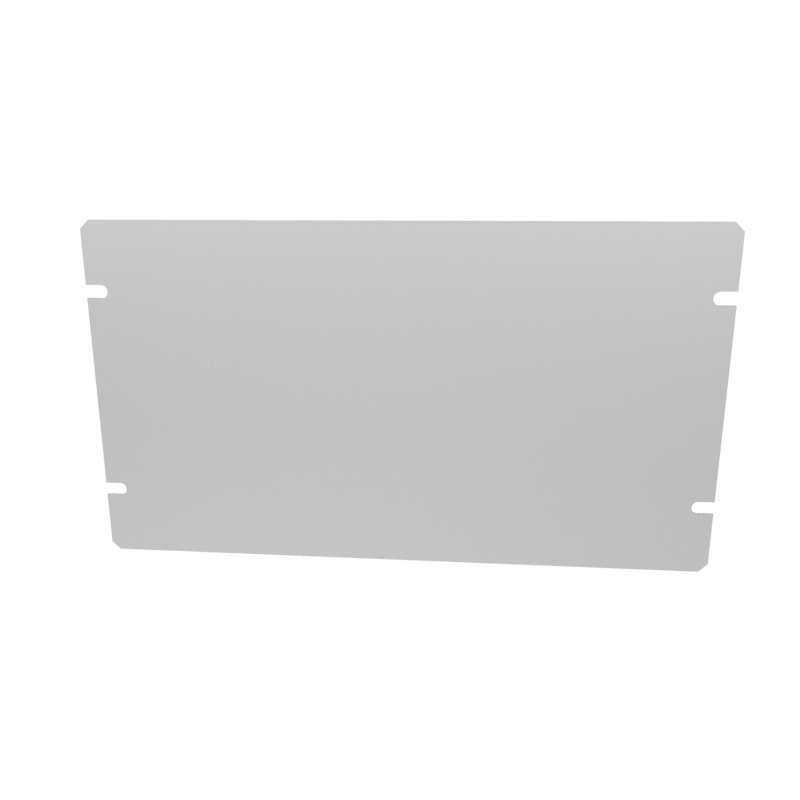

1434-14

Aluminum Chassis Cover 9 X 5

  • Type Bottom Plate
  • Material Aluminum
$5.09In stock
Buy now

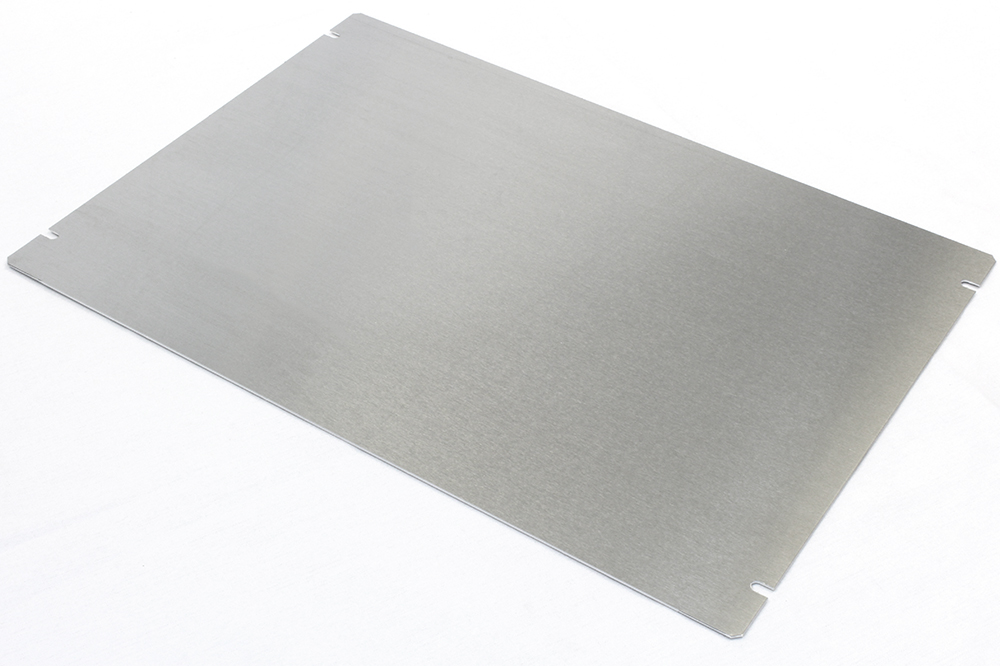

1434-1410

Aluminum Chassis Cover 14x10

  • Type Bottom Plate
  • Material Aluminum
$9.78In stock
Buy now

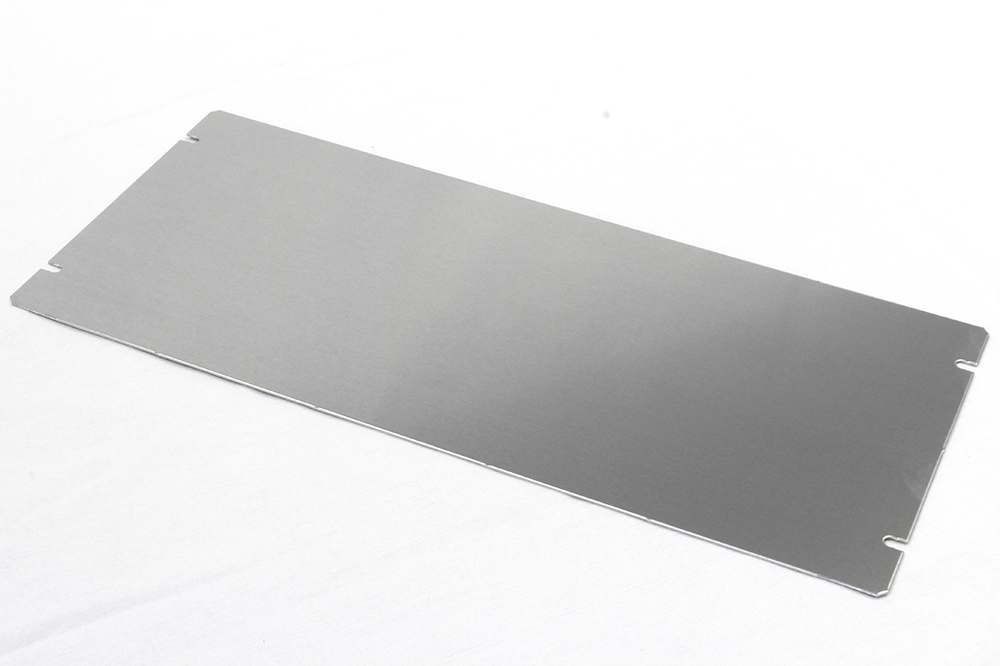

1434-146

Aluminum Chassis Cover 14x6

  • Type Bottom Plate
  • Material Aluminum
$7.66In stock
Buy now

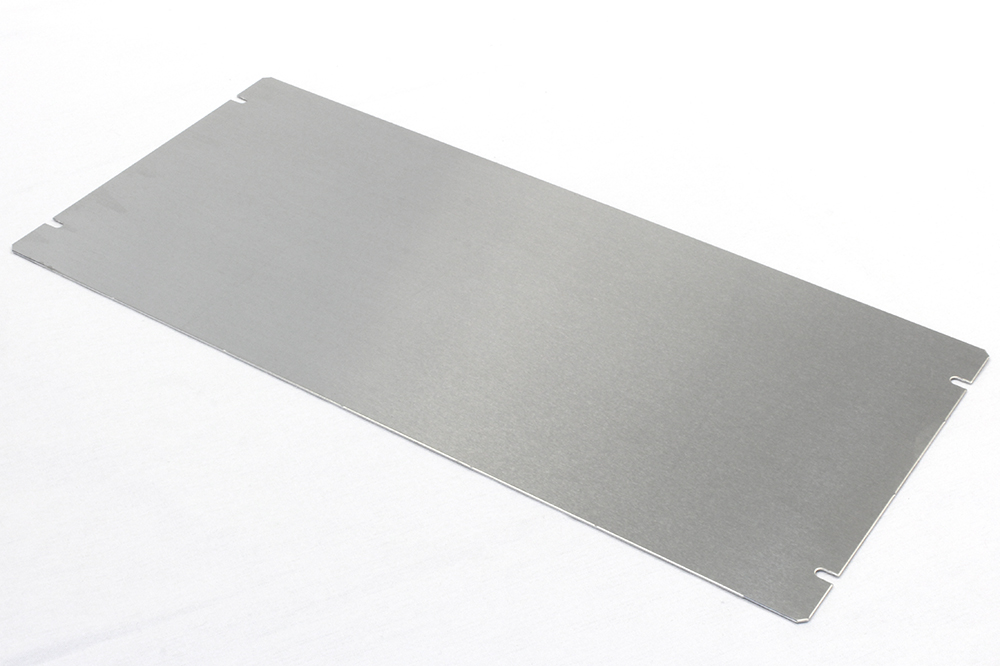

1434-157

Aluminum Chassis Cover 15x7

  • Type Bottom Plate
  • Material Aluminum
$8.07In stock
Buy now

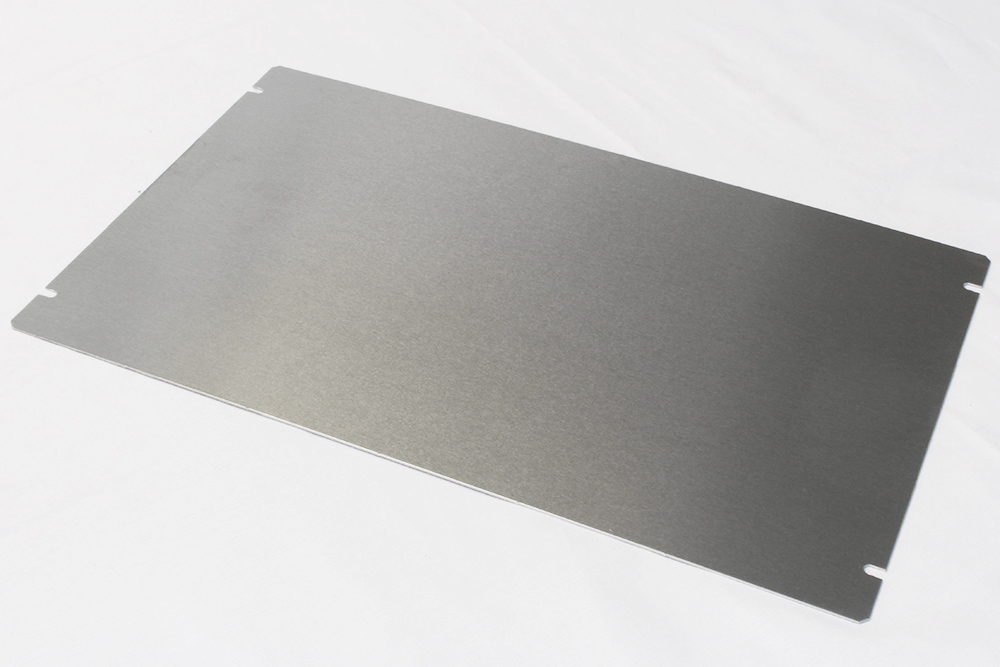

1434-159

Aluminum Chassis Cover 15x9

  • Type Bottom Plate
  • Material Aluminum
$12.32In stock
Buy now
1434-16

Aluminum Chassis Cover 10 X 6

  • Type Bottom Plate
  • Material Aluminum
$7.33In stock
Buy now

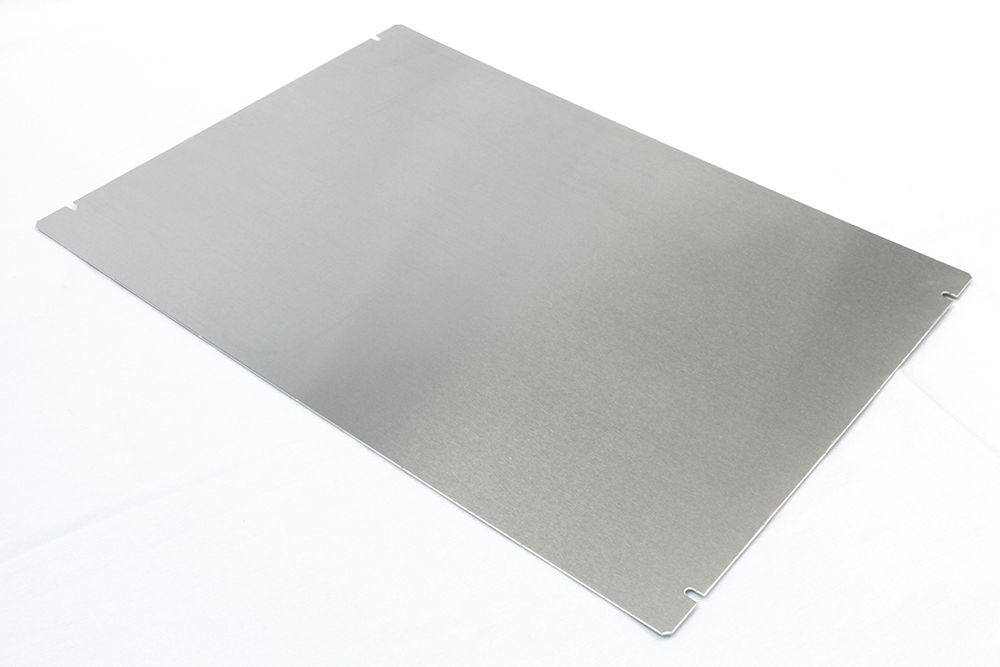

1434-1712

Aluminum Chassis Cover 17x12

  • Type Bottom Plate
  • Material Aluminum
$13.59In stock
Buy now

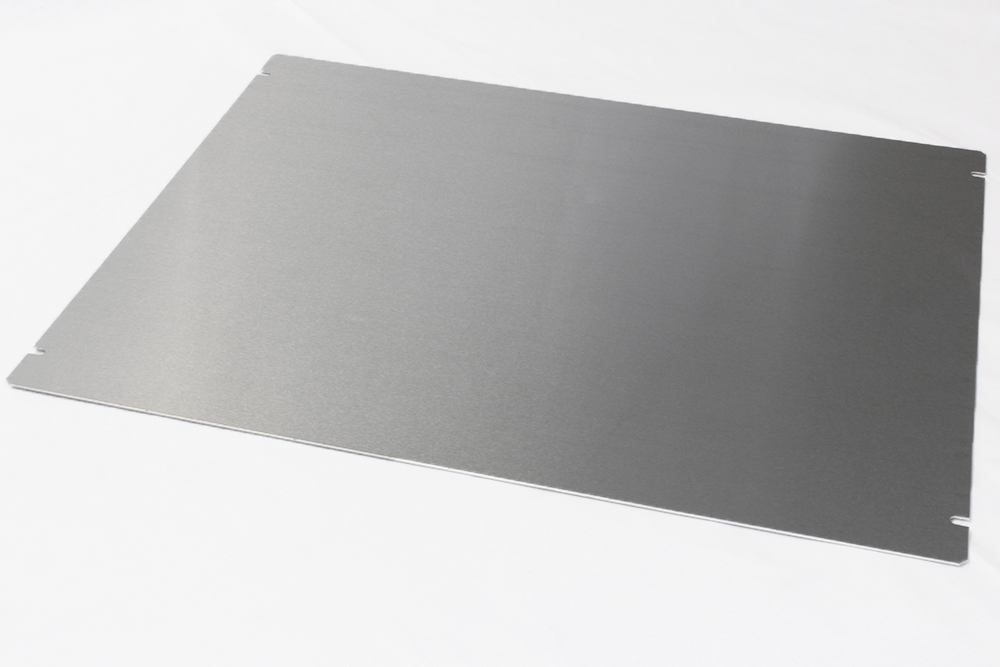

1434-1713

Aluminum Chassis Cover 17x13

  • Type Bottom Plate
  • Material Aluminum
$14.03In stock
Buy now

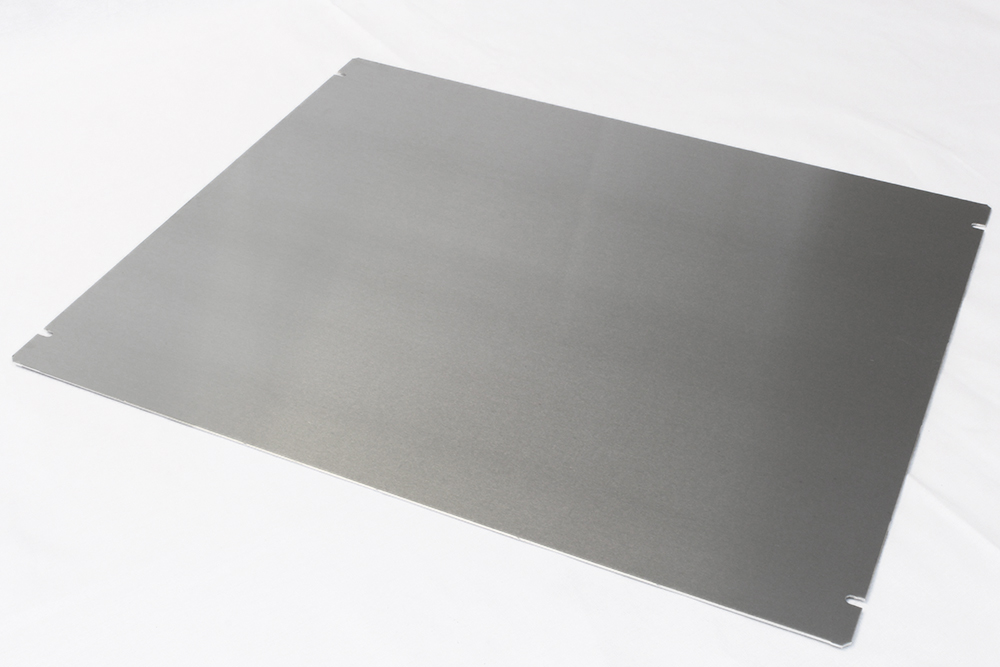

1434-1714

Aluminum Chassis Cover 17x14

  • Type Bottom Plate
  • Material Aluminum
$14.87In stock
Buy now

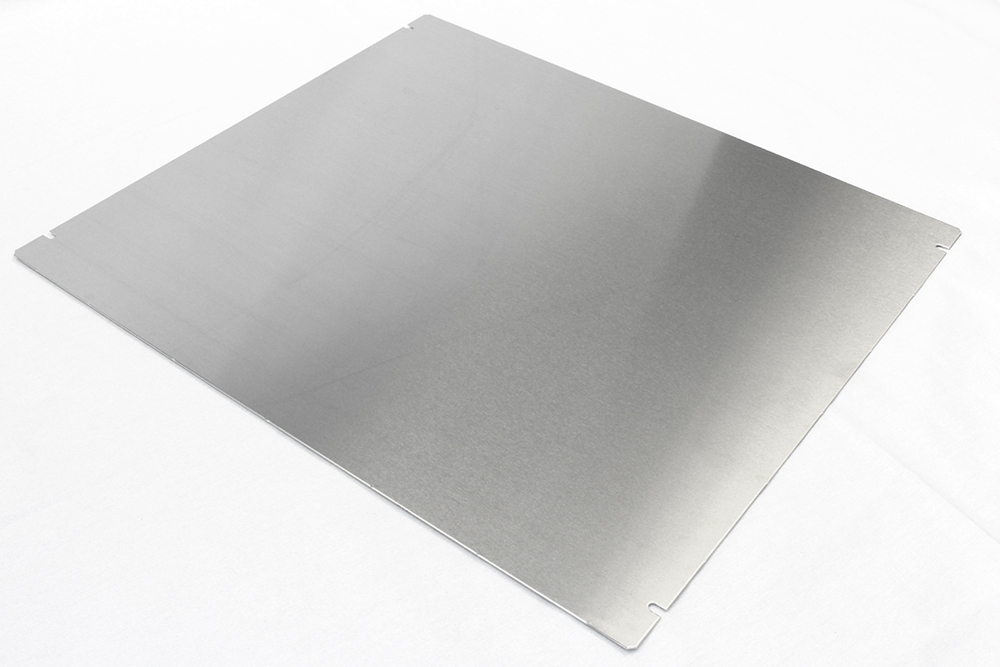

1434-1715

Aluminum Chassis Cover 17x15

  • Type Bottom Plate
  • Material Aluminum
$15.31In stock
Buy now

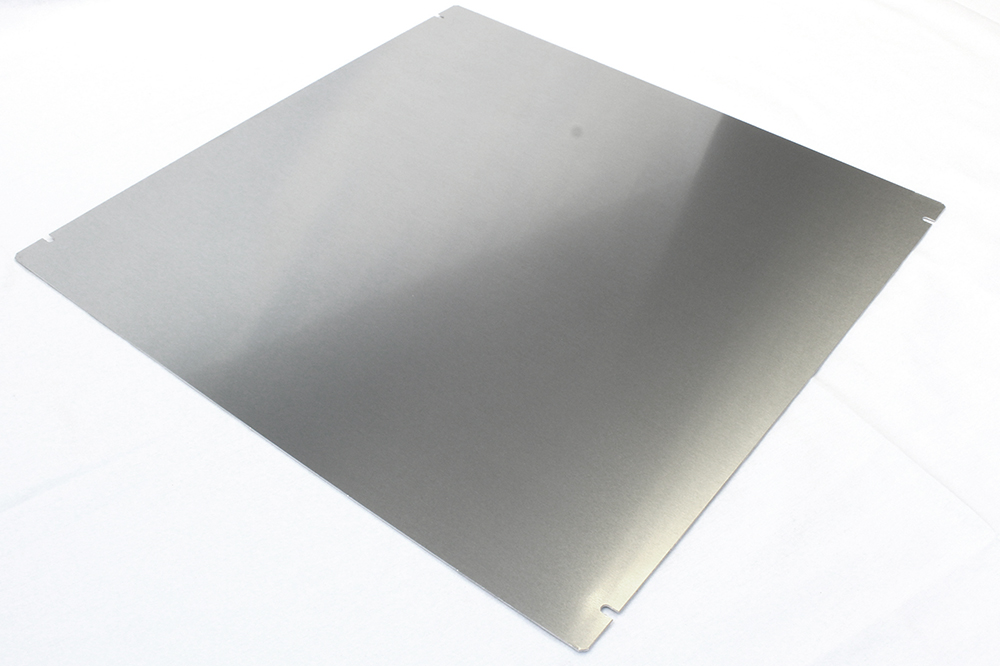

1434-1717

Aluminum Chassis Cover 17x17

  • Type Bottom Plate
  • Material Aluminum
$17.01In stock
Buy now

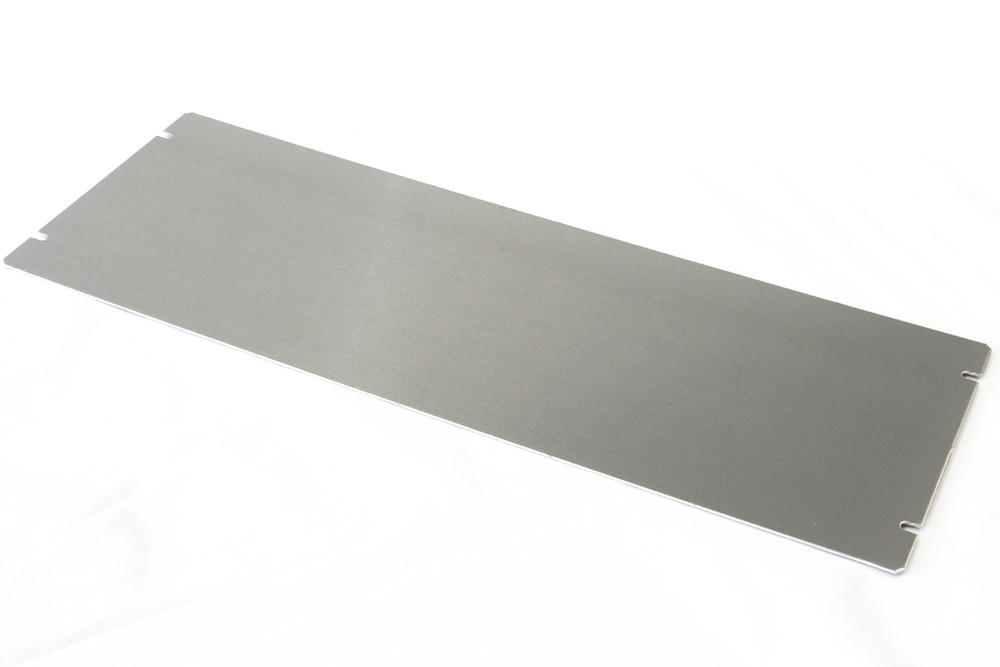

1434-176

Aluminum Chassis Cover 17x6

  • Type Bottom Plate
  • Material Aluminum
$9.34In stock
Buy now

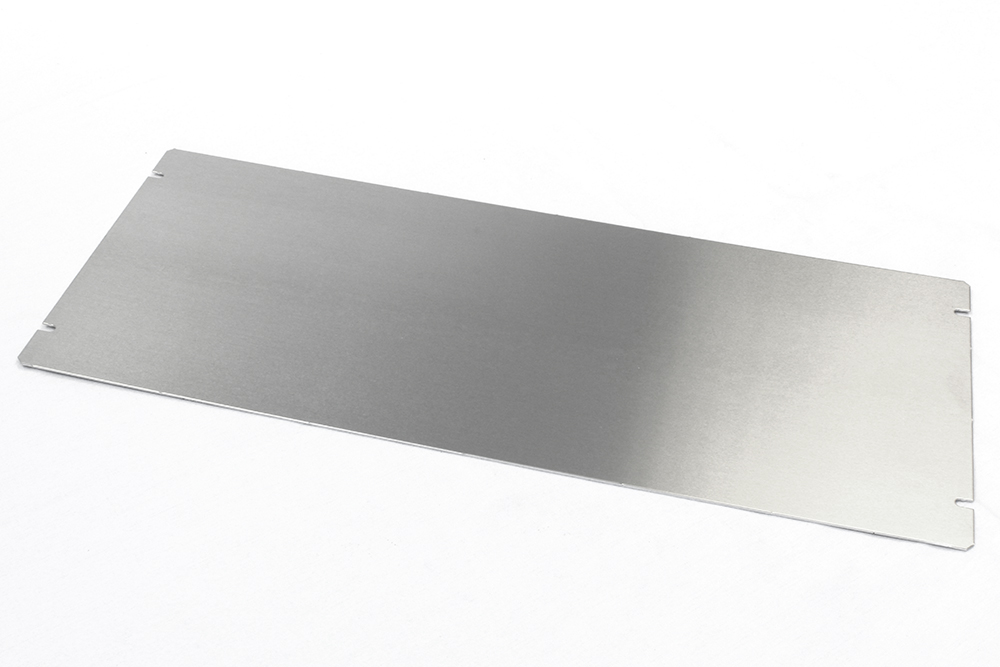

1434-177

Aluminum Chassis Cover 17x7

  • Type Bottom Plate
  • Material Aluminum
$8.07In stock
Buy now
1434-178

Aluminum Chassis Cover 17x8

  • Type Bottom Plate
  • Material Aluminum
$9.78In stock
Buy now
1434-18

Aluminum Chassis Cover 13.5X5

  • Type Bottom Plate
  • Material Aluminum
$6.80In stock
Buy now

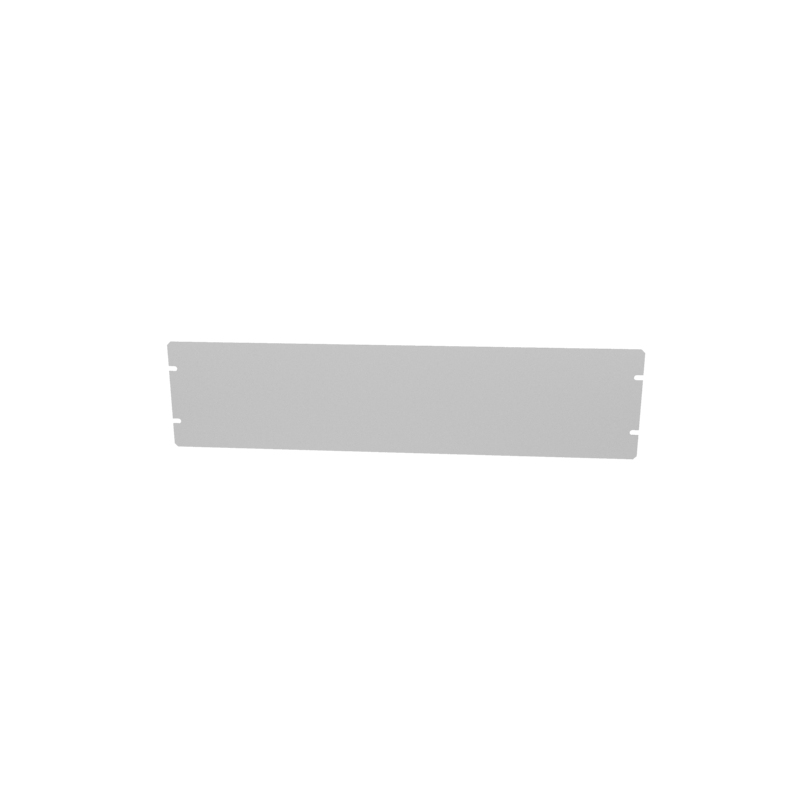

1434-20

Aluminum Chassis Cover 17 X 4

  • Type Bottom Plate
  • Material Aluminum
$8.49In stock
Buy now
1434-22

Aluminum Chassis Cover 12 X 8

  • Type Bottom Plate
  • Material Aluminum
$9.53In stock
Buy now

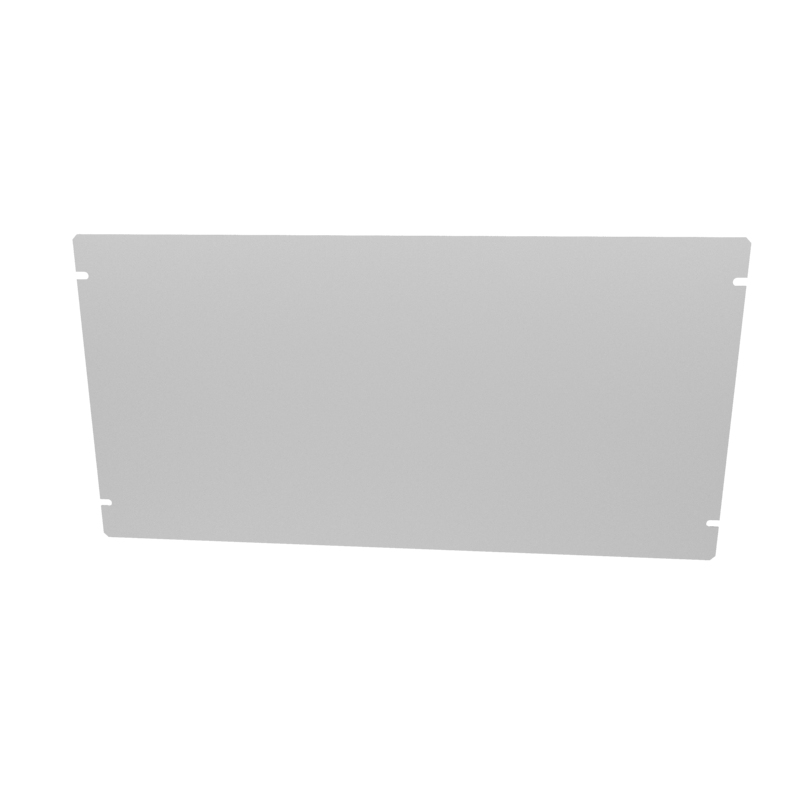

1434-26

Aluminum Chassis Cover 16 X 8

  • Type Bottom Plate
  • Material Aluminum
$10.20In stock
Buy now
1434-29

Aluminum Chassis Cover 12 X 10

  • Type Bottom Plate
  • Material Aluminum
$10.64In stock
Buy now
1434-30

Aluminum Chassis Cover 17 X 10

  • Type Bottom Plate
  • Material Aluminum
$10.71In stock
Buy now

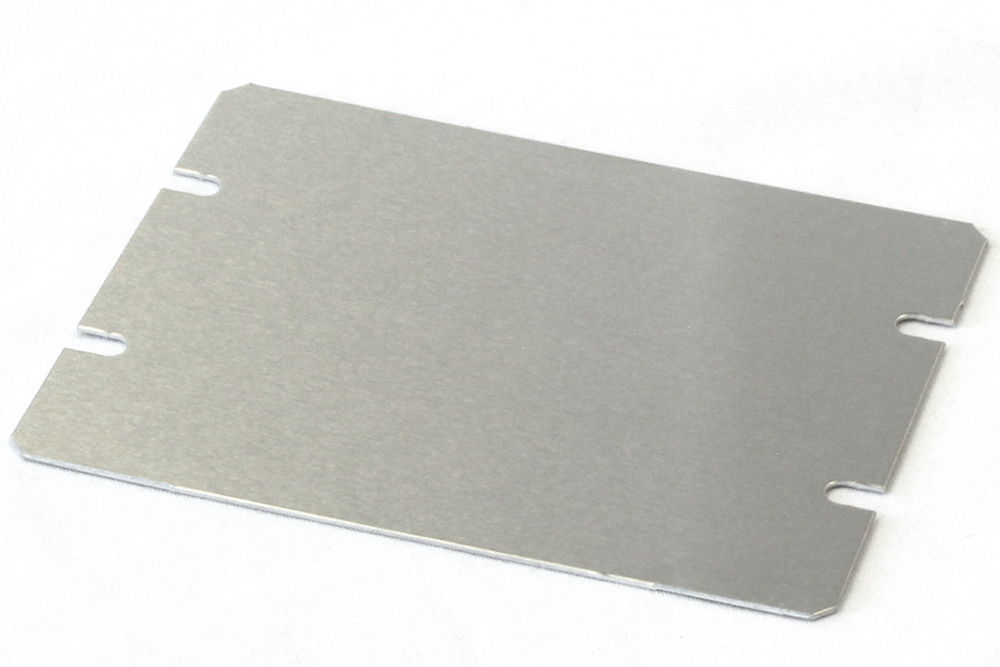

1434-4535

Aluminum Chassis Cover 4.5X3.5

  • Type Bottom Plate
  • Material Aluminum
$3.83In stock
Buy now

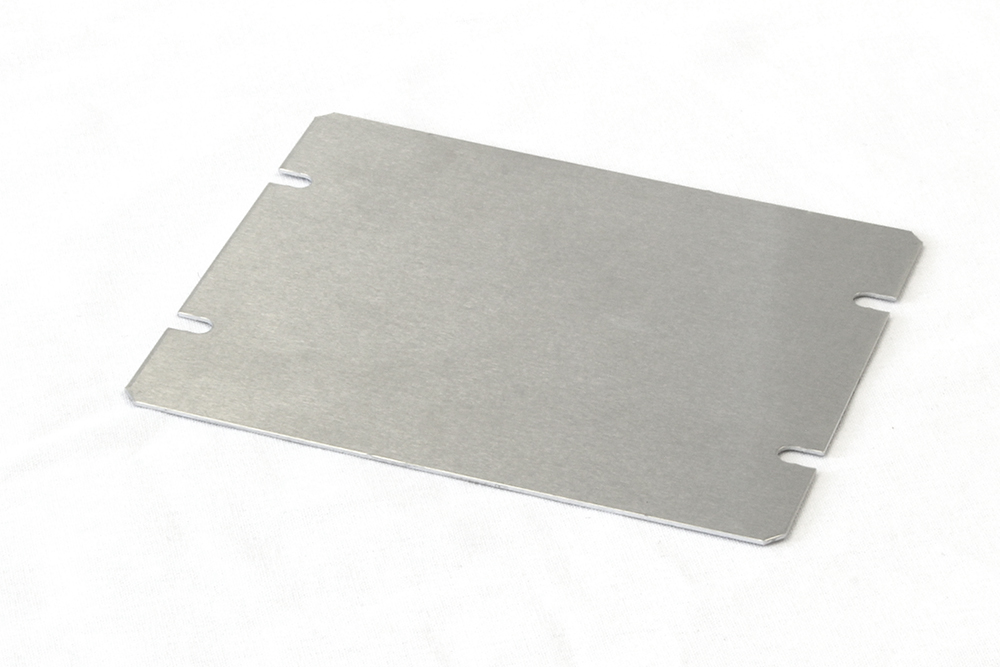

1434-54

Aluminum Chassis Cover 5X4

  • Type Bottom Plate
  • Material Aluminum
$3.83In stock
Buy now
1434-6

Aluminum Chassis Cover 4 X 4

  • Type Bottom Plate
  • Material Aluminum
$4.08In stock
Buy now
1434-77

Aluminum Chassis Cover 7x7

  • Type Bottom Plate
  • Material Aluminum
$4.68In stock
Buy now
1434-8

Aluminum Chassis Cover 6 X 4

  • Type Bottom Plate
  • Material Aluminum
$4.68In stock
Buy now

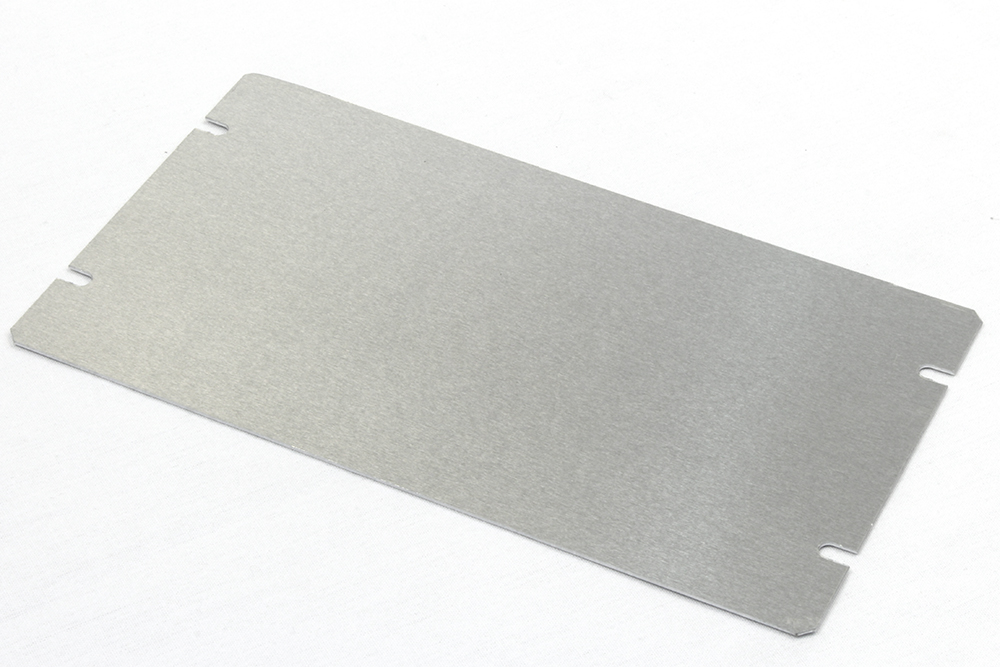

1434-845

Aluminum Chassis Cover 8X4.5

  • Type Bottom Plate
  • Material Aluminum
$6.14In stock
Buy now
1434-86

Aluminum Chassis Cover 8X6

  • Type Bottom Plate
  • Material Aluminum
$6.38In stock
Buy now

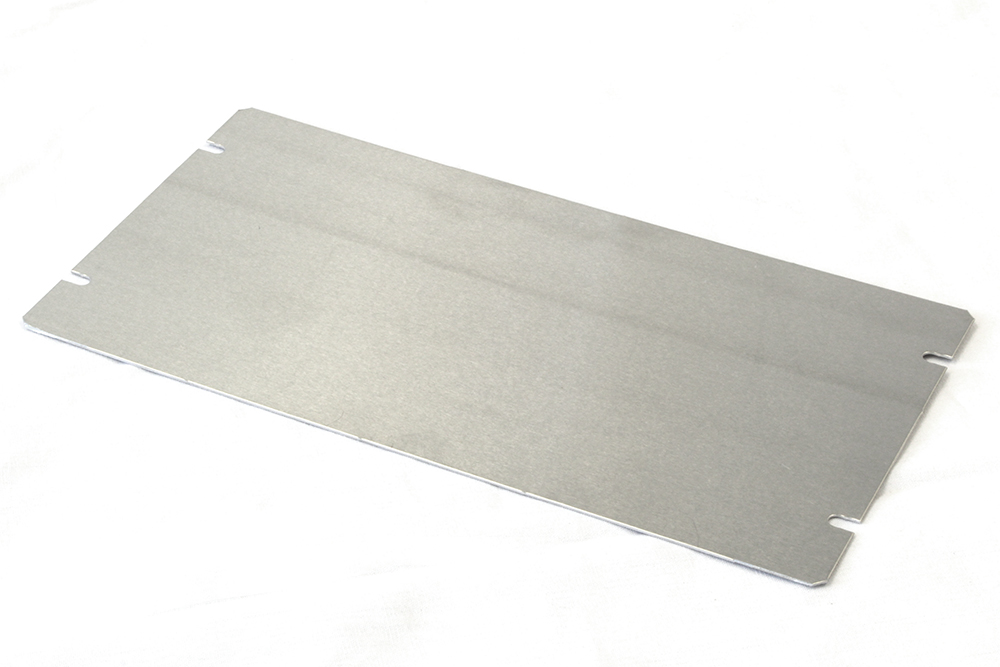

1434-955

Aluminum Chassis Cover 9.5x5

  • Type Bottom Plate
  • Material Aluminum
$4.68In stock
Buy now
1434-97

Aluminum Chassis Cover 9x7

  • Type Bottom Plate
  • Material Aluminum
$5.53In stock
Buy now
1444-10

Aluminum Chassis 8X4X2

  • Type Chassis (Aluminum)
  • Material Aluminum
$11.06In stock
Buy now

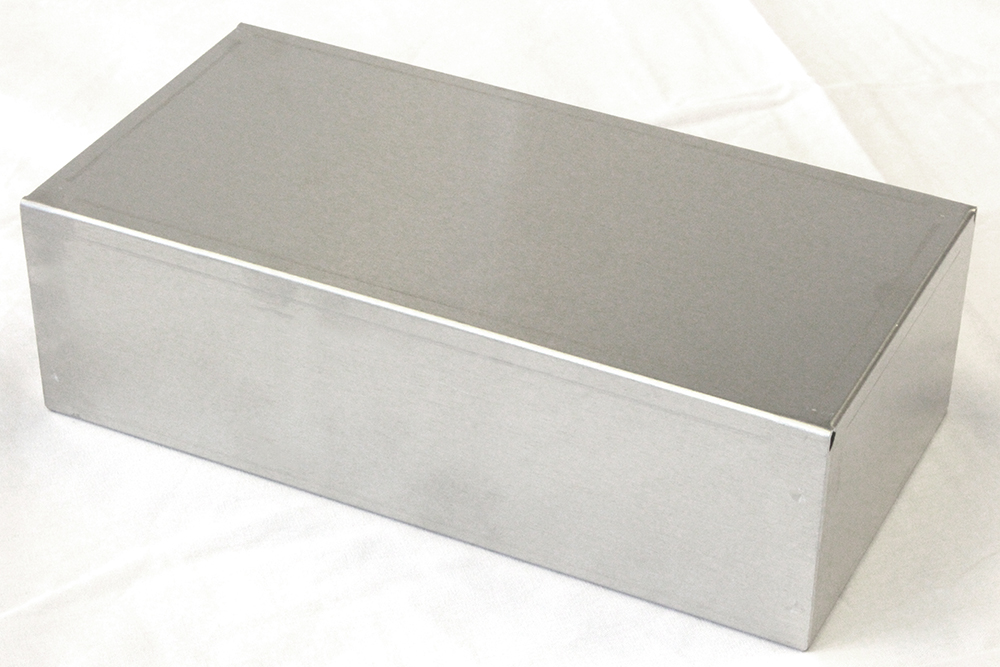

1444-1053

Aluminum Chassis 10X5X3

  • Type Chassis (Aluminum)
  • Material Aluminum
$16.16In stock
Buy now

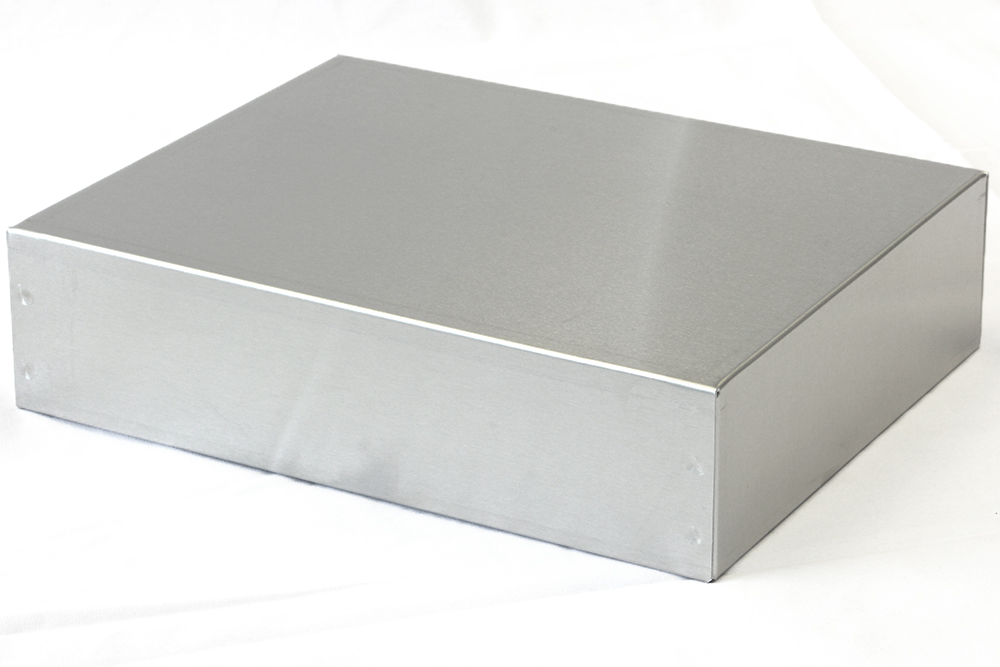

1444-10825

Aluminum Chassis 10X8X2.5

  • Type Chassis (Aluminum)
  • Material Aluminum
$18.28Backorder
Buy now

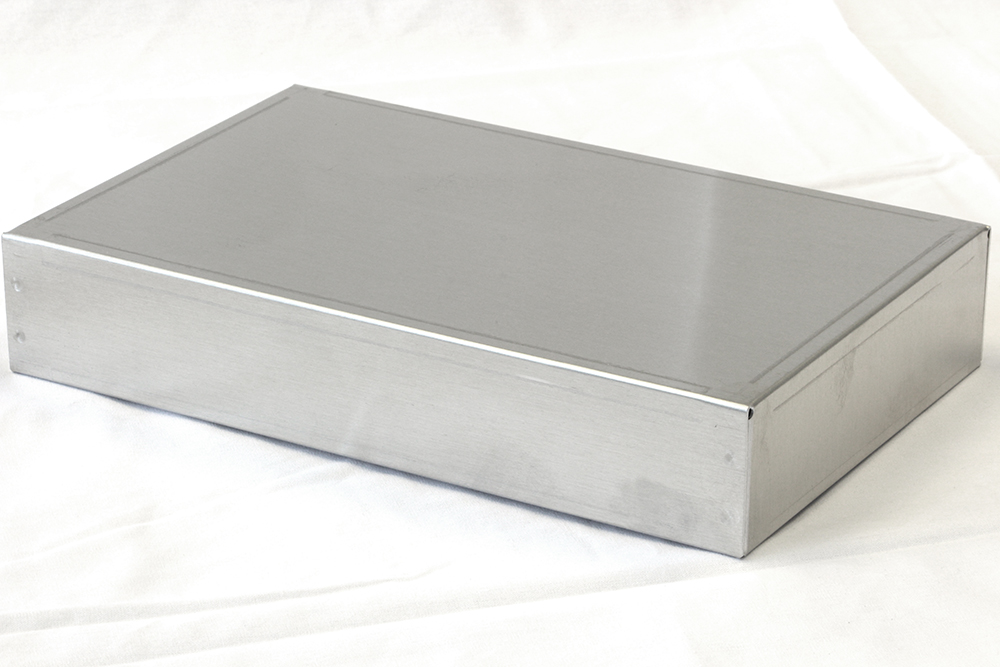

1444-1172

Aluminum Chassis 11X7X2

  • Type Chassis (Aluminum)
  • Material Aluminum
$14.43In stock
Buy now
1444-12

Aluminum Chassis 7X5X2

  • Type Chassis (Aluminum)
  • Material Aluminum
$11.03In stock
Buy now

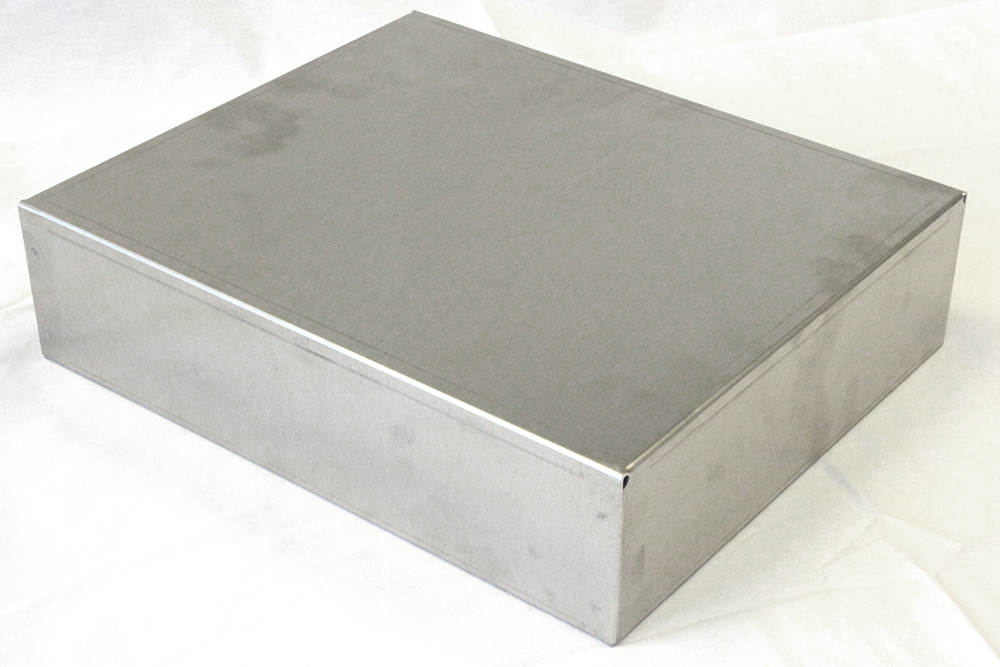

1444-12103

Aluminum Chassis 12X10X3

  • Type Chassis (Aluminum)
  • Material Aluminum
$24.65In stock
Buy now

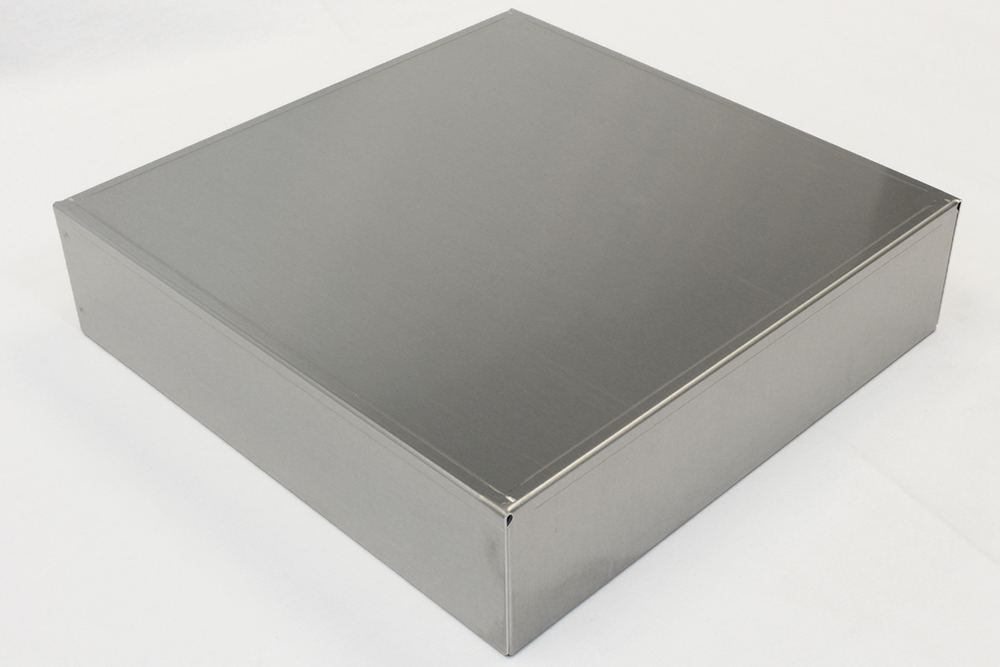

1444-12123

Aluminum Chassis 12X12X3

  • Type Chassis (Aluminum)
  • Material Aluminum
$31.46In stock
Buy now

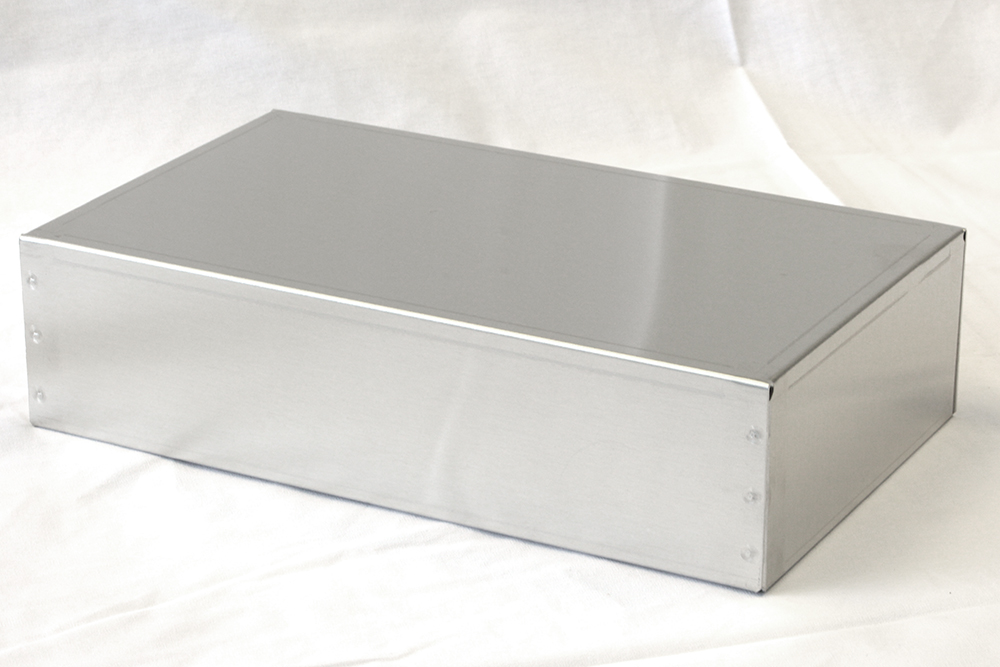

1444-1273

Aluminum Chassis 12X7X3

  • Type Chassis (Aluminum)
  • Material Aluminum
$20.39In stock
Buy now

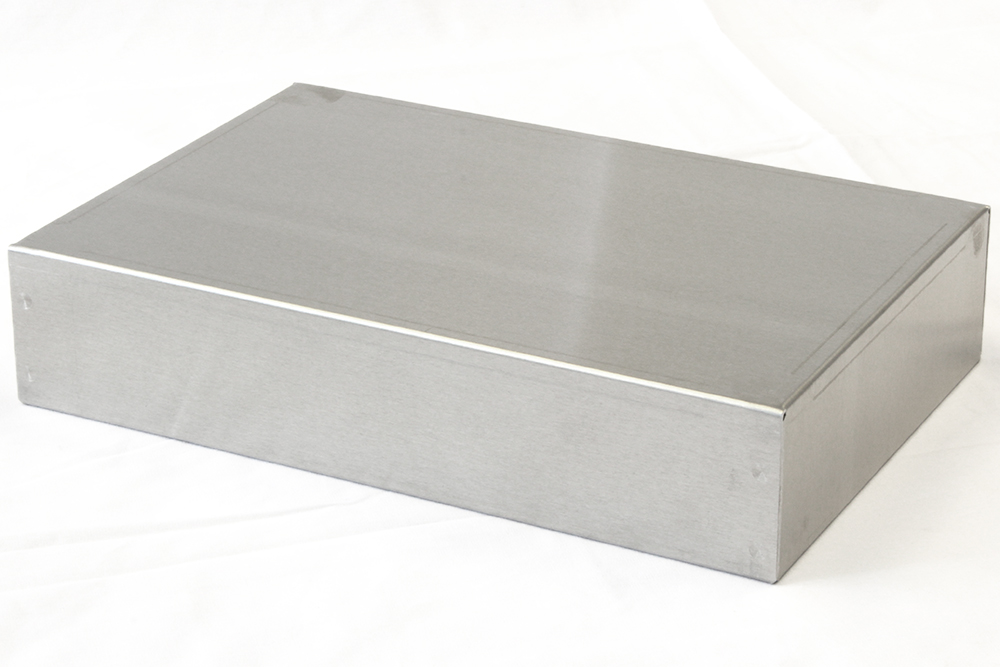

1444-12825

Aluminum Chassis 12X8X2.5

  • Type Chassis (Aluminum)
  • Material Aluminum
$22.97In stock
Buy now

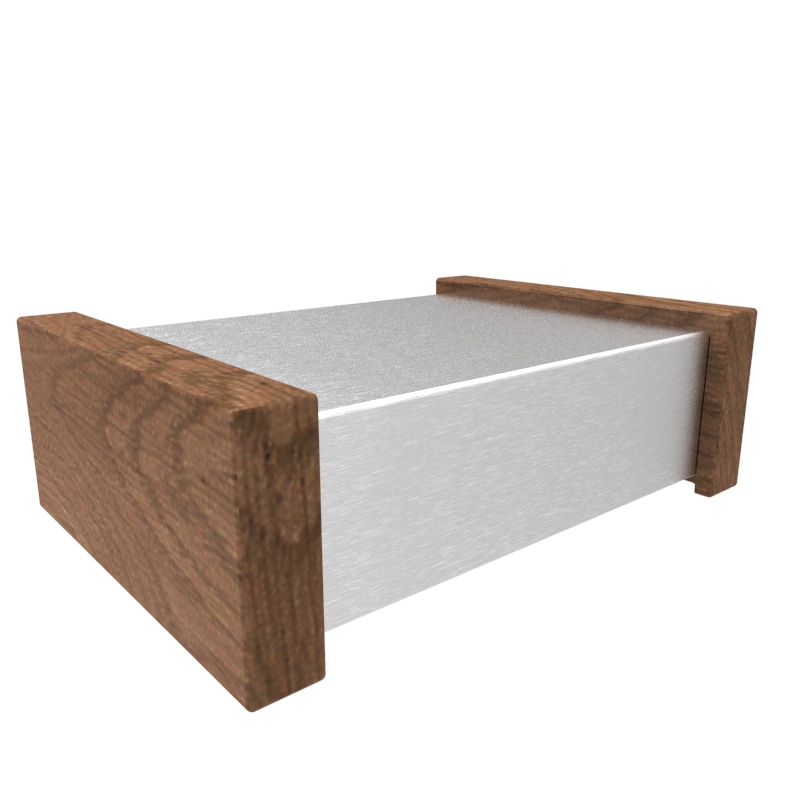

1444-12CWW

Aluminum Chassis

  • Type Chassis (Aluminum/ Walnut)
  • Material Aluminum w/ Walnut Sides
$74.26In stock
Buy now

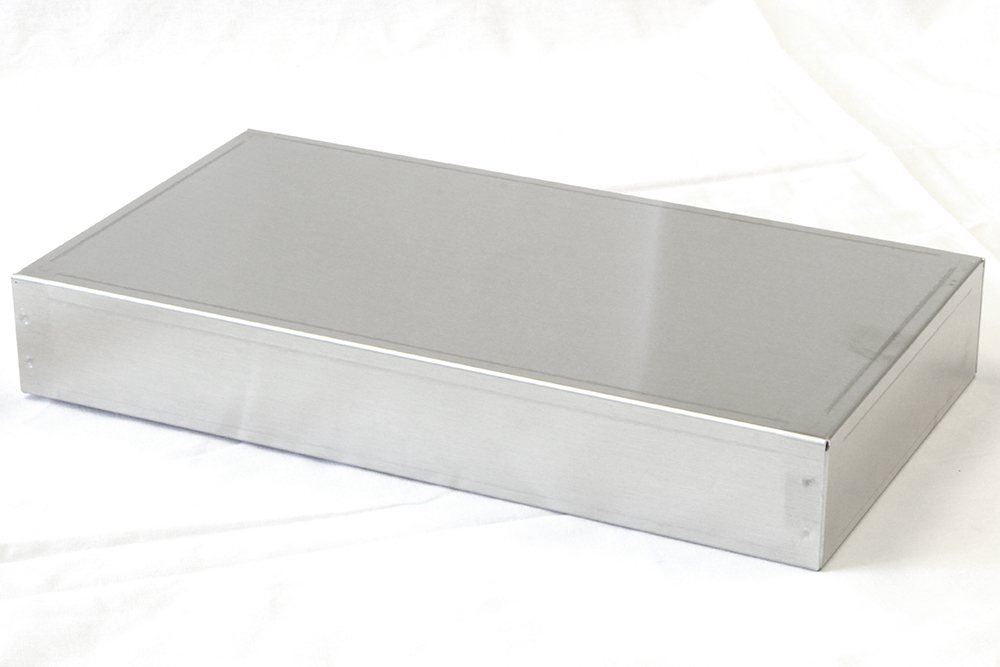

1444-1372

Aluminum Chassis 13X7X2

  • Type Chassis (Aluminum)
  • Material Aluminum
$17.85In stock
Buy now
Dimension tables (inches / mm)

Part Numbers

Units shown: inch . Switch units to: mm

Chassis (Part No.)Chassis w/ Walnut Sides (Part No.)Aluminum ThicknessWidthDepthHeightBottom Plate (Part No.)PriceOrder
1444-60.044.004.002.001434-6$9.82In stock1444-6Buy now
1444-453510.044.503.501.001434-4535$8.49In stock1444-45351Buy now
1444-5420.045.004.002.001434-54$10.20In stock1444-542Buy now
1444-64150.046.004.001.501434-8$10.20In stock1444-6415Buy now
1444-80.046.004.002.001434-8$10.20In stock1444-8Buy now
1444-6430.046.004.003.001434-8$12.32In stock1444-643Buy now
1444-121444-12CWW0.047.005.002.001434-12$11.03In stock1444-12Buy now
1444-7530.047.005.003.001434-12$14.43In stock1444-753Buy now
1444-7720.047.007.002.001434-77$11.90In stock1444-772Buy now
1444-90.048.004.001.001434-10$10.52In stock1444-9Buy now
1444-100.048.004.002.001434-10$11.06In stock1444-10Buy now
1444-845150.048.004.501.501434-845$12.75In stock1444-84515Buy now
1444-8620.048.006.002.001434-86$12.75In stock1444-862Buy now
1444-140.049.005.002.001434-14$13.59In stock1444-14Buy now
1444-9720.049.007.002.001434-97$12.75In stock1444-972Buy now
1444-95520.049.505.002.001434-955$11.90In stock1444-9552Buy now
1444-955250.049.505.002.501434-955$14.43In stock1444-95525Buy now
1444-95530.049.505.003.001434-955$15.31In stock1444-9553Buy now
1444-10530.0410.005.003.001434-105$16.16In stock1444-1053Buy now
1444-150.0410.006.001.001434-16$11.90In stock1444-15Buy now
1444-161444-16CWW0.0410.006.002.001434-16$14.43In stock1444-16Buy now
1444-108250.0410.008.002.501434-108$18.28Backorder1444-10825Buy now
1444-11720.0411.007.002.001434-117$14.43In stock1444-1172Buy now
1444-12730.0412.007.003.001434-127$20.39In stock1444-1273Buy now
1444-221444-22CWW0.0512.008.002.001434-22$24.65In stock1444-22Buy now

Key Features:

  • ■Spot welded - heavy duty construction chassis.
  • ■Natural aluminum finish (as shown above) - also available in painted steel with walnut side panels).
  • ■Side panels are made from solid walnut and routed out to fit over ends of chassis (pre-punched for easy mounting).
  • ■Walnut side panels attach with four machine screws & lockwashers (included) into metal inserts to avoid wood damage. Screws should not be torqued past 4.43 lbf.in ( 50 cN.m).
  • ■Usable surface of chassis front, back and top are reduced by roughly 7/8” (22 mm) due to inset in walnut sides.
  • ■Optional bottom plates are punched with 4 holes – 3/16” diameter.
  • ■Bottom plate hardware not provided, please order separately - Part number 1421J6 (Pkg. of 6, 6-32 Philips head screws).
  • ■NOTE: our steel chassis covers (1451 series) are NOT compatible with this series.

Photo Features

Documents

Specification Sheet

Additional information

Part Numbers

ChassisChassis w/ Walnut SidesAluminum ThicknessWidthDepthHeightBottom Plate
1444-60.044.004.002.001434-6
1444-453510.044.503.501.001434-4535
1444-5420.045.004.002.001434-54
1444-64150.046.004.001.501434-8
1444-80.046.004.002.001434-8
1444-6430.046.004.003.001434-8
1444-121444-12CWW0.047.005.002.001434-12
1444-7530.047.005.003.001434-12
1444-7720.047.007.002.001434-77
1444-90.048.004.001.001434-10
1444-100.048.004.002.001434-10
1444-845150.048.004.501.501434-845
1444-8620.048.006.002.001434-86
1444-140.049.005.002.001434-14
1444-9720.049.007.002.001434-97
1444-95520.049.505.002.001434-955
1444-955250.049.505.002.501434-955
1444-95530.049.505.003.001434-955
1444-10530.0410.005.003.001434-105
1444-150.0410.006.001.001434-16
1444-161444-16CWW0.0410.006.002.001434-16
1444-108250.0410.008.002.501434-108
1444-11720.0411.007.002.001434-117
1444-12730.0412.007.003.001434-127
1444-221444-22CWW0.0512.008.002.001434-22
1444-128250.0512.008.002.501434-22
1444-241444-24CWW0.0512.008.003.001434-22
1444-290.0512.0010.002.001434-29
1444-121030.0512.0010.003.001434-29
1444-121230.0512.0012.003.001434-1212
1444-13720.0413.007.002.001434-137
1444-180.0413.505.002.001434-18
1444-14630.0514.006.003.001434-146
1444-141030.0514.0010.003.001434-1410
1444-15730.0515.007.003.001434-157
1444-15930.0515.009.003.001434-159
1444-260.0516.008.002.001434-26
1444-280.0516.008.003.001434-26
1444-200.0417.004.003.001434-20
1444-17630.0517.006.003.001434-176
1444-17730.0517.007.003.001434-177
1444-17830.0517.008.003.001434-178
1444-300.0517.0010.002.001434-30
1444-321444-32CWW0.0517.0010.003.001434-30
1444-331444-33CWW0.0517.0010.004.001434-30
1444-171050.0517.0010.005.001434-30
1444-171230.0517.0012.003.001434-1712
1444-171320.0517.0013.002.001434-1713
1444-171330.0517.0013.003.001434-1713
1444-171340.0517.0013.004.001434-1713
1444-171350.0517.0013.005.001434-1713
1444-171430.0517.0014.003.001434-1714
1444-171540.0517.0015.004.001434-1715
1444-171560.0517.0015.006.001434-1715
1444-171730.0517.0017.003.001434-1717
1444-171740.0517.0017.004.001434-1717

Any questions? Talk with an expert

Call us (224) 955-1644

Accessories for this series

Sheet Metal Screws

Sheet Metal Screws · 1421J Series

from $3.89

Shop parts

Related products

Steel Chassis

Steel Chassis · 1441 Series

from $3.41

Shop parts
Real Walnut Chassis w/ Aluminum Top

Real Walnut Chassis w/ Aluminum Top · HWCHAS Series

from $8.13

Shop parts
