Hammond 1434-8 6x4 in Aluminum Chassis Bottom Plate
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Bottom plate for 6 x 4 in 1444-6415, 1444-8 and 1444-643 aluminum chassis
- 6 x 4 x 0.04 in (152 x 102 x 1 mm) aluminum plate
- Natural aluminum finish
- Punched with 4 holes, 3/16 in diameter
- Hardware sold separately as 1421J6 (6 x 6-32 Philips head screws)
- RoHS and REACH compliant; 0.1 lbs (0.05 kg) shipping weight

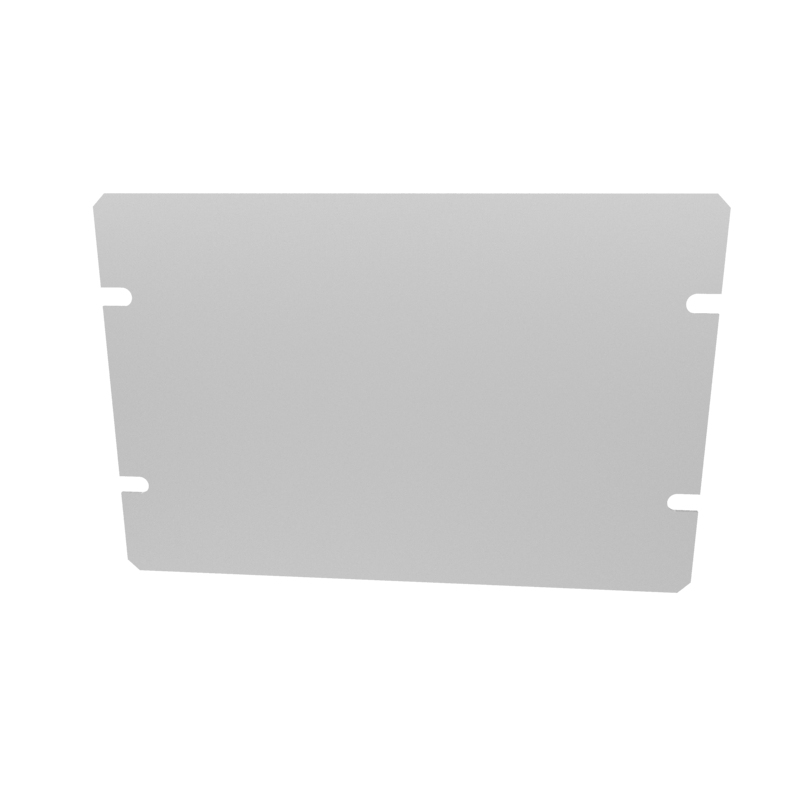

The 1434-8 is a natural aluminum bottom plate for the 6 x 4 in chassis footprint of the 1444 Series aluminum chassis. One plate serves three chassis heights listed in the ordering table: the 1444-6415 (1.50 in tall), the 1444-8 (2.00 in tall) and the 1444-643 (3.00 in tall).
The plate measures 6 in x 4 in x 0.04 in (152 x 102 x 1 mm) and is made of aluminum with a natural aluminum colour, matching the 0.04 in (1 mm) aluminum thickness listed for all three compatible chassis. The part record describes it as a bottom plate for aluminum chassis; its short description is "ALUMINUM CHASSIS COVER 6 X 4".
Per the 1444 Series notes, optional bottom plates are punched with 4 holes of 3/16 in diameter, and bottom plate hardware is not provided. Order part number 1421J6 (package of 6, 6-32 Philips head screws) separately. Bottom panels are available for all sizes in the series.
The compatible chassis are spot welded, heavy duty aluminum units with a natural aluminum finish. The series also notes that the steel 1451 series chassis covers are not compatible with 1444 chassis, so plan any top cover accordingly.
The 1434-8 is RoHS and REACH compliant, ships in a bag and has a shipping weight of 0.1 lbs (0.05 kg).
Ideal For
- Closing the underside of 1444-8, 1444-6415 or 1444-643 chassis
- Small aluminum chassis audio and tube projects
- Vintage-style electronics builds
Overview
| Description | Bottom plate for aluminum chassis |
| Product Type | Bottom Plate |
| Short Description | ALUMINUM CHASSIS COVER 6 X 4 |
| Compatible Chassis | 1444-6415, 1444-8, 1444-643 |
Dimensions
| Size (L X W X H) | 6 in x 4 in x 0.04 in (152 mm x 102 mm x 1 mm) |
Identifiers
| UPC | 623980494104 |
| UNSPSC | 39121301 |
| Part Number | 1434-8 |
Mounting & Hardware
| Hardware | Not provided; order 1421J6 separately (Pkg. of 6, 6-32 Philips head screws) |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.1 lbs (0.05 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Material | Aluminum |
| Mounting Holes | 4 holes, 3/16 in diameter |
| Aluminum Thickness | 0.04 in (1 mm) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which chassis use the 1434-8 bottom plate?▾
The 1444-6415 (6 x 4 x 1.5 in), 1444-8 (6 x 4 x 2 in) and 1444-643 (6 x 4 x 3 in) aluminum chassis.
Does it come with screws?▾
No. Order 1421J6 separately, a package of six 6-32 Philips head screws.
What are the plate dimensions?▾
6 x 4 x 0.04 in (152 x 102 x 1 mm).
Can a 1451 steel cover be used on these chassis?▾
No. The 1444 Series notes that the steel 1451 series chassis covers are not compatible with this series.
