Hammond 1444-8 6x4x2 Inch Natural Aluminum Chassis
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 6 in x 4 in x 2 in (152 mm x 102 mm x 51 mm) natural aluminum chassis
- Spot welded, heavy duty construction in 0.040 in aluminum
- Drawing inner box 150.37 mm [5.92 in] long, 99.57 mm [3.92 in] wide, 48.77 mm [1.92 in] high
- Matching bottom plate 1434-8, punched with 4 holes of 3/16 in diameter, sold separately
- Cover screws 1421J6: package of six 6-32 x 1/4 in self-tapping screws, sold separately
- Factory modification (milling, drilling, printing) available; STEP or IGES models
- RoHS and REACH compliant; ships in shrink wrap

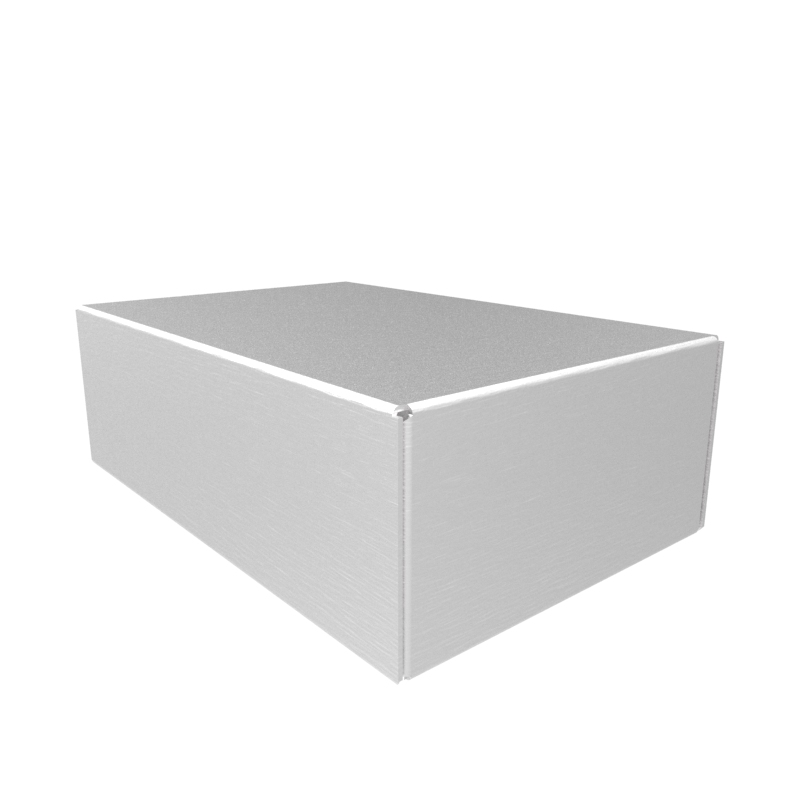

The 1444-8 is a 6 in x 4 in x 2 in (152 mm x 102 mm x 51 mm) aluminum chassis for small electronics projects, including the audio and tube builds the series is tagged for, that need a rigid metal base with front, back and top panels for mounting parts.
Construction is spot welded, heavy duty 0.040 in aluminum (listed as 0.04 in / 1 mm in the ordering table) with a natural aluminum finish. The protective covering on the aluminum, according to the series photo notes, works well as a layout tool before drilling.
The drawing specifies an inner box length of 150.37 mm [5.92 in], inner box width of 99.57 mm [3.92 in] and inner box height of 48.77 mm [1.92 in]. Shipping weight is 0.26 lbs (0.12 kg).
To close the underside, add natural-finish bottom plate 1434-8, which is also 0.040 in aluminum and punched with 4 holes of 3/16 in diameter, plus a package of plated cover screws 1421J6 (six 6-32 x 1/4 in self-tapping screws). Neither is included with the 1444-8; the 1451 series steel covers will not fit.
The 1444-8 is RoHS and REACH compliant and ships in shrink wrap. Hammond notes that these enclosures can be factory modified (milling, drilling, printing) and that STEP or IGES solid models are available.
Ideal For
- Tube amplifier and audio equipment builds
- Vintage and classic-style electronics projects
- Chassis-mounted electronics prototypes
- Custom enclosures with factory milling, drilling or printing
Overview
| Type | Chassis (Aluminum) |
| Series | 1444 Series Aluminum Chassis |
| Description | chassis - aluminum |
| Short Description | ALUMINUM CHASSIS 6X4X2 |
Dimensions
| Depth | 4.00 in (102 mm) |
| Width | 6.00 in (152 mm) |
| Height | 2.00 in (51 mm) |
| Inner Box Width | 99.57 mm [3.92 in] |
| Inner Box Height | 48.77 mm [1.92 in] |
| Inner Box Length | 150.37 mm [5.92 in] |
| Size (L X W X H) | 6 in x 4 in x 2 in (152 mm x 102 mm x 51 mm) |
Identifiers
| UPC | 623980497709 |
| UNSPSC | 39121301 |
| Part Number | 1444-8 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. (contact factory for quotes) |
Included Items
| Components | All components sold separately |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.26 lbs (0.12 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Material | Aluminum |
| Construction | Spot welded - heavy duty construction |
| Aluminum Thickness | 0.04 in (1 mm) |
| Chassis Material (Drawing) | Made of 0.040" Aluminum |
Accessories & Compatibility
| Not Compatible With | 1451 series steel chassis covers |
| Bottom Plate (Sold Separately) | 1434-8 (Natural Finish; made of 0.040" Aluminum; punched with 4 holes, 3/16 in diameter) |
| Cover Screws (Sold Separately) | 1421J6 Plated Cover Screws (Pkg 6) [6-32 x 1/4" Self-Tapping Screws] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1444-8?▾
The 1444-8 measures 6 in x 4 in x 2 in (152 mm x 102 mm x 51 mm). The drawing gives inner box 150.37 mm [5.92 in] long, 99.57 mm [3.92 in] wide, 48.77 mm [1.92 in] high.
Does the 1444-8 include a bottom plate?▾
No. The bottom plate is 1434-8 and is sold separately, along with 1421J6 cover screws (package of six 6-32 x 1/4 in self-tapping screws).
What aluminum thickness is used?▾
The ordering table lists 0.04 in (1 mm), and the drawing states the chassis is made of 0.040" Aluminum; the bottom plate is also made of 0.040" Aluminum.
Can I fit a 1451 series steel cover to the 1444-8?▾
No. The series notes state that the 1451 series steel chassis covers are not compatible with the 1444 Series.
Can the chassis be modified at the factory?▾
Yes. The drawing notes that enclosures can be factory modified (milling, drilling, printing etc.), and solid models are available in STEP or IGES.
