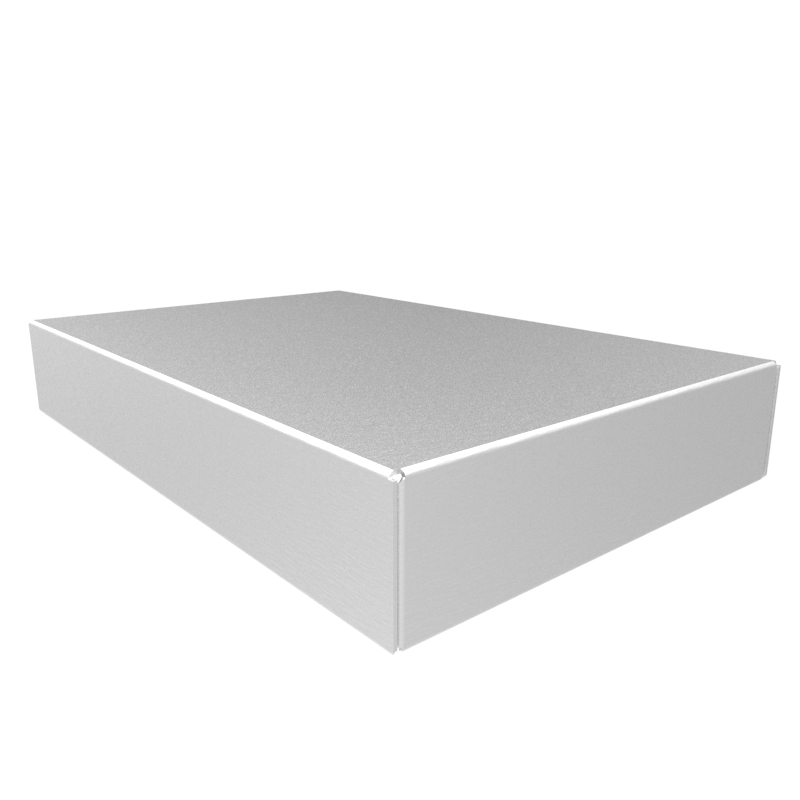

Hammond 1444-22 12x8x2 Inch Natural Aluminum Chassis
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 12 in x 8 in x 2 in (305 mm x 203 mm x 51 mm) natural aluminum chassis
- Spot welded, heavy duty construction in 0.051 in aluminum
- Drawing inner box 302.21 mm [11.90 in] long, 200.61 mm [7.90 in] wide, 48.21 mm [1.90 in] high
- Matching bottom plate 1434-22, punched with 4 holes of 3/16 in diameter, sold separately
- Also offered with solid walnut sides as 1444-22CWW
- Cover screws 1421J6: package of six 6-32 x 1/4 in self-tapping screws, sold separately
- Factory modification (milling, drilling, printing) available; STEP or IGES models
- RoHS and REACH compliant; ships in shrink wrap
The 1444-22 is a 12 in x 8 in x 2 in (305 mm x 203 mm x 51 mm) aluminum chassis. Its generous footprint suits tube amplifiers, audio power supplies and larger electronics projects that need a larger top panel and more interior space.
It is spot welded, heavy duty construction in 0.051 in aluminum (listed as 0.05 in / 1 mm in the ordering table), a heavier gauge than the smaller 0.040 in chassis, with a natural aluminum finish. The protective covering on the aluminum doubles as a layout surface, per the series photo notes.
The drawing gives inner box dimensions of 302.21 mm [11.90 in] long, 200.61 mm [7.90 in] wide and 48.21 mm [1.90 in] high. Shipping weight is 0.9 lbs (0.41 kg).
A version with solid walnut side panels is available as 1444-22CWW. For the 1444-22, all components are sold separately: natural-finish bottom plate 1434-22 (0.051 in aluminum, punched with 4 holes of 3/16 in diameter) and plated cover screws 1421J6 (package of six 6-32 x 1/4 in self-tapping screws). The 1451 series steel covers are not compatible.
The 1444-22 is REACH and RoHS compliant and ships in shrink wrap. It can be factory modified by milling, drilling or printing, and STEP or IGES solid models are available.
Ideal For
- Tube amplifier and audio equipment builds
- Vintage and classic-style electronics projects
- Chassis-mounted electronics prototypes
- Custom enclosures with factory milling, drilling or printing
Overview
| Type | Chassis (Aluminum) |
| Series | 1444 Series Aluminum Chassis |
| Description | chassis - aluminum |
| Short Description | ALUMINUM CHASSIS 12X8X2 |
Dimensions
| Depth | 8.00 in (203 mm) |
| Width | 12.00 in (305 mm) |
| Height | 2.00 in (51 mm) |
| Inner Box Width | 200.61 mm [7.90 in] |
| Inner Box Height | 48.21 mm [1.90 in] |
| Inner Box Length | 302.21 mm [11.90 in] |
| Size (L X W X H) | 12 in x 8 in x 2 in (305 mm x 203 mm x 51 mm) |
Identifiers
| UPC | 623980498607 |
| UNSPSC | 39121301 |
| Part Number | 1444-22 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. (contact factory for quotes) |
Included Items
| Components | All components sold separately |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.9 lbs (0.41 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Material | Aluminum |
| Construction | Spot welded - heavy duty construction |
| Aluminum Thickness | 0.05 in (1 mm) |
| Chassis Material (Drawing) | Made of 0.051" Aluminum |
Accessories & Compatibility
| Not Compatible With | 1451 series steel chassis covers |
| Version With Walnut Sides | 1444-22CWW |
| Bottom Plate (Sold Separately) | 1434-22 (Natural Finish; made of 0.051" Aluminum; punched with 4 holes, 3/16 in diameter) |
| Cover Screws (Sold Separately) | 1421J6 Plated Cover Screws (Pkg 6) [6-32 x 1/4" Self-Tapping Screws] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1444-22?▾
The 1444-22 measures 12 in x 8 in x 2 in (305 mm x 203 mm x 51 mm). The drawing gives inner box 302.21 mm [11.90 in] long, 200.61 mm [7.90 in] wide, 48.21 mm [1.90 in] high.
Does the 1444-22 include a bottom plate?▾
No. The bottom plate is 1434-22 and is sold separately, along with 1421J6 cover screws (package of six 6-32 x 1/4 in self-tapping screws).
What aluminum thickness is used?▾
The ordering table lists 0.05 in (1 mm), and the drawing states the chassis is made of 0.051" Aluminum; the bottom plate is also made of 0.051" Aluminum.
Can I fit a 1451 series steel cover to the 1444-22?▾
No. The series notes state that the 1451 series steel chassis covers are not compatible with the 1444 Series.
Can the chassis be modified at the factory?▾
Yes. The drawing notes that enclosures can be factory modified (milling, drilling, printing etc.), and solid models are available in STEP or IGES.
Is there a version with wood sides?▾
Yes. The same 12x8x2 in size is available with solid walnut side panels as part number 1444-22CWW.
Related Products

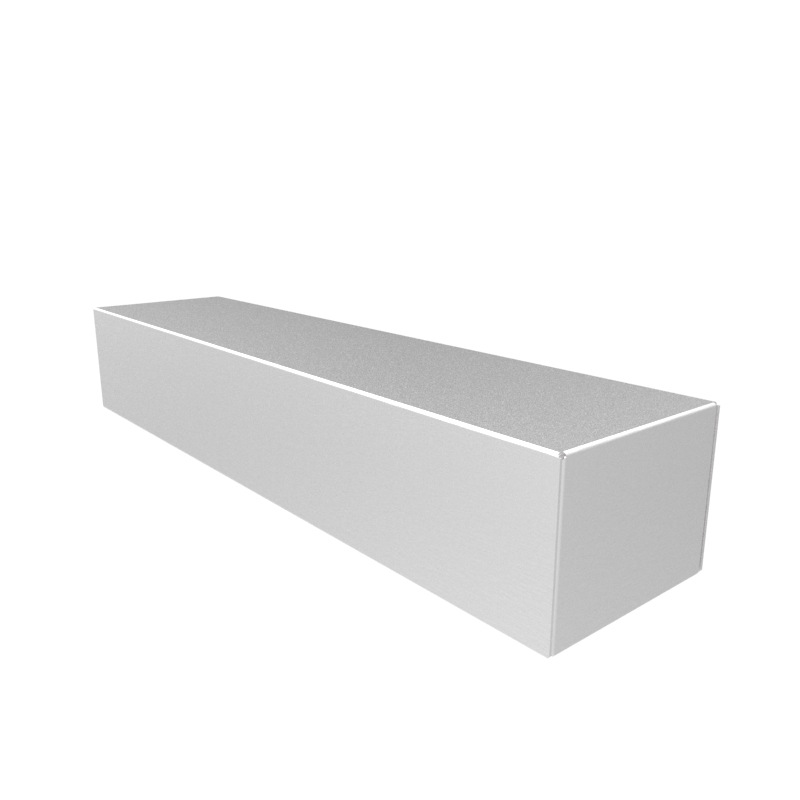

Save 52%1444-20 — chassis - aluminum
Hammond Manufacturing · 1444-20

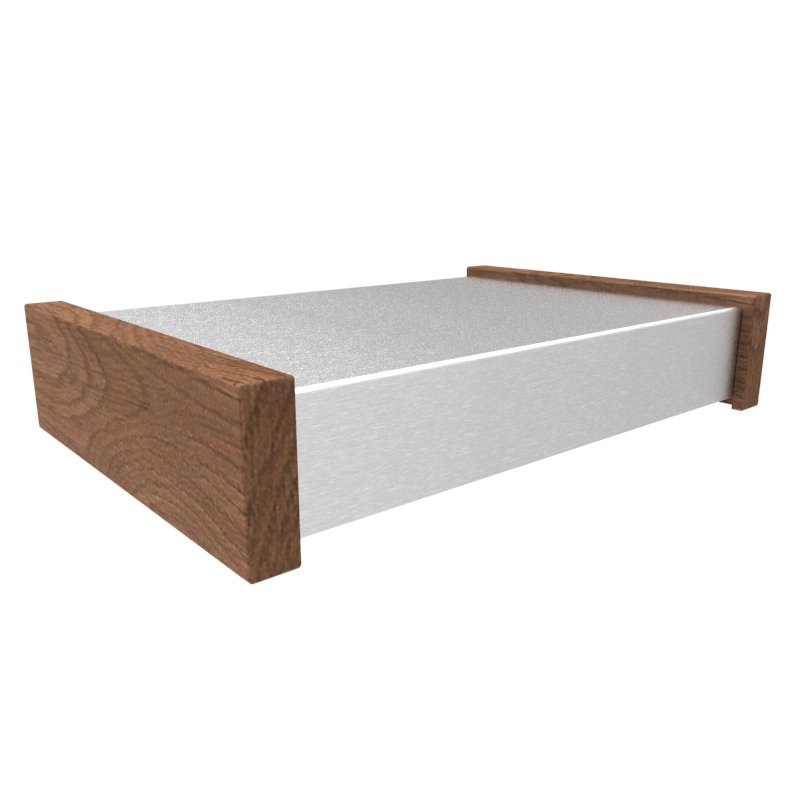

Save 52%1444-22CWW — chassis - aluminum with wood sides
Hammond Manufacturing · 1444-22CWW

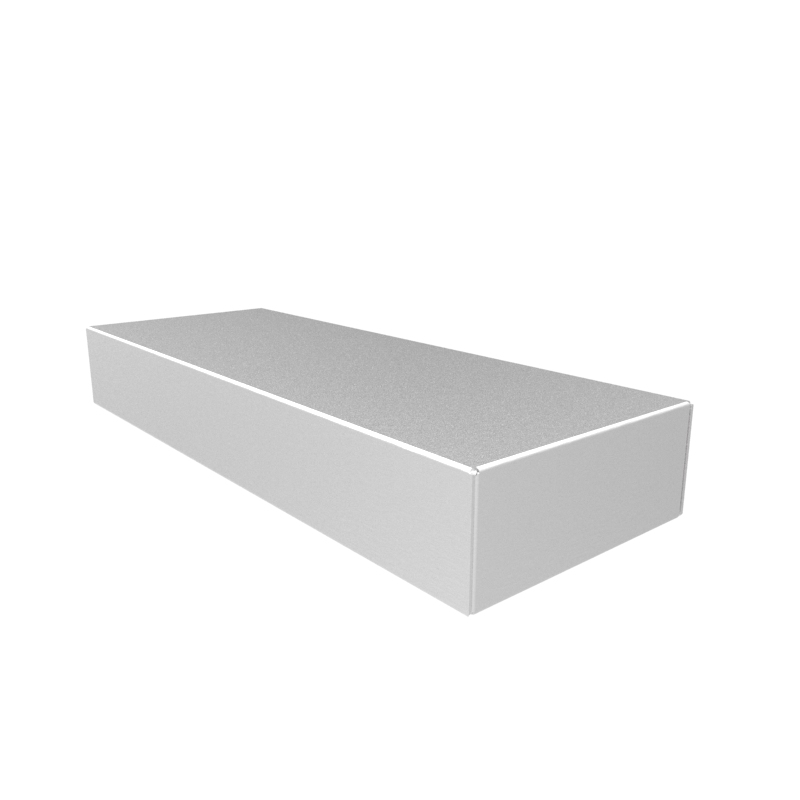

Save 52%1444-18 — chassis - aluminum
Hammond Manufacturing · 1444-18

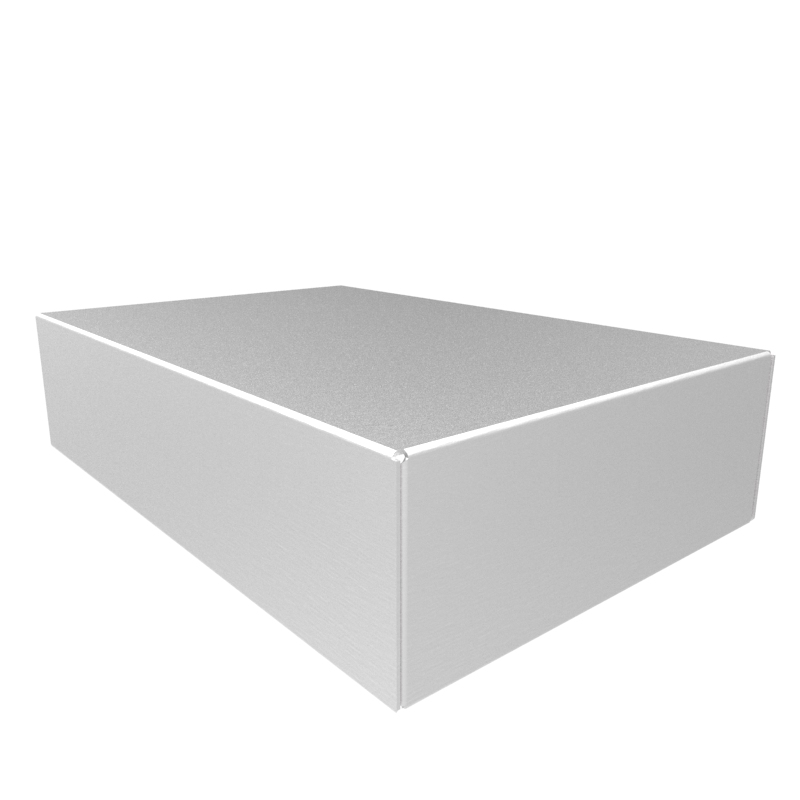

Save 52%1444-24 — chassis - aluminum
Hammond Manufacturing · 1444-24

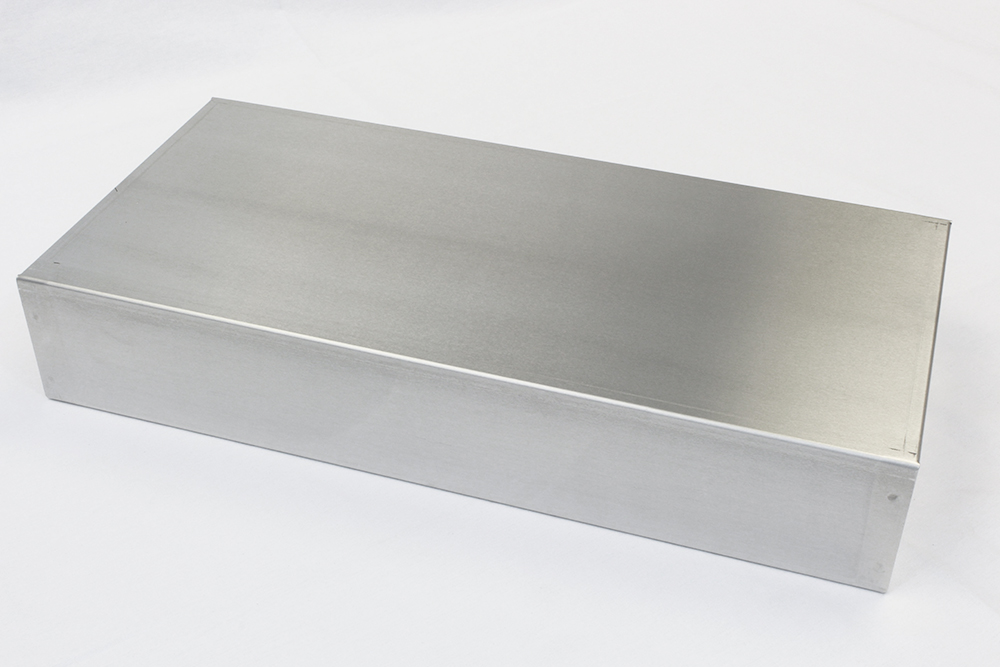

Save 52%1444-1783 — chassis - aluminum
