Hammond 1441-8 6x4x2-Inch ASA 61 Grey Steel Chassis
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 6 x 4 x 2 in (152 x 102 x 51 mm) steel chassis
- Spot welded 20 gauge steel, 0.036 in thick
- ASA 61 smooth grey powder paint
- Inner box 150.57 x 99.77 x 48.97 mm [5.93 x 3.93 x 1.93 in]
- 1/8 in holes for optional 1431-8 / 1431-8BK3 bottom plate
- Factory modification available; STEP or IGES models
- RoHS and REACH compliant; 0.75 lbs (0.34 kg)

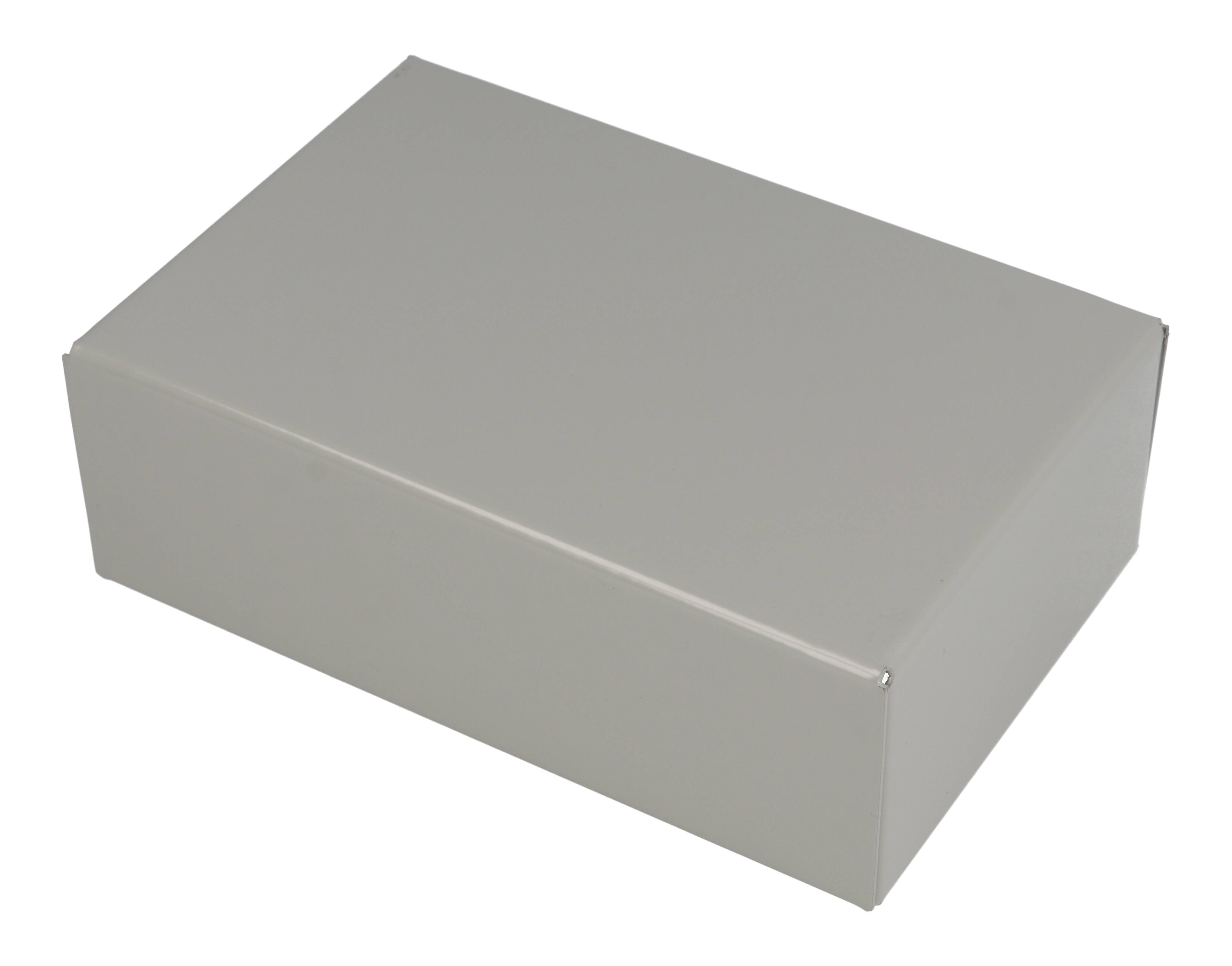

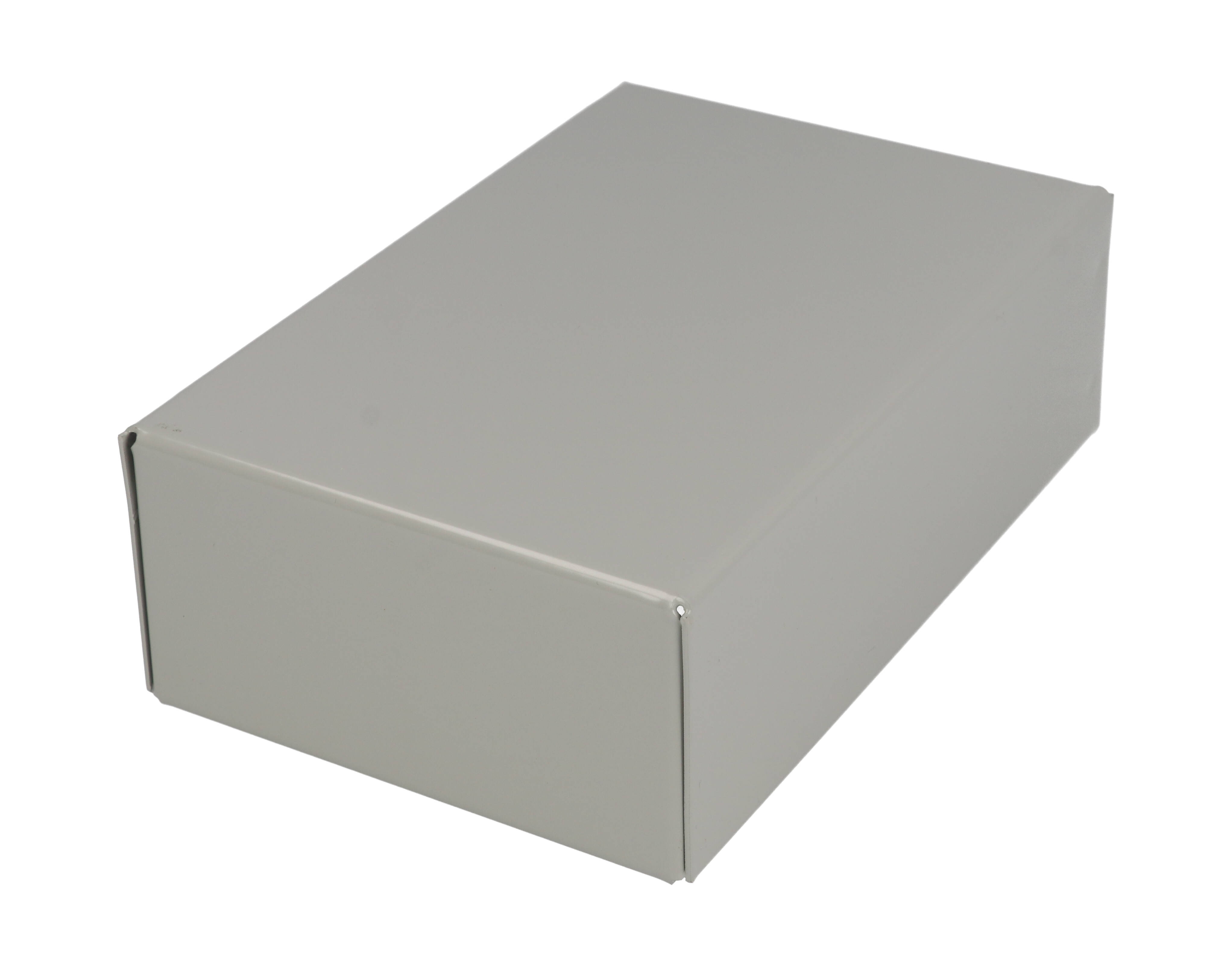

The 1441-8 is a 6 in x 4 in x 2 in steel chassis in ASA 61 smooth grey, one step up from the 4 in square 1441-6. It gives builders a small rectangular metal base with a little more length for components, suited to the classic and tube-style electronics the 1441 Series is known for.
The chassis is spot welded, heavy duty 20 gauge steel; the drawing states 0.036 in steel. It carries an ASA 61 smooth grey powder paint finish. Nominal size is 6 in x 4 in x 2 in (152 mm x 102 mm x 51 mm). According to the drawing, the inner box measures 150.57 mm [5.93 in] long, 99.77 mm [3.93 in] wide and 48.97 mm [1.93 in] high, and the chassis height is 50.80 mm [2.00 in].

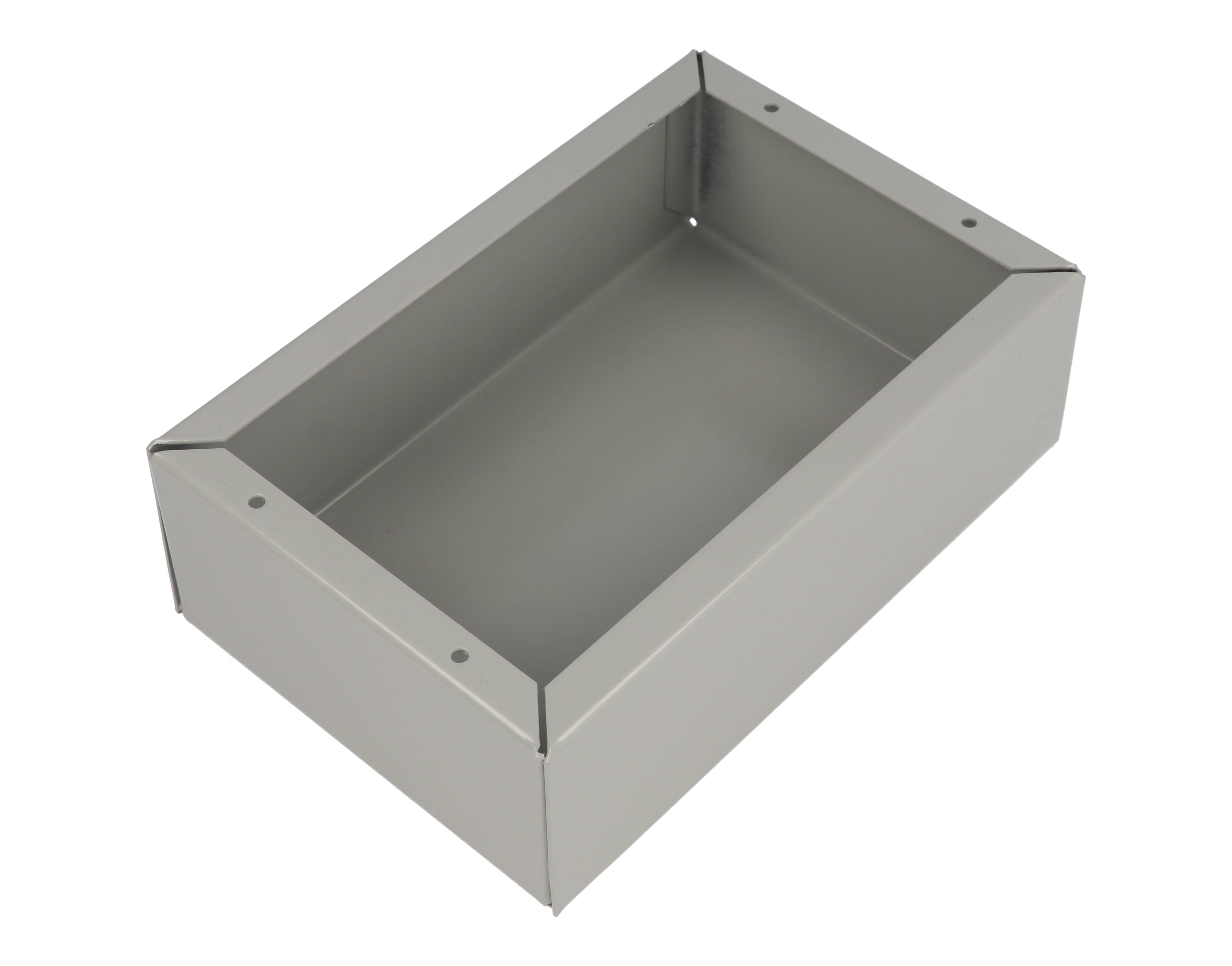

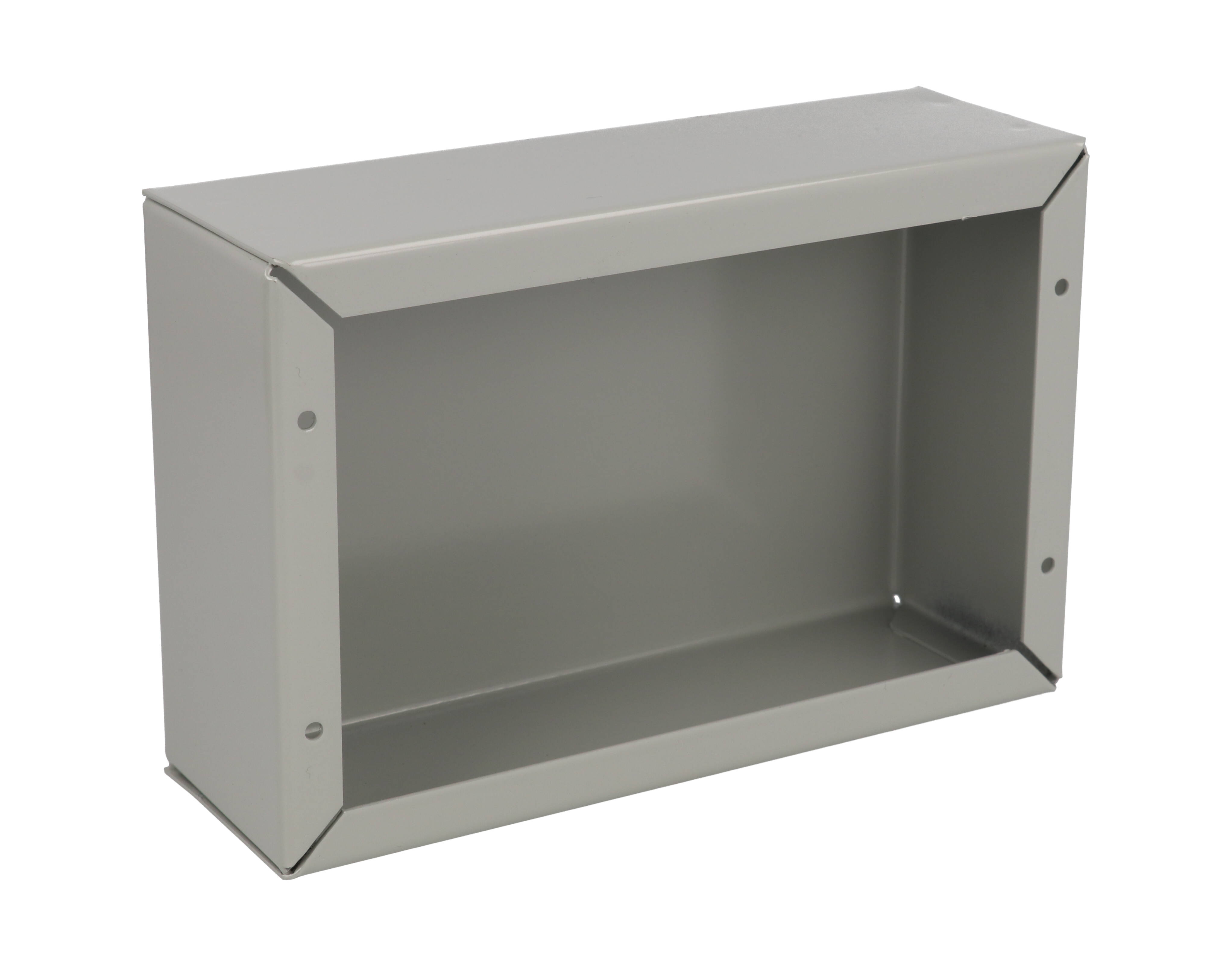

The chassis includes 1/8 in holes for installing an optional bottom plate, 1431-8 in grey or 1431-8BK3 in satin black. Screws are not provided; order 1421J6 (six 6-32 x 1/4 in self-tapping screws) or 1421J6BK for black. Rubber feet are sold separately, and no perforated chassis cover is listed for this size.
Hammond notes the enclosure can be factory modified with milling, drilling or printing, and solid models are available in STEP or IGES. The 1441-8 is RoHS and REACH compliant, ships shrink wrapped and has a shipping weight of 0.75 lbs (0.34 kg). The satin black version is 1441-8BK3.
Ideal For
- Small rectangular steel chassis for electronics
- Classic and tube-style circuit builds
- Prototype builds needing a 6 x 4 in metal base
- Custom enclosures with factory machining
Hardware
| Rubber Feet | Sold separately |
| Hardware Included | No, order separately |
| Black Cover Screws | 1421J6BK (Pkg 6, 6-32 x 1/4 in self-tapping) |
| Natural Finish Cover Screws | 1421J6 (Pkg 6, 6-32 x 1/4 in self-tapping; series sheet: pan head, type C) |
Overview
| Type | Chassis (Steel) |
| Color | Gray |
| Series | 1441 Series Steel Chassis |
| CAD Models | Solid models available in STEP or IGES |
| Description | STEEL CHASSIS 6X4X2 |
| Part Number | 1441-8 |
| Factory Modification | Can be factory modified (milling, drilling, printing) |
Dimensions
| Depth (Ordering Table) | 4.00 in (102 mm) |
| Width (Ordering Table) | 6.00 in (152 mm) |
| Height (Ordering Table) | 2.00 in (51 mm) |
| Chassis Height (Drawing) | 50.80 mm [2.00 in] |
| Nominal Size (L X W X H) | 6 in x 4 in x 2 in (152 mm x 102 mm x 51 mm) |
| Inner Box Width (Drawing) | 99.77 mm [3.93 in] |
| Inner Box Height (Drawing) | 48.97 mm [1.93 in] |
| Inner Box Length (Drawing) | 150.57 mm [5.93 in] |
Accessories
| Other Finish Version | 1441-8BK3 (satin black) |
| Grey Bottom Plate (Sold Separately) | 1431-8 |
| Satin Black Bottom Plate (Sold Separately) | 1431-8BK3 |
Identifiers
| UPC | 623980495408 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.75 lbs (0.34 kg) |
Construction & Finish
| Finish | ASA 61 smooth grey powder paint |
| Material | Steel |
| Steel Gauge | 20 |
| Construction | Spot welded steel, heavy duty construction |
| Bottom Plate Holes | Includes 1/8 in holes to allow installation of optional bottom plate |
| Material Thickness | 0.036 in steel (0.91 mm) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1441-8?▾
Nominal 6 in x 4 in x 2 in (152 mm x 102 mm x 51 mm), with an inner box of 150.57 mm [5.93 in] by 99.77 mm [3.93 in] by 48.97 mm [1.93 in] per the drawing.
Which bottom plate goes with it?▾
1431-8 (ASA 61 grey) or 1431-8BK3 (satin black), sold separately.
Is hardware included?▾
No. Order 1421J6 (six 6-32 x 1/4 in self-tapping screws). Rubber feet are also sold separately.
Is it RoHS compliant?▾
Yes, the 1441-8 is RoHS and REACH compliant.
Related Products

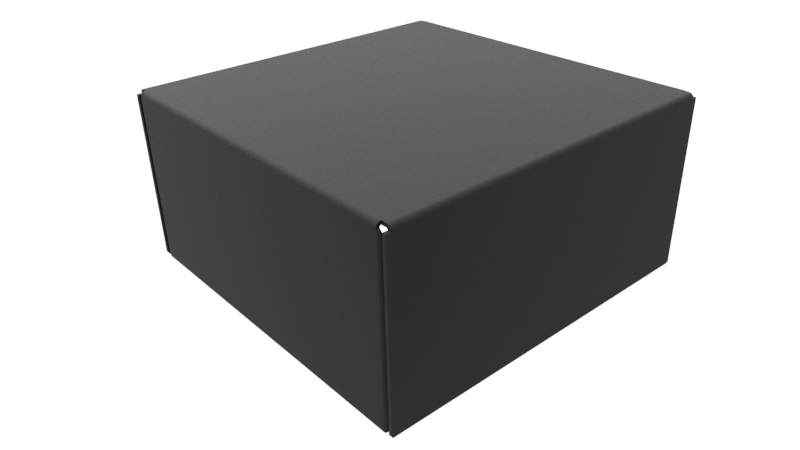

Save 52%1441-6BK3 — chassis - steel; satin black finish
Hammond Manufacturing · 1441-6BK3

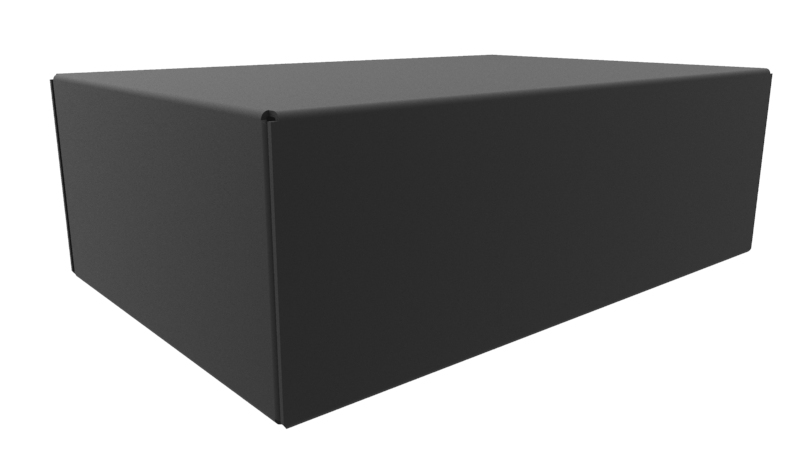

Save 52%1441-8BK3 — chassis - steel; satin black finish
Hammond Manufacturing · 1441-8BK3
Save 52%1441-6 — chassis - steel; ASA 61 grey finish
Hammond Manufacturing · 1441-6
Save 52%1441-9 — chassis - steel; ASA 61 grey finish
Hammond Manufacturing · 1441-9

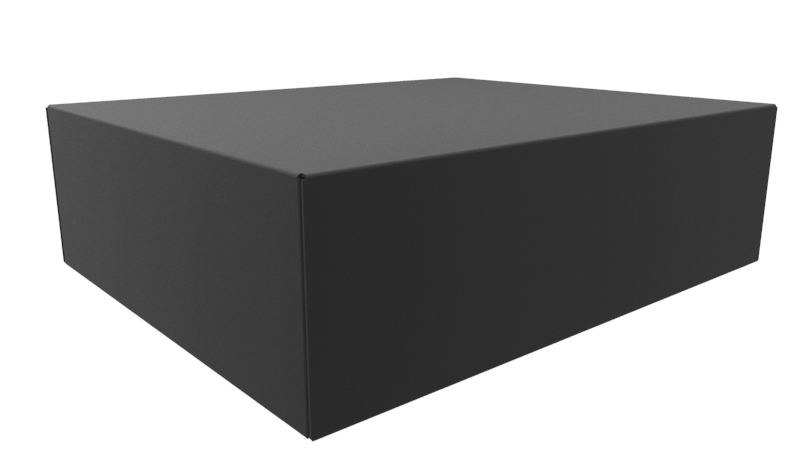

Save 52%1441-42BK3 — chassis - steel; satin black finish
