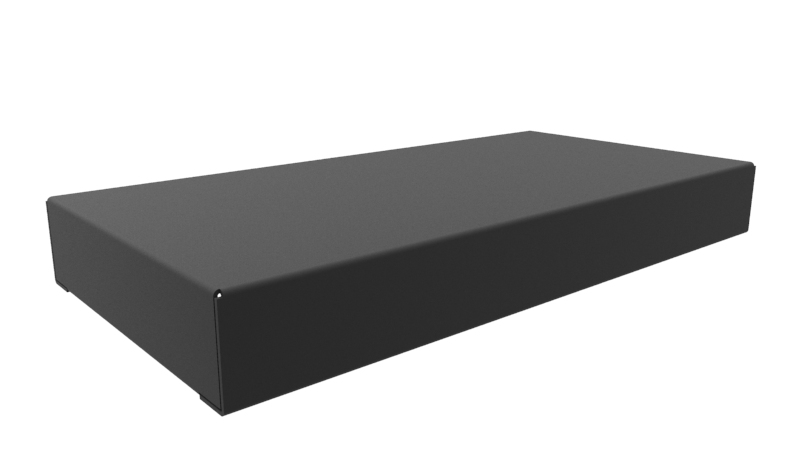

Hammond 1441-9BK3 8x4x1-Inch Low-Profile Satin Black Steel Chassis
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Low-profile 8 x 4 x 1 in (203 x 102 x 25 mm) chassis in satin black
- Spot welded 20 gauge steel, 0.036 in thick
- Inner box 201.37 x 99.77 x 23.57 mm [7.93 x 3.93 x 0.93 in]
- Takes 1431-10BK3 bottom plate and 1451-10BK3 perforated cover (sold separately)
- Hardware and rubber feet sold separately
- RoHS and REACH compliant; 0.64 lbs (0.29 kg)
The 1441-9BK3 is the satin black version of the low-profile 8 in x 4 in x 1 in chassis in the 1441 Series. With a height of only 1 in, it is aimed at slim builds, and the satin black finish suits projects where the chassis is on show.
It is made of spot welded 20 gauge steel (0.036 in per the drawing) and finished in satin black powder paint. Nominal size is 8 in x 4 in x 1 in (203 mm x 102 mm x 25 mm).
- Inner box: 201.37 mm [7.93 in] L x 99.77 mm [3.93 in] W x 23.57 mm [0.93 in] H
- Chassis height: 25.40 mm [1.00 in]
- Bottom plates: 1431-10BK3 (satin black), 1431-10 (grey)
- Perforated covers: 1451-10BK3 (satin black), 1451-10 (grey)
The chassis includes 1/8 in holes that allow the optional bottom plate to be installed. Hardware is not provided; the drawing lists 1421J6BK black and 1421J6 natural finish cover screws, six 6-32 x 1/4 in self-tapping screws per package. Rubber feet are sold separately.
Enclosures can be factory modified by milling, drilling or printing, and STEP or IGES solid models are available. The 1441-9BK3 is RoHS and REACH compliant, ships shrink wrapped and has a shipping weight of 0.64 lbs (0.29 kg). The grey version is 1441-9, and the 2 in high version of this footprint is 1441-10BK3.
Ideal For
- Slim black steel chassis for low-height electronics
- Satin black classic and tube-style builds
- 8 x 4 in enclosures closed with a 1451-10BK3 cover
- Custom enclosures with factory machining
Hardware
| Rubber Feet | Sold separately |
| Hardware Included | No, order separately |
| Black Cover Screws | 1421J6BK (Pkg 6, 6-32 x 1/4 in self-tapping) |
| Natural Finish Cover Screws | 1421J6 (Pkg 6, 6-32 x 1/4 in self-tapping; series sheet: pan head, type C) |
Overview
| Type | Chassis (Steel) |
| Color | Black |
| Series | 1441 Series Steel Chassis |
| CAD Models | Solid models available in STEP or IGES |
| Description | STEEL CHASSIS 8X4X1 |
| Part Number | 1441-9BK3 |
| Factory Modification | Can be factory modified (milling, drilling, printing) |
Dimensions
| Depth (Ordering Table) | 4.00 in (102 mm) |
| Width (Ordering Table) | 8.00 in (203 mm) |
| Height (Ordering Table) | 1.00 in (25 mm) |
| Chassis Height (Drawing) | 25.40 mm [1.00 in] |
| Nominal Size (L X W X H) | 8 in x 4 in x 1 in (203 mm x 102 mm x 25 mm) |
| Inner Box Width (Drawing) | 99.77 mm [3.93 in] |
| Inner Box Height (Drawing) | 23.57 mm [0.93 in] |
| Inner Box Length (Drawing) | 201.37 mm [7.93 in] |
Accessories
| Other Finish Version | 1441-9 (ASA 61 grey) |
| Grey Bottom Plate (Sold Separately) | 1431-10 |
| Perforated Chassis Cover (Sold Separately) | 1451-10 (grey), 1451-10BK3 (satin black) |
| Satin Black Bottom Plate (Sold Separately) | 1431-10BK3 |
Identifiers
| UPC | 623980964560 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.64 lbs (0.29 kg) |
Construction & Finish
| Finish | Satin black powder paint |
| Material | Steel |
| Steel Gauge | 20 |
| Construction | Spot welded steel, heavy duty construction |
| Bottom Plate Holes | Includes 1/8 in holes to allow installation of optional bottom plate |
| Material Thickness | 0.036 in steel (0.91 mm) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the height of the 1441-9BK3?▾
1.00 in (25 mm), with an inner box height of 23.57 mm [0.93 in] per the drawing.
What bottom plate and cover match it?▾
The satin black 1431-10BK3 bottom plate and the satin black 1451-10BK3 perforated chassis cover. Grey 1431-10 and 1451-10 are also listed.
Is hardware included?▾
No. The drawing lists 1421J6BK black or 1421J6 natural finish cover screws (Pkg 6, 6-32 x 1/4 in self-tapping).
Is there a taller version with the same footprint?▾
Yes, the 1441-10BK3 is 8.00 in by 4.00 in at 2.00 in high.
