Hammond 1431-34 17 x 12 in ASA 61 Grey Steel Chassis Bottom Plate
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Grey bottom plate for 17 x 12 in 1441-34 (2 in high) and 1441-36 (3 in high) chassis
- Fits 18 gauge chassis made of 0.048 in steel; plate is 0.036 in steel
- 17 in x 12 in x 0.04 in (432 x 305 x 1 mm)
- ASA 61 smooth grey powder paint
- Punched with 4 holes of 3/16 in diameter; chassis includes 1/8 in holes
- RoHS and REACH compliant; 2.05 lbs (0.93 kg)

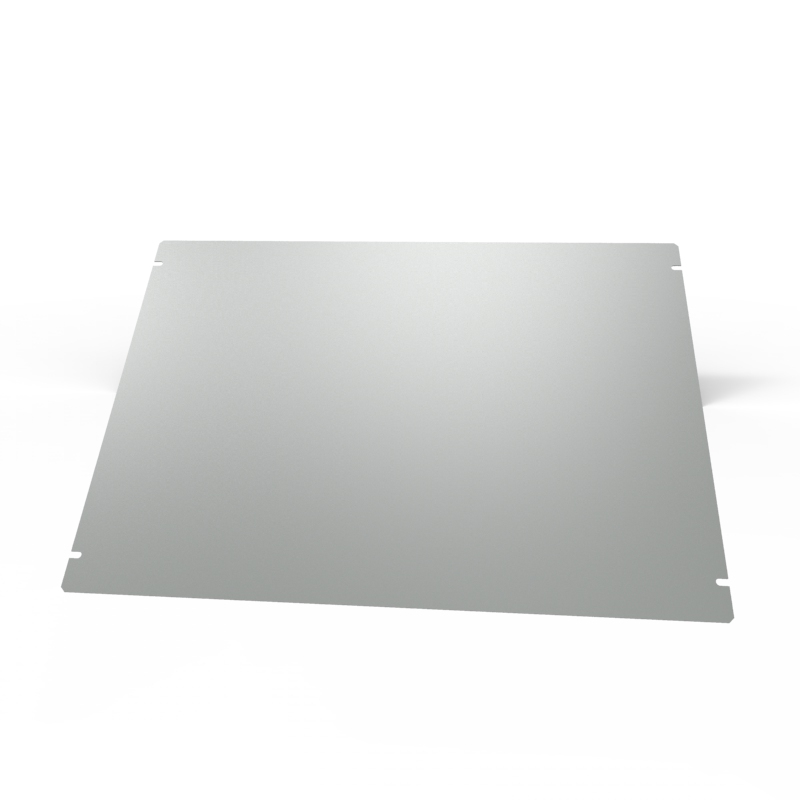

The 1431-34 is an ASA 61 smooth grey bottom plate for the 17 in x 12 in chassis in the 1441 Series. This footprint moves up to 18 gauge chassis steel, and the plate is listed for both the 2 in high 1441-34 and the 3 in high 1441-36, so builders can close either depth-12 in chassis with the same part.
Its size is 17 in x 12 in x 0.04 in (432 mm x 305 mm x 1 mm). The drawing specifies the bottom plate as 0.036 in steel, while the chassis itself is made of heavier 0.048 in steel. The plate is finished in ASA 61 smooth grey powder paint and punched with 4 holes of 3/16 in diameter; the chassis includes 1/8 in holes for installing it.
The ordering table lists the 1441-34 and 1441-34BK3 (17.00 in W x 12.00 in D x 2.00 in H) and the 1441-36 and 1441-36BK3 (17.00 in W x 12.00 in D x 3.00 in H), in 18 gauge steel. On the 1441-34 drawing the assembly has an inner box of 429.36 mm [16.90 in] long, 302.36 mm [11.90 in] wide and 48.36 mm [1.90 in] high. No perforated cover is listed for this size.
Screws are not included; order 1421J6 (six 6-32 x 1/4 in self-tapping screws). The 1431-34 is RoHS and REACH compliant, ships in a bag and has a shipping weight of 2.05 lbs (0.93 kg).
Ideal For
- Base plate for 17 x 12 in steel chassis at 2 in or 3 in height
- Larger full-width tube and vintage-style builds
- Grey 18 gauge steel chassis enclosures
- Heavy duty steel chassis projects
Hardware
| Hardware Included | No, order separately |
| Black Cover Screws | 1421J6BK (Pkg 6, 6-32 x 1/4 in self-tapping) |
| Natural Finish Cover Screws | 1421J6 (Pkg 6, 6-32 x 1/4 in self-tapping; series sheet: pan head, type C) |
Overview
| Type | Bottom Plate |
| Color | Gray |
| Series | 1441 Series Steel Chassis (accessory) |
| CAD Models | Solid models of the enclosure available in STEP or IGES |
| Description | STEEL CHASSIS COVER 17 X 12 |
| Part Number | 1431-34 |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing) |
Dimensions
| Size (L X W X H) | 17 in x 12 in x 0.04 in (432 mm x 305 mm x 1 mm) |
| Chassis Height (Drawing, 1441-34) | 50.80 mm [2.00 in] |
| Assembly Inner Box Width (Drawing, 1441-34) | 302.36 mm [11.90 in] |
| Assembly Inner Box Height (Drawing, 1441-34) | 48.36 mm [1.90 in] |
| Assembly Inner Box Length (Drawing, 1441-34) | 429.36 mm [16.90 in] |
Identifiers
| UPC | 623980493800 |
| UNSPSC | 39121301 |
Compatibility
| Grey Bottom Panel (Same Size) | 1431-34 |
| Fits Chassis 1441-34 / 1441-34BK3 | 17.00 in (432 mm) W x 12.00 in (305 mm) D x 2.00 in (51 mm) H, 18 gauge steel |
| Fits Chassis 1441-36 / 1441-36BK3 | 17.00 in (432 mm) W x 12.00 in (305 mm) D x 3.00 in (76 mm) H, 18 gauge steel |
| Satin Black Bottom Panel (Same Size) | 1431-34BK3 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 2.05 lbs (0.93 kg) |
Construction & Finish
| Finish | ASA 61 smooth grey powder paint |
| Material | Steel |
| Mounting Holes | Punched with 4 holes, 3/16 in diameter |
| Bottom Plate Material Thickness | 0.036 in steel (0.91 mm) |
| Chassis Material Thickness (1441-34 Drawing) | 0.048 in steel (1.22 mm) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What chassis does the 1431-34 fit?▾
The 1441-34 and 1441-34BK3 (2.00 in high) and the 1441-36 and 1441-36BK3 (3.00 in high), all 17.00 in wide by 12.00 in deep in 18 gauge steel.
Is the plate the same thickness as the chassis?▾
No. The drawing states the chassis is made of 0.048 in steel and the bottom plate of 0.036 in steel.
Is there a perforated cover for this size?▾
The ordering table does not list a perforated chassis cover for the 1441-34 or 1441-36 size.
Are screws included?▾
No. Order 1421J6, a package of six 6-32 x 1/4 in self-tapping screws.
