1591S Flange Black
- Type Flange
QuoteRequest a quote
Multipurpose ABS Plastic Enclosures · 1591R Series
Brand: Hammond Manufacturing · 23 part numbers
EMI/ RFI Copper Conductive Coating Inside
- ■Ideally suited for vertical mounting of printed circuit boards; internal side walls include molded in card guides.
- ■Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).

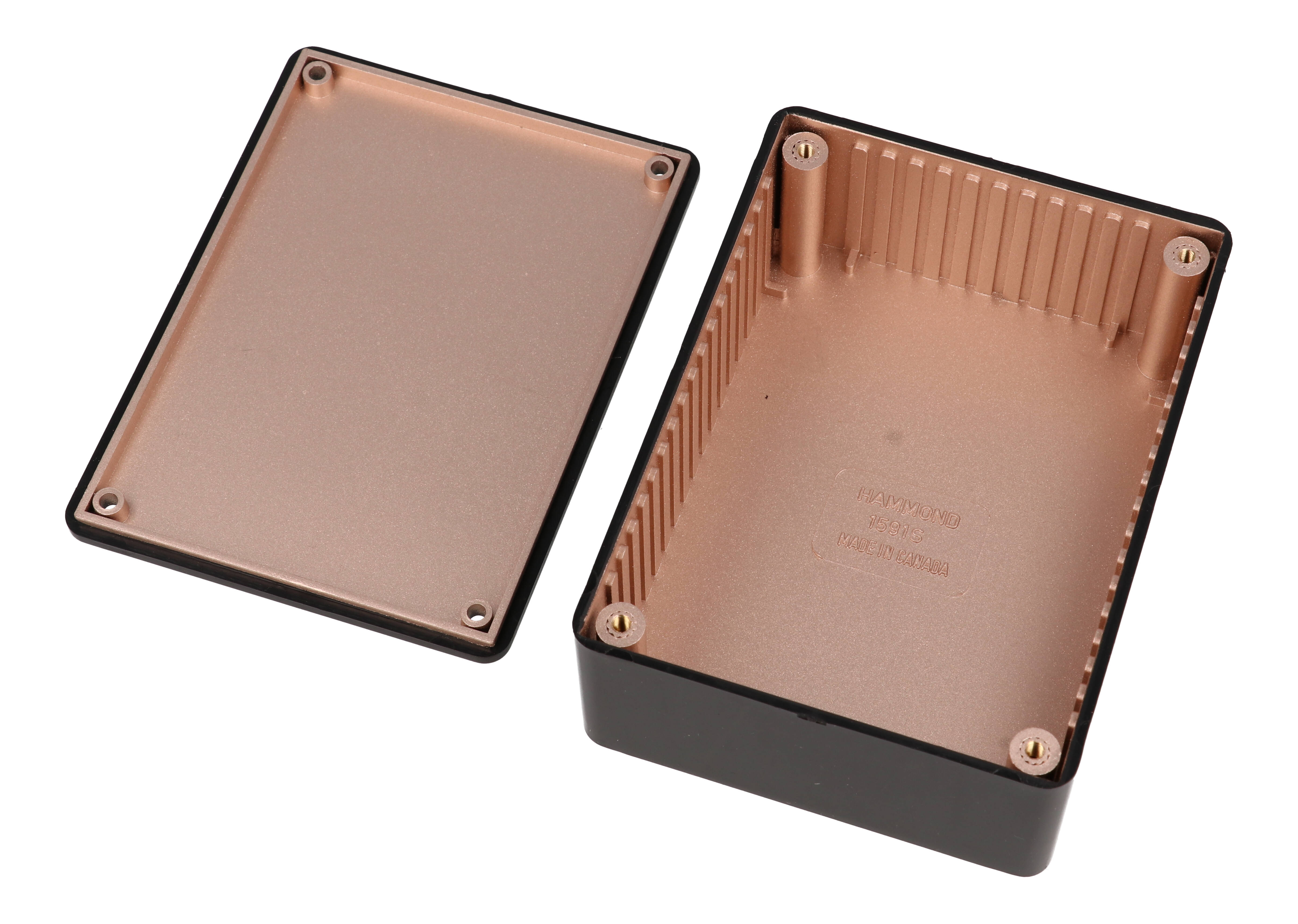

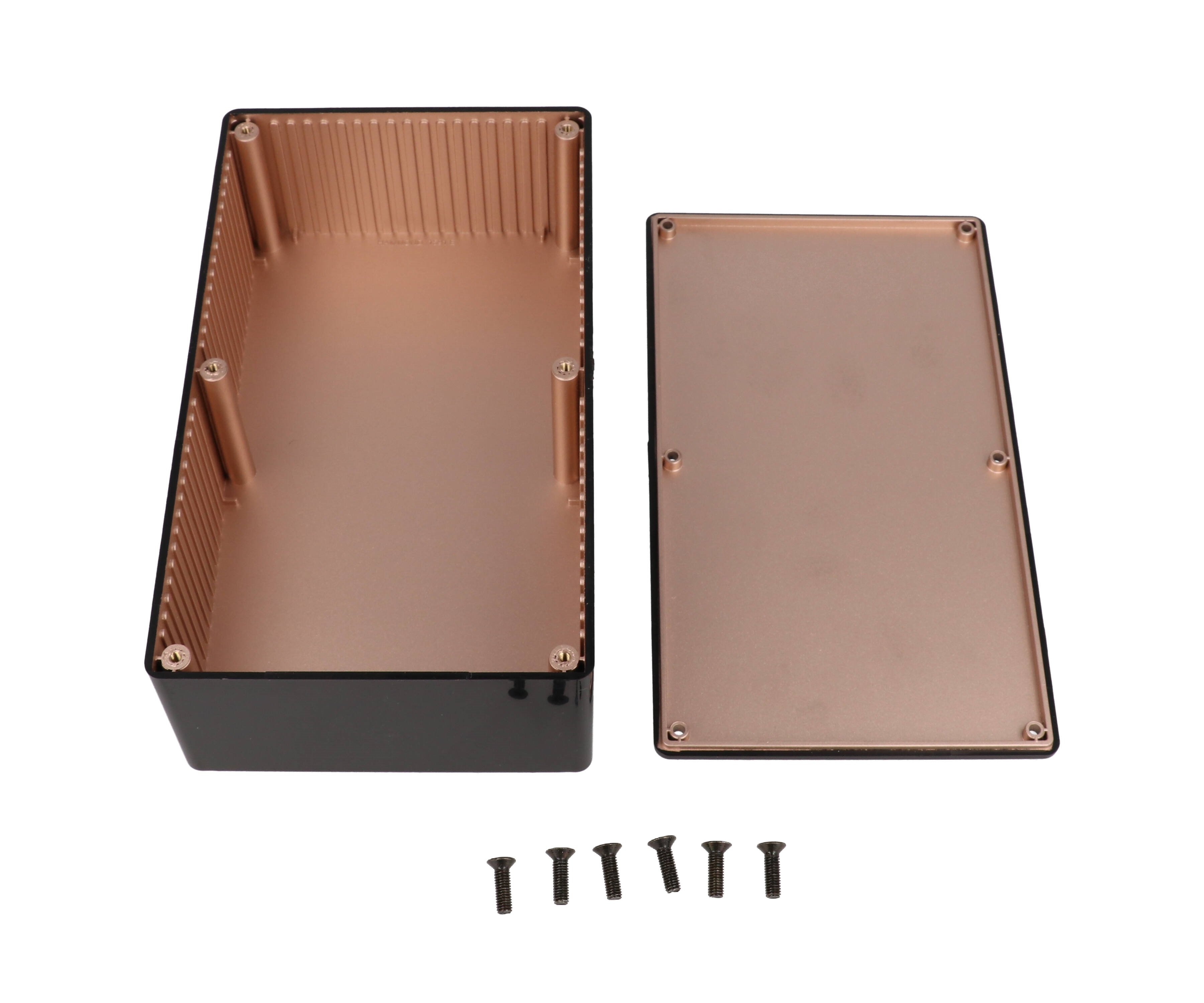

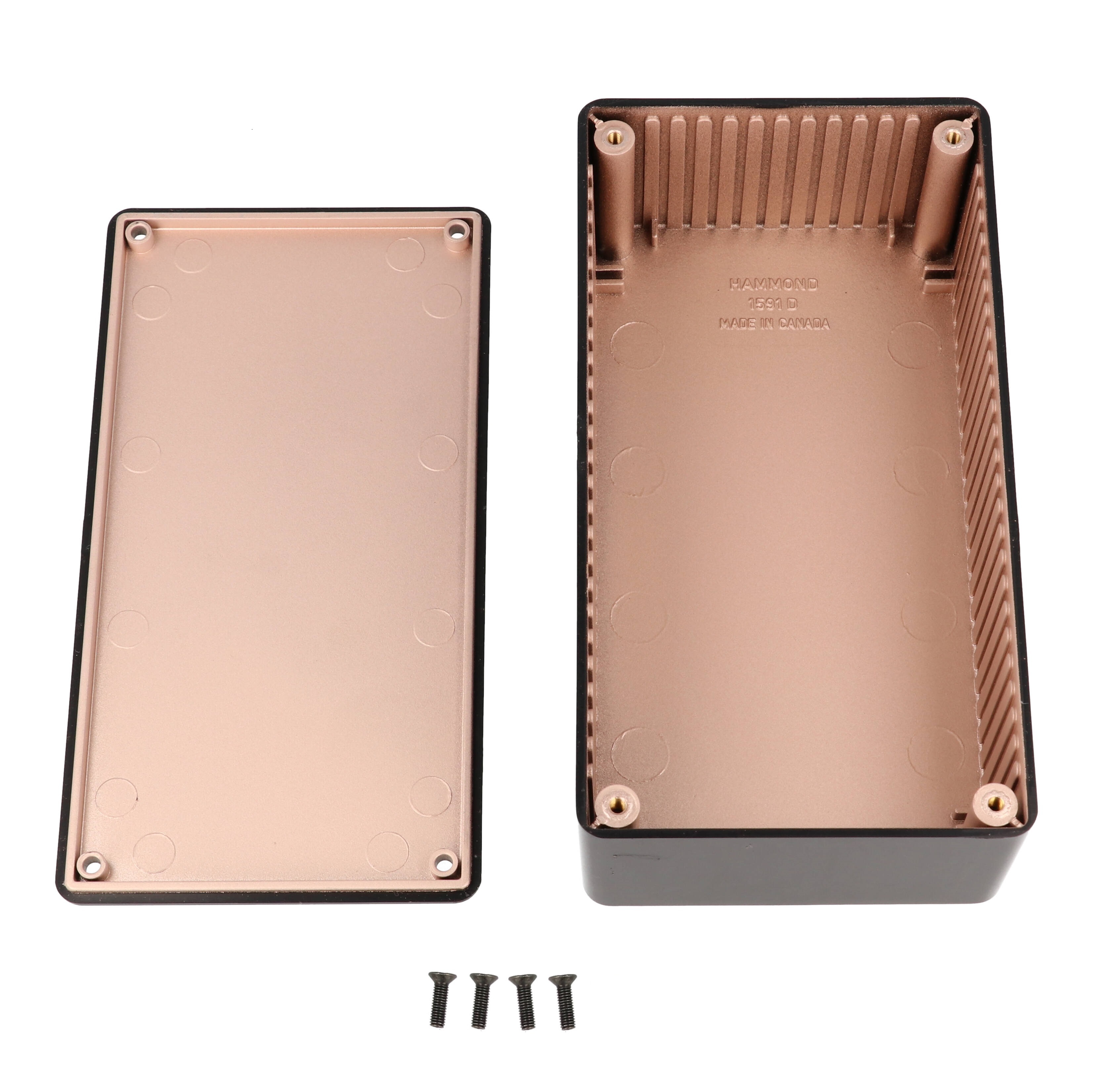

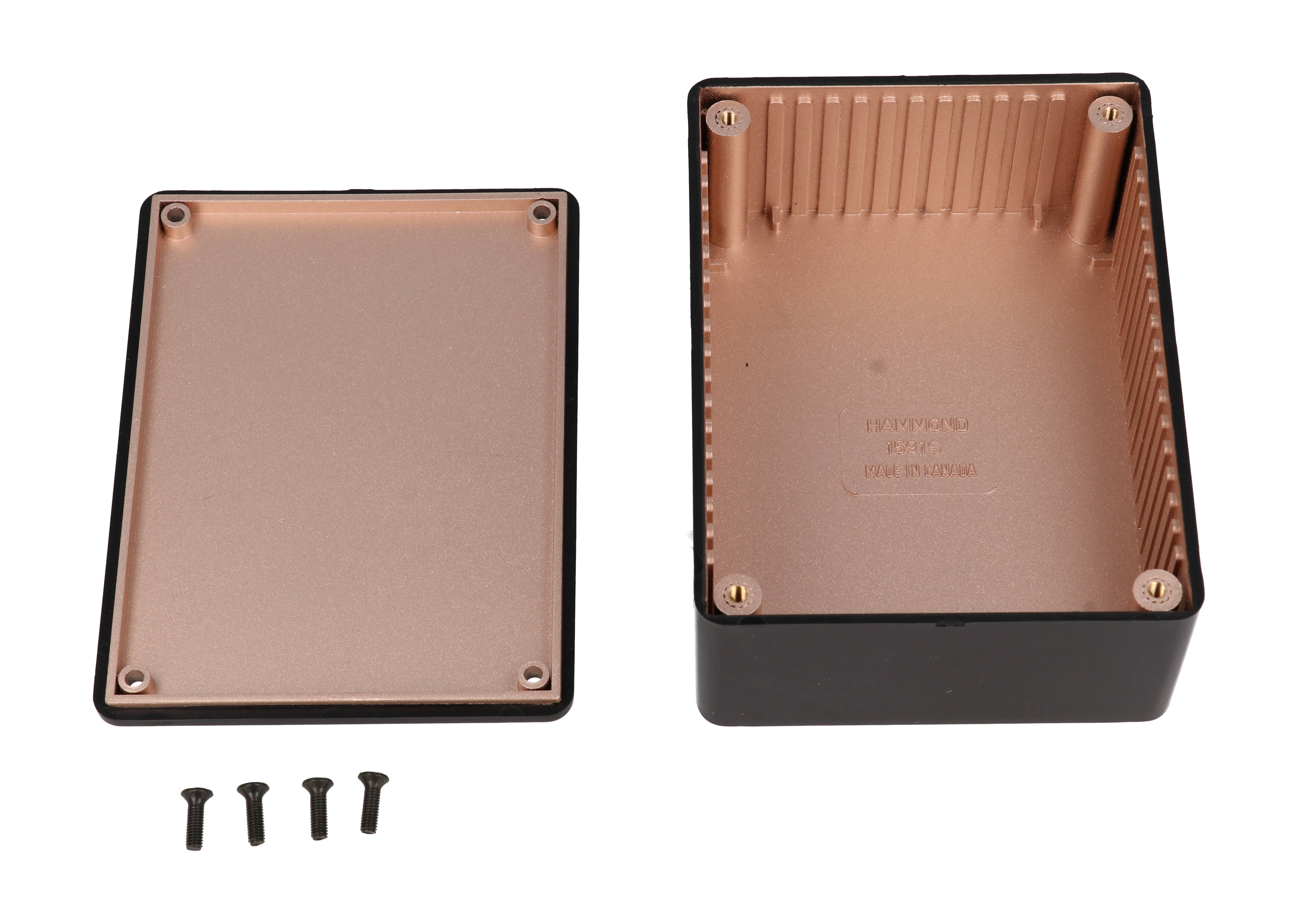

- ■Interior of each enclosure part is specially masked and sprayed with an RFI/EMI copper conductive coating (see photo above).
- ■Coating manufacturer specifies an attenuation of more than 75 db from 1 Mhz. to 1 Ghz.
- ■Designed to meet IP54.
- ■Lid is secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
from $1.32
22 of 23 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1591R Series part number
Filter 13 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
13 of 13 part numbers · 12 priced online
Plstc Case Emirfi
- Type EMI/ RFI Shielded
$16.52In stock
Buy now
Plstc Case Emirfi
- Type EMI/ RFI Shielded
$18.18In stock
Buy now
Plstc Case Emirfi
- Type EMI/ RFI Shielded
$19.83In stock
Buy now
Plstc Case Emirfi
- Type EMI/ RFI Shielded
$23.14In stock
Buy now
Plstc Case Emirfi
- Type EMI/ RFI Shielded
$24.79Backorder
Buy now
Plstc Case Emirfi
- Type EMI/ RFI Shielded
$23.14In stock
Buy now
Plstc Case Emirfi
- Type EMI/ RFI Shielded
$23.14In stock
Buy now
Plstc Case Emirfi
- Type EMI/ RFI Shielded
$18.18In stock
Buy now
Plstc Case Emirfi
- Type EMI/ RFI Shielded
$21.49In stock
Buy now
Plstc Case Emirfi
- Type EMI/ RFI Shielded
$21.49In stock
Buy now
Plstc Case Emirfi
- Type EMI/ RFI Shielded
$23.14In stock
Buy now
Plstc Case Emirfi
- Type EMI/ RFI Shielded
$24.79In stock
Buy nowDimension tables (inches / mm)
Enclosures
Units shown: mm . Switch units to: inch
| Part Number | Color | Length | Width | Depth | Flange Kit (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|
| 1591RLBK | Black | 85 | 56 | 39 | 1591FLBK | $18.18In stock1591RLBK | Buy now |
| 1591RABK | Black | 100 | 50 | 25 | 1591FABK | $16.52In stock1591RABK | Buy now |
| 1591RSBK | Black | 110 | 82 | 44 | 1591FSBK | $21.49In stock1591RSBK | Buy now |
| 1591RBBK | Black | 112 | 62 | 31 | 1591FBBK | $18.18In stock1591RBBK | Buy now |
| 1591RCBK | Black | 120 | 65 | 40 | 1591FCBK | $19.83In stock1591RCBK | Buy now |
| 1591RTBK | Black | 120 | 80 | 59 | 1591FTBK | $21.49In stock1591RTBK | Buy now |
| 1591RUBK | Black | 120 | 120 | 59 | 1591FUBK | $23.14In stock1591RUBK | Buy now |
| 1591RVBK | Black | 120 | 120 | 94 | 1591FUBK | $24.79In stock1591RVBK | Buy now |
| 1591RGBK | Black | 120.5 | 94 | 34 | 1591FGBK | $23.14In stock1591RGBK | Buy now |
| 1591RDBK | Black | 150 | 80 | 50 | 1591FDBK | $23.14In stock1591RDBK | Buy now |
| 1591RHBK | Black | 166 | 71 | 29 | 1591FHBK | $23.14In stock1591RHBK | Buy now |
| 1591REBK | Black | 190 | 111 | 61 | 1591FEBK | $24.79Backorder1591REBK | Buy now |
Features:
- ■Ideally suited for vertical mounting of printed circuit boards; internal side walls include molded in card guides.
- ■Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
- ■Interior of each enclosure part is specially masked and sprayed with an RFI/EMI copper conductive coating (see photo above).
- ■Coating manufacturer specifies an attenuation of more than 75 db from 1 Mhz. to 1 Ghz.
- ■Designed to meet IP54.
- ■Lid is secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.

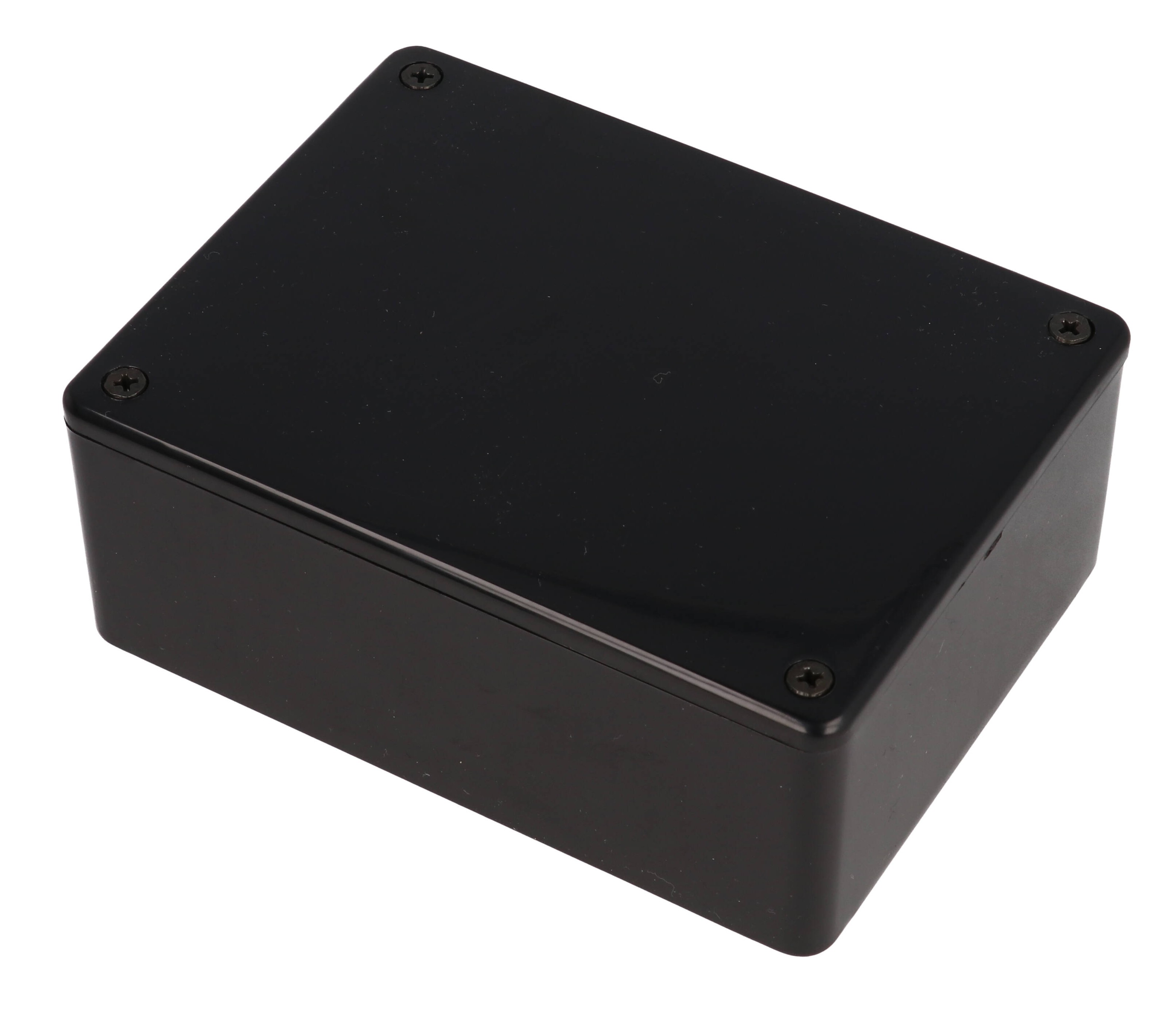

- ■Smooth black finish with black screws.
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
