Hammond 1591RUBK 120x120x59 mm Square EMI/RFI Shielded ABS Enclosure

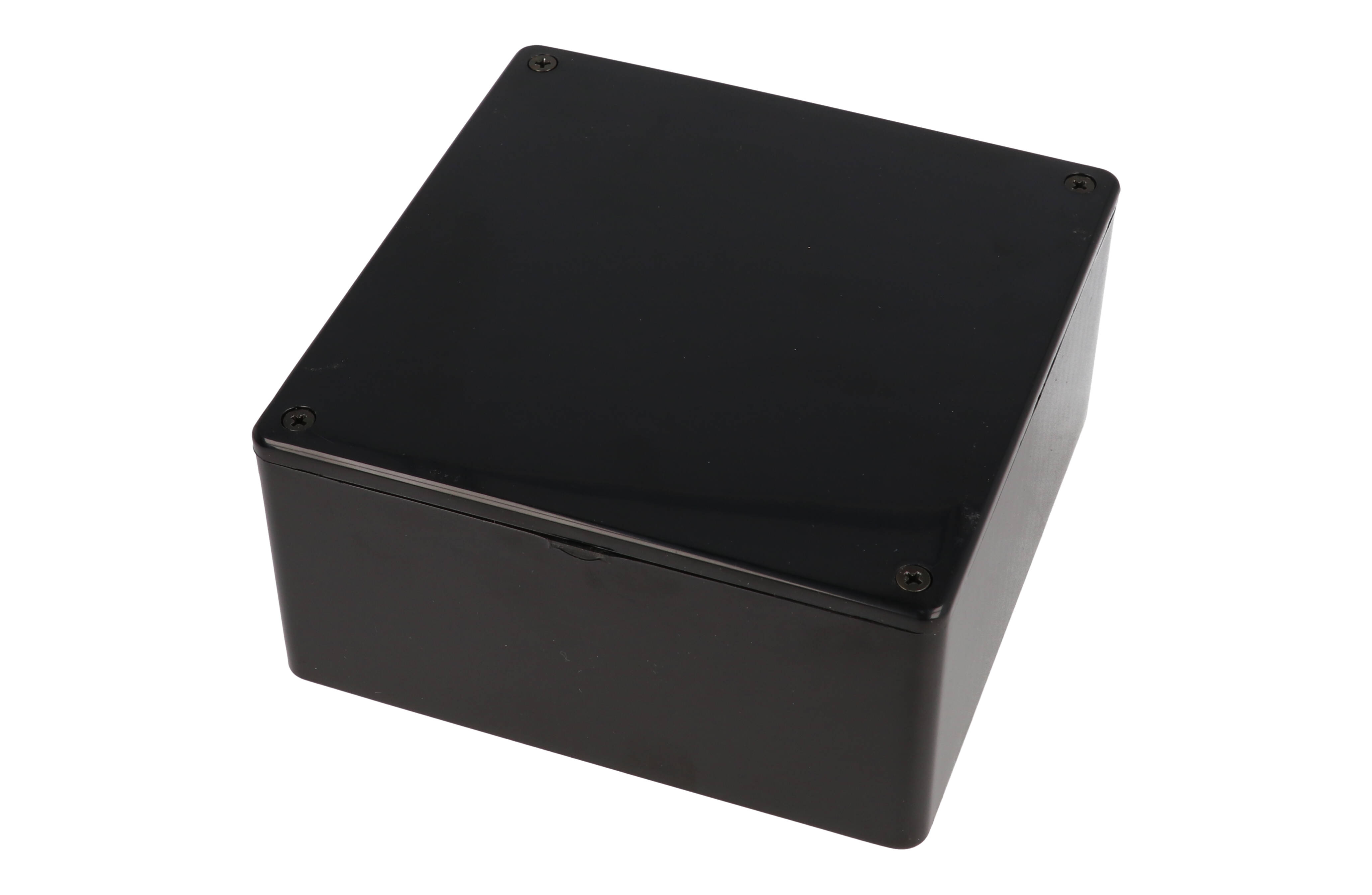

The 1591RUBK is a square 120 x 120 x 59 mm black ABS enclosure with an EMI/RFI copper conductive coating sprayed on its interior. The square footprint gives engineers a shielded case for wider or square printed circuit boards and small electronic assemblies.

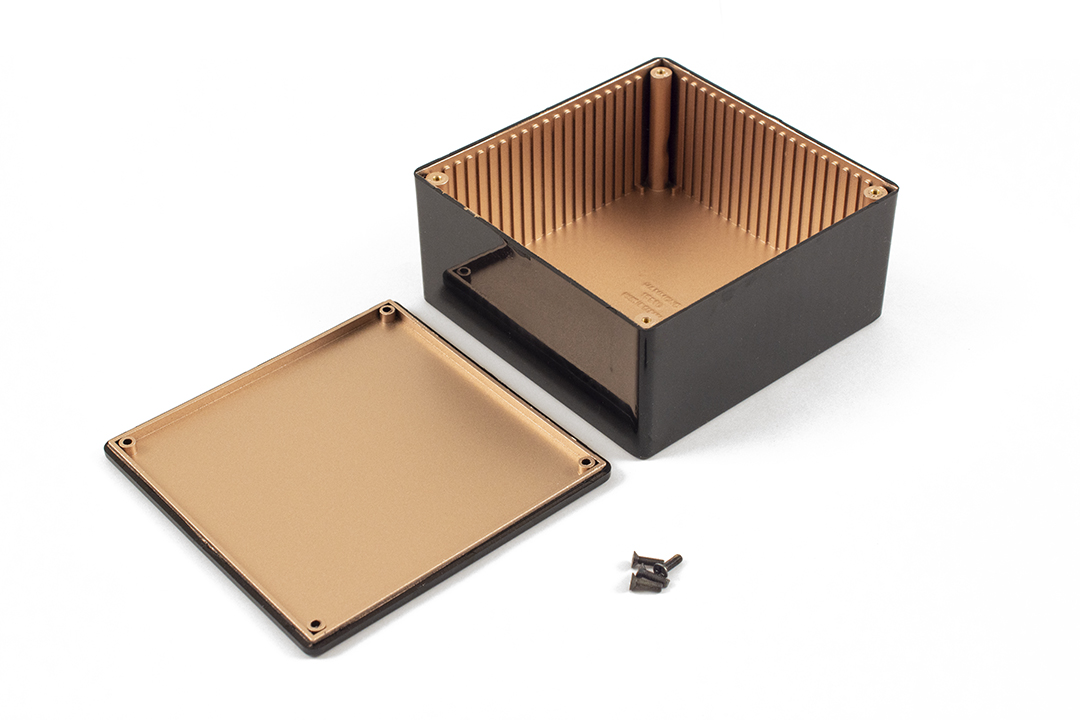

Each enclosure part is molded from flame retardant ABS plastic, a material carrying a UL flammability rating of 94V-0, in a smooth black finish with black screws. The interior of each part is specially masked and sprayed with an RFI/EMI copper conductive coating, and the coating manufacturer specifies an attenuation of more than 75 dB from 1 MHz to 1 GHz. The enclosure is designed to meet IP54 and is listed as RoHS and REACH compliant.

The nominal size is 120 x 120 x 59 mm, and the drawing gives overall dimensions of 120.00 x 120.00 x 59.00 mm. Inside, it offers 113.54 x 113.54 mm of length and width with 54.90 mm of height, suiting square boards mounted in the card guides. Internal side walls include molded-in card guides with a guide height of 49.90 mm and a slot width of 2.06 mm, making the case well suited to vertical mounting of printed circuit boards.

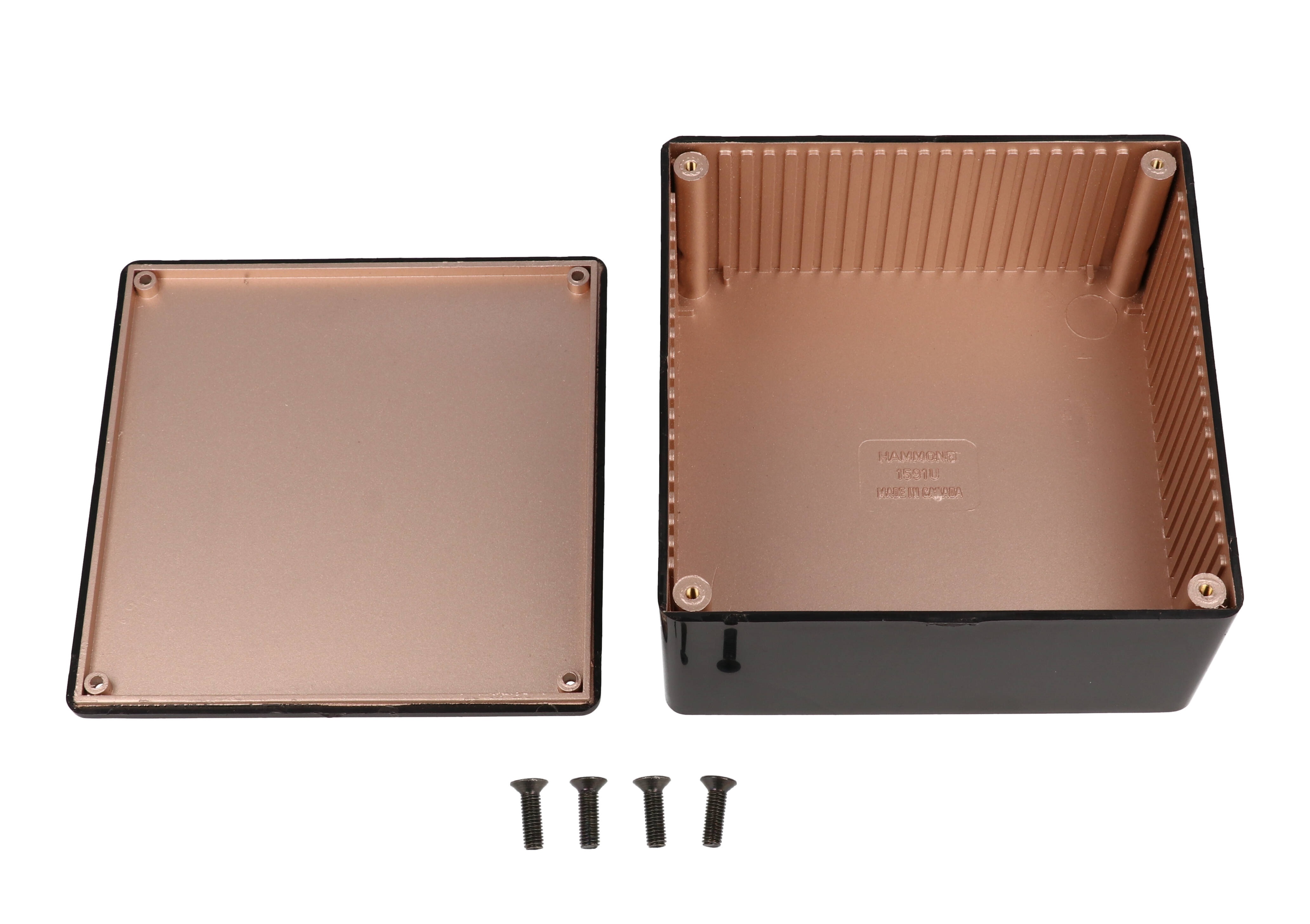

The purchased assembly includes the box, lid, 4 cover screws and pre-installed brass inserts. The lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings, which suits applications where repetitive assembly and disassembly are required; recommended torque is 35.5-42.5 ozf.in (25-30 cN.m). The matching plastic flange kit for the 1591RUBK is 1591FUBK. Some chemicals can damage or weaken plastic, so check the manufacturer's chemical resistance guidance before using solvents, thread lockers or cutting fluids.
