Hammond 1591RCBK 120x65x40 mm EMI/RFI Shielded Black ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Interior RFI/EMI copper conductive coating
- Coating attenuation over 75 dB from 1 MHz to 1 GHz (coating maker spec)
- 120 x 65 x 40 mm (4.72 x 2.56 x 1.57 in), black
- Flame retardant ABS, UL94 V-0; designed to meet IP54
- Molded card guides for vertical PCB mounting
- M3 x 10 mm machine screws into integral brass bushings
- Optional 1591FCBK plastic flange kit

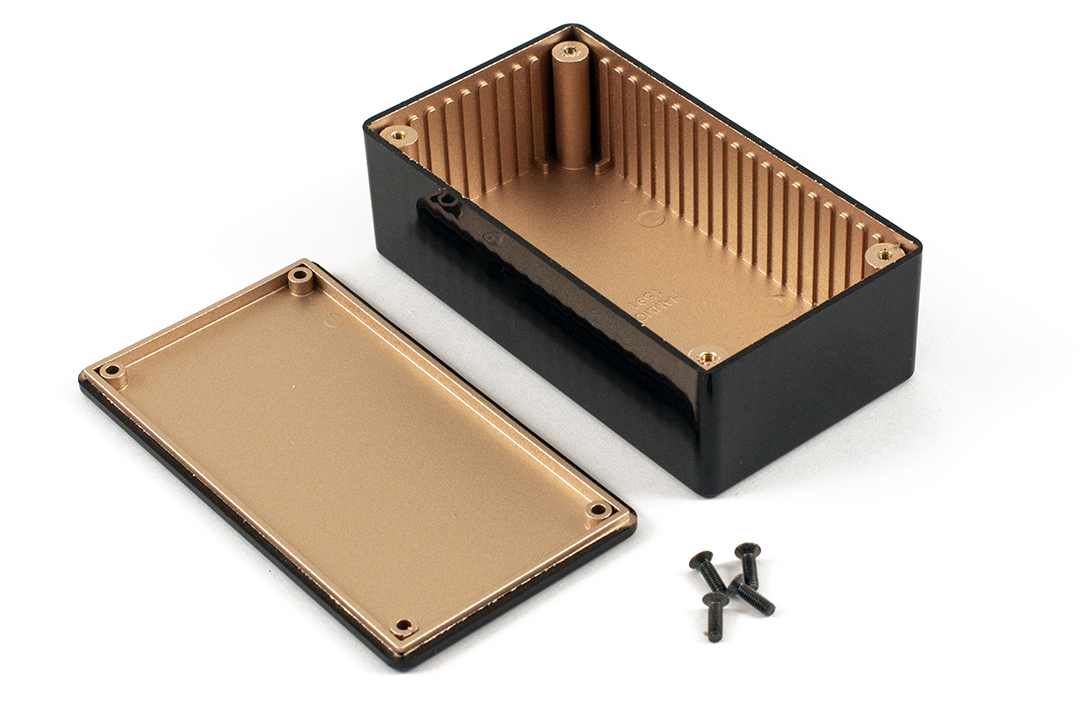

The 1591RCBK is a black flame retardant ABS enclosure measuring 120 x 65 x 40 mm (4.72 x 2.56 x 1.57 in) with an RFI/EMI copper conductive coating inside. It is aimed at electronics engineers and OEMs who need a small plastic case with integral card guides for vertical PCB mounting plus shielding against electromagnetic and radio-frequency interference. With 40 mm of depth it offers more component headroom than the shallower 1591R sizes.

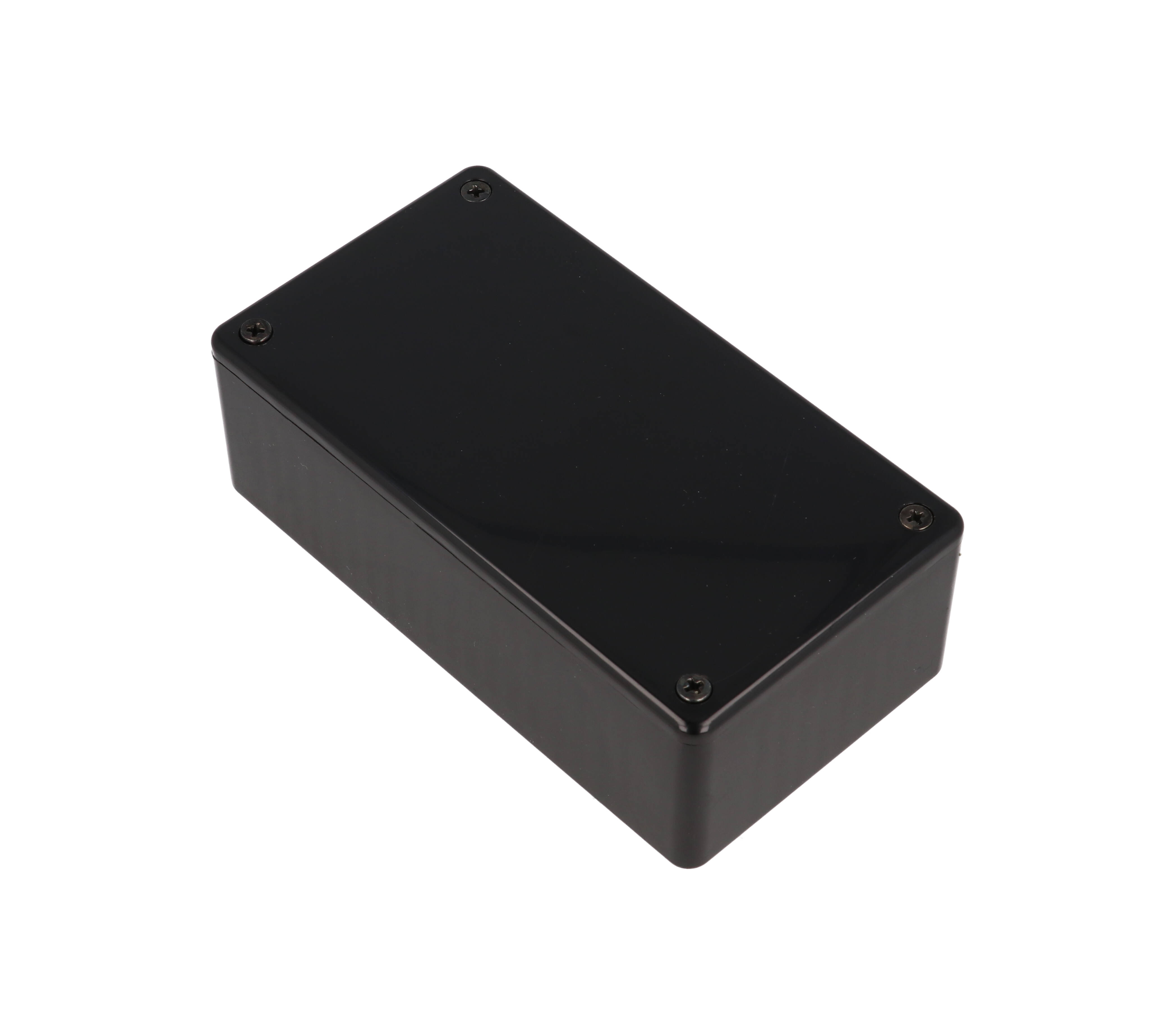

The interior of each enclosure part is specially masked and sprayed with the copper conductive coating, for which the coating manufacturer specifies an attenuation of more than 75 dB from 1 MHz to 1 GHz. The body is molded from flame retardant ABS carrying a UL94 V-0 rating and is designed to meet IP54. It has a smooth black finish with black screws.

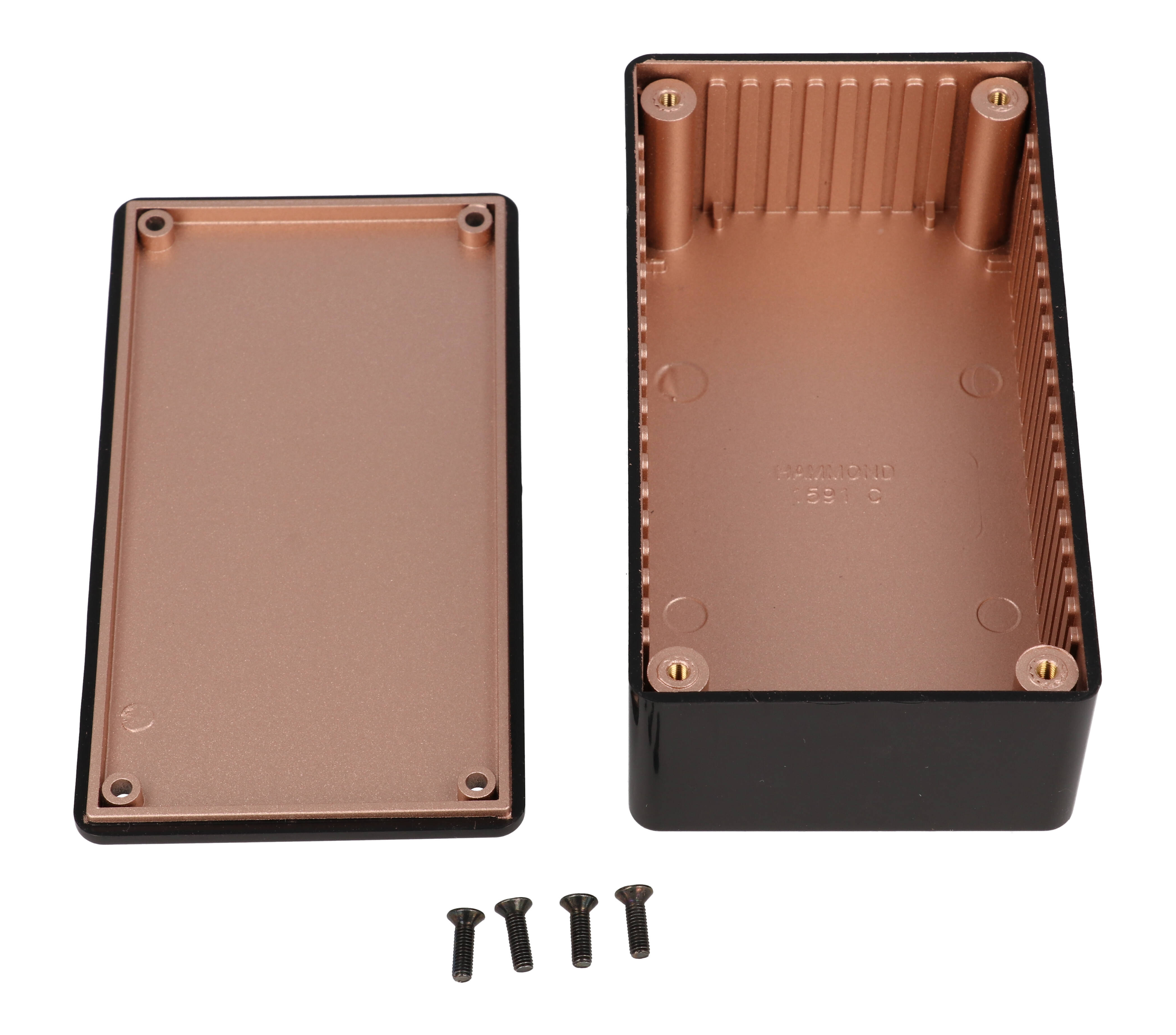

The 1591C body drawing gives inside dimensions of 113.53 mm long, 58.53 mm wide and 35.90 mm high. Molded card guides on the internal side walls have a guide height of 30.91 mm and a slot width of 2.08 mm.
The lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings, suited to repeated assembly and disassembly; the recommended torque is 35.5-42.5 ozf.in (25-30 cN.m). The purchased assembly includes the box, lid, 4 cover screws and pre-installed brass inserts. For surface mounting, the matching plastic flange kit is 1591FCBK.
Ideal For
- Housing circuits that need EMI/RFI shielding
- Vertical PCB mounting in a shielded plastic case
- Repeated-access builds using machine screws into brass bushings
- Designs requiring UL94 V-0 flame retardant plastic
Overview
| Series | 1591R Series Multipurpose ABS Plastic Enclosures, EMI/ RFI Copper Conductive Coating Inside |
| Product Type | Enclosure - plastic, EMI/ RFI Shielded |
| Short Description | PLSTC CASE EMIRFI |
| Base Enclosure Drawing | 1591C enclosure, REV: 06.16.2023 |
Dimensions
| Inside Width | 58.53 mm [2.304 in] |
| Inside Height | 35.90 mm [1.413 in] |
| Inside Length | 113.53 mm [4.469 in] |
| Nominal Size L X W X H | 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm) |
| Overall Width (Drawing) | 65.00 mm [2.559 in] |
| Overall Height (Drawing) | 39.80 mm [1.567 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
Electrical
| EMI/RFI Shielding | RFI/EMI copper conductive coating sprayed on interior of each enclosure part |
| Attenuation (Coating Manufacturer Spec) | More than 75 dB from 1 MHz to 1 GHz |
Card Guides
| Guide Depth | 1.00 mm [0.039 in] |
| Guide Width | 3.01 mm [0.119 in] |
| Guide Height | 30.91 mm [1.217 in] |
| Guide Slot Width | 2.08 mm [0.082 in] |
Identifiers
| UPC | 623980550725 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.21 lbs (0.10 kg) |
Construction & Finish
| Color | Black |
| Finish | Smooth black finish with black screws |
| Included | Box, lid, 4 cover screws and pre-installed brass inserts |
| Material | ABS Plastic (flame retardant ABS) |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Fastening | M3 x 10 mm Phillips machine screws into integral brass bushings (accepts M3 - 0.5 machine screw) |
| Factory Modification | Milling, drilling, printing etc. available from factory |
| Recommended Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Compatible Accessories
| Flange Kit | 1591FCBK |
| Replacement Cover Screws | 1591MS100 (silver) / 1591MS100BK (black), M3 - 0.5 x 10 mm, 100 pack |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1591RCBK shielded?▾
The interior of each enclosure part is masked and sprayed with an RFI/EMI copper conductive coating. The coating manufacturer specifies more than 75 dB attenuation from 1 MHz to 1 GHz.
What are the dimensions?▾
Nominal size is 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm). Inside it measures 113.53 mm [4.469 in] x 58.53 mm [2.304 in] with 35.90 mm [1.413 in] of height.
Is it flame retardant?▾
Yes, it is molded from flame retardant ABS with a UL94 V-0 rating.
How is it mounted?▾
The enclosure can be fitted with the 1591FCBK plastic flange kit, listed as its flange accessory.
What is included?▾
The purchased assembly includes the box, lid, 4 cover screws and pre-installed brass inserts.
What IP rating does it meet?▾
It is designed to meet IP54.
