Hammond 1591RABK 100x50x25 mm EMI/RFI Shielded Black ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Interior RFI/EMI copper conductive coating
- Coating attenuation over 75 dB from 1 MHz to 1 GHz (coating maker spec)
- 100 x 50 x 25 mm (3.94 x 1.97 x 0.98 in), black
- Flame retardant ABS, UL94 V-0; designed to meet IP54
- Molded card guides for vertical PCB mounting
- M3 x 10 mm machine screws into integral brass bushings
- Optional 1591FABK plastic flange kit

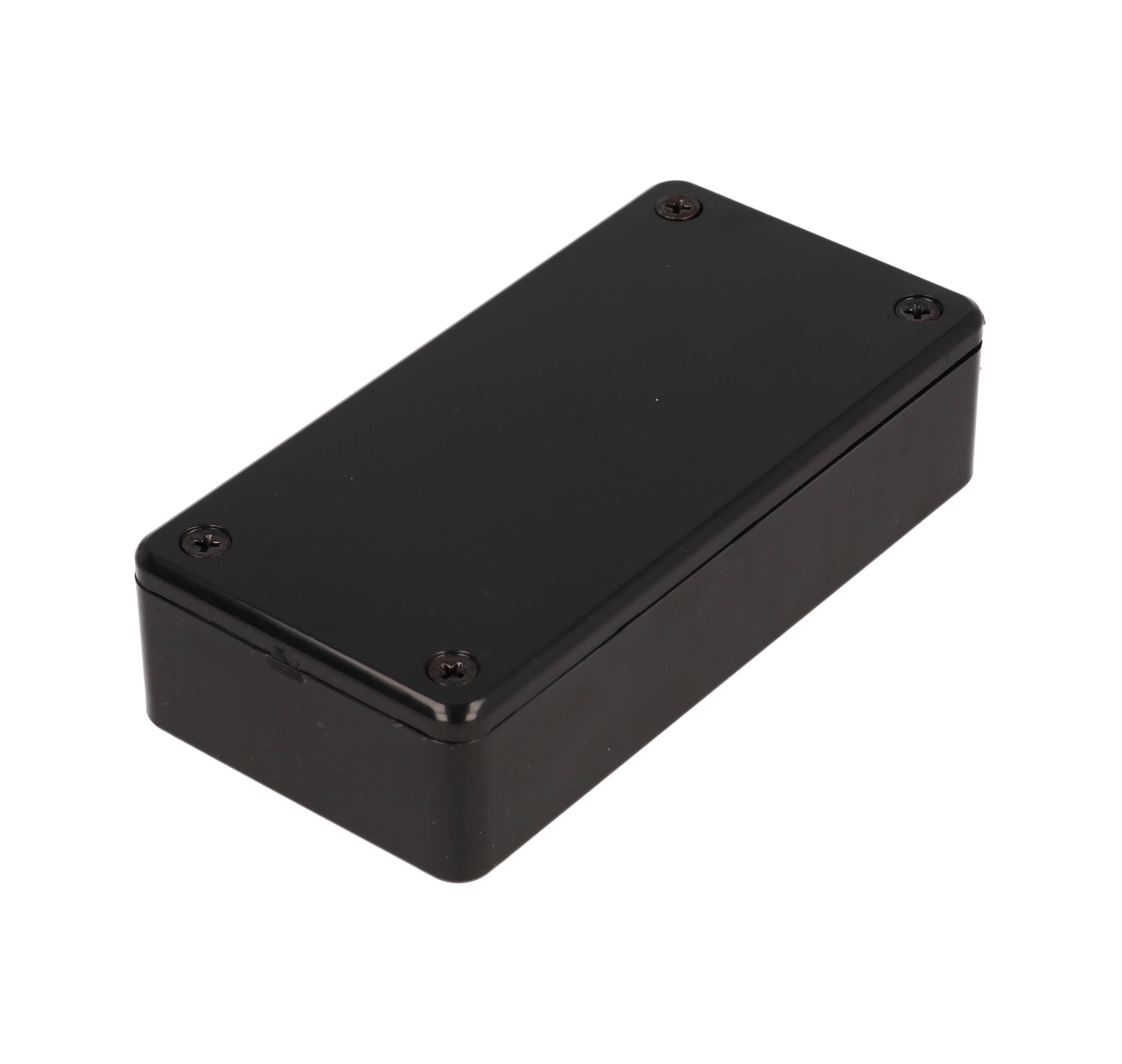

The 1591RABK is a black flame retardant ABS enclosure measuring 100 x 50 x 25 mm (3.94 x 1.97 x 0.98 in) with an RFI/EMI copper conductive coating inside. It is aimed at electronics engineers and OEMs who need a small plastic case with integral card guides for vertical PCB mounting plus shielding against electromagnetic and radio-frequency interference. At 25 mm deep it is a shallow, compact shielded case.

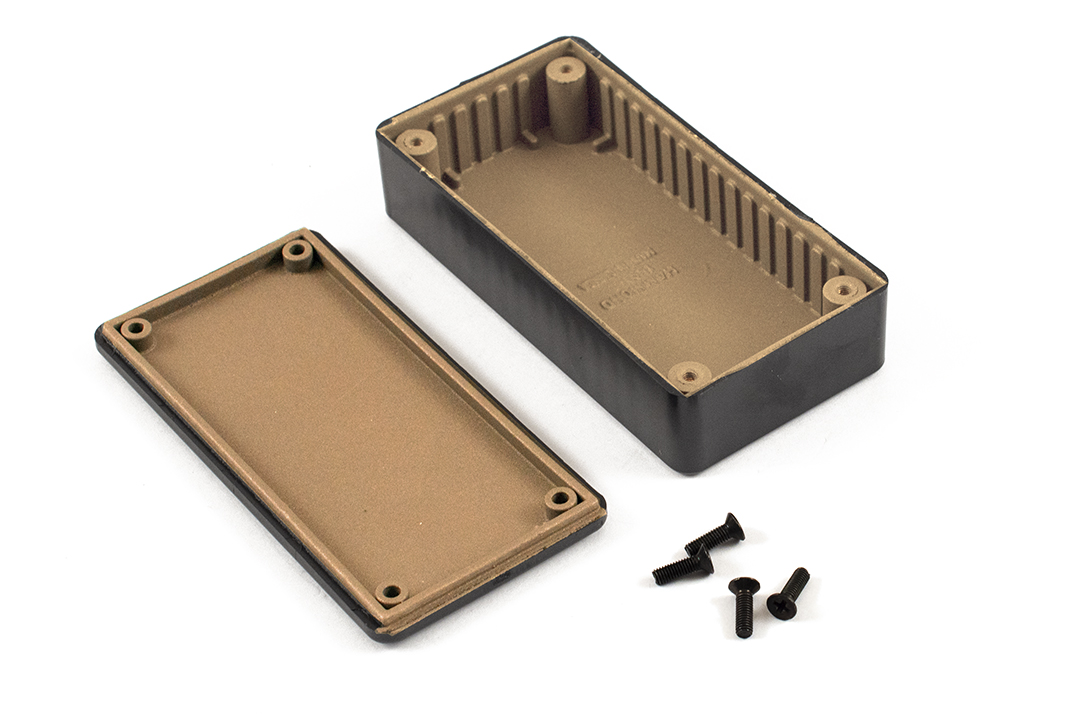

The interior of each enclosure part is specially masked and sprayed with the copper conductive coating, for which the coating manufacturer specifies an attenuation of more than 75 dB from 1 MHz to 1 GHz. The body is molded from flame retardant ABS carrying a UL94 V-0 rating and is designed to meet IP54. It has a smooth black finish with black screws.

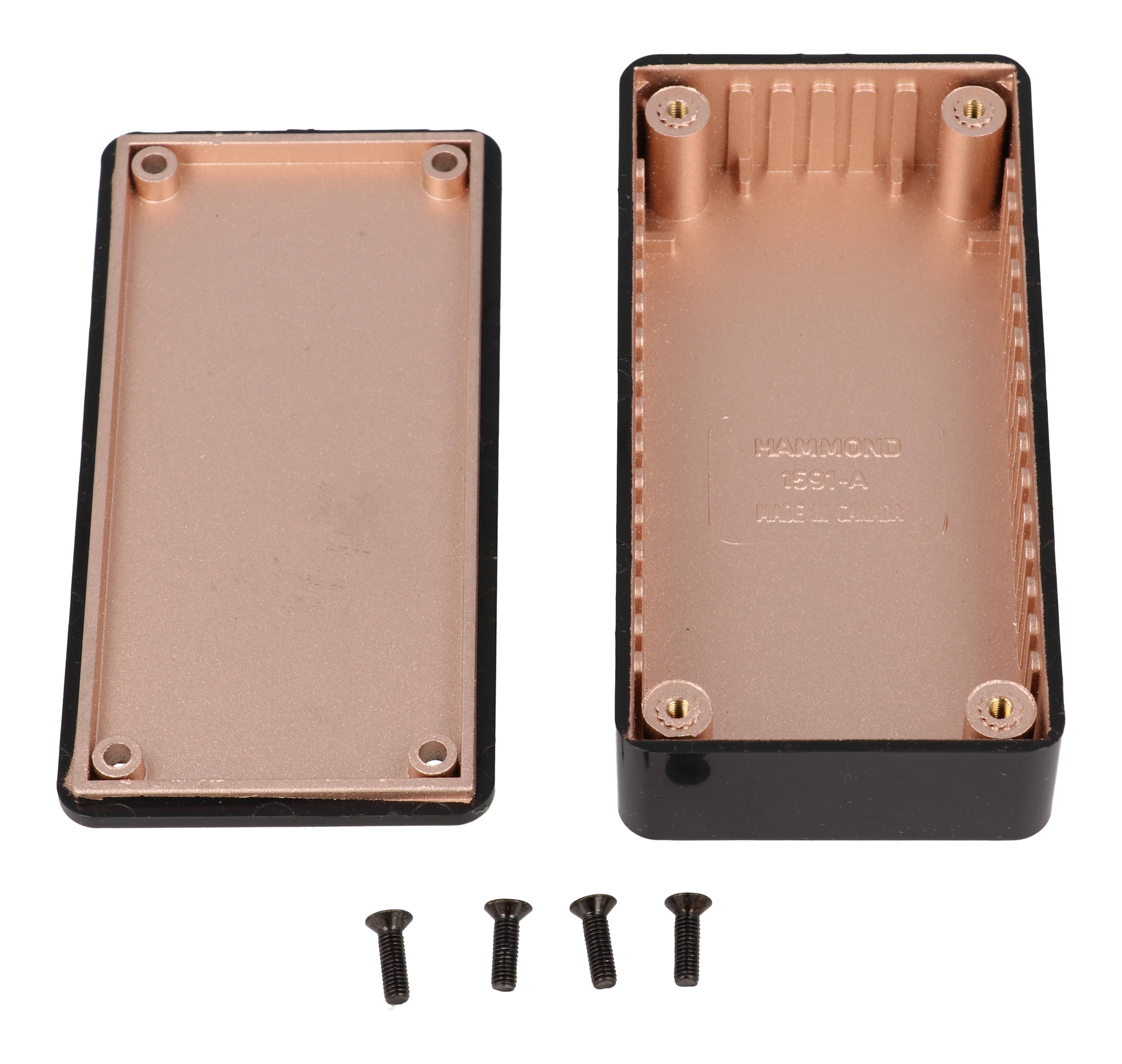

The 1591A body drawing gives inside dimensions of 93.83 mm long, 43.83 mm wide and 20.90 mm high. Molded card guides on the internal side walls have a guide height of 15.90 mm and a slot width of 2.07 mm.
The lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings, suited to repeated assembly and disassembly; the recommended torque is 35.5-42.5 ozf.in (25-30 cN.m). The purchased assembly includes the box, lid, 4 cover screws and pre-installed brass inserts. For surface mounting, the matching plastic flange kit is 1591FABK.
Ideal For
- Housing circuits that need EMI/RFI shielding
- Vertical PCB mounting in a shielded plastic case
- Repeated-access builds using machine screws into brass bushings
- Designs requiring UL94 V-0 flame retardant plastic
Overview
| Series | 1591R Series Multipurpose ABS Plastic Enclosures, EMI/ RFI Copper Conductive Coating Inside |
| Product Type | Enclosure - plastic, EMI/ RFI Shielded |
| Short Description | PLSTC CASE EMIRFI |
| Base Enclosure Drawing | 1591A enclosure, REV: 06.16.2023 |
Dimensions
| Inside Width | 43.83 mm [1.726 in] |
| Inside Height | 20.90 mm [0.823 in] |
| Inside Length | 93.83 mm [3.694 in] |
| Nominal Size L X W X H | 3.94 in x 1.97 in x 0.98 in (100 mm x 50 mm x 25 mm) |
| Overall Width (Drawing) | 50.00 mm [1.969 in] |
| Overall Height (Drawing) | 24.80 mm [0.976 in] |
| Overall Length (Drawing) | 100.00 mm [3.937 in] |
Electrical
| EMI/RFI Shielding | RFI/EMI copper conductive coating sprayed on interior of each enclosure part |
| Attenuation (Coating Manufacturer Spec) | More than 75 dB from 1 MHz to 1 GHz |
Card Guides
| Guide Depth | 1.00 mm [0.039 in] |
| Guide Width | 3.00 mm [0.118 in] |
| Guide Height | 15.90 mm [0.626 in] |
| Guide Slot Width | 2.07 mm [0.082 in] |
Identifiers
| UPC | 623980550619 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.12 lbs (0.05 kg) |
Construction & Finish
| Color | Black |
| Finish | Smooth black finish with black screws |
| Included | Box, lid, 4 cover screws and pre-installed brass inserts |
| Material | ABS Plastic (flame retardant ABS) |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Fastening | M3 x 10 mm Phillips machine screws into integral brass bushings (accepts M3 - 0.5 machine screw) |
| Factory Modification | Milling, drilling, printing etc. available from factory |
| Recommended Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Compatible Accessories
| Flange Kit | 1591FABK |
| Replacement Cover Screws | 1591MS100 (silver) / 1591MS100BK (black), M3 - 0.5 x 10 mm, 100 pack |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1591RABK shielded?▾
The interior of each enclosure part is masked and sprayed with an RFI/EMI copper conductive coating. The coating manufacturer specifies more than 75 dB attenuation from 1 MHz to 1 GHz.
What are the dimensions?▾
Nominal size is 3.94 in x 1.97 in x 0.98 in (100 mm x 50 mm x 25 mm). Inside it measures 93.83 mm [3.694 in] x 43.83 mm [1.726 in] with 20.90 mm [0.823 in] of height.
Is it flame retardant?▾
Yes, it is molded from flame retardant ABS with a UL94 V-0 rating.
How is it mounted?▾
The enclosure can be fitted with the 1591FABK plastic flange kit, listed as its flange accessory.
What is included?▾
The purchased assembly includes the box, lid, 4 cover screws and pre-installed brass inserts.
What IP rating does it meet?▾
It is designed to meet IP54.
