Hammond 1591RHBK 166x71x29 mm Slim EMI/RFI Shielded ABS Enclosure

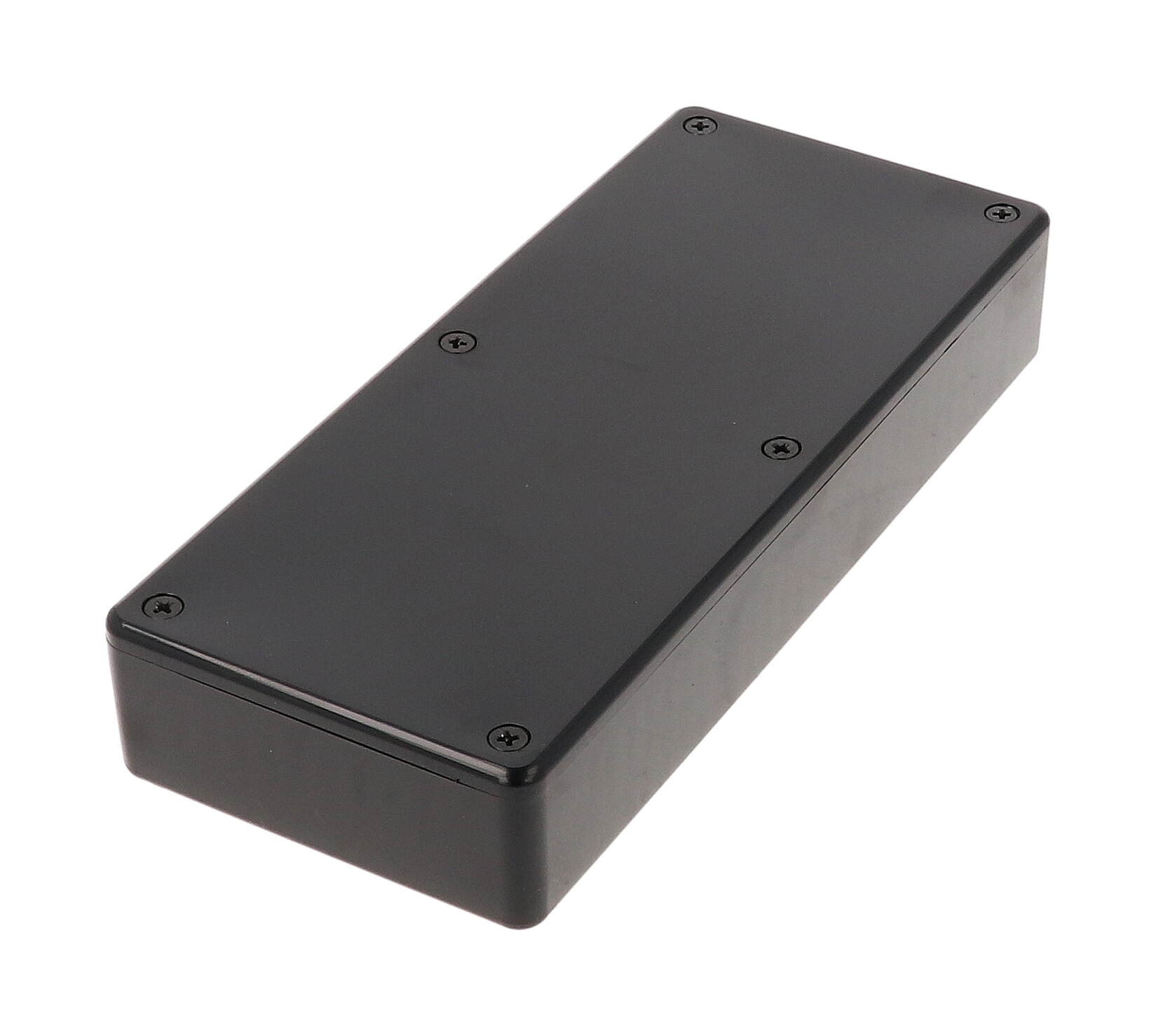

The 1591RHBK is a long, narrow 166 x 71 x 29 mm black ABS enclosure with an EMI/RFI copper conductive coating on its interior surfaces. Its elongated shape suits engineers housing slim, lengthy circuit boards that need shielding in a thin case.

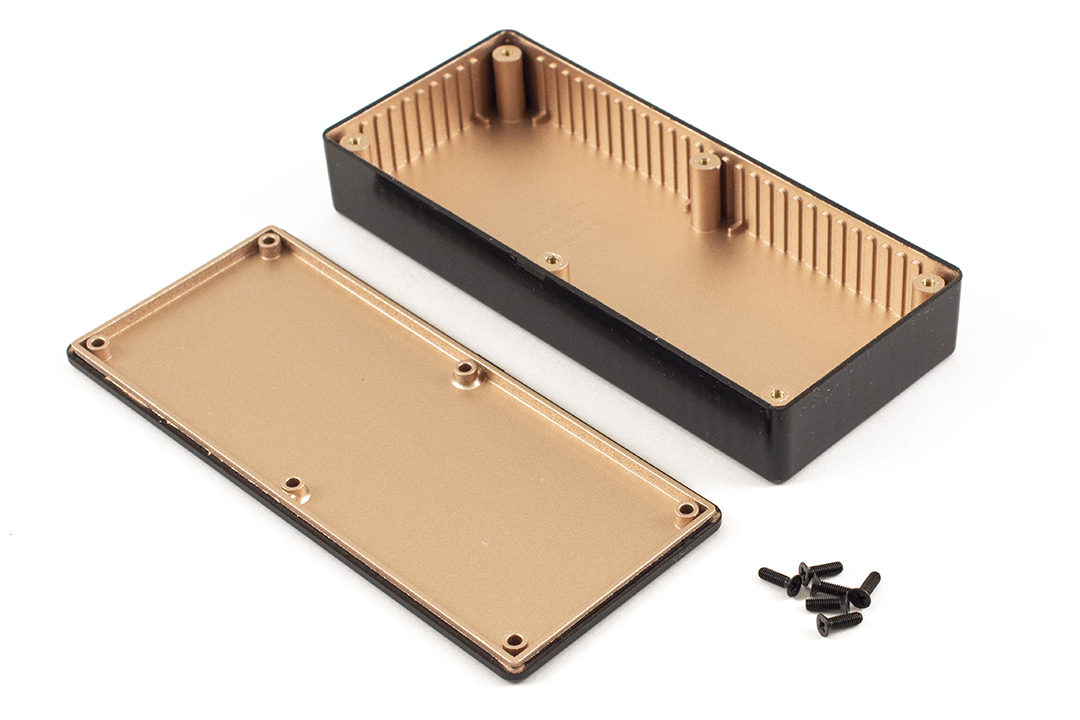

Each enclosure part is molded from flame retardant ABS plastic, a material carrying a UL flammability rating of 94V-0, in a smooth black finish with black screws. The interior of each part is specially masked and sprayed with an RFI/EMI copper conductive coating, and the coating manufacturer specifies an attenuation of more than 75 dB from 1 MHz to 1 GHz. The enclosure is designed to meet IP54 and is listed as RoHS and REACH compliant.

The nominal size is 166 x 71 x 29 mm, and the drawing gives overall dimensions of 165.70 x 70.80 x 29.00 mm. The inside length of 159.70 mm with an inside width of 64.80 mm and inside height of 25.00 mm fits long, narrow boards. Internal side walls include molded-in card guides with a guide height of 20.00 mm and a slot width of 2.00 mm, making the case well suited to vertical mounting of printed circuit boards.

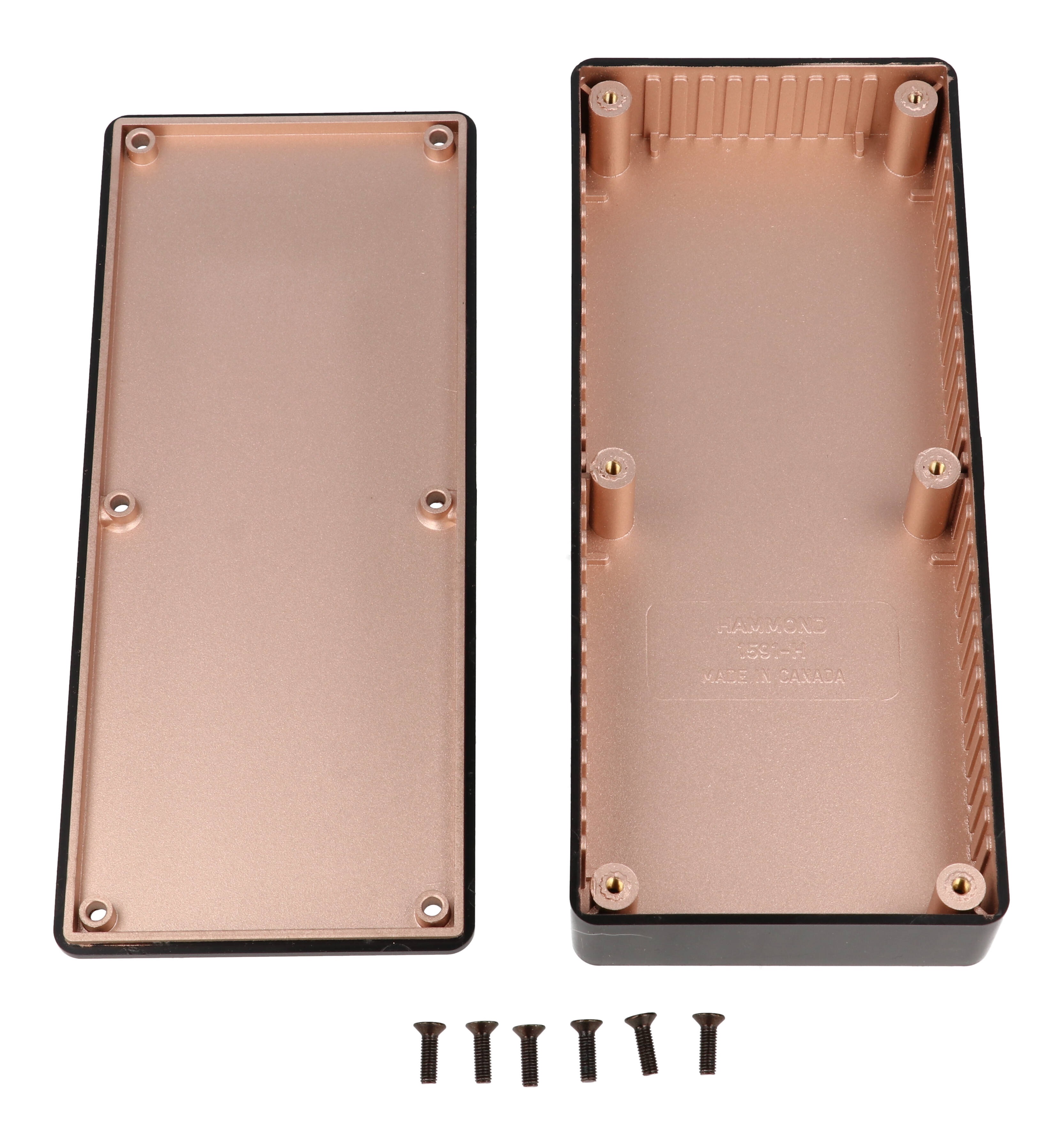

The purchased assembly includes the box, lid, 6 cover screws and pre-installed brass inserts. The lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings, which suits applications where repetitive assembly and disassembly are required; recommended torque is 35.5-42.5 ozf.in (25-30 cN.m). The matching plastic flange kit for the 1591RHBK is 1591FHBK. Some chemicals can damage or weaken plastic, so check the manufacturer's chemical resistance guidance before using solvents, thread lockers or cutting fluids.
