NEMA4/12 Wrg TROUGH12L
$104.94In stock
Buy now
Type 4/12 Wiring Trough · 1486 Series
Brand: Hammond Manufacturing · 33 part numbers
- ■Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water.
- ■UL 870 Type 1, 12, 4
- ■CSA Type 1, 12, 4
- ■Complies with NEMA Type 12, 4 IEC 60529, IP66
- ■NEMA Type 12, 4
- ■IEC 60529, IP66
from $104.94
33 of 33 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1486 Series part number
Filter 33 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
33 of 33 part numbers · 33 priced online
NEMA4/12 Wrg TROUGH18L
$113.28In stock
Buy now
NEMA4/12 Wrg TROUGH24L
$120.92Backorder
Buy now
NEMA4/12 Wrg TROUGH30L
$129.95Backorder
Buy now
NEMA4/12 Wrg TROUGH36L
$137.60In stock
Buy now
NEMA4/12 Wrg TROUGH48L
$153.58In stock
Buy now
NEMA4/12 Wrg TROUGH60L
$169.57In stock
Buy now
NEMA4/12 Wrg TROUGH72L
$184.86In stock
Buy now
NEMA4/12 Wrg TROUGH12L
$122.31Backorder
Buy now
NEMA4/12 Wrg TROUGH18L
$137.60In stock
Buy now
NEMA4/12 Wrg TROUGH24L
$152.89In stock
Buy now
NEMA4/12 Wrg TROUGH30L
$168.17Backorder
Buy now
NEMA4/12 Wrg TROUGH36L
$183.47In stock
Buy now
NEMA4/12 Wrg TROUGH48L
$220.99In stock
Buy now
NEMA4/12 Wrg TROUGH60L
$251.57In stock
Buy now
NEMA4/12 Wrg TROUGH72L
$275.20Backorder
Buy now
NEMA4/12 Wrg TROUGH12L
$144.54In stock
Buy now
NEMA4/12 Wrg TROUGH18L
$166.78Backorder
Buy now
NEMA4/12 Wrg TROUGH24L
$189.72In stock
Buy now
NEMA4/12 Wrg TROUGH30L
$211.96Backorder
Buy now
NEMA4/12 Wrg TROUGH36L
$235.59In stock
Buy now
NEMA4/12 Wrg TROUGH48L
$280.76Backorder
Buy now
NEMA4/12 Wrg TROUGH60L
$337.04In stock
Buy now
NEMA4/12 Wrg TROUGH72L
$384.31In stock
Buy now
Type 4/12 Wrg Trough - 8X8X12
$173.04In stock
Buy now
Type 4/12 Wrg Trough - 8X8X24
$228.64Backorder
Buy now
Type 4/12 Wrg Trough - 8X8X36
$291.18Backorder
Buy now
Type 4/12 Wrg Trough - 8X8X48
$362.07In stock
Buy now
Type 4/12 Wrg Trough - 8X8X60
$425.30In stock
Buy now
Type 4/12 Wrg Trough- 12X12X24
$316.20In stock
Buy now
Type 4/12 Wrg Trough- 12X12X36
$407.24In stock
Buy now
Type 4/12 Wrg Trough- 12X12X48
$514.26In stock
Buy now
Type 4/12 Wrg Trough -12X12X60
$593.47Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · D | Enclosure · L | Price | Order |
|---|---|---|---|---|---|

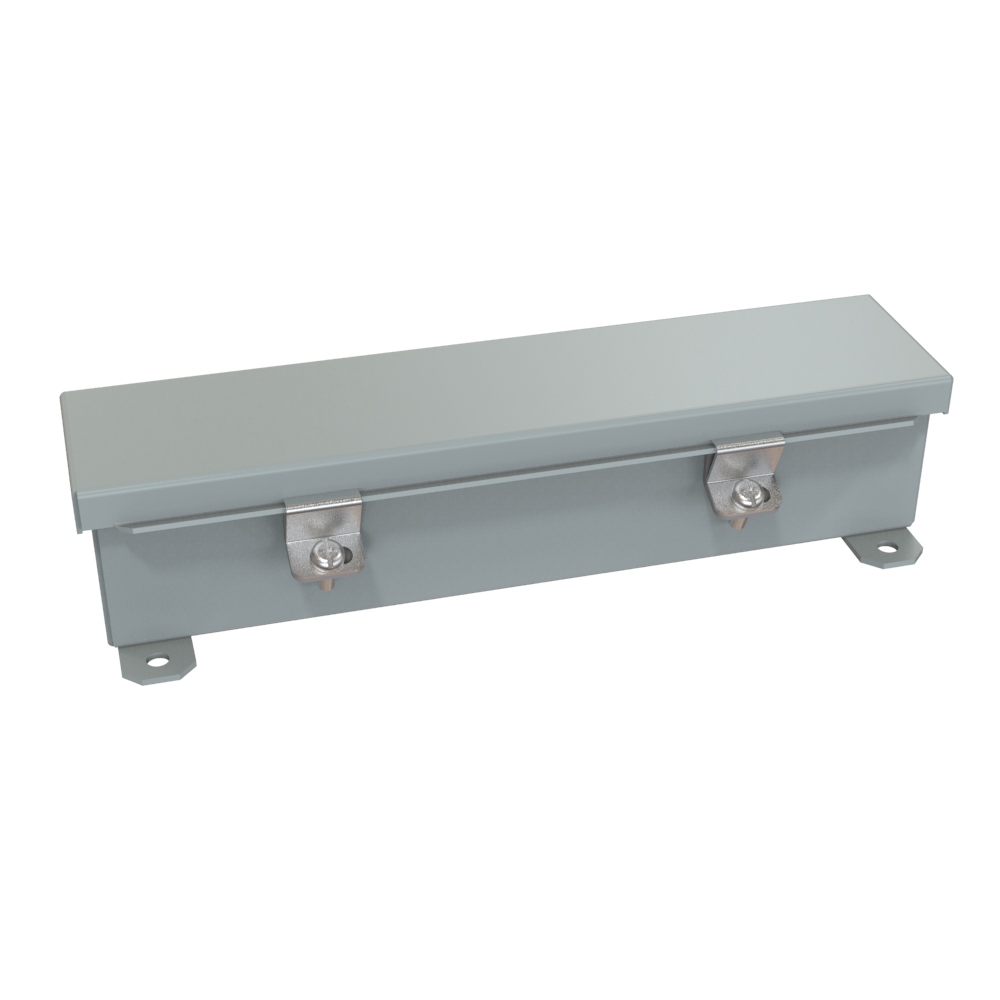

| 1486B12 | 2.50 | 2.50 | 12.00 | $104.94In stock | Buy now |
| 1486B18 | 2.50 | 2.50 | 18.00 | $113.28In stock | Buy now |
| 1486B24 | 2.50 | 2.50 | 24.00 | $120.92Backorder | Buy now |
| 1486B30 | 2.50 | 2.50 | 30.00 | $129.95Backorder | Buy now |
| 1486B36 | 2.50 | 2.50 | 36.00 | $137.60In stock | Buy now |
| 1486B48 | 2.50 | 2.50 | 48.00 | $153.58In stock | Buy now |
| 1486B60 | 2.50 | 2.50 | 60.00 | $169.57In stock | Buy now |
| 1486B72 | 2.50 | 2.50 | 72.00 | $184.86In stock | Buy now |
| 1486C12 | 4.00 | 4.00 | 12.00 | $122.31Backorder | Buy now |

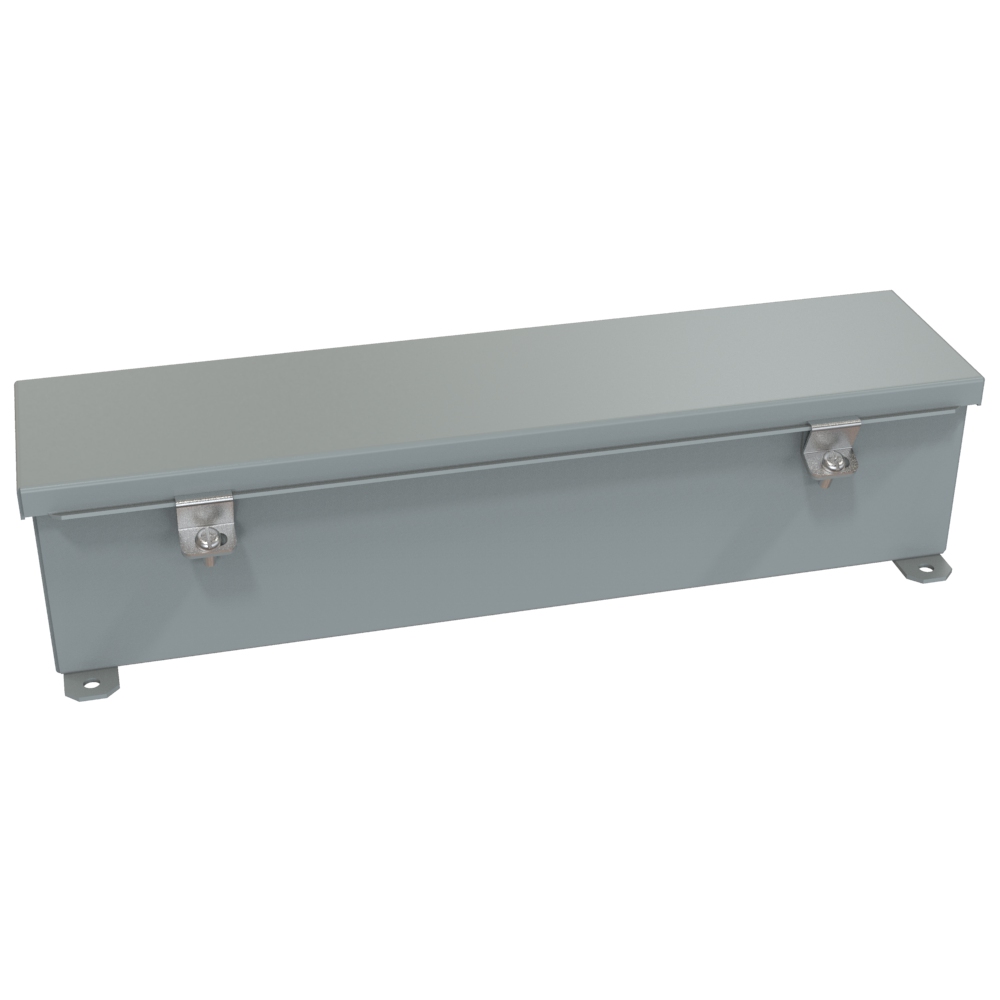

| 1486C18 | 4.00 | 4.00 | 18.00 | $137.60In stock | Buy now |

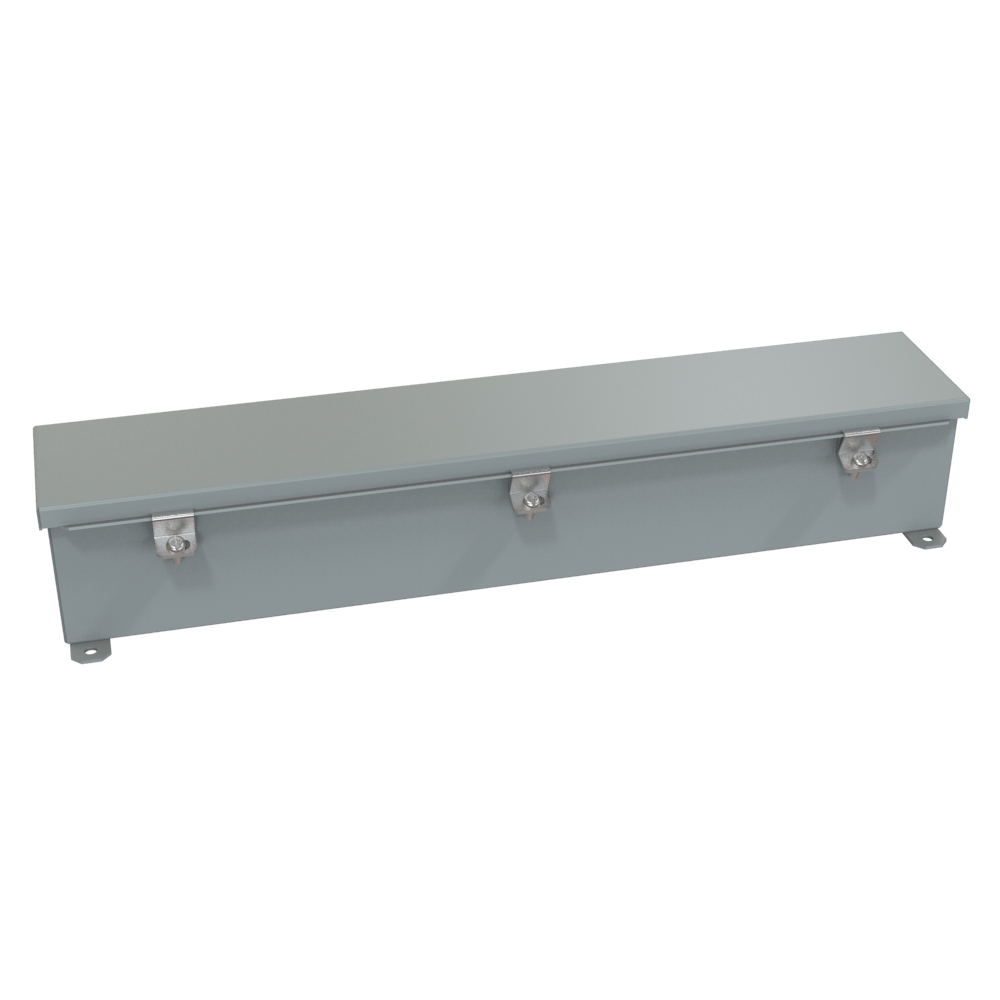

| 1486C24 | 4.00 | 4.00 | 24.00 | $152.89In stock | Buy now |
| 1486C30 | 4.00 | 4.00 | 30.00 | $168.17Backorder | Buy now |
| 1486C36 | 4.00 | 4.00 | 36.00 | $183.47In stock | Buy now |
| 1486C48 | 4.00 | 4.00 | 48.00 | $220.99In stock | Buy now |
| 1486C60 | 4.00 | 4.00 | 60.00 | $251.57In stock | Buy now |
| 1486C72 | 4.00 | 4.00 | 72.00 | $275.20Backorder | Buy now |
| 1486D12 | 6.00 | 6.00 | 12.00 | $144.54In stock | Buy now |
| 1486D18 | 6.00 | 6.00 | 18.00 | $166.78Backorder | Buy now |
| 1486D24 | 6.00 | 6.00 | 24.00 | $189.72In stock | Buy now |
| 1486D30 | 6.00 | 6.00 | 30.00 | $211.96Backorder | Buy now |
| 1486D36 | 6.00 | 6.00 | 36.00 | $235.59In stock | Buy now |
| 1486D48 | 6.00 | 6.00 | 48.00 | $280.76Backorder | Buy now |
| 1486D60 | 6.00 | 6.00 | 60.00 | $337.04In stock | Buy now |
| 1486D72 | 6.00 | 6.00 | 72.00 | $384.31In stock | Buy now |
| 1486E12 | 8.00 | 8.00 | 12.00 | $173.04In stock | Buy now |

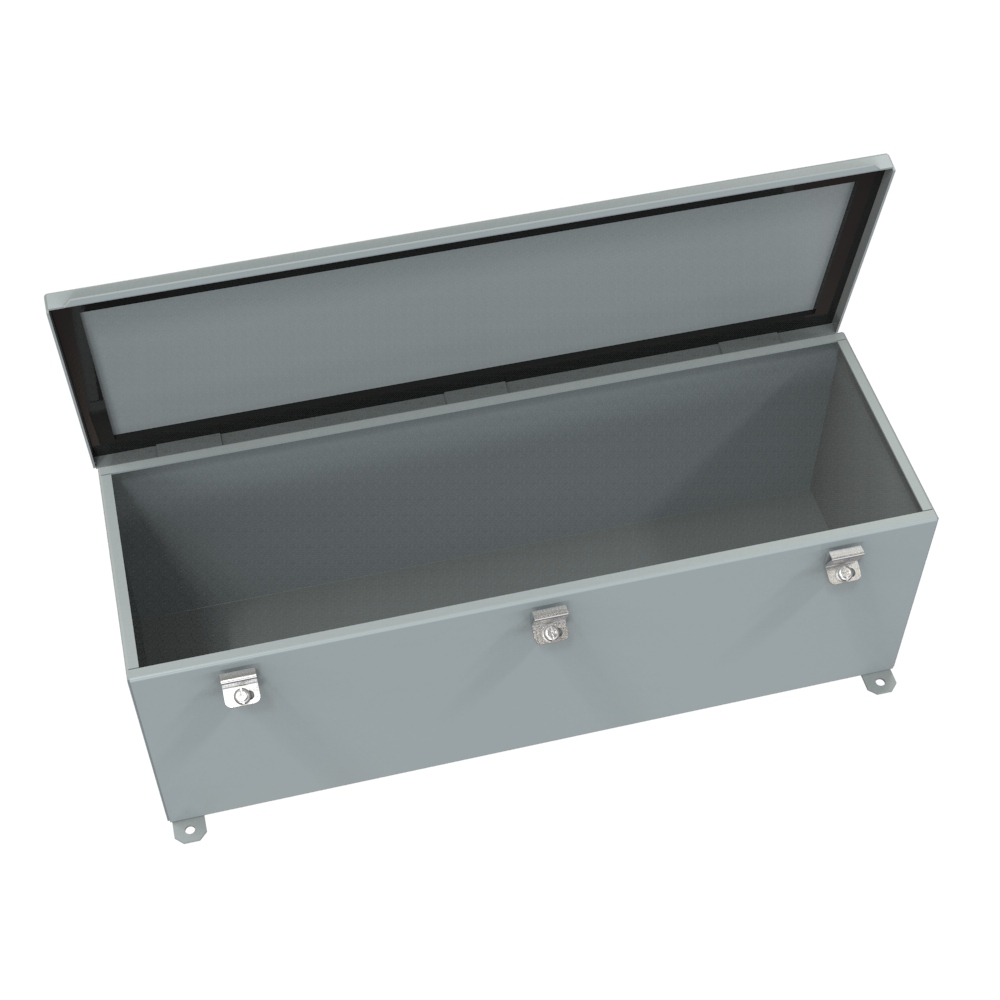

| 1486E24 | 8.00 | 8.00 | 24.00 | $228.64Backorder | Buy now |
| 1486E36 | 8.00 | 8.00 | 36.00 | $291.18Backorder | Buy now |

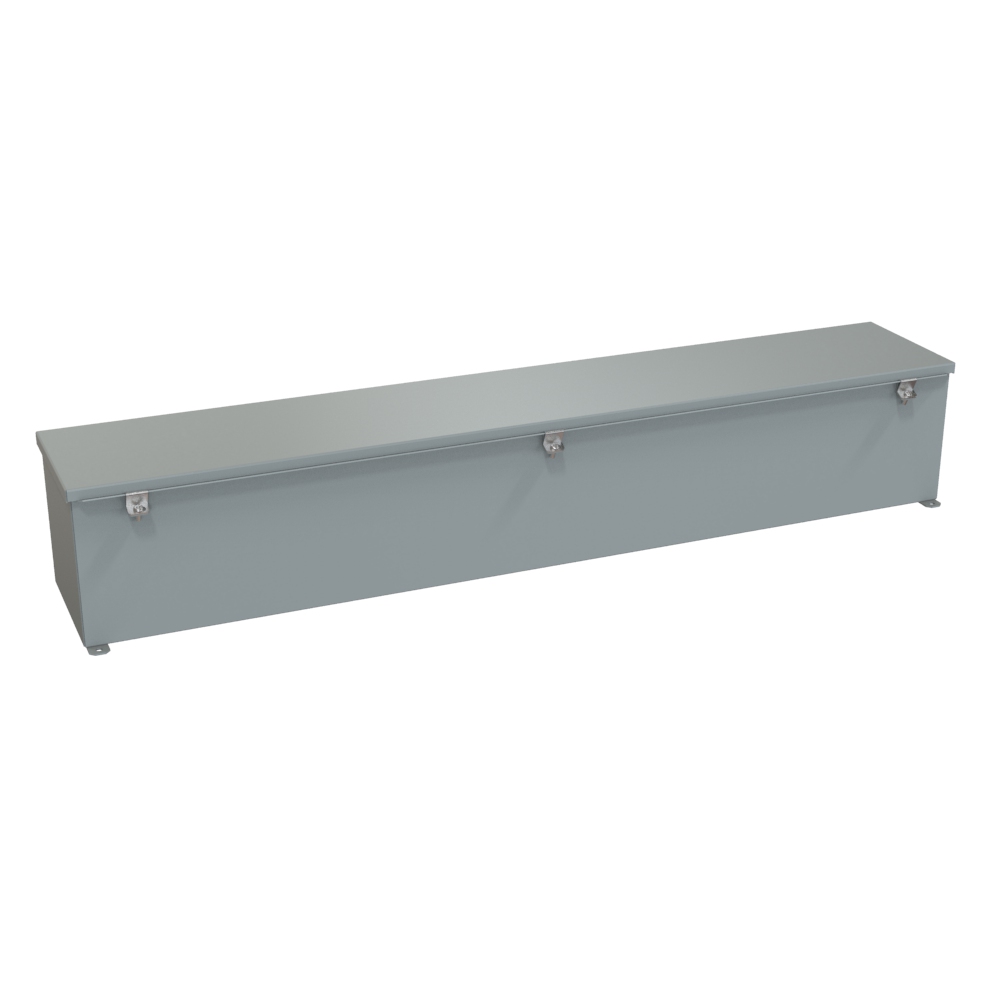

| 1486E48 | 8.00 | 8.00 | 48.00 | $362.07In stock | Buy now |
| 1486E60 | 8.00 | 8.00 | 60.00 | $425.30In stock | Buy now |

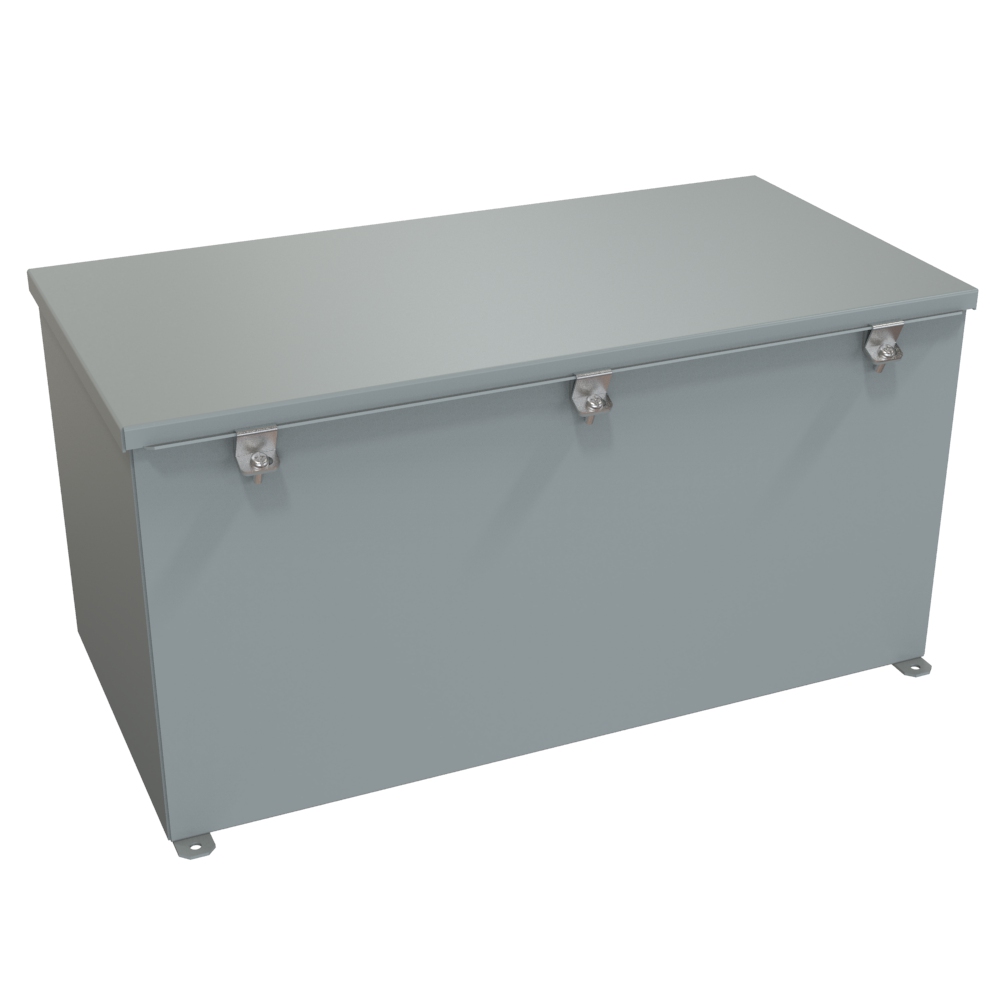

| 1486G24 | 12.00 | 12.00 | 24.00 | $316.20In stock | Buy now |
| 1486G36 | 12.00 | 12.00 | 36.00 | $407.24In stock | Buy now |
| 1486G48 | 12.00 | 12.00 | 48.00 | $514.26In stock | Buy now |

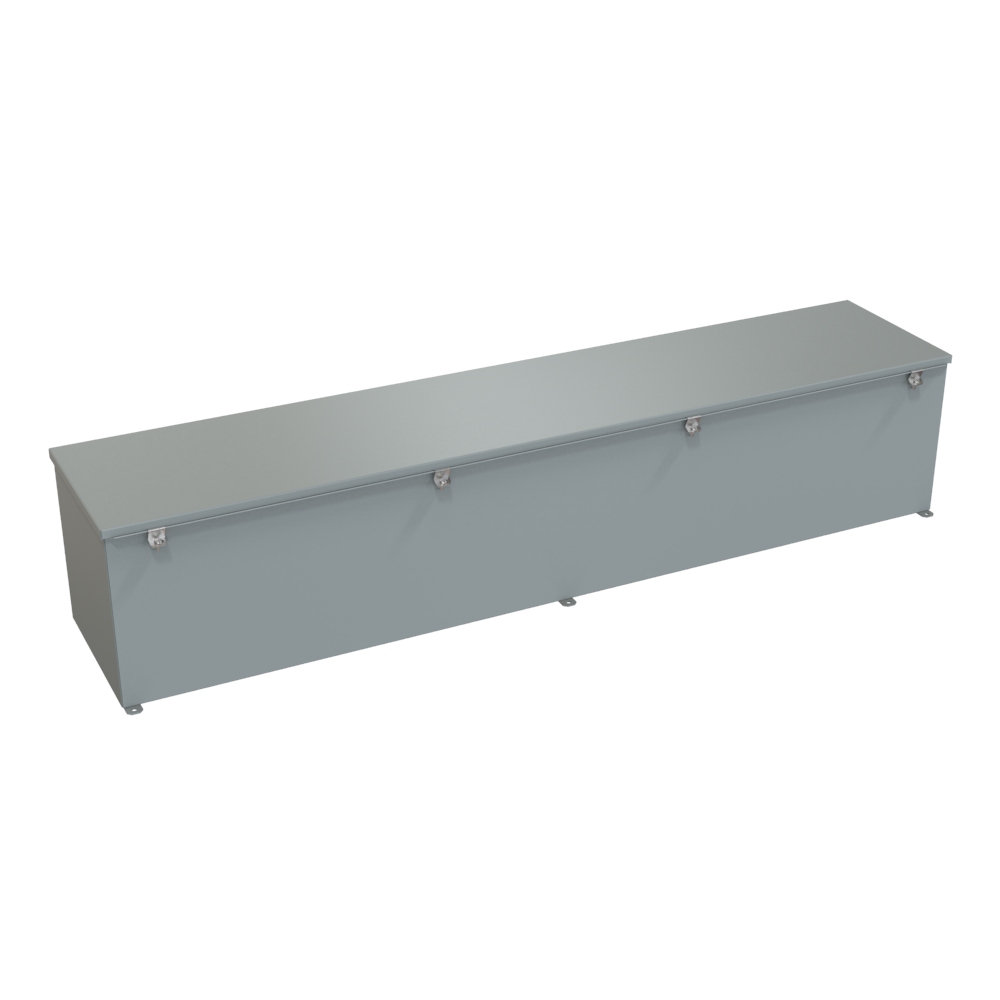

| 1486G60 | 12.00 | 12.00 | 60.00 | $593.47Backorder | Buy now |
Application
- ■Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water.
Standards
- ■UL 870 Type 1, 12, 4
- ■CSA Type 1, 12, 4
- ■Complies with NEMA Type 12, 4 IEC 60529, IP66
- ■NEMA Type 12, 4
- ■IEC 60529, IP66
Construction
- ■Formed 14 gauge steel.
- ■Smooth continuously welded seams.
- ■Butt hinged cover is secured with easily operated stainless steel screw clamps.
- ■Oil resistant gaskets are permanently secured.
- ■12 gauge external mounting feet are welded to the back.
Finish
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Troughs and covers are finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · D | Enclosure · L |
|---|---|---|---|
| 1486B12 | 2.50 | 2.50 | 12.00 |
| 1486B18 | 2.50 | 2.50 | 18.00 |
| 1486B24 | 2.50 | 2.50 | 24.00 |
| 1486B30 | 2.50 | 2.50 | 30.00 |
| 1486B36 | 2.50 | 2.50 | 36.00 |
| 1486B48 | 2.50 | 2.50 | 48.00 |
| 1486B60 | 2.50 | 2.50 | 60.00 |
| 1486B72 | 2.50 | 2.50 | 72.00 |
| 1486C12 | 4.00 | 4.00 | 12.00 |
| 1486C18 | 4.00 | 4.00 | 18.00 |
| 1486C24 | 4.00 | 4.00 | 24.00 |
| 1486C30 | 4.00 | 4.00 | 30.00 |
| 1486C36 | 4.00 | 4.00 | 36.00 |
| 1486C48 | 4.00 | 4.00 | 48.00 |
| 1486C60 | 4.00 | 4.00 | 60.00 |
| 1486C72 | 4.00 | 4.00 | 72.00 |
| 1486D12 | 6.00 | 6.00 | 12.00 |
| 1486D18 | 6.00 | 6.00 | 18.00 |
| 1486D24 | 6.00 | 6.00 | 24.00 |
| 1486D30 | 6.00 | 6.00 | 30.00 |
| 1486D36 | 6.00 | 6.00 | 36.00 |
| 1486D48 | 6.00 | 6.00 | 48.00 |
| 1486D60 | 6.00 | 6.00 | 60.00 |
| 1486D72 | 6.00 | 6.00 | 72.00 |
| 1486E12 | 8.00 | 8.00 | 12.00 |
| 1486E24 | 8.00 | 8.00 | 24.00 |
| 1486E36 | 8.00 | 8.00 | 36.00 |
| 1486E48 | 8.00 | 8.00 | 48.00 |
| 1486E60 | 8.00 | 8.00 | 60.00 |
| 1486G24 | 12.00 | 12.00 | 24.00 |
| 1486G36 | 12.00 | 12.00 | 36.00 |
| 1486G48 | 12.00 | 12.00 | 48.00 |
| 1486G60 | 12.00 | 12.00 | 60.00 |
