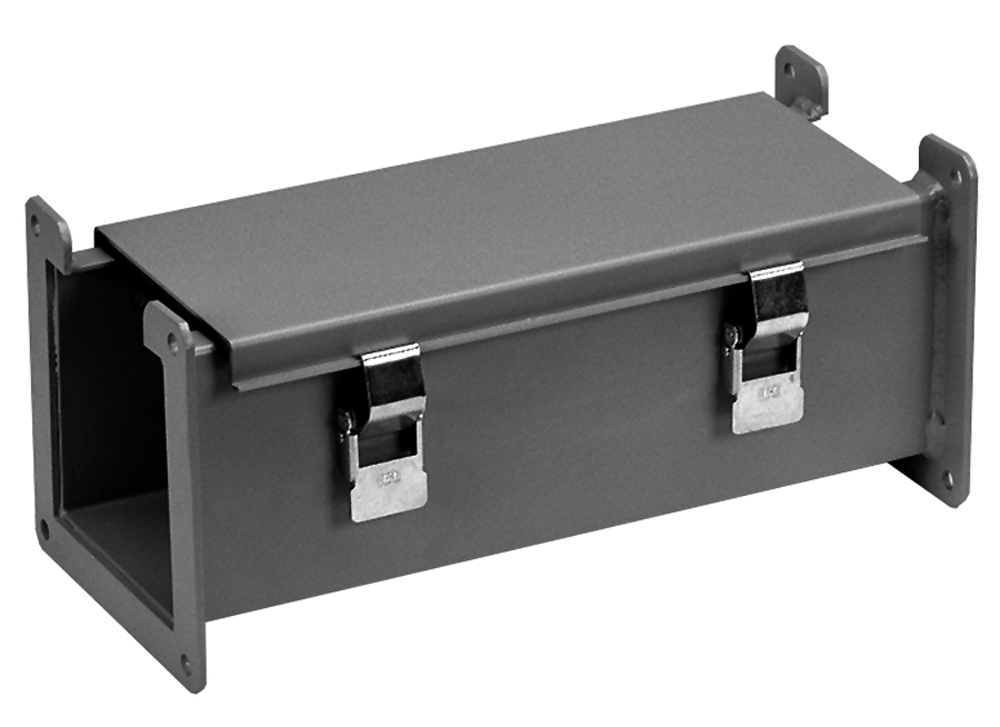

Type 12 Lay-In Wireway · 1485 Series

Brand: Hammond Manufacturing · 161 part numbers

Wireway & Accessories

■Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
■All sections and fittings are completely open on each side to allow wires and cables to be placed into the wireway without "pulling through".
■UL 870 Type 1 (unless marked¹)
■CSA Type 1 (unless marked¹)
■Complies with NEMA Type 12 IEC 60529, IP54
■NEMA Type 12

from $12.65

161 of 161 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your 1485 Series part number

Filter 1 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

1 of 1 part numbers · 1 priced online

1485FY

Cross Fitting

$452.41In stock

Buy now

Dimension tables (inches / mm)

Description	Sealing Plates · Supplied	2.5 x 2.5 · Part No.	4 x 4 · Part No.	6 x 6 · Part No.	8 x 8 · Part No.	12 x 6 · Part No.	Price	Order
6" Section	1 Flat	1485B6	1485C6	1485D6	1485E6	1485F6	$75.75In stock1485B6	Buy now
12" Section	1 Flat	1485B12	1485C12	1485D12	1485E12	1485F12	$88.96Backorder1485B12	Buy now
24" Section	1 Flat	1485B24	1485C24	1485D24	1485E24	1485F24	$116.05In stock1485B24	Buy now
36" Section	1 Flat	1485B36	1485C36	1485D36	1485E36	1485F36	$140.37In stock1485B36	Buy now
48" Section	1 Flat	1485B48	1485C48	1485D48	1485E48	1485F48	$166.78In stock1485B48	Buy now
60" Section	1 Flat	1485B60	1485C60	1485D60	1485E60	1485F60	$191.81In stock1485B60	Buy now
120" Section	1 Flat	1485B120	1485C120	1485D120	1485E120	1485F120	$318.29In stock1485B120	Buy now
60" Long Partition (Barrier)	-	-	1487CB60	1487DB60	1487EB60	1487DB60	$44.13In stock1487CB60	Buy now
1" Nipple	1 Flat	1485BM1	1485CM1	1485DM1	-	-	$62.90In stock1485BM1	Buy now
2" Nipple	1 Flat	1485BM2	1485CM2	1485DM2	-	-	$68.45In stock1485BM2	Buy now
3" Nipple	1 Flat	1485BM3	1485CM3	1485DM3	-	-	$74.36In stock1485BM3	Buy now
Box Entry Swivel Nipple	1 Angle	1485BV1	1485CV1	1485DV1	1485EV1	-	$104.25Backorder1485BV1	Buy now
Standard Swivel Nipple	2 Angle	1485BV2	1485CV2	1485DV2	1485EV2	-	$104.25In stock1485BV2	Buy now
12" Transposition Clockwise	1 Flat	1485BZ12	1485CZ12	1485DZ12	1485EZ12	-	$141.08In stock1485BZ12	Buy now
12" Transposition Counter-Clockwise	1 Flat	1485BZC12	1485CZC12	1485DZC12	1485EZC12	-	$141.08In stock1485BZC12	Buy now
Flexible Fitting	None	1485BFF	1485CFF	1485DFF	1485EFF	-	$182.07In stock1485BFF	Buy now
Adjustable Fitting	1 Spec.	1485BX	1485CX	1485DX	1485EX	1485FX	$126.48In stock1485BX	Buy now
Cut-Off Fitting Lay-In	1 Flat	1485BW1	1485CW1	1485DW1	1485EW1	1485FW1	$134.82Backorder1485BW1	Buy now
Cut-Off Fitting Non Lay-In	1 Angle	1485BW2	1485CW2	1485DW2	1485EW2	1485FW2	$70.88In stock1485BW2	Buy now
90° Elbow, Top Opening	1 Flat	1485B9N	1485C9N	1485D9N	1485E9N	1485F9N	$140.37Backorder1485B9N	Buy now
90° Elbow, Inside Opening	1 Flat	1485B9P	1485C9P	1485D9P	1485E9P	1485F9P	$140.37In stock1485B9P	Buy now
90° Elbow, Outside Opening	1 Flat	1485B9Q	1485C9Q	1485D9Q	1485E9Q	1485F9Q	$140.37In stock1485B9Q	Buy now
45° Elbow, Top Opening	1 Flat	1485B4N	1485C4N	1485D4N	1485E4N	1485F4N	$140.37In stock1485B4N	Buy now
45° Elbow, Inside Opening	1 Flat	1485B4P	1485C4P	1485D4P	1485E4P	-	$140.37Backorder1485B4P	Buy now
45° Elbow, Outside Opening	1 Flat	1485B4Q	1485C4Q	1485D4Q	1485E4Q	-	$140.37In stock1485B4Q	Buy now
Tee Fitting, Top Opening	2 Flat	1485BTN	1485CTN	1485DTN	1485ETN	1485FTN	$167.48In stock1485BTN	Buy now
Tee Fitting, Outside & Top Opening	2 Flat	1485BTQ	1485CTQ	1485DTQ	1485ETQ	-	$191.81In stock1485BTQ	Buy now
Cross Fitting	3 Flat	1485BY	1485CY	1485DY	1485EY	1485FY	$229.33In stock1485BY	Buy now
Reducer 4 x 4 to 2.5 x 2.5	None	-	1485CRE	-	-	-	$110.50In stock	Buy now
Reducer 6 x 6 to 4 x 4	None	-	-	1485DRE	-	-	$136.20Backorder	Buy now
Reducer 8 x 8 to 6 x 6	None	-	-	-	1485ERE	-	$169.57In stock	Buy now
Reducer 12 x 6 to 4 x 4	None	-	-	-	-	1485FREC	$203.62In stock	Buy now
Reducer 12 x 6 to 6 x 6	None	-	-	-	-	1485FRED	$203.62In stock	Buy now
Junction Box	1 Flat	1485BJ	1485CJ	1485DJ	1485EJ	-	$209.18Backorder1485BJ	Buy now
Box Connector	1 Angle	1485BK	1485CK	1485DK	1485EK	1485FK	$29.04In stock1485BK	Buy now
Drop Hanger	None	1485BL1	1485CL1	1485DL1	1485EL1	-	$19.80In stock1485BL1	Buy now
Bracket Hanger	None	1485BL2	1485CL2	1485DL2	1485EL2	-	$13.55In stock1485BL2	Buy now
Cover Plate	1 Angle	1485BH	1485CH	1485DH	1485EH	1485FH	$26.27In stock1485BH	Buy now
Snap On Flat Sealing Plate	None	1485BSM	1485CSM	1485DSM	1485ESM	1485FSM	$12.65In stock1485BSM	Buy now
Angle Sealing Plate	None	1485BS9	1485CS9	1485DS9	1485ES9	1485FS9	$15.77Backorder1485BS9	Buy now

Application

■Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
■All sections and fittings are completely open on each side to allow wires and cables to be placed into the wireway without "pulling through".

Standards

■UL 870 Type 1 (unless marked¹)
■CSA Type 1 (unless marked¹)
■Complies with NEMA Type 12 IEC 60529, IP54
■NEMA Type 12
■IEC 60529, IP54

Construction

■Bodies and covers are formed from 14-gauge steel with 10 gauge steel flanges.
■Flanges are open at the top to allow cables to lay in when doors open.
■12” x 6” size has a 12 gauge steel body with a 14-gauge cover.
■Smooth continuously welded seams.
■Interior surfaces are smooth to prevent wire damage during installation.
■Butt hinged cover is secured with easily operated quick release clamps.
■Oil resistant gaskets are permanently secured.
■Solid oil resistant gaskets are used between flanges when sections and fittings are bolted together.
■One gasket kit, complete with hardware is provided with each straight section or fitting.
■Sealing plate is supplied.
■Flange junctions are sealed with gasket sealing plates, which are put in place after wiring is completed. One is supplied with all straight sections and most fittings; see table for exact number.

Finish

■Sections and components are finished in ANSI 61 gray powder coating.

Notes

■When joining a wireway section or fitting to an enclosure be sure to order a box connector.
■When joining two wireway sections, or joining a wireway section to a fitting, a flat sealing plate is required at each junction; necessary kits are supplied with each section and fitting. See table, extra kits may be ordered if necessary.
■When joining a lay-in wireway section or fitting to a closure plate, a box connector, or cut-off fitting, an angle sealing plate is required at each junction.
■Necessary kits are supplied with each section and fitting - see table. Extra kits, although not normally required, are necessary when joining lay-in wireway to a non-lay-in section or fitting section.
