Type 12 Pull Through Wireway · 1487 Series
Brand: Hammond Manufacturing · 111 part numbers
Wireway & Accessories
- ■Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
- ■Ideal for connecting machines to control panels or power sources.
- ■UL 870 Type 1, 12 (unless marked¹)
- ■CSA Type 1, 12 (unless marked¹)
- ■Complies with NEMA Type 1, 12 IEC 60529, IP66
- ■NEMA Type 1, 12
from $4.72
111 of 111 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1487 Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
| Description | 2.5 x 2.5 · Part No. | 4 x 4 · Part No. | 6 x 6 · Part No. | 8 x 8 · Part No. | Price | Order |
|---|---|---|---|---|---|---|
| 12" Section | 1487B12 | 1487C12 | 1487D12 | 1487E12 | $87.56In stock1487B12 | Buy now |
| 24" Section | 1487B24 | 1487C24 | 1487D24 | 1487E24 | $113.28Backorder1487B24 | Buy now |
| 36" Section | 1487B36 | 1487C36 | 1487D36 | 1487E36 | $138.29In stock1487B36 | Buy now |
| 48" Section | 1487B48 | 1487C48 | 1487D48 | 1487E48 | $163.31In stock1487B48 | Buy now |
| 60" Section | 1487B60 | 1487C60 | 1487D60 | 1487E60 | $186.93In stock1487B60 | Buy now |
| 120" Section | 1487B120 | 1487C120 | 1487D120 | 1487E120 | $311.33In stock1487B120 | Buy now |
| 60" Long Partition (Barrier) | - | 1487CB60 | 1487DB60 | 1487EB60 | $44.13In stock1487CB60 | Buy now |
| 1" Nipple | 1487BM1 | 1487CM1 | 1487DM1 | 1487EM1 | $63.10In stock1487BM1 | Buy now |
| 2" Nipple | 1487BM2 | 1487CM2 | 1487DM2 | 1487EM2 | $68.66In stock1487BM2 | Buy now |
| 3" Nipple | 1487BM3 | 1487CM3 | 1487DM3 | 1487EM3 | $75.05Backorder1487BM3 | Buy now |
| 6" Nipple | 1487BM6 | 1487CM6 | 1487DM6 | 1487EM6 | $77.84Backorder1487BM6 | Buy now |
| Box Entry Swivel Nipple | 1487BV1 | 1487CV1 | 1487DV1 | 1487EV1 | $109.84Backorder1487BV1 | Buy now |
| Standard Swivel Nipple | 1487BV2 | 1487CV2 | 1487DV2 | 1487EV2 | $109.84Backorder1487BV2 | Buy now |
| Flexible Fitting | 1485BFF | 1485CFF | 1485DFF | 1485EFF | $182.07In stock1485BFF | Buy now |
| Adjustable Fitting | 1487BX | 1487CX | 1487DX | 1487EX | $113.28In stock1487BX | Buy now |
| Cut-Off Fitting | 1487BW | 1487CW | 1487DW | 1487EW | $63.10Backorder1487BW | Buy now |
| 90° Elbow | 1487B9P | 1487C9P | 1487D9P | 1487E9P | $93.13In stock1487B9P | Buy now |
| 45° Elbow | 1487B4P | 1487C4P | 1487D4P | 1487E4P | $95.21Backorder1487B4P | Buy now |
| 22.5° Elbow | 1487B2P | 1487C2P | 1487D2P | 1487E2P | $95.21Backorder1487B2P | Buy now |
| Tee Fitting | 1487BT | 1487CT | 1487DT | 1487ET | $128.57In stock1487BT | Buy now |
| Cross Fitting | 1487BY | 1487CY | 1487DY | 1487EY | $155.67In stock1487BY | Buy now |
| Center Hole Reducers | Center Hole Reducers | Center Hole Reducers | Center Hole Reducers | Center Hole Reducers | Quote | Quote |
| Reducer - 4 x 4 to 2.5 x 2.5 | - | 1487CRC | - | - | $46.08In stock | Buy now |
| Reducer - 6 x 6 to 4 x 4 | - | - | 1487DRC | - | $55.66In stock | Buy now |
| Reducer - 8 x 8 to 4 x 4 | - | - | - | 1487ERCC | $74.36Backorder | Buy now |
| Reducer - 8 x 8 to 6 x 6 | - | - | - | 1487ERCD | $74.36Backorder | Buy now |
| Edge Hole Reducers | Edge Hole Reducers | Edge Hole Reducers | Edge Hole Reducers | Edge Hole Reducers | Quote | Quote |
| Reducer 4 x 4 to 2.5 x 2.5 | - | 1487CRE | - | - | $46.08In stock | Buy now |
| Reducer 6 x 6 to 4 x 4 | - | - | 1487DRE | - | $55.66In stock | Buy now |
| Reducer 8 x 8 to 4 x 4 | - | - | - | 1487EREC | $74.36In stock | Buy now |
| Reducer 8 x 8 to 6 x 6 | - | - | - | 1487ERED | $74.36Backorder | Buy now |
| Box Connector | 1487BK | 1487CK | 1487DK | 1487EK | $19.94In stock1487BK | Buy now |
| Drop Hanger | 1485BL1 | 1485CL1 | 1485DL1 | 1485EL1 | $19.80In stock1485BL1 | Buy now |
| Bracket Hanger | 1485BL2 | 1485CL2 | 1485DL2 | 1485EL2 | $13.55In stock1485BL2 | Buy now |
| Cover Plate | 1487BH | 1487CH | 1487DH | 1487EH | $15.29In stock1487BH | Buy now |
| Gasket & Screws | 1487BS | 1487CS | 1487DS | 1487ES | $4.72Backorder1487BS | Buy now |
Application
- ■Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
- ■Ideal for connecting machines to control panels or power sources.
Standards
- ■UL 870 Type 1, 12 (unless marked¹)
- ■CSA Type 1, 12 (unless marked¹)
- ■Complies with NEMA Type 1, 12 IEC 60529, IP66
- ■NEMA Type 1, 12
- ■IEC 60529, IP66

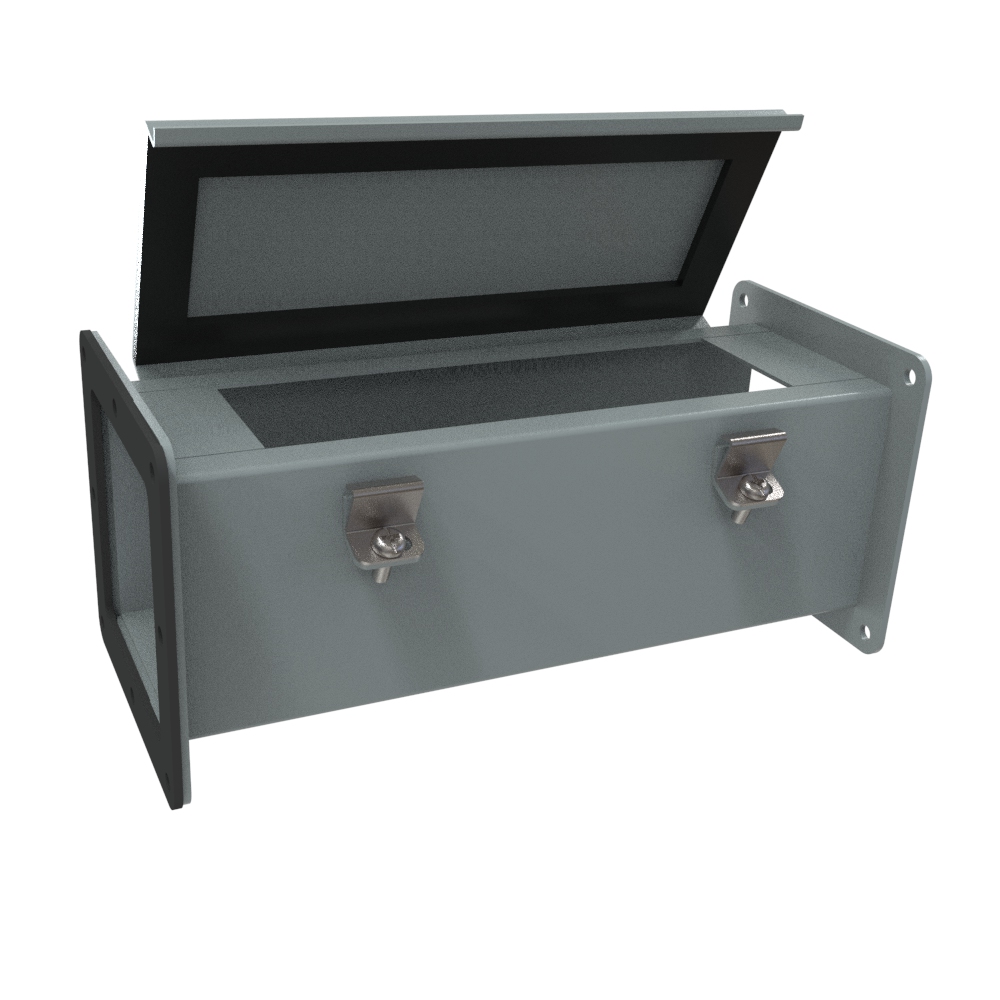

Construction
- ■Bodies and covers are formed from 14 gauge steel with 10 gauge steel flanges.
- ■Continuous flange around wireway ends, requires cables to be pulled through. (For lay-in style, see 1485 Series.)
- ■Smooth continuously welded seams.
- ■Interior surfaces are smooth to prevent wire damage during installation.
- ■Butt hinged covers are secured with easily operated screw clamps.
- ■Oil resistant gaskets are permanently secured.
- ■Solid oil resistant gaskets are used between flanges when sections and fittings are bolted together.
- ■One gasket kit, complete with hardware is provided with each straight section or fitting.
Finish
- ■Sections and fittings are finished in ANSI 61 gray.
Documents
