Hammond 1487C24 4x4 x 24 in Straight Wireway Section, N12 Steel

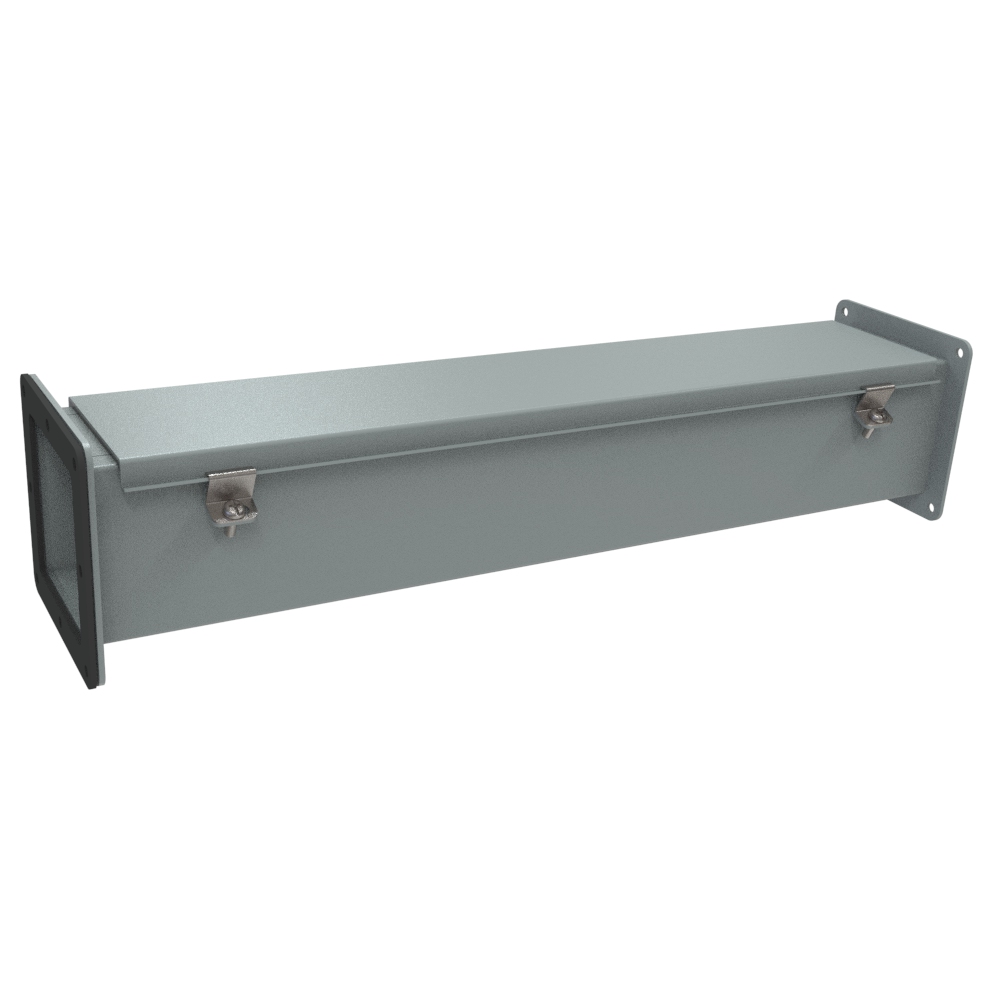

The 1487C24 is a 24 in straight section of 4 x 4 NEMA 12 (N12) wireway in gray-finished steel. Straight sections form the main runs of a Hammond 1487 wireway system, protecting and routing conductors for machine building and general plant wiring. The 24 in length is the second-shortest of the six lengths in the series, which runs from 12 in up to 120 in.

The part page lists a size of 4 in x 4 in x 24 in (102 mm x 102 mm x 610 mm). The manufacturer drawing gives an inside dimension of 3.86 in square and an overall length of 24.00 in. Access is through a door 22.47 in long with 21.47 in of clear space available on the door; the door is 4.59 in wide over a 2.75 in door opening. The end opening measures 23.75 in and the end flanges are dimensioned at 5.38 in.

The section references UL File E186830 and CSA Certificate LL21312 and is listed as REACH and RoHS compliant. It ships in a box with a shipping weight of 12 lbs (5.44 kg). For ordering, the 1487C24 carries UPC 623980461007 and UNSPSC 39121301. The same length is available in the 2.5 x 2.5, 6 x 6 and 8 x 8 sections of the 1487 S Series.
