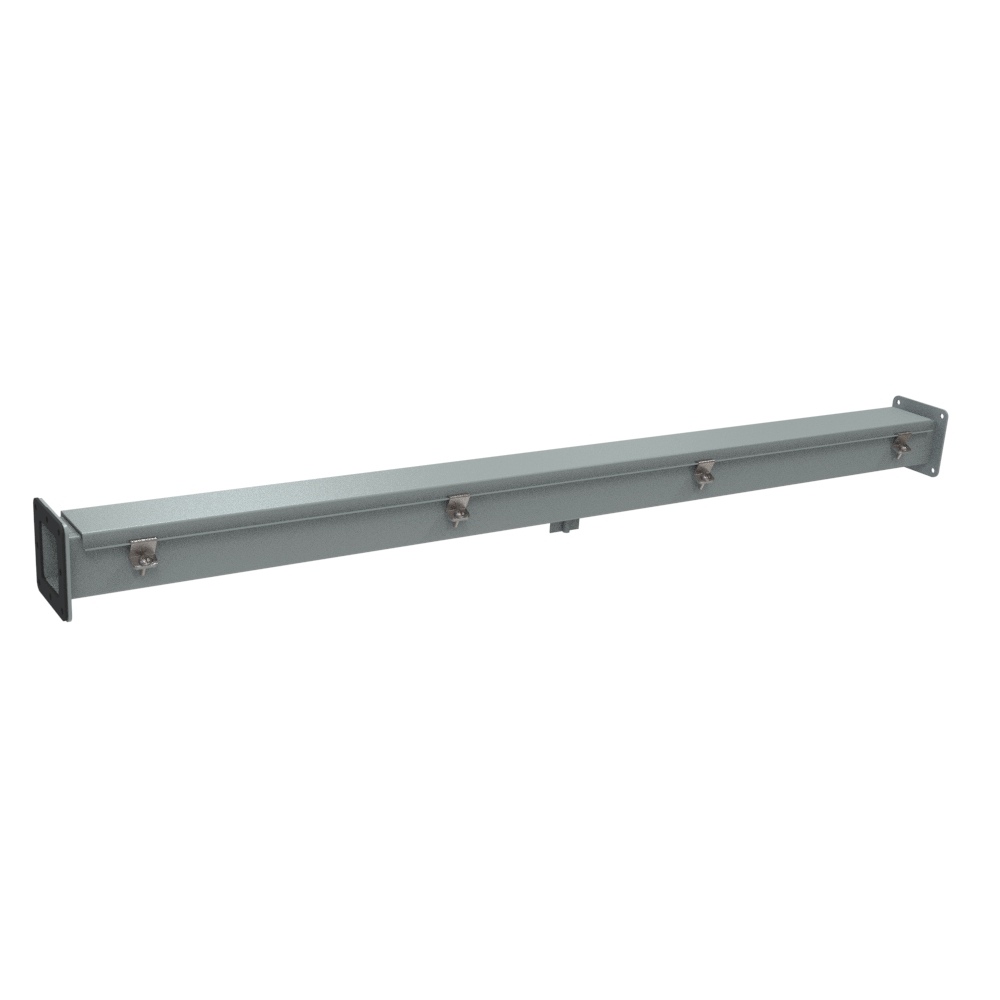

Hammond 1487B48 2.5x2.5 x 48 in Straight Wireway Section, N12 Steel

The 1487B48 is a 48 in straight section of 2.5 x 2.5 NEMA 12 (N12) wireway in gray-finished steel. Straight sections form the main runs of a Hammond 1487 wireway system, protecting and routing conductors for machine building and general plant wiring. The 48 in length covers a four-foot span with a single section; the series also offers 12, 24, 36, 60 and 120 in lengths.

The part page lists a size of 2.5 in x 2.5 in x 48 in (64 mm x 64 mm x 1,219 mm). The manufacturer drawing gives an inside dimension of 2.36 in square and an overall length of 48.00 in. Access is through a door 46.47 in long with 45.47 in of clear space available on the door; the door is 3.09 in wide over a 1.50 in door opening. The end opening measures 47.75 in and the end flanges are dimensioned at 3.88 in.

The section references UL File E186830 and CSA Certificate LL21312 and is listed as REACH and RoHS compliant. It ships in a box with a shipping weight of 15 lbs (6.80 kg). For ordering, the 1487B48 carries UPC 623980458908 and UNSPSC 39121301. The same length is available in the 4 x 4, 6 x 6 and 8 x 8 sections of the 1487 S Series.
