Hammond 1487E60 8x8x60 In. NEMA 12 Pull-Through Wireway Section

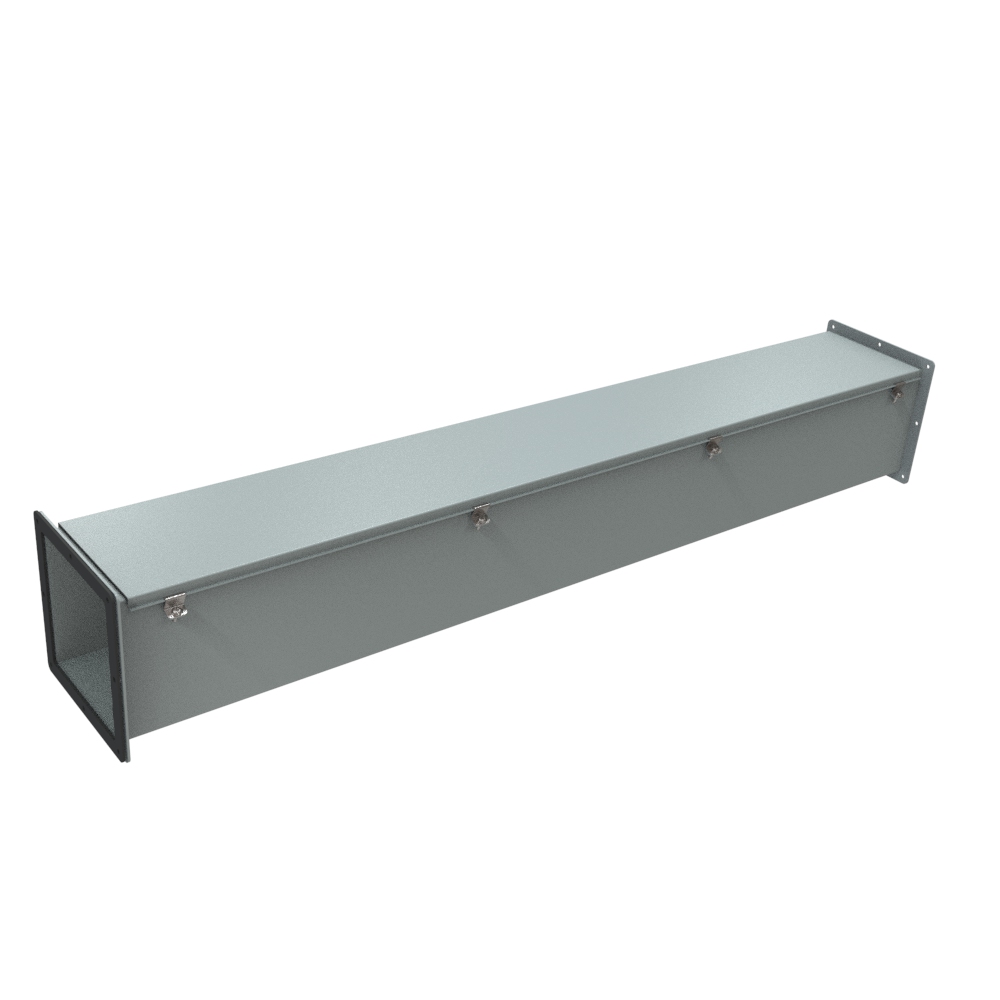

The 1487E60 is a five-foot, 8 x 8 inch steel straight section of N12 pull-through wireway for longer runs where fewer joints are wanted. It is listed by the manufacturer as an N12 Wireway, Straight Section - 8 x 8 x 60 - Steel/Gray, and it suits electricians, panel builders and OEM machine builders routing conductors through a closed steel raceway.

The section is a pull-through design (short description: N12 PULL-THRU WW), so conductors are pulled through the enclosed body rather than laid in from the side. The part drawing shows a full-length hinged door on the front with a door opening 6.75 in wide and 59.75 in long, and 57.44 in x 5.75 in of clear space available on the door. The body is steel with a gray finish and an N12 (NEMA 12) rating per the part description.

Overall size is 8 in x 8 in x 60 in (203 mm x 203 mm x 1,524 mm). The drawing gives a 7.86 in inside dimension, a 9.63 in end flange and 0.28 in diameter flange holes for bolting to the next section or fitting. At 60 in (1,524 mm) it covers the same distance as two and a half 24 in sections with a single piece. Shipping weight is 54 lbs (24.49 kg) and it ships in a box.

The 1487 S series offers the same straight-section lengths in 2.5 x 2.5, 4 x 4, 6 x 6 and 8 x 8 sizes; 1487E60 is the 60 in section in the 8 x 8 column. The part page lists UL File # E186830 and CSA Cert. # LL21312, and the part is marked REACH compliant and RoHS compliant.
