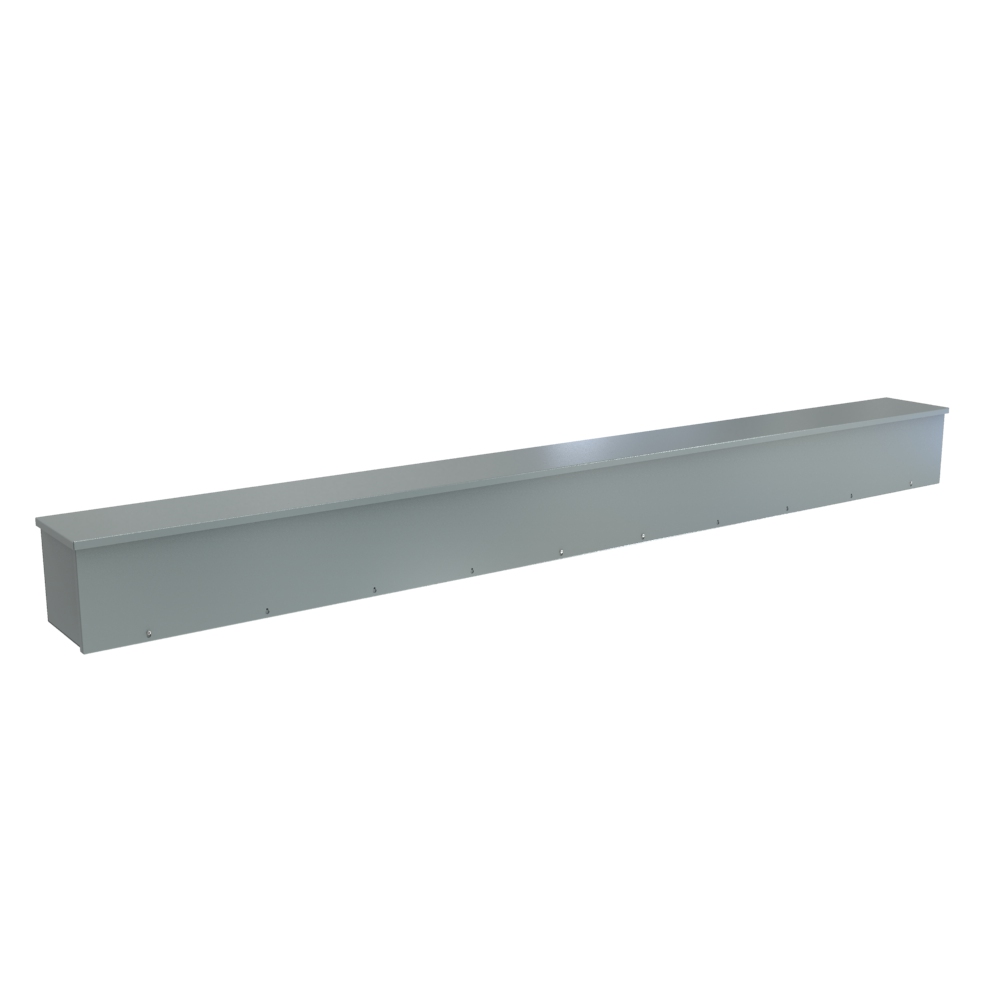

3R Trough 10X10X116
$499.68In stock
Buy now
Type 3R Wiring Trough · C3RWT Series
Brand: Hammond Manufacturing · 37 part numbers
- ■Designed for use to protect multiple wiring junctions in outdoor environments against the ingress of rain, sleet, snow and the external formation of ice.
- ■UL870 Type 3R
- ■CSA Type 3R
- ■Complies with NEMA Type 3R IEC 60529, IP24
- ■NEMA Type 3R
- ■IEC 60529, IP24
from $24.92
37 of 37 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your C3RWT Series part number
Filter 37 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
37 of 37 part numbers · 37 priced online
3R Trough 10X10X24
$166.12In stock
Buy now
3R Trough 10X10X36
$187.65In stock
Buy now
3R Trough 10X10X48
$211.31In stock
Buy now
3R Trough 10X10X60
$265.66In stock
Buy now
3R Trough 10X10X72
$300.23In stock
Buy now
3R Trough 10X10X96
$400.41In stock
Buy now

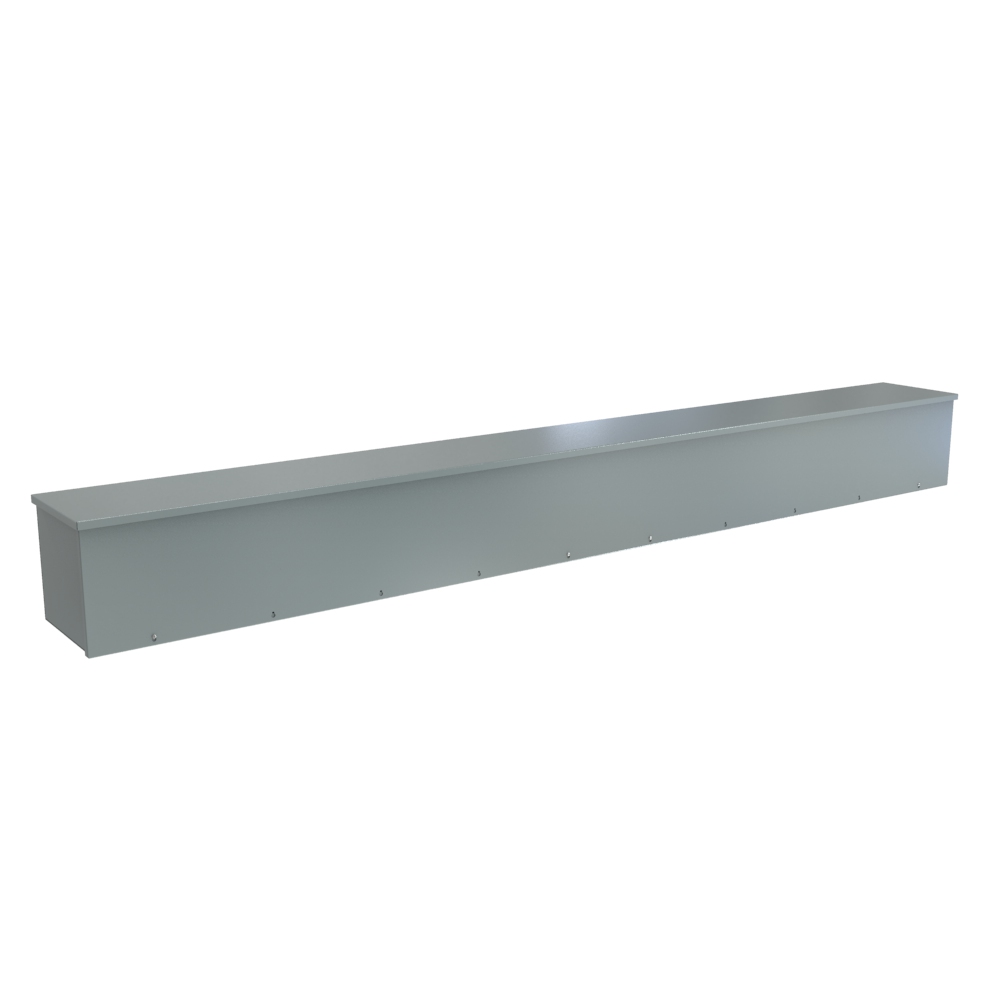

3R Trough 12X12X116
$584.77In stock
Buy now

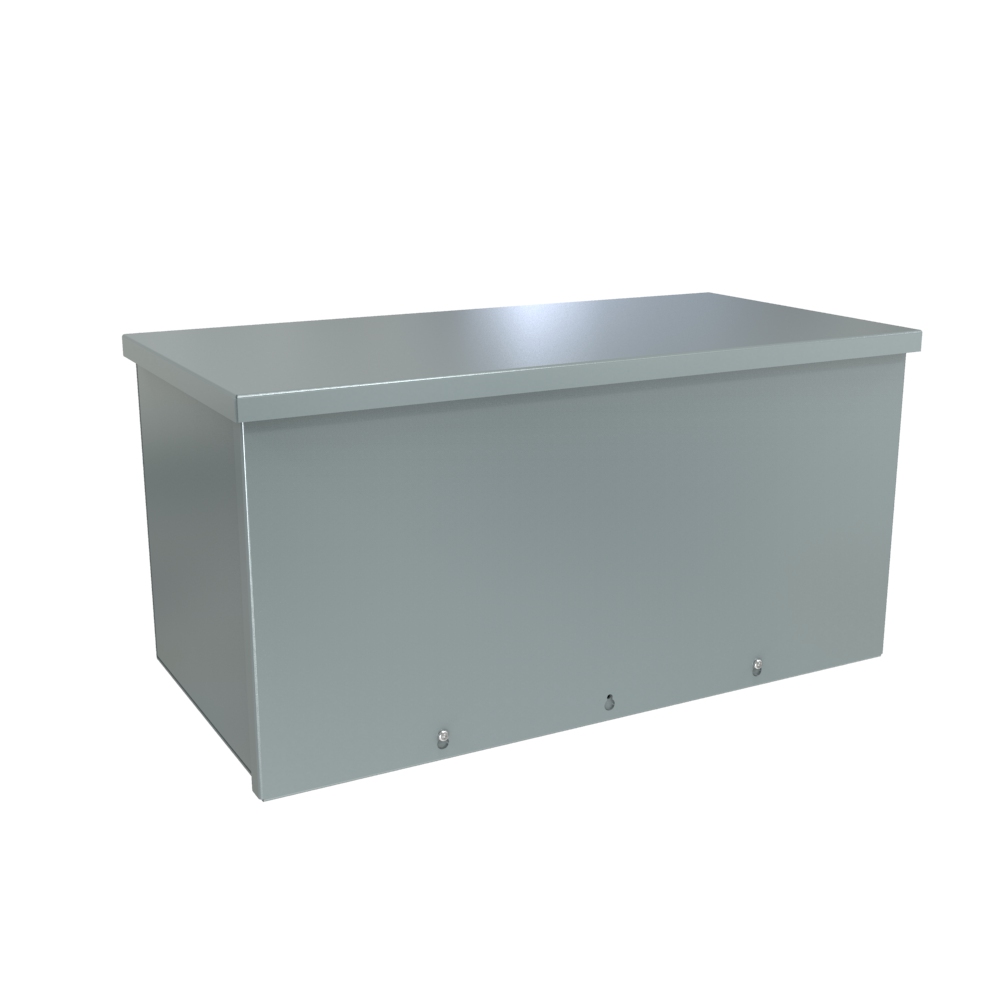

3R Trough 12X12X24
$229.04In stock
Buy now
3R Trough 12X12X36
$243.43In stock
Buy now
3R Trough 12X12X48
$260.06In stock
Buy now

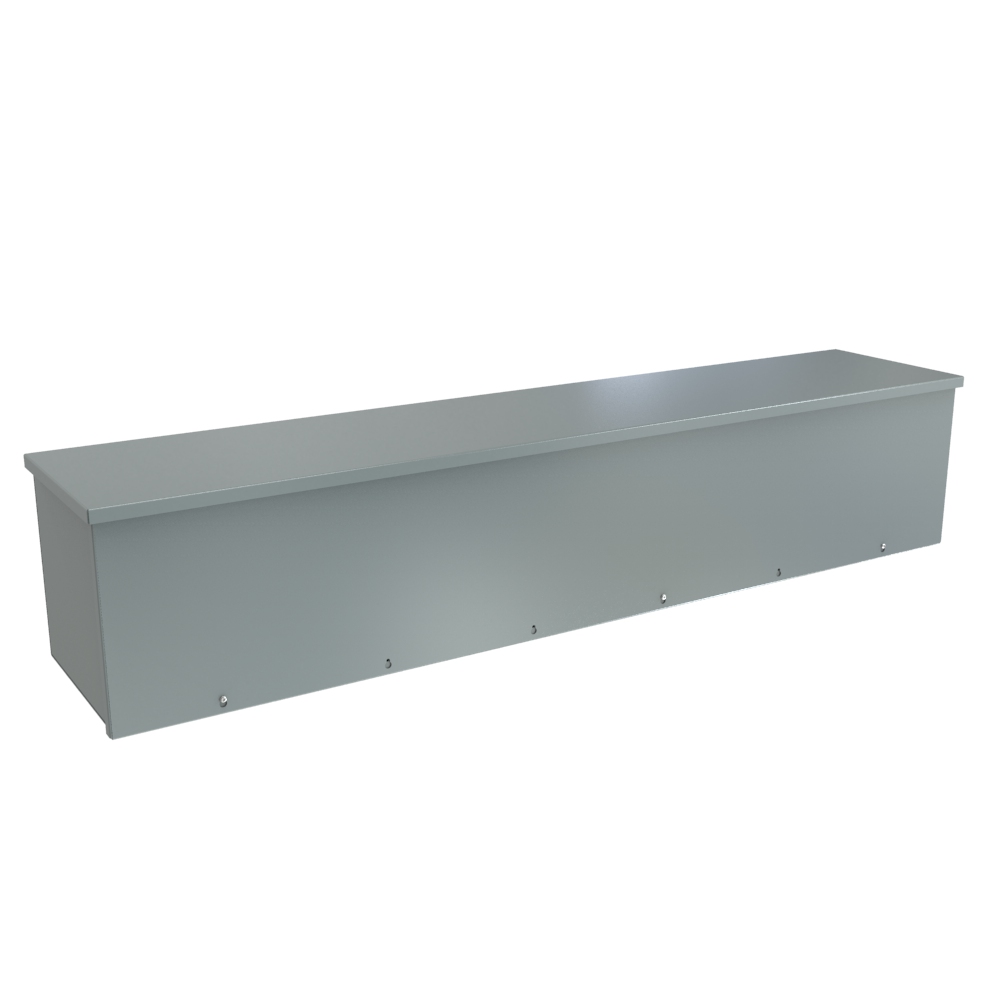

3R Trough 12X12X60
$298.54In stock
Buy now
3R Trough 12X12X72
$347.56In stock
Buy now
3R Trough 12X12X84
$405.47Backorder
Buy now
3R Trough 12X12X96
$463.46In stock
Buy now
3R Trough 4X4X12
$24.92In stock
Buy now
3R Trough 4X4X18
$38.10In stock
Buy now
3R Trough 4X4X24
$45.86In stock
Buy now
3R Trough 4X4X36
$66.31In stock
Buy now
3R Trough 4X4X48
$83.91In stock
Buy now
3R Trough 4X4X60
$104.92In stock
Buy now
3R Trough 4X4X72
$126.01In stock
Buy now
3R Trough 6X6X12
$39.94In stock
Buy now
3R Trough 6X6X18
$59.50In stock
Buy now
3R Trough 6X6X24
$62.63Backorder
Buy now
3R Trough 6X6X36
$85.31In stock
Buy now

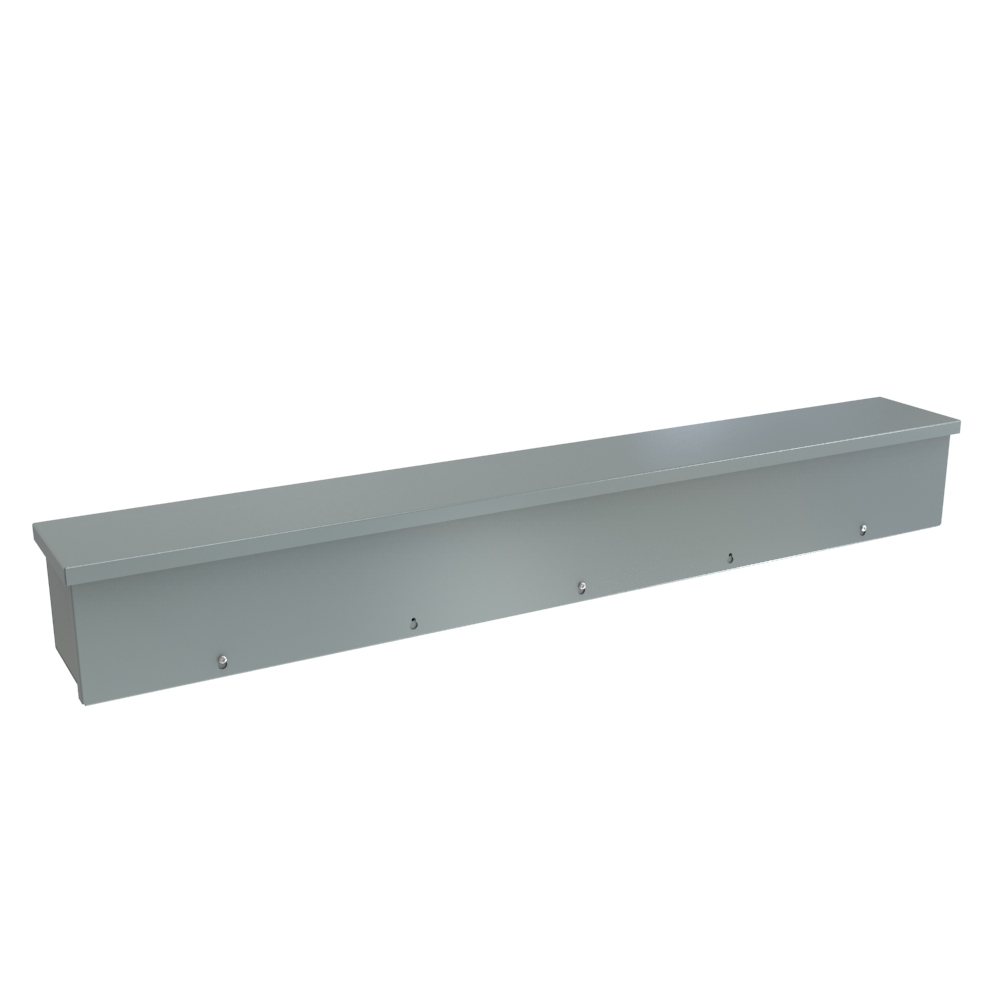

3R Trough 6X6X48
$113.43Backorder
Buy now
3R Trough 6X6X60
$135.73In stock
Buy now
3R Trough 6X6X72
$163.05In stock
Buy now
3R Trough 8X8X116
$370.23In stock
Buy now
3R Trough 8X8X12
$67.19In stock
Buy now

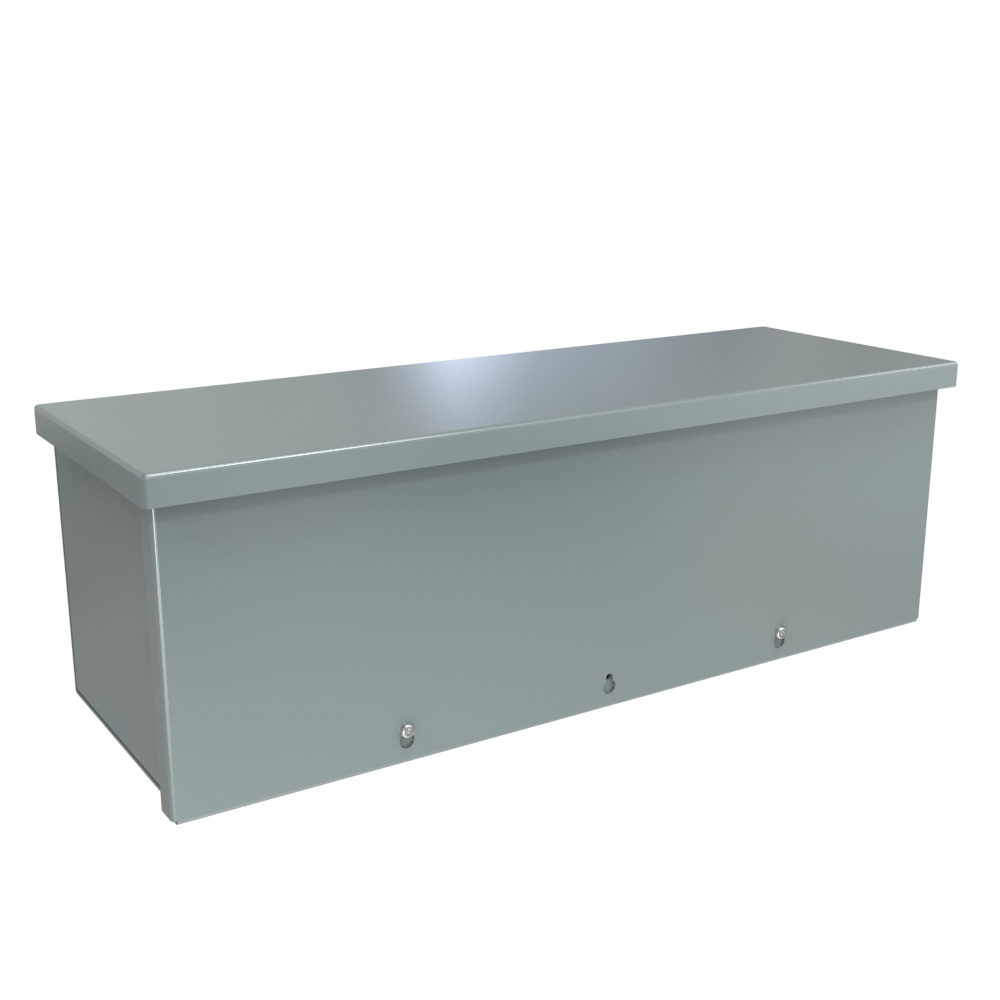

3R Trough 8X8X24
$103.69In stock
Buy now
3R Trough 8X8X36
$125.51In stock
Buy now
3R Trough 8X8X48
$161.57Backorder
Buy now
3R Trough 8X8X60
$188.88In stock
Buy now

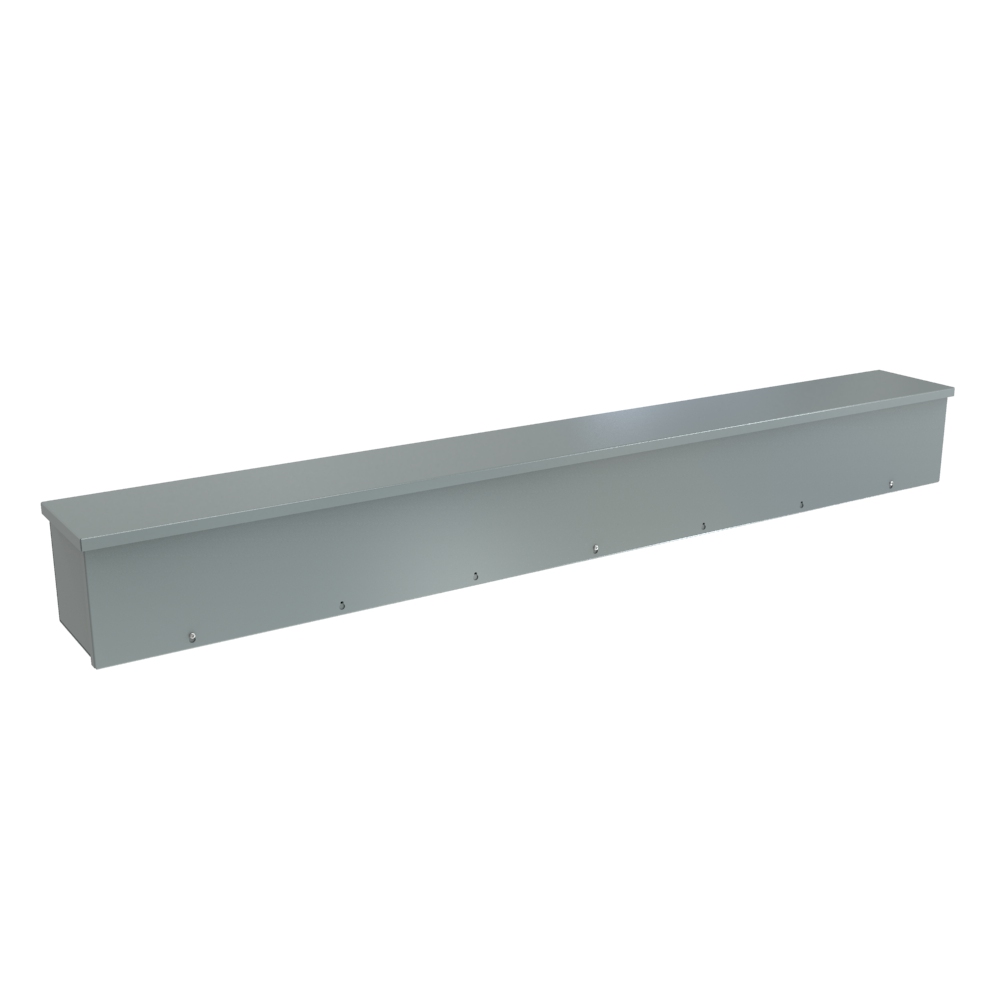

3R Trough 8X8X72
$215.95In stock
Buy now
3R Trough 8X8X96
$293.17In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · D | Enclosure · L | Price | Order |
|---|---|---|---|---|---|
| C3RWT412 | 4.00 | 4.00 | 12.00 | $24.92In stock | Buy now |
| C3RWT418 | 4.00 | 4.00 | 18.00 | $38.10In stock | Buy now |
| C3RWT424 | 4.00 | 4.00 | 24.00 | $45.86In stock | Buy now |
| C3RWT436 | 4.00 | 4.00 | 36.00 | $66.31In stock | Buy now |
| C3RWT448 | 4.00 | 4.00 | 48.00 | $83.91In stock | Buy now |
| C3RWT460 | 4.00 | 4.00 | 60.00 | $104.92In stock | Buy now |
| C3RWT472 | 4.00 | 4.00 | 72.00 | $126.01In stock | Buy now |
| C3RWT612 | 6.00 | 6.00 | 12.00 | $39.94In stock | Buy now |
| C3RWT618 | 6.00 | 6.00 | 18.00 | $59.50In stock | Buy now |
| C3RWT624 | 6.00 | 6.00 | 24.00 | $62.63Backorder | Buy now |
| C3RWT636 | 6.00 | 6.00 | 36.00 | $85.31In stock | Buy now |
| C3RWT648 | 6.00 | 6.00 | 48.00 | $113.43Backorder | Buy now |
| C3RWT660 | 6.00 | 6.00 | 60.00 | $135.73In stock | Buy now |
| C3RWT672 | 6.00 | 6.00 | 72.00 | $163.05In stock | Buy now |
| C3RWT812 | 8.00 | 8.00 | 12.00 | $67.19In stock | Buy now |
| C3RWT824 | 8.00 | 8.00 | 24.00 | $103.69In stock | Buy now |
| C3RWT836 | 8.00 | 8.00 | 36.00 | $125.51In stock | Buy now |
| C3RWT848 | 8.00 | 8.00 | 48.00 | $161.57Backorder | Buy now |
| C3RWT860 | 8.00 | 8.00 | 60.00 | $188.88In stock | Buy now |
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · D | Enclosure · L | Price | Order |
|---|---|---|---|---|---|
| C3RWT872 | 8.00 | 8.00 | 72.00 | $215.95In stock | Buy now |
| C3RWT896 | 8.00 | 8.00 | 96.00 | $293.17In stock | Buy now |
| C3RWT8116 | 8.00 | 8.00 | 116.00 | $370.23In stock | Buy now |
| C3RWT1024 | 10.00 | 10.00 | 24.00 | $166.12In stock | Buy now |
| C3RWT1036 | 10.00 | 10.00 | 36.00 | $187.65In stock | Buy now |
| C3RWT1048 | 10.00 | 10.00 | 48.00 | $211.31In stock | Buy now |
| C3RWT1060 | 10.00 | 10.00 | 60.00 | $265.66In stock | Buy now |
| C3RWT1072 | 10.00 | 10.00 | 72.00 | $300.23In stock | Buy now |
| C3RWT1096 | 10.00 | 10.00 | 96.00 | $400.41In stock | Buy now |
| C3RWT10116 | 10.00 | 10.00 | 116.00 | $499.68In stock | Buy now |
| C3RWT1224 | 12.00 | 12.00 | 24.00 | $229.04In stock | Buy now |
| C3RWT1236 | 12.00 | 12.00 | 36.00 | $243.43In stock | Buy now |
| C3RWT1248 | 12.00 | 12.00 | 48.00 | $260.06In stock | Buy now |
| C3RWT1260 | 12.00 | 12.00 | 60.00 | $298.54In stock | Buy now |
| C3RWT1272 | 12.00 | 12.00 | 72.00 | $347.56In stock | Buy now |
| C3RWT1284 | 12.00 | 12.00 | 84.00 | $405.47Backorder | Buy now |
| C3RWT1296 | 12.00 | 12.00 | 96.00 | $463.46In stock | Buy now |
| C3RWT12116 | 12.00 | 12.00 | 116.00 | $584.77In stock | Buy now |
Application
- ■Designed for use to protect multiple wiring junctions in outdoor environments against the ingress of rain, sleet, snow and the external formation of ice.
Standards
- ■UL870 Type 3R
- ■CSA Type 3R
- ■Complies with NEMA Type 3R IEC 60529, IP24
- ■NEMA Type 3R
- ■IEC 60529, IP24
Construction
- ■Formed and spot welded from 14 or 16 gauge galvanized steel
- ■Drip shield top design protects the enclosure against rain, snow or sleet
- ■Mounting holes on back of enclosure
- ■Slip on removable front cover is secured with screws
- ■(NOTE: effective August 17, 2026 – previously included grounding strap and padlocking hasp will no longer be provided with each trough)
Finish
- ■Enclosure and cover are finished in ANSI 61 gray powder coating.
Documents
