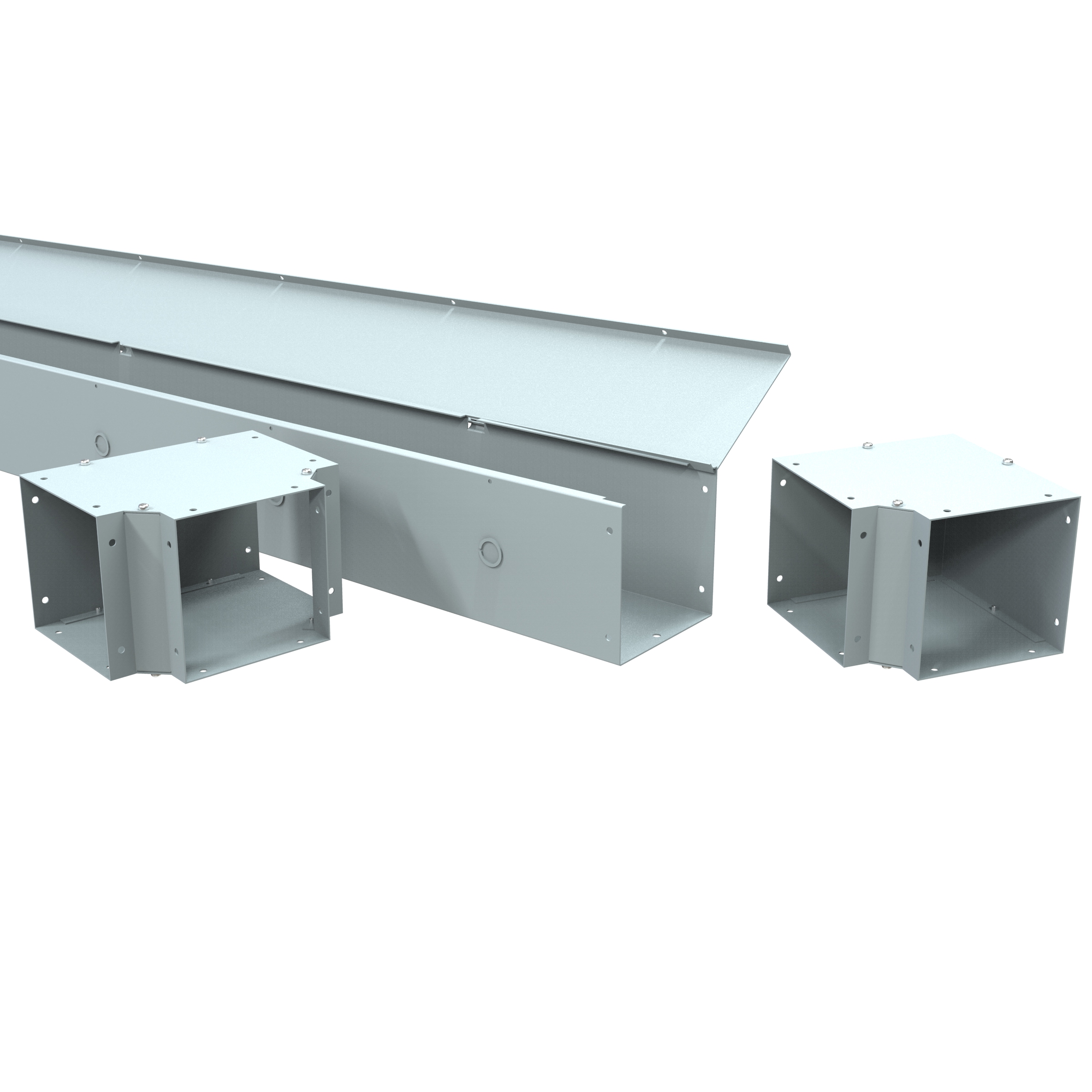

Type 1 Lay-In Wireway CW Series

Type 1 Lay-In Wireway · CW Series

Brand: Hammond Manufacturing · 241 part numbers

Wireway & Accessories

  • ■Construction designed to ensure electrical continuity and to permit fast and easy indoor installation of multiple wireway runs.
  • ■UL-870 Type 1
  • ■cUL Type 1
  • ■Complies with IEC 60529, IP20
  • ■IEC 60529, IP20
  • ■Formed from 16 or 14 gauge steel

from $3.18

241 of 241 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your CW Series part number

Filter 31 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

31 of 31 part numbers · 31 priced online

Dimension tables (inches / mm)

Screw Cover - Straight Section

Units shown: inch . Switch units to: mm

LengthKnock Outs2.5 x 2.5 (Part No.)4 x 4 (Part No.)6 x 6 (Part No.)8 x 8 (Part No.)10 x 10 (Part No.)12 x 12 (Part No.)PriceOrder
12.00w/KOCWSC212CWSC412CWSC612CWSC812-CWSC1212$14.09In stockCWSC212Buy now
18.00w/KO------QuoteQuote
24.00w/KOCWSC224CWSC424CWSC624CWSC824-CWSC1224$18.56BackorderCWSC224Buy now
36.00w/KOCWSC236CWSC436CWSC636CWSC836-CWSC1236$26.17In stockCWSC236Buy now
48.00w/KOCWSC248CWSC448CWSC648CWSC848-CWSC1248$33.78In stockCWSC248Buy now
60.00w/KOCWSC260CWSC460CWSC660CWSC860-CWSC1260$40.55In stockCWSC260Buy now
72.00w/KO-CWSC472CWSC672---$57.16In stockCWSC472Buy now
96.00w/KO------QuoteQuote
120.00w/KOCWSC2120CWSC4120CWSC6120CWSC8120--$79.21In stockCWSC2120Buy now
12.00No KOCWSC212NKCWSC412NKCWSC612NKCWSC812NKCWSC1012NKCWSC1212NK$14.09In stockCWSC212NKBuy now
18.00No KO-CWSC418NKCWSC618NKCWSC818NK--$16.23In stockCWSC418NKBuy now
24.00No KOCWSC224NKCWSC424NKCWSC624NKCWSC824NKCWSC1024NKCWSC1224NK$18.56In stockCWSC224NKBuy now
36.00No KOCWSC236NKCWSC436NKCWSC636NKCWSC836NKCWSC1036NKCWSC1236NK$26.17In stockCWSC236NKBuy now
48.00No KOCWSC248NKCWSC448NKCWSC648NKCWSC848NKCWSC1048NKCWSC1248NK$33.78In stockCWSC248NKBuy now
60.00No KOCWSC260NKCWSC460NKCWSC660NKCWSC860NKCWSC1060NKCWSC1260NK$40.55In stockCWSC260NKBuy now
72.00No KO-CWSC472NKCWSC672NKCWSC872NKCWSC1072NKCWSC1272NK$57.16In stockCWSC472NKBuy now
96.00No KO----CWSC1096NKCWSC1296NK$314.15In stockCWSC1096NKBuy now
120.00No KOCWSC2120NKCWSC4120NKCWSC6120NKCWSC8120NKCWSC10120NKCWSC12120NK$79.21In stockCWSC2120NKBuy now

Hinge Cover - Straight Section

Units shown: inch . Switch units to: mm

LengthKnock Outs2.5 x 2.5 (Part No.)4 x 4 (Part No.)6 x 6 (Part No.)8 x 8 (Part No.)10 x 10 (Part No.)12 x 12 (Part No.)PriceOrder
12.00w/KOCWST212CWST412CWST612CWST812--$14.85In stockCWST212Buy now
18.00w/KO------QuoteQuote
24.00w/KOCWST224CWST424CWST624CWST824--$19.58BackorderCWST224Buy now
36.00w/KOCWST236CWST436CWST636CWST836--$27.78In stockCWST236Buy now
48.00w/KOCWST248CWST448CWST648CWST848--$35.92In stockCWST248Buy now
60.00w/KOCWST260CWST460CWST660CWST860--$43.19BackorderCWST260Buy now
72.00w/KOCWST272CWST472CWST672CWST872--$57.97BackorderCWST272Buy now
96.00w/KOCWST296CWST496CWST696CWST896--$77.08In stockCWST296Buy now
120.00w/KOCWST2120CWST4120CWST6120CWST8120--$88.98In stockCWST2120Buy now
12.00No KOCWST212NKCWST412NKCWST612NKCWST812NKCWST1012NKCWST1212NK$14.85In stockCWST212NKBuy now
18.00No KO-CWST418NKCWST618NKCWST818NK--$16.46In stockCWST418NKBuy now
24.00No KOCWST224NKCWST424NKCWST624NKCWST824NKCWST1024NKCWST1224NK$19.58In stockCWST224NKBuy now
36.00No KOCWST236NKCWST436NKCWST636NKCWST836NKCWST1036NKCWST1236NK$27.78In stockCWST236NKBuy now
48.00No KOCWST248NKCWST448NKCWST648NKCWST848NKCWST1048NKCWST1248NK$35.92In stockCWST248NKBuy now
60.00No KOCWST260NKCWST460NKCWST660NKCWST860NKCWST1060NKCWST1260NK$43.24In stockCWST260NKBuy now
72.00No KO-CWST472NKCWST672NKCWST872NKCWST1072NKCWST1272NK$64.24In stockCWST472NKBuy now
96.00No KO-CWST496NKCWST696NKCWST896NKCWST1096NKCWST1296NK$80.73In stockCWST496NKBuy now
120.00No KOCWST2120NKCWST4120NKCWST6120NKCWST8120NKCWST10120NKCWST12120NK$88.98In stockCWST2120NKBuy now

Hinge Cover - Straight Section

Accessories2.5 x 2.5 (Part No.)4 x 4 (Part No.)6 x 6 (Part No.)8 x 8 (Part No.)10 x 10 (Part No.)12 x 12 (Part No.)PriceOrder
Straight Section Barrier 60”CWBA260CWBA460CWBA660CWBA860--$26.96In stockCWBA260Buy now
Elbow 90 degreesCWEL290CWEL490CWEL690CWEL890CWEL1090CWEL1290$26.54In stockCWEL290Buy now
Elbow 45 degreesCWEL245CWEL445CWEL645CWEL845CWEL1045CWEL1245$25.73In stockCWEL245Buy now
Elbow 22.5 degreesCWEL222CWEL422CWEL622CWEL822--$28.45In stockCWEL222Buy now
Tee FittingCWTF2CWTF4CWTF6CWTF8CWTF10CWTF12$33.78In stockCWTF2Buy now
Cross FittingCWCF2CWCF4CWCF6CWCF8CWCF10CWCF12$38.48In stockCWCF2Buy now
Reducer 4 x 4 to 2.5 x 2.5-CWRD42----$17.85In stockBuy now
Reducer 6 x 6 to 4 x 4-CWRD64---$40.93In stockBuy now
Reducer 8 x 8 to 6 x 6---CWRD86--$49.97In stockBuy now
Reducer 10 x 10 to 8 x 8----CWRD108-$82.13In stockBuy now
Reducer 12 x 12 to 8 x 8-----CWRD128$89.51In stockBuy now
Reducer 12 x 12 to 10 x 10-----CWRD1210$75.44In stockBuy now
Corner Reducer 4 x 4 to 2.5 x 2.5-CWCRD42----$26.35In stockBuy now
Corner Reducer 6 x 6 to 4 x 4--CWCRD64---$51.00In stockBuy now
Corner Reducer 8 x 8 to 6 x 6---CWCRD86--$58.47In stockBuy now
Bracket Hanger Ceiling TypeCWHD2CWHD4CWHD6CWHD8CWHD10CWHD12$8.99In stockCWHD2Buy now
Bracket Hanger Wall TypeCWHW2CWHW4CWHW6CWHW8CWHW10CWHW12$6.68In stockCWHW2Buy now
Closing PlateCWCP2CWCP4CWCP6CWCP8CWCP10CWCP12$3.18In stockCWCP2Buy now
Closing Plate w/o KnockoutsCWCP2NKCWCP4NKCWCP6NKCWCP8NKCWCP10NKCWCP12NK$3.18In stockCWCP2NKBuy now
Adapter (Box Connector)CWAD2CWAD4CWAD6CWAD8CWAD10CWAD12$9.60In stockCWAD2Buy now
JoinerCWJO2CWJO4CWJO6CWJO8CWJO10CWJO12$3.50In stockCWJO2Buy now
Telescope FittingCWTL2CWTL4CWTL6CWTL8CWTL10CWTL12$40.84In stockCWTL2Buy now

Application

  • ■Construction designed to ensure electrical continuity and to permit fast and easy indoor installation of multiple wireway runs.

Standards

  • ■UL-870 Type 1
  • ■cUL Type 1
  • ■Complies with IEC 60529, IP20
  • ■IEC 60529, IP20

Construction - Screw Cover

  • ■Formed from 16 or 14 gauge steel
  • ■Flat covers have keyhole screw slots
  • ■Available with or without knockouts
  • ■Straight sections are provided with adequate concentric knockouts (1/2", 3/4" conduit size)
  • ■Unobstructed interior speeds up laying of cables
  • ■Optional hanger brackets allow for vertical or horizontal mounting
  • ■Joiners sold separately

Construction - Hinge Cover

  • ■Formed from 16 or 14 gauge steel
  • ■Hinge covers are hinged on 24" centers
  • ■Available with or without knockouts
  • ■Straight sections are provided with adequate concentric knockouts (1/2", 3/4" conduit size)
  • ■Knockouts are on 12" centers
  • ■Unobstructed interior speeds up laying of cables
  • ■Optional hanger brackets allow for vertical or horizontal mounting
  • ■Joiner is included with each straight section (NOTE: effective May 4, 2026 - joiners no longer included, please order separately as required)

Finish

  • ■Sections and components are finished in ANSI 61 gray. Couplings are unpainted galvanized

Documents

Specification Sheet
