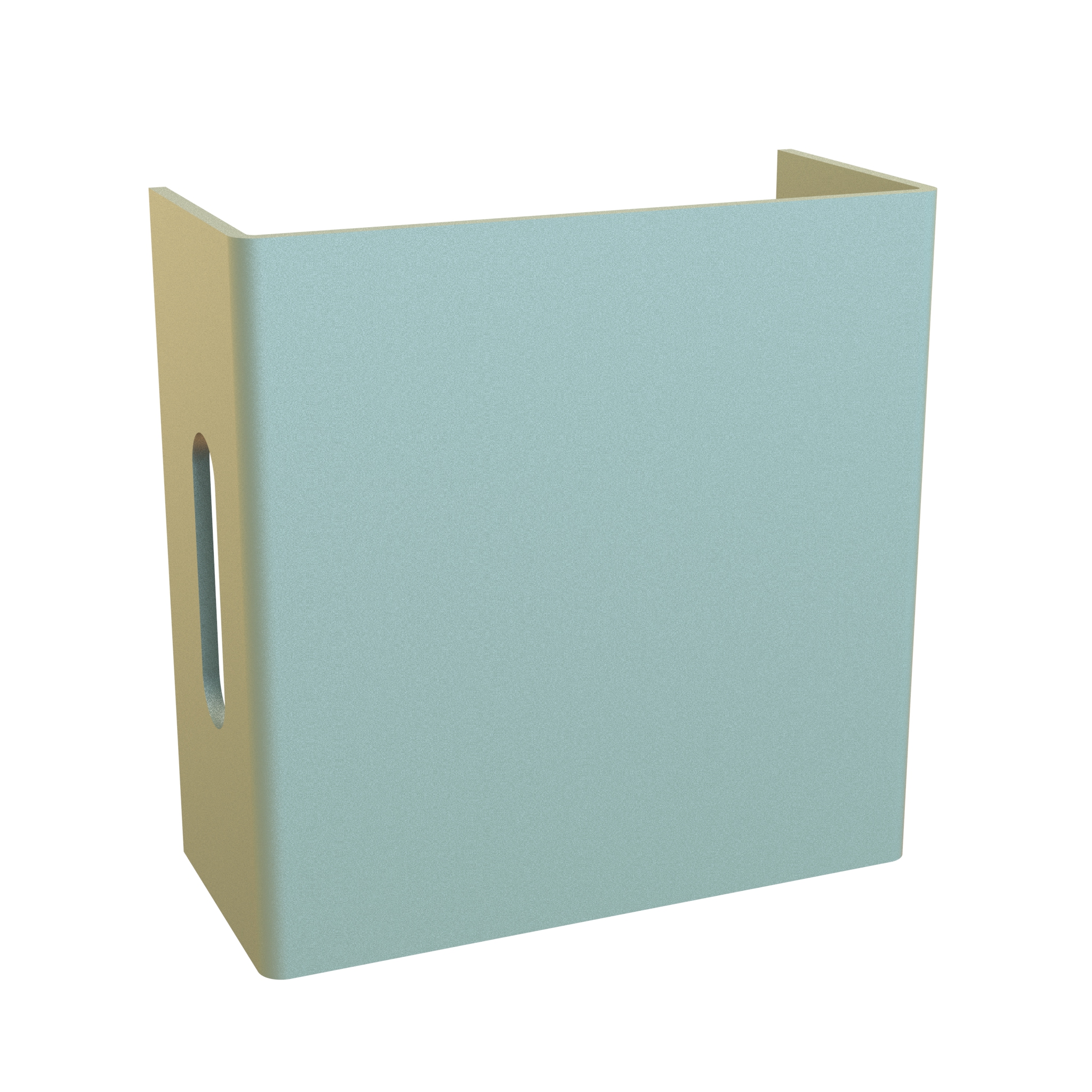

Hammond CWCP2NK 2.5 x 2.5 Painted Steel Closing Plate, No KO

The CWCP2NK is a painted steel closing plate without knockouts, made for use with 2.5 x 2.5 wireway. As part of the CWCPNK Series, it gives the end of a small wireway run a clean, solid closure where no conduit connection is required.

The manufacturer lists it as "CLOSURE PLATE NO KO 2.5X2.5" in the series' Painted Steel table. If an unpainted galvanized part is preferred for the same wireway size, the CWCP2GNK is the matching alternative.

The CWCP2NK measures 2.4 in x 2.4 in x 1.13 in (61 mm x 61 mm x 29 mm), with a 2.40 in (61 mm) height and width given in the ordering table. It is light at a shipping weight of 0.75 lbs (0.34 kg) and is packaged in a bag.

Compliance data shows UL File E186830, and the part is marked REACH compliant and RoHS compliant. Identifiers for ordering and inventory are UPC 623980331706 and UNSPSC 39131710.

Use the CWCP2NK to finish compact 2.5 x 2.5 wireway runs in control panels, machine wiring and plant installations where a blank painted end plate is the right fit.
