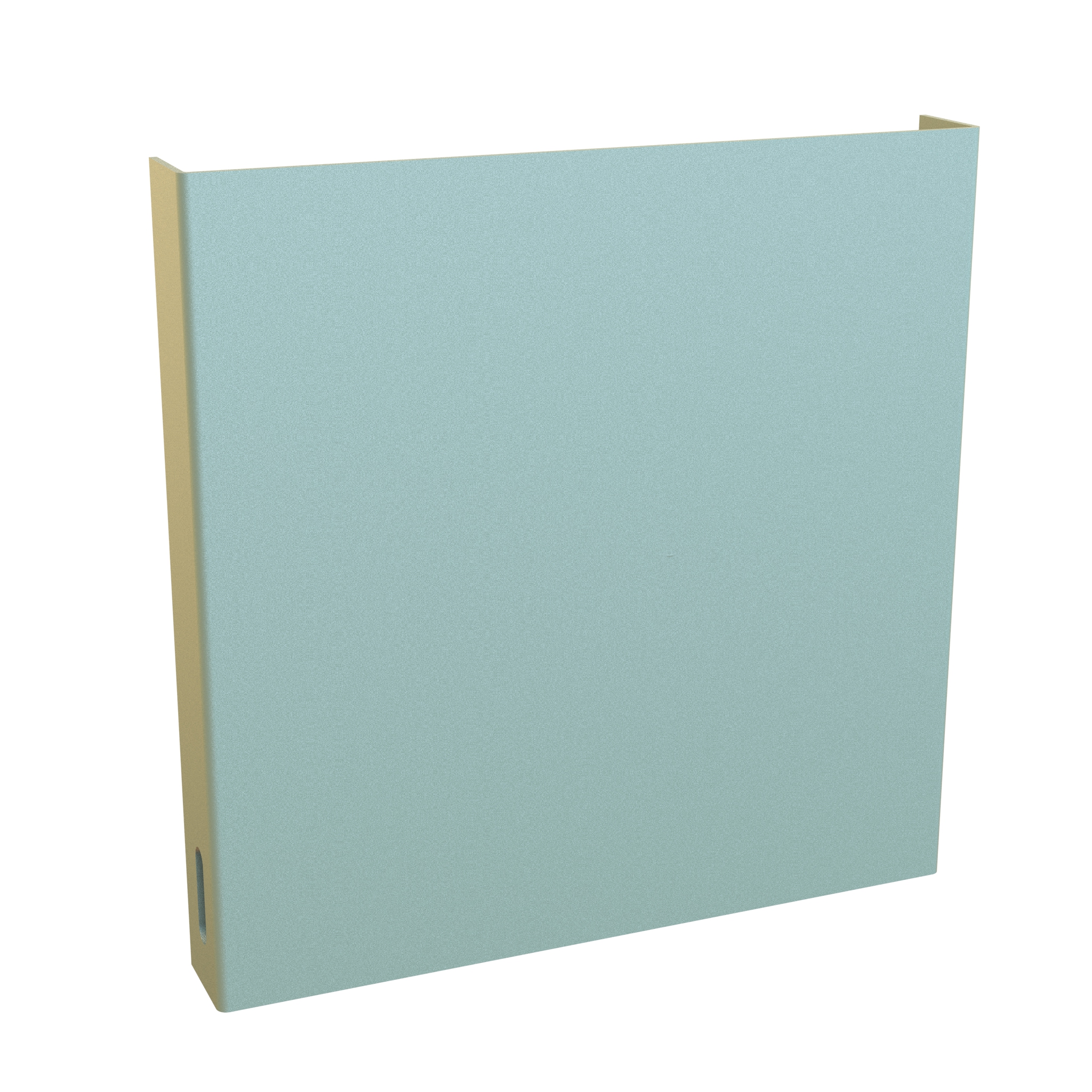

Hammond CWCP8NK 8 x 8 Painted Steel Closing Plate, No KO

The CWCP8NK is a painted steel closing plate with no knockouts for 8 x 8 wireway, in the CWCPNK Series. It caps the open end of an 8 x 8 wireway section with a blank plate, suited to runs that end without a conduit connection.

Its manufacturer short description is "CLOSURE PLATE NO KO 8X8", and it is listed in the Painted Steel table of the series. The unpainted galvanized alternative for 8 x 8 wireway is the CWCP8GNK.

The plate measures 7.9 in x 7.9 in x 1.13 in (201 mm x 201 mm x 29 mm), with the ordering table showing a 7.90 in (201 mm) height and width. Shipping weight is 2 lbs (0.91 kg), and it is packaged in a bag.

For compliance documentation, the CWCP8NK is covered under UL File E186830 and is marked REACH compliant and RoHS compliant. Identifiers are UPC 623980331737 and UNSPSC 39131710.

The CWCP8NK suits machine builders and plant electricians who need a painted, opening-free end closure on 8 x 8 wireway. It is one of the components that complete a wireway system of sections, elbows and tee fittings.
