Hammond 1487D60 6x6 x 60 in Straight Wireway Section, N12 Steel

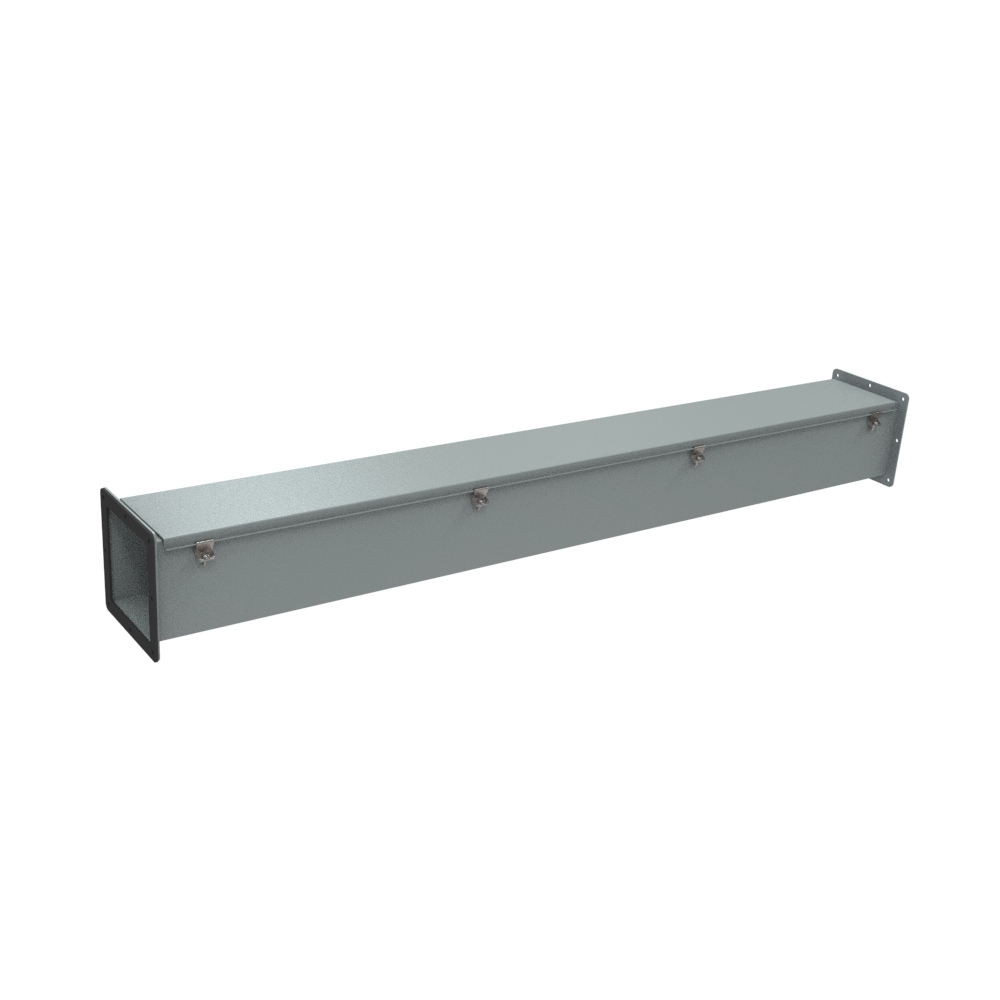

The 1487D60 is a 60 in straight section of 6 x 6 NEMA 12 (N12) wireway in gray-finished steel. Straight sections form the main runs of a Hammond 1487 wireway system, protecting and routing conductors for machine building and general plant wiring. At 60 in it spans five feet in one piece, the second-longest length in the series after the 120 in section.

The part page lists a size of 6 in x 6 in x 60 in (152 mm x 152 mm x 1,524 mm). The manufacturer drawing gives an inside dimension of 5.86 in square and an overall length of 60.00 in. Access is through a door 58.47 in long with 57.44 in of clear space available on the door; the door is 6.59 in wide over a 4.75 in door opening. The end opening measures 59.75 in and the end flanges are dimensioned at 7.63 in.

The section references UL File E186830 and CSA Certificate LL21312 and is listed as REACH and RoHS compliant. It ships in a box with a shipping weight of 40 lbs (18.14 kg). For ordering, the 1487D60 carries UPC 623980464909 and UNSPSC 39121301. The same length is available in the 2.5 x 2.5, 4 x 4 and 8 x 8 sections of the 1487 S Series.
