Hammond 1487ES 8x8 Wireway Flange Gasket Kit with Screws
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Gasket and screws for 8 x 8 pull through wireway joints
- Black 465 solid neoprene gasket
- 9.63 in square outside, 7.94 in square opening
- 0.13 in thick with eight 0.28 in holes
- Solid oil resistant gasket for bolted flanges
- 1 lb (0.45 kg) shipping weight

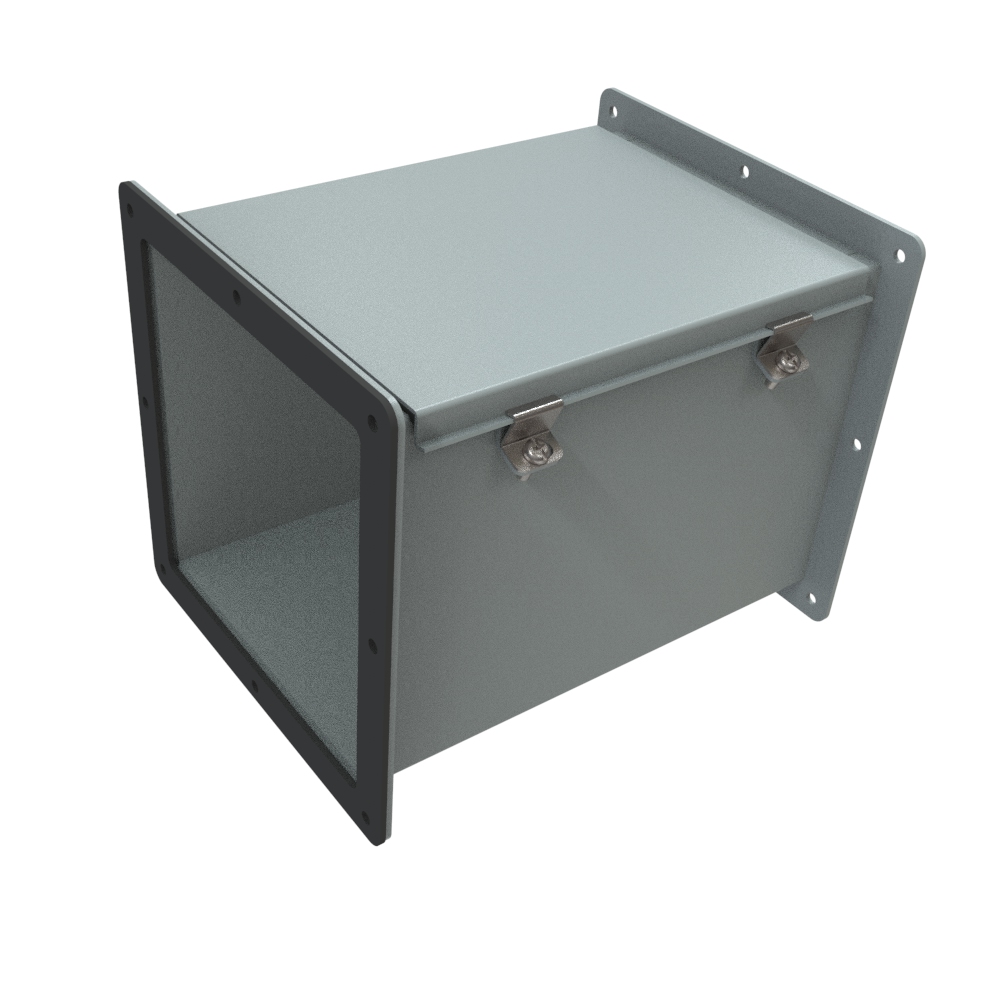

The 1487ES is the gasket and screws kit for the largest wireway size in the 1487 Series ordering table, 8 x 8. In this Type 12 pull through wireway system, solid oil resistant gaskets are used between flanges when sections and fittings are bolted together.
It is made of 465 solid neoprene, black. The drawing shows a 9.63 in square gasket with a 7.94 in square inside opening, 0.13 in thick, and eight 0.28 in bolt holes. The part page lists its size as 9.63 in x 9.63 in x 1 in (245 mm x 245 mm x 25 mm).
Since each straight section or fitting comes with one gasket kit complete with hardware, the 1487ES is for extra joints, spares on site, or resealing an 8 x 8 joint that has been taken apart.
The 1487 Series ordering table marks the Gasket & Screws parts with footnote ¹, "Does not meet CSA or UL requirements"; the part page also lists UL File E186830 and CSA Cert. LL21312. The part is REACH and RoHS compliant, carries UNSPSC 39131710, and ships at 1 lb (0.45 kg).
Ideal For
- Sealing 8 x 8 wireway flange joints
- Spare gasket kits for 8 x 8 runs
- Resealing disassembled wireway joints
Overview
| Series | 1487 Series Type 12 Pull Through Wireway accessories |
| Product Type | Gasket & Screws (wireway flange gasket kit) |
| Long Description | Gasket and screws |
| Fits Wireway Size | 8 x 8 |
| Short Description | GASKET AND SCREWS |
Dimensions
| Bolt Holes | 8 x Ø0.28 in |
| Size (H X W X D) | 9.63 in x 9.63 in x 1 in (245 mm x 245 mm x 25 mm) |
| Gasket Thickness (Drawing) | 0.13 in |
| Gasket Outside Size (Drawing) | 9.63 in x 9.63 in |
| Gasket Inside Opening (Drawing) | 7.94 in x 7.94 in |
Identifiers
| UPC | 623980453576 |
| UNSPSC | 39131710 |
| Part Number | 1487ES |
Packaging & Shipping
| Shipping Weight | 1 lbs (0.45 kg) |
Construction & Finish
| Hardware | Screws included (hardware not shown on drawing) |
| Gasket Type | Solid oil resistant gasket used between flanges when sections and fittings are bolted together |
| Gasket Material | 465 Solid Neoprene, Black |
Compliance & Certifications
| UL File # | E186830 |
| CSA Cert. # | LL21312 |
| UL / CSA Note | ¹ Does not meet CSA or UL requirements (series ordering table) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What wireway size is the 1487ES for?▾
8 x 8 wireway in the 1487 Series.
What is it made from?▾
465 solid neoprene, black.
What are the gasket dimensions?▾
9.63 in square outside, 7.94 in square opening, 0.13 in thick, with eight 0.28 in holes, per the drawing.
Is a gasket kit already supplied with sections?▾
Yes, one gasket kit complete with hardware is provided with each straight section or fitting.
Does it carry UL or CSA ratings?▾
The series ordering table footnote ¹ says it does not meet CSA or UL requirements.
