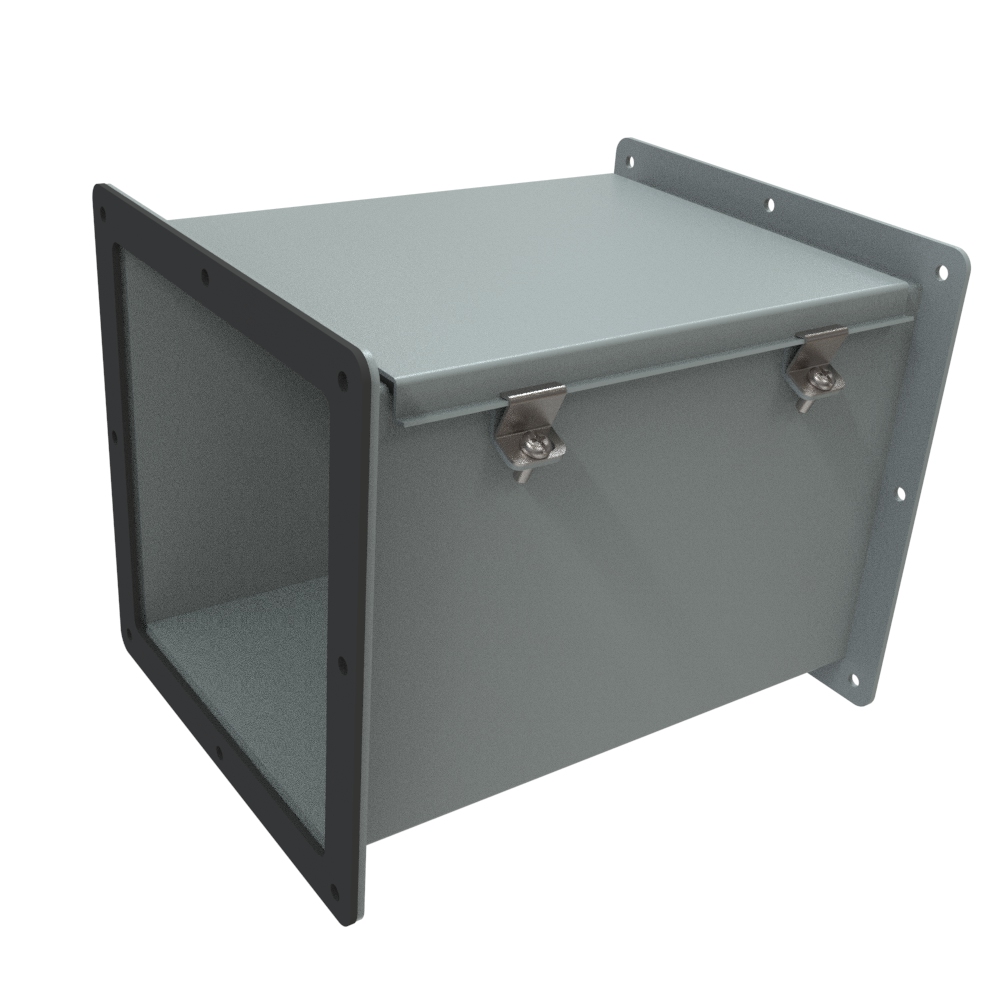

Hammond 1487E12 8x8 x 12 in Straight Wireway Section, N12 Steel

The 1487E12 is a 12 in straight section of 8 x 8 NEMA 12 (N12) wireway in gray-finished steel. Straight sections form the main runs of a Hammond 1487 wireway system, protecting and routing conductors for machine building and general plant wiring. It is the shortest of the six lengths the series offers (12, 24, 36, 48, 60 and 120 in), for short spans in a run.

The part page lists a size of 8 in x 8 in x 12 in (203 mm x 203 mm x 305 mm). The manufacturer drawing gives an inside dimension of 7.86 in square and an overall length of 12.00 in. Access is through a door 10.47 in long with 9.44 in of clear space available on the door; the door is 8.59 in wide over a 6.75 in door opening. The end opening measures 11.75 in and the end flanges are dimensioned at 9.63 in.

The section references UL File E186830 and CSA Certificate LL21312 and is listed as REACH and RoHS compliant. It ships in a box with a shipping weight of 13 lbs (5.90 kg). For ordering, the 1487E12 carries UPC 623980453385 and UNSPSC 39121301. The same length is available in the 2.5 x 2.5, 4 x 4 and 6 x 6 sections of the 1487 S Series.
