Hammond 1485CL1 4x4 N12 Wireway Drop Hanger Support
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Drop hanger for 4 x 4 NEMA 12 (N12) wireway
- For overhead / ceiling wireway support
- 11.75 in (298 mm) H x 6.00 in (152 mm) W
- UL File # E186830 and CSA Cert. # LL21312
- Steel construction, gray finish
- REACH and RoHS compliant; 1 lbs (0.45 kg)
The 1485CL1 is a drop hanger that supports 4 x 4 NEMA 12 (N12) wireway. The 1485L1 series is tagged for overhead, ceiling and support applications, so the 1485CL1 is used to hang 4 x 4 wireway runs from overhead structure on plant floors and around machinery.
It is steel in gray, described by the manufacturer as "N12 Wireway, Drop Hanger - Fits 4 x 4 - Steel/Gray". The part carries UL File # E186830 and CSA Cert. # LL21312 and is listed as REACH compliant and RoHS compliant.
Dimensions are 11.75 in (298 mm) high by 6.00 in (152 mm) wide. The drawing shows 0.13 in material thickness, 0.31 in diameter holes at 4.63 in spacing, R 0.38 in corners, side view dimensions of 8.00 in, 2.50 in and 1.25 in, and 4.75 in in the back view.
The 1485CL1 ships in a bag at 1 lbs (0.45 kg) and is identified by UPC 623980451701 and UNSPSC 39131710. Hangers for 2.5 x 2.5, 6 x 6 and 8 x 8 wireway complete the series.
Plan a 1485CL1 at each support point along an overhead 4 x 4 wireway run.
Ideal For
- Overhead support of 4 x 4 wireway runs
- Suspending wireway from ceilings
- Plant and machine area wiring
Overview
| Series | 1485L1 Series - Drop Hanger |
| Description | N12 Wireway, Drop Hanger - Fits 4 x 4 - Steel/Gray |
| Part Number | 1485CL1 |
| For Use With | 4 x 4 |
| Short Description | DROP HANGER |
Dimensions
| Width (W) | 6.00 in (152 mm) |
| Height (H) | 11.75 in (298 mm) |
| Hole Spacing | 4.63 in |
| Corner Radius | R 0.38 in (typ.) |
| Hole Diameter | 0.31 in (typ.) |
| Back View Dimension | 4.75 in |
| Side View Dimensions | 8.00 in; 2.50 in; 1.25 in |
| Front View Dimensions | 5.19 in; 4.63 in |
| Material Thickness (Drawing) | 0.13 in |
Identifiers
| UPC | 623980451701 |
| UNSPSC | 39131710 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 1 lbs (0.45 kg) |
Construction & Finish
| Color | Gray |
| Material | Steel |
Environmental & Protection
| Enclosure Type | NEMA 12 (N12) wireway |
Compliance & Certifications
| UL File # | E186830 |
| CSA Cert. # | LL21312 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What wireway is the 1485CL1 for?▾
4 x 4 N12 wireway.
How big is the 1485CL1?▾
11.75 in (298 mm) high by 6.00 in (152 mm) wide.
What certifications does it carry?▾
UL File # E186830 and CSA Cert. # LL21312; it is also REACH and RoHS compliant.
What hole size is used?▾
The drawing shows 0.31 in diameter holes.
How is it packaged?▾
In a bag, at a shipping weight of 1 lbs (0.45 kg).
Related Products
Save 42%1485CFF — N12 Wireway, Flexible Fitting - Fits 4 x 4 - Steel/Gray
Hammond Manufacturing · 1485CFF

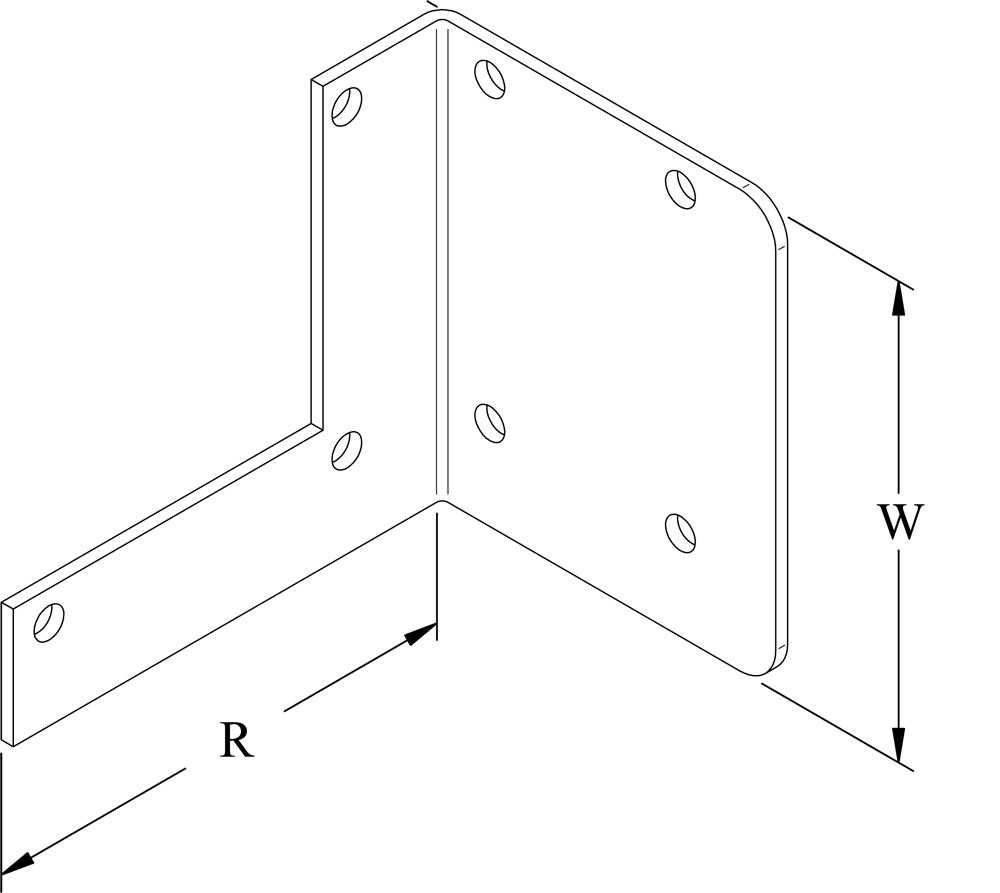

Save 42%1485CL2 — N12 Wireway, Bracket Hanger - Fits 4 x 4 - Steel/Gray
