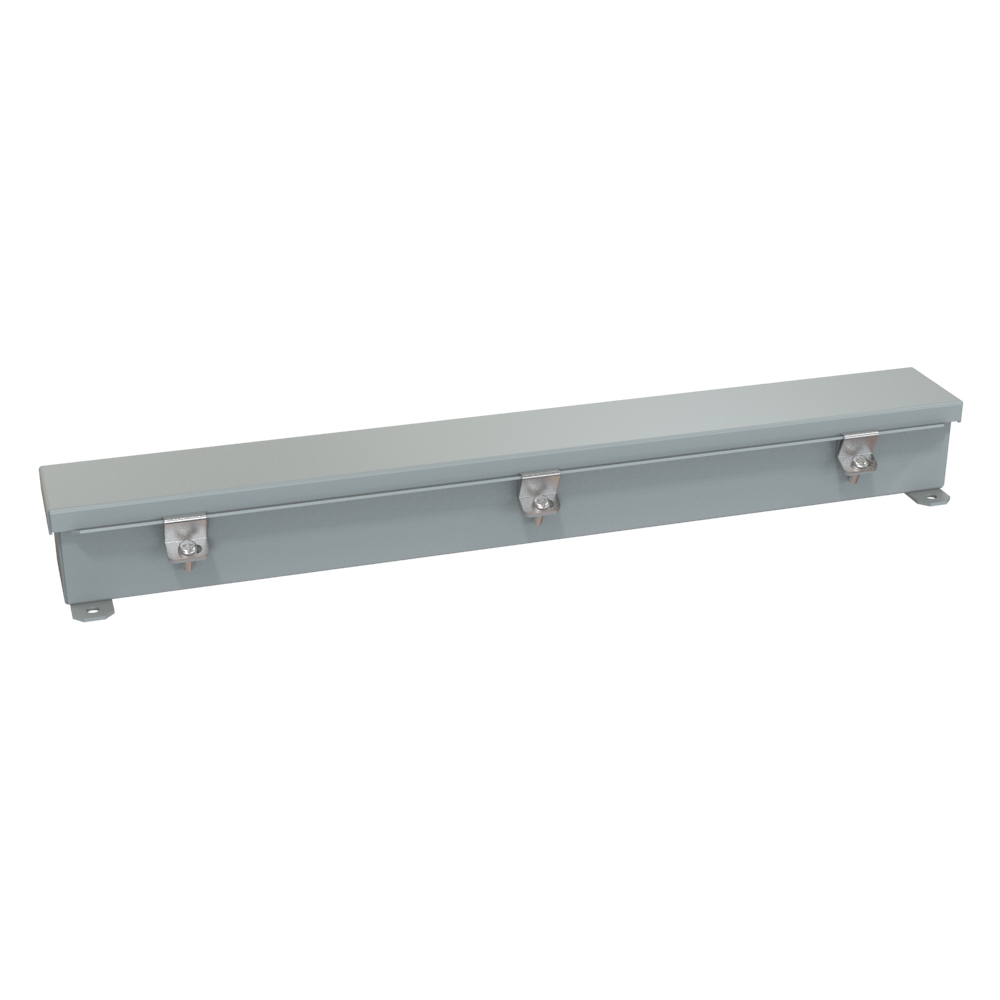

Hammond 1486B24 2.5 x 2.5 x 24 in Type 4/12 Wiring Trough

The 1486B24 is a 24 in (610 mm) wiring trough in the 1486 Series, sized at 2.50 in x 2.50 in. It encloses and protects multiple wiring junctions from dirt, dust, oil and water, and is a common length for bridging adjacent enclosures on machines and in industrial control panels.

Formed from 14 gauge steel with smooth continuously welded seams, the trough uses a butt hinged cover secured with easily operated stainless steel screw clamps. Oil resistant gaskets are permanently secured, and 12 gauge external mounting feet are welded to the back. The trough and cover carry ANSI 61 gray powder coating.

• H x D x L: 2.50 in (64 mm) x 2.50 in (64 mm) x 24.00 in (610 mm)
• Opening (drawing): 23.21 in x 1.71 in
• Door (drawing): 24.38 in x 2.88 in
• Mounting hole spacing (drawing): 22.75 in, holes 0.31 in diameter

Series ratings are UL 870 Type 1, 12, 4 and CSA Type 1, 12, 4, and complies with NEMA Type 12, 4 and IEC 60529 IP66. The 1486B24 is listed under UL File E186830 and CSA Cert. LL21312 and is RoHS and REACH compliant. It ships in a box weighing 6 lbs (2.72 kg).
