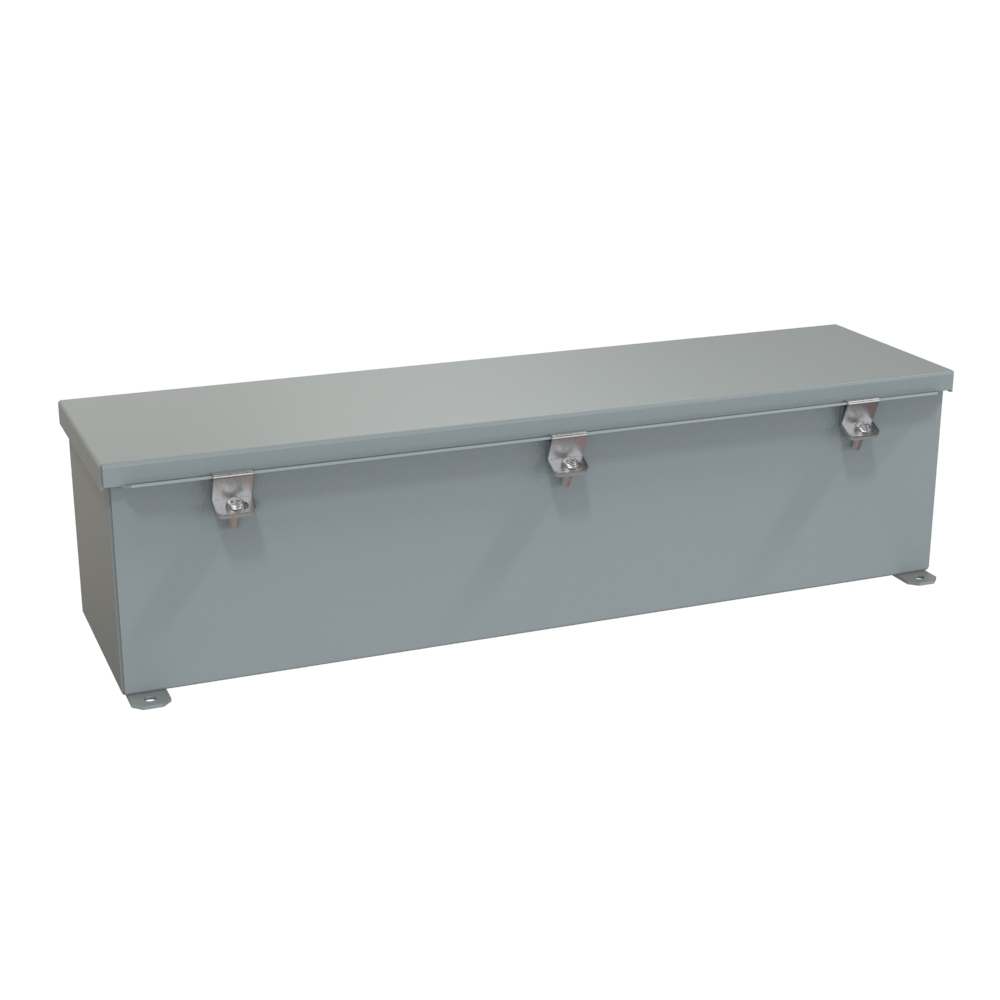

Hammond 1486D24 6x6x24-Inch Type 4/12 Hinged Wiring Trough
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 24.00 in (610 mm) length with 6.00 x 6.00 in cross-section
- Complies with NEMA Type 12, 4 and IEC 60529 IP66
- UL 870 and CSA Type 1, 12, 4 listed
- Gasketed butt hinged cover with stainless steel screw clamps
- 14 gauge steel, smooth continuously welded seams, ANSI 61 gray
- Welded 12 gauge mounting feet, holes on 22.75 x 6.69 in centers
The 1486D24 is a two-foot, 24.00 in (610 mm) section of 1486 Series Type 4/12 wiring trough with a 6.00 in (152 mm) square profile. It is intended for OEM machine builders, electricians and facilities teams who need to enclose and protect multiple wiring junctions from dirt, dust, oil and water.
The body is formed from 14 gauge steel, and every seam is smooth and continuously welded. Access is through a butt hinged cover fastened by easily operated stainless steel screw clamps; a gasket, permanently secured and oil resistant, runs around the opening. The trough and cover carry an ANSI 61 gray powder coat.
Drawing dimensions for this part include a 23.21 in top opening, a 5.21 in side opening and a 24.38 in by 6.38 in door. The door provides 23.25 in x 5.25 in of clear space. Shipping weight is 16 lbs (7.26 kg), packed in a box.
For mounting, 12 gauge external feet are welded to the back. The 0.31 in holes are spaced 22.75 in along the length and 6.69 in across, and the feet bring the overall width to 7.50 in.
The 1486D24 is listed to UL 870 Type 1, 12, 4 (File E186830) and CSA Type 1, 12, 4 (Cert. LL21312), complies with NEMA Type 12, 4 and IEC 60529 IP66, and is RoHS and REACH compliant.
Ideal For
- Enclosing multiple wiring junctions
- Machine building wiring
- General plant wiring runs
- Protection from dirt, dust, oil and water
Mounting
| Mounting Method | 12 gauge external mounting feet welded to the back |
| Mounting Hole Diameter | 0.31 in (typ.) |
| Mounting Hole Spacing, Across | 6.69 in |
| Mounting Hole Spacing, Lengthwise | 22.75 in |
Overview
| Series | 1486 Series, Type 4/12 Wiring Trough |
| Application | Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water |
| Description | NEMA4/12 WRG TROUGH24L |
| Part Number | 1486D24 |
| Long Description | N4/12 Wiring Trough - 6 x 6 x 24 - Steel/Gray |
Dimensions
| Door Width | 6.38 in |
| Door Length | 24.38 in |
| Side Opening | 5.21 in |
| Top Opening Length | 23.21 in |
| Enclosure Depth (D) | 6.00 in (152 mm) |
| Enclosure Height (H) | 6.00 in (152 mm) |
| Enclosure Length (L) | 24.00 in (610 mm) |
| Clear Space Available On Door | 23.25 in x 5.25 in |
| Side Profile Dimension (Drawing) | 6.17 in |
| Overall Width Across Mounting Feet (Drawing) | 7.50 in |
Identifiers
| UPC | 623980458007 |
| UNSPSC | 39131710 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 16 lbs (7.26 kg) |
Construction & Finish
| Cover | Butt hinged cover secured with easily operated stainless steel screw clamps |
| Seams | Smooth continuously welded seams |
| Colour | Steel/Gray |
| Finish | ANSI 61 gray powder coating (troughs and covers) |
| Gaskets | Oil resistant gaskets, permanently secured |
| Material | Formed 14 gauge steel |
Compliance & Certifications
| UL File # | E186830 |
| CSA Rating | CSA Type 1, 12, 4 |
| IEC Rating | Complies with IEC 60529, IP66 |
| CSA Cert. # | LL21312 |
| NEMA Rating | Complies with NEMA Type 12, 4 |
| UL Standard | UL 870 Type 1, 12, 4 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How long is the 1486D24?▾
The enclosure length is 24.00 in (610 mm); height and depth are both 6.00 in (152 mm). The door is 24.38 in long.
What is the mounting hole pattern?▾
The welded 12 gauge feet have 0.31 in holes spaced 22.75 in lengthwise and 6.69 in across.
What material and finish is used?▾
Formed 14 gauge steel with smooth continuously welded seams, finished in ANSI 61 gray powder coating.
Does it have a gasket?▾
Yes. Oil resistant gaskets are permanently secured, and the cover is closed with stainless steel screw clamps.
What is the shipping weight?▾
16 lbs (7.26 kg), shipped in a box.
