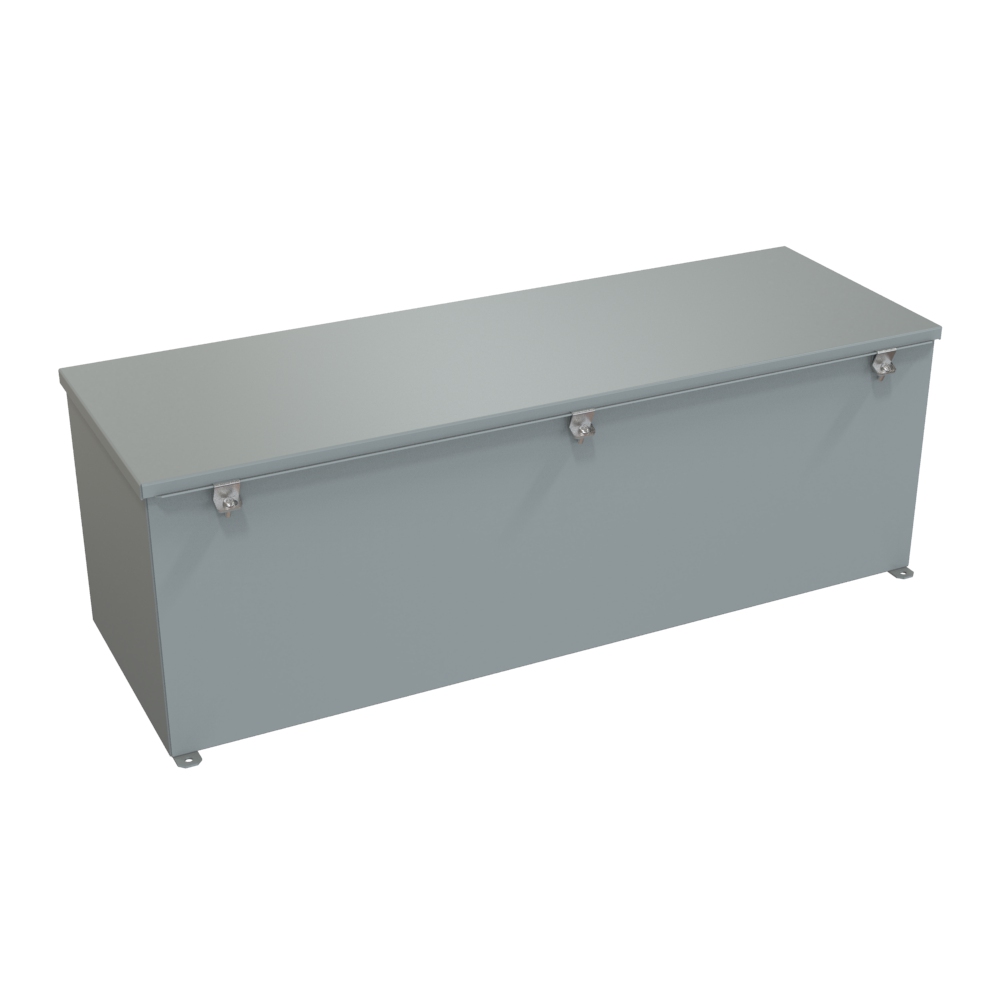

Hammond 1486G36 12x12x36-Inch Type 4/12 Steel Wiring Trough

Measuring 12 in x 12 in x 36 in (305 mm x 305 mm x 914 mm), the 1486G36 is a three-foot, large cross-section Type 4/12 wiring trough. It is designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water, for machine builders, electricians and plant engineering teams.

Construction is formed 14 gauge steel with smooth continuously welded seams, finished in ANSI 61 gray powder coating on trough and cover. The butt hinged cover is secured with easily operated stainless steel screw clamps, and oil resistant gaskets are permanently secured.

• Top opening: 34.73 in; side opening: 11.25 in
• Door: 36.38 in long, 11.25 in
• Clear space available on door: 34.73 in x 10.73 in
• Mounting holes: 0.31 in, spaced 34.75 in x 12.75 in

The trough mounts via 12 gauge external feet welded to the back; overall width across the feet is 13.50 in. The 1486G36 has a listed shipping weight of 41 lbs (18.60 kg).

It is UL 870 Type 1, 12, 4 listed (UL File E186830) and CSA Type 1, 12, 4 certified (Cert. LL21312), complies with NEMA Type 12, 4 and IEC 60529 IP66, and is RoHS and REACH compliant.
