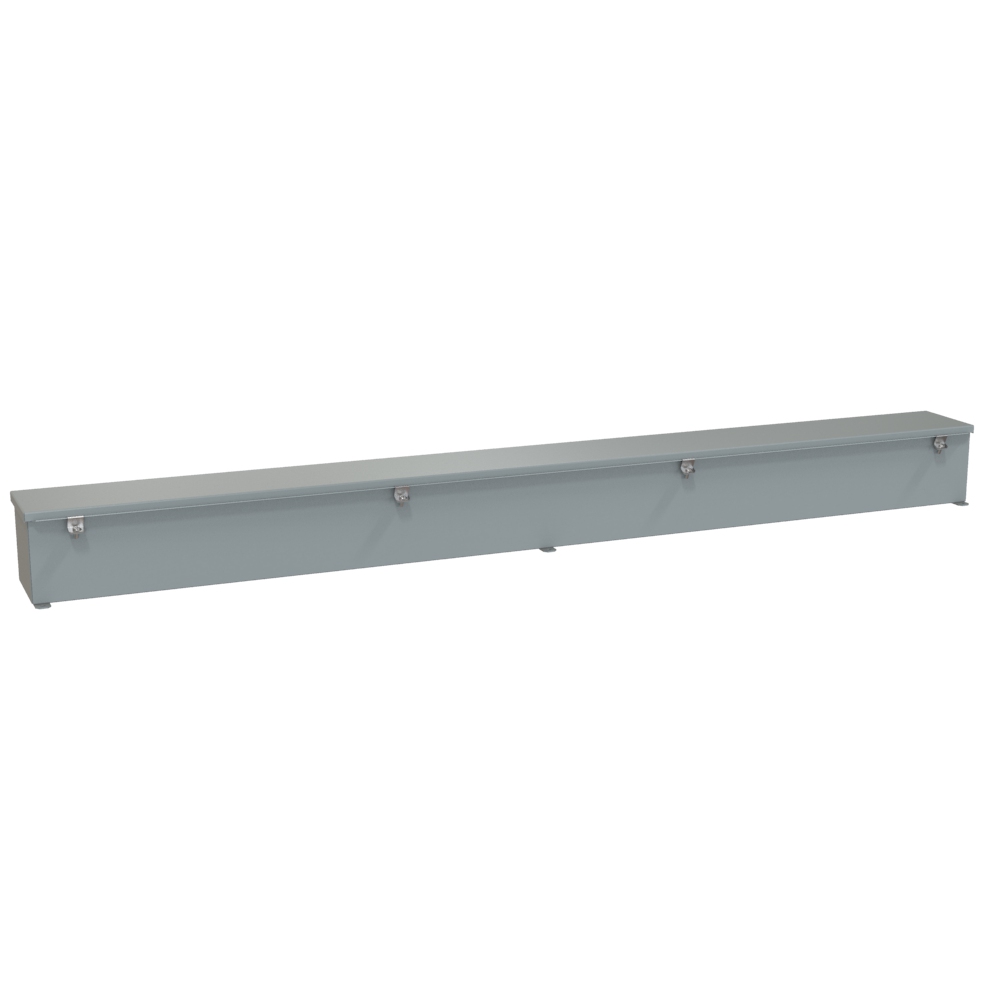

Hammond 1486D72 72-Inch 6x6 Type 4/12 Wiring Trough, Gray

The 1486D72 is the six-foot, 72.00 in (1829 mm) section of the 6 x 6 in 1486 Series Type 4/12 wiring trough. It is aimed at long wiring runs where multiple junctions need to be enclosed and protected from dirt, dust, oil and water, typical of machine building and plant wiring work.

Construction follows the series specification: formed 14 gauge steel, smooth continuously welded seams, and an ANSI 61 gray powder coating on both trough and cover. The butt hinged cover is secured with easily operated stainless steel screw clamps, and oil resistant gaskets are permanently secured.

• Overall length on drawing: 71.99 in
• Top opening: 71.41 in; side opening: 5.19 in
• Door: 72.38 in x 6.38 in
• Clear space available on door: 70.73 in x 4.73 in
• 0.31 in mounting holes in two 35.37 in spans, 6.69 in across

The trough mounts on 12 gauge external feet welded to the back, 7.50 in wide overall. It ships in a box with a shipping weight of 43 lbs (19.50 kg).

The 1486D72 is UL 870 Type 1, 12, 4 listed (File E186830), CSA Type 1, 12, 4 certified (LL21312), complies with NEMA Type 12, 4 and IEC 60529 IP66, and is RoHS and REACH compliant.
